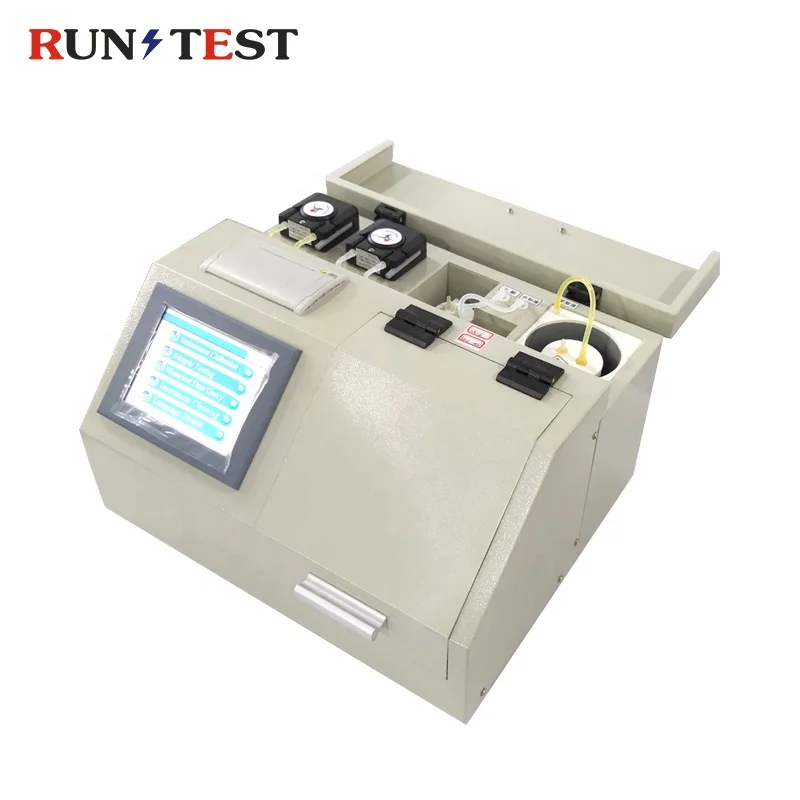

Transformer Oil Acidity Measuring Machine Automatic Acid Value Test Instrument
- Category: >>>
- Supplier: Run Test Electric Manufacturing Co. Ltd
Share on (1600412159583):
Product Overview
Description
Product Paramenters
Acid Value Measurement range | 0.002～1mg KOH/g |
Indication Repeatability | 0.002mgKOH/g |
Best Resolution | 0.001 mg KOH/g |
Accuracy | Acid Value: 0.001~0.100 mgKOH/g, accuracy: ± 0.003 mgKOH/g Acid Value: 0. 100~0.400 mgKOH/g, accuracy: indication value 5% |
Power voltage | AC220V±10%, 50Hz±5Hz |
Power | 50 W |
Operating Temperature | 10~40° C |
Relative Humidity | ≤85% RH |

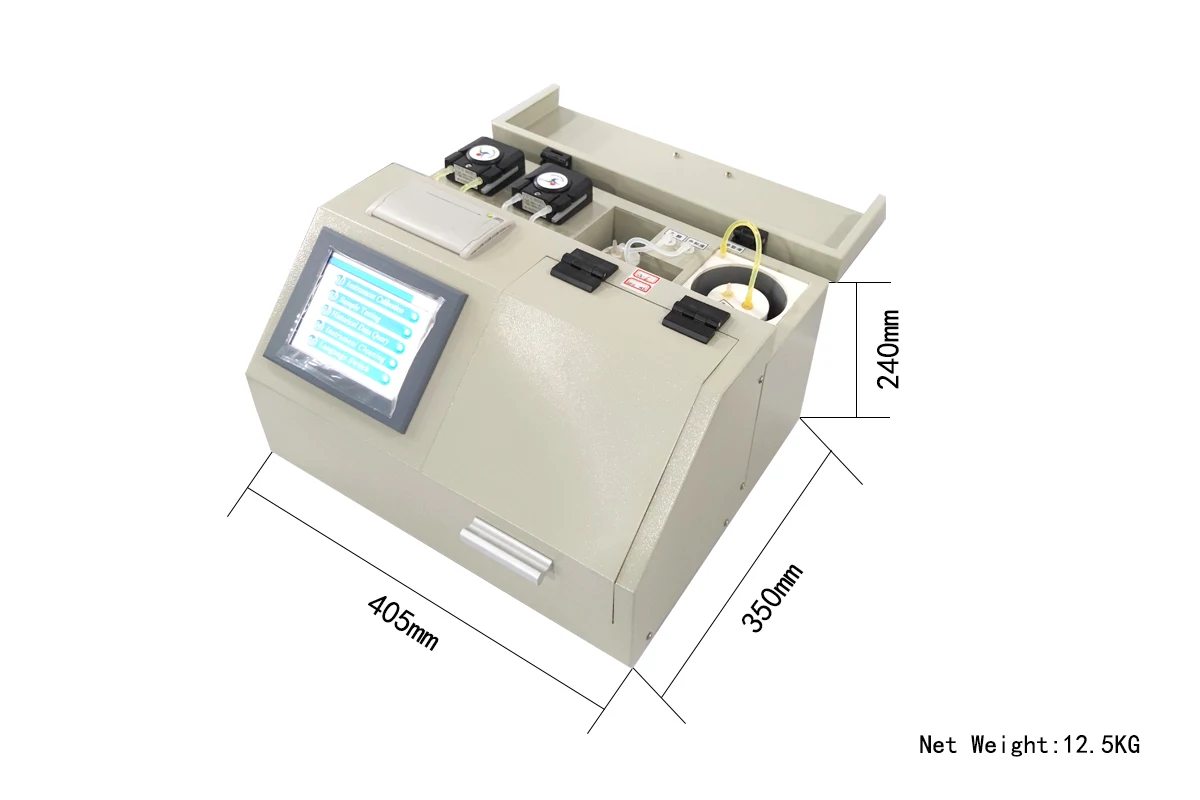

Weight | 12.5kg |
Products Description

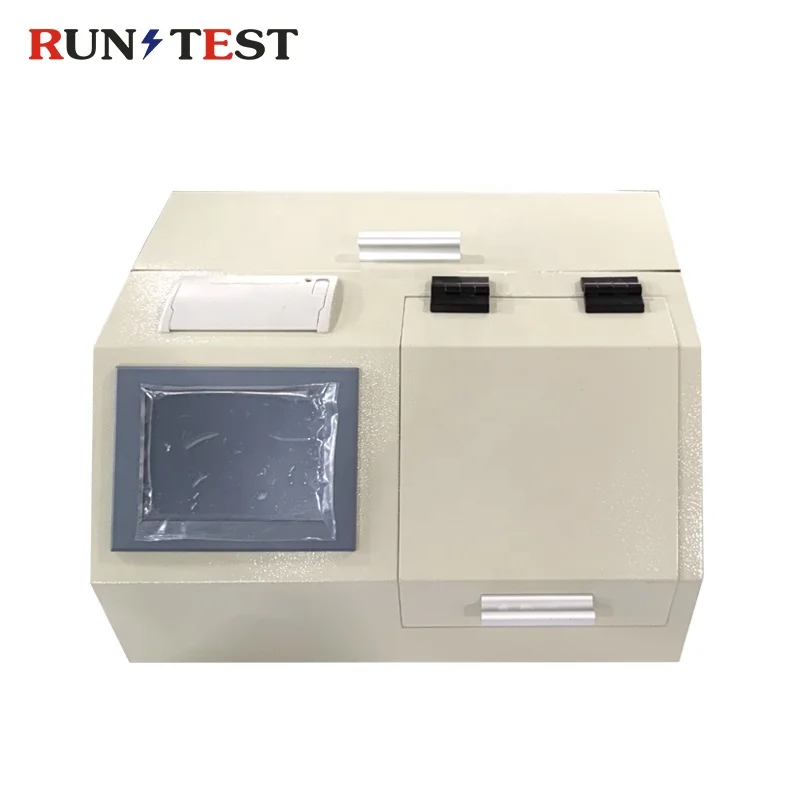

Transformer Oil Acidity Measuring Machine Automatic Acid Value Test Instrument
ASTM D974 Fully Automatic transformer Oil Acid Value Tester
Measure oil acid value of transformer and turbine.Automatic acid number determinator,is using extraction method,accurate detection of insulation oleic acid value fully automatic the measuring instrument.The instrument in improving the efficiency and test accuracy meanwhile,reduce operator contact sample and reagent,the maximum guarantee its safety.
Determination,just put the samples into the sample cup,put the sample cup into the sample cup hole, the instrument will automatically search sample,extract injection and blank titration,determination, discharge waste liquor, automatic cleaning shutdown,the print results and so on operations.The equipment startup can be measured in 1-3 samples,convenient operation, high efficiency.
Determination,just put the samples into the sample cup,put the sample cup into the sample cup hole, the instrument will automatically search sample,extract injection and blank titration,determination, discharge waste liquor, automatic cleaning shutdown,the print results and so on operations.The equipment startup can be measured in 1-3 samples,convenient operation, high efficiency.
Feature

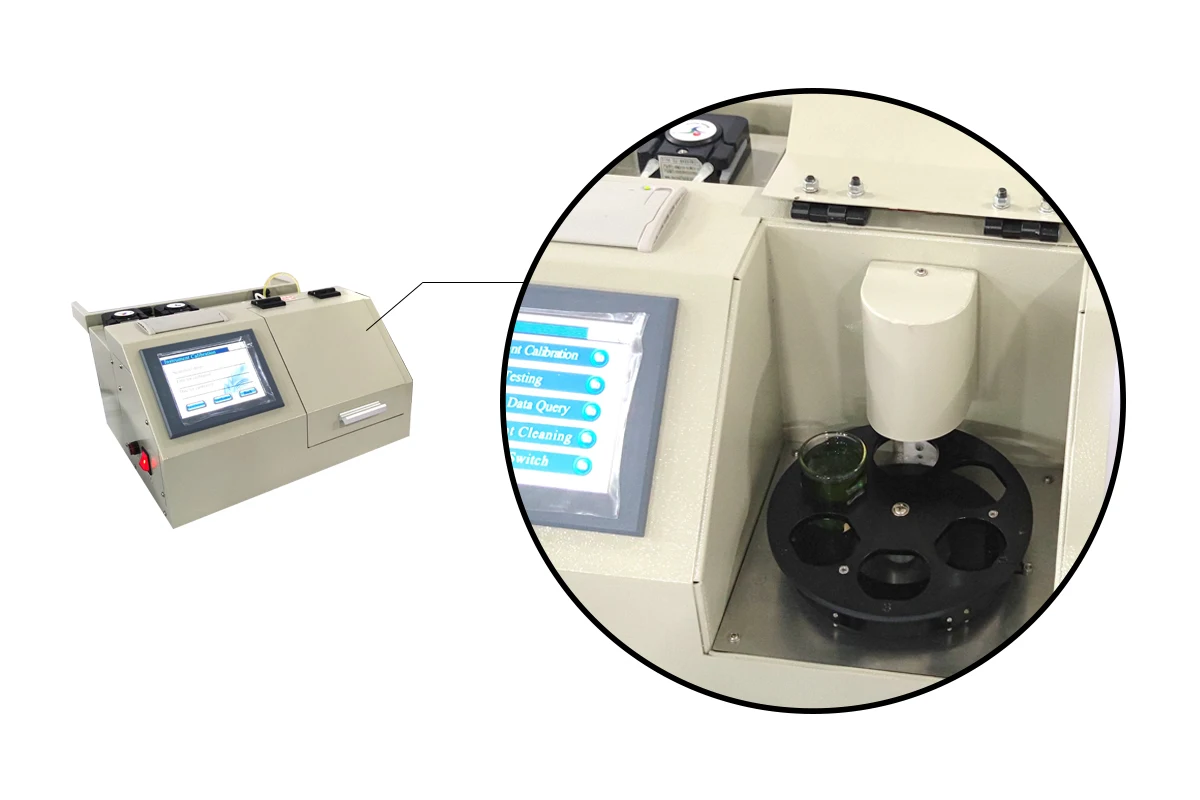

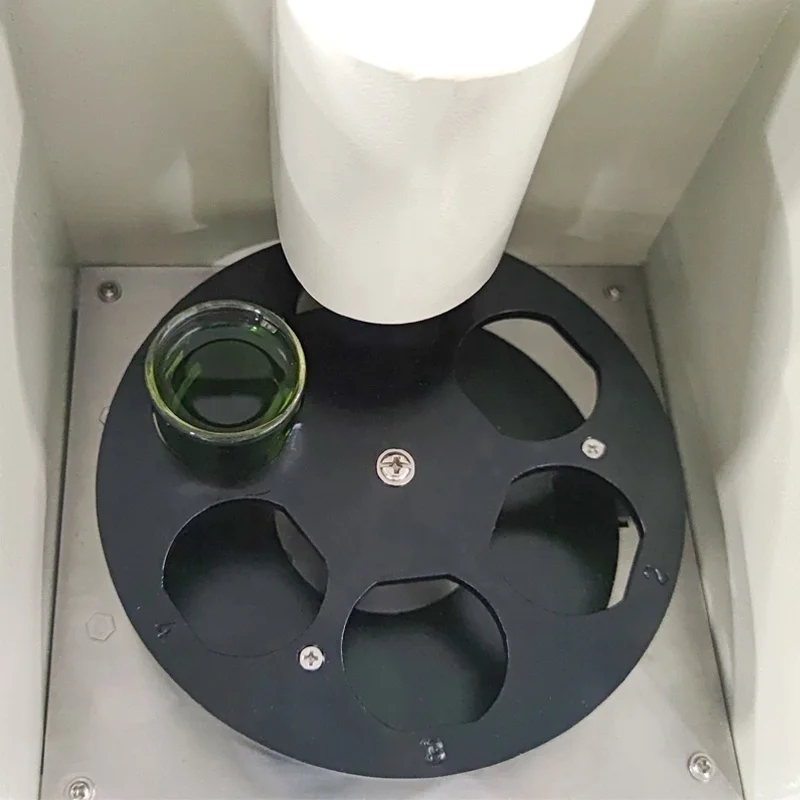

1. Six-cup integrated design.
2. Automatically complete operations such as extraction agent addition, neutralization titration and end point discrimination, acid value calculation, data storage and print output.

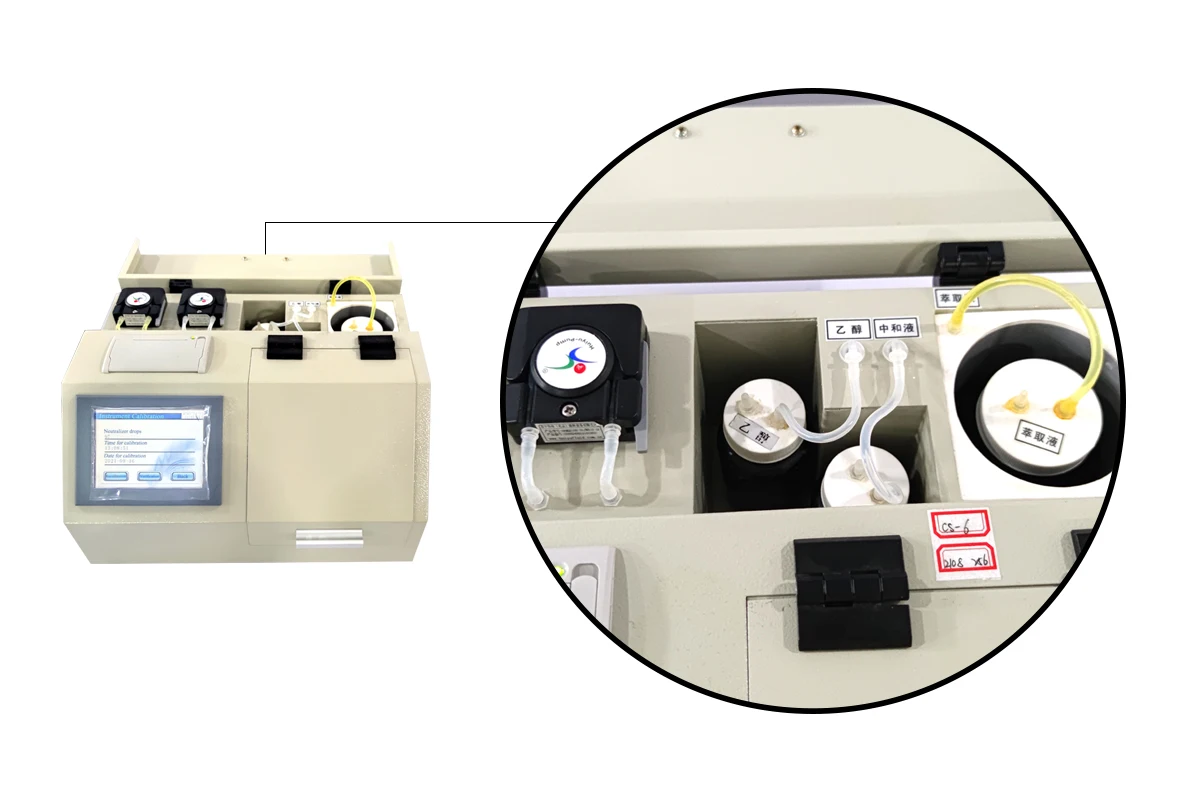

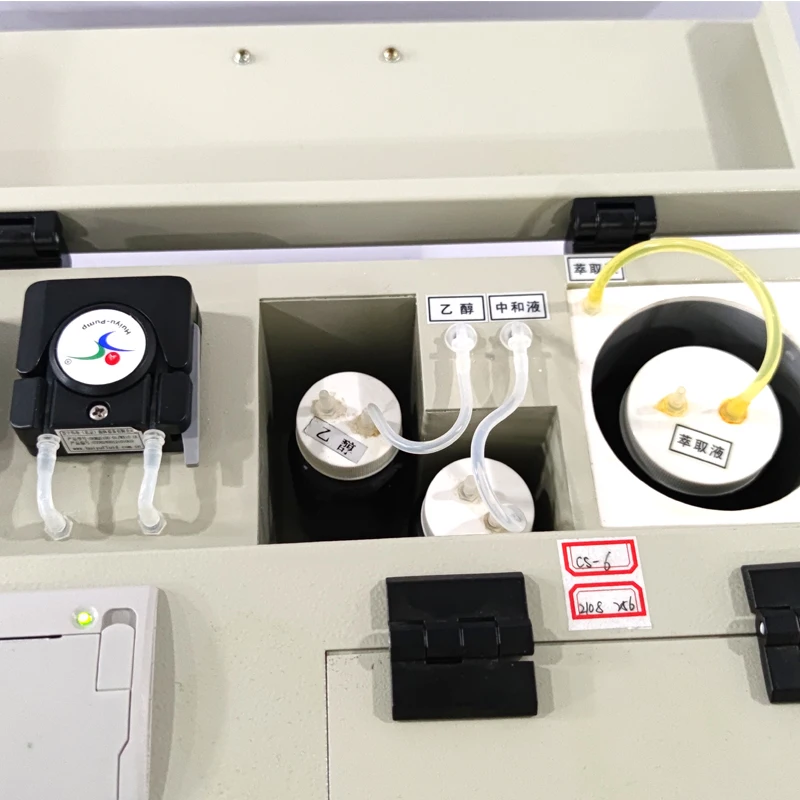

3. Automatic compound extraction liquid and neutralization liquid.
4. Average testing period is 2 minutes.

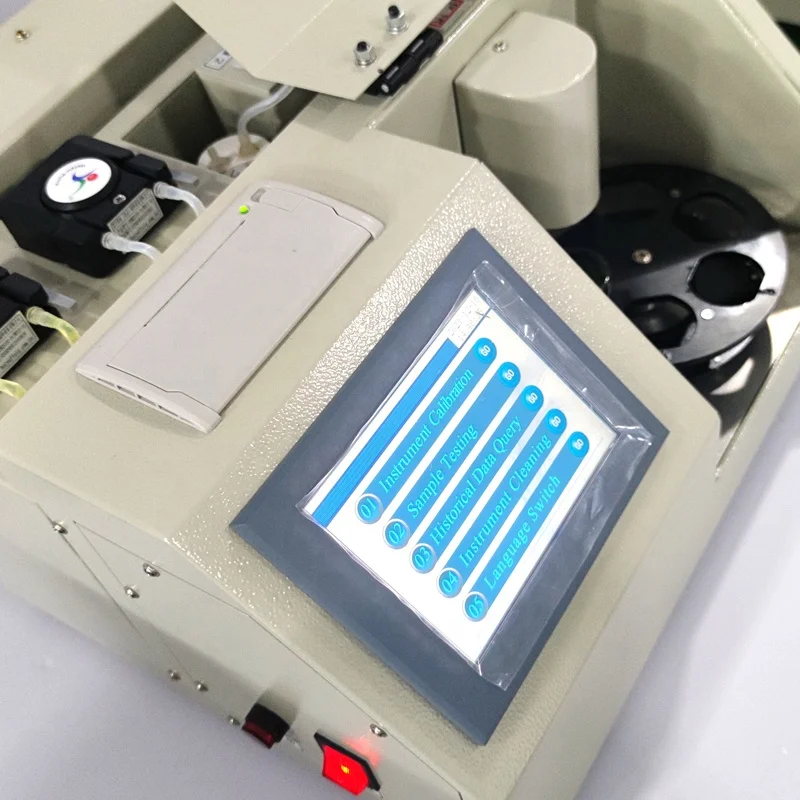

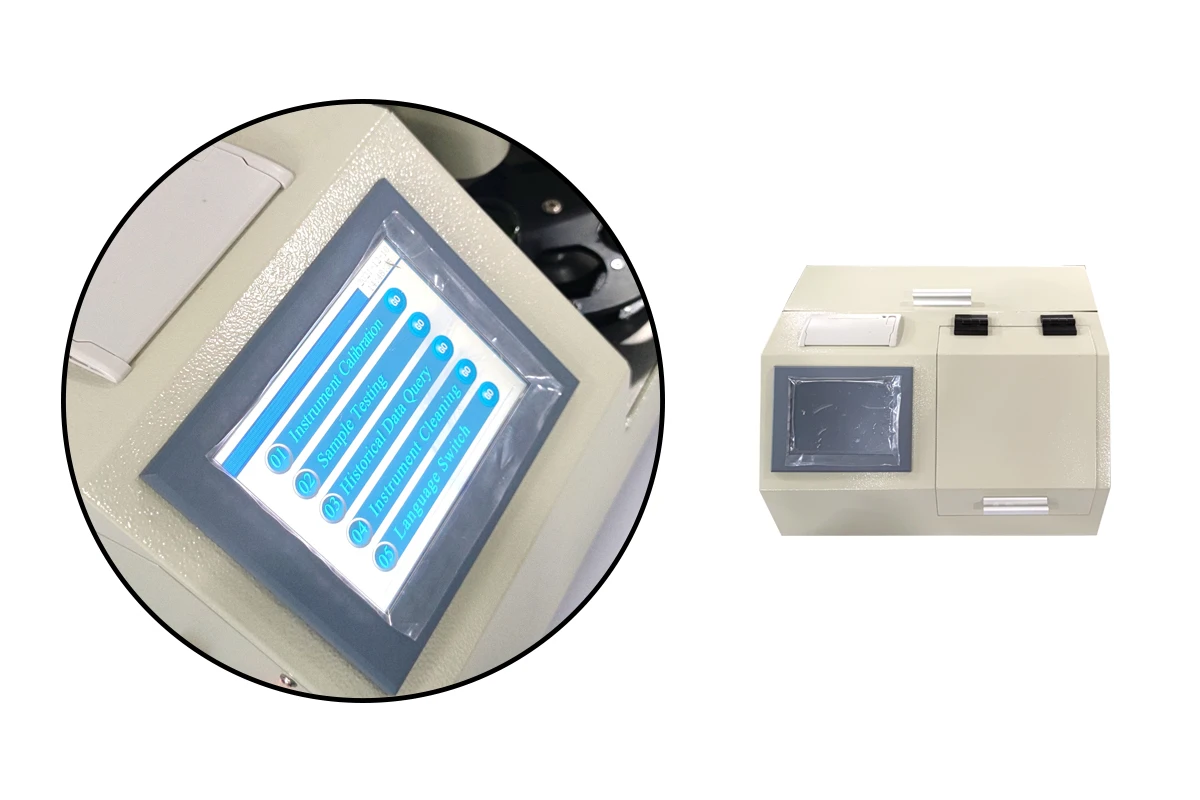

5. 6-inch LCD touch screen.
6. Power-off storage function, data storage up to 100 sets.
7. Standard acid automatic calibration function, which eliminates system errors to the maximum extent, and ensures the accuracy of measurement results Built-in micro printer, both online and offline print function available.
8. Large-capacity and high-efficiency carbon dioxide and water purification system to ensure the stability of the concentration of the neutralization solution Technical Parameter.
9. Simple design, small size, easy operation.
10. USB port to connection with PC.
2. Automatically complete operations such as extraction agent addition, neutralization titration and end point discrimination, acid value calculation, data storage and print output.
3. Automatic compound extraction liquid and neutralization liquid.
4. Average testing period is 2 minutes.
5. 6-inch LCD touch screen.
6. Power-off storage function, data storage up to 100 sets.
7. Standard acid automatic calibration function, which eliminates system errors to the maximum extent, and ensures the accuracy of measurement results Built-in micro printer, both online and offline print function available.
8. Large-capacity and high-efficiency carbon dioxide and water purification system to ensure the stability of the concentration of the neutralization solution Technical Parameter.
9. Simple design, small size, easy operation.
10. USB port to connection with PC.
Delivery&Payments
Company Profile

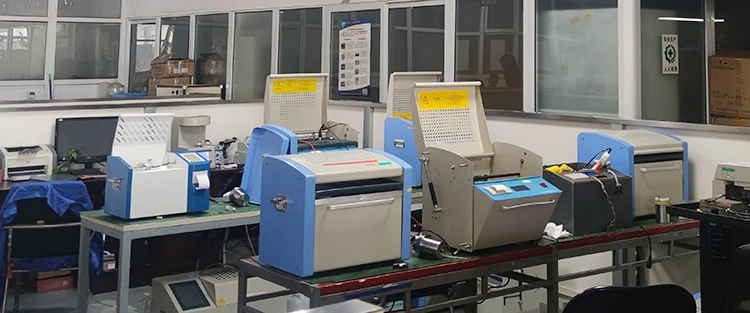

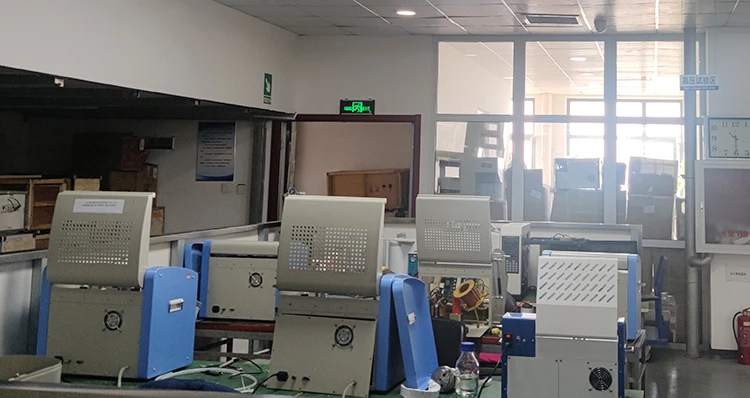

Run Test Electric Manufacturing Co., Ltd, located in High-Tech Industrial Development Zone, Baoding, China. It is a joint venture which is invested by Zhongchuang Electric and Dongrun Technology. We have been in electric testing industry more than 10 years, specialized in design, manufacture and test service. We are qualified supplier and service provider of State Grid in China.
