Product Overview
Description

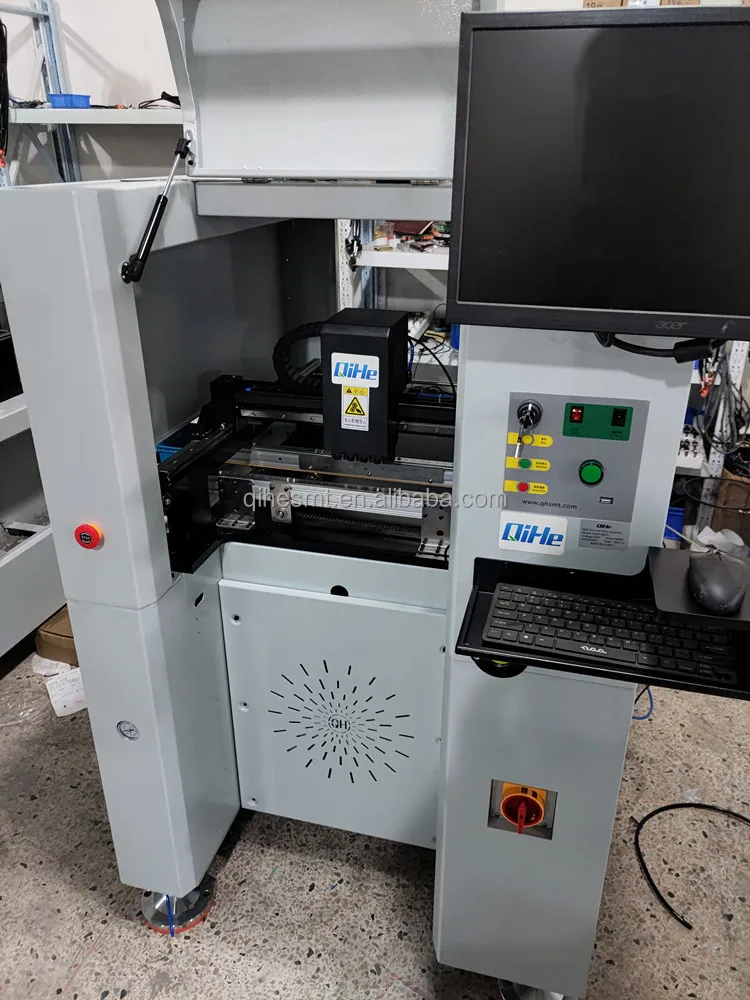

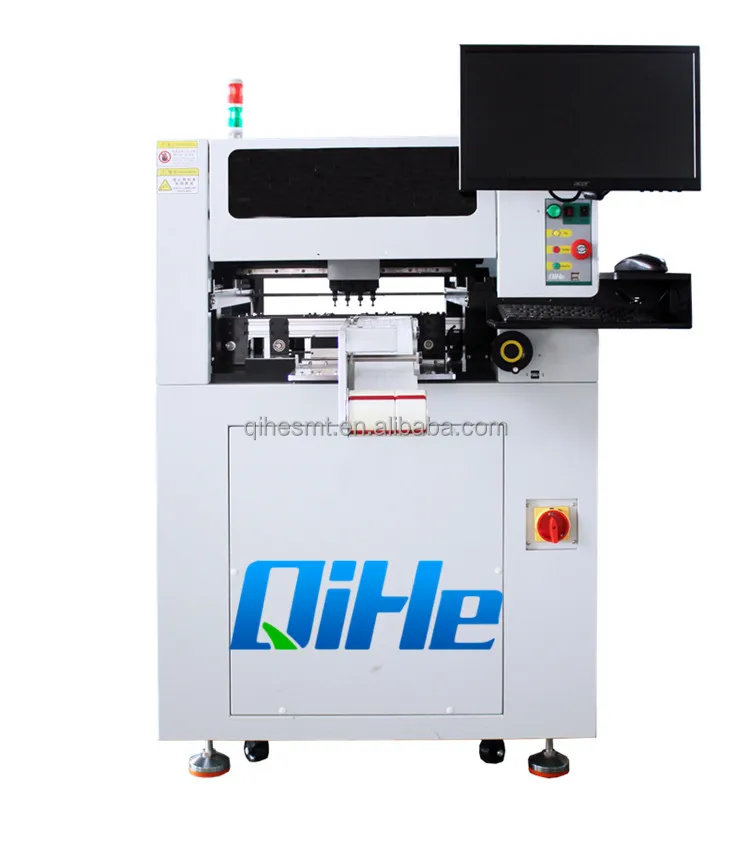

Label QM41 led making machine, electronic automatic pick and place machine
Technical parameters
Model labelQM41
Applicable PCB 50x50mm~320*500mm
XYmoving range 375mmx715mm
Z moving range 16mm
Placement head quantity 4
Mounting capability 9000pcs/h Without vision
7000pcs/h With vision
label size supply MIN 3*3mm MAX 40*40mm
Motor control scheme Closed - loop stepping servo system
Feeders 3 pieces loading ability
Machine dimension L850xW960xH1200mm
Vacuum pump quality External air pump
Power supply AC220V/
Average working Power 450W
Net weight 630KG
Packing size 103*117*160cm

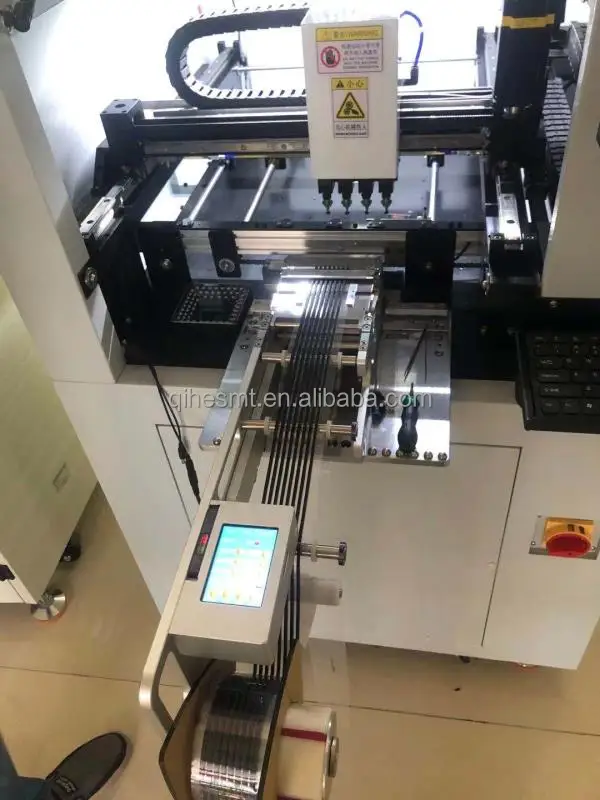

It can save time that four nozzles will be
examined over four cameras at the same time.
Multi-vision makes placement faster.
Add a HD camera, improve IC placement accuracy.
Automatic Transfer
The QM41 has added new research and development automatic transmission system.
The maximum mounting length is 600mm.
It can satisfy more people's requirement.
FAQ
| 1. Q: How many nozzles do you supply? Do you sell nozzles and spares? |
| A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know. |
2. Q: Do you provide software updates? |
| A: Customers who buy our machines, we can offer free upgrades software for you. |
3. Q: What air supply is required? |
| A: Oil free compressor and air dryer be used. |
4. Q: What is the performance? |
| A:For QM41 it's 9,500 cph without vision mode ; 7,000 cph with vision mode. For TVM925 it's 9,000 cph without vision mode ; 7,000 cph with vision mode. For TVM802, it's 6,000 cph without vision mode ; 4,000 cph with vision mode. |
5. How about the warranty? |
| We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
