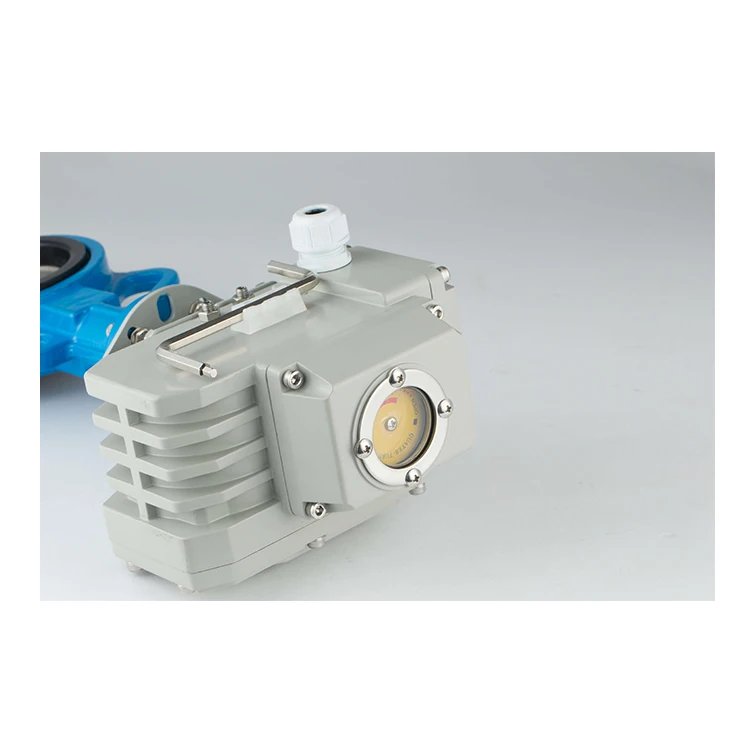

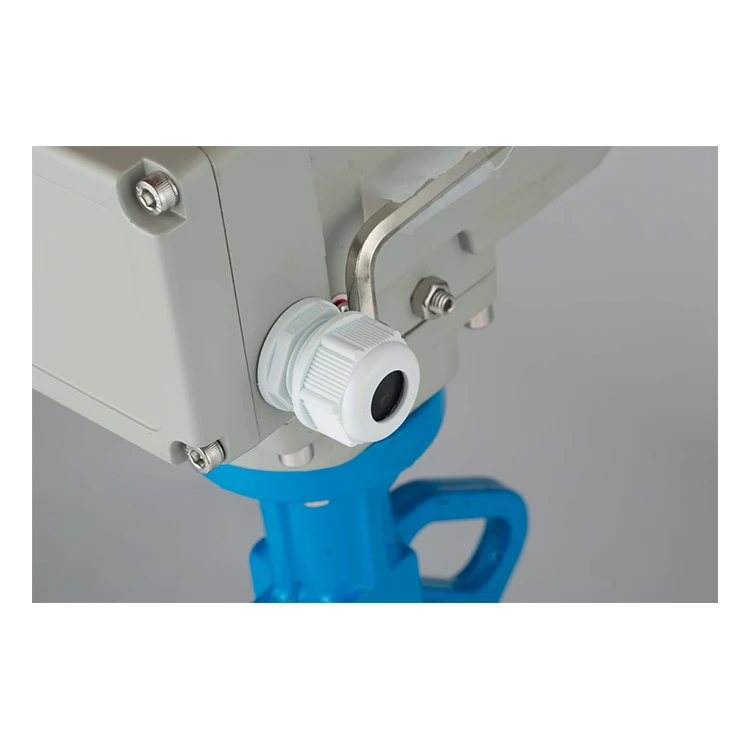

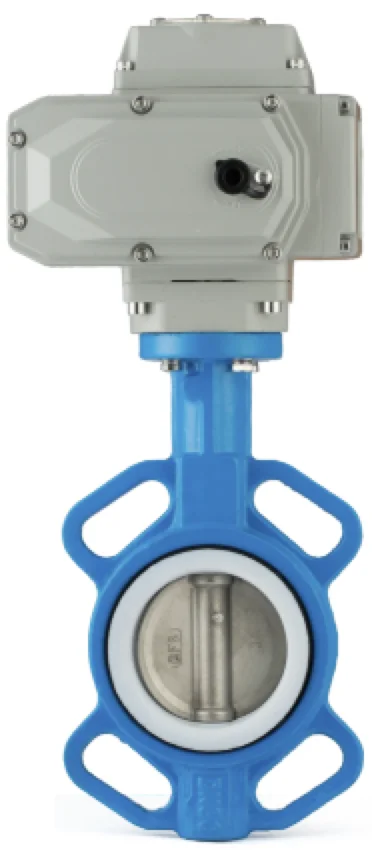

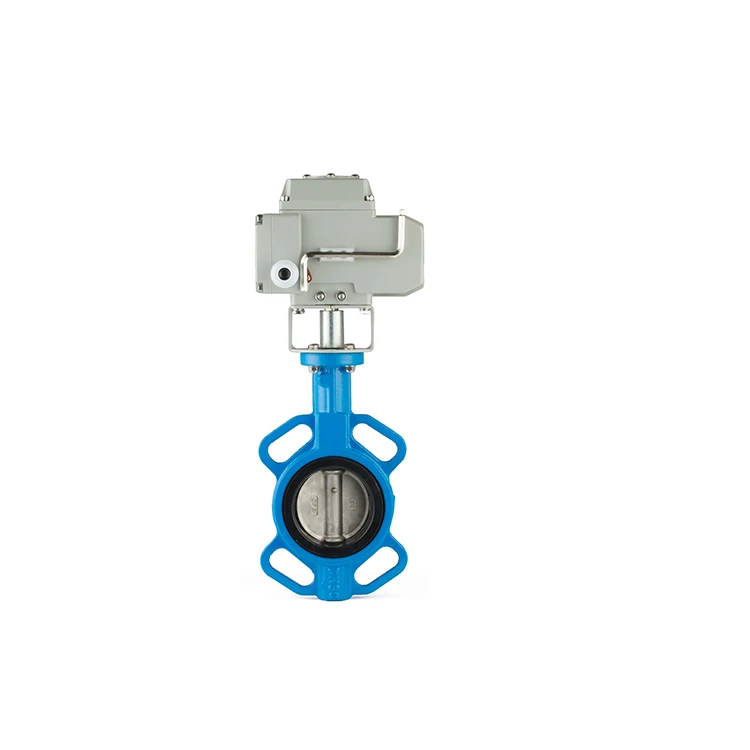

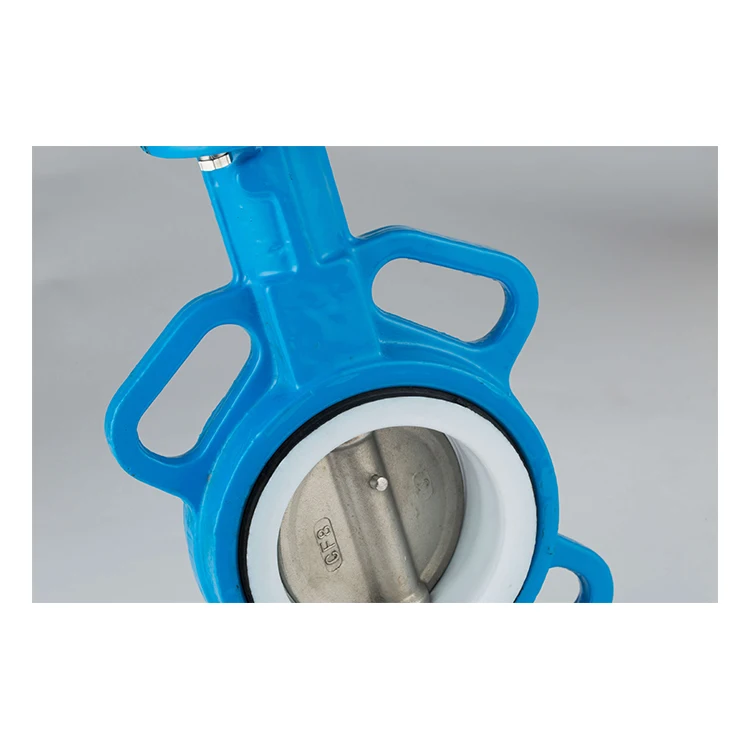

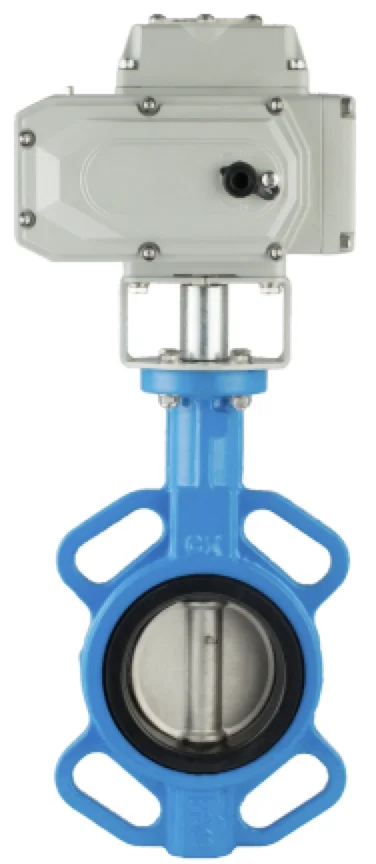

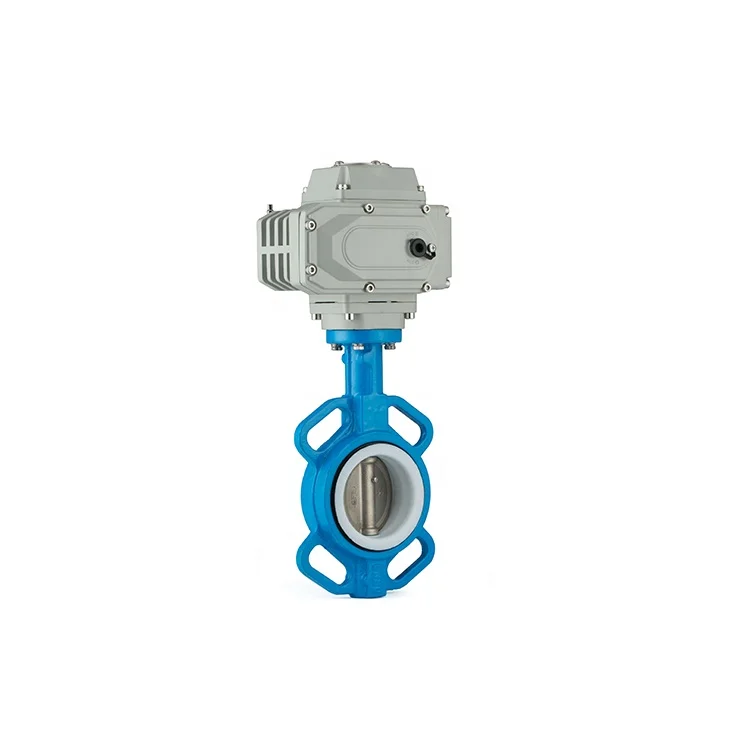

Butterfly Valve DN50 with Electric Drive Cast Iron Motorized Butterfly Valve With Electric Actuator
- Category: >>>
- Supplier: Kepler Industry Automation Co. Ltd.
Share on (1600412172840):
Product Overview
Description
Products Description
Name | Wafer Connection Ductile Iron Motorized Electric Butterfly Valve |
Port Size | DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500 |
1 1/2in, 2in, 2 1/2in, 3in, 4in, 5in, 6in, 8in, 10in, 12in, 14in, 16in | |
Voltage | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
Technical Specification
1.Norminal Diameter:DN40-DN500
2.Pressure range:0~16bar
3.Fulid Temperature: -20~150°C
4.Medium:Water, Liquid, Steam, Gas, Oil
5.Body Material:Cast Iron;SS304/316
6.Actuator Material: Cast Alumium Alloy
7.Sealing:EPDM/PTFE
8.End Connection:Wafer
9.Control Mode:On/Off; Modulating; Intelligent
10.Protection Class:IP65;EXd ll BT4(optional)
2.Pressure range:0~16bar
3.Fulid Temperature: -20~150°C
4.Medium:Water, Liquid, Steam, Gas, Oil
5.Body Material:Cast Iron;SS304/316
6.Actuator Material: Cast Alumium Alloy
7.Sealing:EPDM/PTFE
8.End Connection:Wafer
9.Control Mode:On/Off; Modulating; Intelligent
10.Protection Class:IP65;EXd ll BT4(optional)
Features Of Electric Butterfly Valve:
●Easy to install and control
● Available in ON/OFF type, modualting type, intelligent type, explosion-proof type and multi-turn type
● Low failure rate and overloading protection
● High output torque up to 6000Nm
● IP65 weather-proof protection class for outdoor use
● AC/DC power supply, signal control and manual override are available
● Available in ON/OFF type, modualting type, intelligent type, explosion-proof type and multi-turn type
● Low failure rate and overloading protection
● High output torque up to 6000Nm
● IP65 weather-proof protection class for outdoor use
● AC/DC power supply, signal control and manual override are available

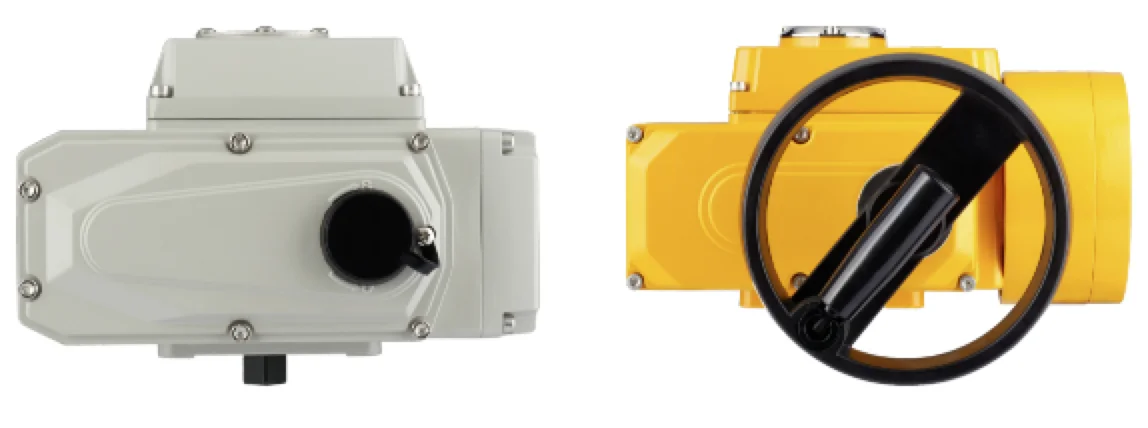

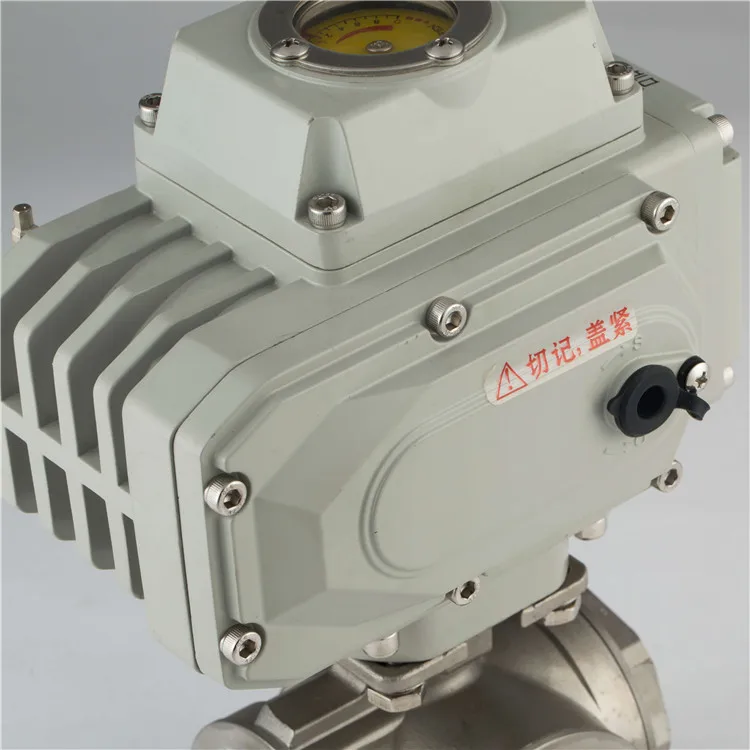

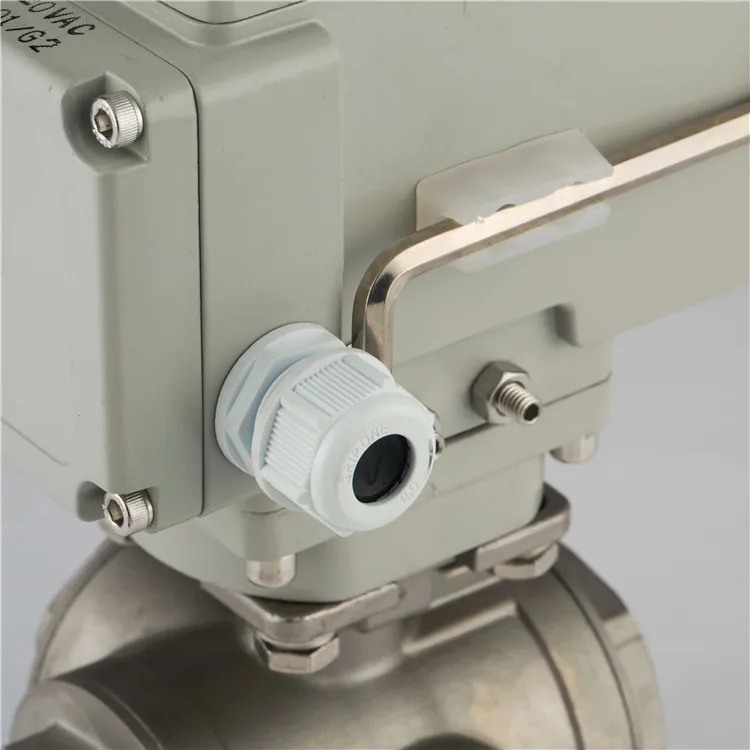

Electric Actuator
333

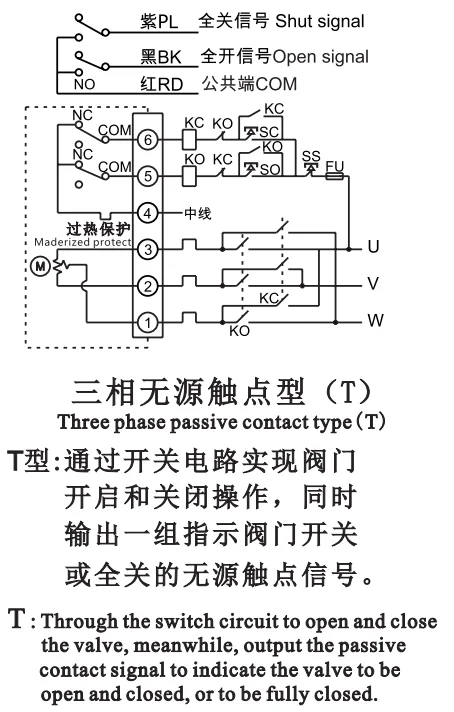

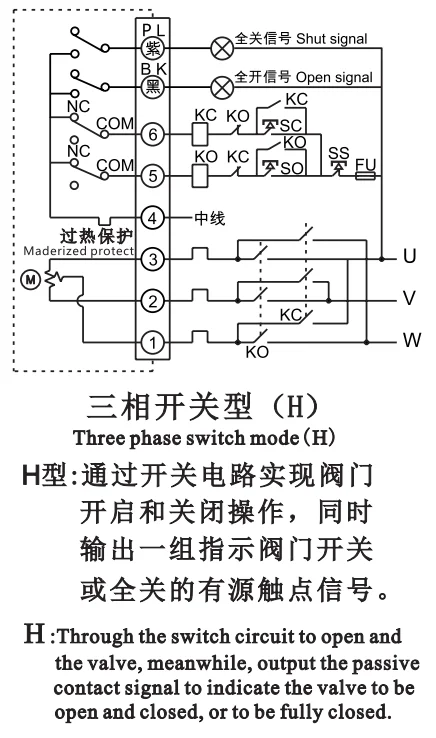

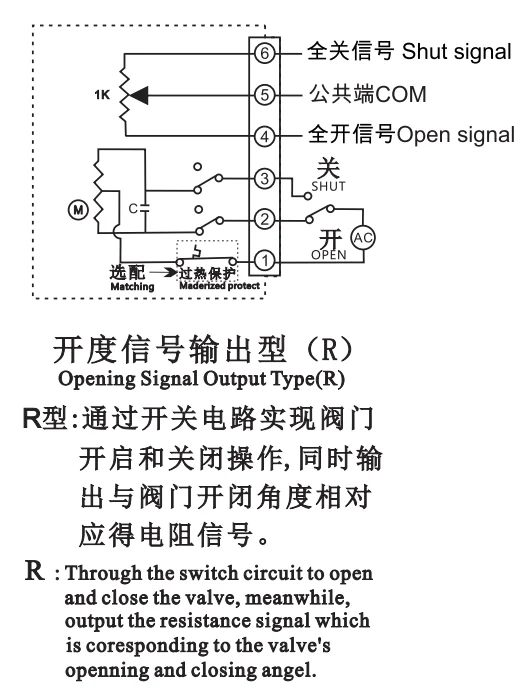

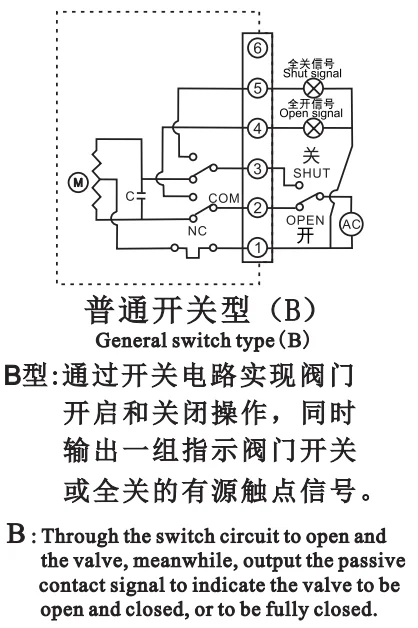

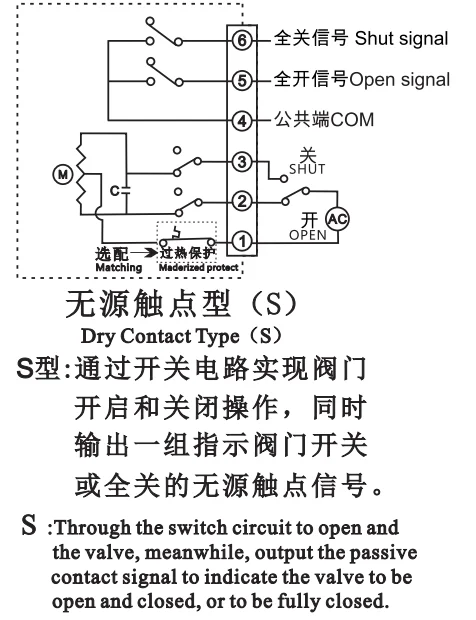

ON/OFF Type | Feedback:Active Contact Signal/Passive Contact Signal/4-20mA/Resistance |
Regulation Type | Input & Output Signal: DC 4-20mA, DC 1-5V, DC 0-10V |

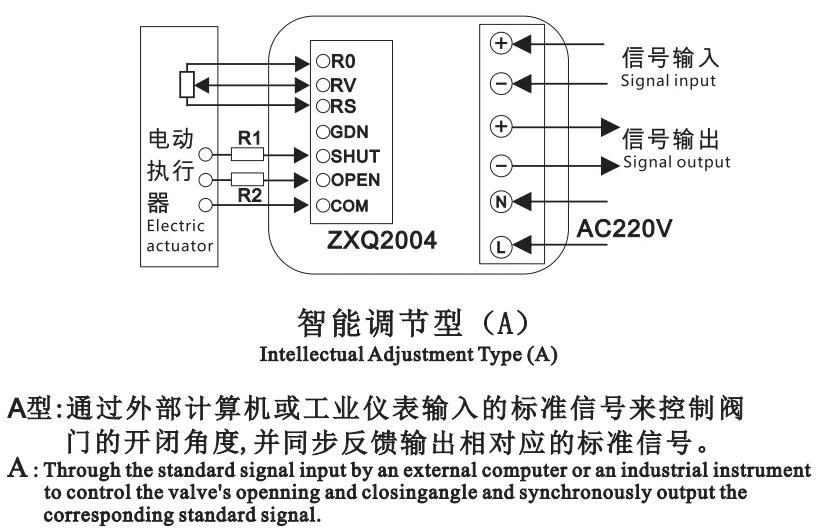

Intelligent Type | The Field/ Remote Control Switch Regulation MODBUS,PROFIBUS Field Bus |
Optional Voltage | AC24V, AC110-220V, AC380V, DC24V, Special Voltage can be customized |
Optional Ex Proof | IP67/ IP68/ Explosion Proof: EX d ll BT4 |
Features of Quarter Turn Electric Actuator
● 90 degree rotation
● Quality motor, high torque up to 6000Nm
● IP67/IP68 protection class and weather-proof for outdoor use.
● Aluminum alloy which treated by hard anodic oxdization and coted by polyester power.
● Available in manual control, signal control, AC/DC power supply
● Low failure rate and overloading protection
● Provide online technical support to guide you install the valve and actuator●ISO5211/DIN3337 installation standard
● 1 Year Warranty
Packing and Delivery
●Packing: Each valve will be packed in foam with carton, master carton or wood pallet.
● Delivery Time: 3-7 working days after payment confirmed.
● Delivery Time: 3-7 working days after payment confirmed.
● Export ways: by air, by sea, by express, Ex-work.
● Payment terms: 50% deposit in advance,50% balance before shipment
● Payment way: Alibaba online trade, BankT.T, Western Union, PayPal, Credit card.
● Warranty: 1 Year

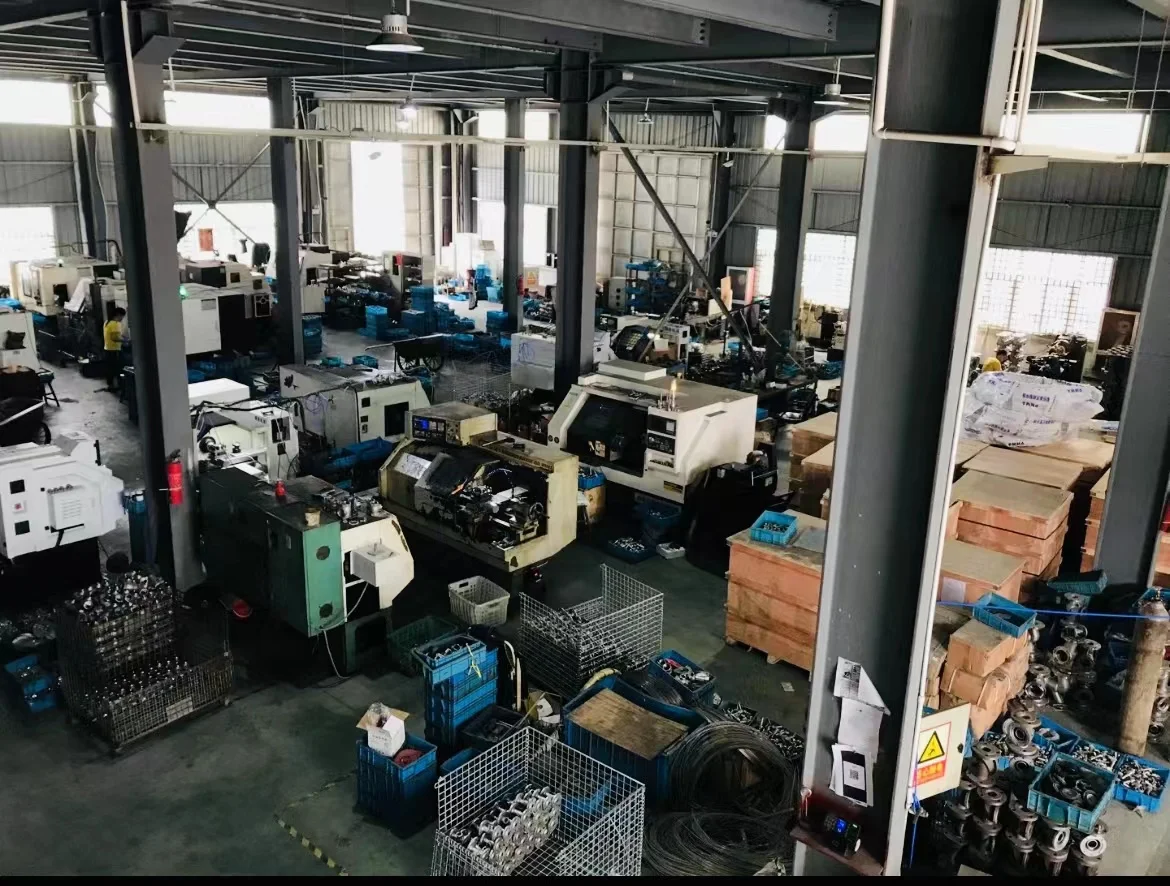

Company Profile
●Kepler is one of the professional manufacturer of automatic control valves in Dongguan, China.
●Main products :
solenoid valve, electric actuator valve, pneumatic valve, ball valve, butterfly valve,manual valve, angle seat valve.
●Application: food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
●30 Years experience in valve manufacture and automation solution. One-stop valve solution provider. Our industrial experience will be useful in your business and projects.
●Whatever you are a valve distributor, machine manufacturer or industries contractor, we are confident that we could offer the suitable valve and cost-effective solution for you.
●Contact us.(Whatspp: 86 15871430313).We work together for mutual benefit !
Our Advantages
Core Strength | ||
Business type | Factory | |
Factory area | 6500m2 | |
R & D | 5 R & D engineer.Advanced technology to low your cost and bring you more | |
Rich experience | 30 years valve industry experience. One-Stop valve solution | |
Average delivery time | Large stock.Fast delivery. Around 3~7 days | |

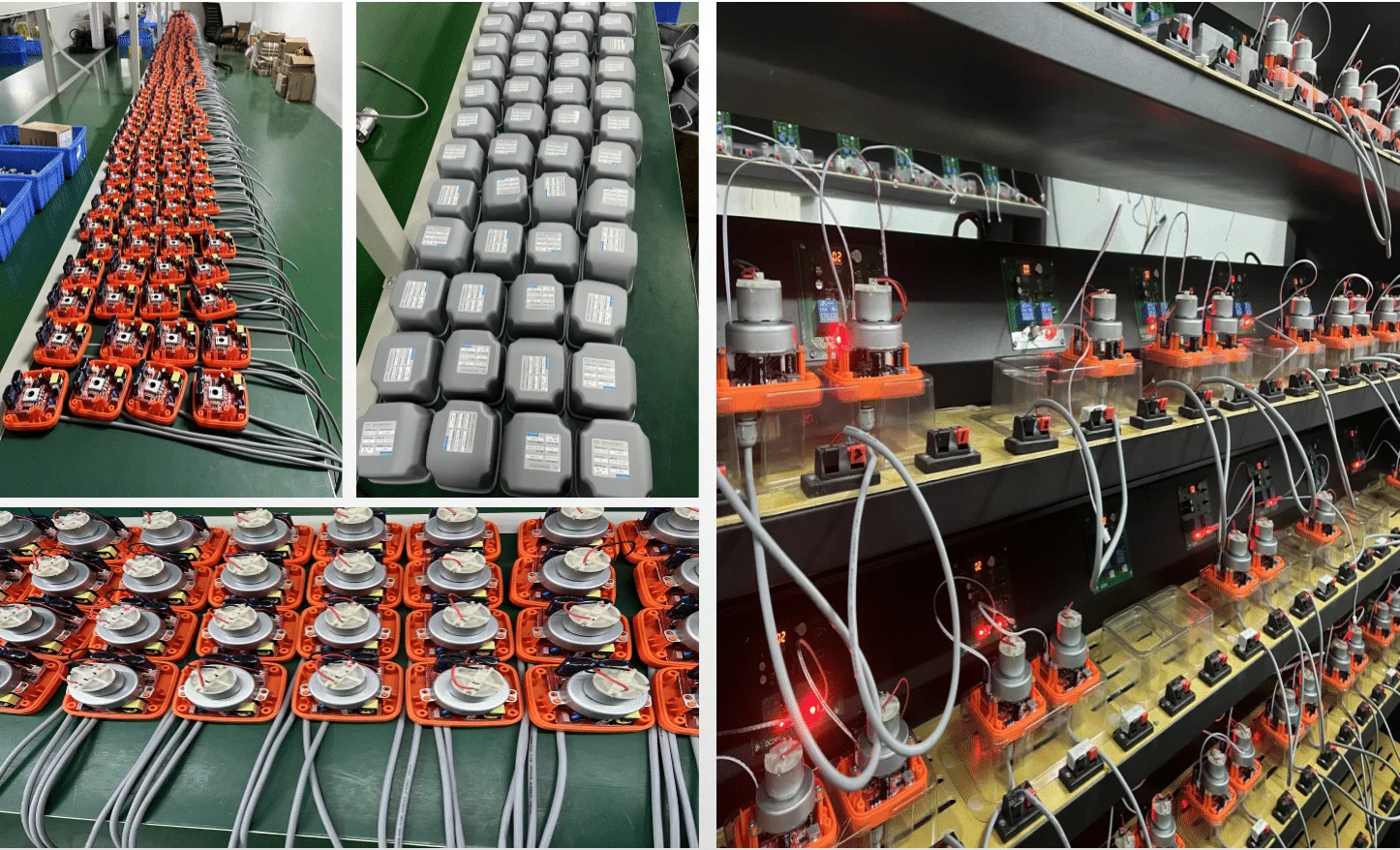

Quality Control System | Incoming inspection/100% Finished product inspection before delivery | |
Mini Customization | MOQ is 1 piece; ODM and OEM are acceptable. | |
Technical Support | Provide technical support when you install or use the valve and actuator | |
Marketing Material support | Provide datasheet, installation, wiring instructions,CAD dimension file or other | |
Certificate | CE/RoHS/ISO/CSA NERLIC/Patent | |

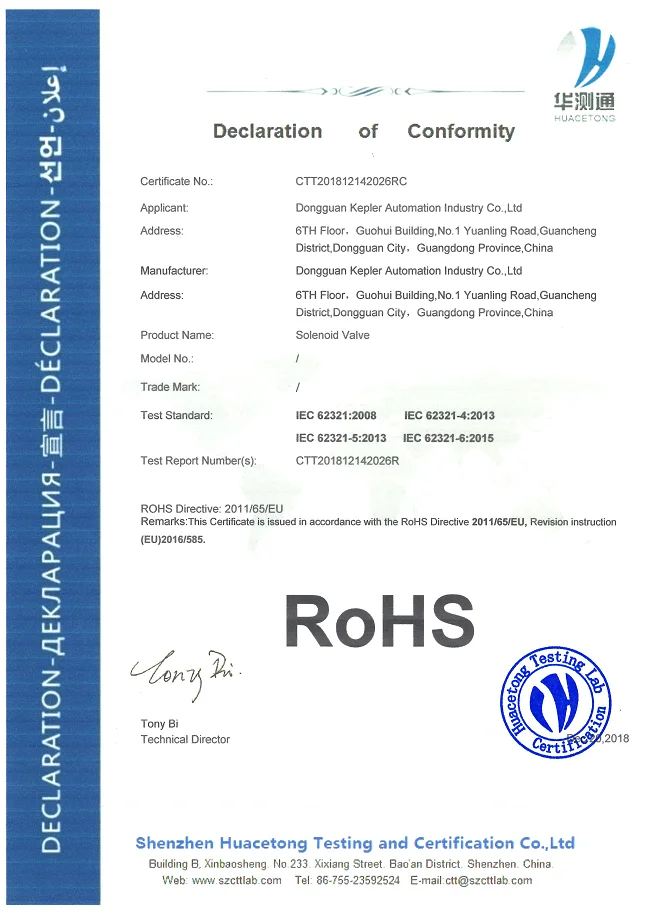

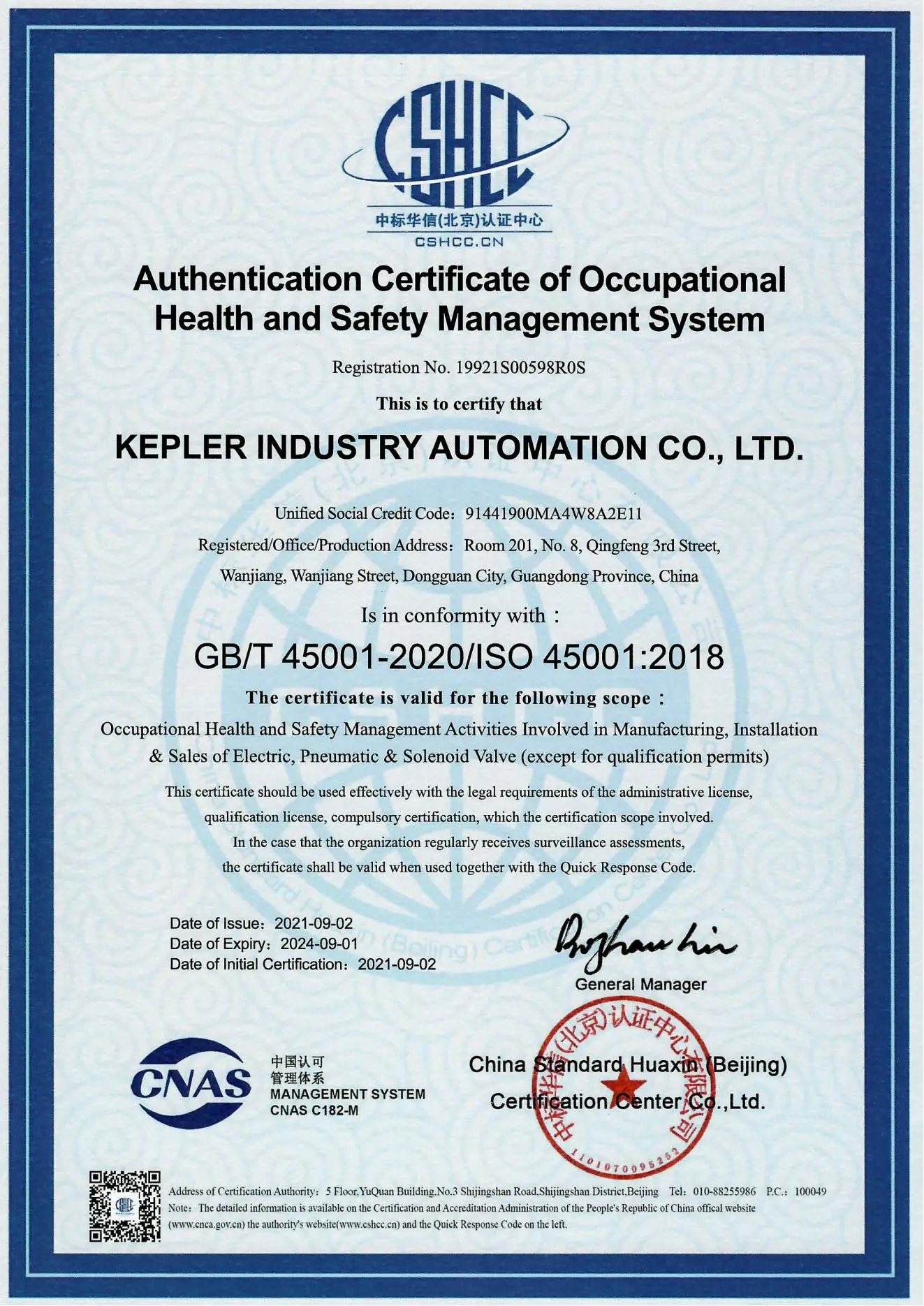

Certifications
Cooperation Customer
FAQ
Q: What are your main products?
3)Intelligent type
A: We are an one-stop valve solution provider and a valve manufacturer with 30 years experience.
Main product:Electric Valve,Pneumatic Valve,Solenoid Valve,Manual Valve and Angle Seat Valve.
Main product:Electric Valve,Pneumatic Valve,Solenoid Valve,Manual Valve and Angle Seat Valve.
Q:What is your MOQ?
A: MOQ is 1 PCS. Sample order is acceptable
A: MOQ is 1 PCS. Sample order is acceptable
Q: What are your payment term and delivery time?
A: We accept Bank T/T, Ali Trade Assurance, Western Union or Paypal.The delivery time is about 3 ~7 days.
Q: Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q:Which voltage of the electric actuator?
A:DC24V, AC24V, AC110V, AC220V, AC380V

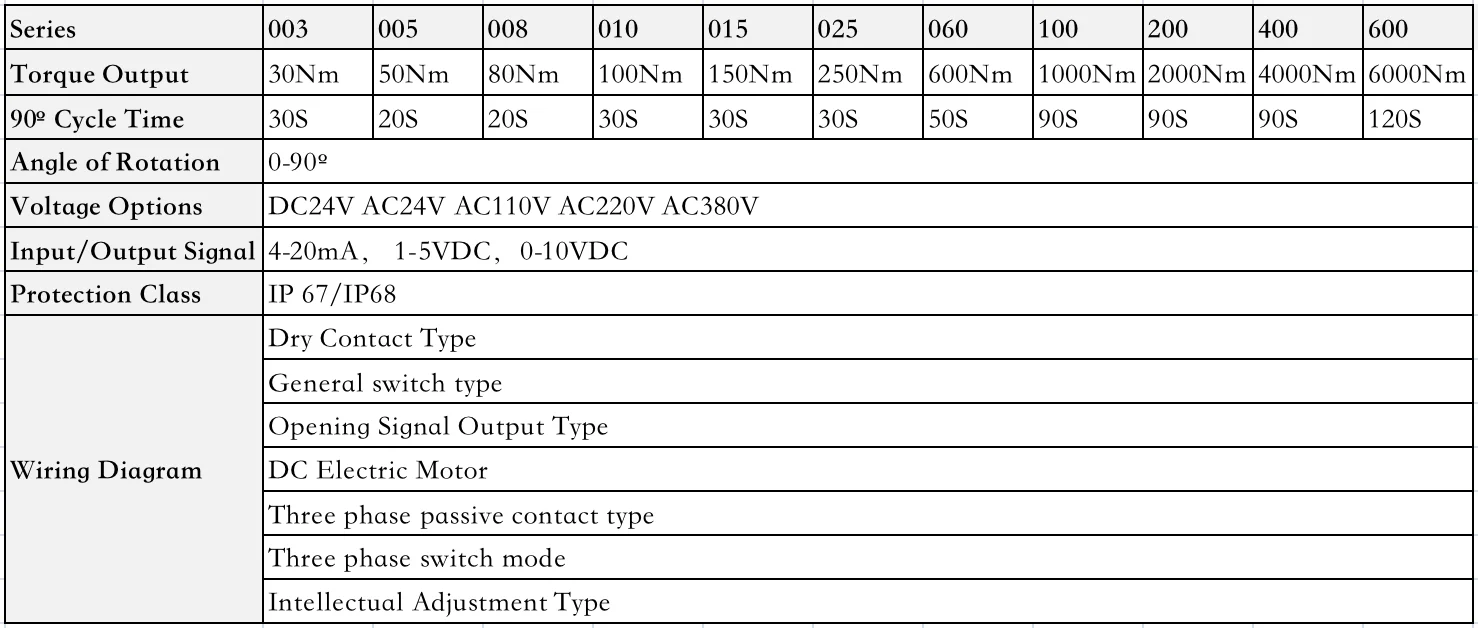

Q: What is the actuation time for electric actuator?
A:It depends on the torque of actuator.
The detailed timing would be as the following:
KPL-003(30Nm):30 seconds
KPL-005(50Nm) and KPL-008(80Nm):20 seconds
KPL-010(100Nm); KPL-015(150Nm); KPL-025(250Nm):30 seconds
KPL-060(600Nm); KPL-100(1000Nm):50 seconds
KPL-200(2000Nm) KPL-400(4000Nm):90 seconds
KPL-200(2000Nm) KPL-400(4000Nm):90 seconds
KPL-600(6000Nm):120 seconds
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 3 seconds.
Q: What type of electric actuator you provide and what's the difference?
A: 1)ON/OFF type: fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA; 1-5VDC; 0-10VDC;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA,1-5VDC,0-10VDC
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
Q: Have the electric actuator had the presence of limit switches?

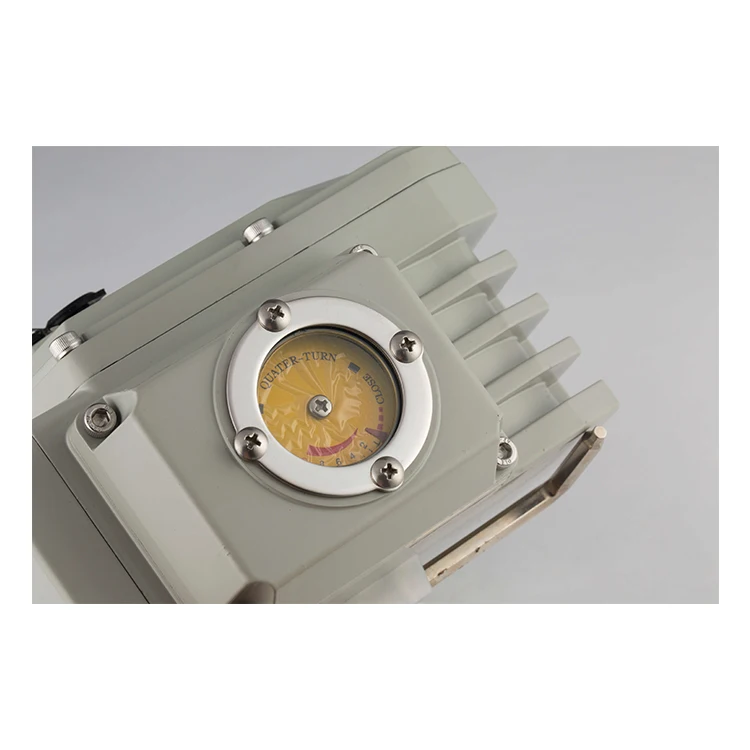

A: Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
Q. Is there any manual override of electric valve?
A: Yes, every electric actuator includes the manual override. You can open/close by manual.
Q: Which type of protection class of this electric actuator?
A: IP65, Explosion proof.
Q:Do we support customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
