Product Overview
Description
Brand
Standing at the junction of history and future, there’re Wright brothers invented and produced airplanes in the past.Today,Nanjing SKS brothers research, produce and develop the best mechanical blade from the last century. Time will take away many memories,Only inheritance is constant ...
Product information

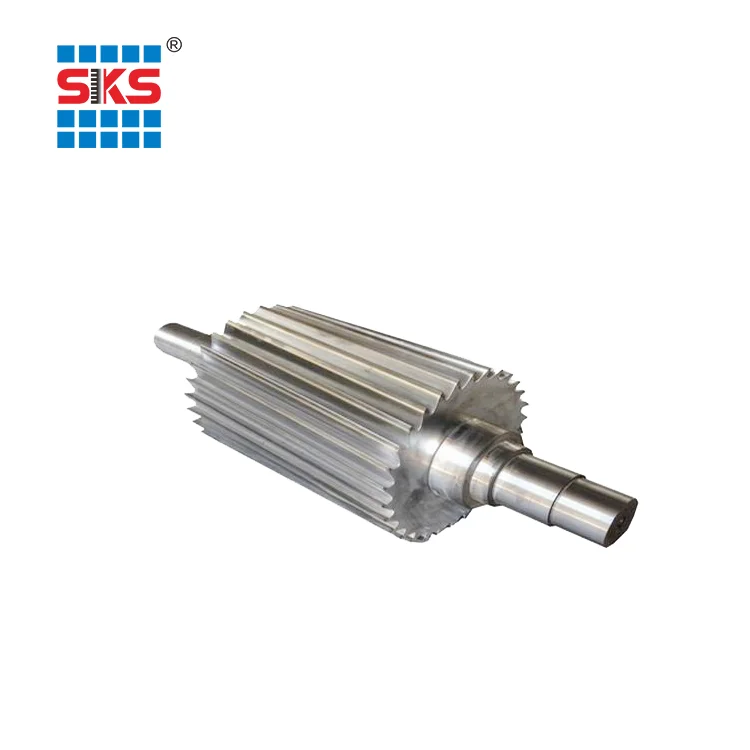

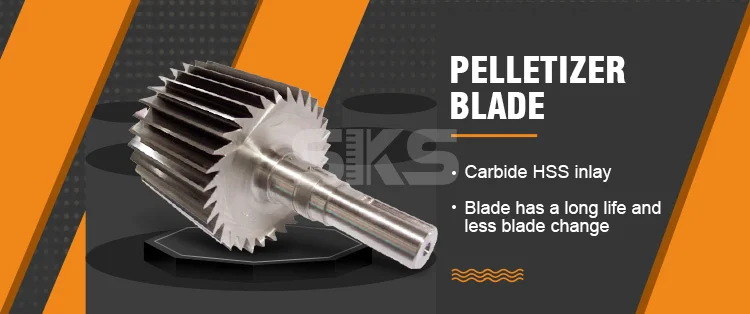

Pelletizer blade：
Pelletizer blade is mainly used in recycling processing for pelletizing plastic such as PE, PP, PVC, PS, ABS, AS etc. It is one of the most important parts of pelletizer machine to prill plastic particle.
Materail : Tungsten steel,S45C,SKD11,9CrSi,Customizable
Size: Accurately customize according to drawings or real objects, and the size is accurate.
In addition, we can provide the same types of blades with accessories.
Pelletizer blade is mainly used in recycling processing for pelletizing plastic such as PE, PP, PVC, PS, ABS, AS etc. It is one of the most important parts of pelletizer machine to prill plastic particle.
Materail : Tungsten steel,S45C,SKD11,9CrSi,Customizable
Size: Accurately customize according to drawings or real objects, and the size is accurate.
In addition, we can provide the same types of blades with accessories.
Material | Tungsten steel,S45C,SKD11,9CrSi,Customizable | |||||||||
Flatness, thickness tolerance | 0.003mm | |||||||||
Hardness | 58-60HRA, customizable | |||||||||
Palallelism | <0.1 or 0.002mm | |||||||||
Surface roughness | Ra0.2 | |||||||||
Thickness tolerance | ±0.025mm | |||||||||
Four tempering, manual grinding | Production requirement | |||||||||
certificate | SGS tested | |||||||||
Service | Can be returned and exchanged within 90 days | |||||||||
Specification | Outer diameter | Inside diameter | Length | Cutter tooth number | Material | |||||
Φ100*Φ50*100 | Φ100 | Φ50 | 100 | 14 | Tungsten steel + (S45C) | |||||
Φ140*Φ40*140 | Φ140 | Φ40 | 140 | 18 | ||||||
Φ160*Φ50*160 | Φ160 | Φ50 | 160 | 22 | ||||||
Φ180*Φ100*180 | Φ180 | Φ100 | 180 | 26 | ||||||
Φ200*Φ130*200 | Φ200 | Φ130 | 200 | 32 | ||||||
Size | Can be customized according to customer requirements | |||||||||
Technology : impact resistance, wear resistance, high temperature resistance. The pelletizer blade is suitable for : pelletizing most plastic particles such as PE, PP, PVC, PS, ABS, AS and HIPS. | ||||||||||

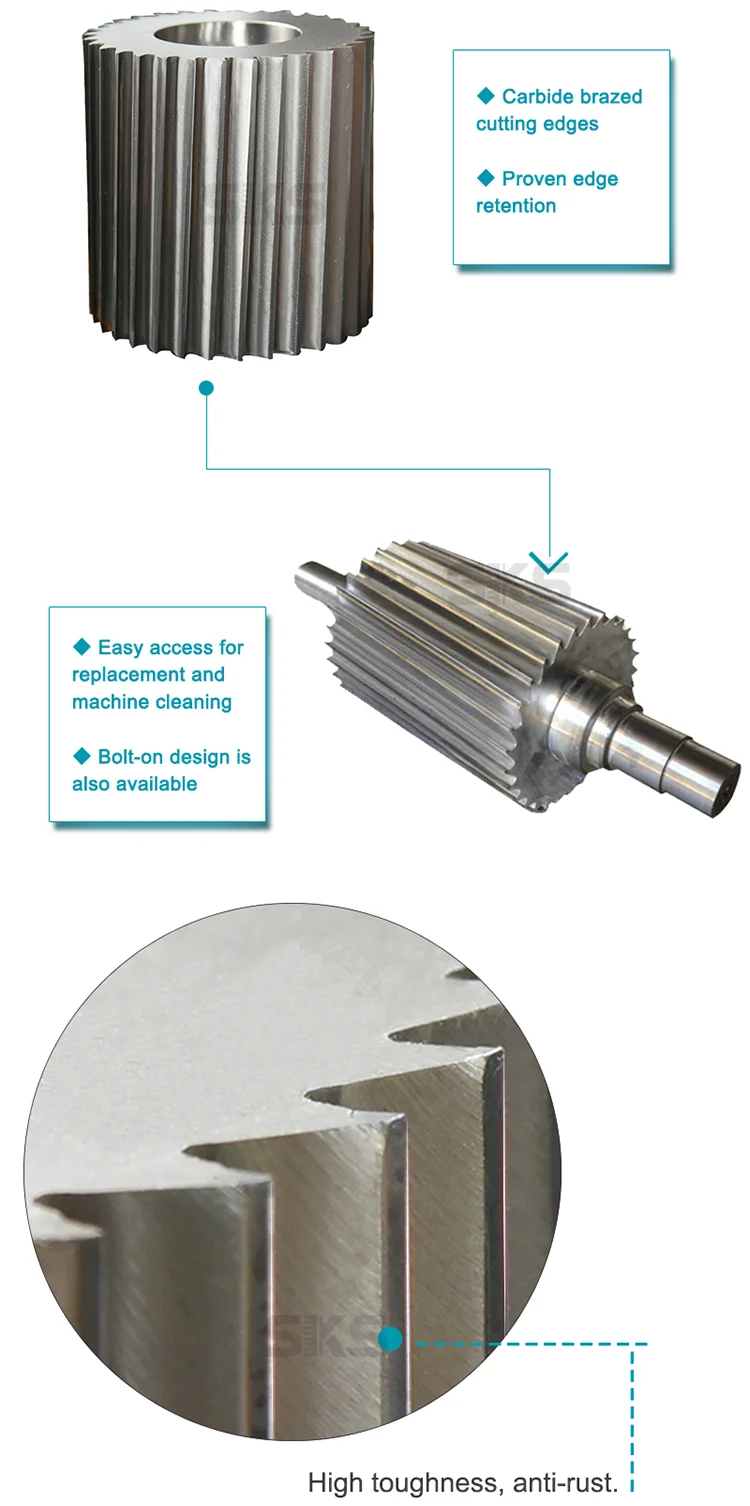

Product advantages:
◆ Carbide brazed cutting edges
◆ Proven edge retention
◆ Easy access for replacement and machine cleaning
◆ Bolt-on design is also available
◆ Carbide brazed cutting edges
◆ Proven edge retention
◆ Easy access for replacement and machine cleaning
◆ Bolt-on design is also available

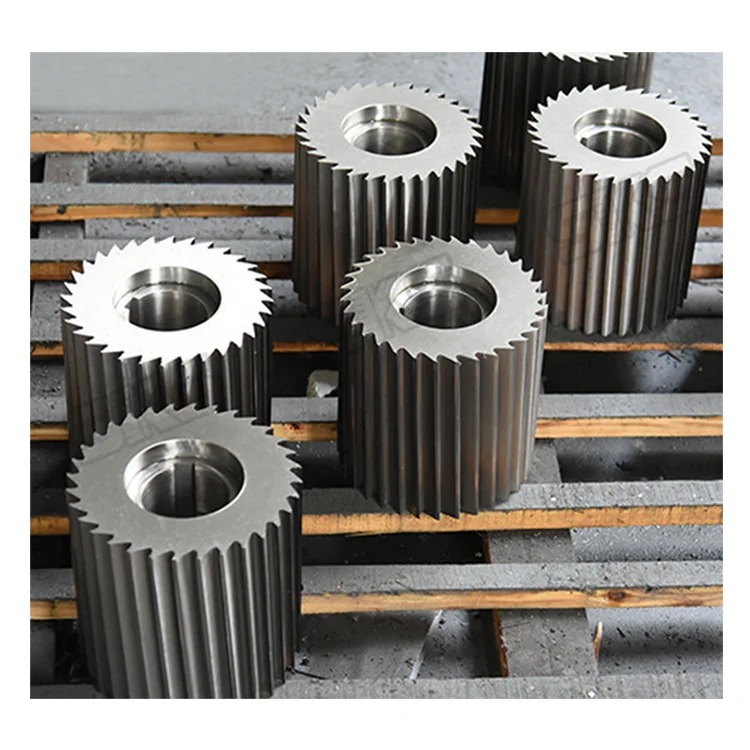

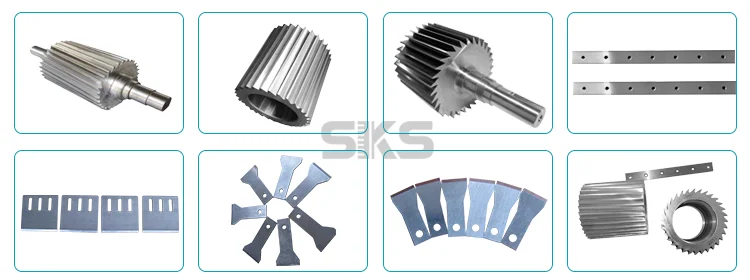

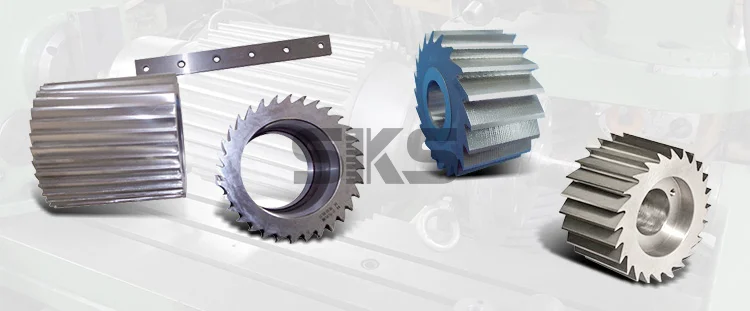

Products Show

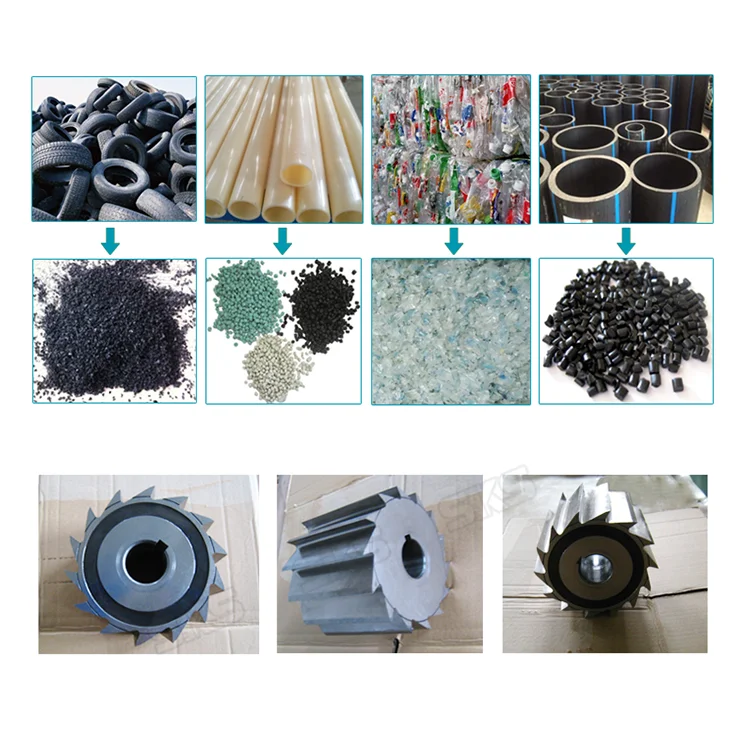

Scenes to be used

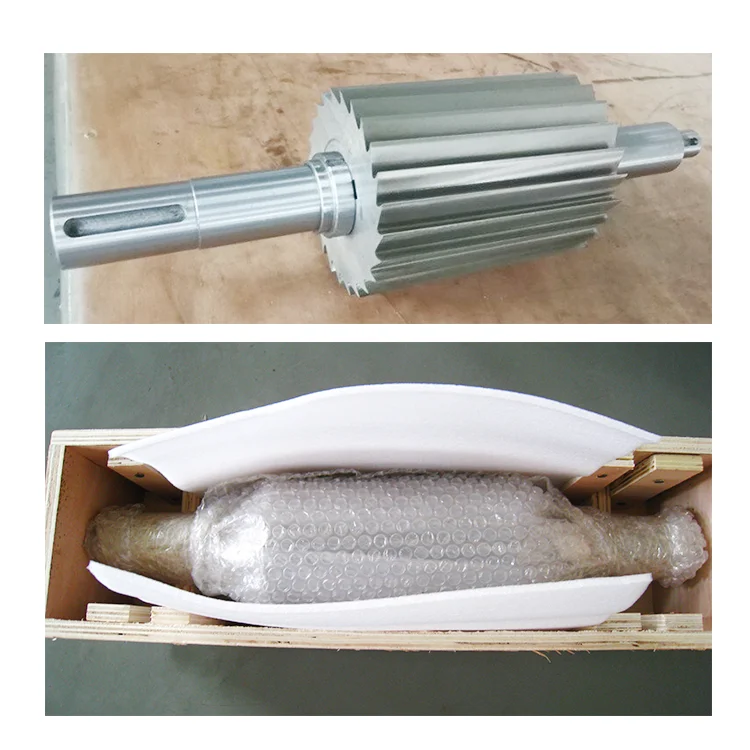

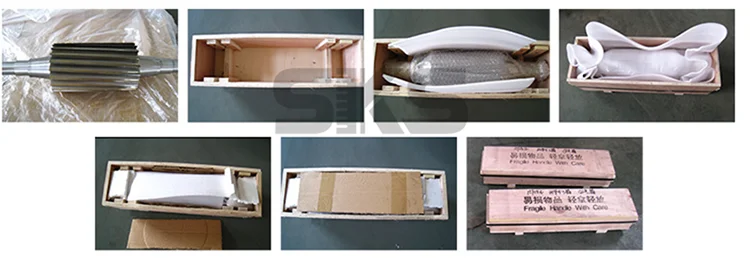

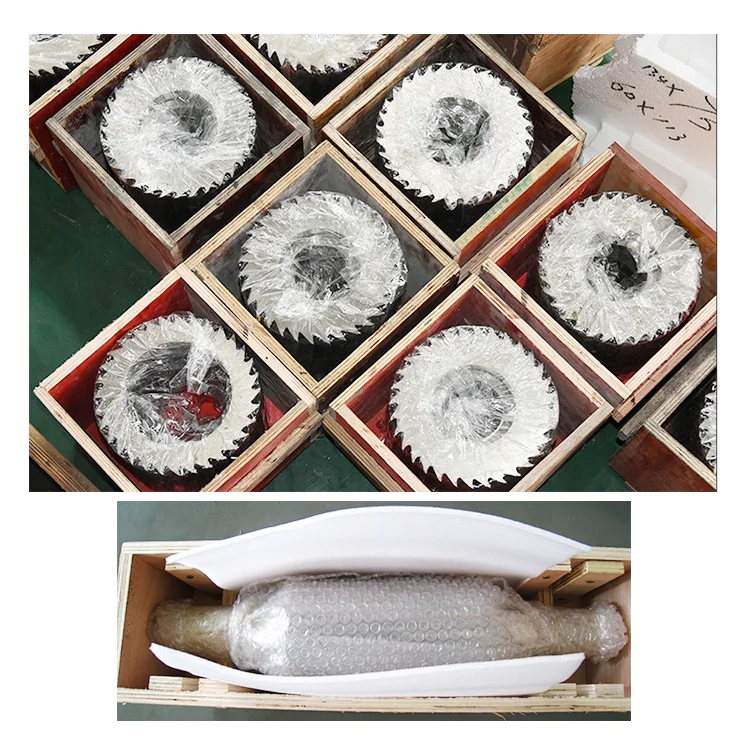

Packing & Shipping
1, PE film or Kraft paper in anti-rust oil - keep air/water/humid away, thus rust-proofing.
2, Bubble film - increases the impact resistance ability.
3, Rubber Slip or Corrugated Angle - gives special care to knife edges.
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or plywood case - provide superior protection and stack-ability
2, Bubble film - increases the impact resistance ability.
3, Rubber Slip or Corrugated Angle - gives special care to knife edges.
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or plywood case - provide superior protection and stack-ability
Technical service and processing
SKS has its own forging workshop
We will select the most suitable forging method according to the types of forgings to ensure the precise shape and size of the forgings and perfect internal quality.
SKS master craftsmen with 20 years of forging experience
We have more than 20 years of forging experience. Proficient in WHF forging method, center pressing method, FM forging method and KD forging method.
Advanced forging process and testing method
◆ SKS forgers rearrange the metal grain structure through advanced forging process, which increases the strength, toughness and service life of materials.
◆ Advanced testing methods, such as ultrasonic testing, also make SKS blades better and faster to detect the results, customers are more assured to place orders for use.
◆ Advanced testing methods, such as ultrasonic testing, also make SKS blades better and faster to detect the results, customers are more assured to place orders for use.

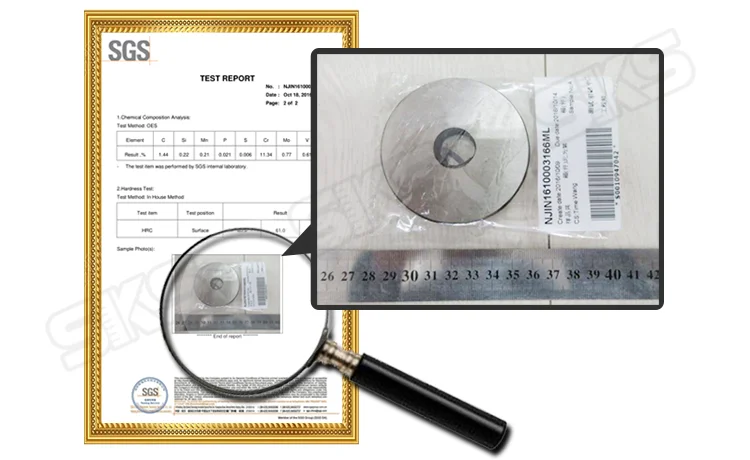

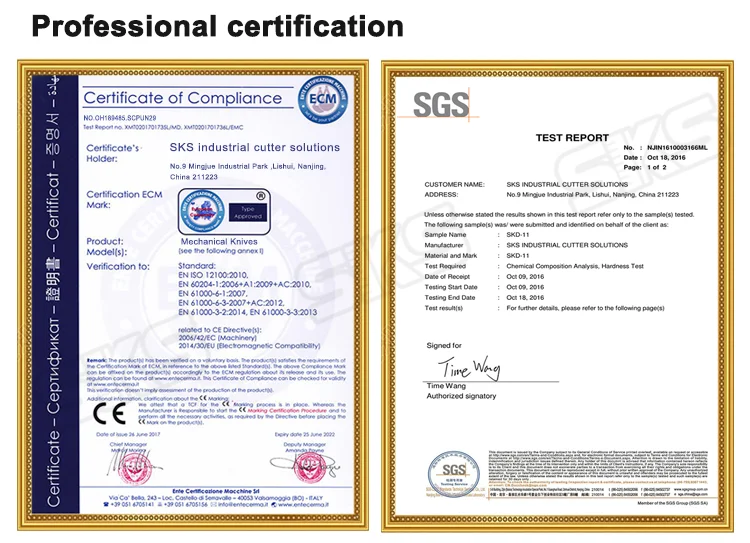

SGS test certification
The materials used in the production of SKS blades such as SKD-11, D2, H13, H12, HSS, SLD, etc. are all certified by SGS. It ensures that the selection of materials is excellent, and the blades produced are superior in performance, high in hardness, and durable.
Consult customer service for customized specifications and materials.
Provide your drawings or samples.
Make sure to place an order and start production.Waiting for delivery.
Factory strength
The company occupies an area of 6,600 square meters, equipped with various process workshops and production areas. The factory has more than 100 production equipment including CNC machining centers, and has 10 heat treatment and material testing technicians. We have passed ISO9001, CE and SGS certification, and strictly abide by international quality standards.
Our factory has strong non-standard production ability, and we can make tailor-made according to customers' drawings and samples. Products are widely used in steel, paper, wood, plastic, rubber, textile and packaging industries. Since the company exported to the United States in 2008, it has been exported to dozens of countries including Indonesia, India, Japan, the Philippines, Malaysia, the United Kingdom, Italy, Turkey, Russia, and Mauritius. At the same time, the company's customer base includes well-known domestic and foreign companies, domestic and foreign OEM manufacturers, foreign tool dealers and even tool manufacturers.
Our factory has strong non-standard production ability, and we can make tailor-made according to customers' drawings and samples. Products are widely used in steel, paper, wood, plastic, rubber, textile and packaging industries. Since the company exported to the United States in 2008, it has been exported to dozens of countries including Indonesia, India, Japan, the Philippines, Malaysia, the United Kingdom, Italy, Turkey, Russia, and Mauritius. At the same time, the company's customer base includes well-known domestic and foreign companies, domestic and foreign OEM manufacturers, foreign tool dealers and even tool manufacturers.
Maintenance advice
1. Check the cutter screws regularly. After crushing the material by crusher, tighten it with tools. Move the knife and the screw
that fixes the knife to strengthen the fixity between the blade and the tool holder.
2. Always pay attention to check whether the material is doped with screws, metal blocks, small stones or Other hard materials, which will affect the use of the blade or even damage the blade.
3. Pay attention to the sharpness of the blade incision, and grind it after the blade becomes dull to avoid the knife. The dulling
of the sheet causes damage to other parts.
4. When replacing the blade, the clearance between the moving blade and the fixed blade is well set. Adjust the thickness of
recycled broken materials with different gaps,so as to obtain better shearing effect.
3. Pay attention to the sharpness of the blade incision, and grind it after the blade becomes dull to avoid the knife. The dulling
of the sheet causes damage to other parts.
4. When replacing the blade, the clearance between the moving blade and the fixed blade is well set. Adjust the thickness of
recycled broken materials with different gaps,so as to obtain better shearing effect.
