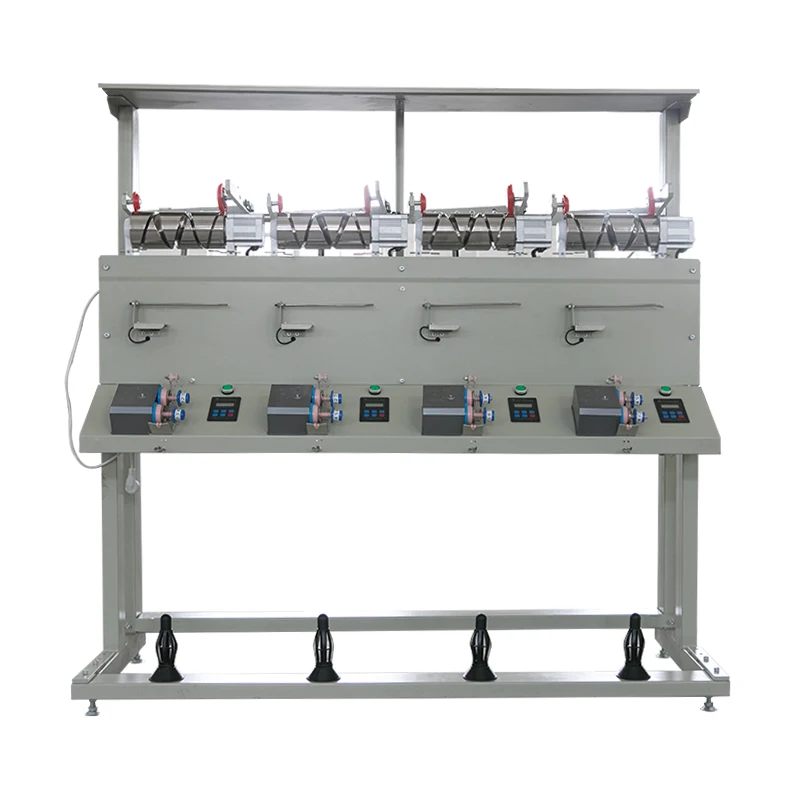

Professional Electric Cone Bobbin Wool Yarn Ball Winder Machine with Winding Drum
- Category: >>>
- Supplier: Wuxi Xindawei Textile Machinery Co. Ltd.
Share on (1600412251964):
Product Overview
Description
Products Description
1. Usage: For winding yarn or thread

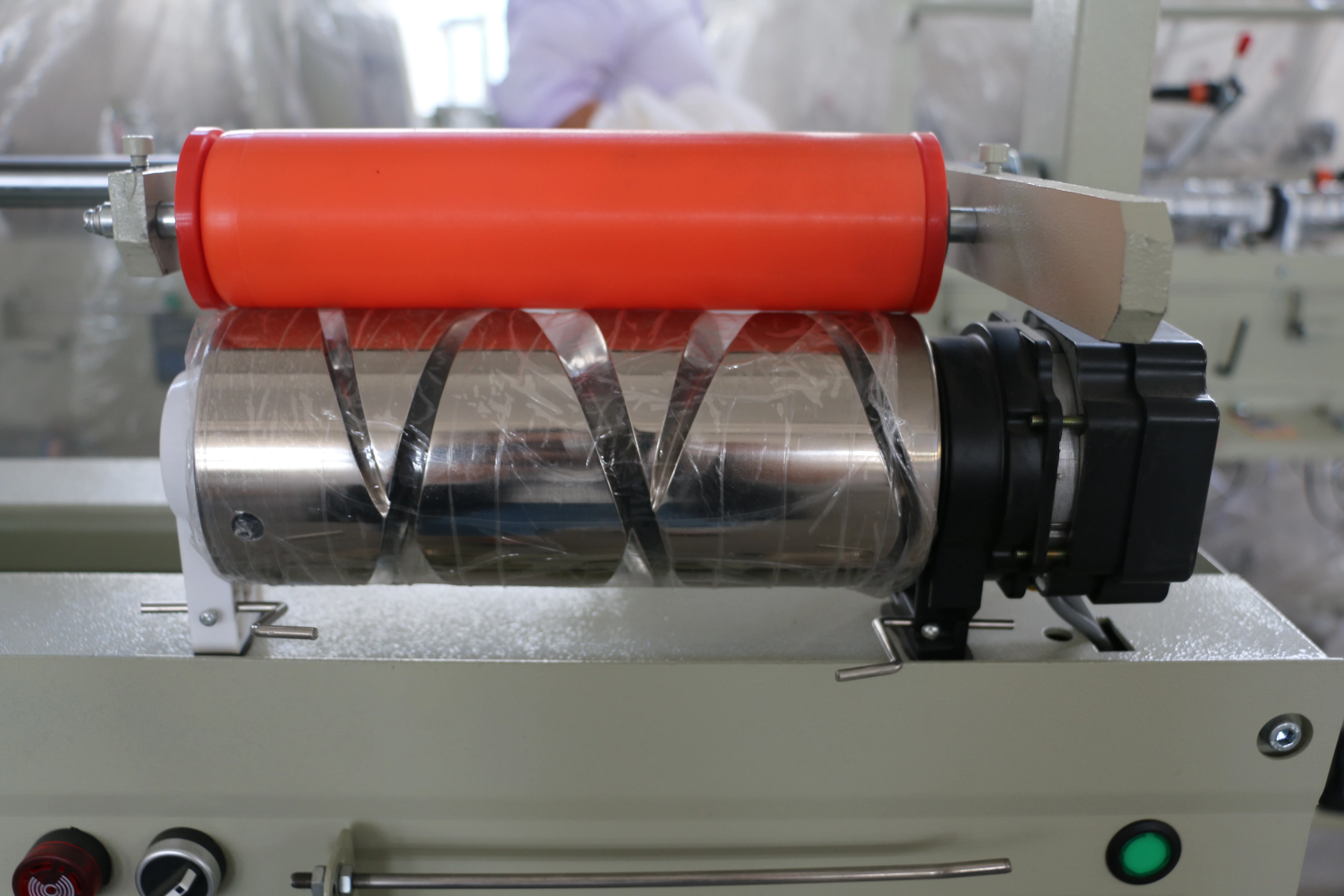

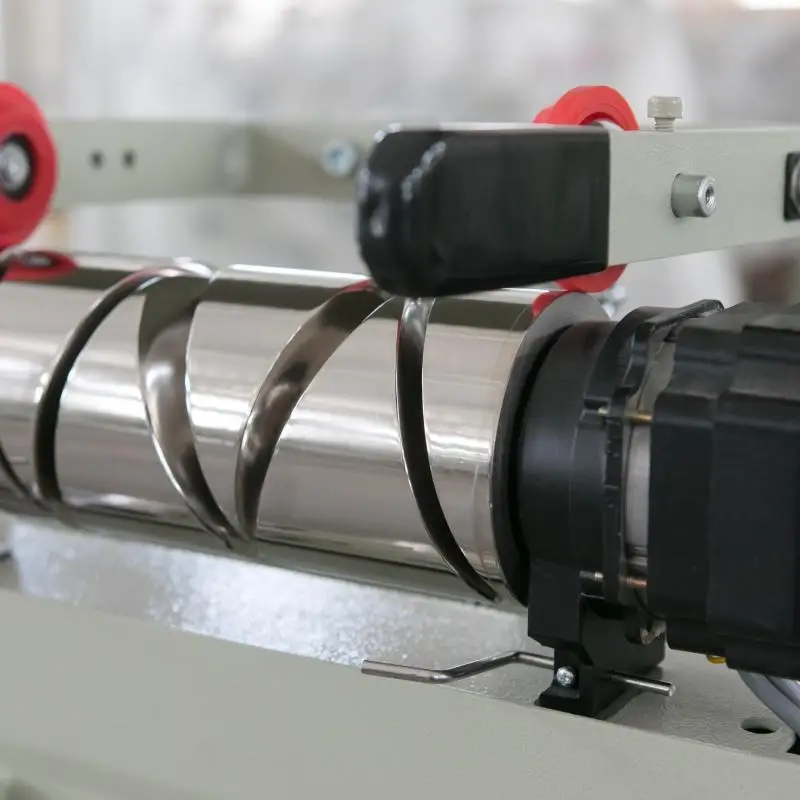

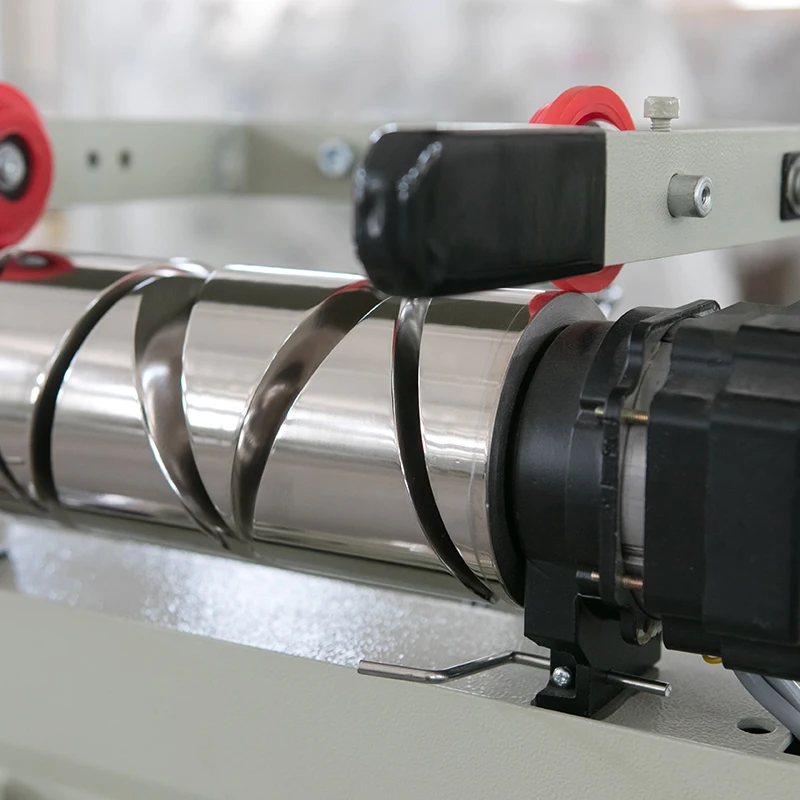

2. Using high quality alloy drums with optimized groove shape,which have the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.

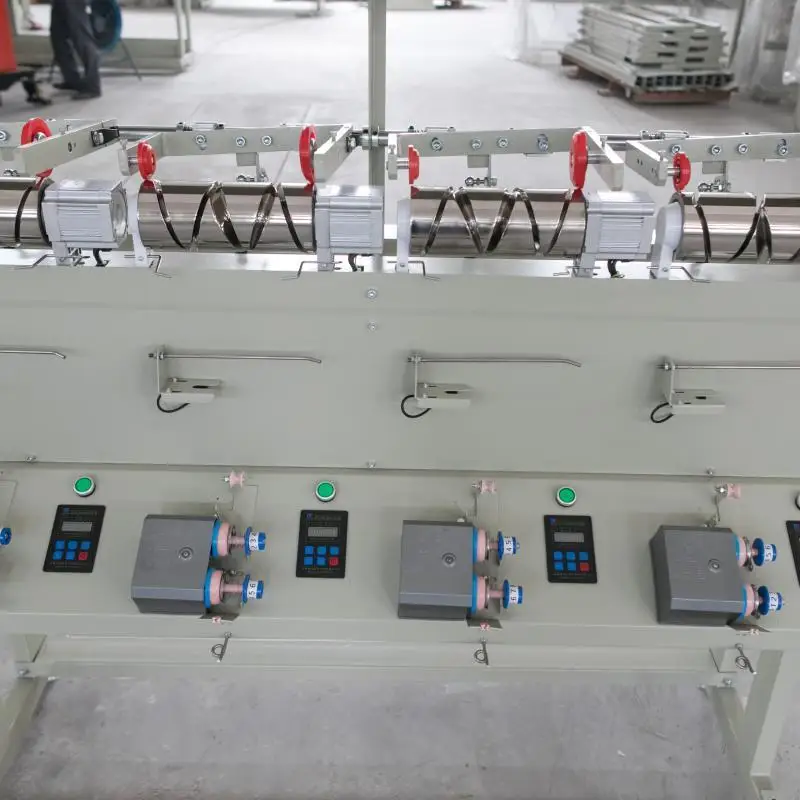

3. Single winding motor control for each spindle with length setting, single spindle automatic stop while yarn breaks or fully filled.
4. High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.
5. The traverse device for the soft edge is very easy to adjust, that will make the bobbin be suitable for even dyeing.
3. Single winding motor control for each spindle with length setting, single spindle automatic stop while yarn breaks or fully filled.
4. High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.
5. The traverse device for the soft edge is very easy to adjust, that will make the bobbin be suitable for even dyeing.
Item | Technical Parameters |
Speed | Up to 1200 m/min (Depend on yarn quality and count) |
Way of anti-overlapping | Machnical or digital |
Package bobbin | 0°, 3°30' |
Package diameter | Up to φ430mm |
Machine dimension | 1700*670*1630 mm |
Applicable Bobbin/Cone
Suitable for 170mm, 180mm, 230mm, and 290mm length cone or bobbin.
Also accept customized bobbin or cone.
Applicable Yarn
Cotton yarn
Flax yarn
Wool
Silk
DTY
Fiber glass
Chenille Yarns
Others
Yarn production process
1. Fiber
2. Scutcher machine
3. Carding machine
4. Roving machine
5. Spinning machine
6. Winding machine
7. Doubling machine
8. Twisting machine
Why Choose Us
1. Company Profile
Wuxi Xindawei Textile Machinery Co., Ltd, established in 2012, is a professional engaged in the research, development, sale and service of yarn winding machine, grooved drum, twisting machine, etc. We are located in No.2 Antai Road, Zhangzhu Town Industrial Park, Yixing City, Jiangsu Province, which is 2.5 away from Shanghai and Ningbo seaport by car. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, Russia, England, Indonesia, etc. We also welcome OEM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
2. Production Line
Grooved drum raw material
Polish
Dynamic balance
Raw material
Assemble
Testing machine
3. Certificates
Patent for invention of vertical path of yarn winding machine
Patent for mechnical anti over-lapping
Patent for yarn conveyor
4. Exhibition
CITMA 2018 in Shanghai
ITMA 2019 in Shanghai
Saigontex in Vietnam
DTG in Bangladesh
Shippment
FAQ
1. Q: Are you factory or trading company?
A: We are factory.
2. Q: How is the machine work?
A: The machine is designed to wind on the bobbin or cone according to the grooved drum curve.
3. Q: How to use the machine?
A: The machine is very easy to operate. Just set the speed, and length you need, and push the button, the machine will start. And also we'll provide the instruction book with the shipment, and videos for operation.
4. How to replace the spare parts?
A: For each machine, we'll provide the 1% of the spare parts. If some of the parts breaks, you can replace it yourself.
