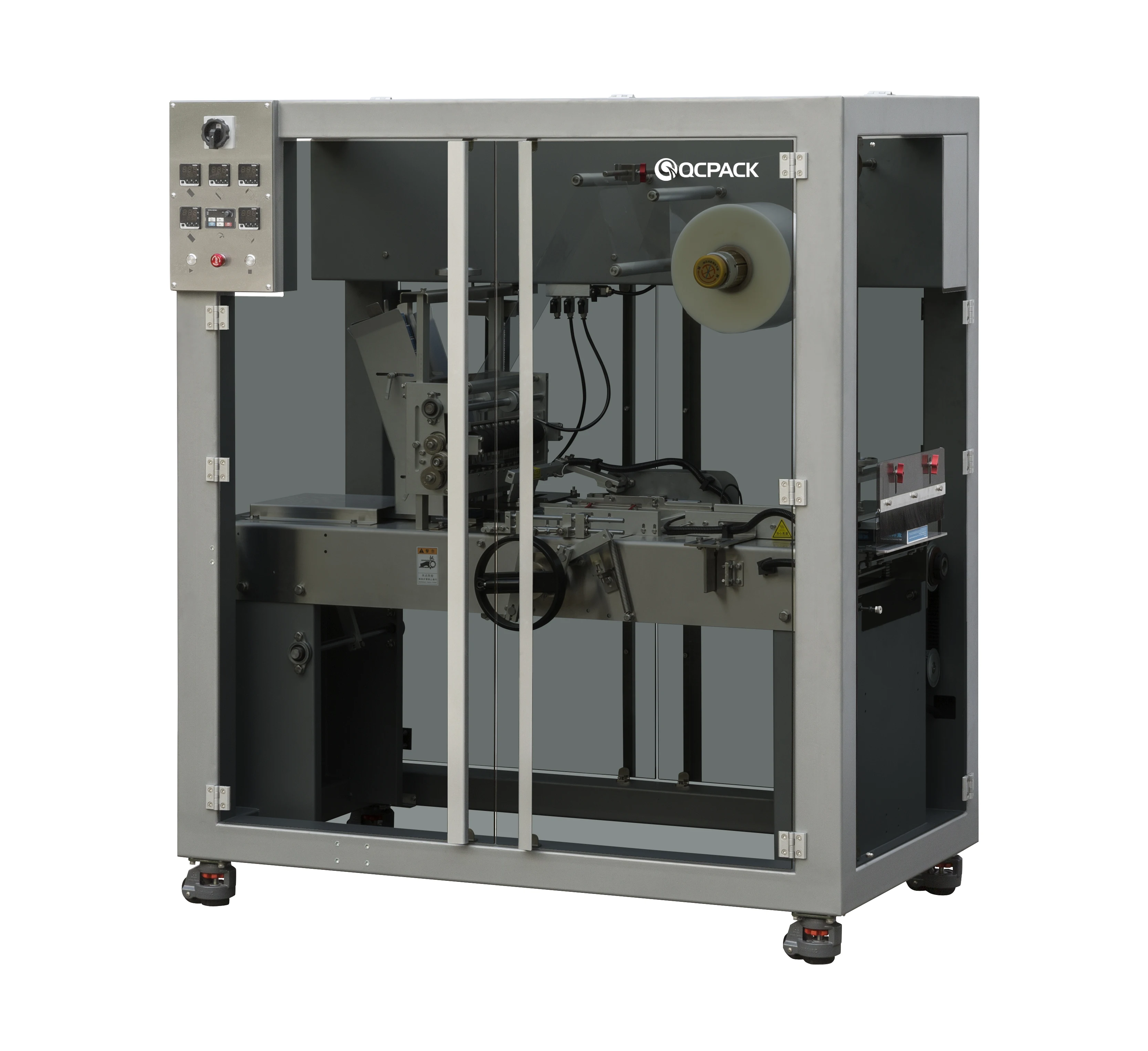

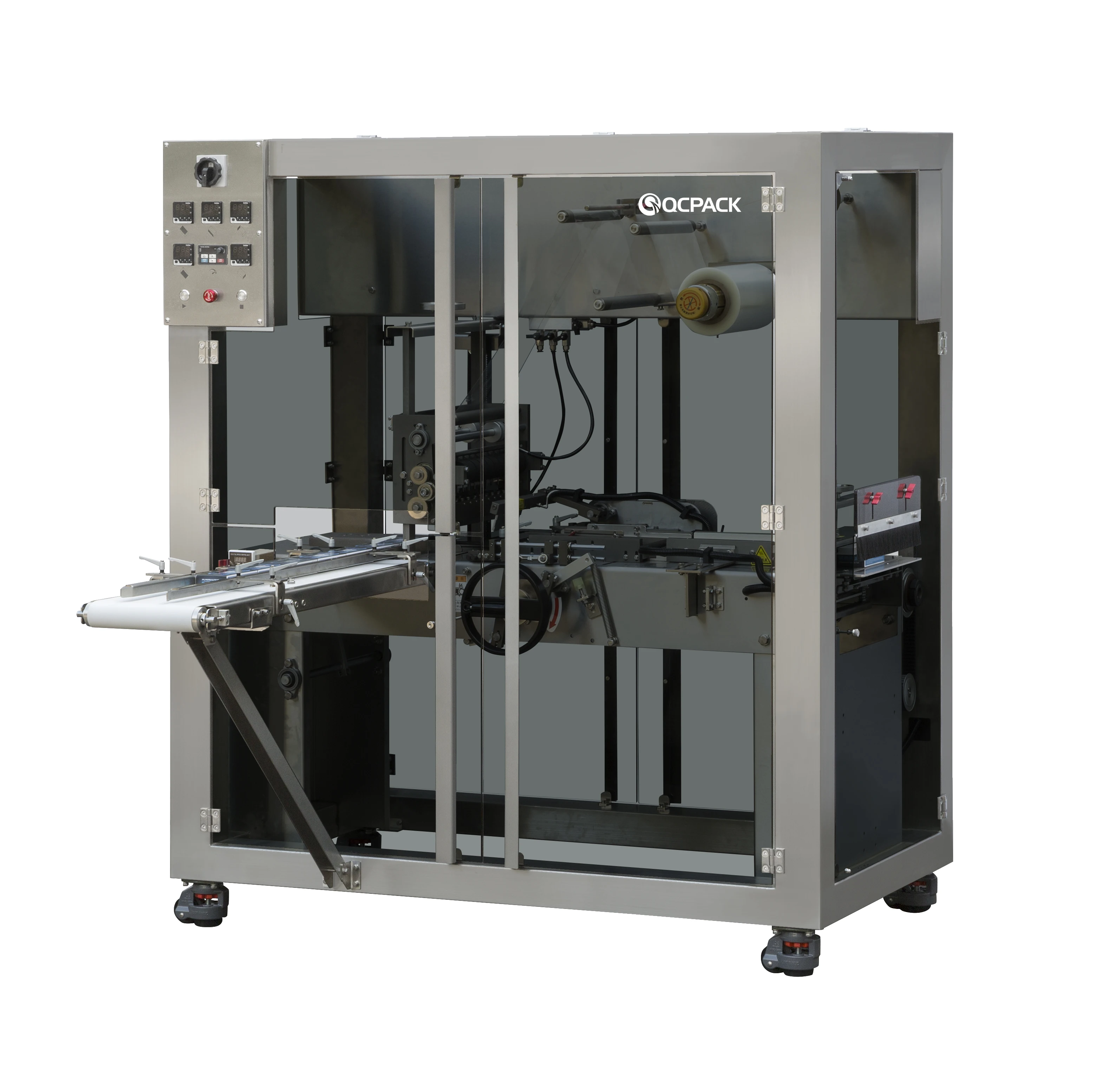

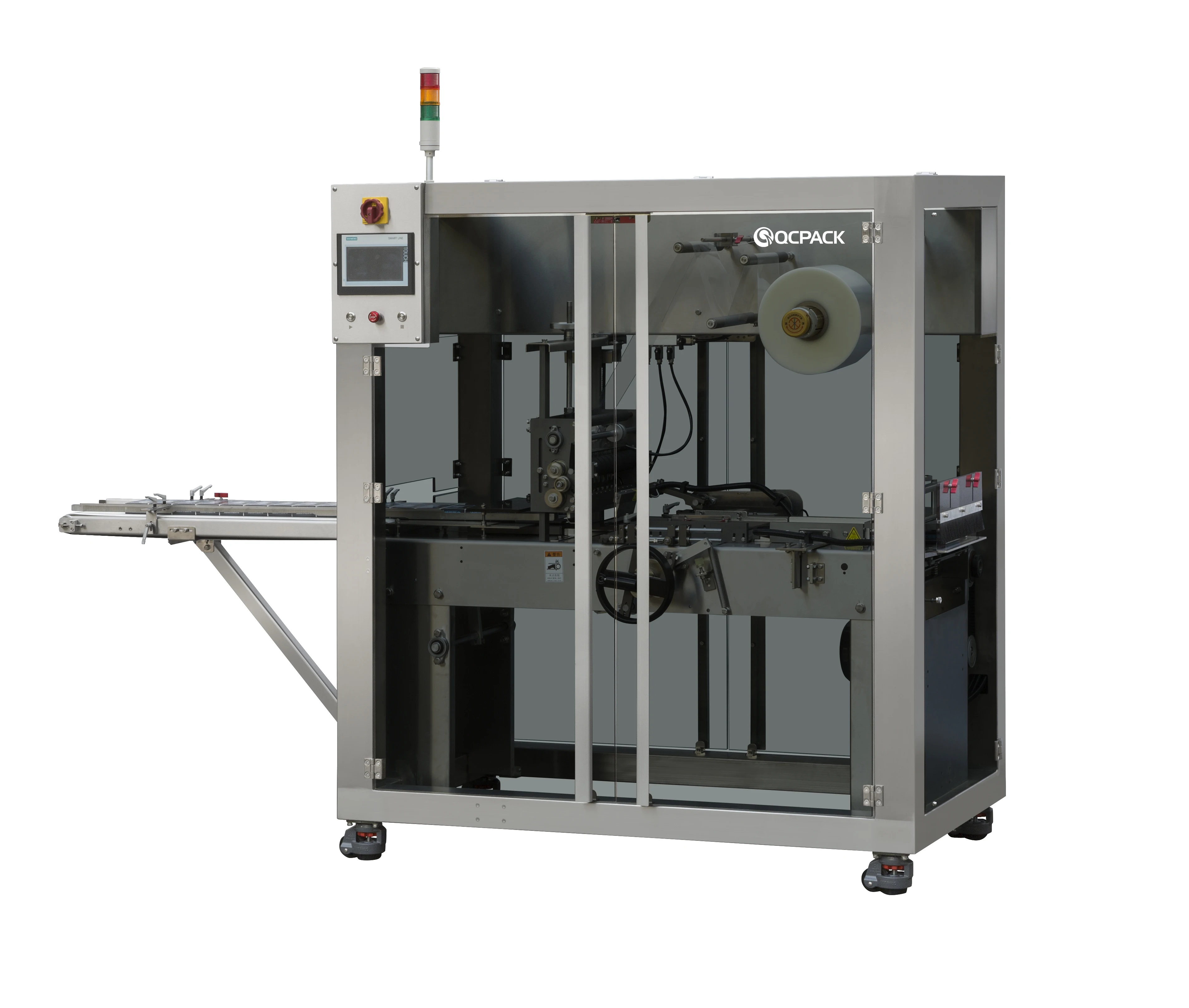

Box film wrapper automatic cellophane packaging machine from Chinese manufacturer

Product Overview

Description

Box film wrapper automatic cellophane packaging machine from Chinese manufacturer





1. Production Instruction:

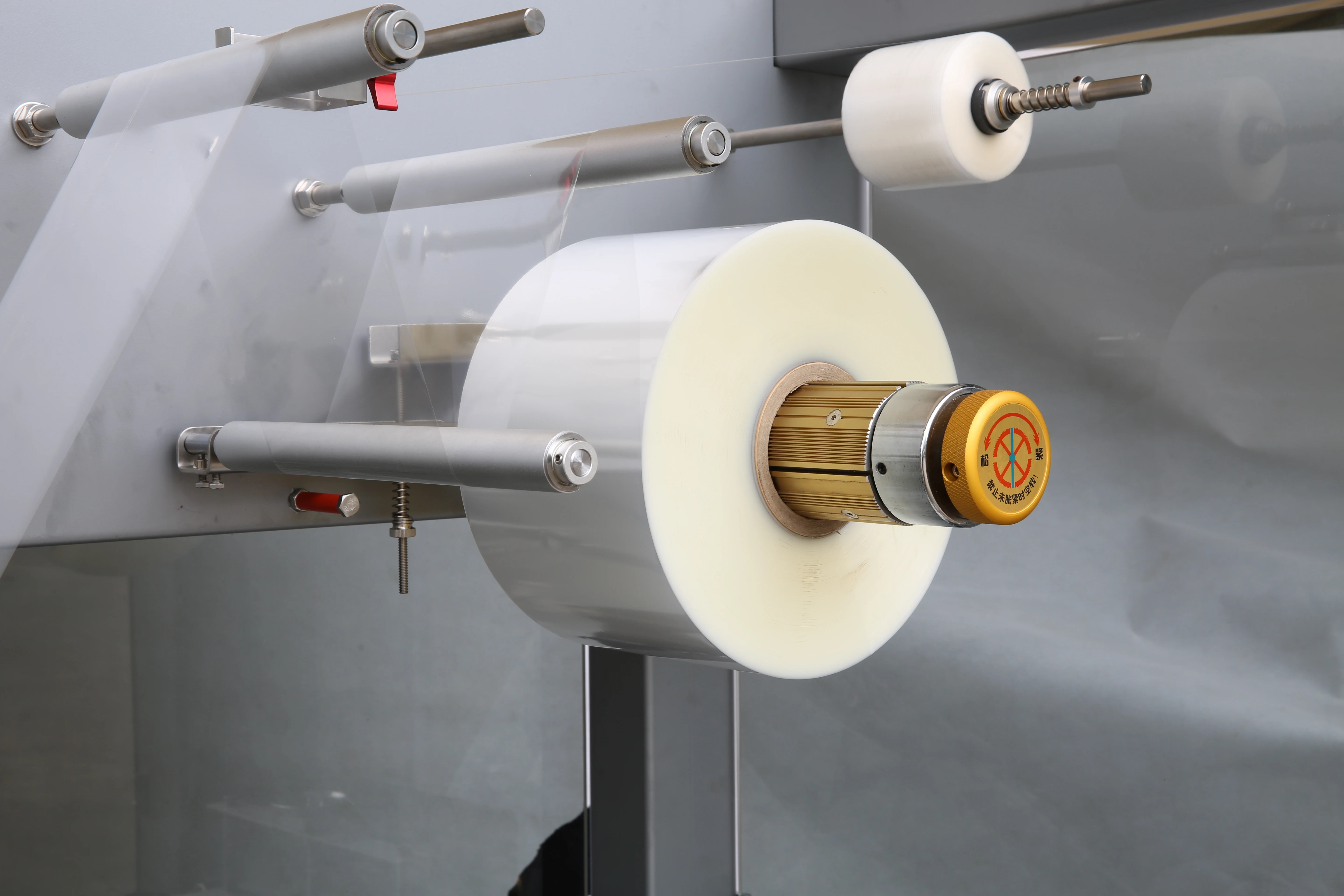

This machine is suitable for film automatic wrapping of single box articles in various industries (with gold tear tape). The whole frame of the machine adopts carbon steel plastic spraying, landing multi-open safety door structure, flat push box structure, easy to change the mold, adjust the distance to adjust the size by hand, greatly save the time to change the mold, the fixed film is fixed by air expansion shaft roller, so that the film is more simple and faster.



Automatic Grade: Automatic   Driven Type: Electric

Application: tea bag, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

BTB-300A Automatic Rotary cellophane wrapping machine from Shanghai manufacturer

2. Videos: please contact me to share more machine videos with you.



3. Technical Data:

Packing Material	BOPP film and gold tear tape
Packing Speed	30~70 packs/min
Packing Size	(L)60-260×(W)30-160×(H)15-70mm (L+W(mm)≤280,W+H (mm)≤190)
Electric Supply & Power	220V 50Hz  5kw
Weight	350kg
Overall Dimensions	(L)1500×(W)850×(H)1700mm





3. Features:

1. This machine is a kind of automatic high speed transparent film wrapping equipment, adopts the flat push type packaging method, all wrapping and heat sealing action is completed by CAM transmission, with fast speed, stable operation and other characteristics.

2. Different sizes of items can be packed by changing the mold. The newly designed quick adjustment structure makes the change of mold more simple and quick.

3. This machine adopts full aluminum alloy cutting knife holder, single rotary cutting knife, cutting film accurate, smooth, large and small products without changing the cutting mechanism.

4. Frequency converter is adopted to adjust the packaging speed, which can reach 30 ~ 70 packages/min according to different packaging items.

5. With double - sided fold plastic cosmetic device, make the film packaging more fit, more beautiful.

6. The new quick disassembly reel, with composite adhesive laser anti-counterfeiting unsealing line function, real anti-counterfeiting, moisture-proof role.

7. Automatic feeding and manual feeding two feeding mechanisms, automatic feeding can be used with fully automated unmanned production line.

8. The automatic feeding mechanism has the function of stopping with or without box, with the overload protection device of clamping and torsion force, and the auxiliary film-lowering device of double-layer blowing.

9. Imported stainless steel integrated panel, integrated electrical box installed on the top, car rear door open all-aluminum electric box door.

10. The whole machine acrylic safety cover.



4.Component list

No.	Item	Qty	Brand

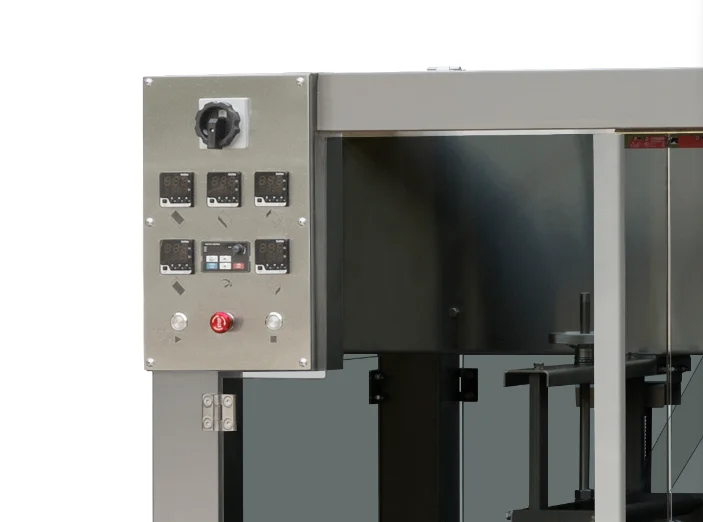

1	Temperature control table	5	Teshow(Shanghai)
2	The inverter	1	Zoncn(Shanghai)
3	Miniature circuit breaker	3	Chint (China)
4	Intermediate relay	8	Omron (Japan)
5	Proximity switch	1	Hanyoung(Korea)
6	Dc power supply	1	Omron (Japan)
7	The power switch	1	Sijin(China)
8	Manual tensioning shaft	1
9	Control valve/solenoid valve	1 set	AirTAC(Taiwan)
10	Main motor	1	CPG(Taiwan)
11	Green with light button	1	Daiwa(Japan)
12	Red button with light	1	Daiwa(Japan)
13	Quick installation of connectors	3	Daiwa(Japan)



For more details of Box film wrapper automatic cellophane packaging machine from Chinese manufacturer, please feel free to contact me.
