Product Overview
Description

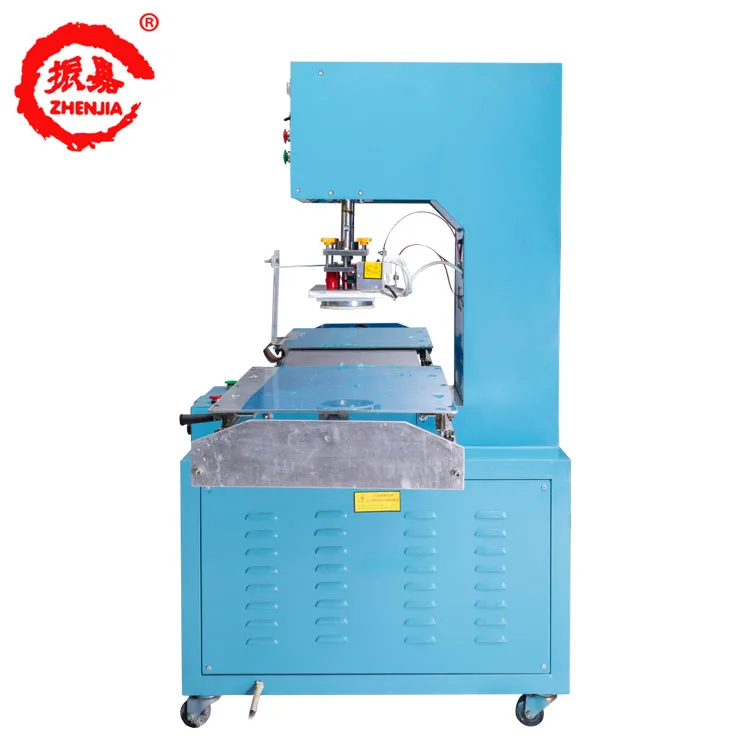

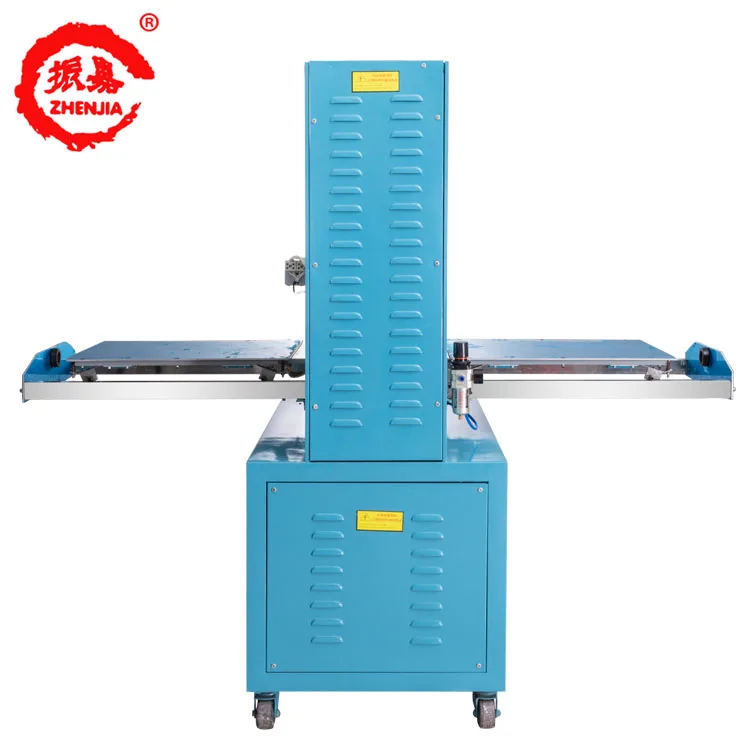

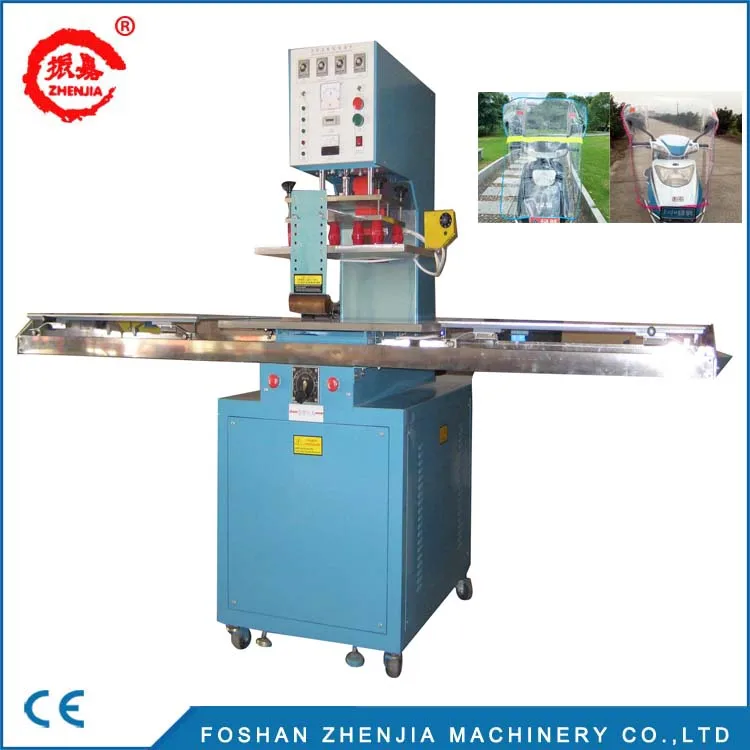

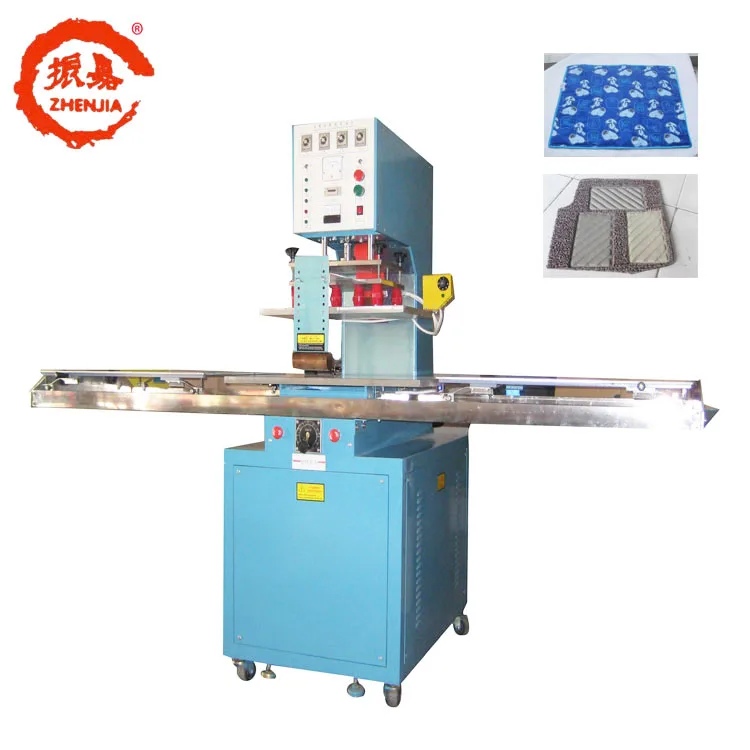

Semi-Auto Blister Heat Sealing High Frequency Pet And Card Welding Machine for Battery And Toys
Introduction and advantages
1. Adopting the original OMRO relays of major international brands and the authentic CKC time system in Taiwan can ensure the machine's long-term frequency operation, greatly extend the life of the machine and reduce machine failures.
2. Equipped with high-frequency frequency stabilizer and high-frequency shielding device to minimize high-frequency interference.
3. The automatic overcurrent protection system increases the service life of the vacuum tube and protects the mold.
4. 5KW High Frequency plastic PVC welding machine uses imported fan with greater wind power and more stable, which makes the vacuum tube longer service life
2. Equipped with high-frequency frequency stabilizer and high-frequency shielding device to minimize high-frequency interference.
3. The automatic overcurrent protection system increases the service life of the vacuum tube and protects the mold.
4. 5KW High Frequency plastic PVC welding machine uses imported fan with greater wind power and more stable, which makes the vacuum tube longer service life
Product Description
Semi-Auto Blister Heat Sealing High Frequency Pet And Card Welding Machine for Battery And Toys samples:
parameter
Model | ZJ-5K-SB high frequency welding machine |
Power | 5KW |
Power supply | 380V or 220V |
Input power | 8.5KVA |
Oscillation frequency | 27.12 or 40.68MHZ |
Rectifier | Silicon diode |
Oscillation tube | 7T85 |
Max gap of electrodes | 250mm |
Range of temperature | 50-300℃ Adjustable |
Welding time | 0-10s Adjustable |
Upper the working table size | 350*200mm |
Push plate size | 640*500mm |
Machine does not shelf size | 1000*665*1730mm |
Single shelf size | 2010*100*100mm |

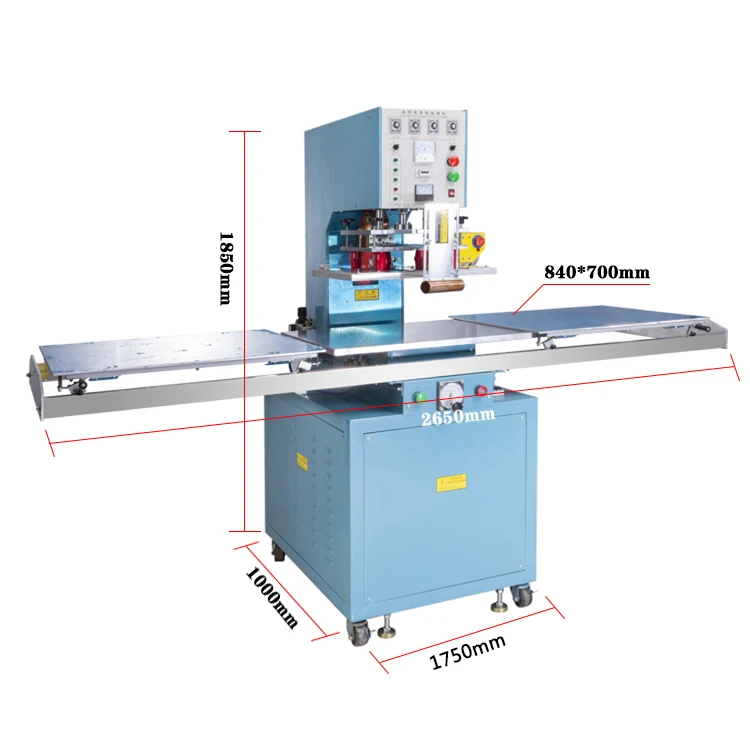

Dimensions | 1000*2010*1730mm |
Cylinder | 80*200 |
Mold hole distance | 310mm or 100mm |
Machine weight | 350KG |
Air compressor suggestion | 60 liter air tank |
Machine trachea | 8 centimeter |
Floor to machine working table size | 940mm |
Part of the details
High Frequency Pet And Card Welding Machine uses an all-copper filament transformer to make the machine more conductive.
Our company uses domestic high-quality rectifier blocks (diodes) to ensure the smooth operation of the machine.
The filament of the oscillation tube in our company's high-frequency welding machine uses superior quality filaments imported from Austria which is more efficient, and produces one product every 5s-7s on average.
High Frequency Pet And Card Welding Machine adopts an imported Double Tube 2D21 Anti-spark protection device,this device is in Russia, it prevents the machine from generating sparks and protects the mold.
High Frequency Pet And Card Welding Machine uses the high-quality high-voltage capacitors in China, with stable performance, and not hidden dangers of flammability and explosion.
our company
Foshan Zhenjia Machinery Co., Ltd.
Zhenjia Machinery Co. ,Limited has specialized in high frequency welding machine and automatic equipment technology for 19 years,we are a mainly of Research and development,Producing,sales and after- sales manufacturers.

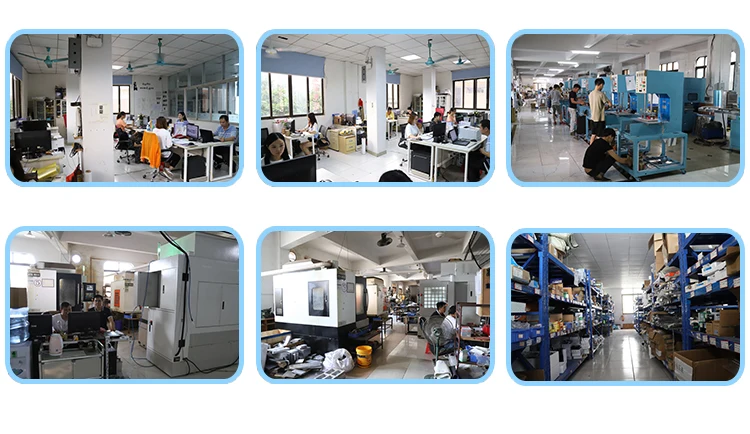

We have high -precision molds CNC processing machine and other equipment for customers to produce high frequency mold,ultrasonic mold and blister bakelite molds superior services.
Our cooperation manufacturers have Hisense,Shenzhen DJI- Innovations,Foshan Electrical lighting Company and other well-known enterprise.
certification

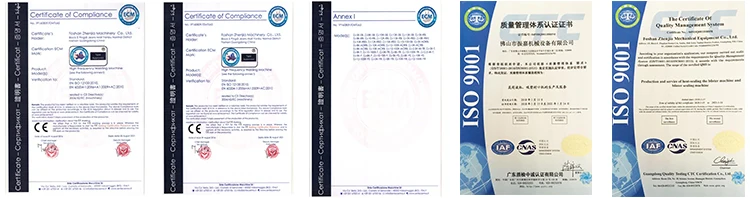

CE and ISO9001 certification
Cooperative Customers and Exhibition
FAQ
Q1. Why our price is so lower?
A1: we are one factory, we seek for long time cooperation. no just one time. Keep little profit, also we are glad to do business with every customer.
Q2. How to ensure the cargo quality?
A2: The main control of the machine are using Europe, the United States and Japan imported components, with high stability, all systems are self-developed. All machines hold the CE certification issued by the European Union countries. Machinery exported to Southeast Asia, the Middle East, Europe and the United States, Nepal and other countries and regions.
Q3. The warranty of machine?
A3: All machine will be one year warranty .
Q4. It is the first time that i order this machine , How can i operation it?
A4: Don't worry , We will send you manual , operation video ,calling or E-mail to you This is a simple machine , it is very easy to operation it .
Q5. How can I have a Proforma Invoice or Quotation?
A5: PI and quotation we will send,i send the quotation for you when i quote the price,if you confirmed the order,i will send the PI for you.

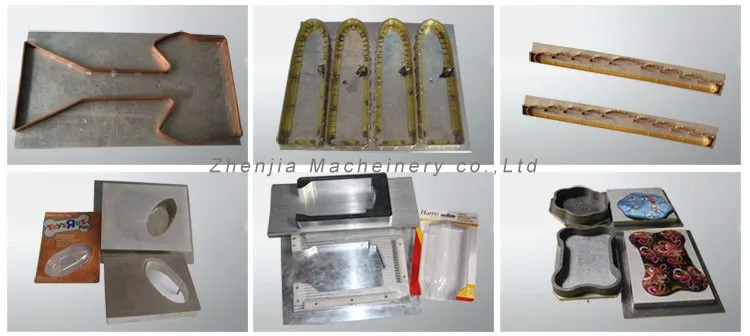

Q6. High Frequency Pet And Card Welding Machine need mould ?
A6: Yes, it is. any machine all need to make the molding can work.
A1: we are one factory, we seek for long time cooperation. no just one time. Keep little profit, also we are glad to do business with every customer.
Q2. How to ensure the cargo quality?
A2: The main control of the machine are using Europe, the United States and Japan imported components, with high stability, all systems are self-developed. All machines hold the CE certification issued by the European Union countries. Machinery exported to Southeast Asia, the Middle East, Europe and the United States, Nepal and other countries and regions.
Q3. The warranty of machine?
A3: All machine will be one year warranty .
Q4. It is the first time that i order this machine , How can i operation it?
A4: Don't worry , We will send you manual , operation video ,calling or E-mail to you This is a simple machine , it is very easy to operation it .
Q5. How can I have a Proforma Invoice or Quotation?
A5: PI and quotation we will send,i send the quotation for you when i quote the price,if you confirmed the order,i will send the PI for you.
Q6. High Frequency Pet And Card Welding Machine need mould ?
A6: Yes, it is. any machine all need to make the molding can work.
