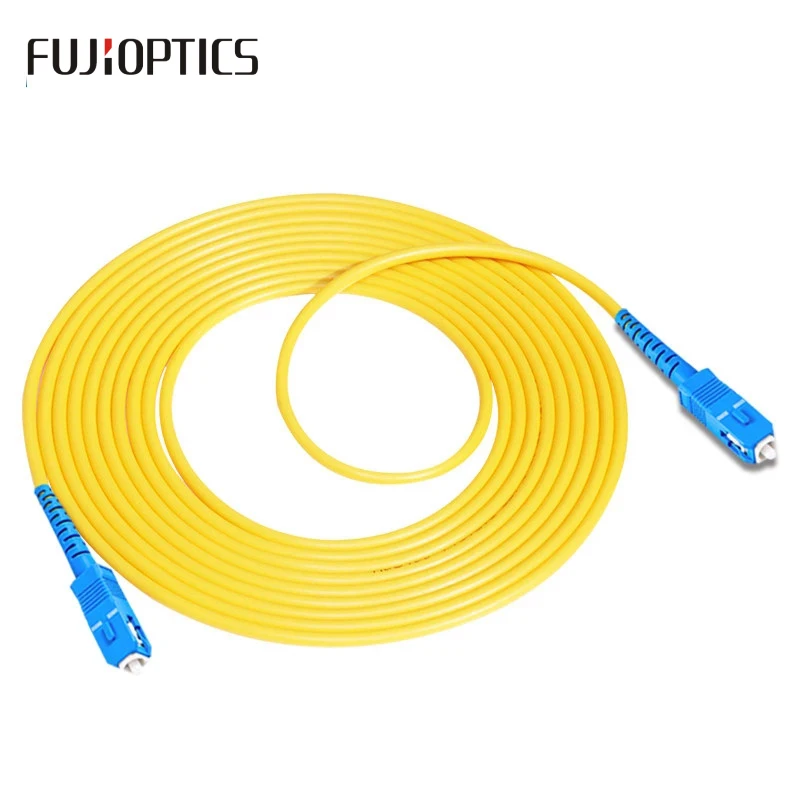

FTTH Fiber Optic Patch Cord With SC LC FC ST Connector Fibre Optic Patchcord Cable
- Category: >>>
- Supplier: Wuhan Fujioptics Technologies Co. Ltd.
Share on (1600412298524):
Product Overview
Description
Product Description
FTTH Fiber Optic Patch Cord With SC LC FC ST Connector Fibre Optic Patchcord Cable
The Fiber Optic Patch Cord is a length of Fiber cable with connectors fixed on two ends
to realize the optical path active connection. Pigtail is a length fiber cable with only one
connector fixed on one end. If both sides of the connector or its end-face are different, we
call it hybrid patch cord. According to the transmission medium, it divides to Single Mode
and Multi Mode Fiber Optic Patch Cord; According to the connector structure type, it

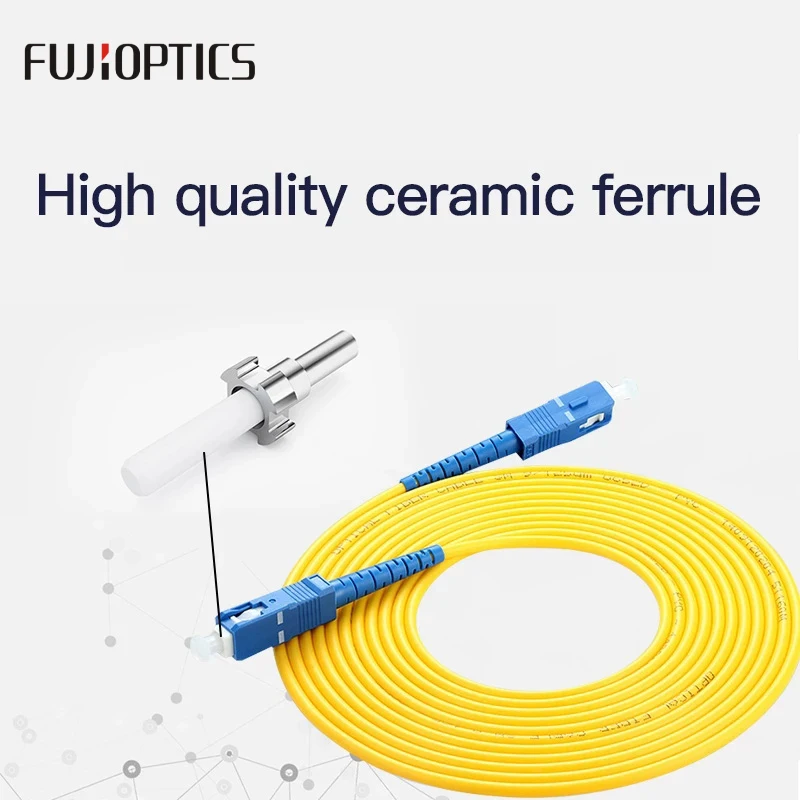

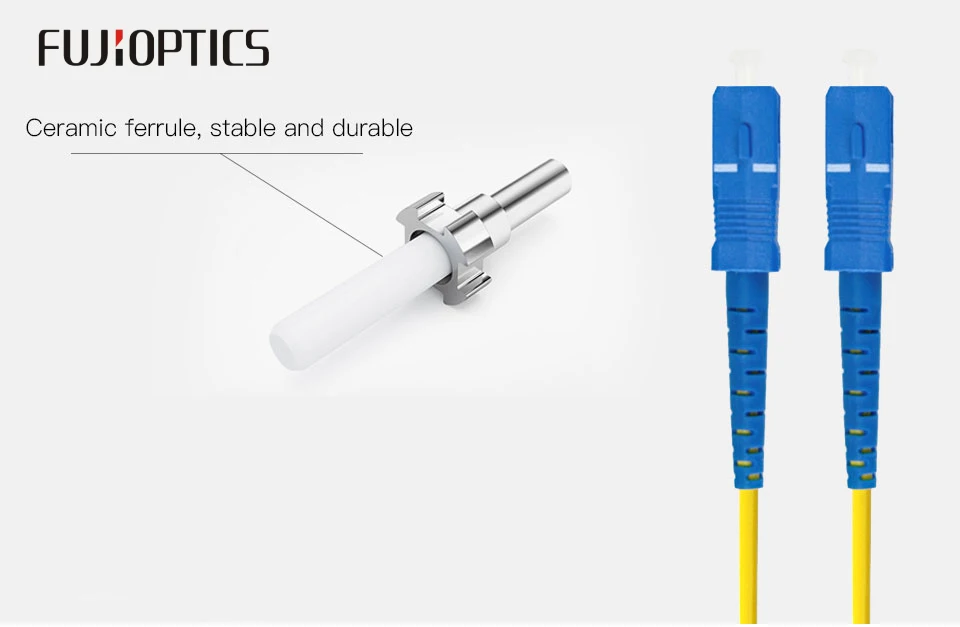

divides FC, SC, ST, MU, D4, E2000, LC etc.; According to the polished ceramic end-face, it
divides to PC, UPC and APC.
to realize the optical path active connection. Pigtail is a length fiber cable with only one
connector fixed on one end. If both sides of the connector or its end-face are different, we
call it hybrid patch cord. According to the transmission medium, it divides to Single Mode
and Multi Mode Fiber Optic Patch Cord; According to the connector structure type, it
divides FC, SC, ST, MU, D4, E2000, LC etc.; According to the polished ceramic end-face, it
divides to PC, UPC and APC.
Specification
Mode | Single Mode | Multimode | |||||
Polish | UPC | APC | PC | ||||
Insertion Loss | ≤0.3dB | ≤0.2dB | ≤0.3dB | ||||
Return Loss | ≥50dB | ≥60dB | ≥30dB | ||||
Test Wavelength | 1310/1550nm | 850/1310nm | |||||
Durability(500 Matings) | ≤0.2dB | ||||||
Operating Temperature | -20℃~+70℃ | ||||||
Storage Temperature | -40℃~+85℃ | ||||||
Standars-Compliant | ROHS ,IEC and GR-326 | ||||||
Fiber Type | Single Mode: | 9/125 -G652D | 9/125-G657A,G657A2 | 9/125(G657B3) | |||
Multimode: | 50/125-OM2 | 62.5/125-OM3 | 50/125(OM4) | ||||
Fiber Brand | YOFC,Corning,Sumitomo,Fujikura | ||||||
Connector | SC,LC,FC,ST,MU,E2000,MPO/MTP,MTRJ,DIN,SMA,D4 | ||||||
Cord Type | Simplex ,Duplex | ||||||
Cable Diameter | 0.9mm,1.2mm,1.6mm,1.8mm,2.0mm,2.8mm,3.0mm,4.1mm | ||||||
Cable Jacket | PVC,OFNR,LSZH,OFNP | ||||||
Length(M) | 0.5m,1m,2m,5m,10m,25m,100m.......Customized | ||||||

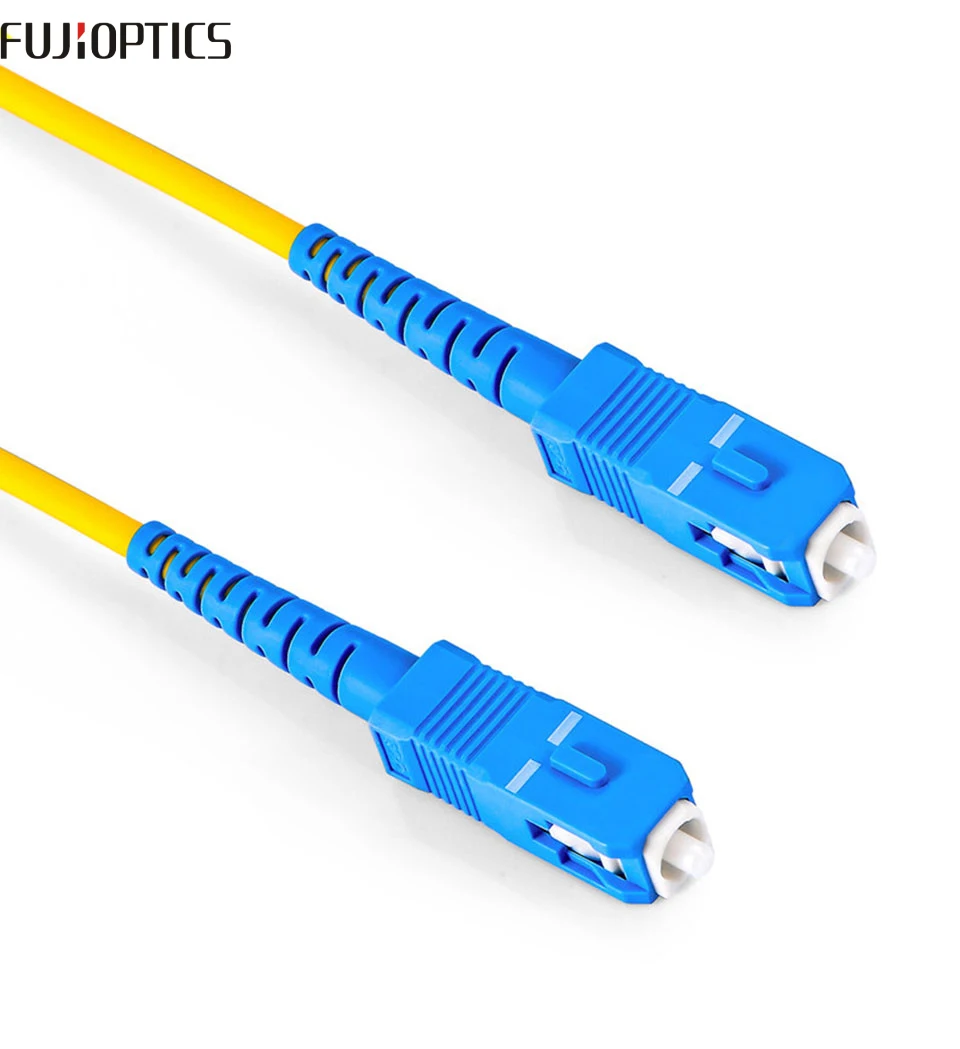

Product Display

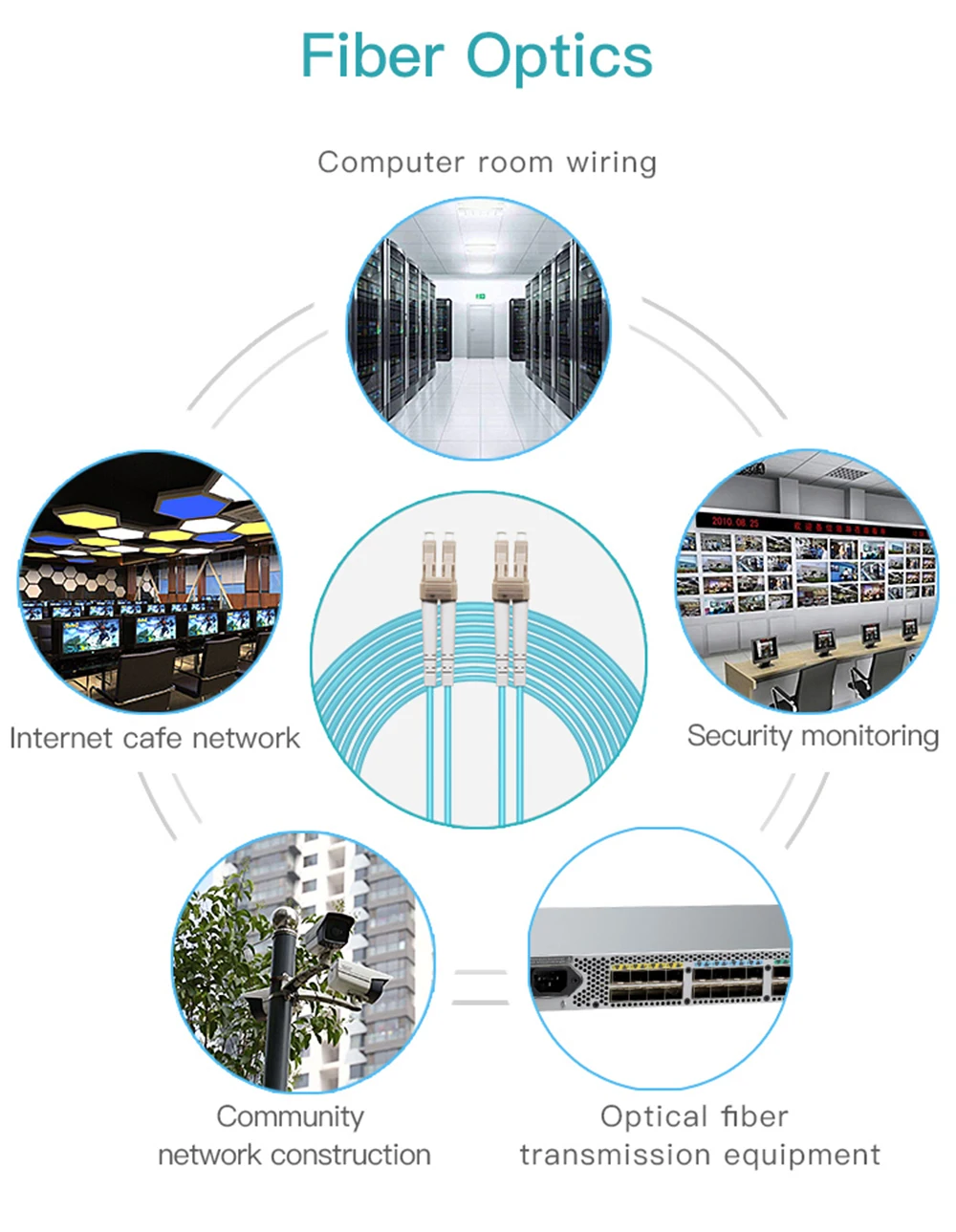

Features & Application
Data Center
Switch
Computer Room Wiring
Our Advantage
End face inspection
Insert & Return loss inspection
Professional Testing

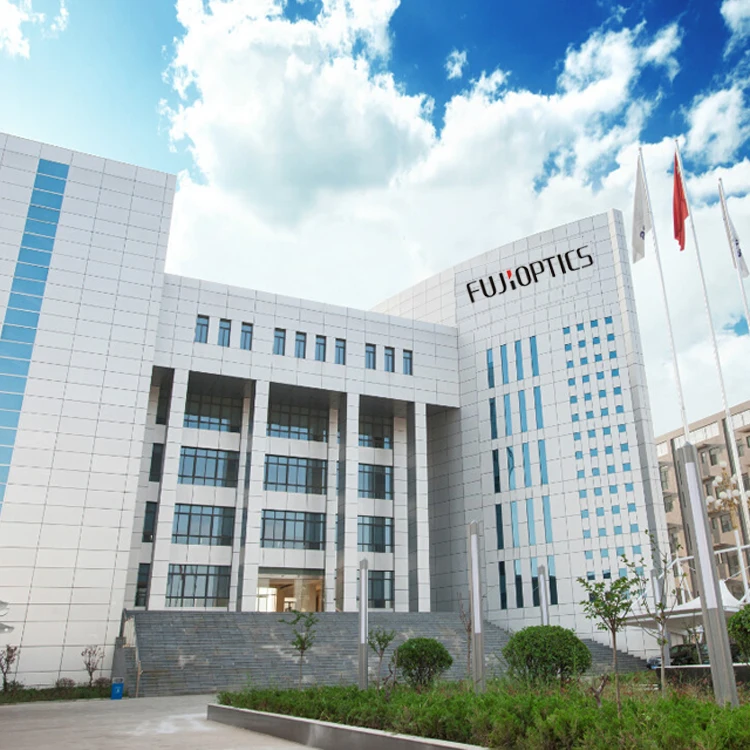

About our factory
Company profile
Wuhan Fujioptics technologies co.,lt has 15 years . experienced leading manufacturer optical fiber patchcord ;MPO/MTP/MT /AOCjumper;PLC;WDM series.with rich production and sales experience. To provide customers with FTTX &Data Center product solutions and OEM/ODM services.Our company pays attention to the Quality and has been recoginized by customers in various industries .products are exported to more than 30 countries around the world . including South America (Brazil ,Argentina,Colombia) Europe (Russica,Turkey ) Asia (India ,Malaysia ,Vietnam ) Looking forward to your cooperation and recogination,Growing up with clients.
FAQ
Q1:Are you trading company or real factory ?
A1:We are ture factory with more than 15 years fiber series products produce history ,with our own R&D ,sales and after-sales terms.
Q2: Why choose our Fujioptics products?
A2: Use JGR &Sumitomo Test Equipment and imported materials from Senko & Usconec ,Distric QC inspect ,have ISO9001 ,ROHS and so on certicate .
Q3: About the Quality?
A3: After price confirmation ,you can order sample to check quality.
Q4:About the delivery time.
A4: For normal stock items,they will be dispatched within 3 workinng days after payment confirmation.However,for items out of stock ,estimated lead time will be 3-10 working days.
Q2: Why choose our Fujioptics products?
A2: Use JGR &Sumitomo Test Equipment and imported materials from Senko & Usconec ,Distric QC inspect ,have ISO9001 ,ROHS and so on certicate .
Q3: About the Quality?
A3: After price confirmation ,you can order sample to check quality.
Q4:About the delivery time.
A4: For normal stock items,they will be dispatched within 3 workinng days after payment confirmation.However,for items out of stock ,estimated lead time will be 3-10 working days.
Q5:Can you supply OEM Products?
A5: Yes , we are manufacturer ,we can accept OEM Service with OEM Package . you need to send your detailed requirement.
A5: Yes , we are manufacturer ,we can accept OEM Service with OEM Package . you need to send your detailed requirement.
