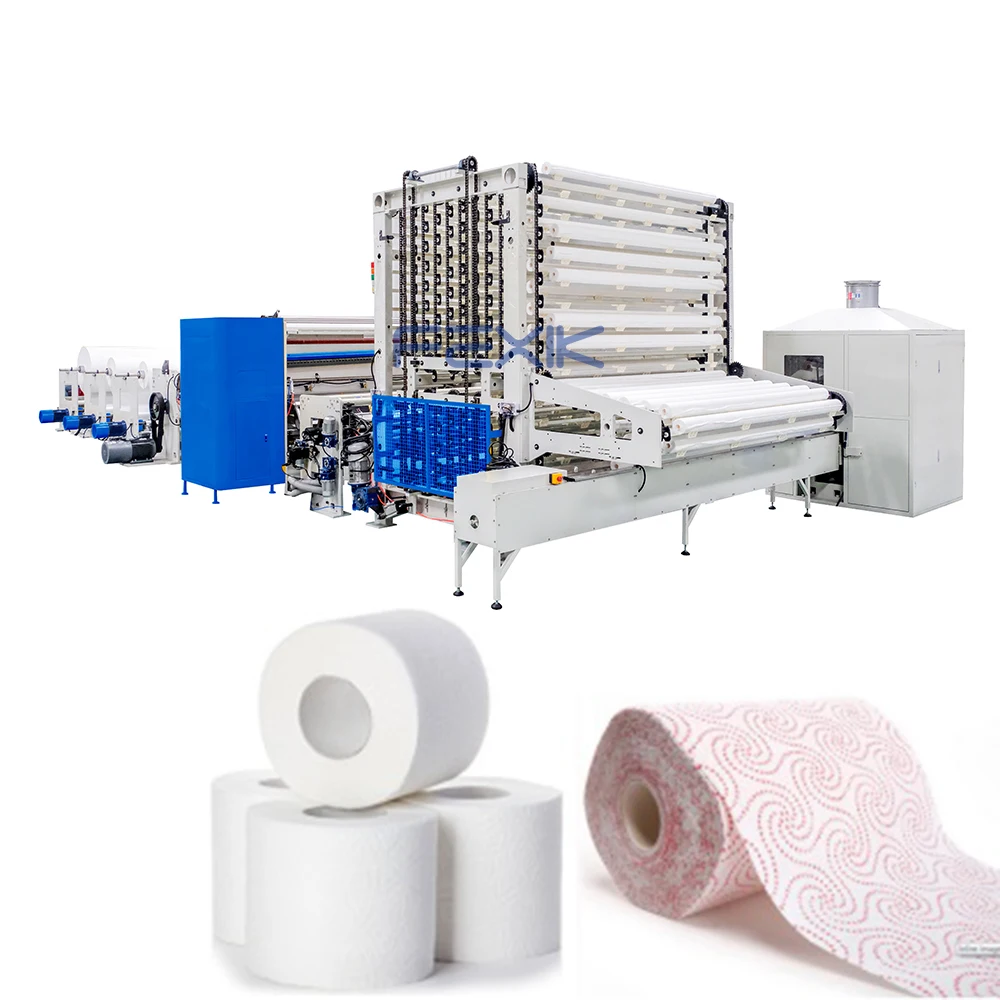

FEXIK 400 450m/min Speed Non stop Perforating Toilet PaperConverting Machine Embossed Toilet Tissue Paper Roll Process Machine
- Category: >>>
- Supplier: Liuzhou Fexik Intelligent Equipment Co. Ltd.
Share on (1600412298895):
Product Overview
Description
Product Description
Zode Automatic Perforating Toilet Paper Rewinding Machine Embossed Toilet Tissue Paper Roll Making Machine

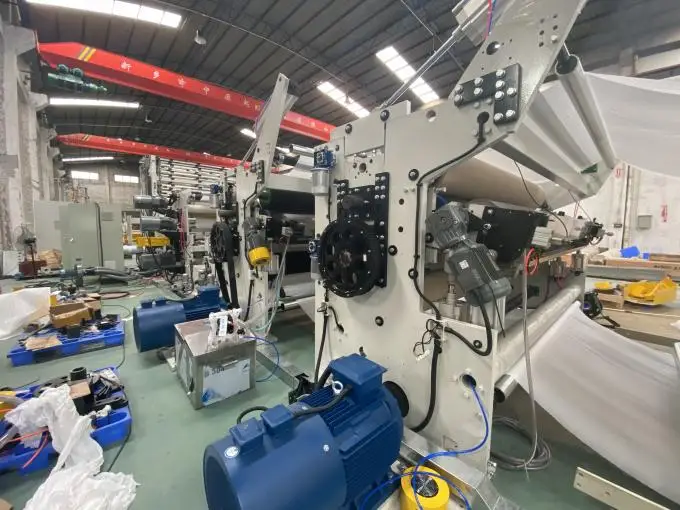

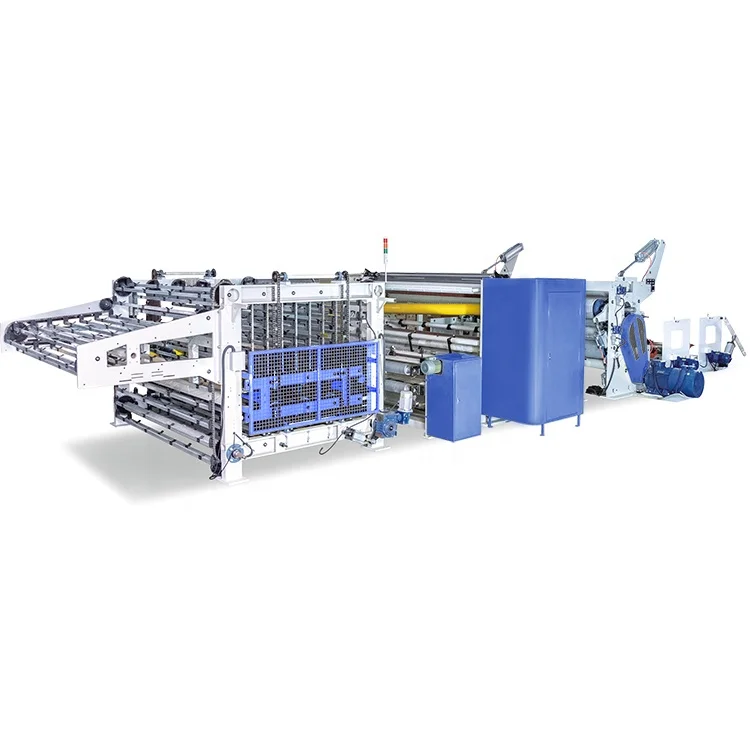

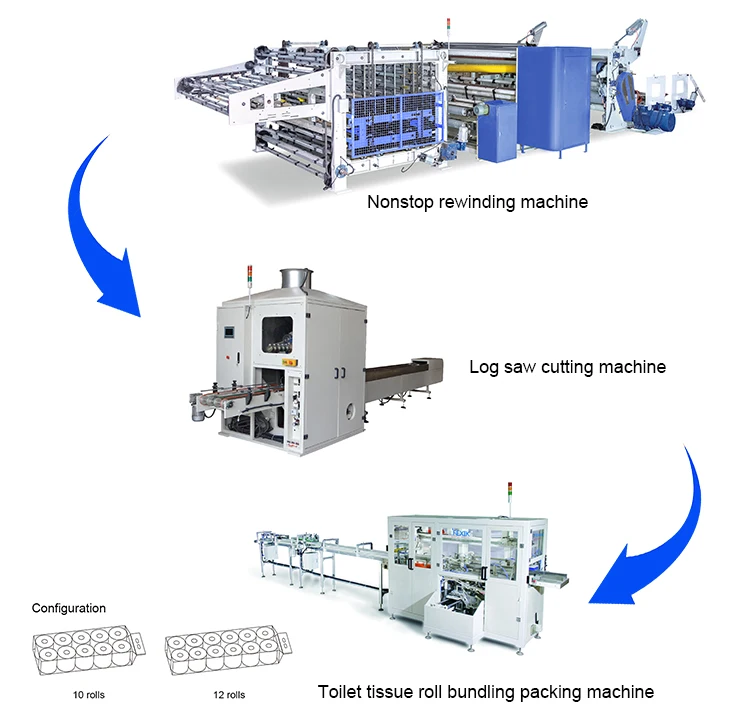

1.Nonstop rewinding machine:
1 . Unwind is equipped with closed loop frequency conversion control system.
2 . When the webs do not align,you can operate on the touch button screen to move the jumbo roll till webs align.
3 . When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
4. When the machine is running,web break off suddenly for reason of speed change sharply of problem from jumbo roll.
5 . Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
6 . When a log is rewinding,the next core is ready.
7 . For the reason of using advanced technology:Program Logic Control System; synchronous frequency conversion drive;integration of mechanics,electrics and photo.
8 . The perforation roll of the rewinder is machined by high precision numerical control milling machine.It is one-up in the world.The perforation blade can produce well-proportioned perforation with low noise and long life.
9 . When the finished log come to tail sealer,trimming,glue spraying and sealing can be finished at the same time.

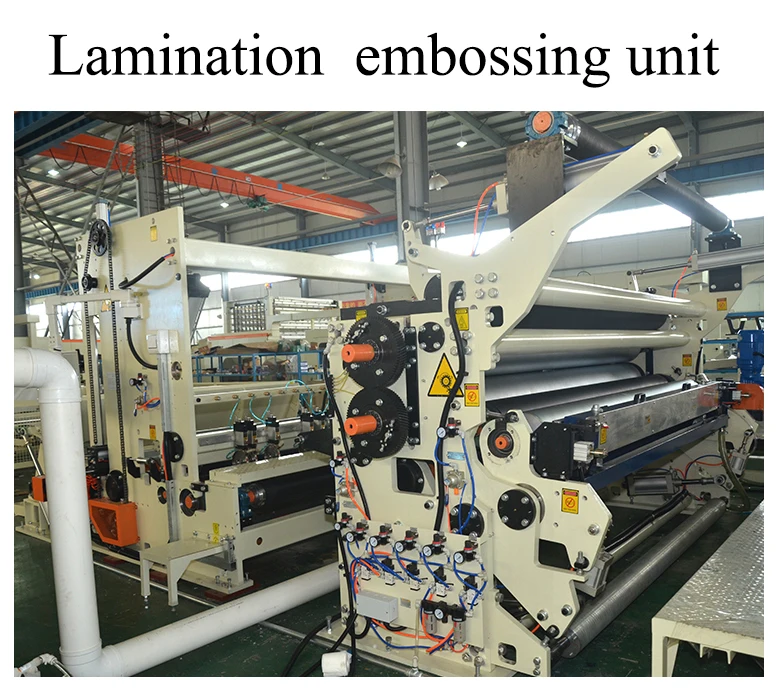

10 . Embossing unit and glue applicator edge embossing unit printing system is order by customer.
2 . When the webs do not align,you can operate on the touch button screen to move the jumbo roll till webs align.
3 . When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
4. When the machine is running,web break off suddenly for reason of speed change sharply of problem from jumbo roll.
5 . Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
6 . When a log is rewinding,the next core is ready.
7 . For the reason of using advanced technology:Program Logic Control System; synchronous frequency conversion drive;integration of mechanics,electrics and photo.
8 . The perforation roll of the rewinder is machined by high precision numerical control milling machine.It is one-up in the world.The perforation blade can produce well-proportioned perforation with low noise and long life.
9 . When the finished log come to tail sealer,trimming,glue spraying and sealing can be finished at the same time.
10 . Embossing unit and glue applicator edge embossing unit printing system is order by customer.
Model | 1850/2150/2200/2800/2900/3000mm |

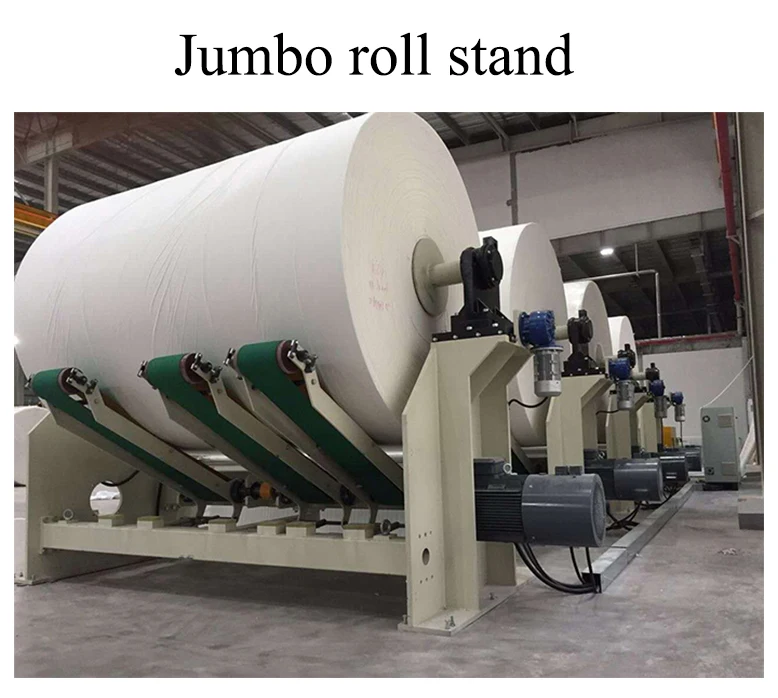

Jumbo roll width | 1750/1850/1930/2150/2750/2850/2950mm |
Jumbo roll diameter | ≤ 1500mm (other size to be specified) |
Jumbo roll core size | Dia:76mm (other size to be specified) |
Finished roll diameter | Dia:90-150mm(Tightness is adjustable) |
Finished roll core diameter | Dia:30-50mm |
Perforation width | Standard size:110mm(Adjustable) |
Perforation | 4 PCS sprial upper perforation knives,improve the durability |
Rewind type | Automatic rewinding machine |
Parameter set | Touch Screen HMI |
Rewind system | With core integrated |
Control system | PLC,inverter,etc. |
Machine speed | 200-250m/min |
Backstand | 1-3 ply (to be confirm by client), independent drive |
Edge embossing unit | Steel to steel |
Glue Lamination unit | Available (Confirm by client) |
Embossing unit | Steel to steel, steel to rubber (Confirm by client) |

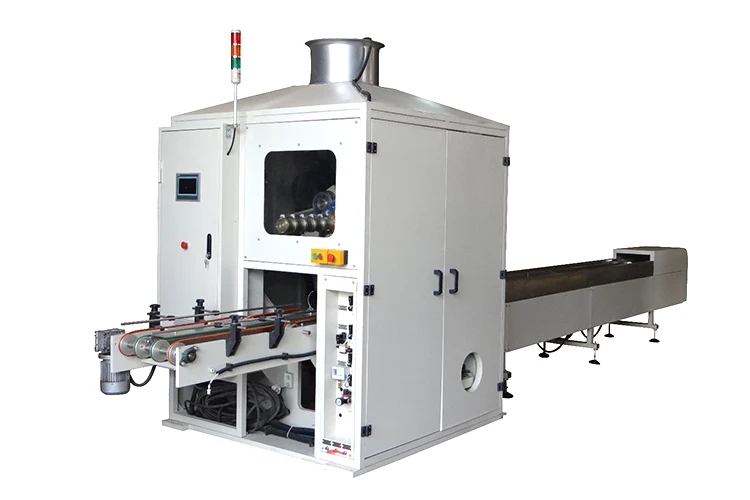

2.Log saw cutting machine:
1) Stable production speed: 120 cuts/ min.
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm

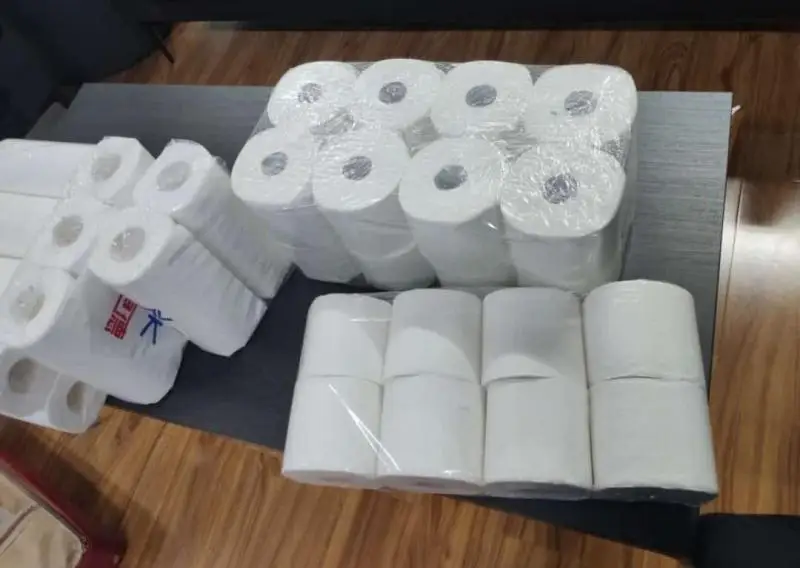

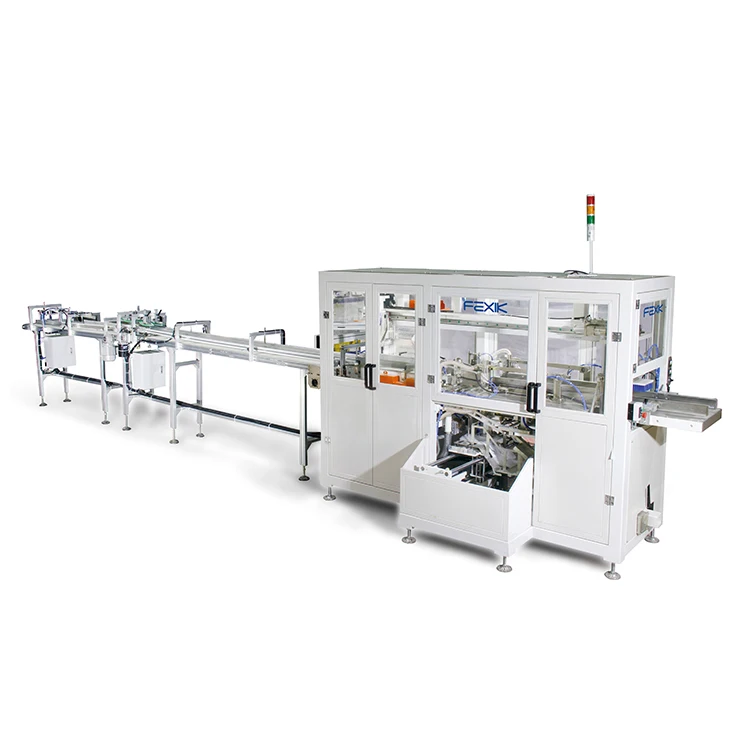

3.Toilet tissue roll bundling packing machine:
1.It adopts advanced servodrive,touch screen and PLC.Parameter is setted conveniently and quickly. Machine automatic completes product from the automatic feeding, arranging, openging the bag, filing into the bag, inserting angle and sealing.
2.The machine is designed to have a quick, flexible format changeover.
3.The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
2.The machine is designed to have a quick, flexible format changeover.
3.The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
Items | Technical parameters | ||||
Size range bag | F-J25 machine： Max.L700×W360×H150mm F-J25A machine： Max.L420×W360×H250mm | ||||
Packing specifications | F-J25 machine： 2/4/6/8/10/12 rolls F-J25A machine： 2/4/6/8/10/12/18/24 rolls | ||||
Packing arrangement | Horizontal packing | ||||
Set packing speed | 25bags/min | ||||
Stable packaging speed | 5-20bags/min | ||||
Packing film | PE precasting bag | ||||
Tatal power supply | 9KW | ||||
Mini air pressure requirement | 5Mpa | ||||
Power supply | 380V 50HZ | ||||
Weight | 1900KG | ||||
Packing & Delivery
• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.
• Packed with wood tray or wood case, it depends on the machine model.
Popular Products
Company Profie
Liuzhou Fexik Intelligent Equipment Co., Ltd is a a professional high technology company. As a leading manufacturer and exporter of tissue paper machinery in China. Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, hand towel folding and packing production line around the world. Our main market is Europe and America, Middle East, South America.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
Exhibition
Certifications
FAQ
Q1.How does your factory do regarding quality control?
A1: We control the quality from very beginning.All products process to be detailed. There is also independent QC team who has full time control the production quality.
Q2.Do you offer guarantee for the machine?
A2: Yes, we offer 12 months guarantee for the machine.
Q3.Can you offer the OEM for us?
A3: We welcome you to be OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
Q4.Why choose us?
A4: We focus on tissue paper processing machinery manufacturing for more than 6 years. We establish cooperative relationship with
big company and sale out many machines all over the world. Providing excellent quality reasonable price and best service always is
our mission.
A1: We control the quality from very beginning.All products process to be detailed. There is also independent QC team who has full time control the production quality.
Q2.Do you offer guarantee for the machine?
A2: Yes, we offer 12 months guarantee for the machine.
Q3.Can you offer the OEM for us?
A3: We welcome you to be OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
Q4.Why choose us?
A4: We focus on tissue paper processing machinery manufacturing for more than 6 years. We establish cooperative relationship with
big company and sale out many machines all over the world. Providing excellent quality reasonable price and best service always is
our mission.
