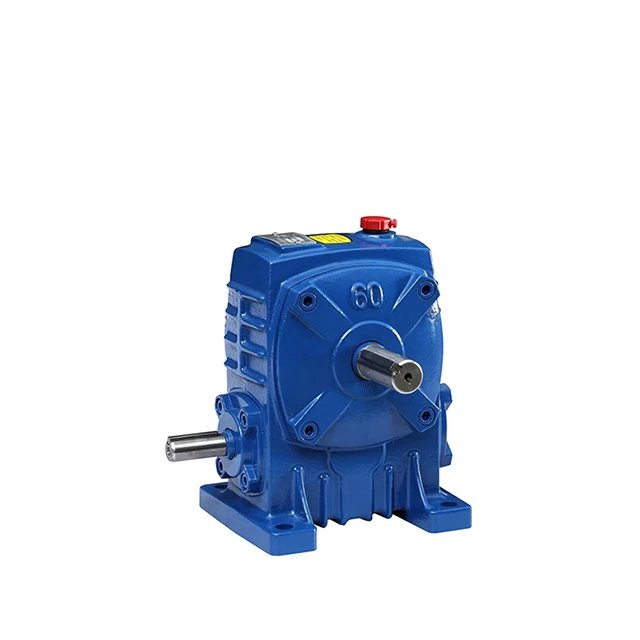

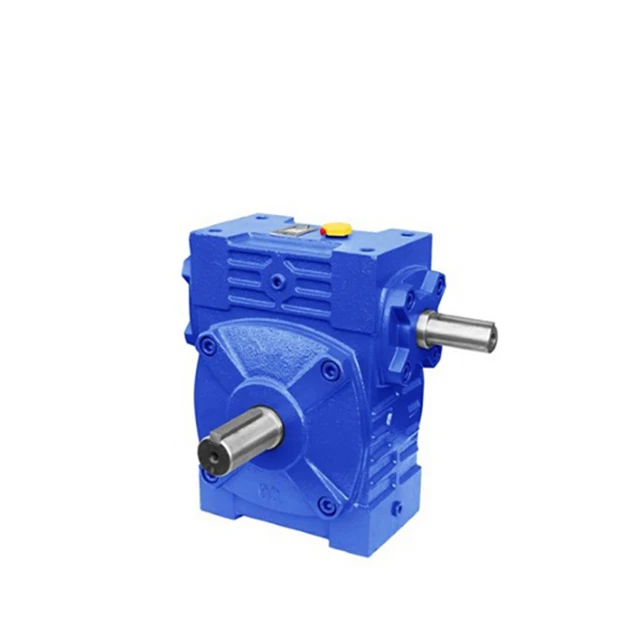

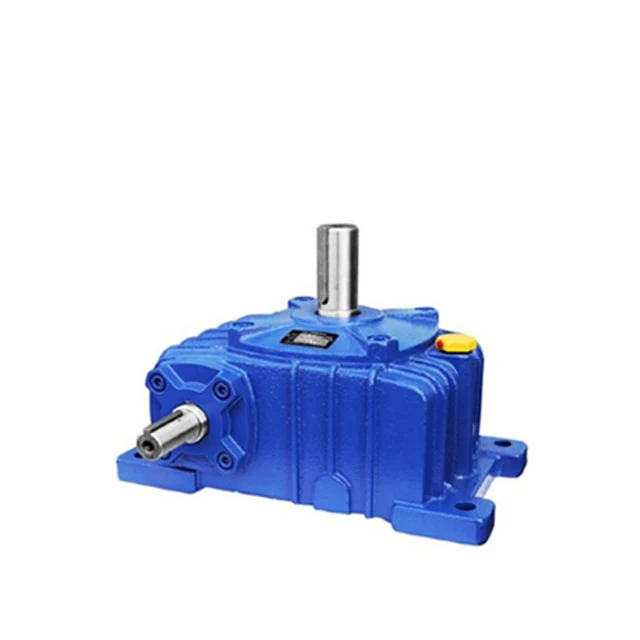

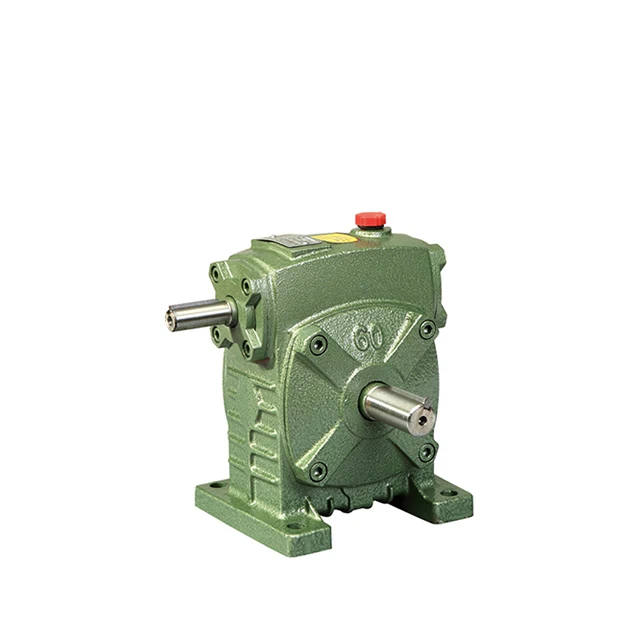

High efficiency China Manufacture WPX/WPO 40/50/60/70/80/100 Ratio worm gear speed reducer gearbox

Product Overview

Description

1. Housing: iron cast
2. Low noise : <50DB
3. Efficient and safe operating
4. Certification: ISO9001
1. Widely used in turbines, shaft liners and axletrees, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric running castings
2. Without vent and highly precision
3. The whole structure is compact and the weight is larger

item name:	WP
size number:	40,50,60,70,80,100,120,135,147,155,175,200,250
ratio:	1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60
color:	green,blue,silver,black and other customize color
material:	housing is made of HT200worm wheel is made of aluminium bronze
packing:	Inner pack: use pp bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request
bearing:	NSK & Homemade bearing
seal:	SKFNAK
input power:	0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw
shaft direction:	A,B,C,D,E
input form:	IEC flange for mounting motor,solid
output form:	solid shaft,hollow shaft
weight:	4-360KGS
application:	In industrial machine:food stuff,ceramics,chemical,packing,printing,dyeing,woodworking,glass and plastics
warranty:	1 year



Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
