This product is made of cordierite material. It is applied to the catalytic converter of gasoline vehicle exhaust gas purificationafter coating catalyst. It can catalytically convert and purify the exhaust gas emitted by automobile. CET of the substrates with 400 CPSI, 600 CPSI could reach 0.8x10-6 cm/cm3, meeting Euro VI emission standards. Different technical performances of the product are at an advanced level in China, which is close to or reaches the advanced level of similar foreign products。。

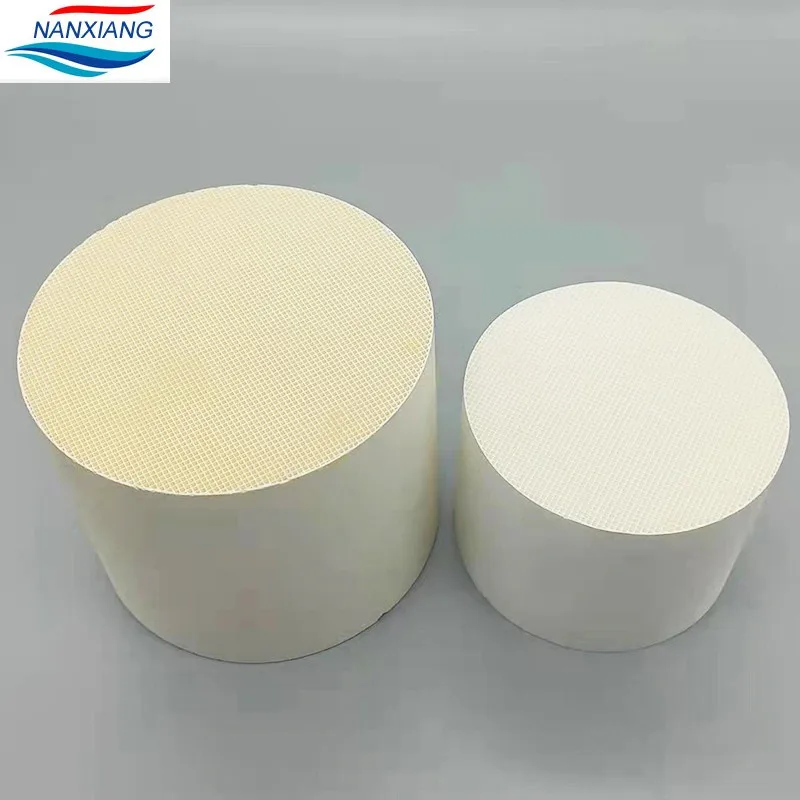

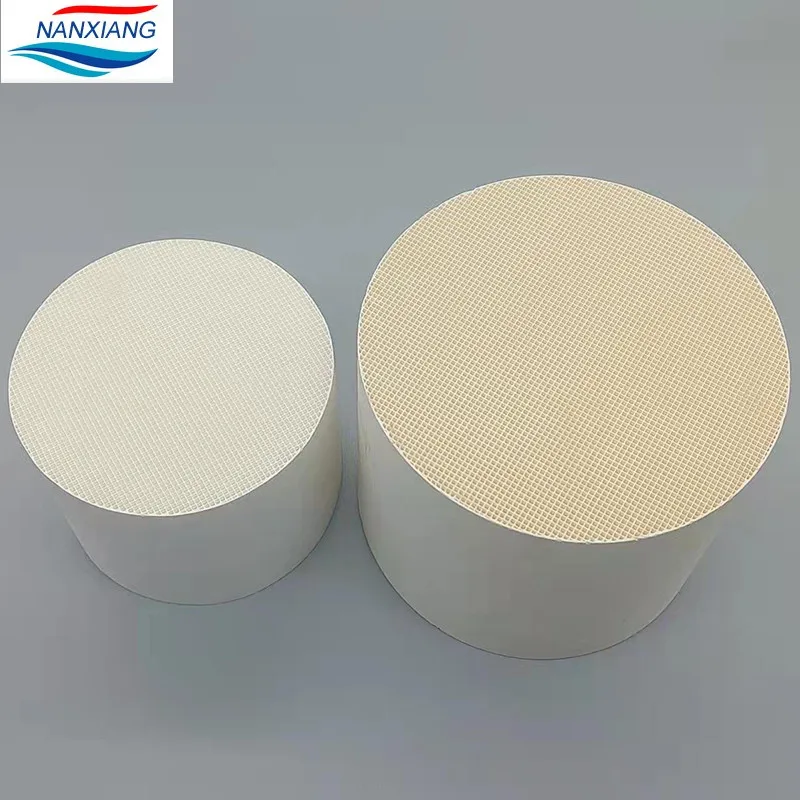

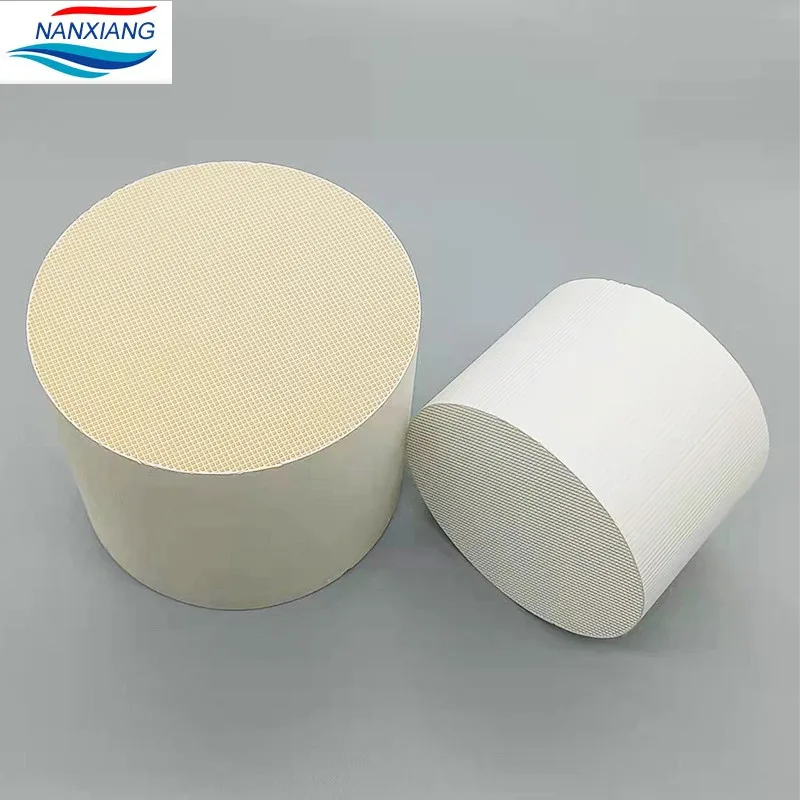

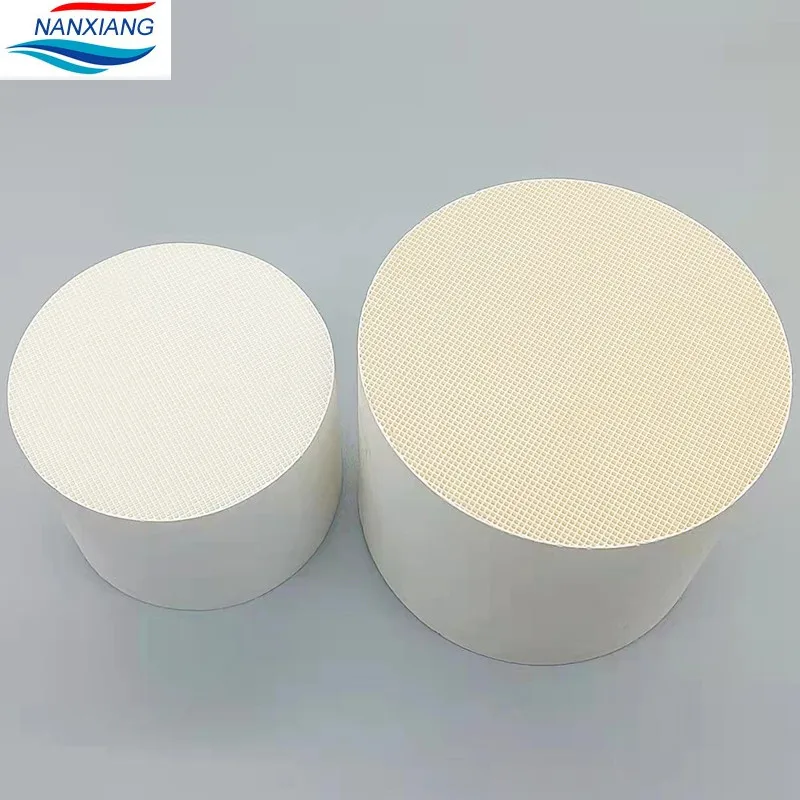

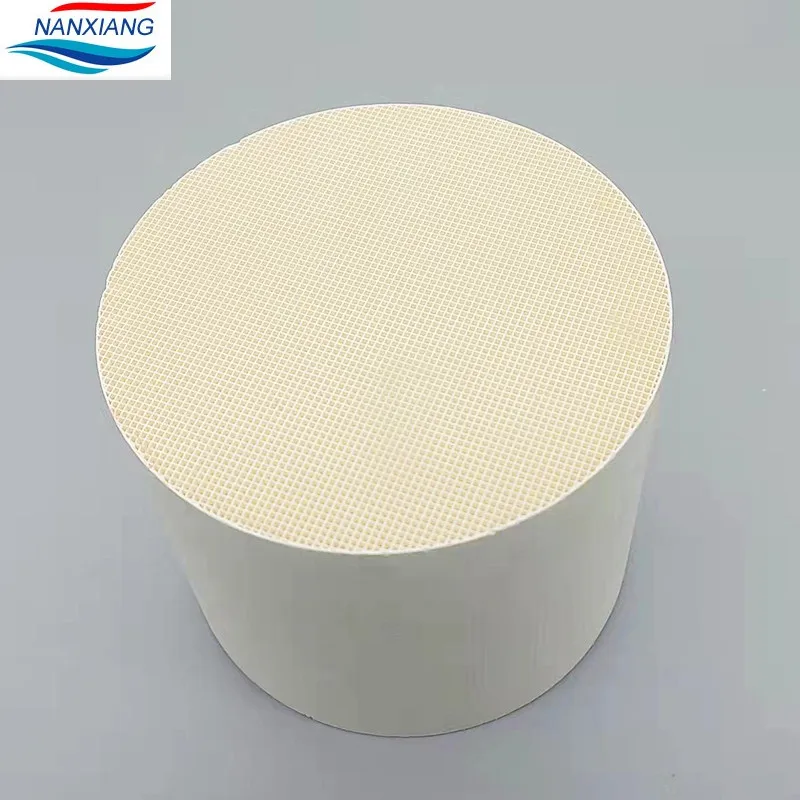

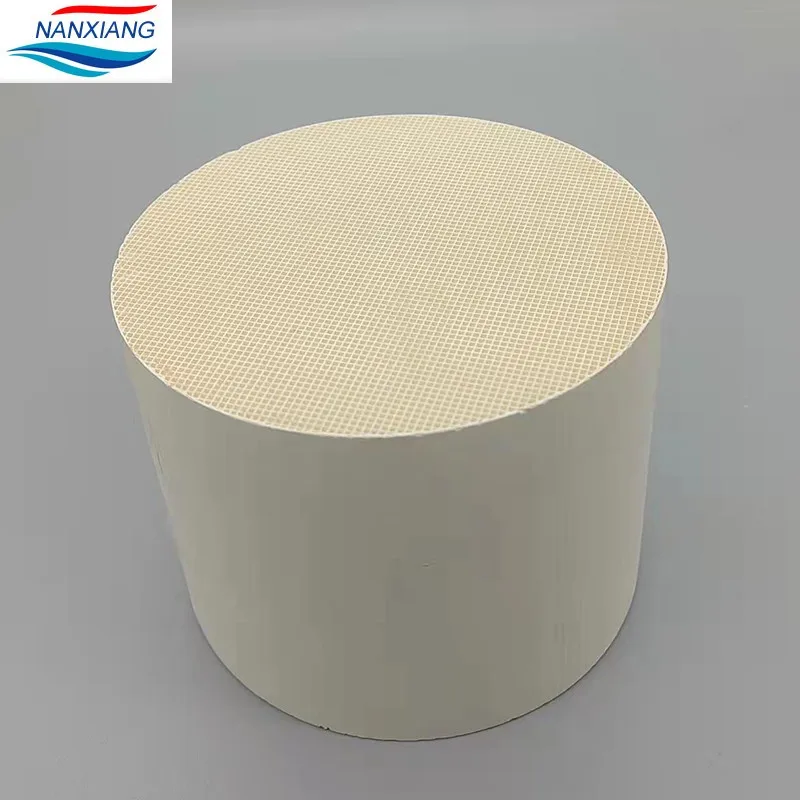

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.

1. The honeycomb ceramic substrate have a very competive substrates.
2. We can produce 100 CPSI, 200 CPSI,400 CPSI,600 CPSI can be in the shape of round ,racetrack and oval.
3.Specification can be customizable, as the the customers requirement.
4.can be coated with the catalyst and the noble metal as the customers emission standards:Euro II, Euro III and Euro IV and EPA standard and the california standards.

Advantage
1. High specific surface area: ensure exhaust gas could contact weigh catalyst enough.
2. Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste for too thick coating.
3. Warm up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
4. Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it won’t affect the performance of engine.
5. High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
6. Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect。


Parameters
Unit
Data
Material: Cordierite
wt%
≥90
≥94
Coefficient of Thermal Expansion(20-800°C)
cm/cm/ °C
≤1.8×10-6
≤1.5×10-6
Thermal Stability(20-650°C)
times
≥1
≥3
Soften Temperature
°C
≥1420
≥1440
Compression Strength
Lengthways
MPa
16
16.9
Horizontal
MPa
5
6.2
Specific Weight
Kg/L
0.45-0.55
0.45-0.5
Porosity
%
40-45
41
Water-absorbing rate
%
23-25
23.8


Regular size of DOC/SCR ceramic substrate
Dimension (Dia*H)) (mm)
CPSI
Dimension (Dia*H) (mm)
CPSI
Dimension (Dia*H) (mm)
CPSI
190*101.6
300/400
240*152.4
300/400
305*101.6
300
190*152.4
300/400
267*101.6
300/400
305*152.4
300
228*101.6
300/400
267*152.4
300/400
330*101.6
300
228*152.4
300/400
286*101.6
300
330*152.4
300
240*101.6
300/400
286*152.4
300


Regular size of DPF ceramic substrate
Dimension
(Dia*H) (mm)
CPSI
Dimension
(Dia*H) (mm)
CPSI
Dimension
(Dia*H) (mm)
CPSI
118*152.4
100/200
228*203
100/200
267*203
100/200
127*200
100/200
228*254
100/200
267*254
100/200
144*152.4
100/200
228*305
100/200
267*305
100/200
144*203
100/200
240*152.4
100/200
286*203
100/200
144*254
100/200
240*203
100/200
286*254
100/200
190.5*152.4
100/200
240*240
100/200
286*305
100/200
190.5*203
100/200
240*254
100/200
305*254
100/200
190.5*254
100/200
240*305
100/200
305*305
100/200
190.5*305
100/200
267*152.4
100/200
330*305
100/200


Details Images




Packing & Shipping




Company Profile


Pingxiang Nanxiang Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 16 years experience in Chemical Packing.
Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.


Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certificate, SGS report, and credible merchant of Alibaba. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven continents.
our company keeps living up to the belief of “honest selling ,best quality ,people-orientation and benefits to customers” We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.
