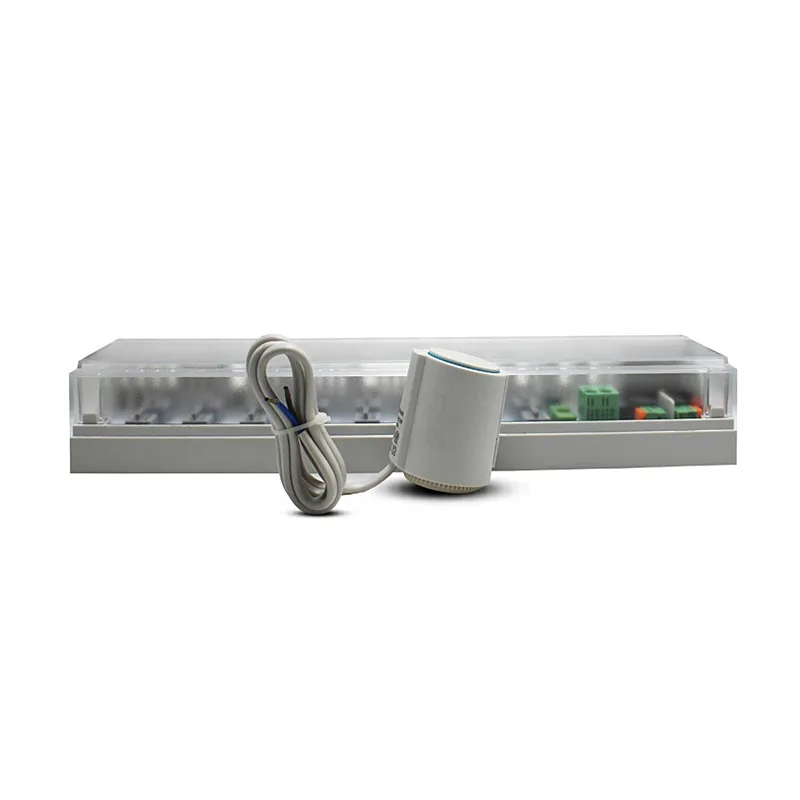

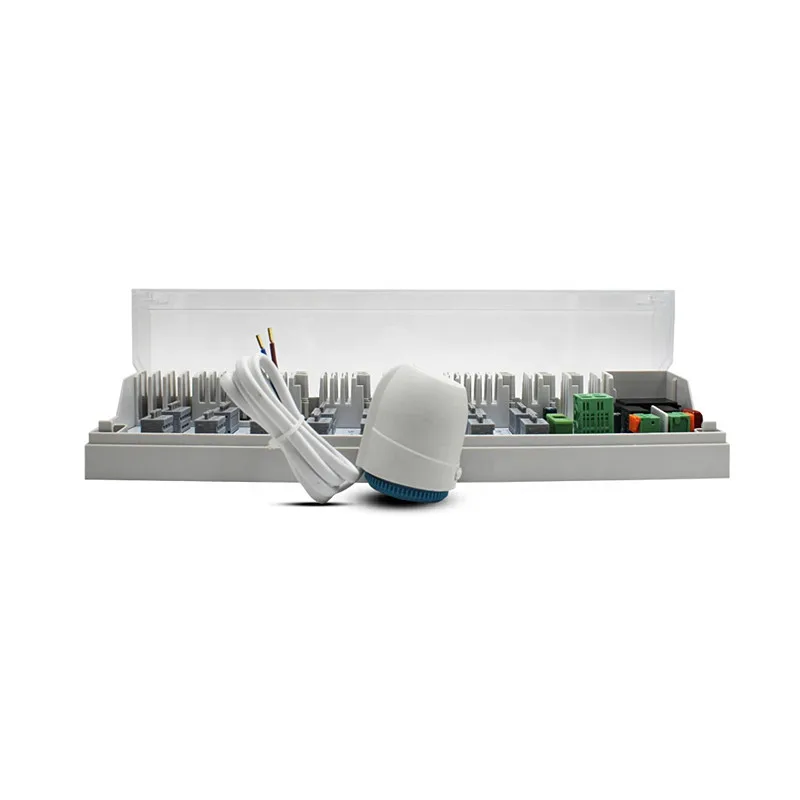

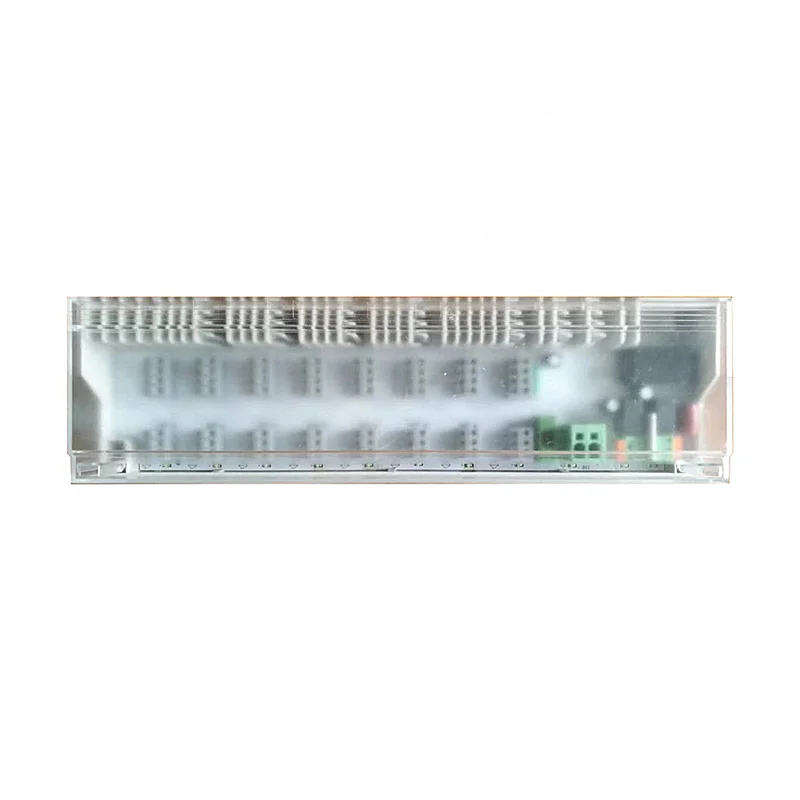

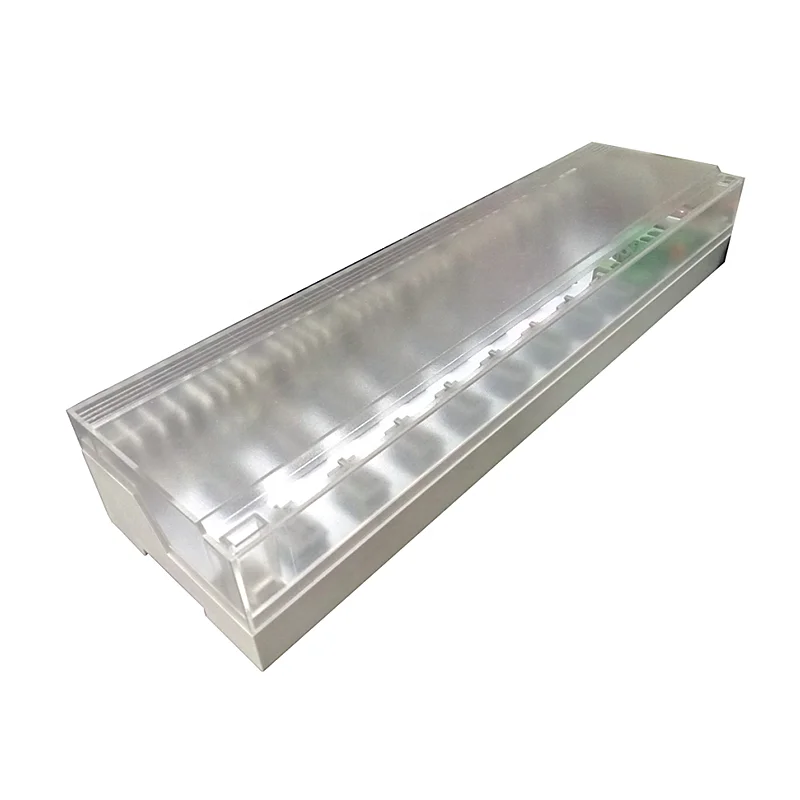

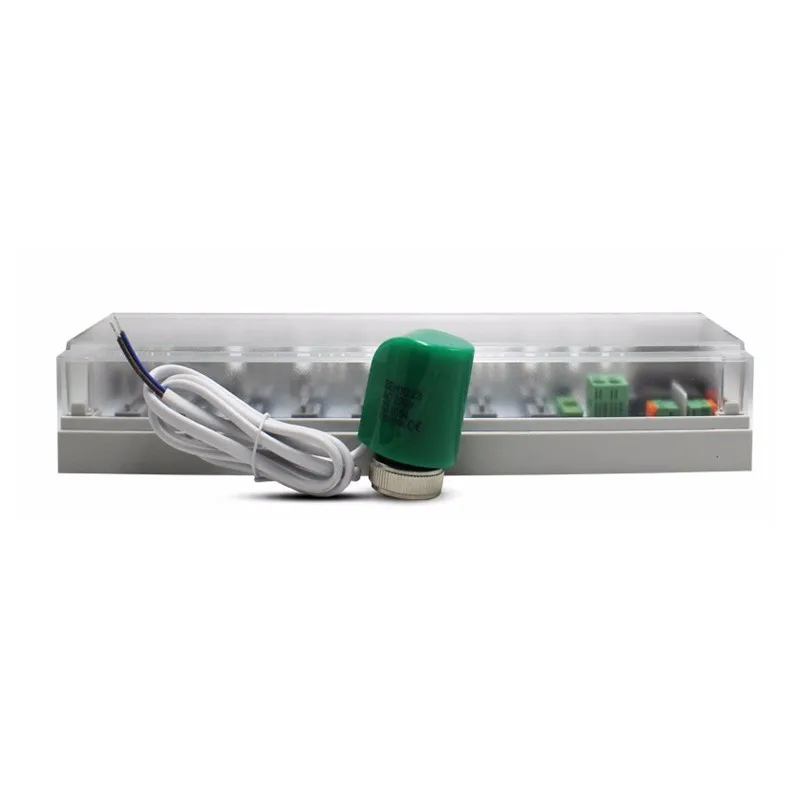

Wireless 8 Zone Wiring Central Controller for water underfloor heating systems

8 Zones water heating system central control

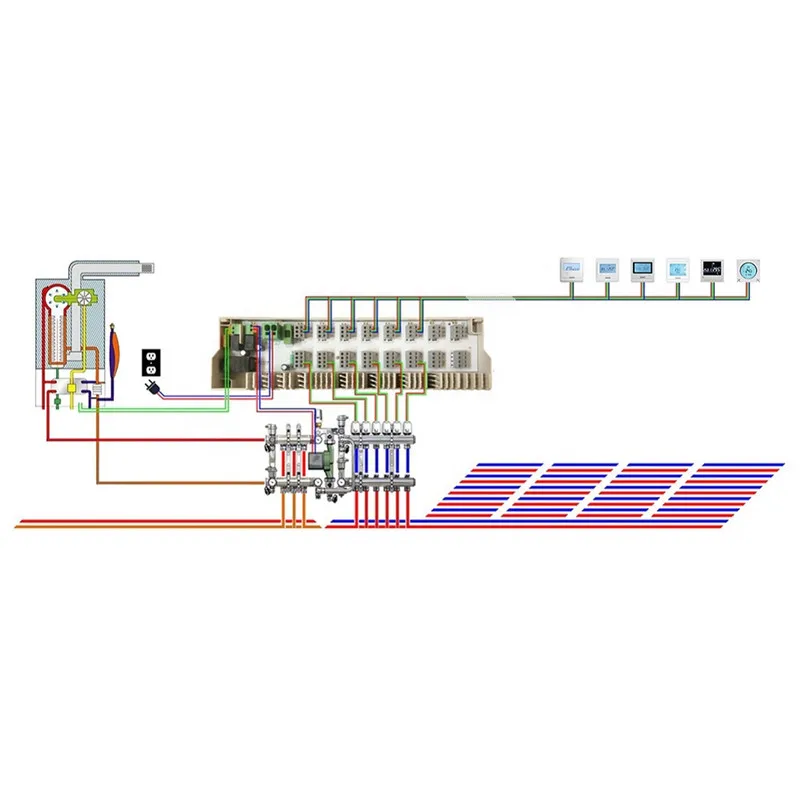

The waterline heating system has been developed to provide a temperature , control system for room heating / cooling, integrating the switching of primary heating sources with the control of water temperature and mixing devices. This ensures the best possible comfort conditions and also reduces energy consumption.

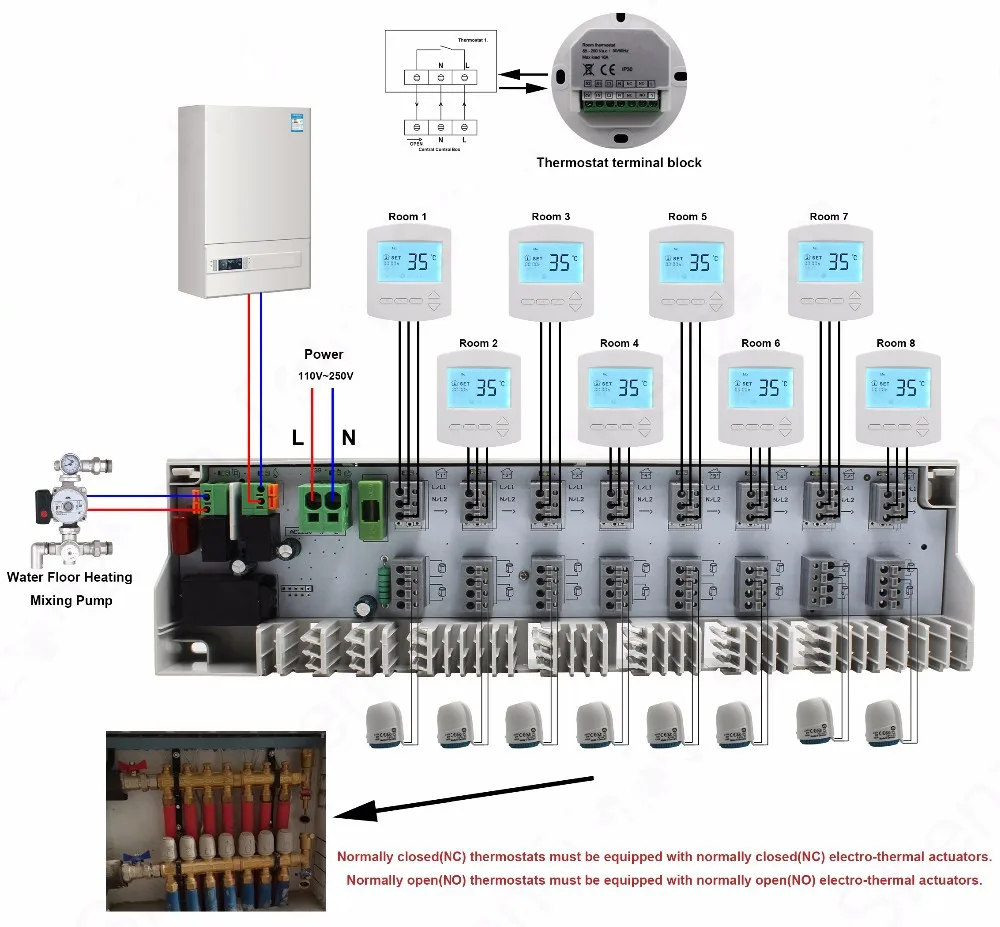

There are 8 zones, each zone consisting of one heating thermostat and one or two thermal actuator.

Working voltage:AC230V

Connection Type: wired

Control Zone:8

Control Model:normal close

Water pump linkage: 1KW, 120S delayed

Main Technical Parmeter

Power source: 100-240VAC 50~60Hz
Max Load pumps and Thermal actuators: 250VAC 10A
Boiler relay: Volt free signal. I Max8(5)A
Main pump relay: 250VAC Max.5A
Thermo actuator: 8X230VAC, Max 3A per output
Operation temperature: -20℃ ~ 60℃
Storage temperature: -20℃ ~ 70℃
Radio communication mode: Half-duplex
Frequency band: 868MHZ(FSK)
Valid receiving distance: 100m
Color: White

Application of Electrical Heating Thermostat
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
