Outboard Remote Control Box for Yamaha Boats Motor With Throttle Shifter Boat Accessories 16 FT 10Pin Harness Tilt Switch
- Category: >>>
- Supplier: Jinhua Hi Wave Boat Equipment Manufacture Co. Ltd.
Share on (1600412336368):
Product Overview
Description
Features & Details
- [SMOOTH OPERATION]- Exceptionally smooth operation is delivered. To shift into forward and reverse, rotate the control lever downward, further rotated downward, the throttle opens.
- [SHUT-OFF LANYARD & CLIP]- The cord can secure the operation by being attached to the operator's clothing, or arm, or leg. Should operators fall down or leave the helm, the cord will pull out the clip, stopping ignition.
- [THUMB-OPERATED TRIM/TILT SWITCH]- The power trim and tilt switch are attached to the control lever grip and twin cover. Pushing it UP trims up and tilts up the engine and vice versa.
- [FOR BOTH SHIFT AND THROTTLE]- The remote control box is so designed that both shift and throttle can be actuated by operating a remote control lever. So it is convenient for you for sure.
- [FOR YAMAHA OUTBOARD]- Will work with all 2-stroke and 4-stroke mechanical (cable) shift Yamaha outboard motors that have 10-pin main engine harnesses and "push to open" throttle.
Key Features

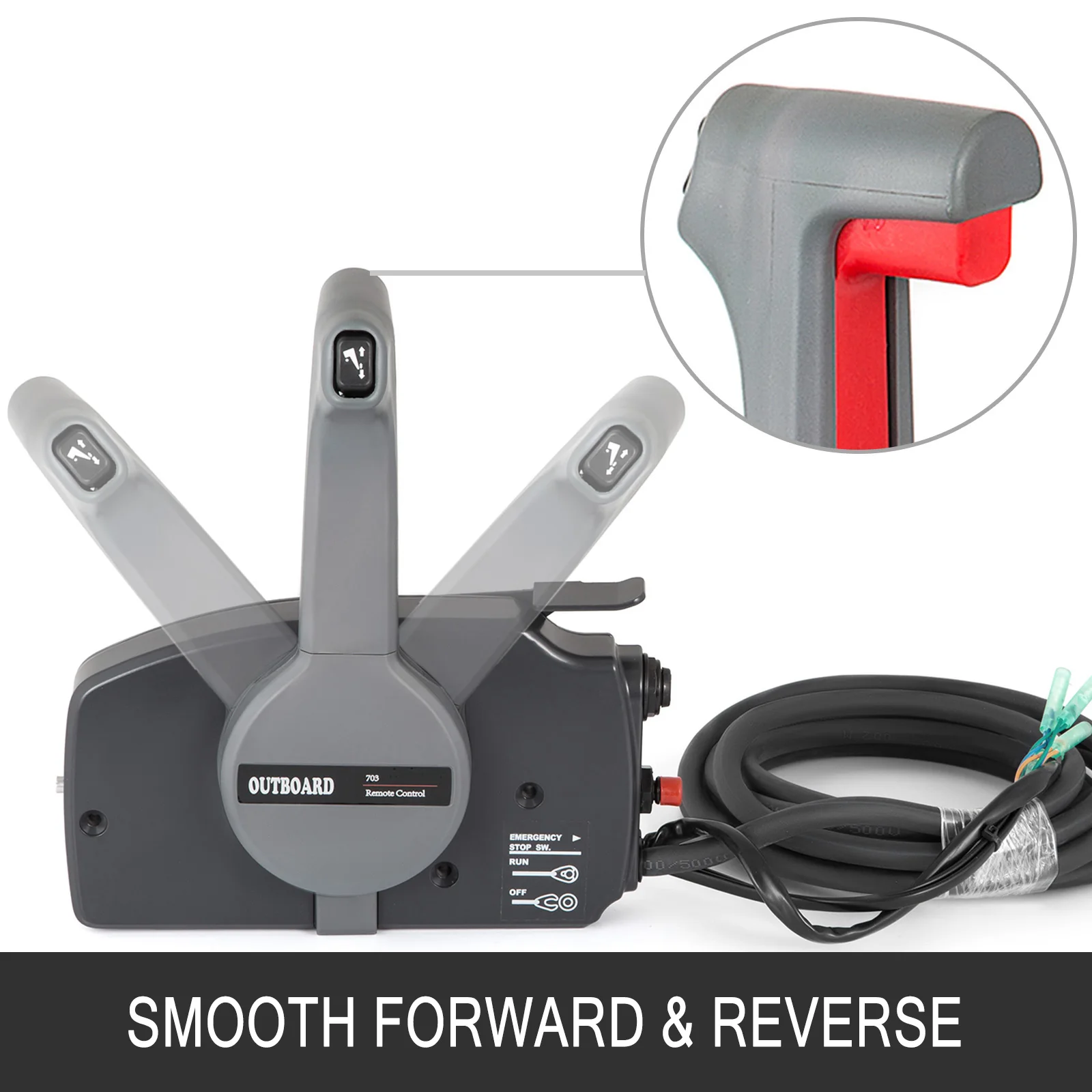

Smooth Forward & Reverse
To shift into forward and reverse, rotate the control lever downward about 35°to the F side and R side, respectively. When the control lever is further rotated downward, the throttle opens.

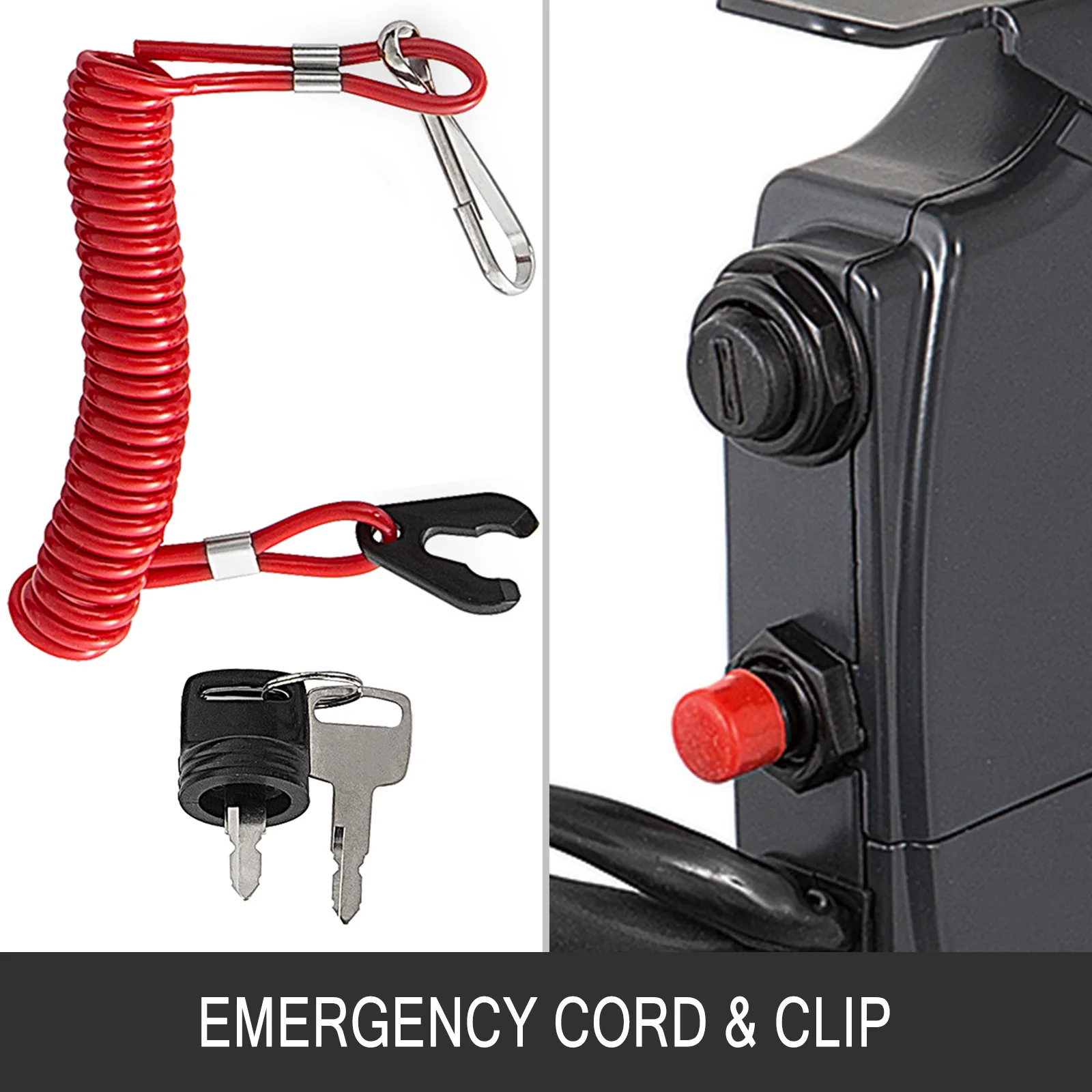

Emergency Cord & Clip
The cord can secure the operation by being attached to operator's clothing, or arm, or leg. Should operators fall down or leave the helm, the cord will pull out the clip, stopping ignition.

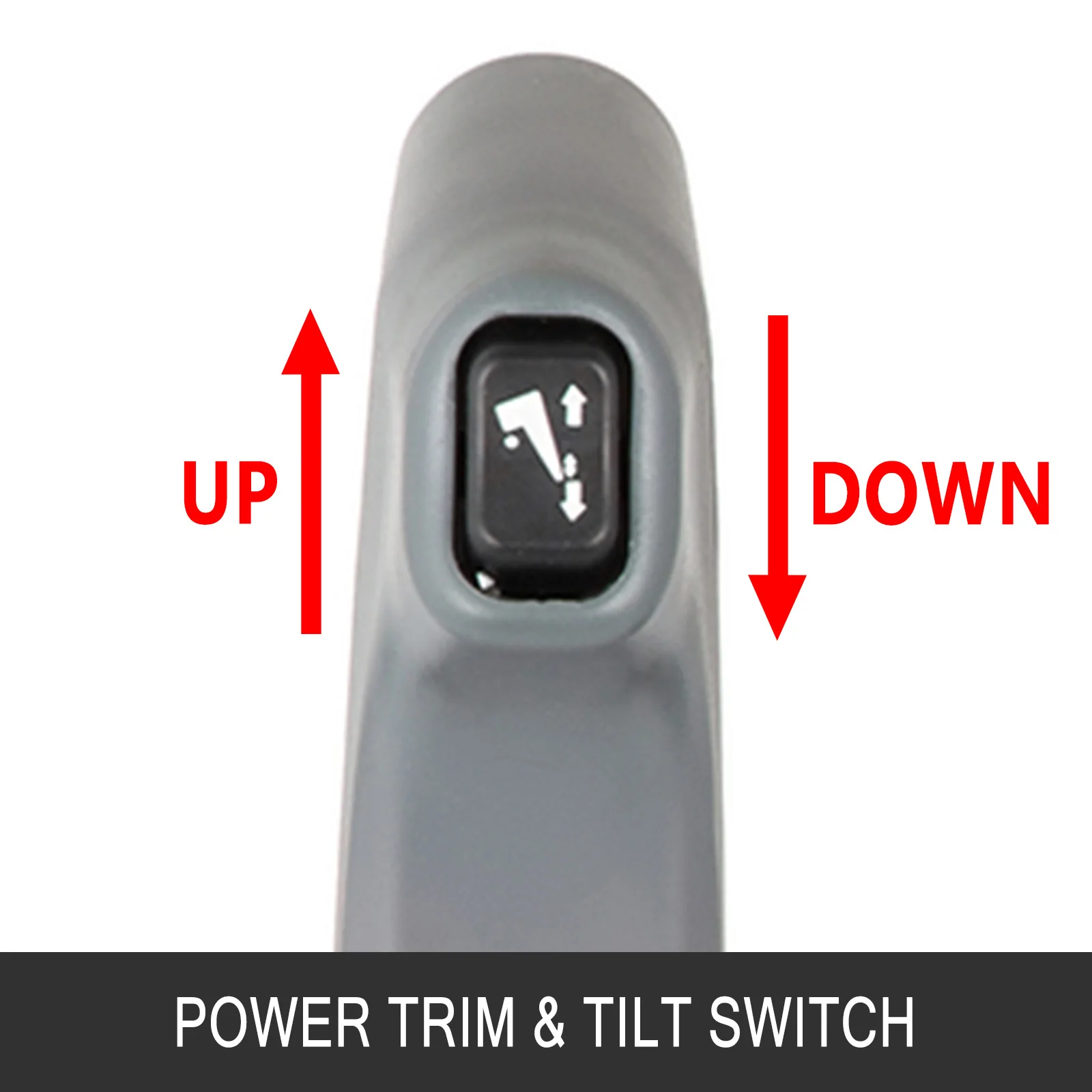

Power Trim & Tilt Switch
The power trim and tilt switch is attached to the control lever grip. Pushing it UP trims up and tilts up the engine and pushing it DOWN trims down and tilts down the engine.

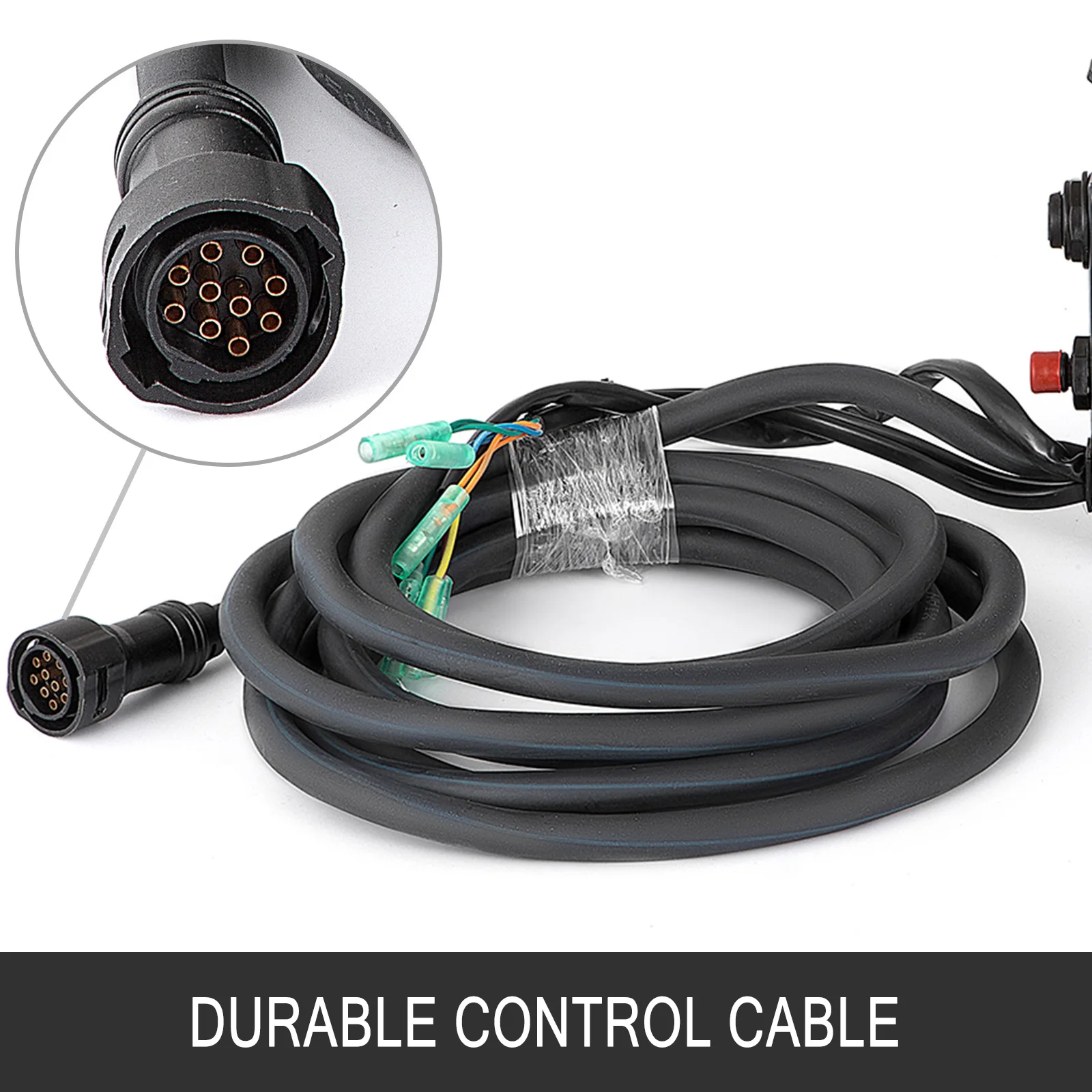

Durable Control Cable
A handle mounted trim switch and a durable 16' harness with 10 pin deutshe connector. For non-power trim models.

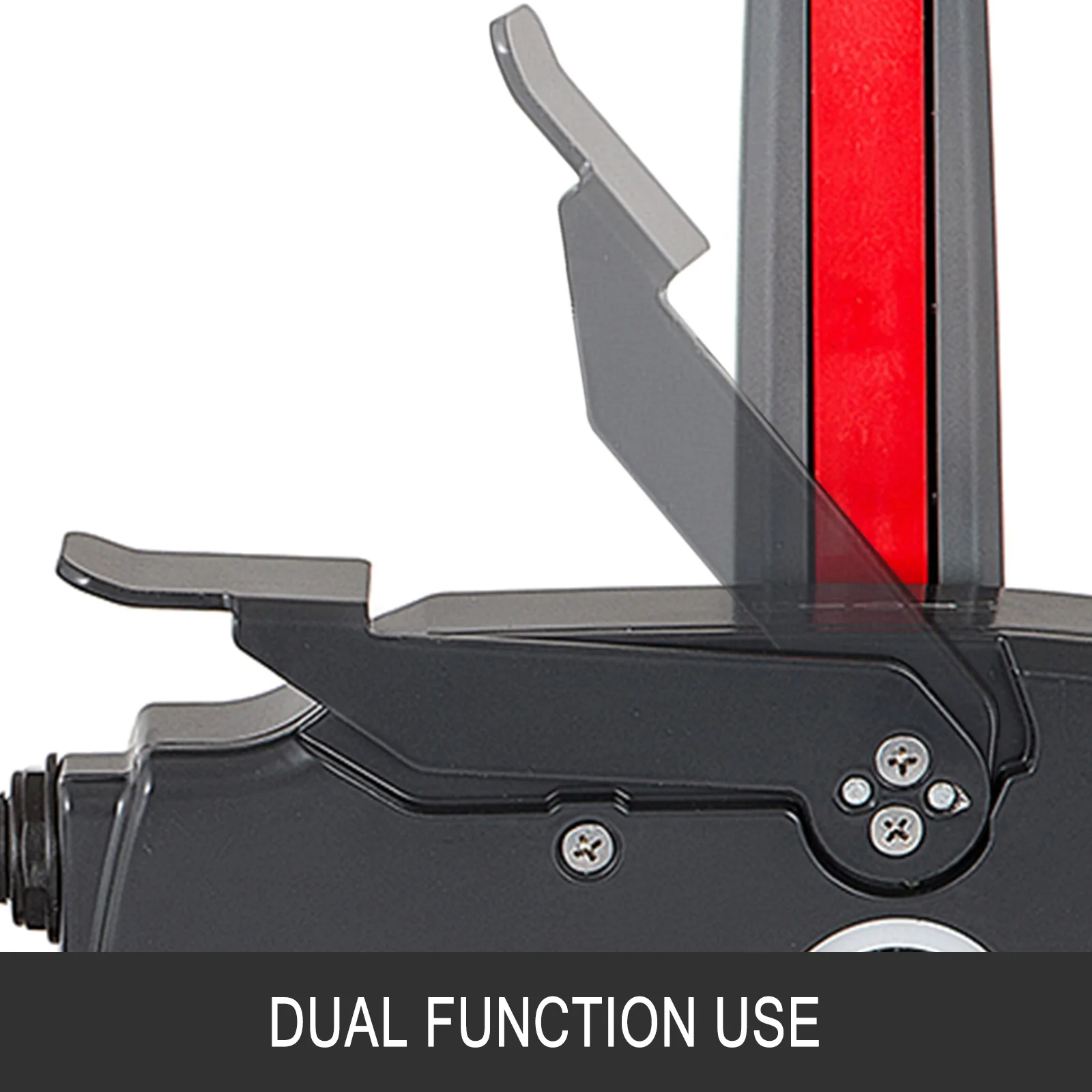

Dual Function Use
The remote control box is so designed that both shift and throttle can be actuated by operating a remote control lever. So it is convenient for you for sure.
For Yamaha
Will work with all 2-stroke and 4-stroke mechanical (cable) shift Yamaha outboard motors that have 10-pin main engine harnesses and "push to open" throttle.
703-48207-22-00 Outboard Remote Control Box
Outboat throttle control box is a new rotating grip allows operation of the power trim and tilt switch with the thumb of either hand 10lb. Item work with all 2-stroke and 4-stroke mechanical cable and a key switch with push to choke option and 16FT 10-Pin Harness. Precise operation new reversible handle for use on right-hand or left-hand make it is easy to use.
- Smooth Forward & Reverse
- Emergency Cord & Clip
- Power Trim & Tilt Switch
- Durable Control Cable
Specifications
- Reference number: 703-48207-22-00
- Weight: 10lb (4.6kg)
- Dimensions (L* W* H): 16.9"*11"*5.5" (43*28*14cm)
Package Content

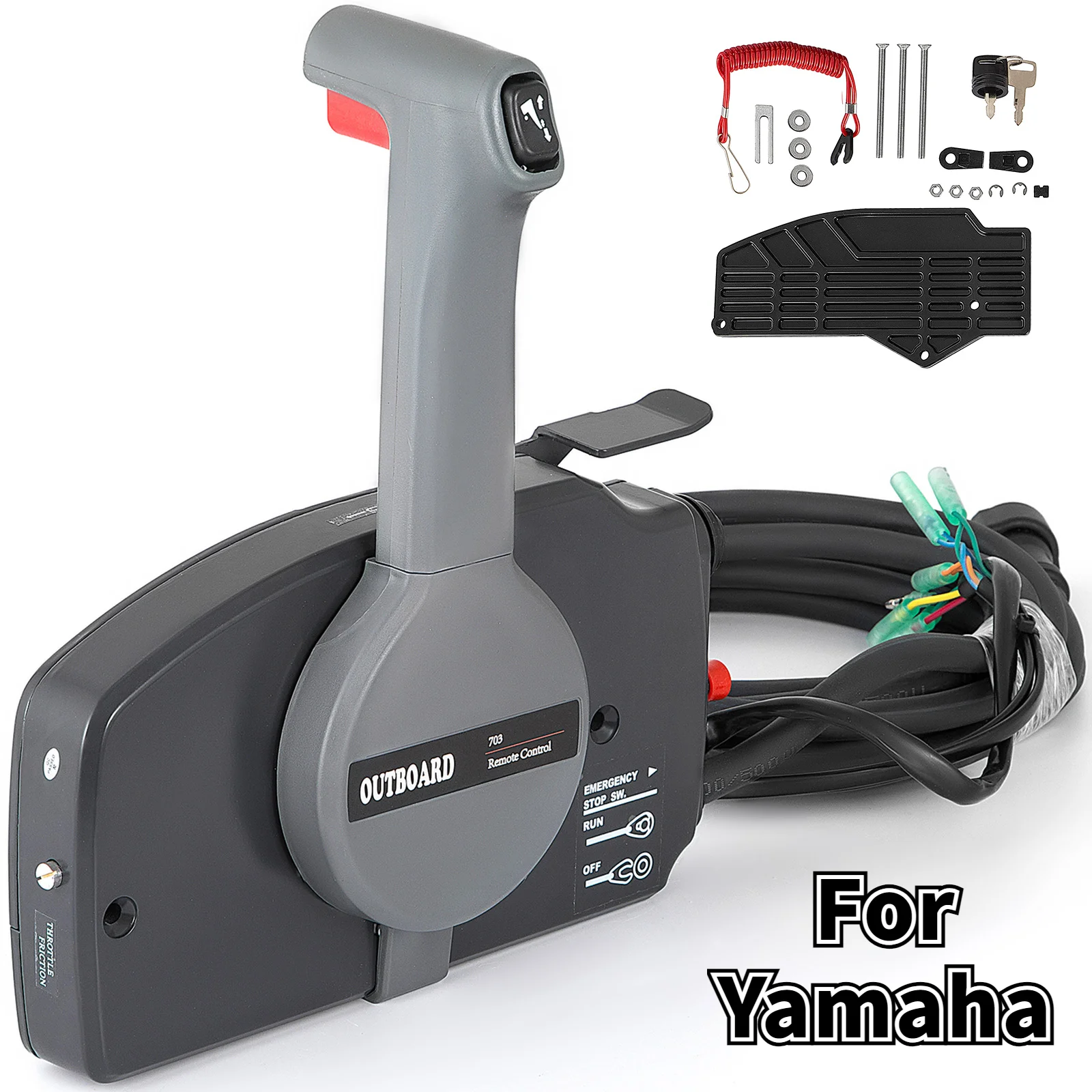

- 1 x Outboard Remote Control Box +10 Pin Cable 703-48207-22-00
