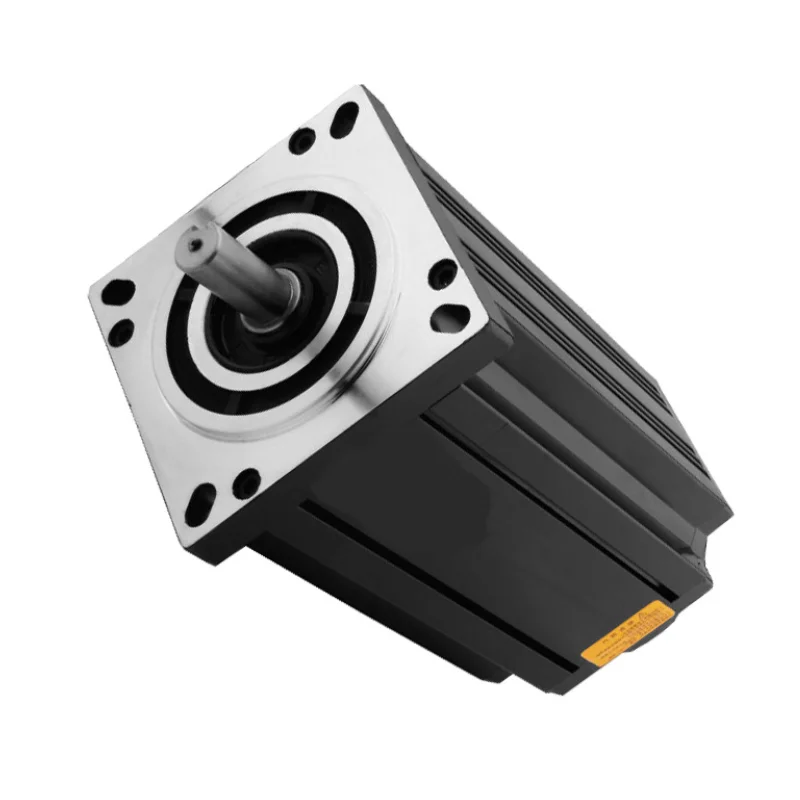

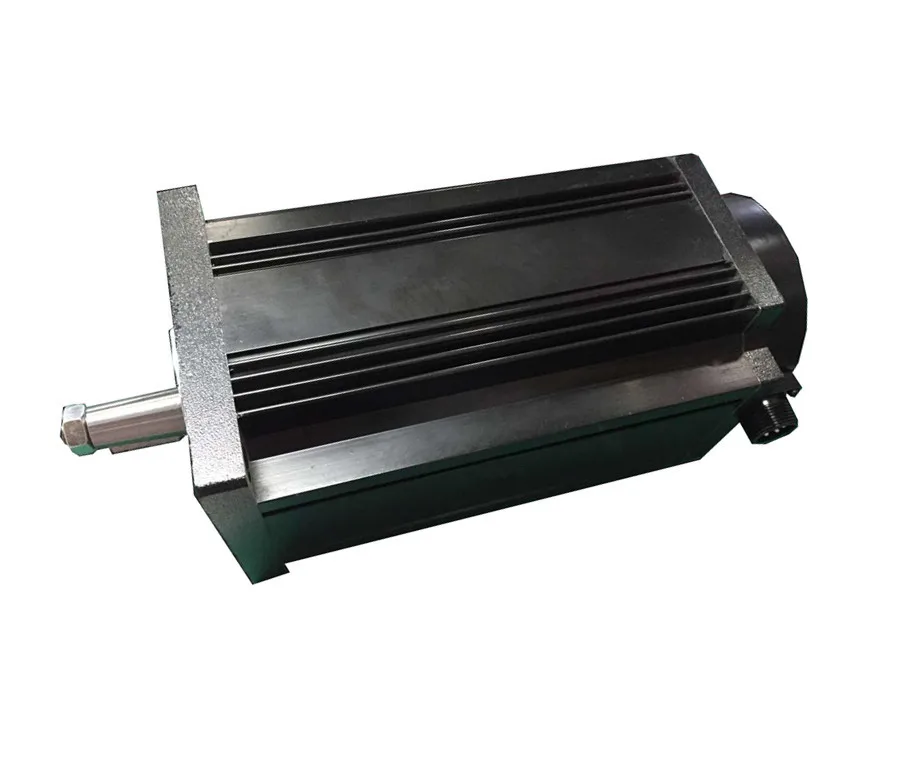

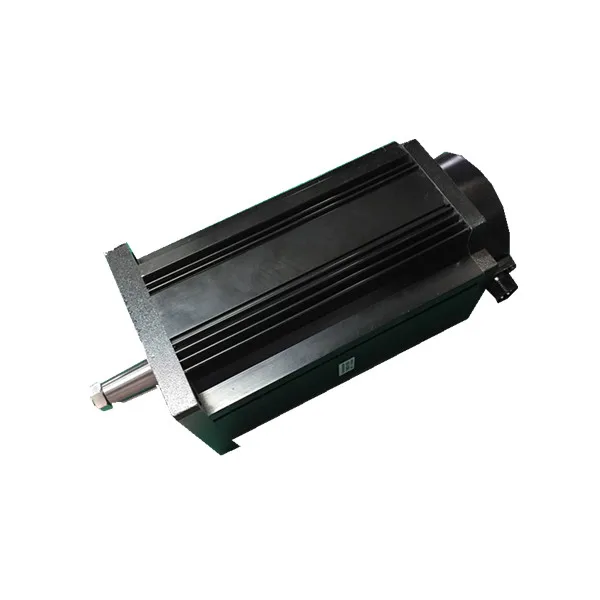

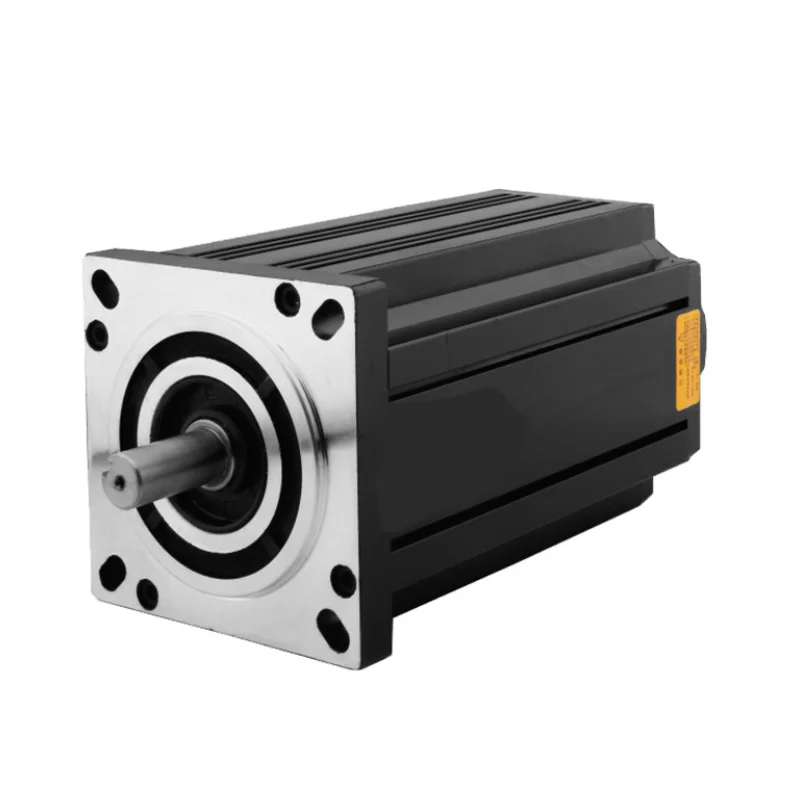

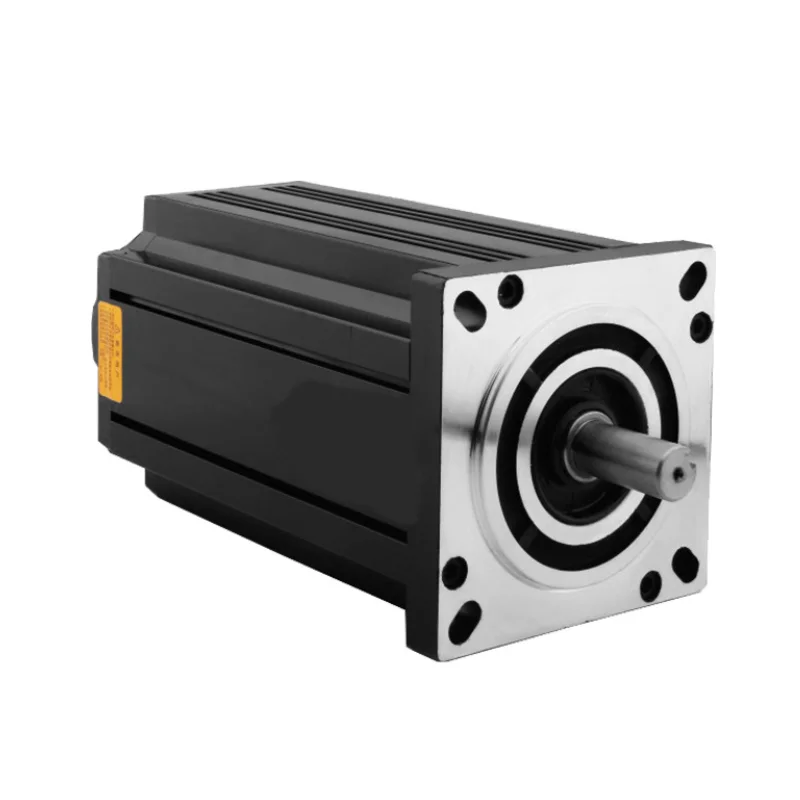

NEMA 52 High Torque Stepper Motor 50N.M 1.2 Degree 2 Phase for Cutting Machine
- Category: >>>
- Supplier: Shenzhen Bobet Technology Co. Ltd.
Share on (1600412343239):
Product Overview
Description
Product Pictures

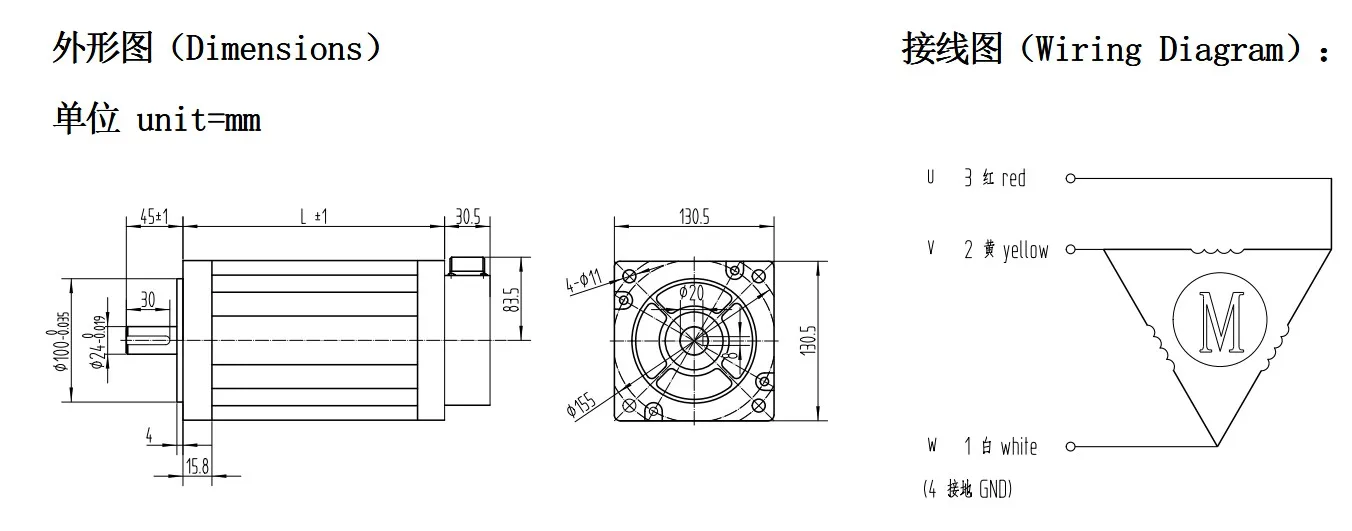

Specification & Drawings
型号 Model No | 步距角 Step Angle（°） | 相电流 Rated Current （A） | 相电阻 Phase Resistance（Ω） | 相电感 Phase Inductance (mH) | 静力矩Holding Torque (N.M) | 机身长Motor Length (mm) |
130HC125-10003 | 1.2 | 10 | 0.83 | 7.65 | 15 | 125 |
130HC135-10003 | 1.2 | 10 | 0.82 | 7.99 | 17 | 135 |
130HC139-10003 | 1.2 | 10 | 0.75 | 9 | 20 | 139 |
130HC230-10003 | 1.2 | 10 | 1.3 | 12.66 | 40 | 230 |
130HC286-7003 | 1.2 | 7 | 1.82 | 18.5 | 50 | 286 |
The model is standard type for us,other parameters can be customized.
Advantage-our idea
Packing & Delivery
Package Type:
Standard Export Carton And Pallet
Customized Label and Carton Acceptable
Company Profile
Certifications
FAQ
Q1: Do we provide free sample?
A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.
A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.
Q2: How to order?
A2: Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.
we accept online order by alibaba or offline order. we have export business license, and our bank can accept any payment from any countries, our logistics agent and us will ship goods to your hand if you want.
Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
we accept online order by alibaba or offline order. we have export business license, and our bank can accept any payment from any countries, our logistics agent and us will ship goods to your hand if you want.
Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
Q3: How to choose a suitable electric motor for your application?
A3: First check the voltage(V) of power supply for the motor,speed(rpm) and torque(N.m or kg.cm) needed ,they are basic performance need to know, to decide any gearbox is necessary or not.then we also need to consider the size(or mounting space),shape of the motor. then we need to consider the other factors,such as speed control,positioning function, motion accurate are required or not, cost down,Energy saving,gear self-lock, machine noise,structure and other performance...you may contact us to get more help,we are glad to give you a help.
