General Specifications | Thiele - Small Parameters | Mounting Informations |

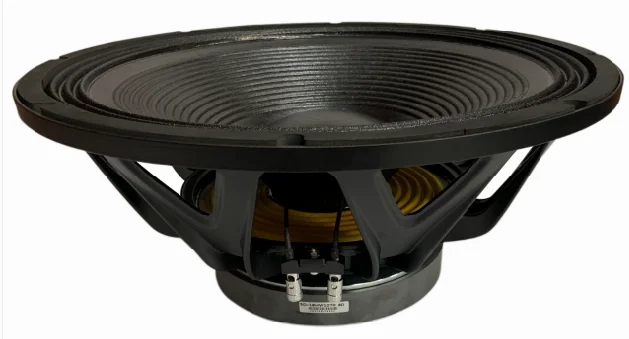

Product Name:18 inch Woofer | FS:48 Hz | Overall Diameter:465 mm / 18.3inch |
Model Number:SD-18HW1070 | Re:5.4 ohm | Bolt Circle Diameter:446 mm / 17.6 inch |
Rated Impedance:8 ohm | Qms:10.4 | Baffle Cutout Diameter:419 mm / 16.4 inch |
Voice Coil Diameter:4 inch / 100mm | Qes:0.58 | N.Of Mounting Holes:8 pcs |
Rated Power:1000 W | Qts:0.56 | Mounting Holes Diameter:6.7 mm |
Frequency Range:34-1.kHz | Mms:227 G | Depth:208 mm / 8.2 inch |
Sensitivity:98 dB | BL:29.3 T - M | |
Magnet Material:Ferrite Ring | Sd:1226 c㎡ | |
Magnet:220mm *30mm | Vas:100 L | |
