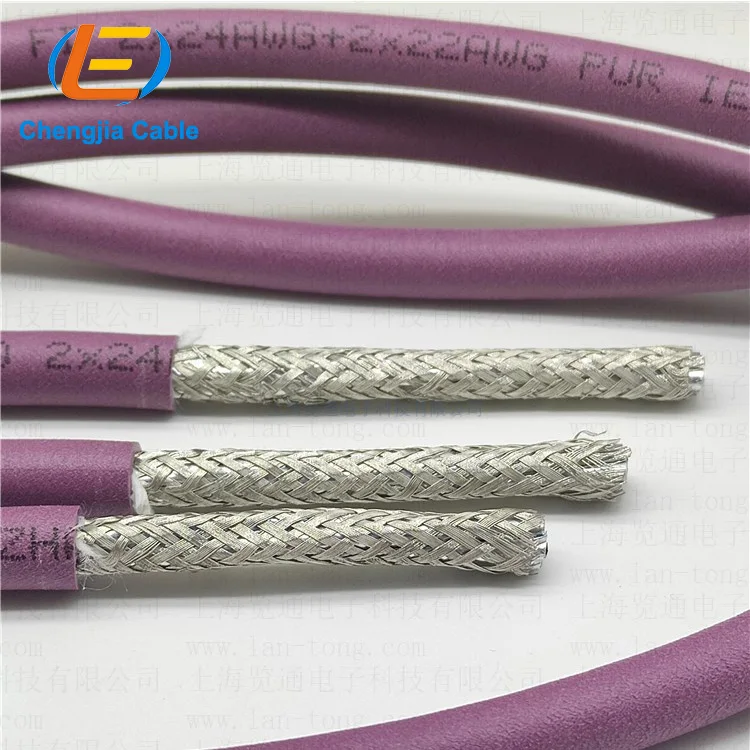

PVC shielded cable CC Link 3 core stranded industrial bus cable Copper Conductor Wires Electrical Equipment bus Cable
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600412365510):
Product Overview
Description

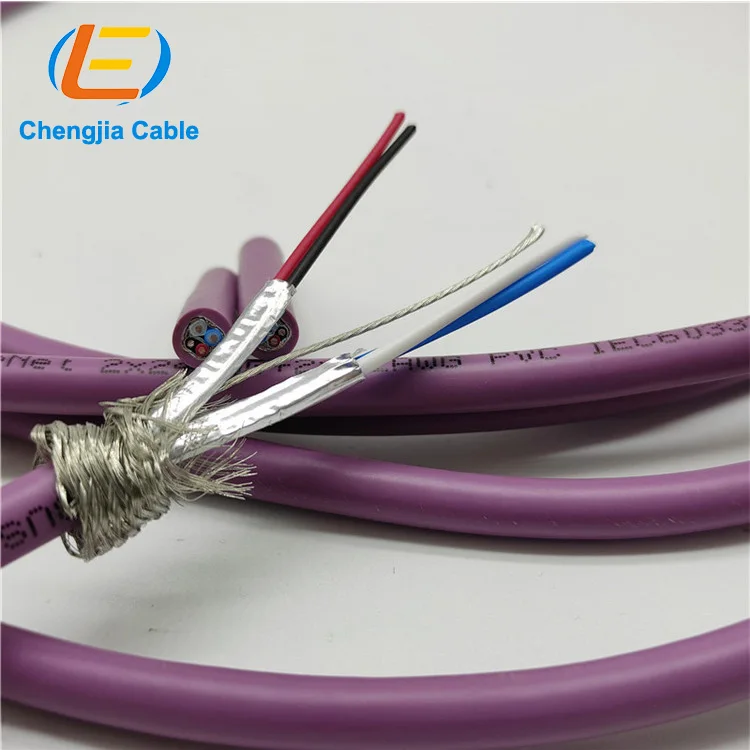

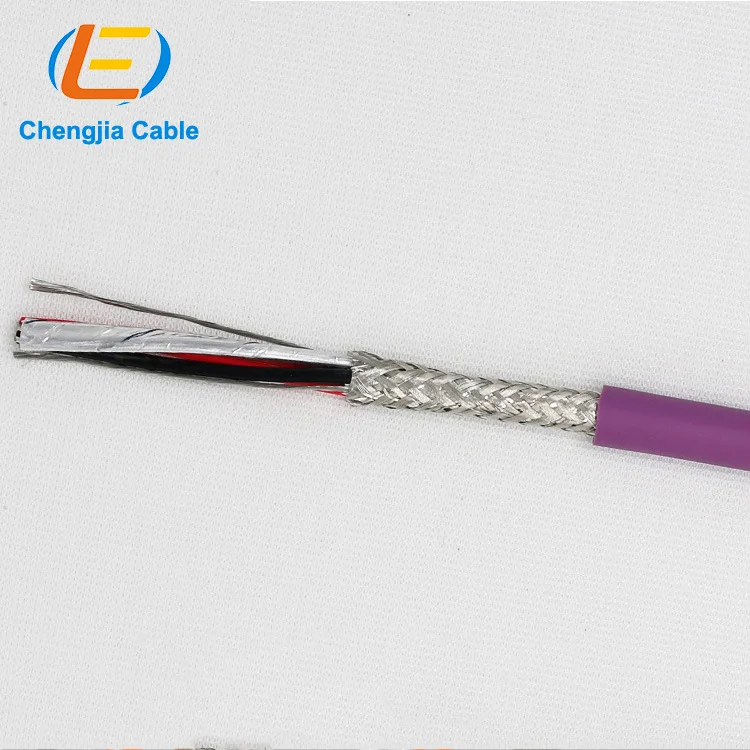

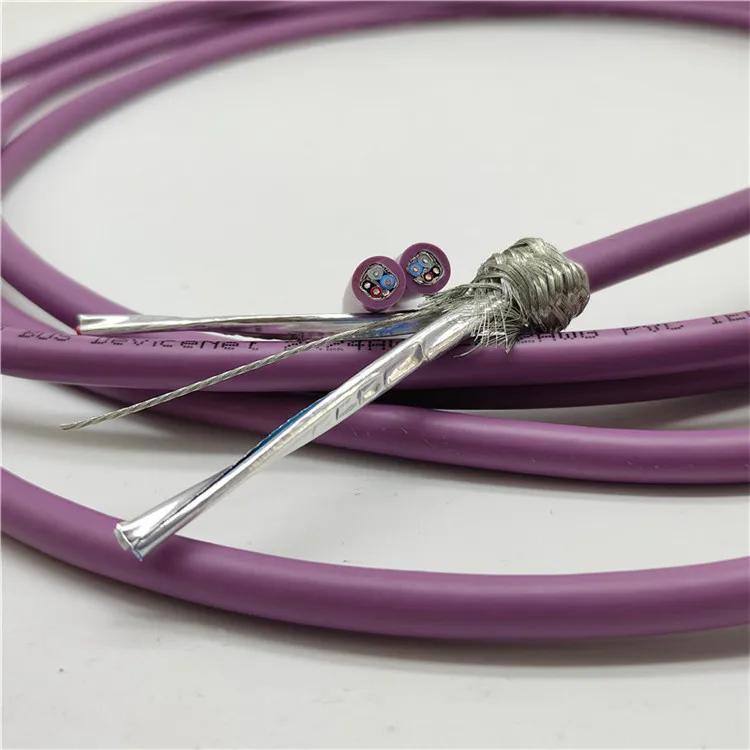

PVC shielded cable CC-Link 3-core stranded industrial bus cable Copper Conductor Wires Electrical Equipment bus Cable
Products Description
Applied to data transmission of CC-Link bus system, highly flexible application. With the special structure design and modified outer covering material of Tongmin Hanbaliang, it has high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration, tensile and compressive stress, and millions of cycles. Sexual bending.
Product Feature
Technical Parameter
Outer sheath | Special PVC or PUR outer sheath | ||||||
Standard | Bare copper conductor, thin copper wire, in line with DINVDE0295 and IEC 60228 standards | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80° c | ||||||
Nominal voltage | 50 V | ||||||
Test voltage | 500V | ||||||
Insulation resistance: | Minimum 20 MOhm x km | ||||||
Minimum bending radius: | Mobile installation 14×cable diameter Fixed installation 7x cable diameter | ||||||
Application: | Meet the requirements of EU RoHS and Reach regulations | ||||||

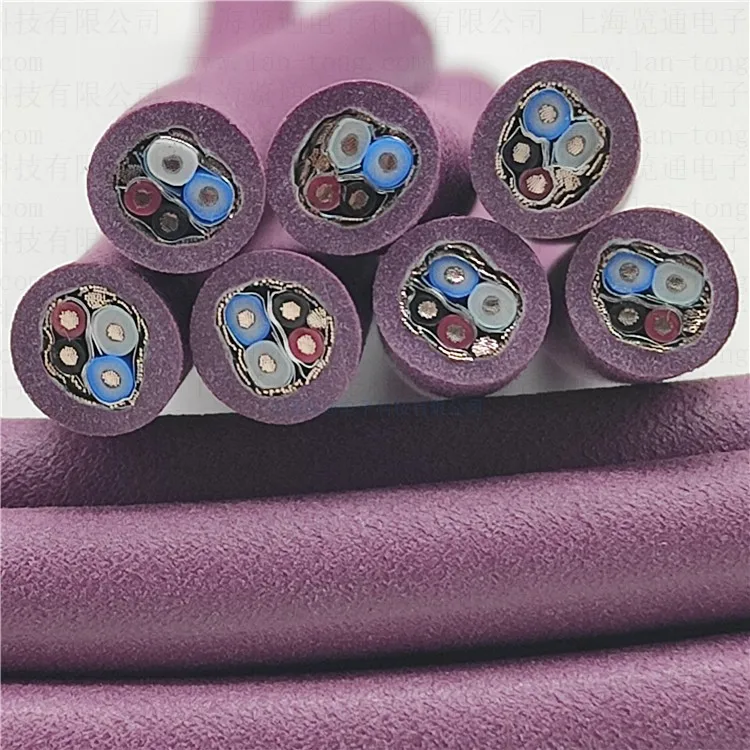

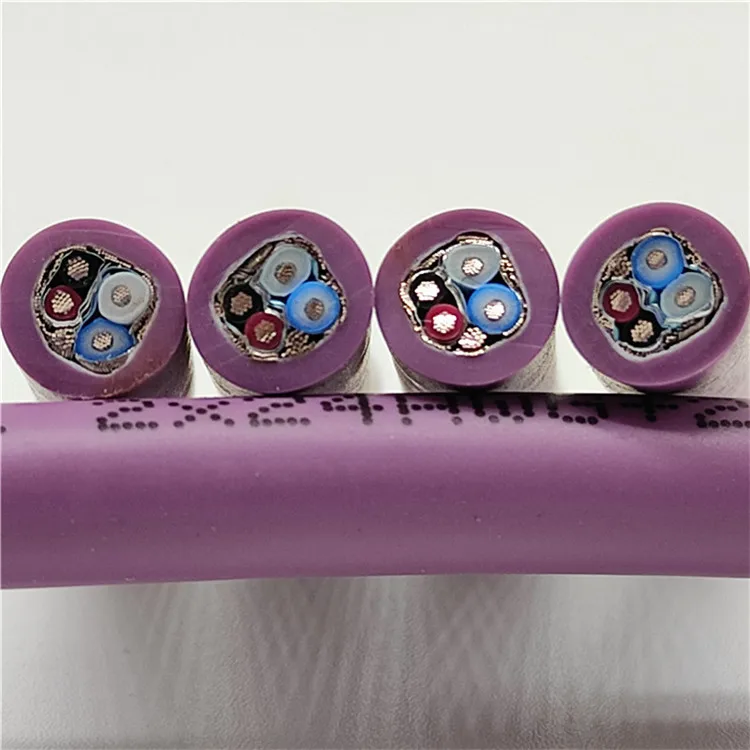

Cable Structure

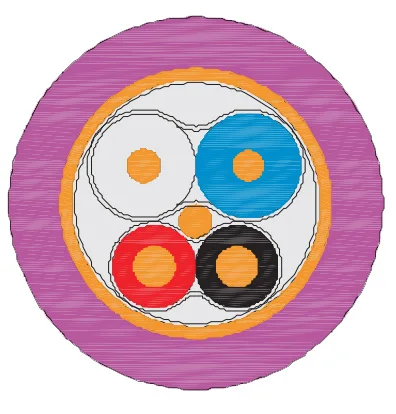

Devicenet Cable Structure
1. Tinned copper or bare copper conductor, thin copper wire
Comply with DIN VDE0295 category 6 and IEC 60228 category 6
2. Insulation complies with bus standards
3. The core wire identification conforms to the bus standard
4. The quasi-twisting method complies with the bus standard
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC or PUR outer sheath
8. Purple (RAL 4001) matte
Comply with DIN VDE0295 category 6 and IEC 60228 category 6
2. Insulation complies with bus standards
3. The core wire identification conforms to the bus standard
4. The quasi-twisting method complies with the bus standard

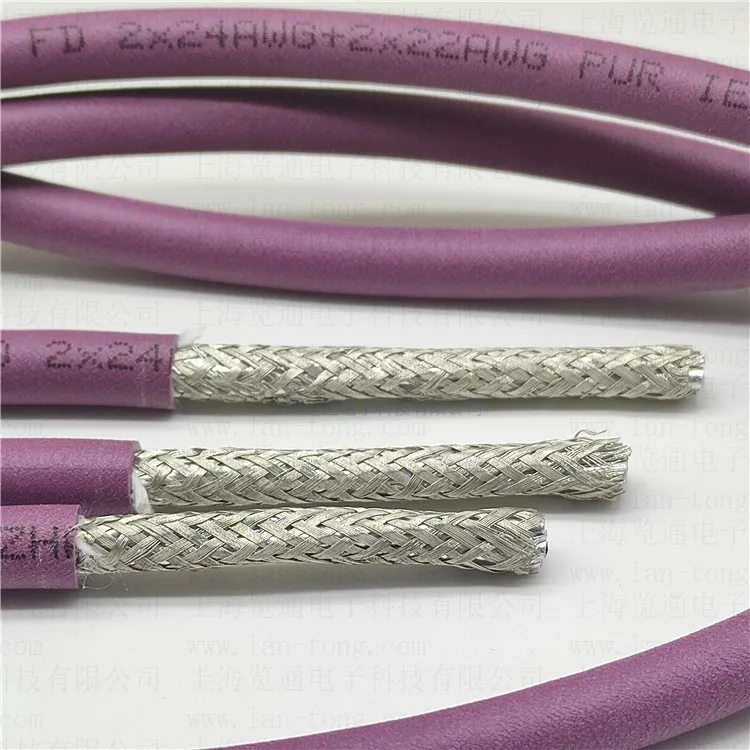

5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC or PUR outer sheath
8. Purple (RAL 4001) matte
Ethernet / CAT5e
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY06.04.2422 | 2x0.20+2x0.38 | 6.8 | Purple | 120 | 95/59.4 |
2 | BUS-HY506.04.2419 | 2x0.20+2x0.75 | 7.0 | Purple | 120 | 95/26 |
