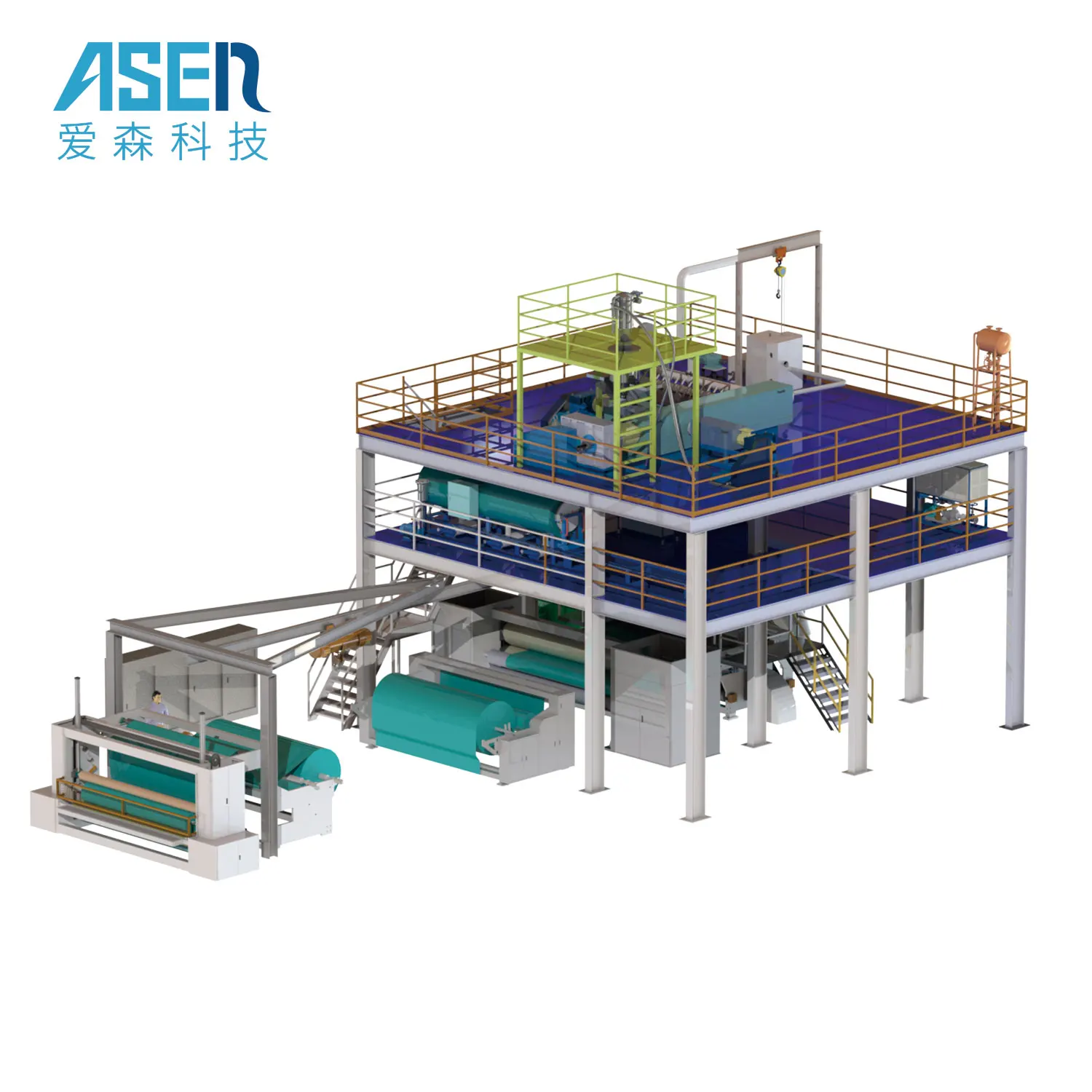

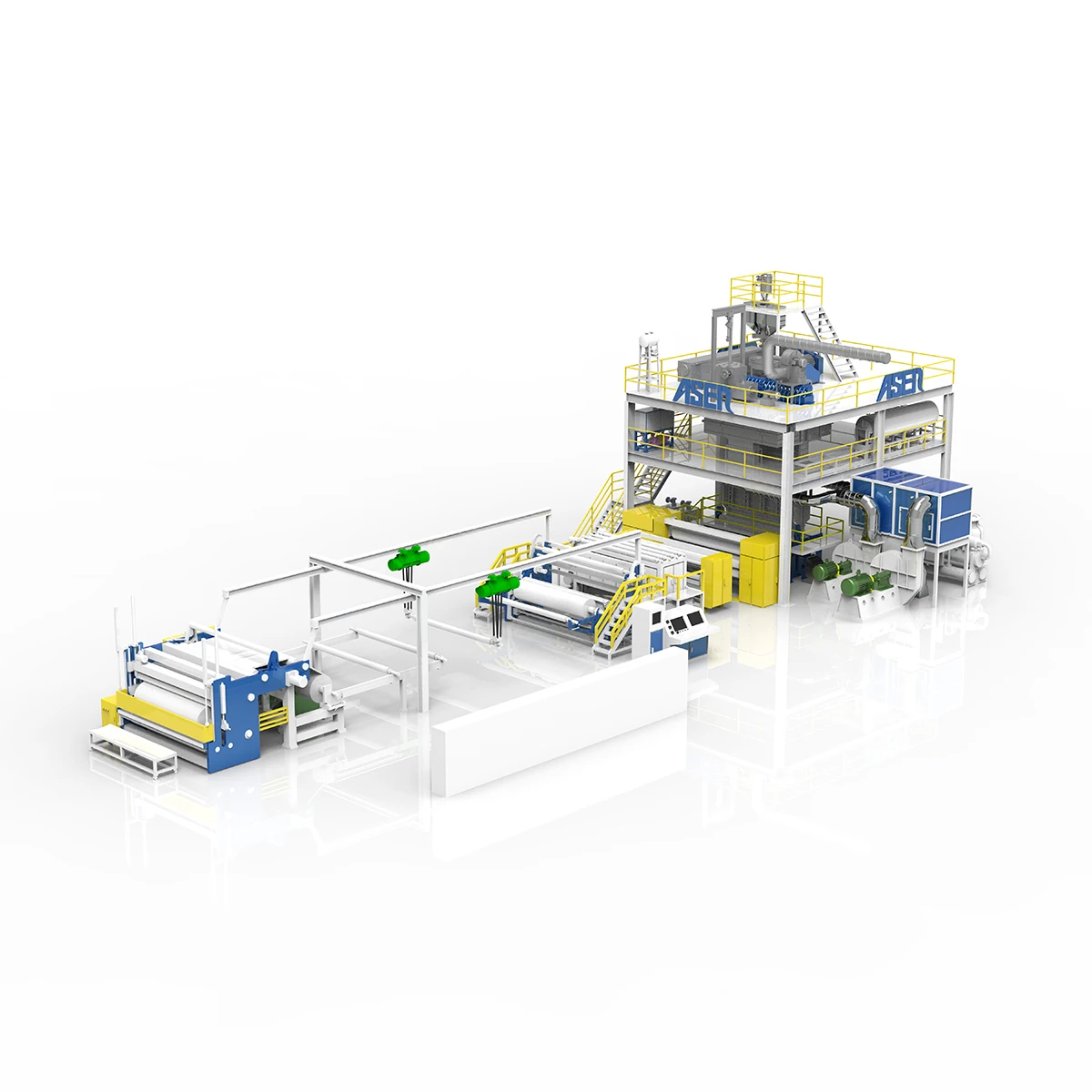

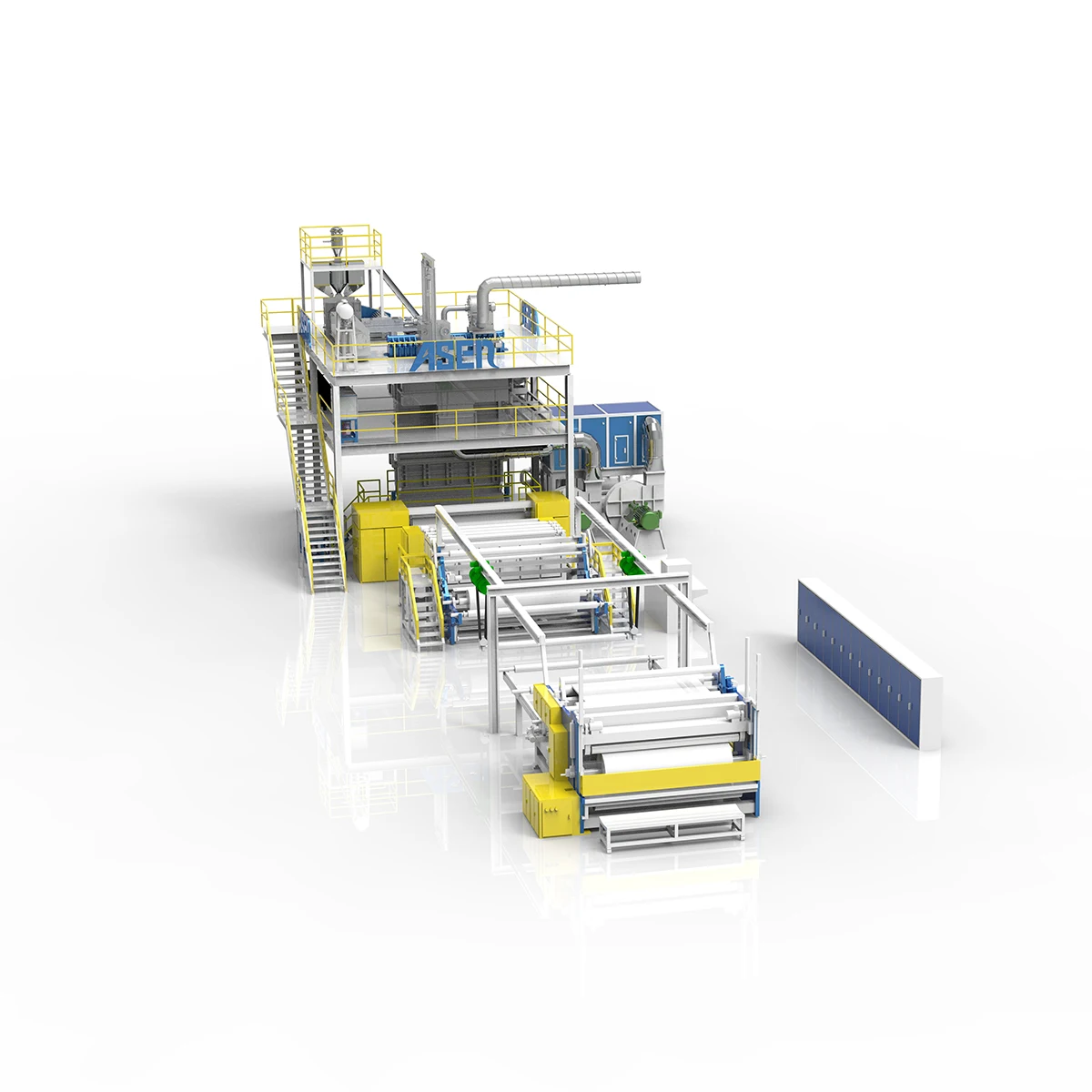

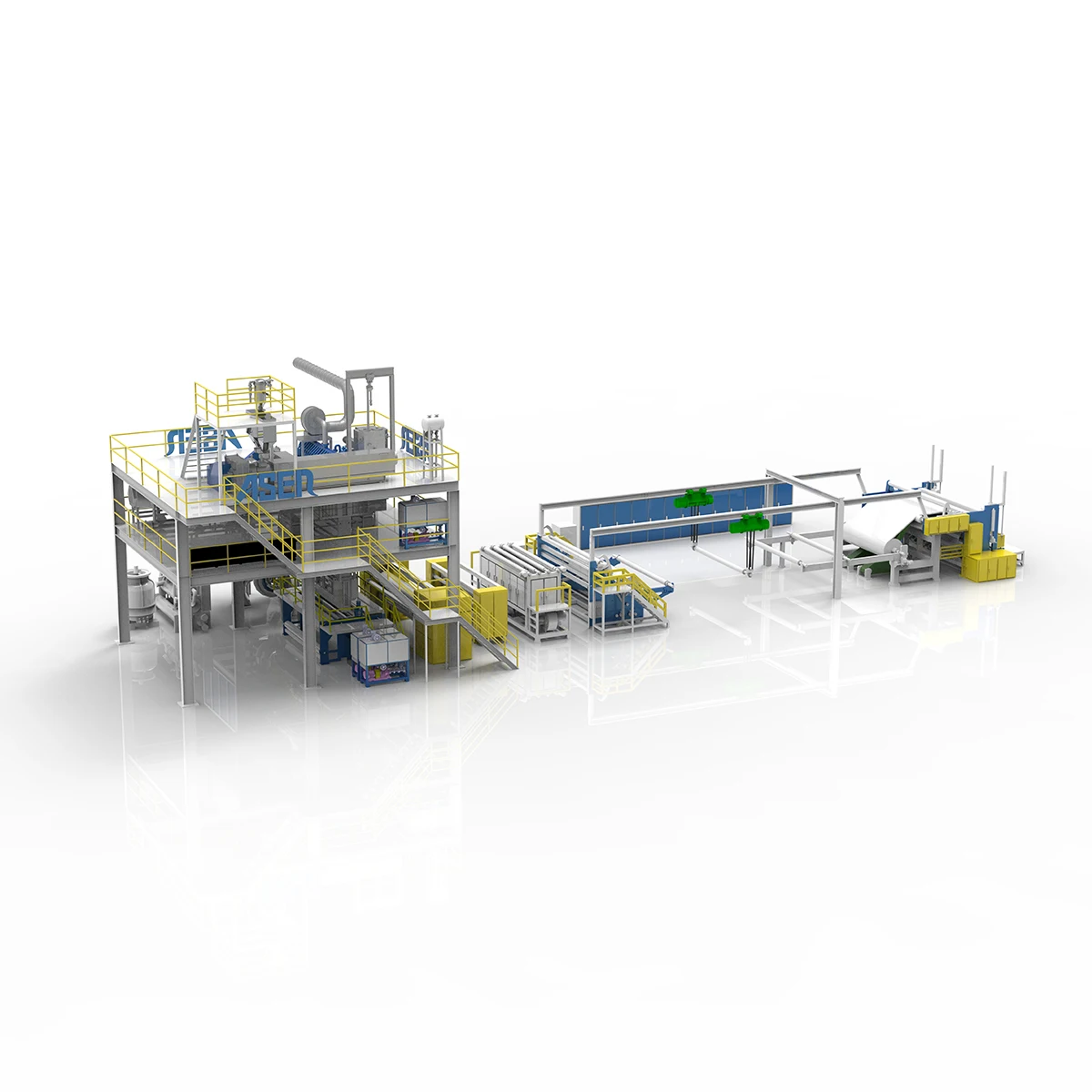

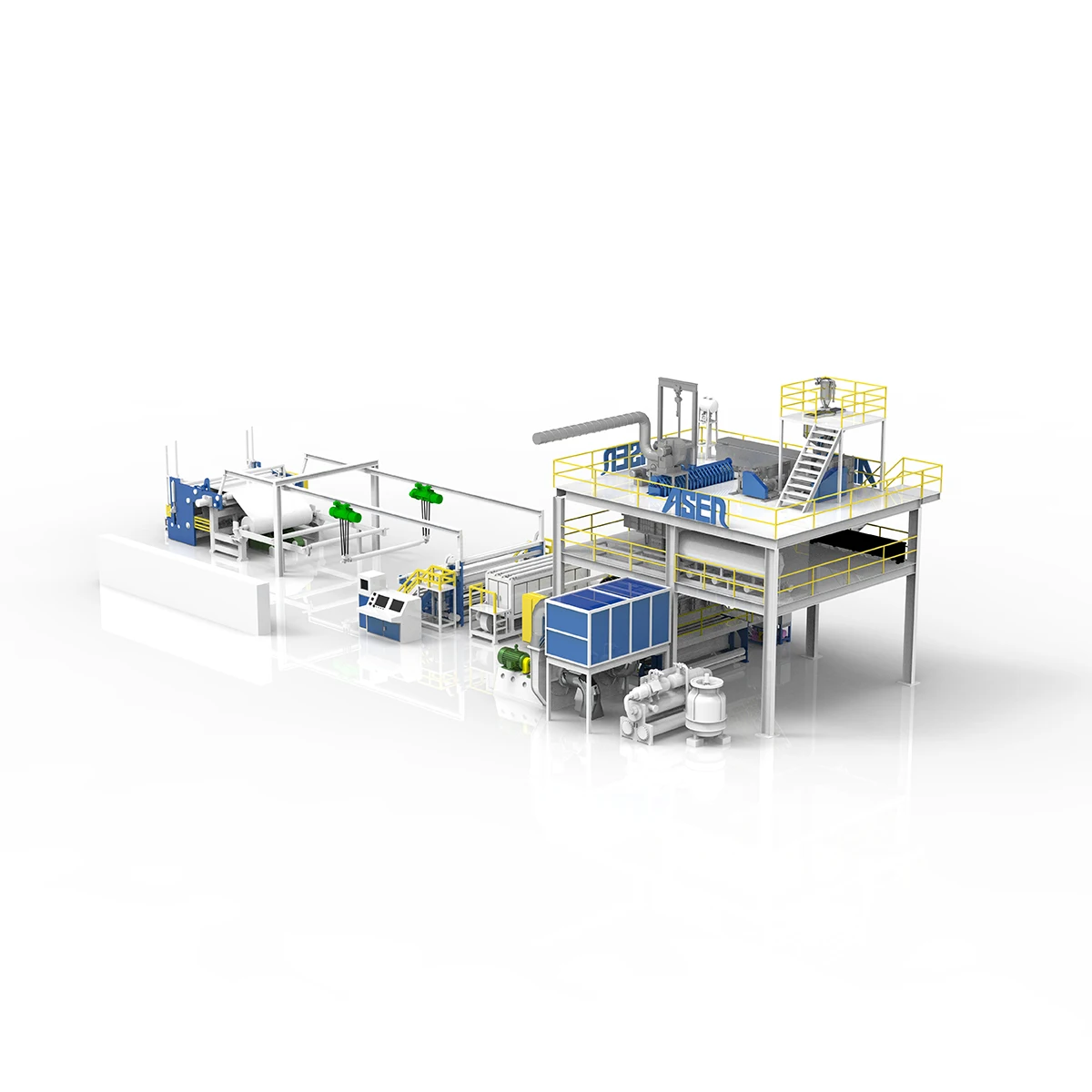

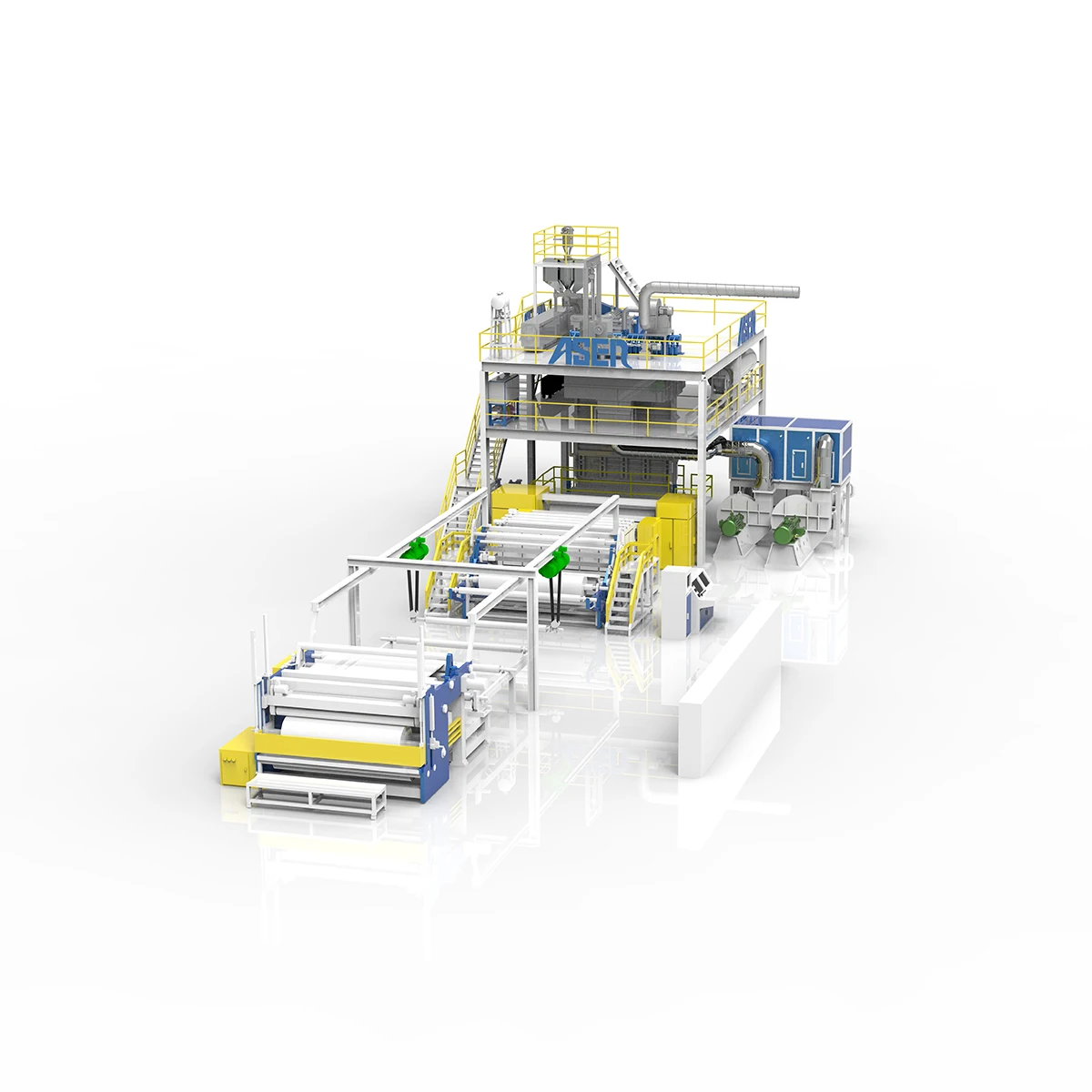

Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production
Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production

Automatic Polypropylene Spunbonded Nonwoven Machine Wholesale For Spunbond Fabric Production

Share on (1600412366580):


Price:$150,000.00

Quantity:


Product Overview

Description



Product Description














Details Images


Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10;
Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;

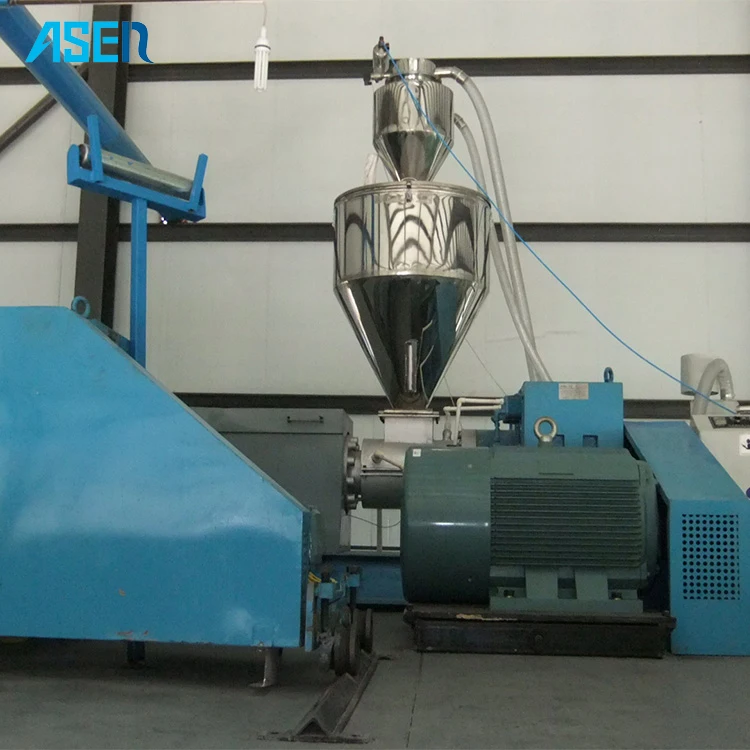

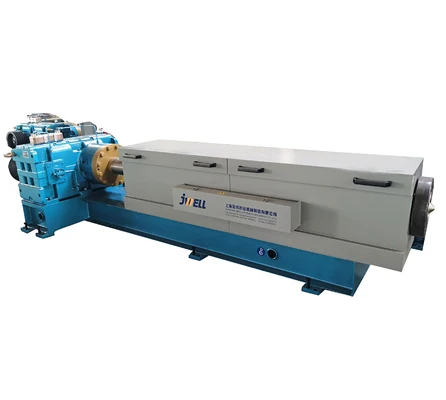

Extrusion Machine
Aperture：90 300kg/h 1pc;
Heating System: electricity heating;
Drive Motor: Siemens;
Original:CHINA;

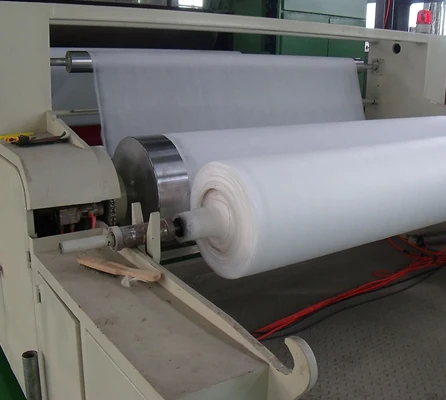

Automatic Winding Machine
Effective width:1600/2400/3200 mm
Rolling Speed:200-400M/Minute
Rolling Diameter:2000 mm
Original: CHINA

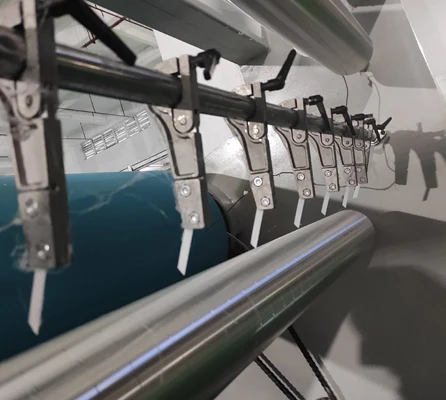

Automatic Slitting Machine
Speed:600-800 M/Minute;
Min. Slitting width:80mm;
Max. Rolling size:1500mm diameter;
Auto tensile control:online;
Auto meter counting:online;
Original:CHINA;

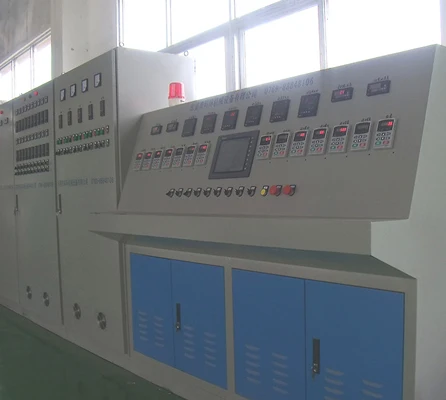

Production Line Control Cabinet
Voltage: 380 V/3 Phase;
Touch Screen:Siemens;
PLC: Siemens;
Frequency:Siemens;
Indicator: RKC,JAPAN;
Original:CHINA;

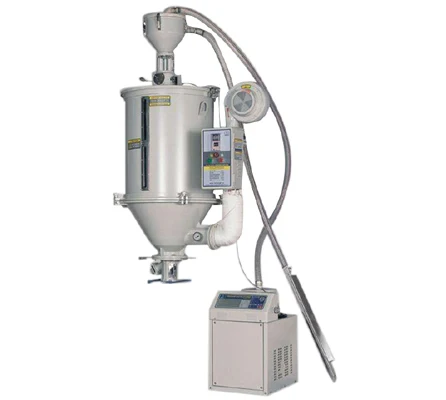

Raw Material Dosing Machine
Weight system: by weight;
Hopper : 4 pcs;
Accuracy:0.01%;
Feeding Percentage: 1-99%;
Original:USA/ITALY;

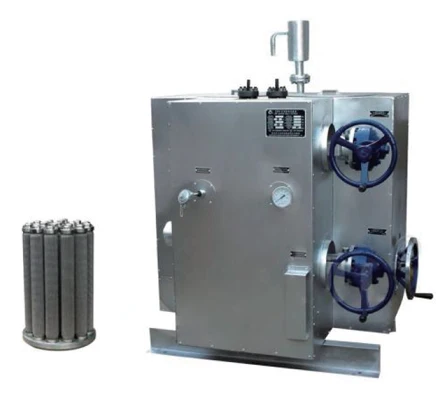

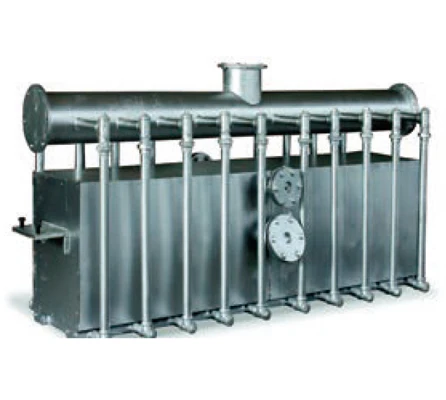

Candle filtration Machine
Filtration Area: 3.5m²;
Capacity: 650kgs/h;
Filtration Chamber: 2 pcs (switch online);
Original:CHINA;

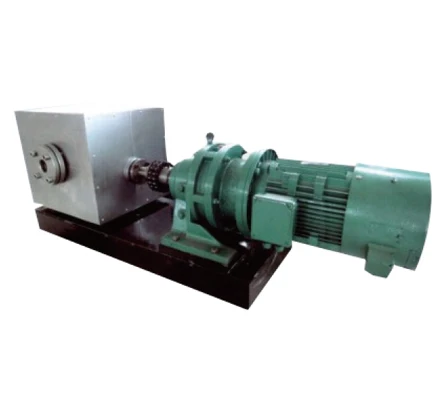

Spinning Pump
Capacity:300-450Kg/H;
Speed:40Rpm/Minute;
Drive Motor:Siemens;
Original: CHINA/GERMANY;

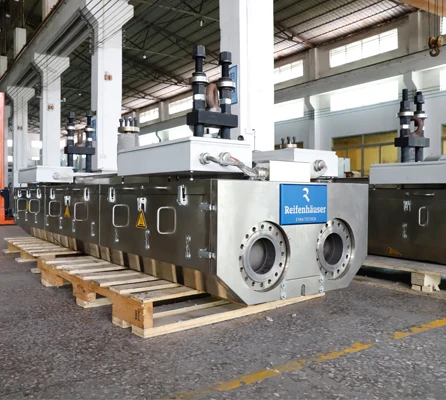

Spinning Beam
Model:1600/2400/3200mm;
Heating System:Oil/Electricity Heating;
Distribution Design: big hanger type;
Original:CHINA;

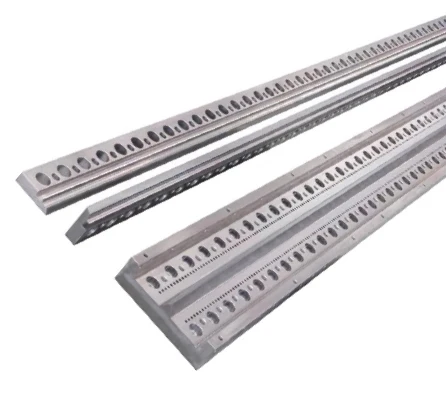

Spinneret
Hole size: 0.45mm;
Hole Qty:12350-24500pcs;
Material: SUS431;
Original:CHINA/GERMANY;


Embossing calender machine
Emboss Pattern: ovel/diamond/sesame/dot;
Emboss Roll diameter: 450-520mm;
Linear pressure: 30-125 N/mm;
Original:CHINA/GERMANY;


Manufacturing Technique




Process of meltblown nonwoven production line
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product




Product Paramenters


Model No.
S-1.6
S-2.4
S-3.2
S(Product width)
1600mm
1600mm
1600mm
Equipment Size
15*8.6*9.5m
15*8.6*9.5m
15*10*9.5m
Speed
200m/min
200m/min
200m/min
Gram Weight
10-180g/m²
10-180g/m²
10-180g/m²
Yield (according to 70g/m²)
3.5T/Days
5.5T/Days
7T/ Days


Model No.
SS-1.6
SS-2.4
SS-3.2
SS(Product width)
1600mm
1600mm
1600mm
Equipment Size
29*13.10m
30*14*10m
32*15*10m
Speed
300m/min
300m/min
300m/min
Gram Weight
10-150g/m²
10-150g/m²
10-150g/m²
Yield (according to 70g/m²)
7T/Days
11T/Days
14T/Days


Model No.
SSS-1.6
SSS-2.4
SSS-3.2
SSS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
400m/min
400m/min
400m/min
Gram Weight
12-150g/m²
12-150g/m²
12-150g/m²
Yield (according to 70g/m²)
11T/Days
17T/Days
24T/Days


Model No.
SMMS-1.6
SMMS-2.4
SMMS-3.2
SMMS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
500m/min
500m/min
500m/min
Gram Weight
10-150g/m²
10-150g/m²
10-150g/m²
Yield (according to 70g/m²)
9T/Days
14T/Days
18T/Days


Model No.
SSMMS-1.6
SSMMS-2.4
SSMMS-3.2
SSMMS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
500m/min
600m/min
600m/min
Gram Weight
12-150g/m²
12-150g/m²
12-150g/m²
Yield (according to 70g/m²)
11T/Days
17T/Days
24T/Days


Application

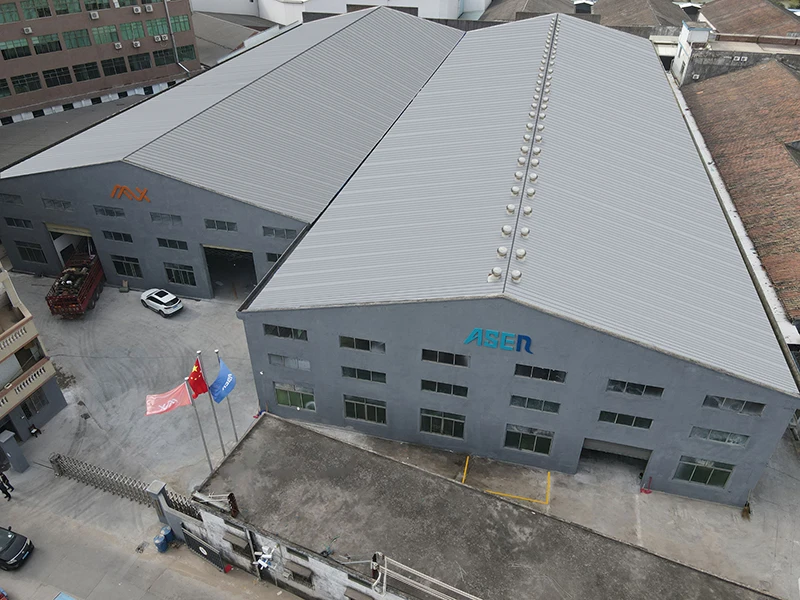

Company Profile




Asen(Foshan)Technology Co.,Ltd is one of AZX Group Limited subsidiary company. It is a strong R & D, excellent design,professional production & sales and after-sales service in one company. We are specialized in manufacturing S(Spunbond),M(Meltblown),SS，SXS，SSS，SMS，SMMS ，SSMMS etc.type PP(Polyproplene) Spunbond & Melt blown Nonwoven Production line. Our group was established in 2009, Involve in the field of Nonwoven machine, Nonwoven fabric, Medical supplies etc., we are providing high-quality products and excellent services for global users.
