DOMSEM vertical wall printer 3d effects printing ,mural wall printer for 3d wall printer

Share on (1600412370307):


Price:$6,560.00 - $6,950.00

Quantity:


Product Overview

Description





Product description

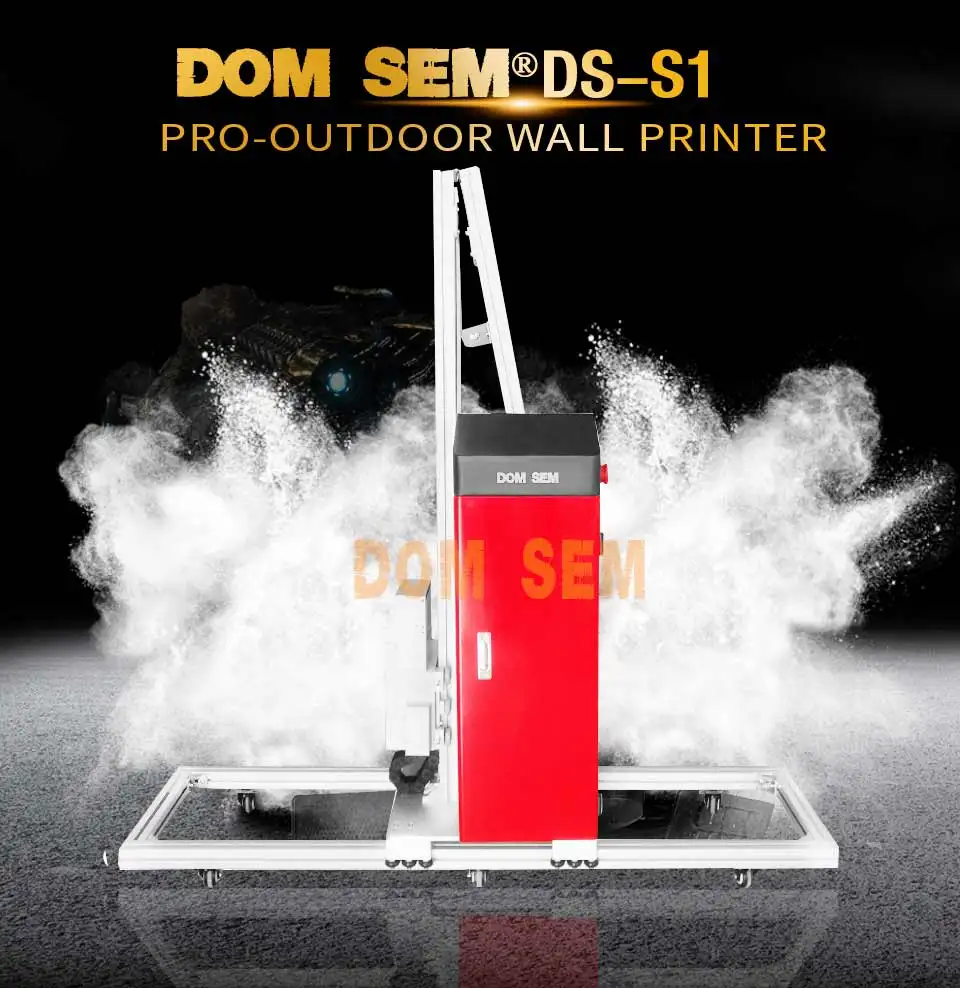

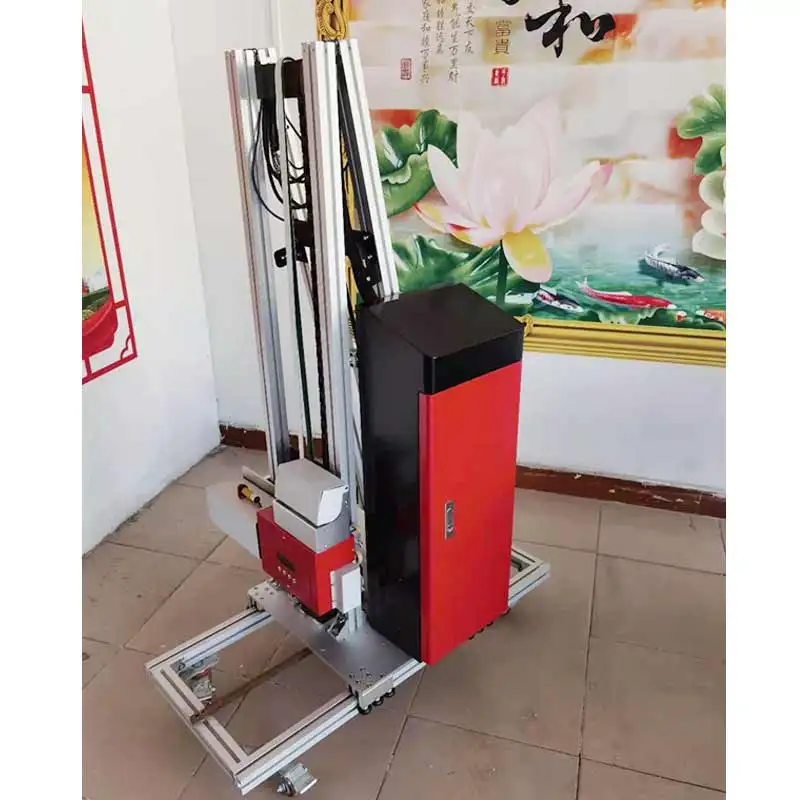

About DS-S1 wall printer:

  • The DS-S1 wall printer is a professional outdoor wall printer.

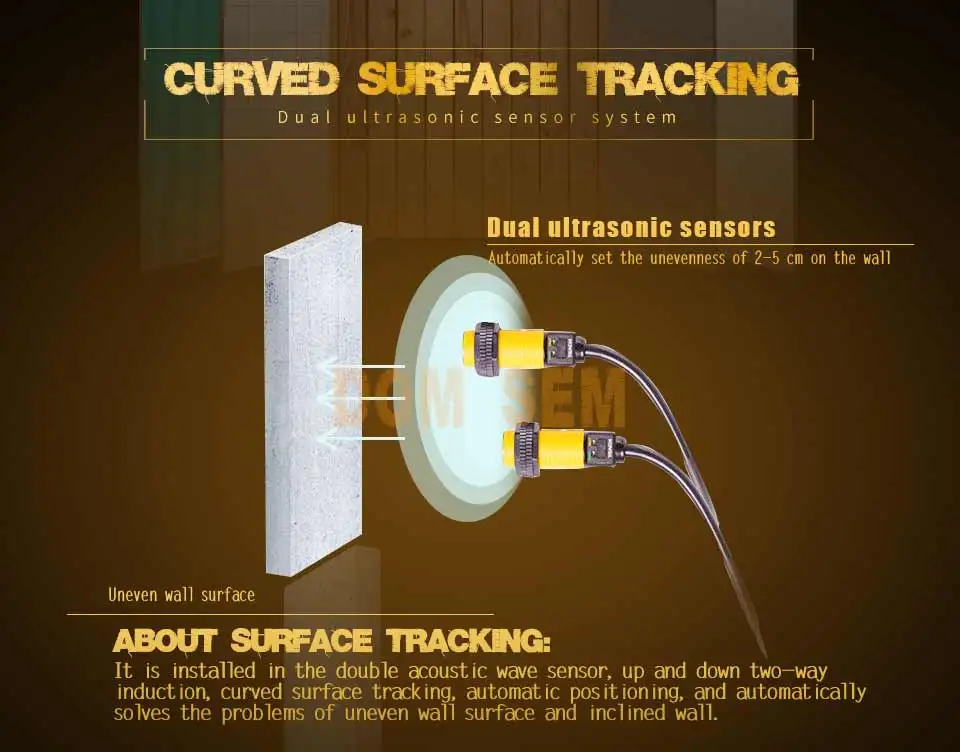

  • Dual ultrasonic sensors, suitable for tracking printing on various surface conditions.

  • Power-off memory feature:power-off continues to printing.

  • Automatic ink supply smart module.

  • Foldable portable structure.

  • 2.5Height × width, more than 2 meters can be seamless splicing.




Welcom to contact us at any time to get more product printing pictures and printing videos!


wall-printer_02wall-printer_03


wall-printer_05


----------------------------------------------------------------------------------------------------------------------------------

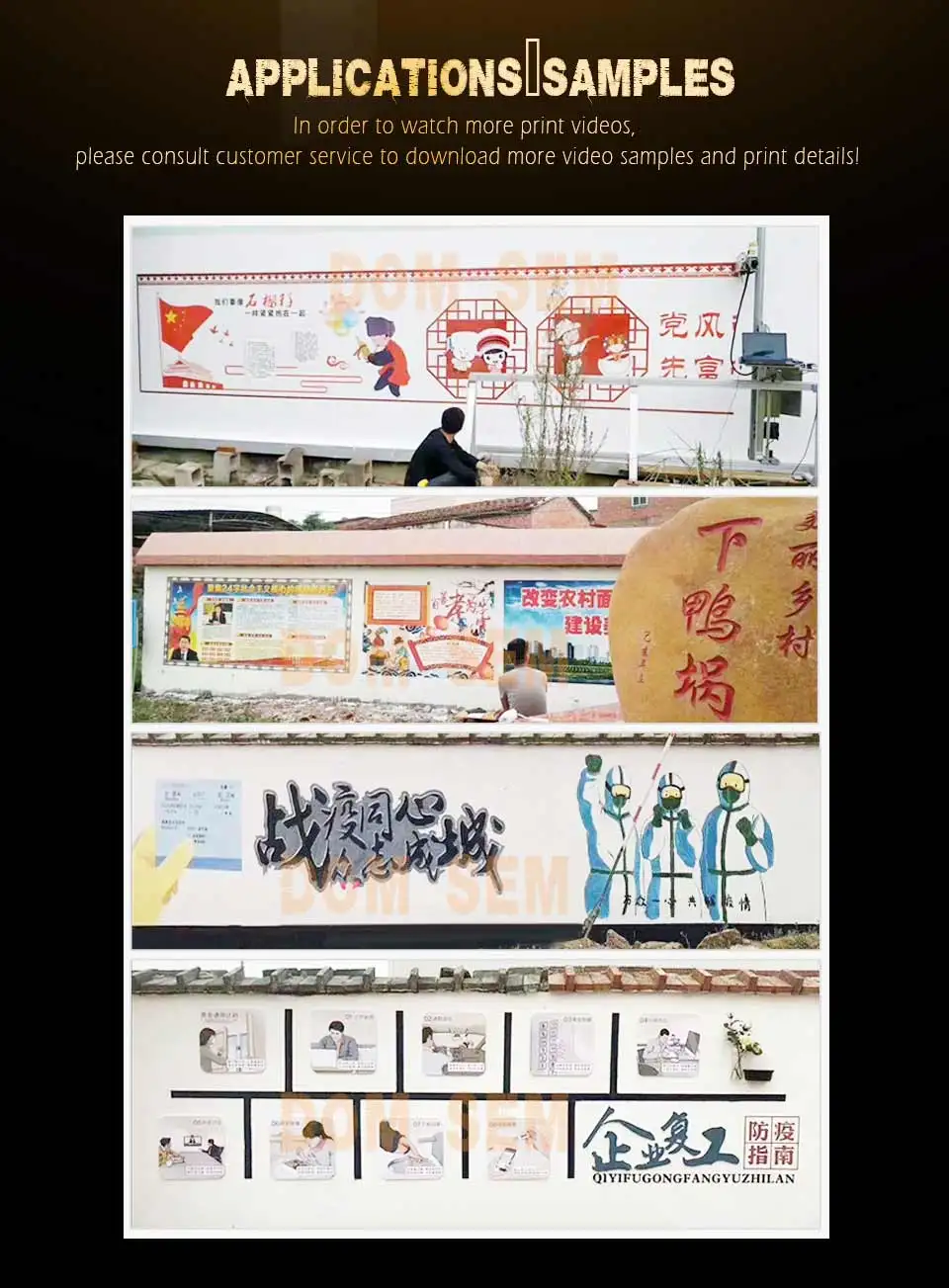

      >> Welcome to contact us at any time to get more product printing pictures and printing videos!





wall-printer_06


--------------------------------------------------------------------------------------------------------------------------------

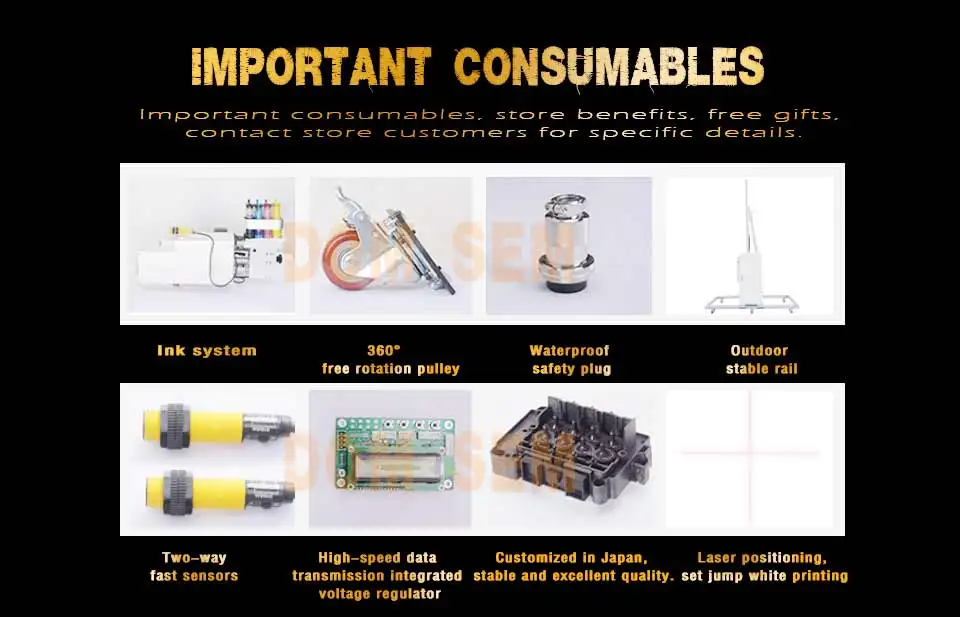

    >>Regarding the free gift of accessories, welcom to contact customer service for more details!wall-printer_07

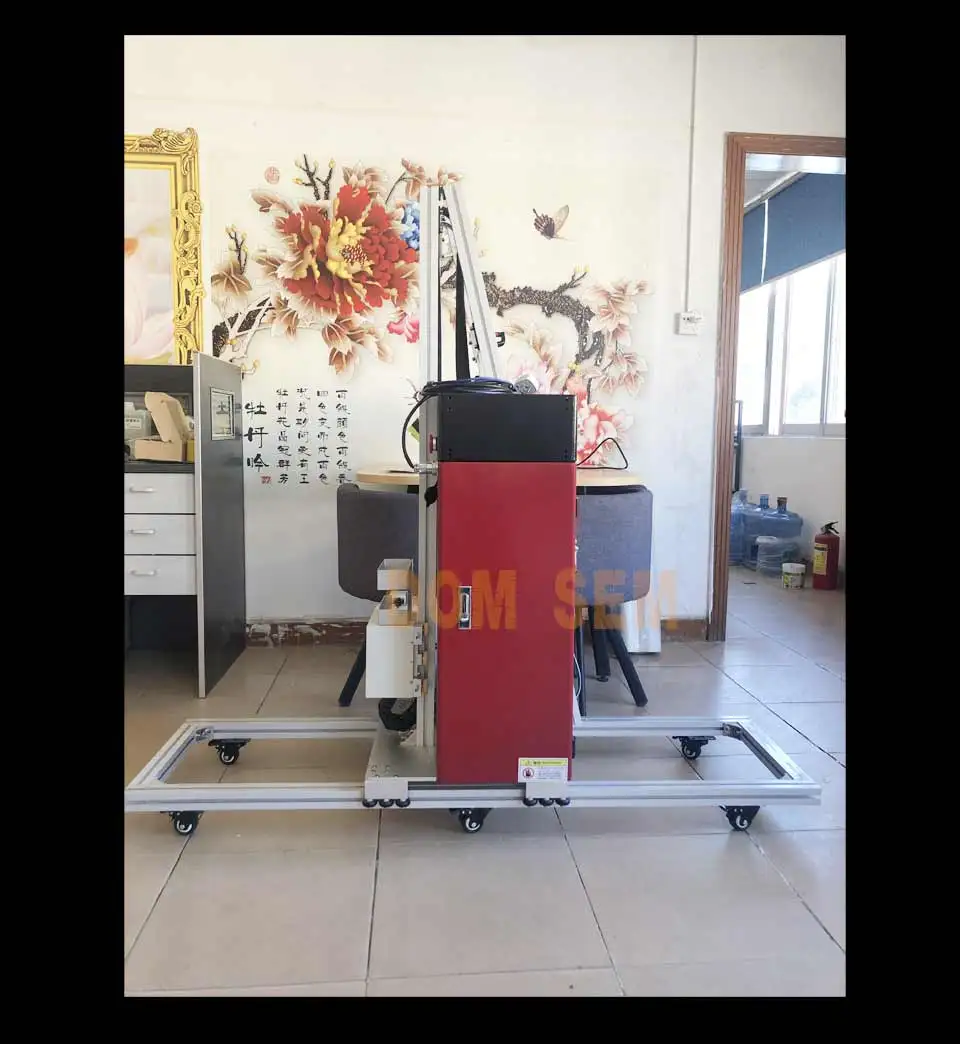

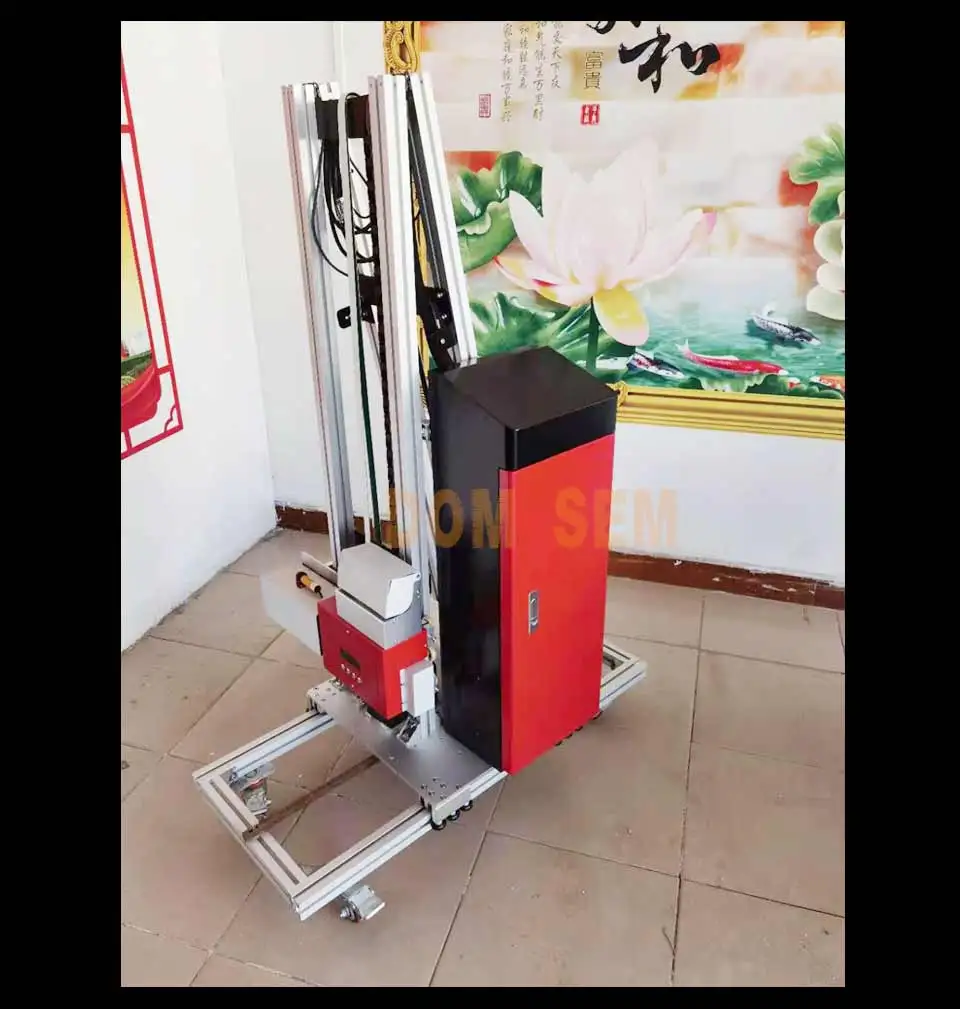

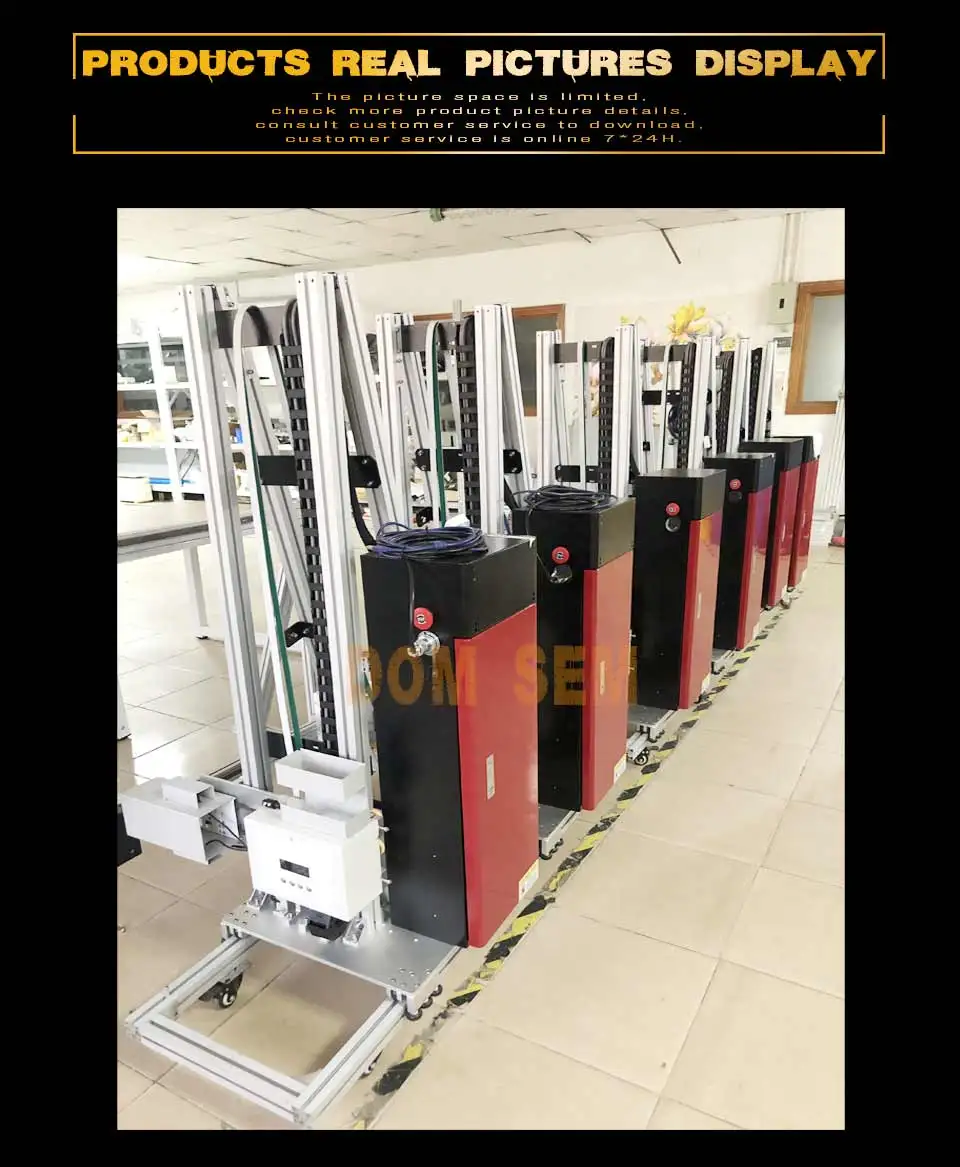

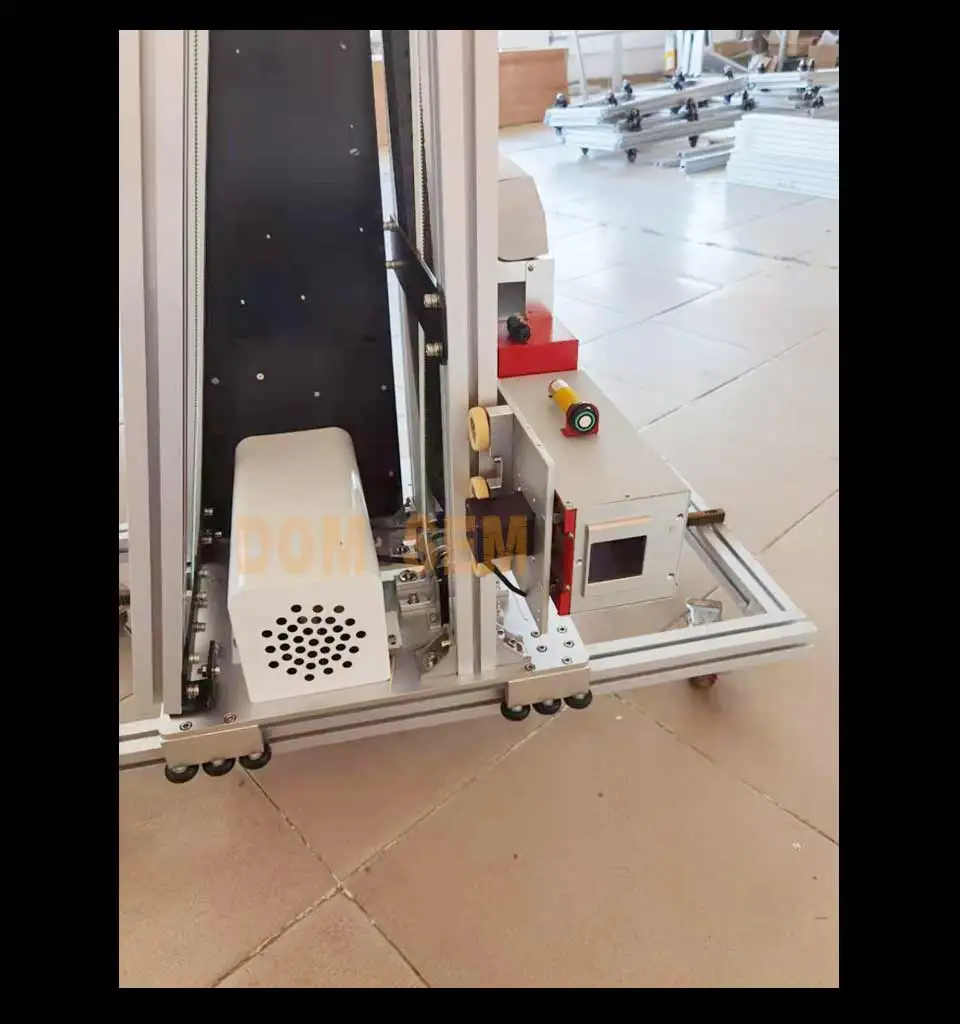

wall-printer_08wall-printer_09wall-printer_10wall-printer_11



Product specificatio

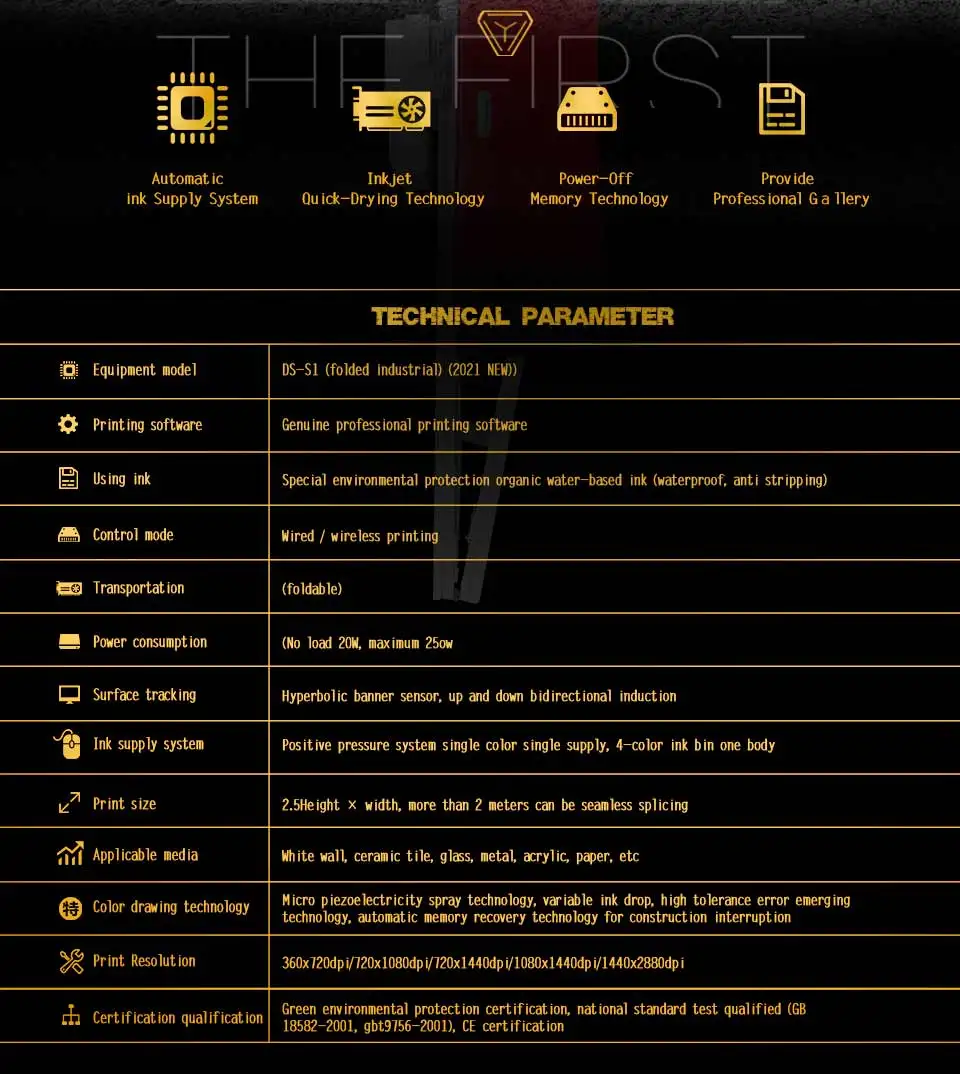

DS-S1 parameter configuration

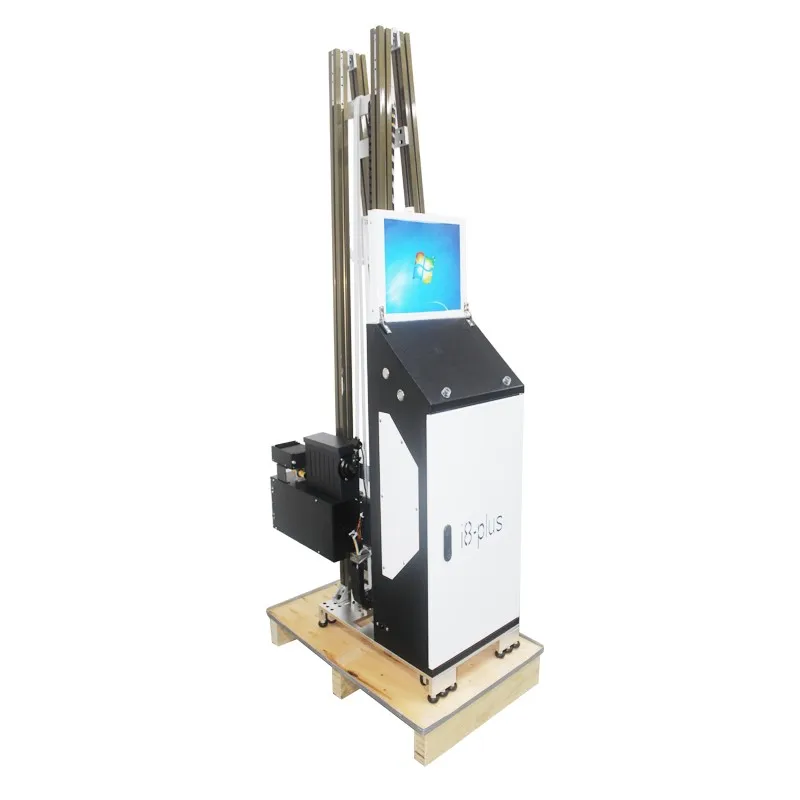

Equipment modelDS-S1 (folded industrial)        .jpg
Printing softwareGenuine professional printing software
Using inkSpecial environmental protection organic water-based ink
Control modeWired / wireless printing
Transportation(foldable)
Power consumptionNo load 20W, maximum
25ow
Surface trackingHyperbolic banner sensor,
up and down bidirectional induction
Ink supply systemPositive pressure system
single color single supply, 4-color ink bin one body
Print size2.5Height × width, more
than 2 meters can be seamless splicing
Construction noiseStandby < 20dBA, drawing
< 70dba
Supporting picturesPhotos taken by mobile
phone / camera and Internet
Power requirementsHousehold electricity: 220
VAC or 380 VAC
Applicable media White wall, ceramic tile, glass, metal, acrylic, paper, etc

































Format of national filmincludePSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF
Color drawing technologyMicro piezoelectricity spray technology, variable ink drop, high tolerance error emerging
technology, automatic memory recovery technology for construction interruption
Print Resolution360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
Operating environment-20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state
Storage environment-21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state
operating platformWindows xP/7/8/9/10
Certification qualificationGreen environmental protection certification, national standard test qualified (GB
18582-2001, gbt9756-2001), CE certification













































print modePASS M2 / h (M &apos;/ h)
 Fast mode A 15
 Production mode B 10
 Quality model C 7
 HD mode D 5
External dimensionMachine scale mm); length
70ox width 300X height 2600
Package size (mm): length 800X width 460x height 2700
Machine weightMachine 60kg (fuselage
30kg + 3 guide rails 30kg)
Packing weight 115KG in wooden case
Nozzle specificationNozzle specificationelectric machinery

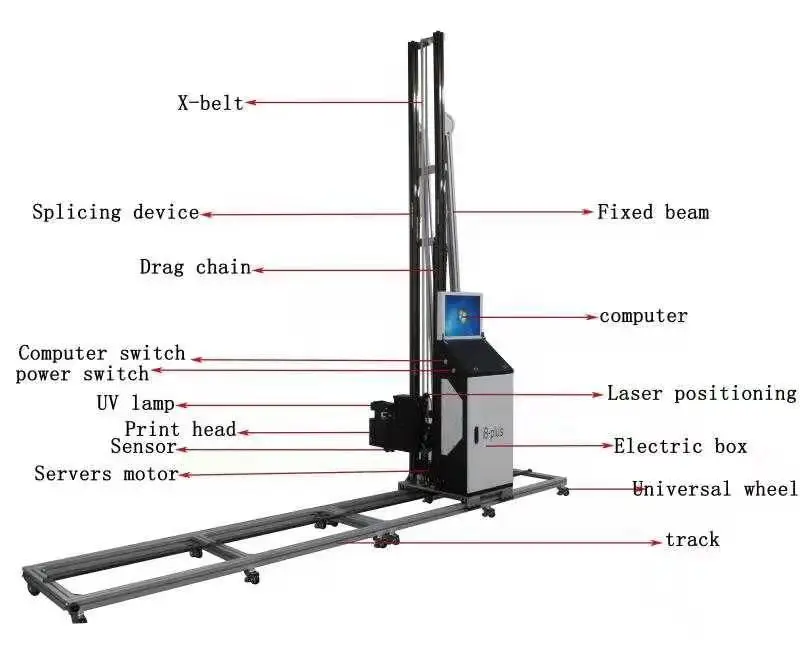

 Key components








































a main board8Core high speed CPU, 4GB memory, high speed USB 1oWall detection2Nano distance detectors
Nozzle specificationEpson 10 generation high precision printing nozzle2electric machinery3 imported intelligent servo motor+reducer
levelImported precision levelPower failure alarmreal time power failure alarm system
UPS power supplysuper uniterruptible power supply with 3 hours of power failureLaser positioningPrecise infrared laser positioning system
Shaft guideHigh strength precision railway track,4 sections,1.5m,6m in totalShaft guideImported linear drive module
Ink supply technologypositive pressure system ink supply,need to draw inkGift GalleryFree 2T Library









machine languageChinese / English (other languages can be customized)


Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.





--------------------------------------------------------------------------------------------------------------------



  • 7*24H online after-sales service.

  • One-to-one technical guidance to ensure that customers fully grasp the printer technology.

  • The 3-year warranty period improves customer after-sales service experience.

  • Technical after-sales complaint hotline:+86 13554958666.

  • Welcome to contact the store customer to solve the problem!





wall-printer_14
