QVC 1/2/3/4/5 вакуумный материал навалочная машина кабельного телевидения серии пневматический вакуумный дозатор разливочная машина для порошка и гранул
- Category: >>>
- Supplier: Shanghai Tianhe Machinery Equipment Co. Ltd.
Share on (1600412376445):
Product Overview
Description
Products Description

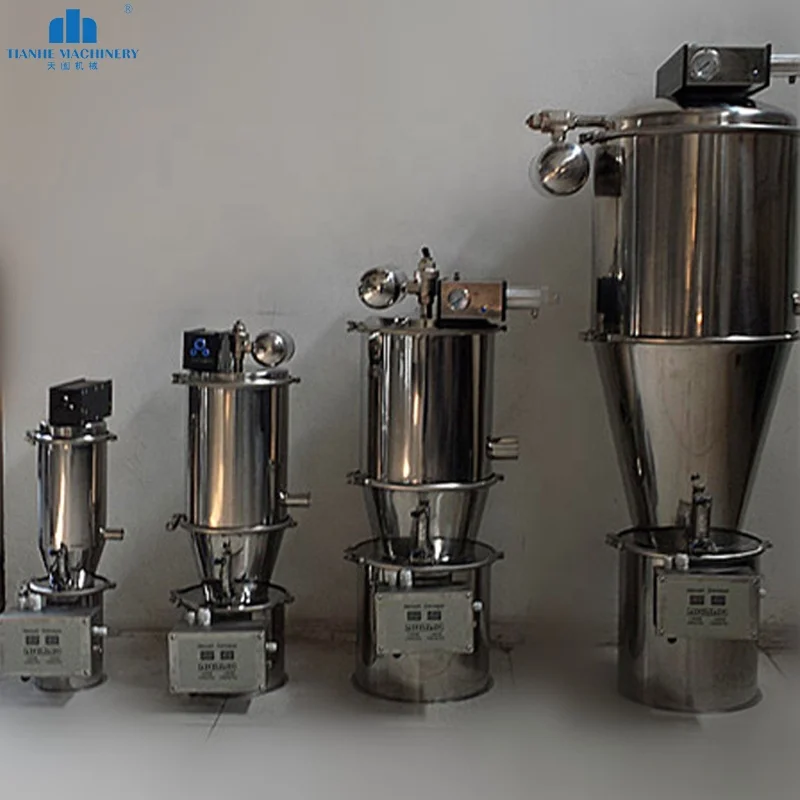

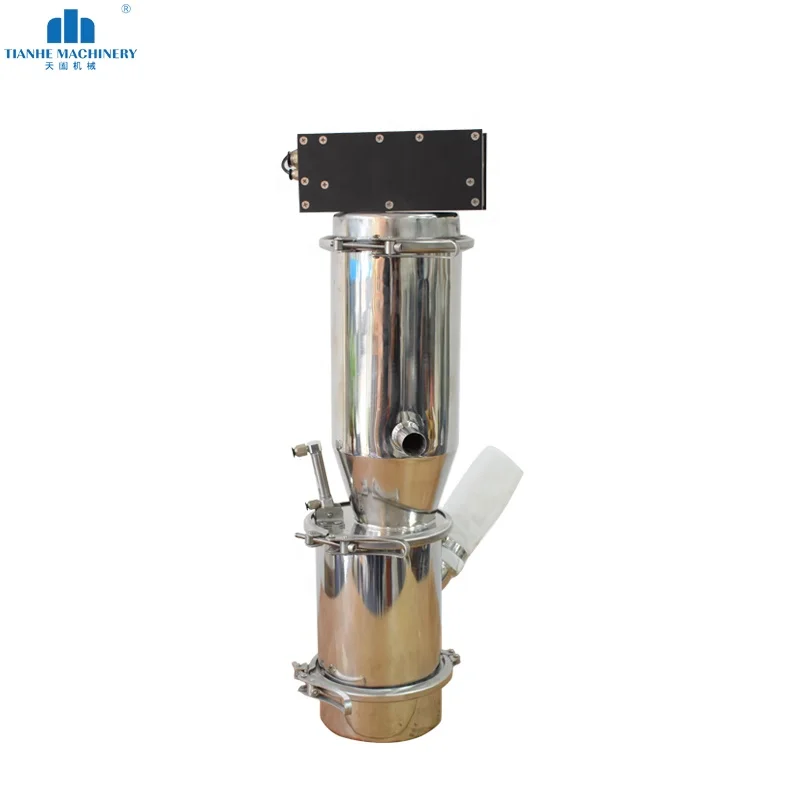

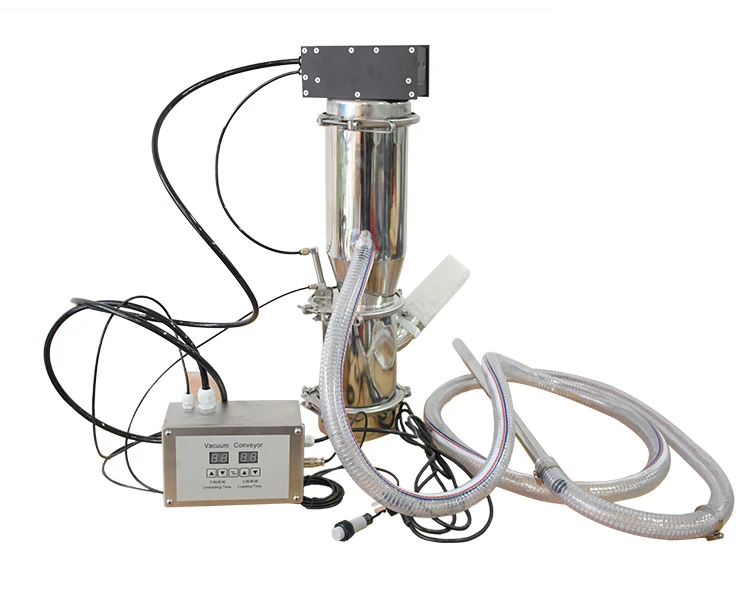

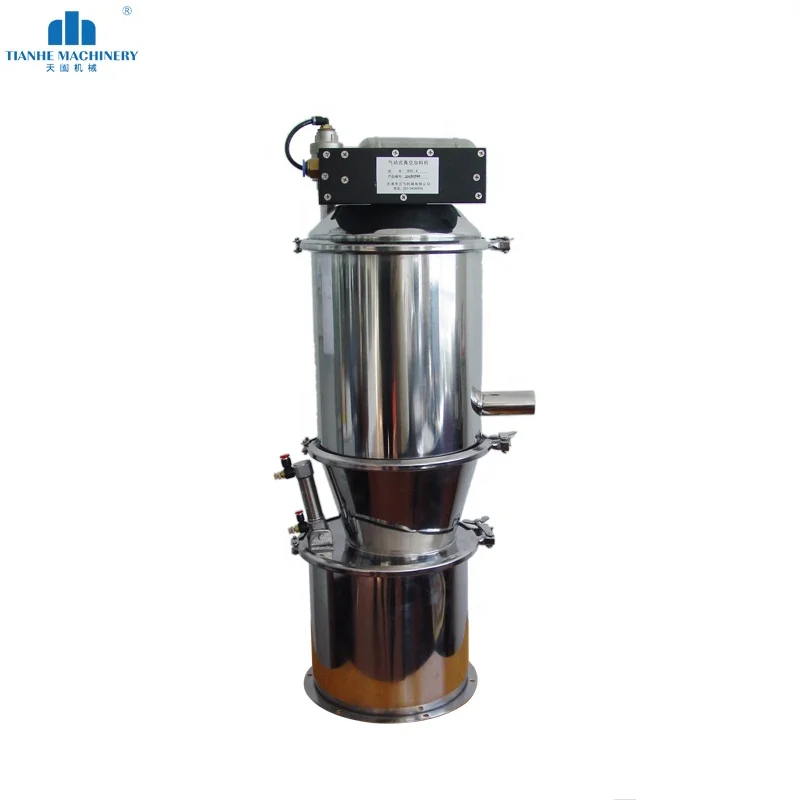

QVC Vaccum Feeder Vacuum Transfer Conveyor
Main features：
1. QVC Vaccum Feeder uses compressed air to generate a high vacuum through a vacuum generator to convey materials without the need for a mechanical vacuum pump.
2. QVC Vaccum Feeder with simple structure, small size, maintenance-free, low noise, and convenient control, also can eliminate static electricity of materials. Meet GMP standard.

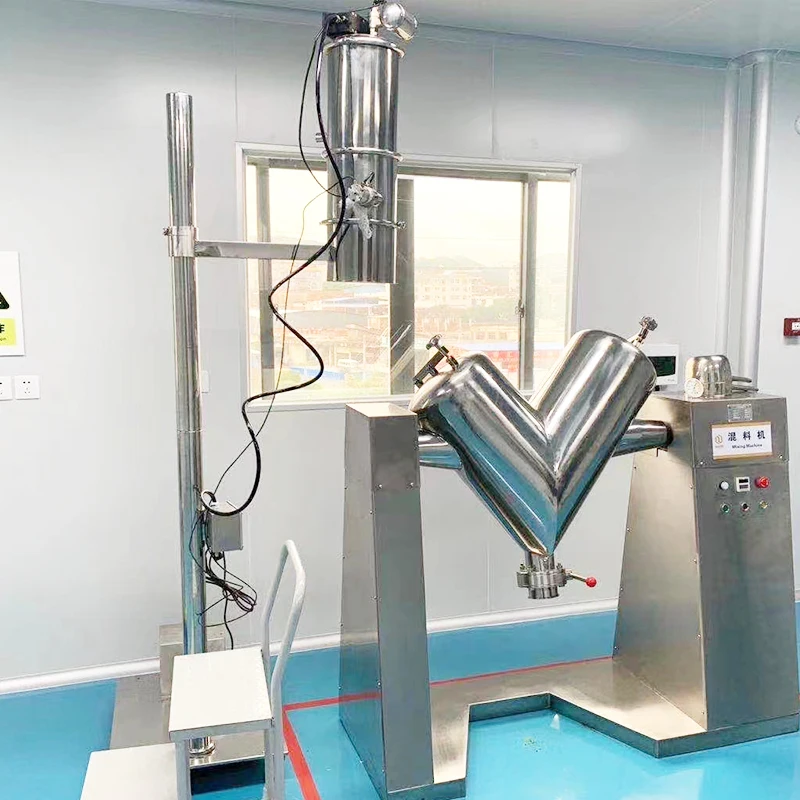

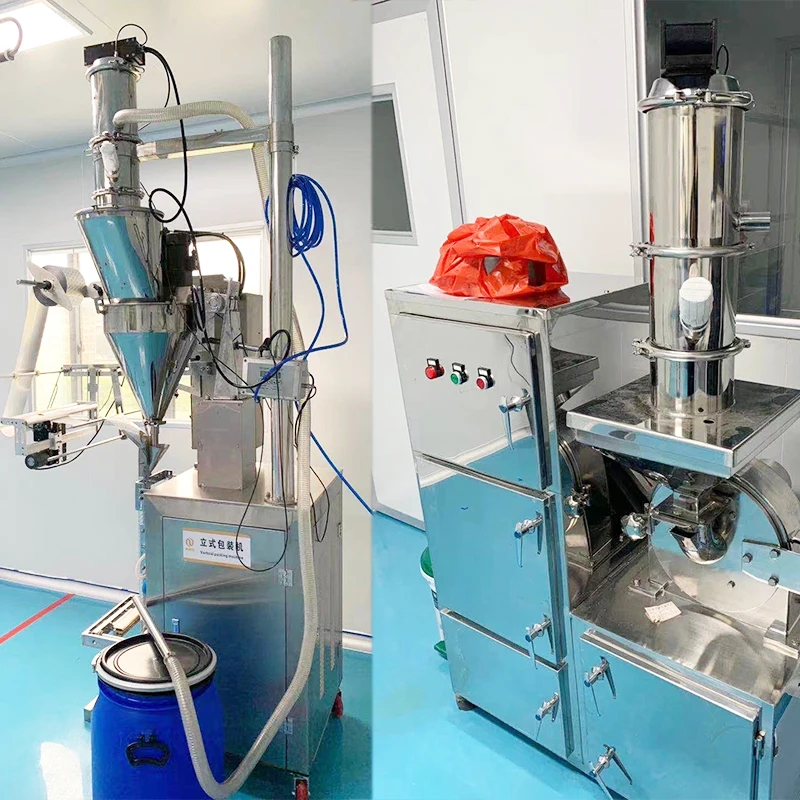

3.QVC Vaccum Feeder is an ideal equipment for automatic feeding of tablet machines, dry granulators, packaging machines, pulverizers, vibrating screens and other machinery.
4.QVC Vaccum Feeder is suitable for powder material, granular material,powder-granular mixture transportion.
Technical Parameters
Model | QVC-1 | QVC-2 | QVC-3 |
Feeding Volume | 350 kg/h | 700 kg/h | 1500 kg/h |
Air Consumption | 180 L/min | 360 L/min | 720 L/min |
Pressure of Supplied Air | 0.4-0.6 Mpa | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
Weight | 10 kg | 21 kg | 30 kg |
Overall size | Φ140*560 mm | Φ213*720 mm | Φ290*850 mm |
Model | QVC-4 | QVC-5 | QVC-6 |
Feeding Volume | 3000 kg/h | 6000 kg/h | 9000 kg/h |
Air Consumption | 1440 L/min | 2880 L/min | 4320 L/min |
Pressure of Supplied Air | 0.4-0.6 Mpa | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
Weight | 40 kg | 55 kg | 70 kg |
Overall size | Φ420*1150 mm | Φ420*1150 mm | Φ420*1350 mm |
Detail Images
Company

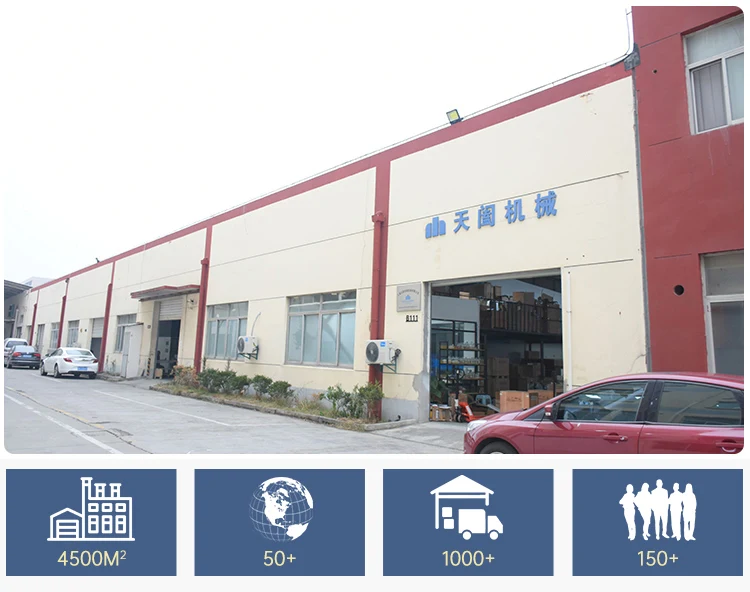

Shanghai Tianhe Machinery Equipment co., LTD., founded in 2011, is a professional manufacturer engaged in the research and development, production, sales and service dry powder mixer, auxiliary machines, dry granulator, mixer granulator, coating machines, grinding pulverizer and other machinery.
Over 11 years R&D, Tianhe now is the leading company specialized in bottle package production line, and experienced in flexible solutions for chemical and food industries.
Tianhe dedicate to premium products and customer services. Our office and warehouse are located in Shanghai with convenient transportation.We have our own factory and produce our own machines.We will take strict quality control and considerate customer service as our duty, experienced staff will discuss your needs with you at any time to ensure your satisfaction.
The products are sold well all over the country, and are exported to Europe, the United States, Canada, South Africa and other countries and regions.Whether you choose the current product from our catalog or seek engineering help for your application, you can discuss your purchasing needs with our customer service center.

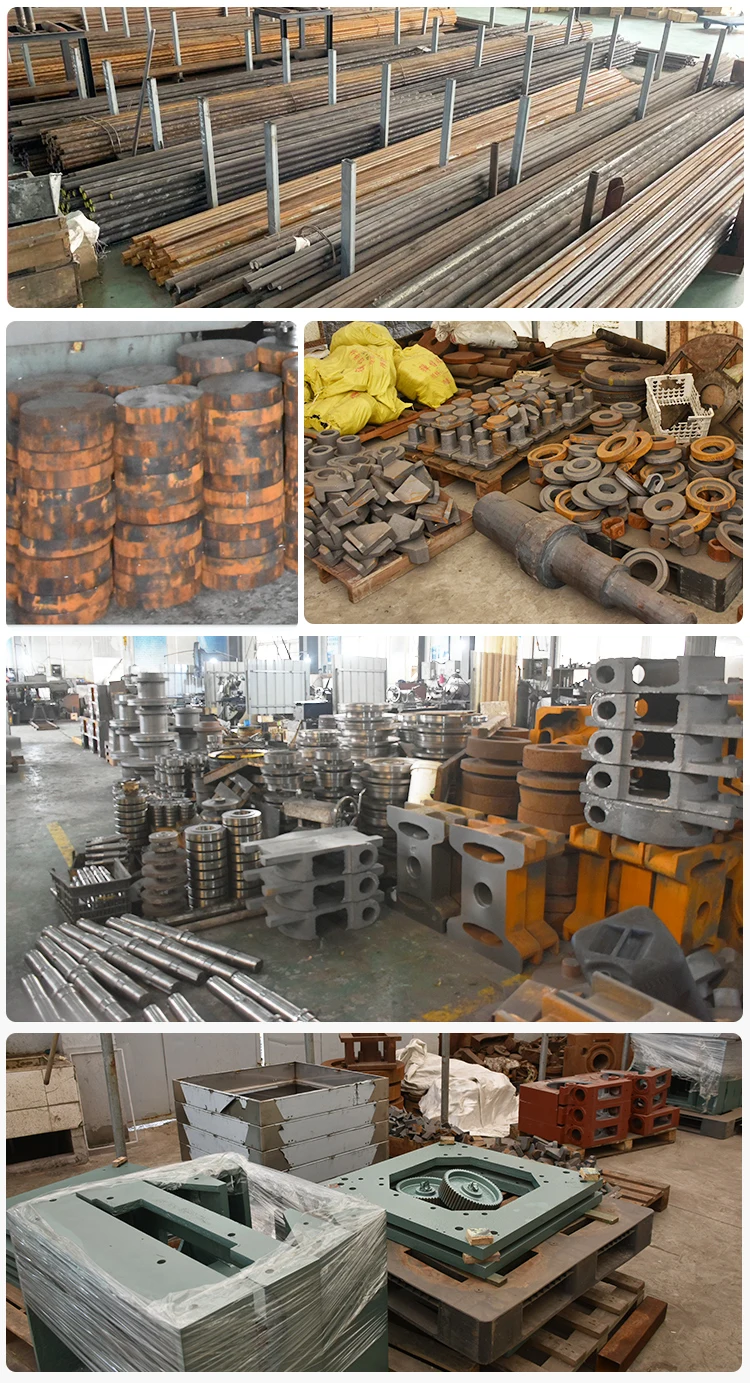

Raw materials

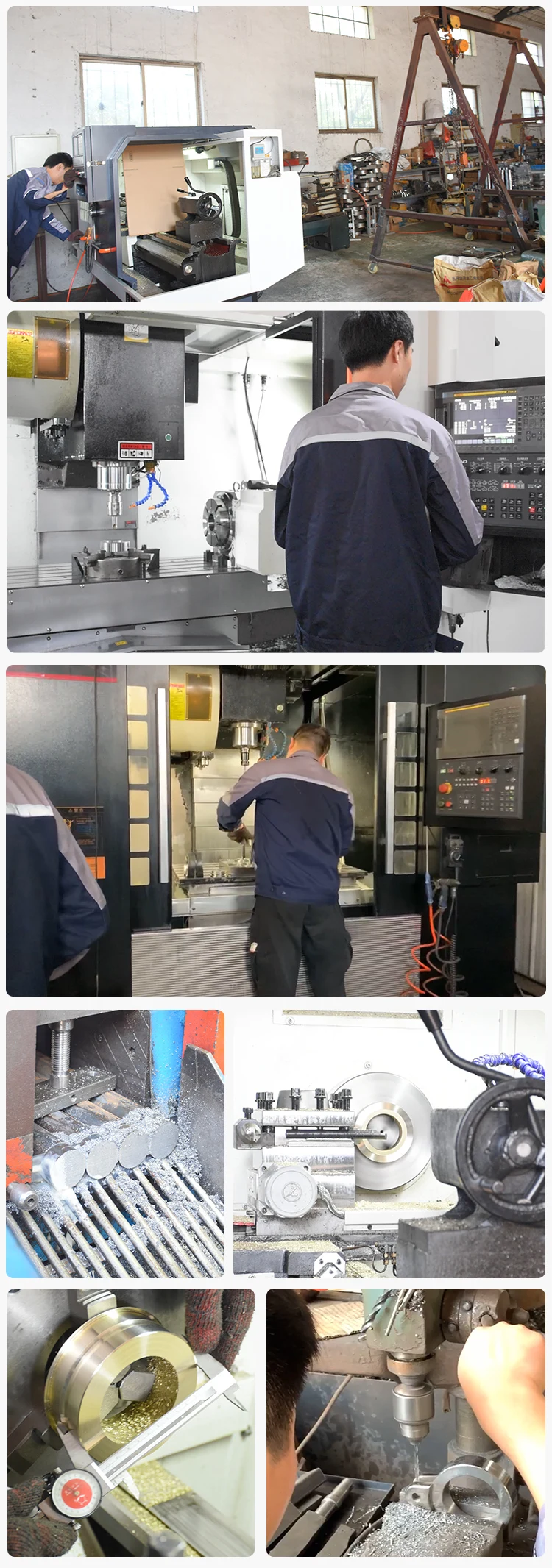

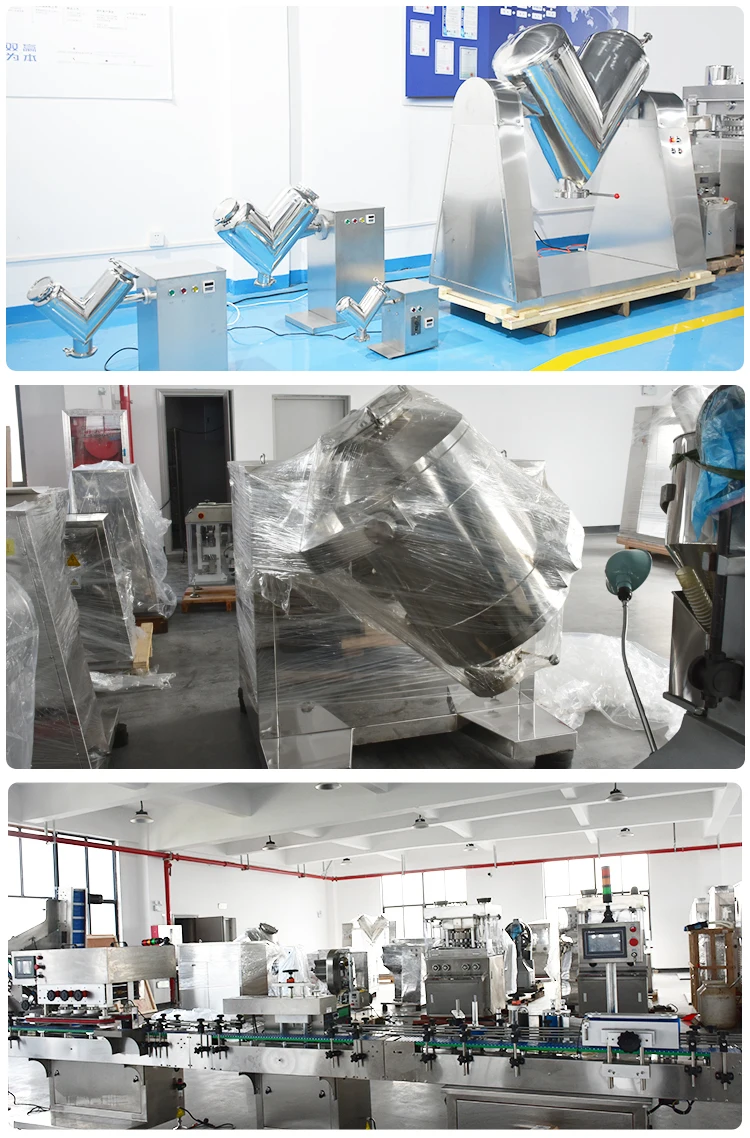

Production Department
Certifications

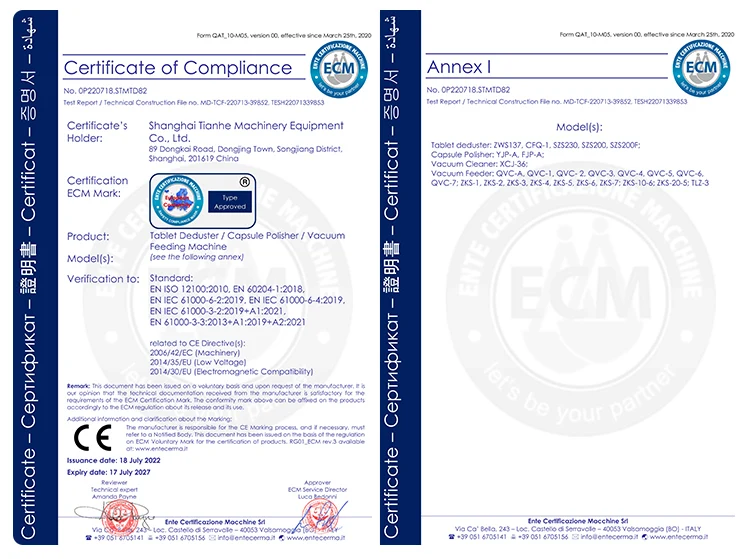

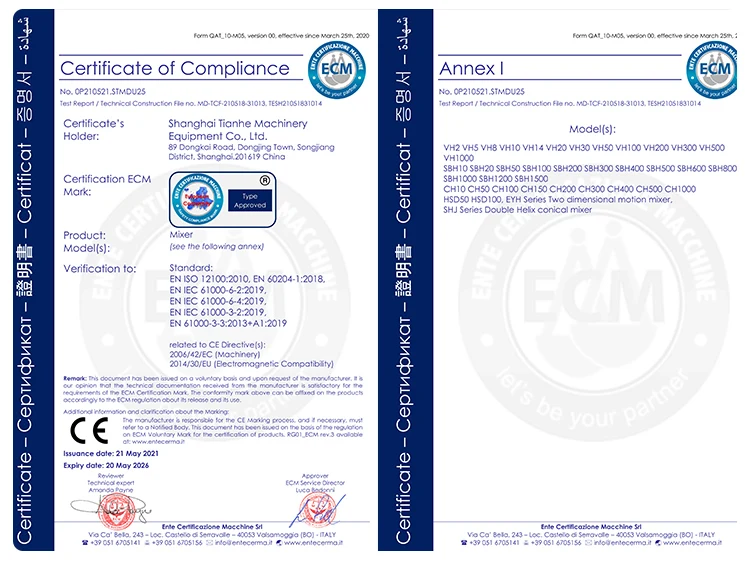

CE certification

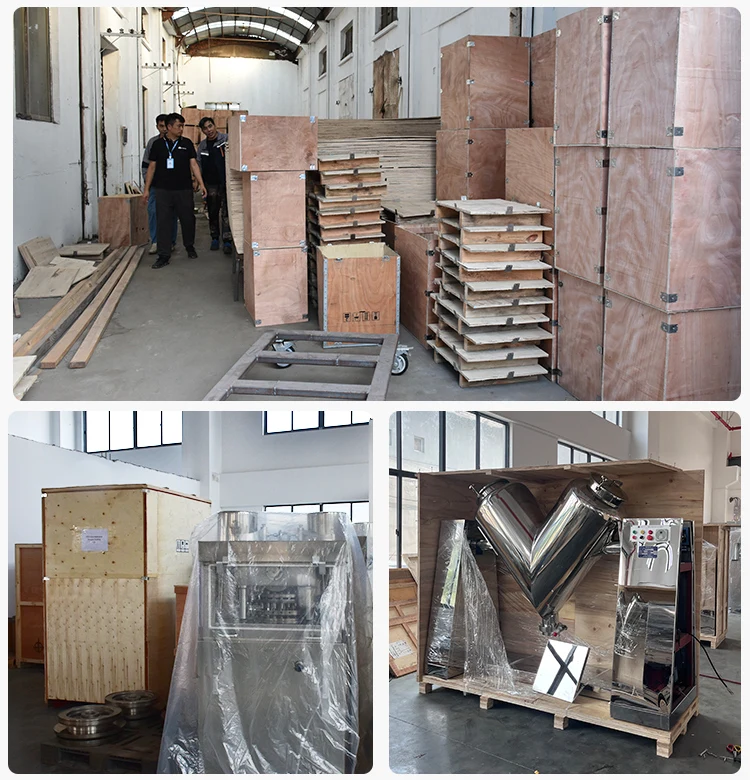

Packing & delivery
Packing method: Carton or export wooden case
Our Service
Pre-sales service
Before shipment:
1.Voltage and plug optional;
2.Chinese and English sign sticker available;
3.Free commissioning tools;
4.Photo confirm before shipment;
5.Videos of machine performance test;
6.For machines need disassemble shipment photos of before and after packing provided.
Packing:
7.Cartons and Plywood packing optional.Plywood packing is stronger for machine protection.
8. Stick up Shipping mark, packing list and warehouse receipt as required.
9.Provide the size and weight of each package after packaging.
After-Sales Service
We provide instruction videos of machine build up, machine operation and maintenance.We also support Video call instruction.
FAQ
Payment terms: EXW, FOB, CNF, CIF, DDU/DAP, DDP
Q: Where is your factory? How can I visit your factory?
A:Our factory is located In shanghai. We are warmly welcome you visit our Factory in person，we also support Video call meeting to show our factory and machines.
Q: How can I Choose one suitable machine?
A: We support sample tests, as we have RD department, we can customize specific features for your practical production reques.
Q:How can I trust you for the first time business?
A:We support Alibaba Trade Assurance service online order for our first cooperation. I believe when you use our machine you will understand our reputations in this field.
Q: How is delivery time and your shipment services?
A: Ready to stock machine, we will arrange shipment within 48 hours against order payment.You can get the machine within 10 days after payment.
For customized machine, you will get the machine within 30 days after payment. We support FOB, CIF, CNF, DAP, DDP terms, you can get the machine at your door without any trifles of customs clearance procedures.
Q:What about your warranty?
A: Our warranty is 1 year. all machine part can be replaced for free within 1 year if broken （not including man made).
Q: What is your terms of payment?
A:Payment<=3000USD ,100% in advance. Payment>=3000USD, 50%T/T in advance, balance before shipment.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-mad.We will free charge to replace the new one to you.The warranty will begin after the machine send out we received the B/L.
A:Our factory is located In shanghai. We are warmly welcome you visit our Factory in person，we also support Video call meeting to show our factory and machines.
Q: How can I Choose one suitable machine?
A: We support sample tests, as we have RD department, we can customize specific features for your practical production reques.
Q:How can I trust you for the first time business?
A:We support Alibaba Trade Assurance service online order for our first cooperation. I believe when you use our machine you will understand our reputations in this field.
Q: How is delivery time and your shipment services?
A: Ready to stock machine, we will arrange shipment within 48 hours against order payment.You can get the machine within 10 days after payment.
For customized machine, you will get the machine within 30 days after payment. We support FOB, CIF, CNF, DAP, DDP terms, you can get the machine at your door without any trifles of customs clearance procedures.
Q:What about your warranty?
A: Our warranty is 1 year. all machine part can be replaced for free within 1 year if broken （not including man made).
Q: What is your terms of payment?
A:Payment<=3000USD ,100% in advance. Payment>=3000USD, 50%T/T in advance, balance before shipment.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-mad.We will free charge to replace the new one to you.The warranty will begin after the machine send out we received the B/L.
