Product Overview
Description
Automatic gear lubricant motor lube engine oil bottle filling oil machine filling line machine

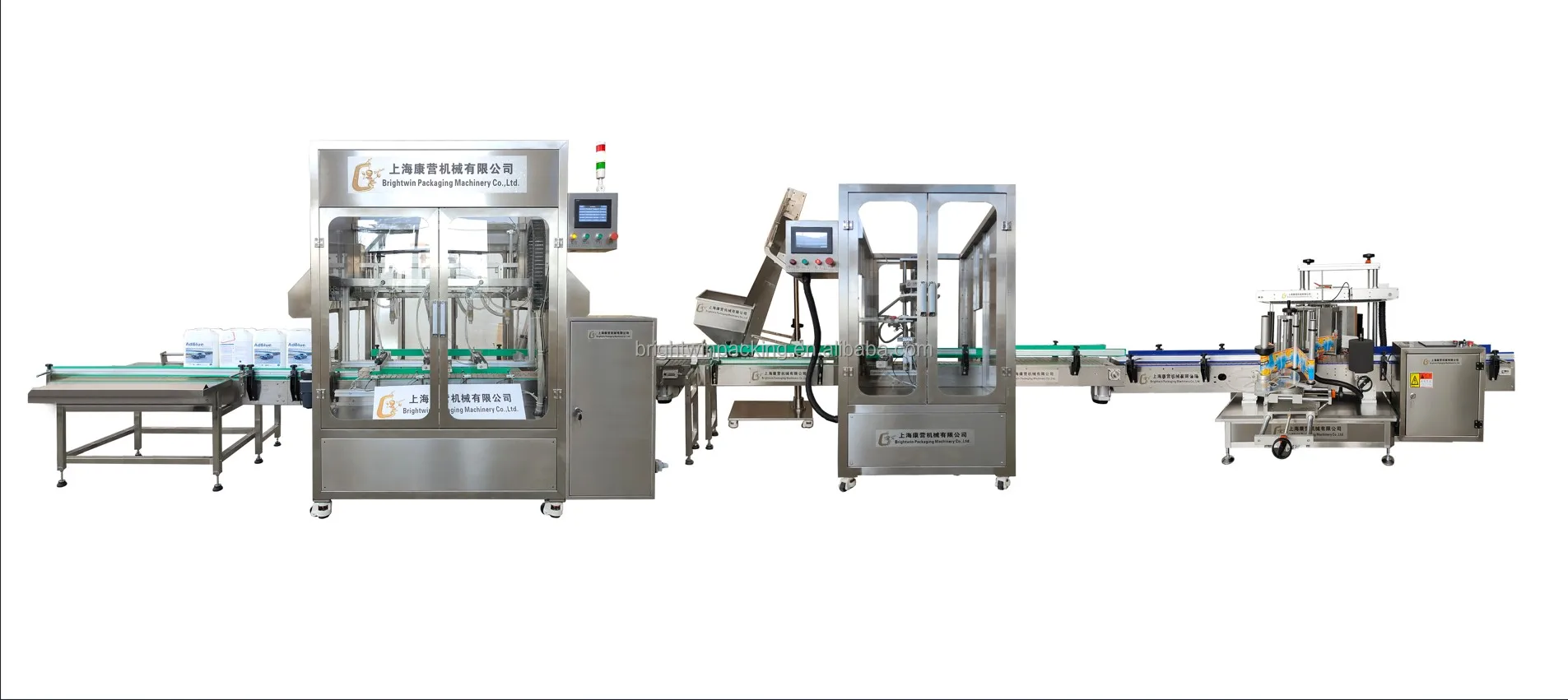

Filling line layout
1. Filling Machine: Filling requested volume liquid or thick liquid into bottles.
2. Capping Machine: Tighting the caps on bottles.
3. Induction Sealing Machine: Sealing the foil film tighten on bottle mouths.
4. Labeling Machine: Labeling the stickers on the requested position of the bottles.
2. Capping Machine: Tighting the caps on bottles.
3. Induction Sealing Machine: Sealing the foil film tighten on bottle mouths.
4. Labeling Machine: Labeling the stickers on the requested position of the bottles.
5. Carton Packing machine: Packing the finished bottles into cartons and sealing.
6. Cartons Palletizer: Palletizing finished cartons on pallets as requested.

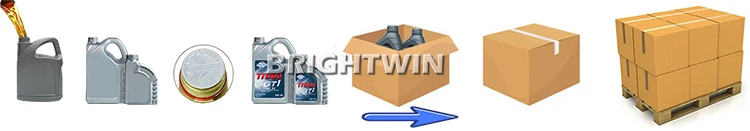

Product Evolution Flowchart
Products Over view

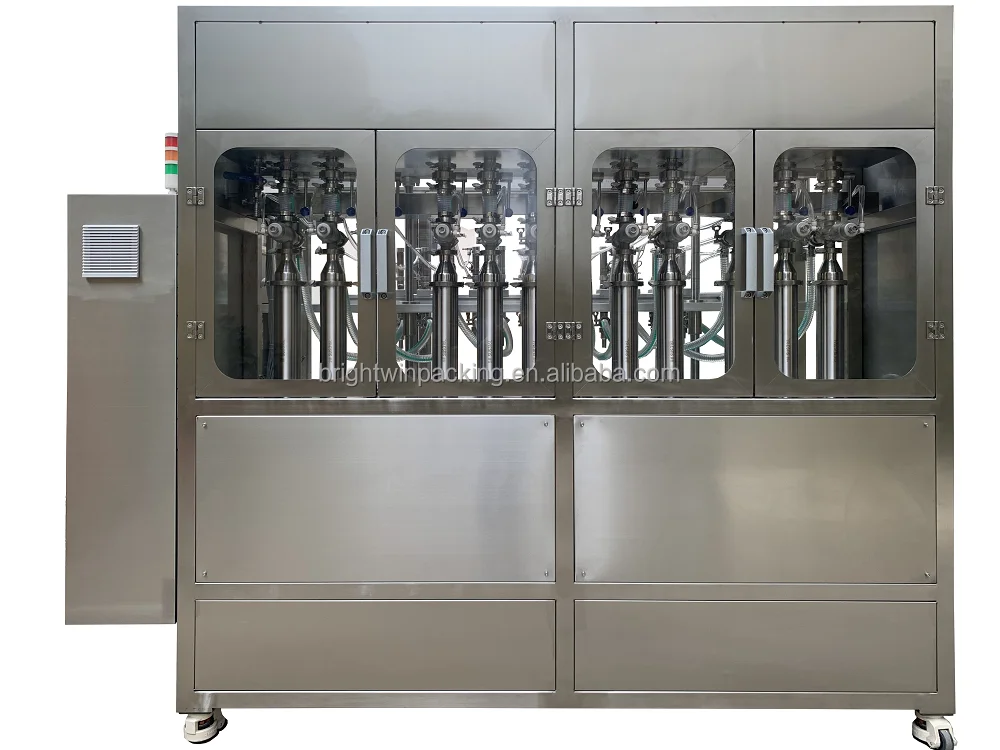

1. Filling machine

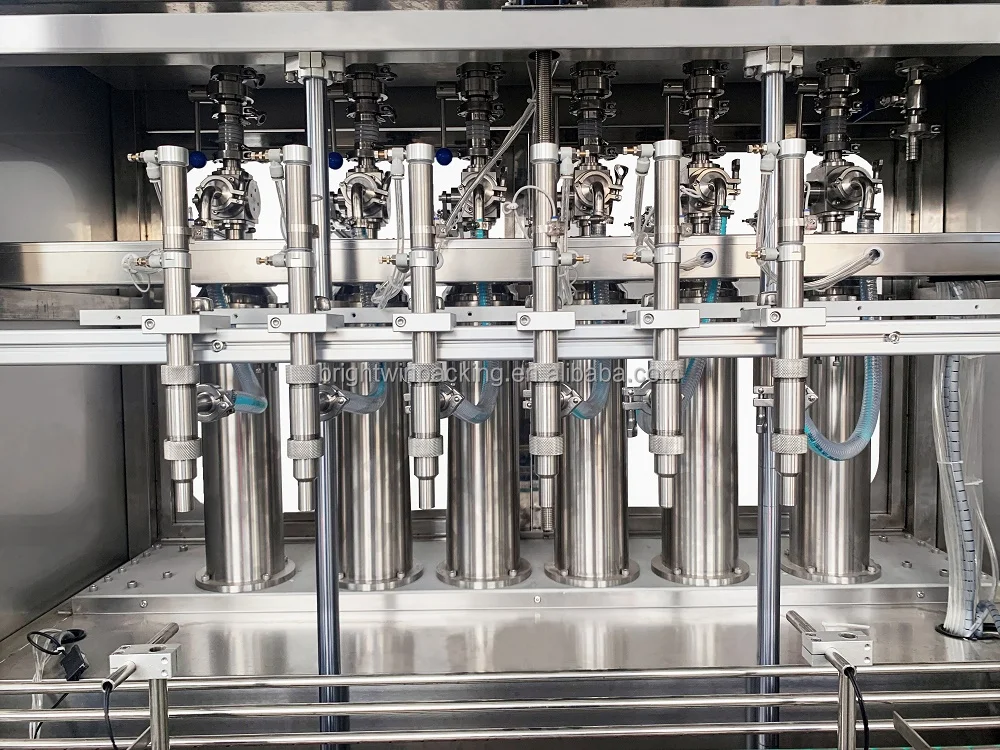

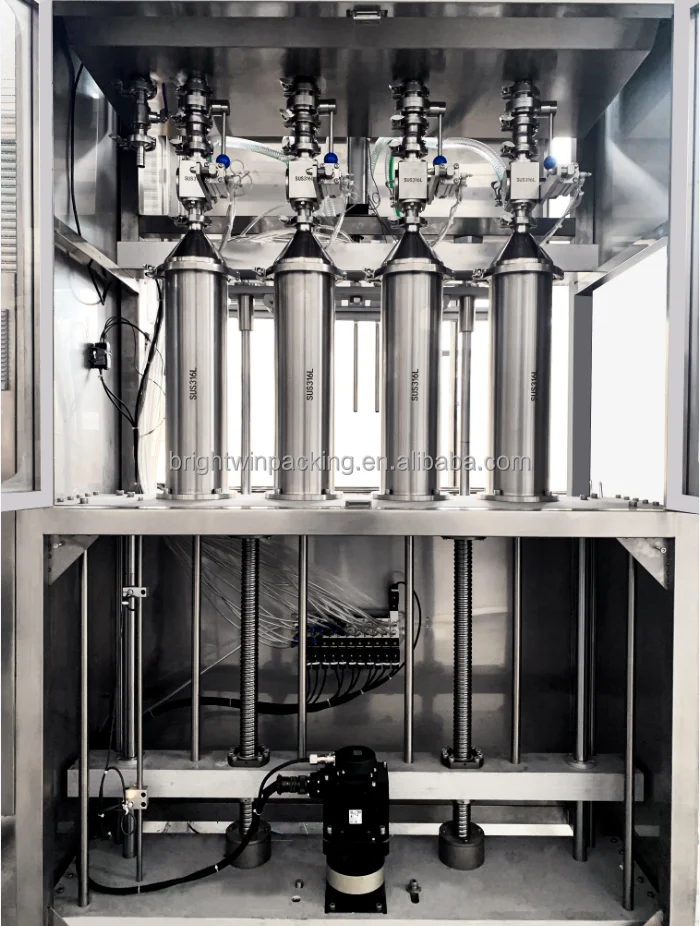

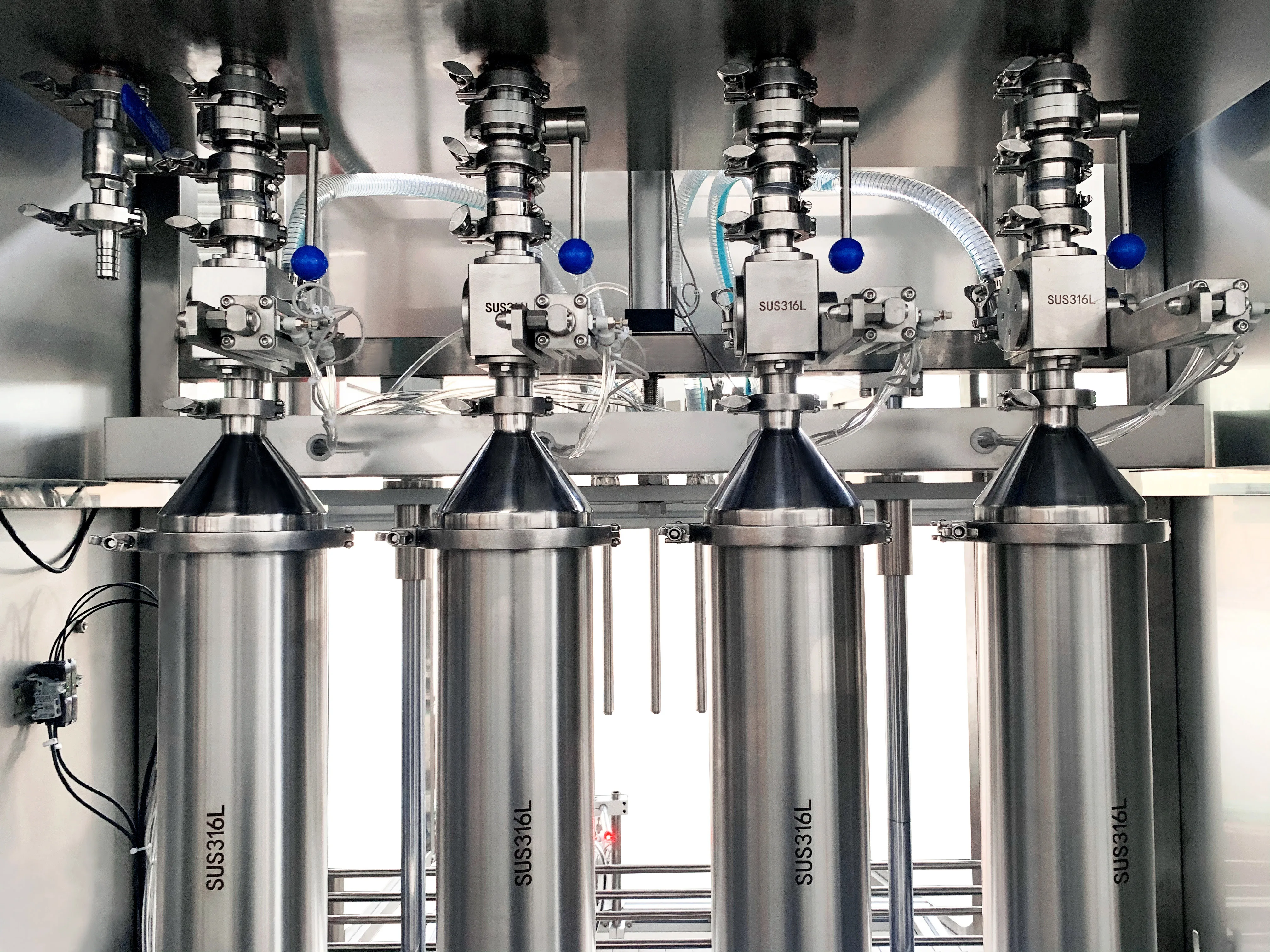

The filling machine is used to fill liquid or thick liquid into bottles, like: cooking oil, lube oil, shampoo, jam, honey, meat paste, sauce, agricultural chemical, cosmetics etc. According to different products, it can choose different filling method: piston pump, weighing, rotor pump, flow meter, gravity etc.
2. Capping machine
This automatic capping machine can automatically finish feeding caps and screw tightening the caps tightenly on bottles' mouth. It adopts elevator to feed caps in one line, it is a high cost performance machine. It is suitable for various threaded bottles and caps.
3. Induction sealing machine
This induction sealing machine is used to seal the aluminum foil film which is inside the caps tightenly on containers' mouth. It is suitable for airtight sealing of aluminum foil in agricultural, food, petrochemical, daily chemical and other industries.
4. Labeling machine
This machine is used to label Self-adhesive stickers onto containers such as flat bottles, ellipse bottles, hexagon bottles, cans and other standable objects with one, two or more stickers. It can share one machine for different container size and sticker size
within large limit.
within large limit.
3. Carton packing machine
This carton packing machine can automatically finish opening carton boxes, packing finished bottles into carton boxes as requested arrangement, finally sealing the carton boxes. According to the bottles' material and capacity need it will adopt different packing mathod, like: drop, grab, and pudh etc.
4.Palletizer
Palletizer is a machine that automatically feeds pallets one by one, and stacks finished carton boxes onto pallets in a certain arrangement. It can stack multiple layers and then push the full pallets out for easy forklift transportation to the warehouse for storage.
Main features:
1. It's designed and manufactured according to customers' different products, bottles, caps, packaging method and capacity etc.
2. According to the capacity to decide the filling methos, fillng nozzle's number, capping method, labeling type, carton packing type and palletizing method.
3. Suitable for different size bottles caps stickers cartons by adjusting the line or change few parts.
4. All the details can be custmized to meet every customers' demands.
2. According to the capacity to decide the filling methos, fillng nozzle's number, capping method, labeling type, carton packing type and palletizing method.
3. Suitable for different size bottles caps stickers cartons by adjusting the line or change few parts.
4. All the details can be custmized to meet every customers' demands.
Technical Parameters
Filling nozzles' number | 1 | 2 | 4 | 6 | ........... | 20 | |||||
Capacity (For 1L bottles) | 6-8bpm | 12-16bpm | 24-32bpm | 36-48bpm | ........... | 120-160bpm | |||||
Filling volume range | 10-100ml, 100ml-1L, 1L-5L......(can be customized) | ........... | |||||||||
Voltage | AC220/380V 50/60HZ (Can be customized) | ||||||||||
Our videos
Our service
Company website: //www.brightwingroup2.com
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.* Online technical support.
* Engineers available to service machinery overseas.* Online technical support.
We Supply Your Factory Design Service
We can design the layout of lines according to your workshop's size
Company Profile
We are a premium manufacturer of washing machines, filling machines, capping machines, labeling machines and various packing machines etc in Agriculture, food, daily use, chemicals, comestic, industries. Our CE and ISO9001: 2008 certification assures you that we supply premium quality equipment that you can trust. All our machines are customized to meet every customer's demands.
Our machines have been sold to North America, South America, Europe, Middle East, Africa, Asia and Australia etc. We are confident to be your trustworthy supplier in China.
Brightwin is a leader in customer support. Our customer service group and technical staff of professionals are always ready to answer customer questions and solve problems before or after sales.
Our machines have been sold to North America, South America, Europe, Middle East, Africa, Asia and Australia etc. We are confident to be your trustworthy supplier in China.
Brightwin is a leader in customer support. Our customer service group and technical staff of professionals are always ready to answer customer questions and solve problems before or after sales.
