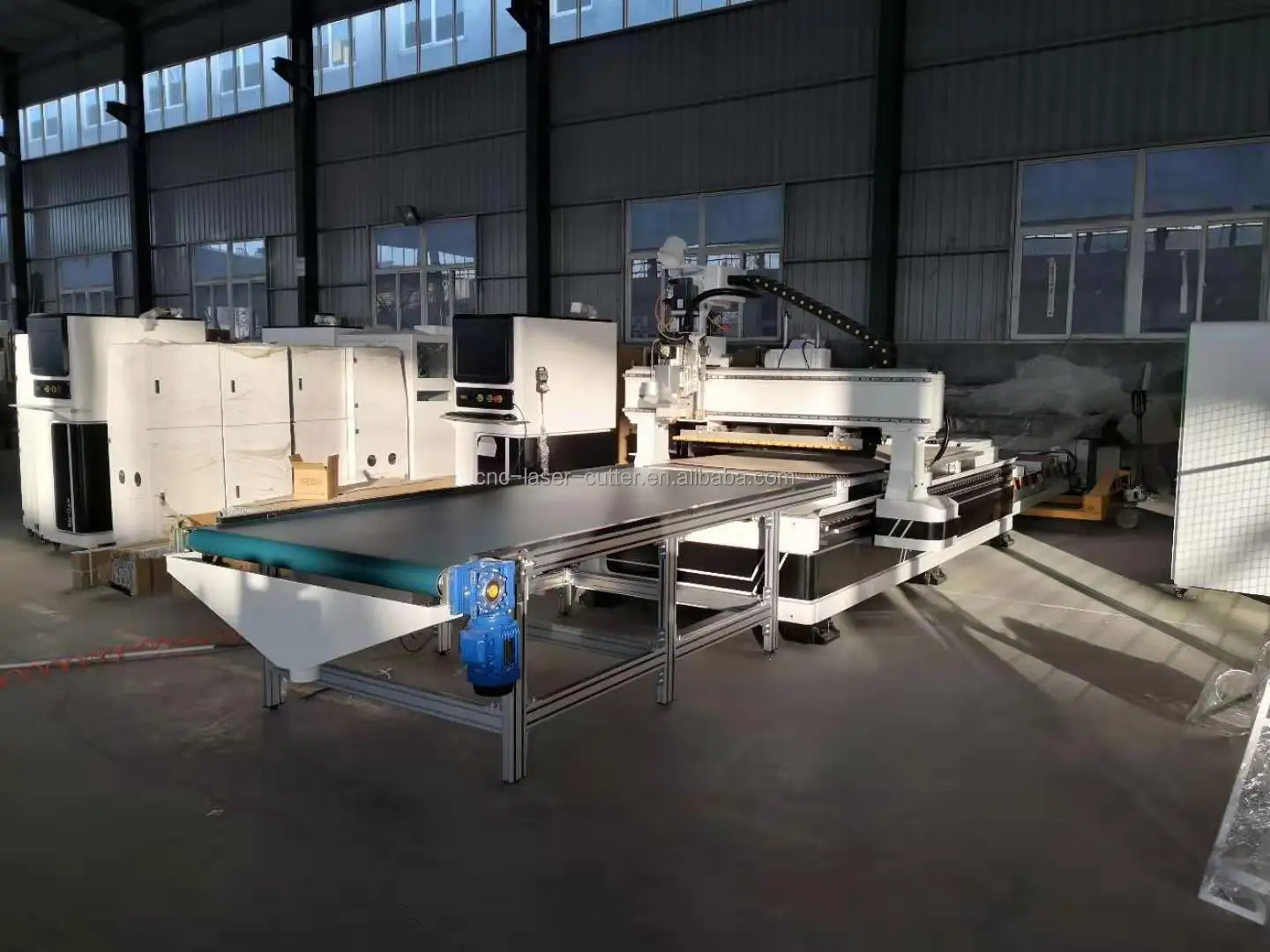

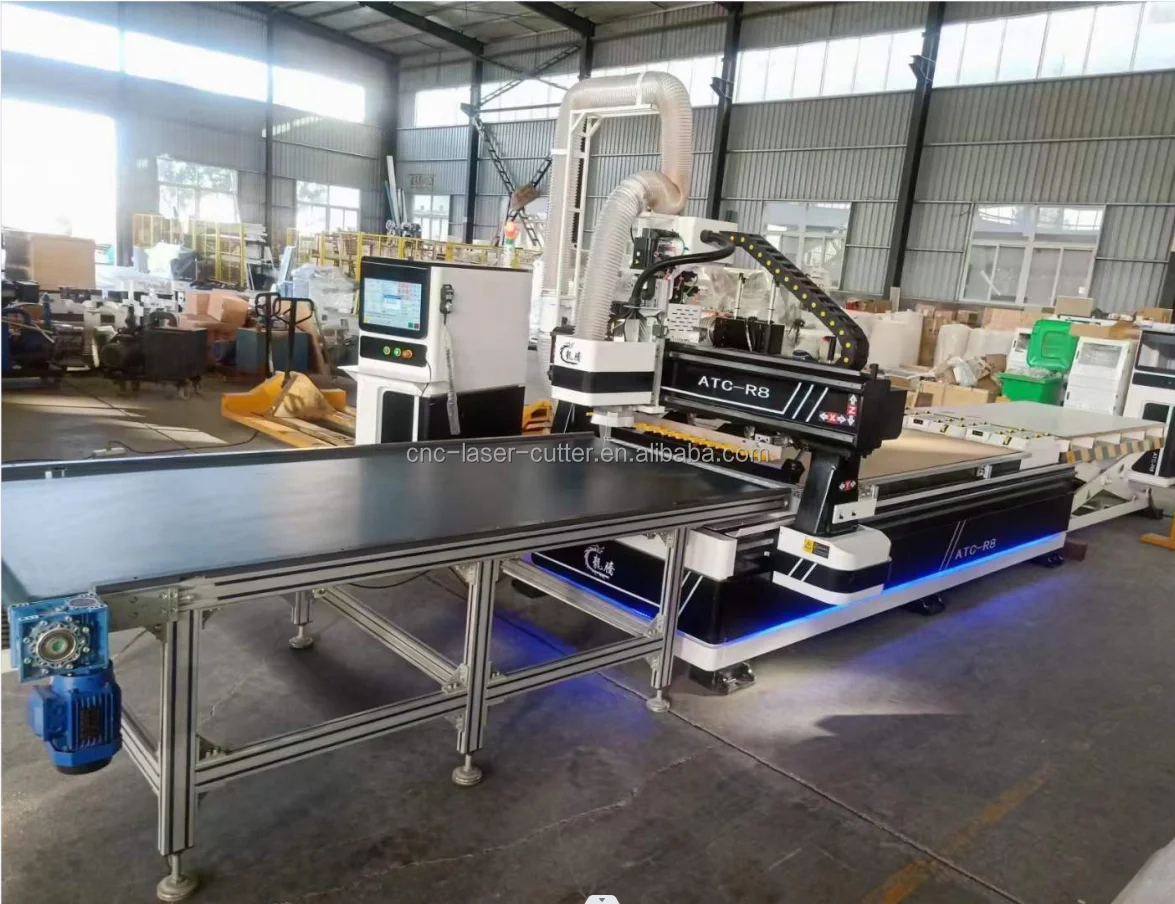

1325 cnc router atc nesting wood machine with auto loading unloading system for woodworking furniture making
- Category: >>>
- Supplier: Jinan JCUT CNC Equipment Co. Ltd.
Share on (1600412382860):
Product Overview
Description
Product Description
1325 cnc router atc nesting wood machine with auto loading unloading system for woodworking furniture making
Product Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Descriptions | Parameters | ||||||
Model | JCUT-1325(R8) | ||||||
Working area | 2440mm*1220mm*200mm (Customizable) | ||||||
Auto loading unloading system | Adding auto loading unloading system and tables | ||||||
Tool magazine | 12 (8-16) position servo inline auto tool changer magazine with tool sensor | ||||||
Table | Vacuum table with 7.5kw/380V pump, super adsorption | ||||||
Spindle | 9kw ATC spindle | ||||||
Spindle speed | 0-24000RPM | ||||||
Motor and driver | 1500W servo motor and driver (Yaskawa, Leadshine for optional) | ||||||
X, Y axis | X, Y axis adopt HICK 1.5m helical rack | ||||||
Z axis | Z axis adopt TBI -2510 ball screw | ||||||
Linear rail | X, Y, Z axis adopt 30 linear rail | ||||||
Control system | Taiwan LNC control system | ||||||
Inverter | 11kw E&T inverter | ||||||
Reducer | Japan Shimpo reducer | ||||||
Oil lubrication system | Automatic oil lubrication system | ||||||
Dust collector | 4kw/380V dust collector with double bag | ||||||
Auto unloading | Fully automatic tile horizontal push blanking with auxiliary aluminum bar stopper function | ||||||
Accuracy | ±0.02mm | ||||||
Voltage | 380V (Customizable) | ||||||
Machine body | Heavy 3.5m machine body, sealing metal plate structure with thick gantry | ||||||
Net weight | 3000kg | ||||||
Details Images
Machine Accessories
We provide all the accessories needed for the machine, such as cutters, wrenches, clamps, brushes, screwdrivers, chucks, etc.
Machine Table
Vacuum machine table With 6 partitions, Use big power 7.5KW Vacuum pump

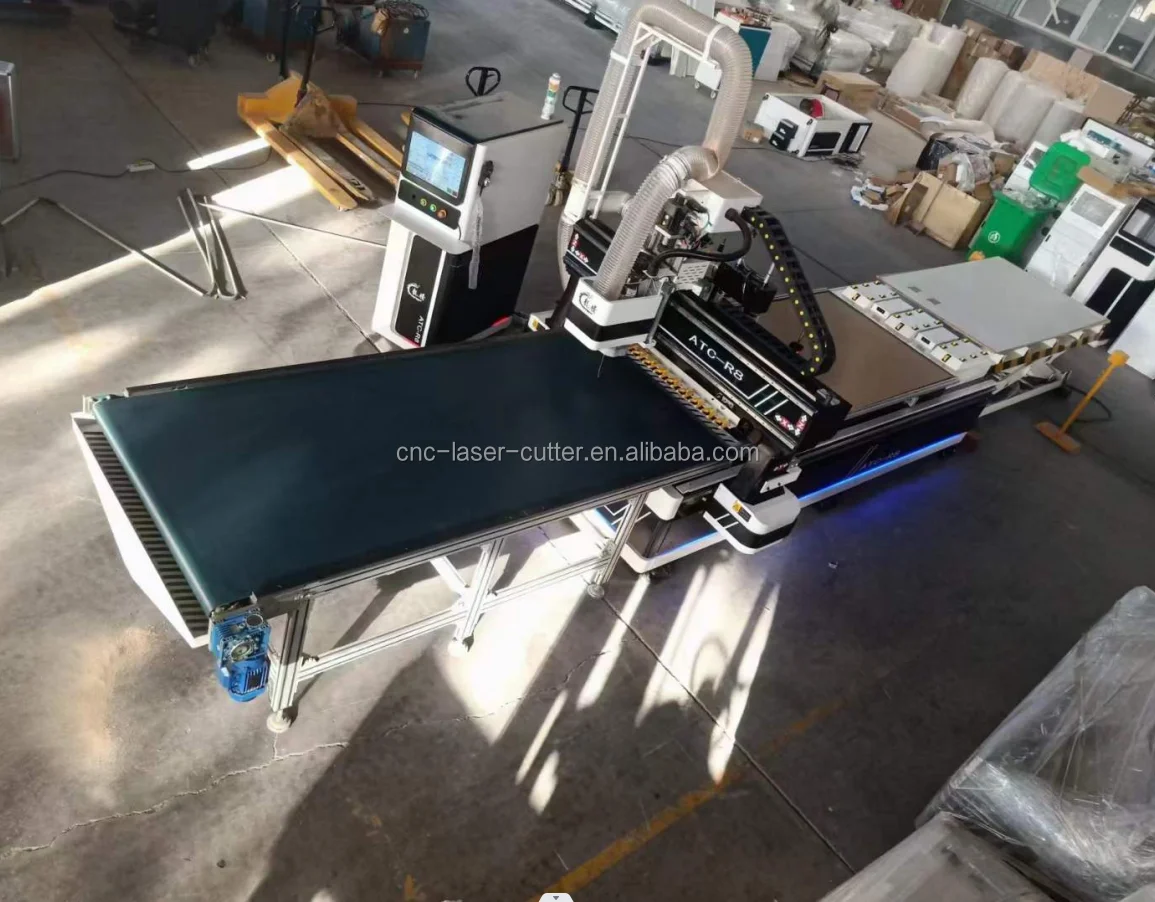

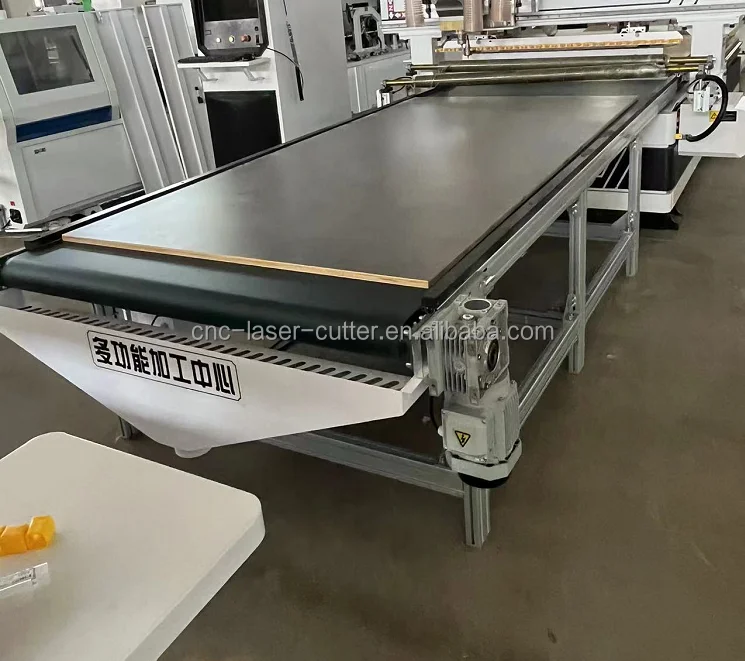

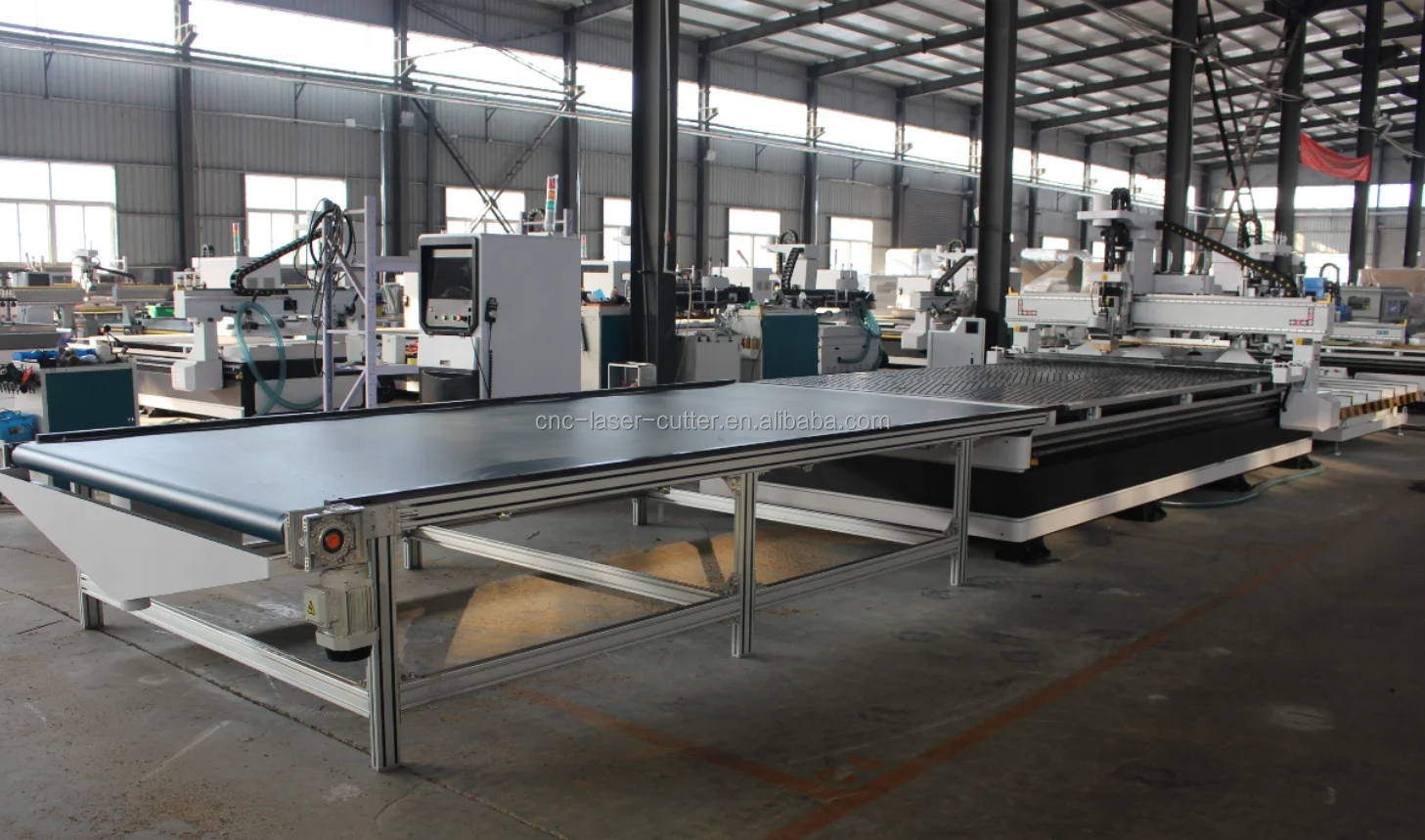

Auto unloading
Machine has auto unloading system and tables

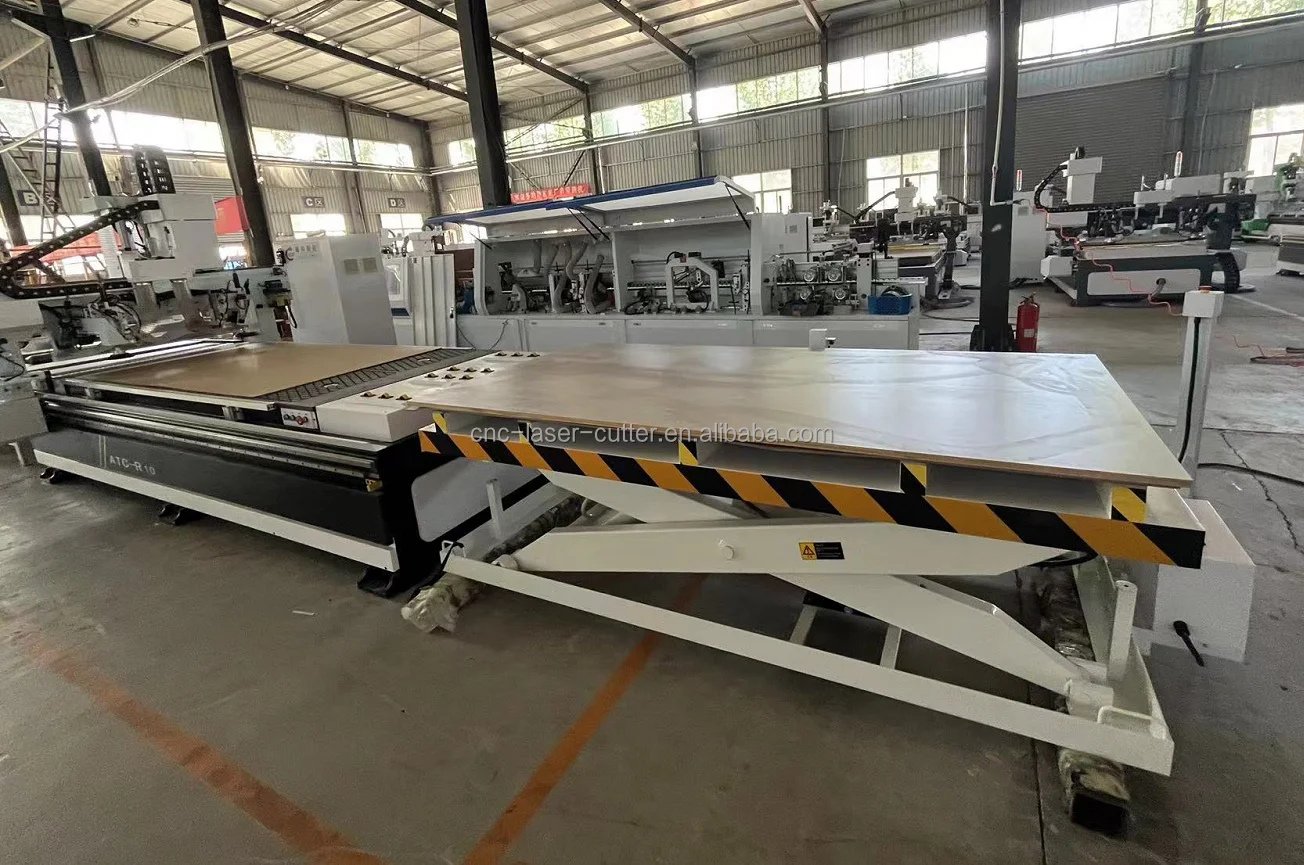

Auto loading
Machine has auto loading table and instrument

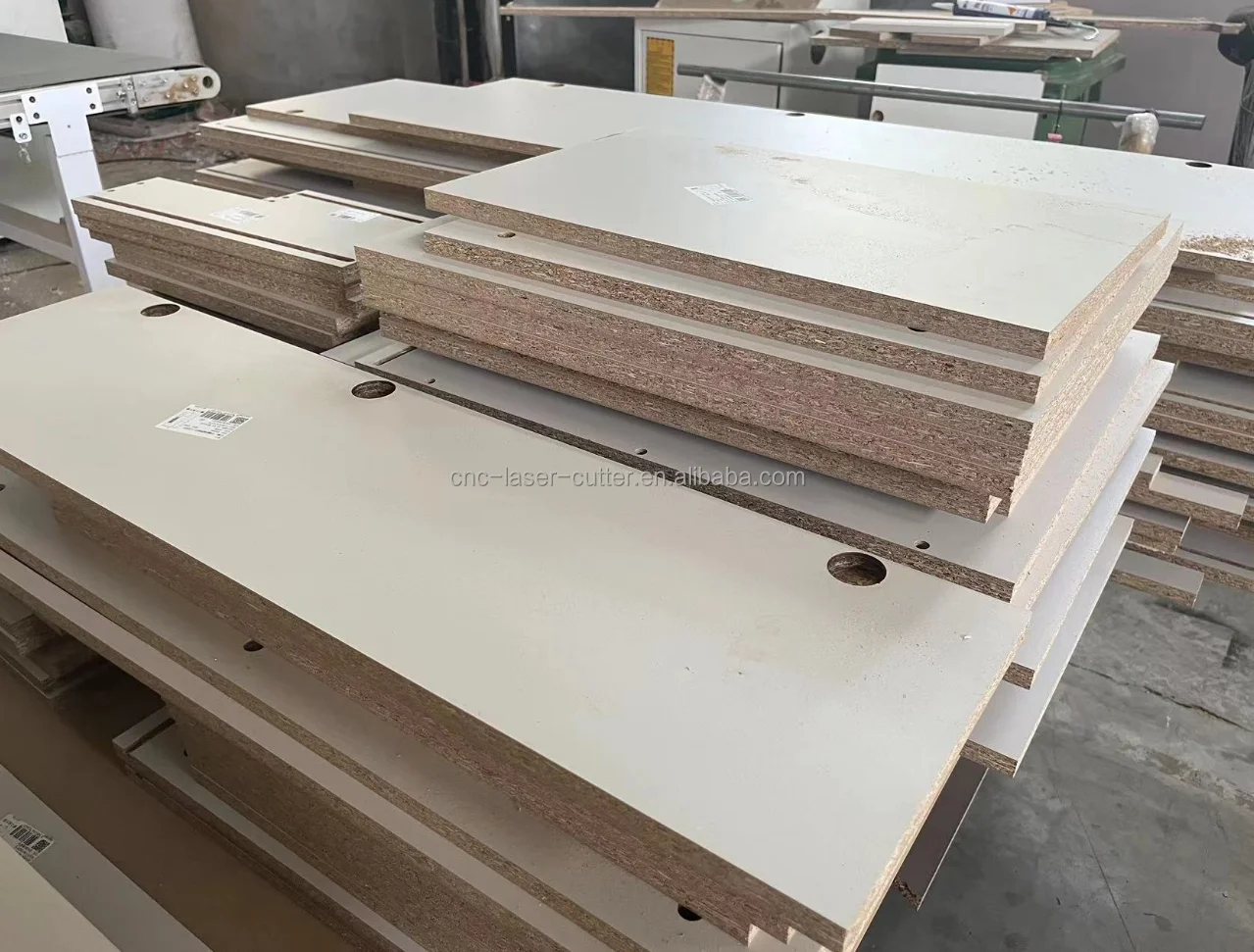

Samples
Product packaging
Inner Packaging
Packed with plastic film, waterproof and moisture-proof
Wooden box
Use the standard export wooden box package machine
Certifications

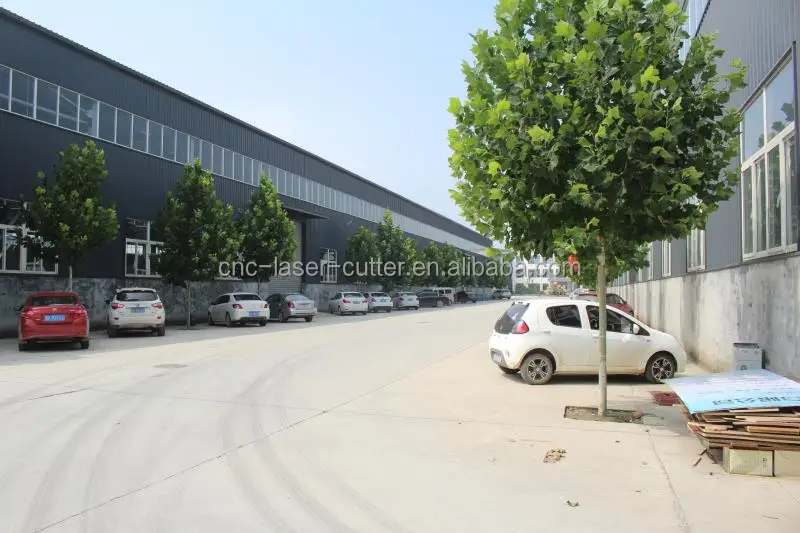

Company Profile
JINAN JCUT CNC EQUIPMENT CO., LTD is located in Jinan, Shandong, China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
Our machine mainly used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
FAQ
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 10~15 working days; For customized machine, about 20 working day.
Q7. MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 10~15 working days; For customized machine, about 20 working day.
Q7. MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
