Product Overview
Description
Product Description

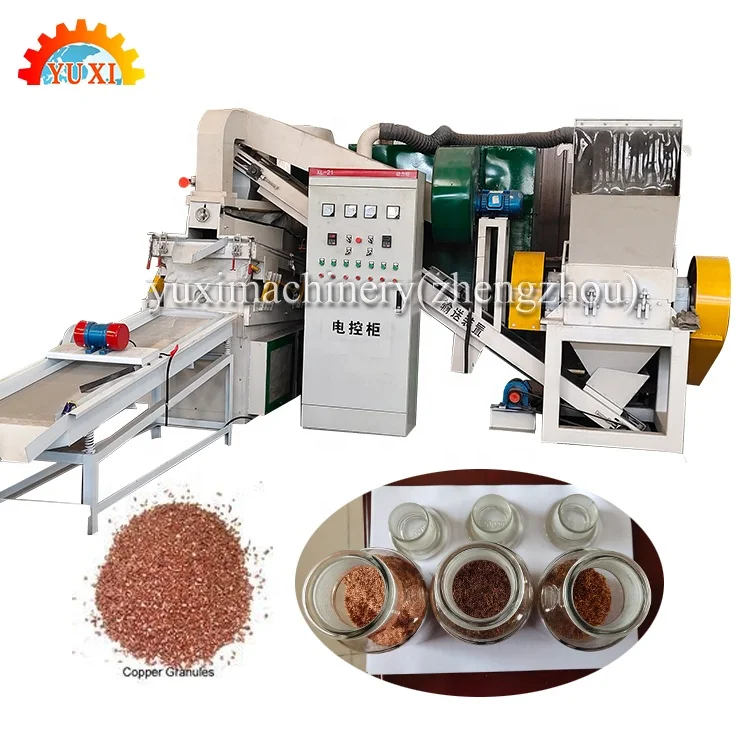

Copper wire crusher (also named waste electric wire cable recycling equipment) is a kind of machinery used to crush waste cable wire and separate copper and plastic.
Since the copper separated seems like rice grains, the machine is also called copper wire crusher, which is one of environment-friendly type equipment.
Application

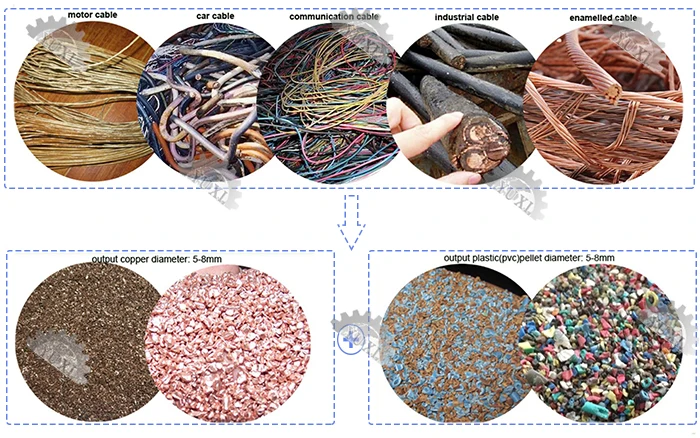

Raw Materials & Finished Product
The cable wire recycling machine can handle all kinds of wire and cable, household wire, communication line, computer line and other stripping machines that are not suitable for processing. After machine sorting, clean copper and plastic granules can be sorted out.
Technical Parameter
Model | YX400 | YX600 | YX800 |
Capacity | 300-400kg | 500-600kg | 700-800KG |
Total power | 27KW | 45KW | 75KW |
Dimension (m) | 3.2*2.1*2.3 | 4*2.1*2.5 | 6.2*5*3.3 |
Motor NO. | 6 | 6 | 6 |
Separation Ratio | 99.70% | 99.70% | 99.70% |
Dust Removal Ratio | 99.70% | 99.70% | 99.70% |
Weight(kg) | 3120 | 4500 | 6800 |

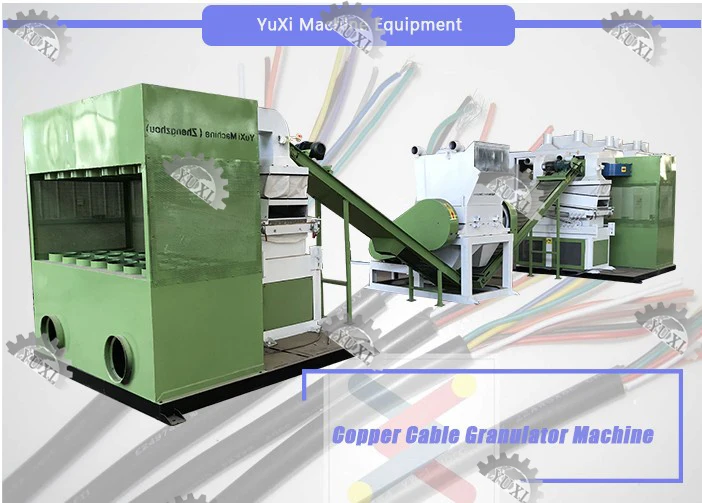

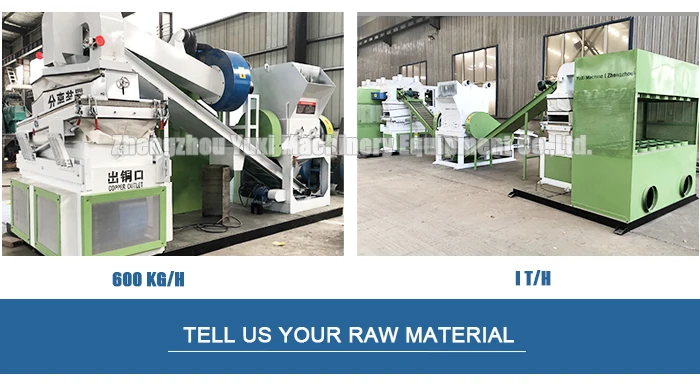

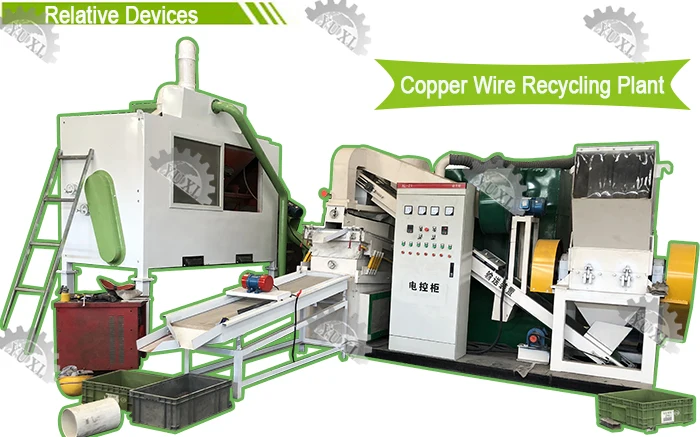

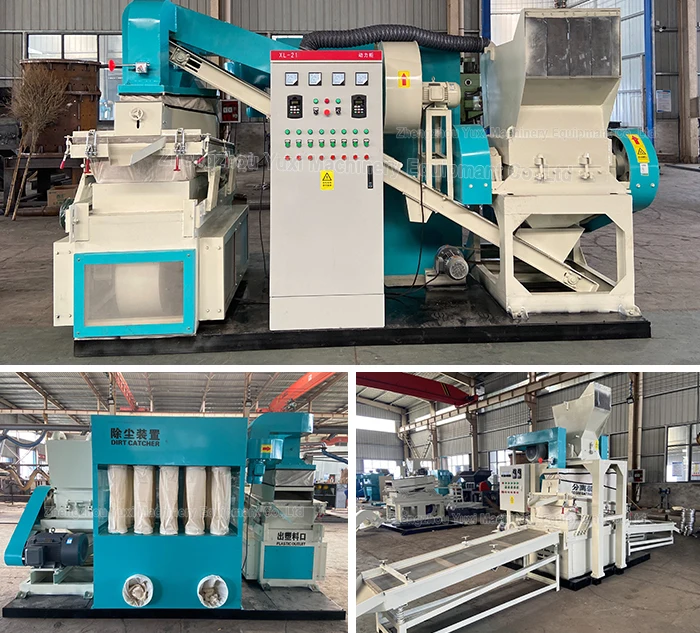

Detailed Images
Advantage
1. Factory direct sales, quality after-sales protection, cost-effective.
2. The model is complete, and can also be customized according to different needs.
3. Adopt PLC control to make the equipment evenly fed, stable and safe, and have automatic alarm function.
4. The shredder adopts a high hardness spindle and has a long service life.
5. The combination of airflow sorting equipment and high-voltage static equipment makes the sorting rate as high as 99% or more.
6. The material returning system makes the semi-finished product undergo secondary pulverization, which ensures the complete separation of metal and non-metal.
3. Adopt PLC control to make the equipment evenly fed, stable and safe, and have automatic alarm function.
4. The shredder adopts a high hardness spindle and has a long service life.
5. The combination of airflow sorting equipment and high-voltage static equipment makes the sorting rate as high as 99% or more.
6. The material returning system makes the semi-finished product undergo secondary pulverization, which ensures the complete separation of metal and non-metal.

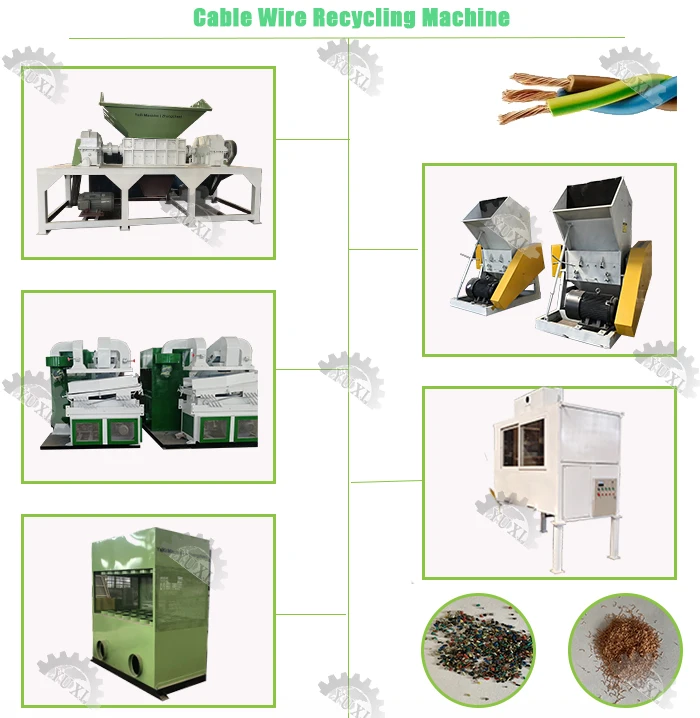

Manufacturing Technique
No. | Machine Photo | Content | Unit | Qty. | Power |
1 | Crusher | Crusher the waste cable into 8mm | Set | 1 | 30kw |
2 | Gravity Separator | Separator copper and plastic | Set | 1 | 3.3kw |
3 | Dust bag type dust Collector machine | Absorb waste dust to realize Environmental protection | Set | 1 | 3.3kw+1.5kw |
4 | Pure Copper Outlet Vibration Screen | Copper will come out from the Vibration screen screen | Set | 1 | 0.37kw |
5 | Pure Plastic Outlet Vibration Screen | Plastic will come out from the Vibration screen screen | Set | 1 | 0.37kw |
6 | PLC Control Panel | Control the plant start and stop and debugging | Set | 1 | |
7 | Screen Sieve | Screening different sizes of wires | Set | 1 | |
8 | High Voltage Electrostatic Separator Machine | Separate the waste cables size below 8mm | Set | 1 | 7.5kw |
Working process

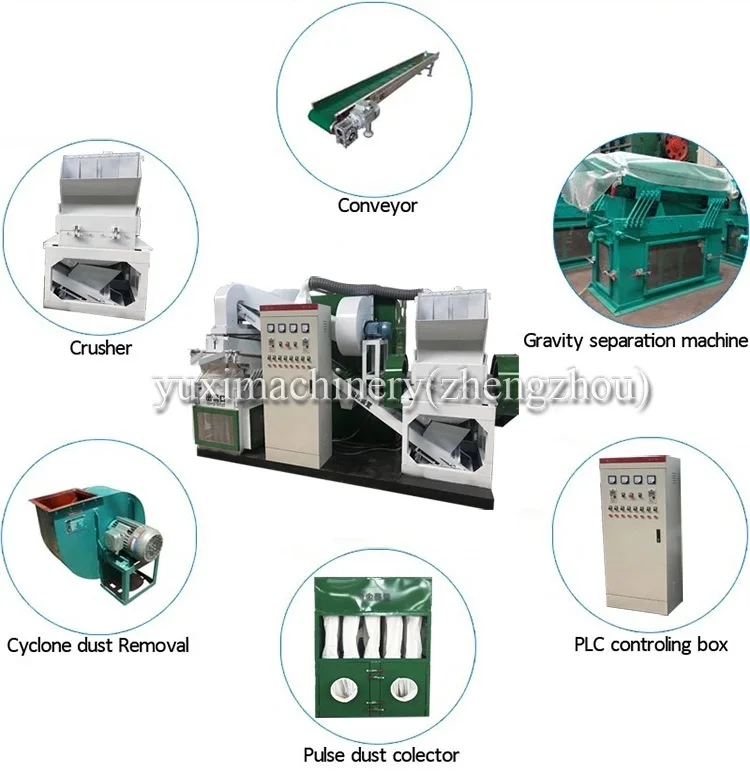

The copper wire recycling machine is mainly composed of five parts: a crusher, a conveyor, a dust collector, a fan, and a sorting machine.

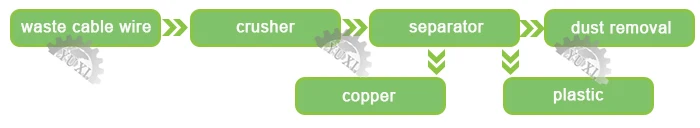

The working process of the machine is shown in the figure below. If you have any questions, please feel free to contact us.

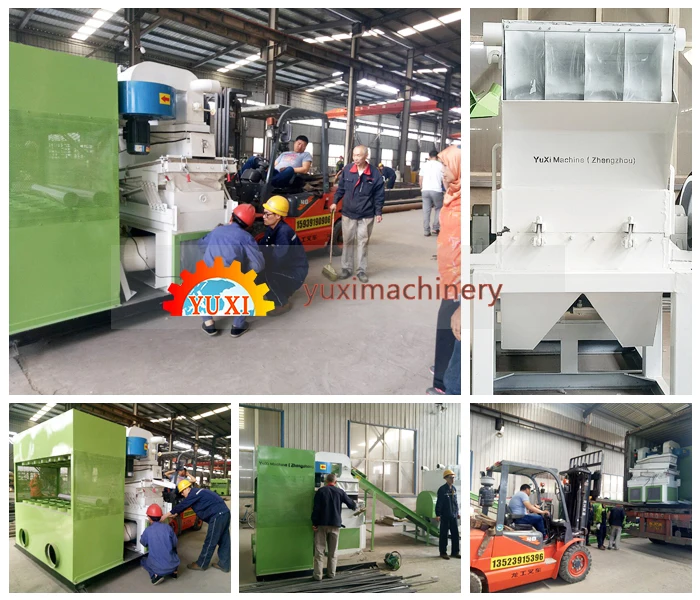

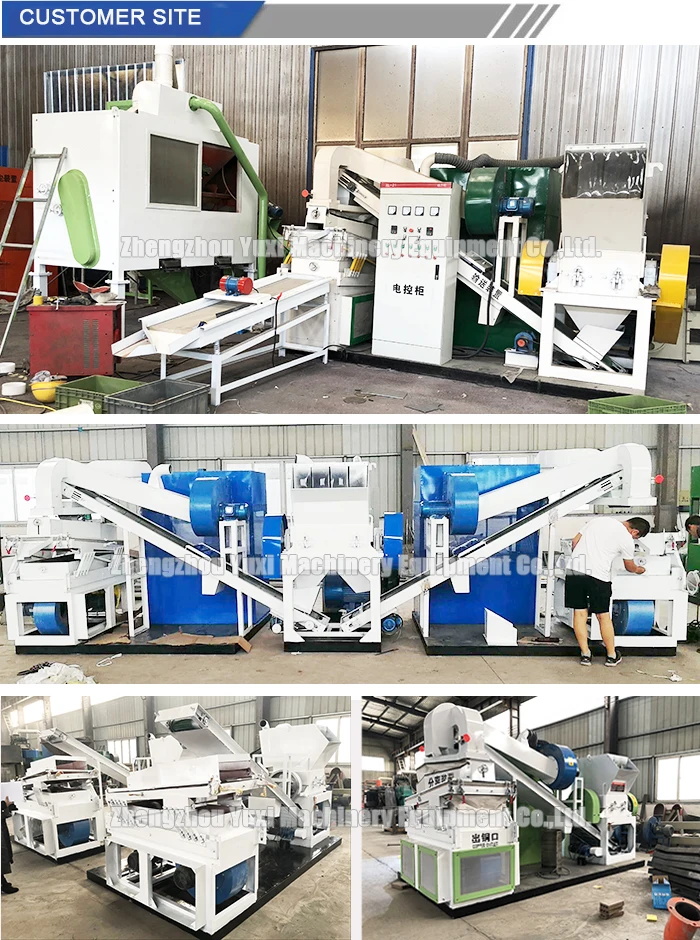

Project case

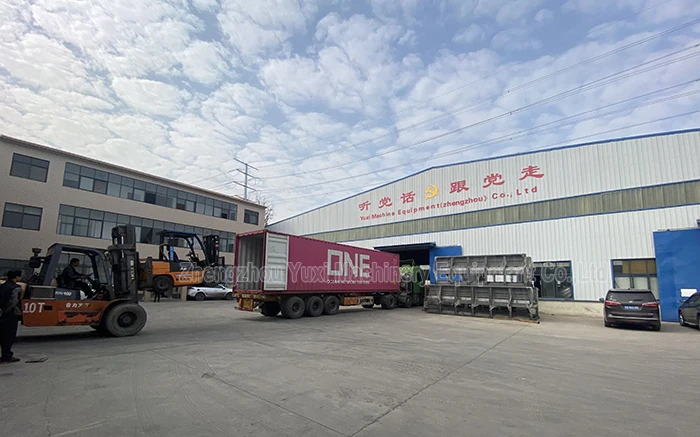

Packing & Delivery
Packed by protective film or standard import & export wooden cases
Shipped by logistics, by air, by automobile, by train, by ship, etc.
Shipped by logistics, by air, by automobile, by train, by ship, etc.
