Mean well switching mode power output 110vdc to ac220v 200AS Communication Switching power supply
- Category: >>>
- Supplier: Shenzhen Bwitt Power Co. Ltd.
Share on (1600412422420):
Product Overview
Description
Product Description
Mean well switching mode power supply 220vac 110vdc 200AS Communication Switching power supply

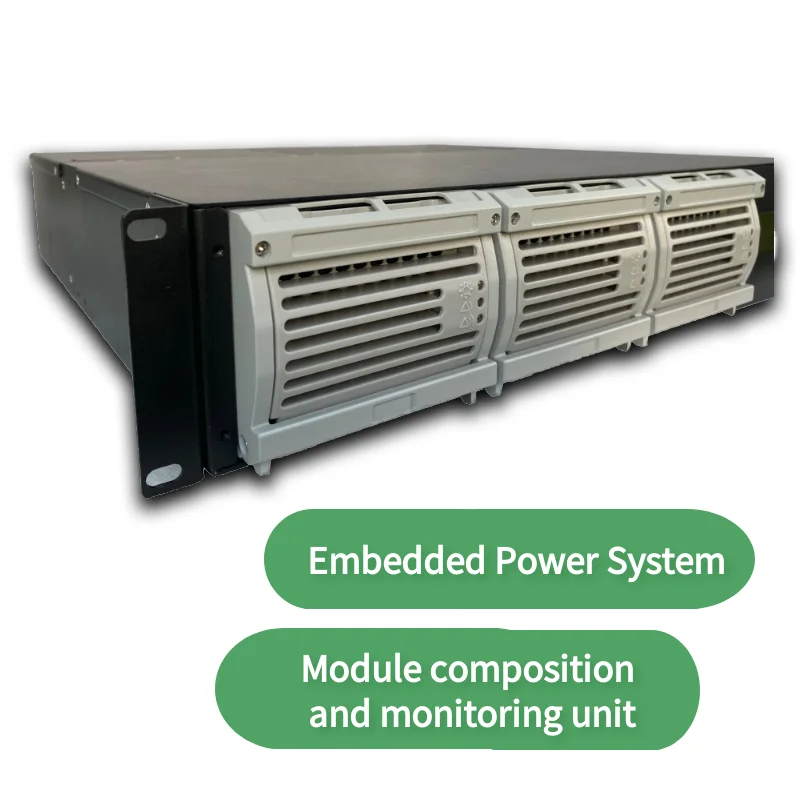

AC DC rectifier system is consisted by one rectifier module or multiple rectifier modules and monitor
modules. The power of rectifier systems can be different by different quantity rectifier modules.
This rectifier system converters high voltage AC to DC24V or DC48V use for special DC equipment
load. High efficiency>96%.
Remark:Some rectifier system need rectifier modules,monitor and distribution;some system only need
rectifier modules.ACDC rectifier system can supply DC power for DC load and charging for battery at
the same time.
Main Features
Feature of product 1:
1. Circuit of the Rectifier modules have two parts,one is PFC adjust; the other is DC/DC transformation.All
technically m ake the wide input voltage range (85V-290V).
2. High efficiency 95%.rectifier modules used soft switch technology, while load rate10% then efficiency can be
91%,50% load rate the efficiency can be above 95%.
3. With step less current limiter technology, output current is continuously adjustable.
4. Adopted step less temperature control speed,it can reduce power consumption and prolong the life of the fan.
5. Sharing Load, Equalized-current imbalance ≤ 3%

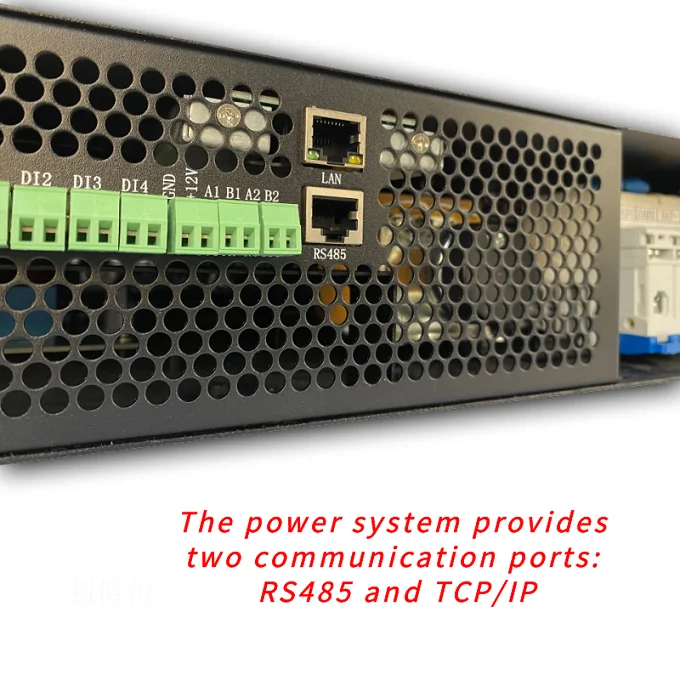

6. Optional Ethernet interface through SNMP and/or TCP/IP
7. Controller MCU
8. Digital signal collection via internal RS485 bus; RS232 interface for remote operation

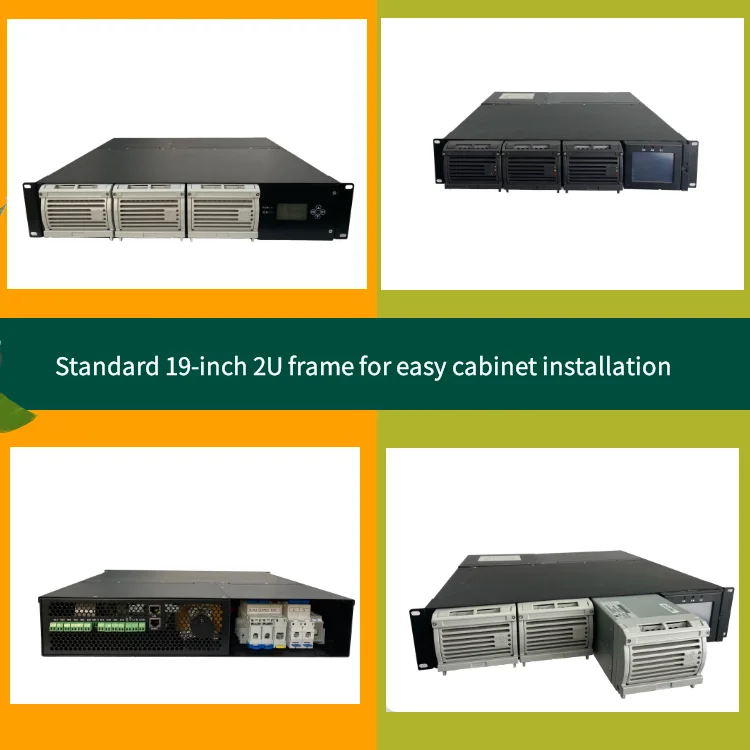

9. 2U height, light weight, High power density.
10, power factor 0.9999
11,48VDC output, output current:10A/20A/30A/50A/100A/150A/200A/250A/300A
12,Work temperature: -25℃ ~ 65℃
13, Hot swappable,N +1 redundant power supply
14, Complete fault protection, alarm function
6. Optional Ethernet interface through SNMP and/or TCP/IP
7. Controller MCU
8. Digital signal collection via internal RS485 bus; RS232 interface for remote operation
9. 2U height, light weight, High power density.
10, power factor 0.9999
11,48VDC output, output current:10A/20A/30A/50A/100A/150A/200A/250A/300A
12,Work temperature: -25℃ ~ 65℃
13, Hot swappable,N +1 redundant power supply
14, Complete fault protection, alarm function
Product details:

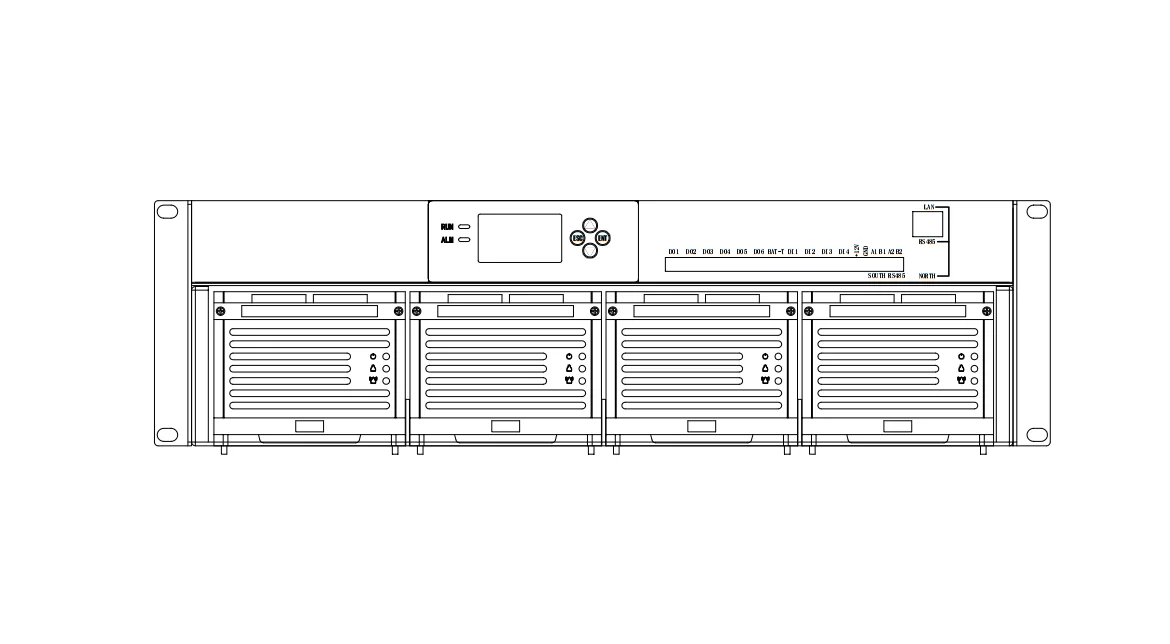

Hole size drawing：

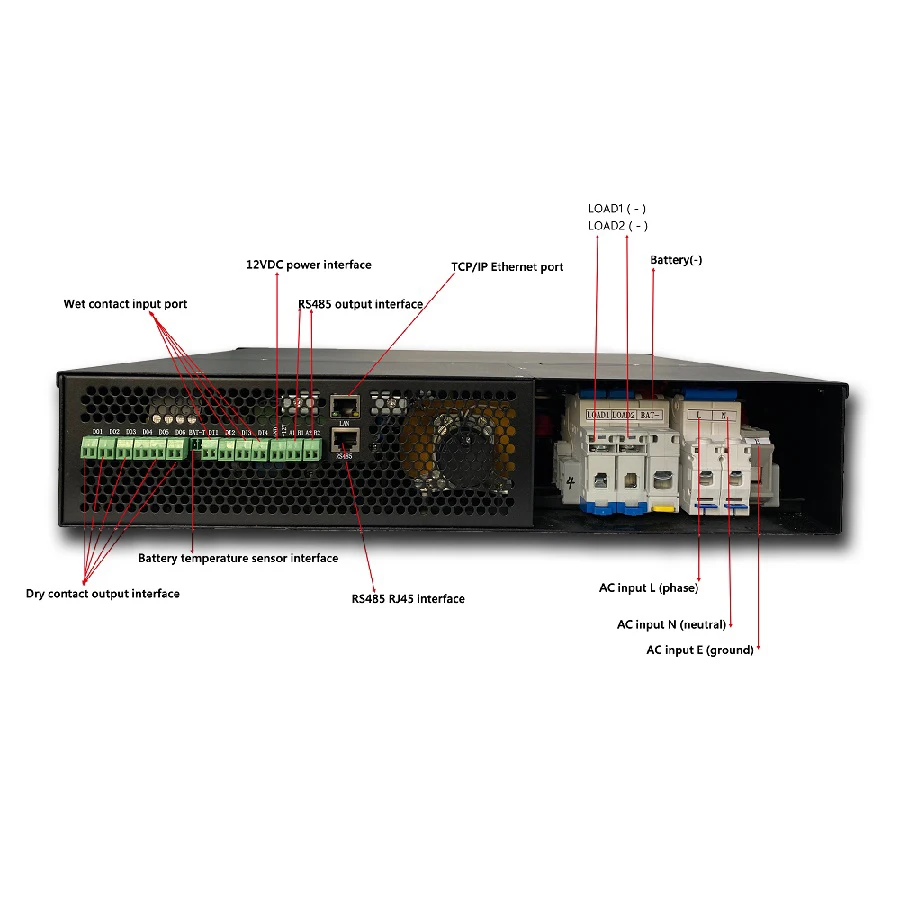

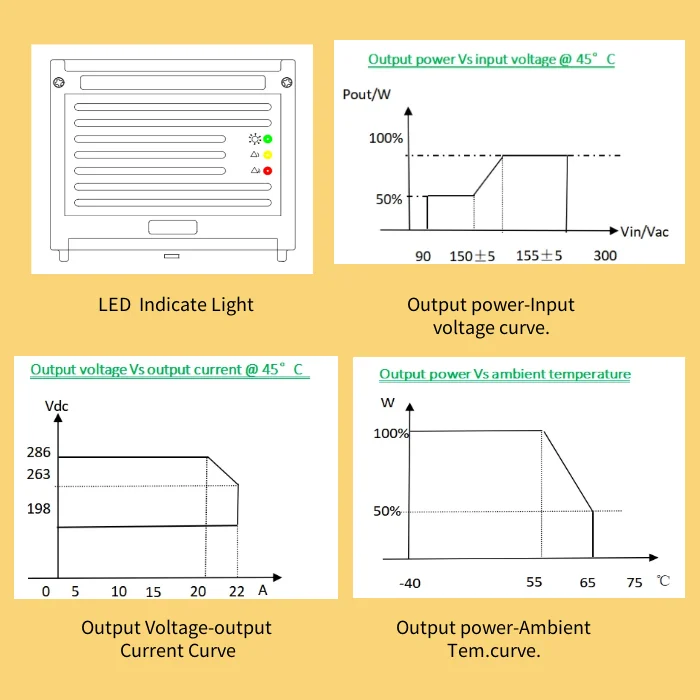

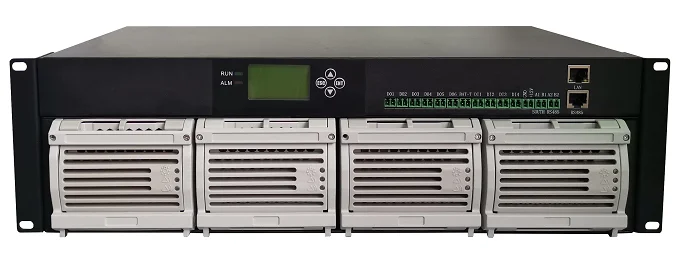

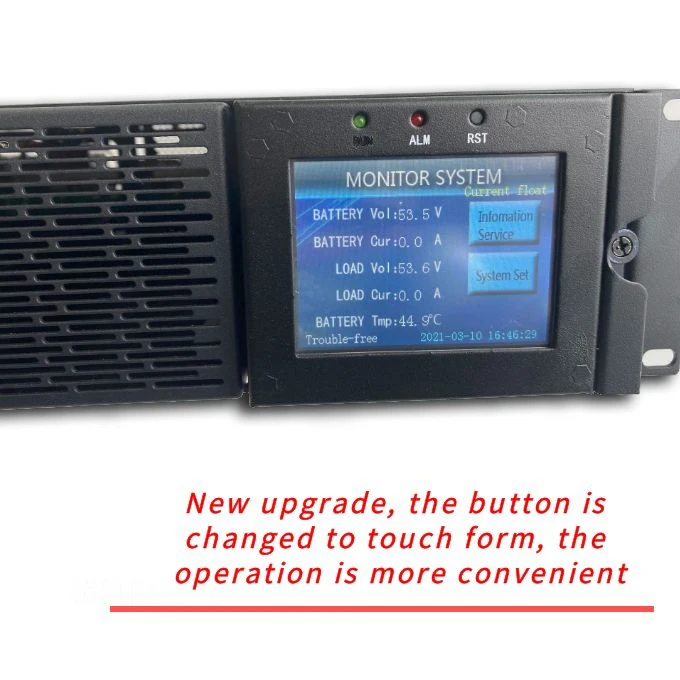

Detailed Images

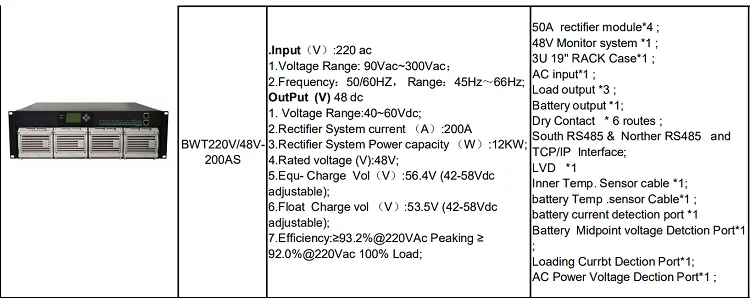

Product Paramenters
Factory defaults conform to the VRLA profile or can be user definable based on the type of batteries used and specified during the installation process. Customized settings may also configure it on the monitor module display, Or via Backup Management software.
Output Voltage | +110Vdc |
Output Voltage Regulation | 110±0.5Vdc |
Output Range adjustable Range | +90Vdc～+150Vdc |
Line regulation | ±0.1% |
Load regulation | ±0.5% |
Voltage precision | ±0.5% |
Current precision | ±0.5% |
ripple coefficient | ≤0.5% |
Output current deviation | ≤±0.3A |
Current Sharing（176Vac～264Vac，50%～100% load） | ≤±5% |
Min- Current | 0A |
Rate current | 200A |
Peaking current | 22A |
Tempe. coefficient（1/℃） | ≤±0.02% |
Rate Capacity | 2500W(176Vac～264Vac) 1200W(90Vac～175Vac) |
Input | Single Input |
Input Voltage Range | 90V to 290V |
Rate input Voltage | 110V / 220V |
Normal Input | 100V to 240V |
Frequency Range | 45Hz-65Hz |
Max Input Current | 5.68A±10%@176V/1000W |
Surge Current | Compliant Standard：ETSI300132-3 |
Efficiency | ≥93.2%@220Vac@ 220Vac 100% load |
PF | ≥0.99@220V/70A |
Leakage Current | <3.5mA@264V |
Input Fuse | L Wire ,Fuse 25A |
Max input Voltage | 310Vac |
