Yowing деревянный профиль специальной формы шлифовальные круги шлифовальные шлифовальный станок для мебели, дерева, использует
- Category: Other Woodworking Machinery >>>
- Supplier: Foshan Yowing Machinery Co. Ltd.
Share on (1600412460442):
Product Overview
Description
Specification

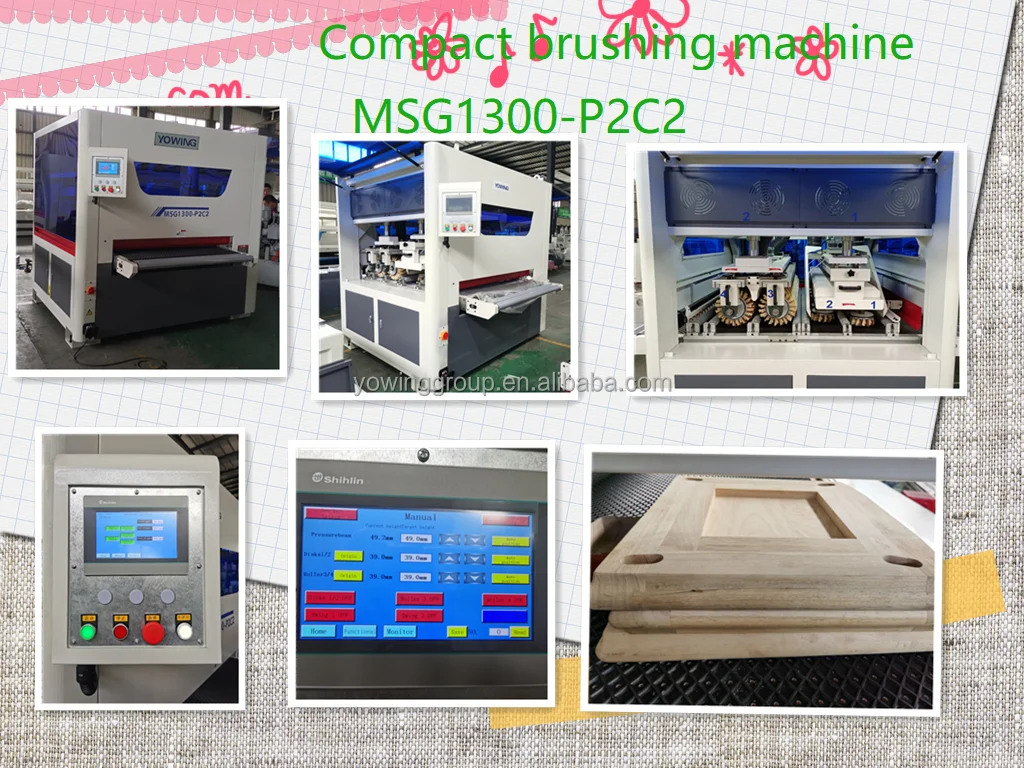

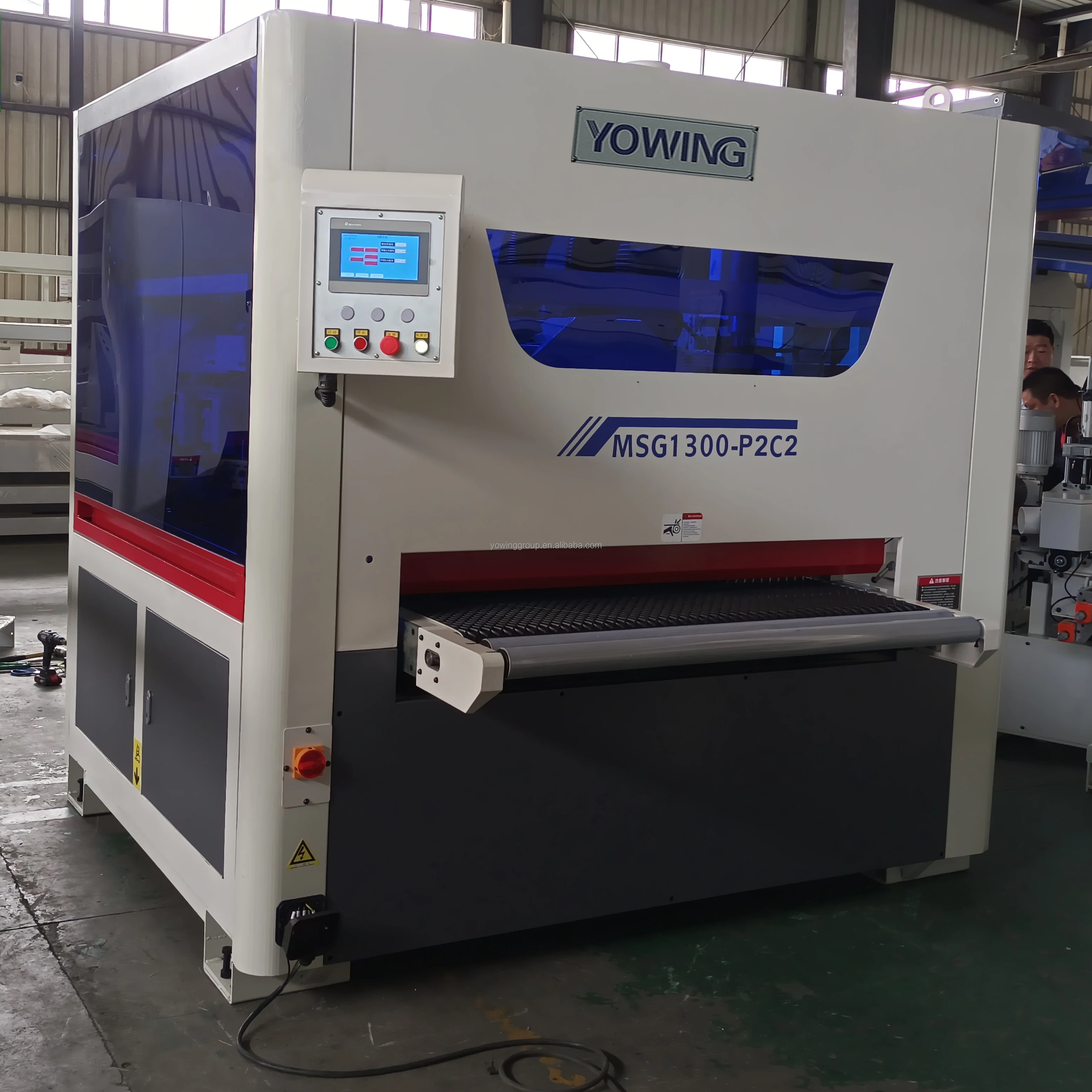

Model | MSG1300-P2C2 | MSG1300-C4 | MSG1300-P4 | ||
Use | Woodworking machinery furniture sanding machine door windrows cabinet wardrobe sanding polishing sander machine machinery | Woodworking sanding polishing | |||
Dimension(L*W*H) | 2600*2200*2100mm | ||||
Certification | CE ISO | CE ISO | |||
Roller motor | 1.5kw*2 | 1.5kw*2 | 1.5kw*2 | ||
Oscillation motor | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | ||
Lifting motor | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | ||
Feeding motor | 1.5KW | 1.5KW | 1.5kw | ||
Lifting control | Automaticly | By electric | |||
Sanding speed | 0-6M/min | 0-5m/min | |||
Air pressure used | 7 kg/cm2 | 7 kg/cm2 | |||
Table height | 850mm | 850mm | |||
Weight | 2500kg | 2500kg | 2500kg | ||
Total power | 6.5kw | 6.5kw | 6.5kw | ||

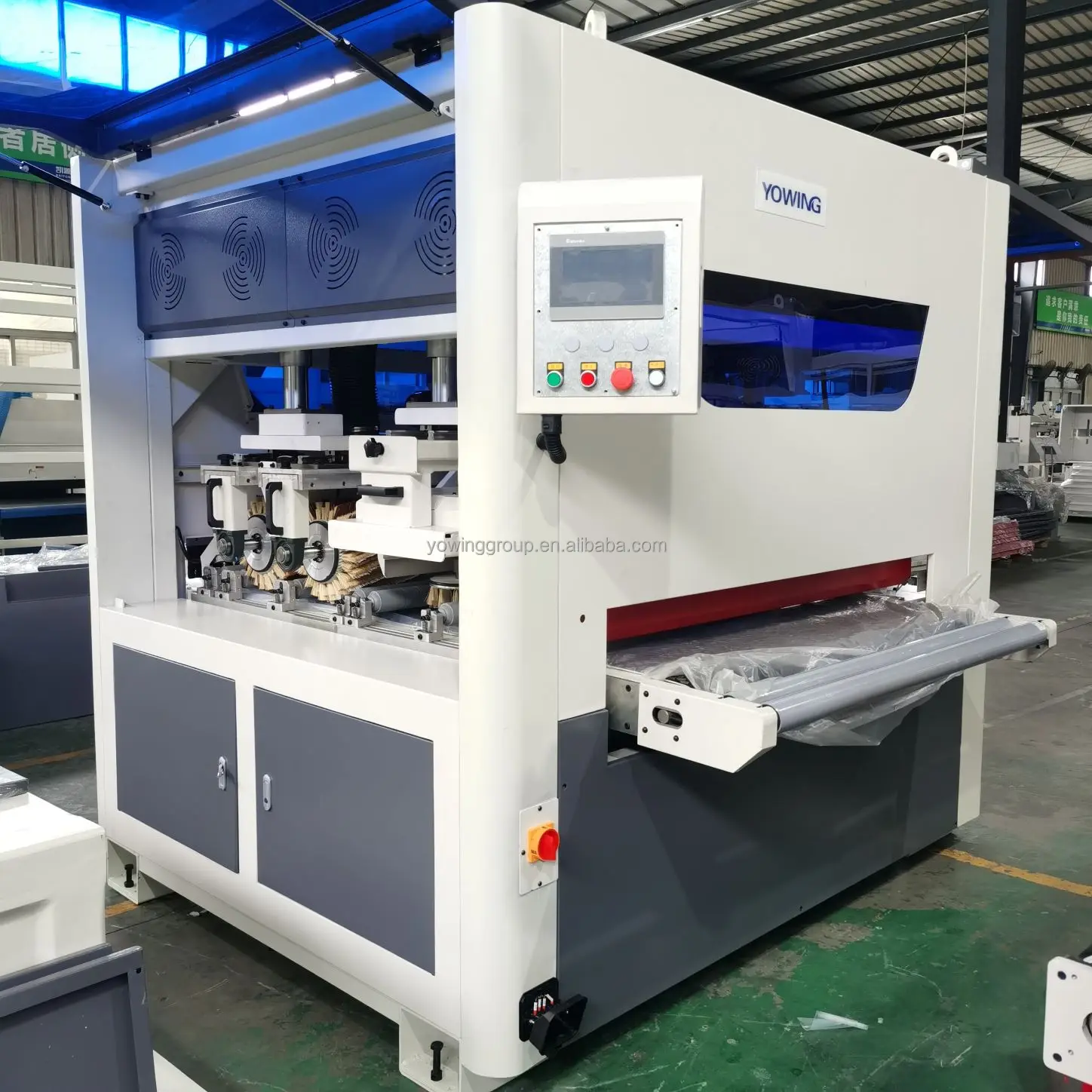

Product Description

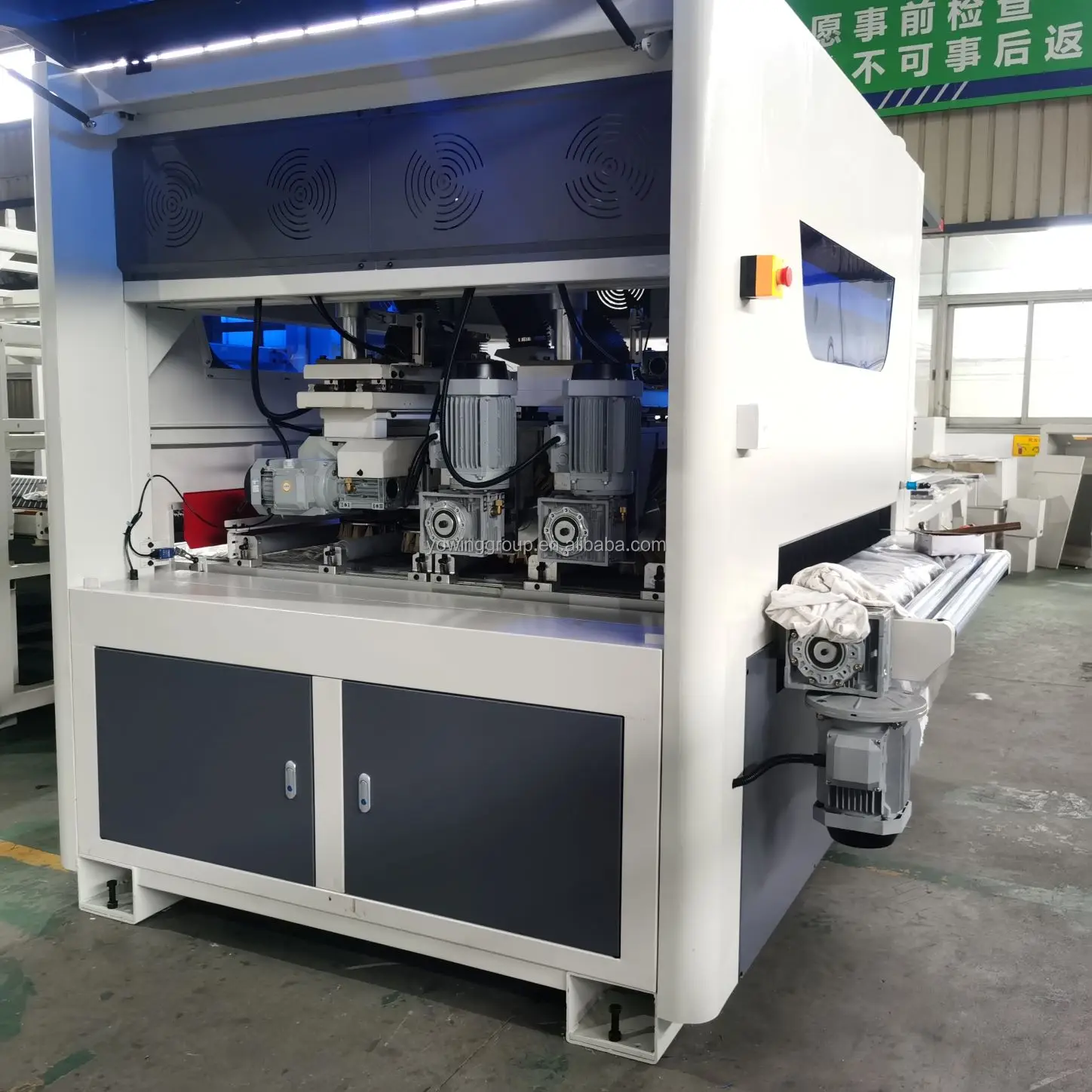

Universal Flexible Sanding Polishing Machine for furniture sanding uses suitable for Flat surface, MDF,Plywood, Solid Wood, irregular surface, table top , veneer surface, a multi funtional , flexible, ideal sanding machine for furniture factories.
Machine Details

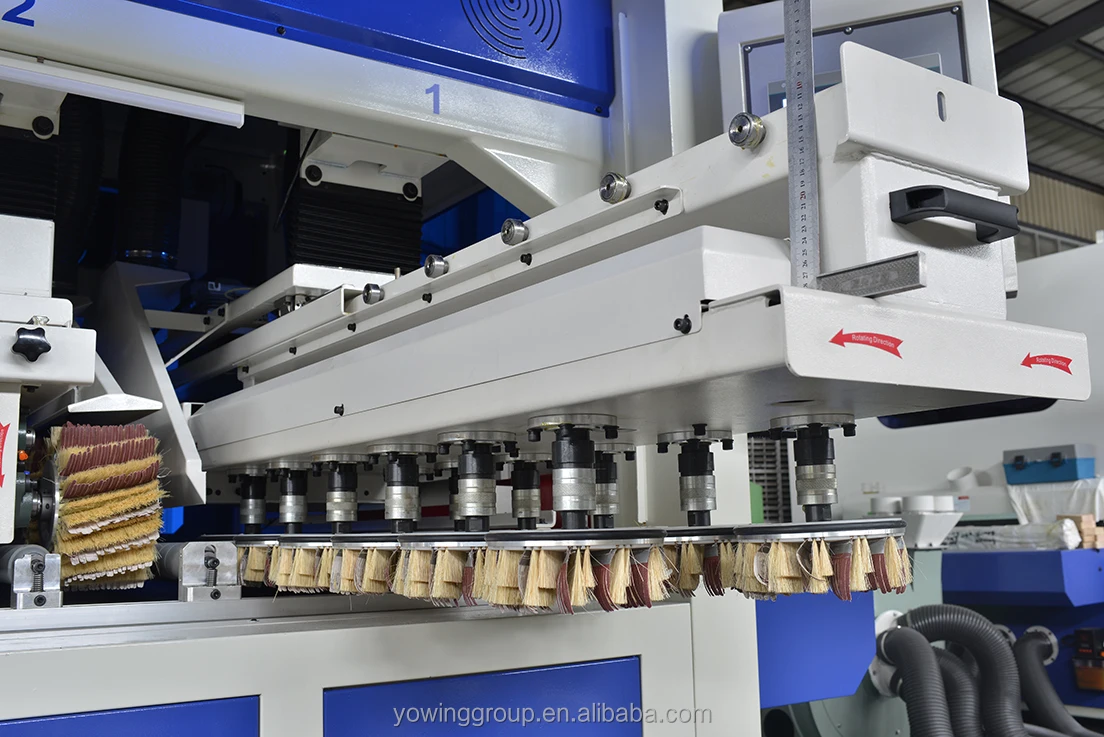

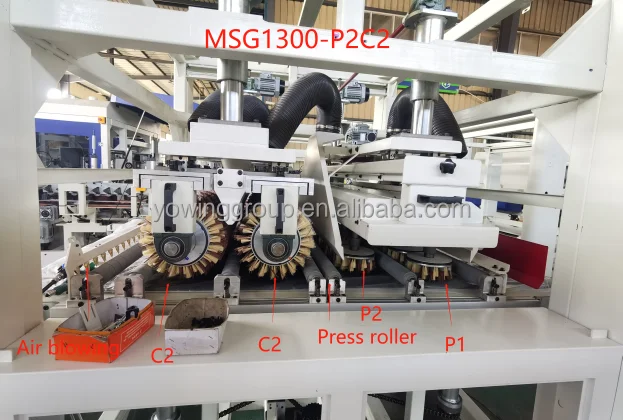

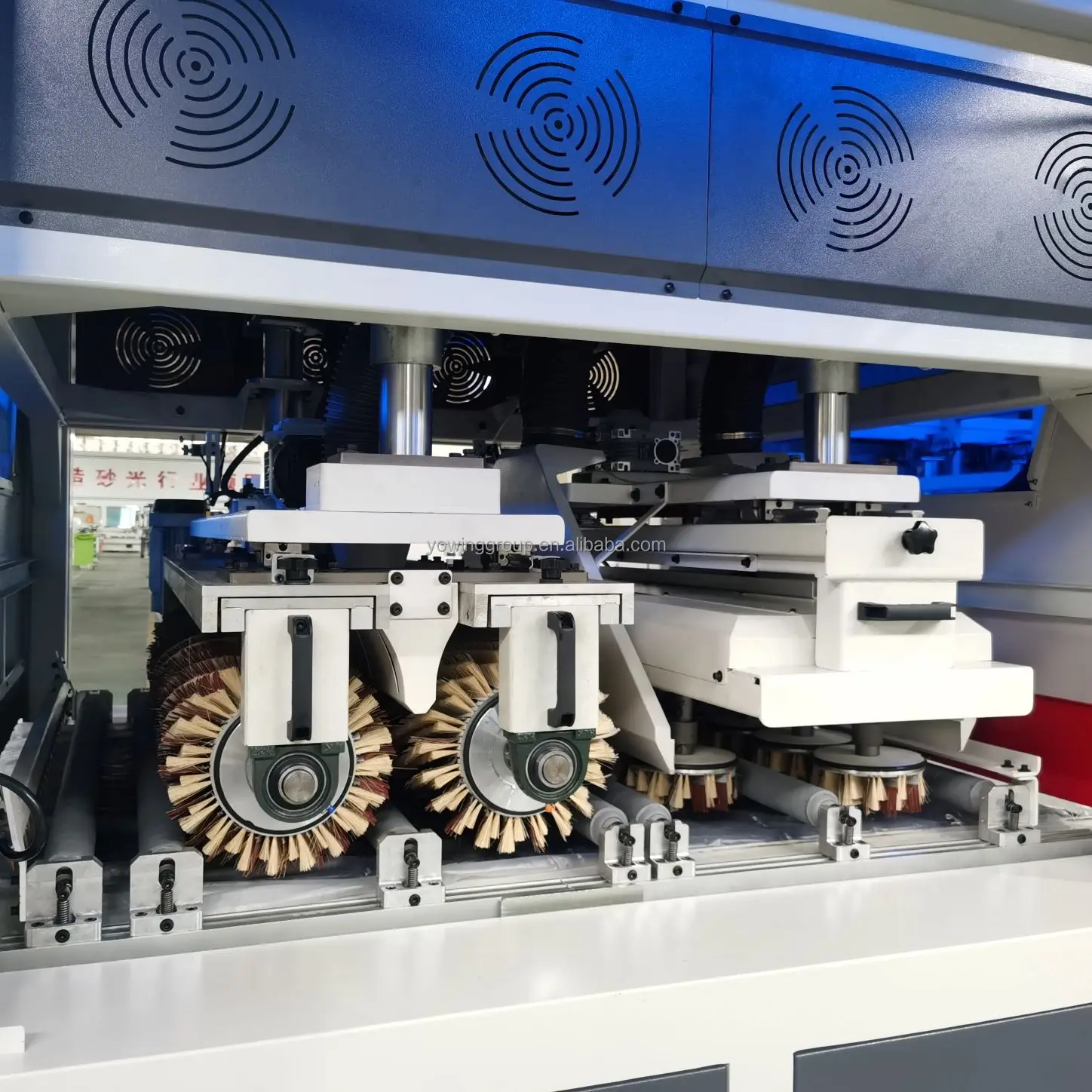

Double faced grinding Round disc P sand roller

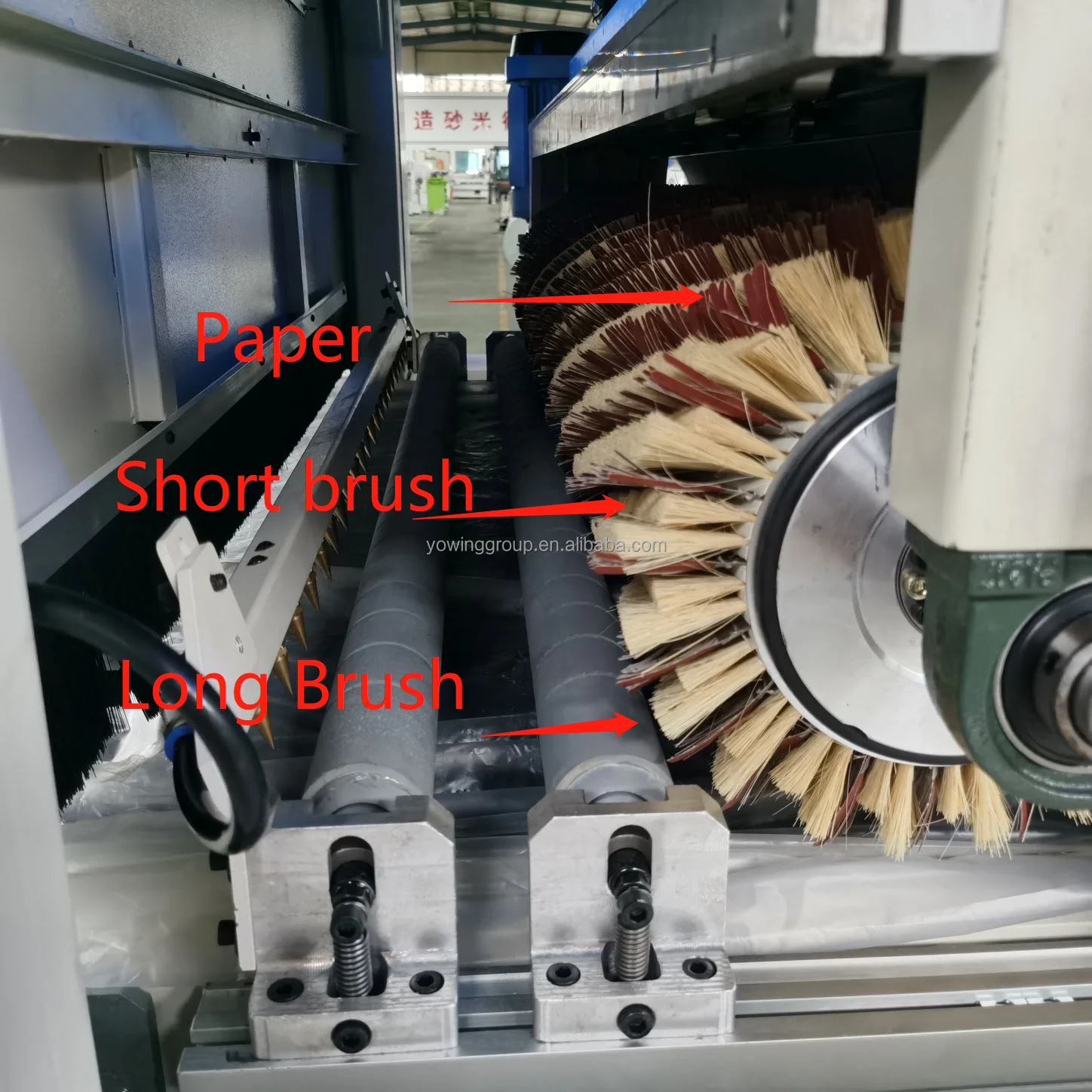

It is with 12pcs round dis sand.Each sand with 12 pcs abrasive+12pcs long brush +12pcs short brush. It can sand each corner, profiles ,every position of the wood panel quite well..It working 360 degree and touch all surface .

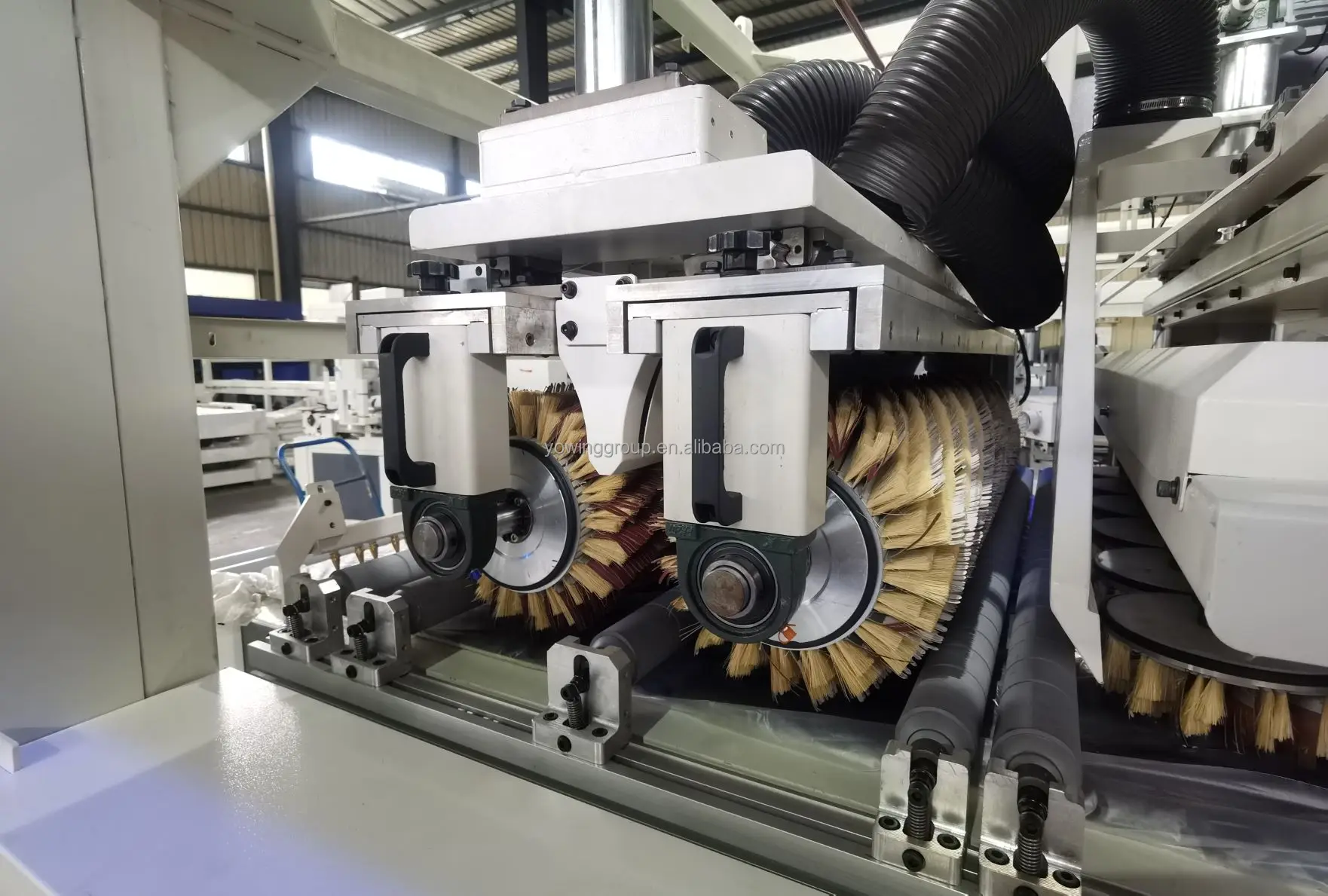

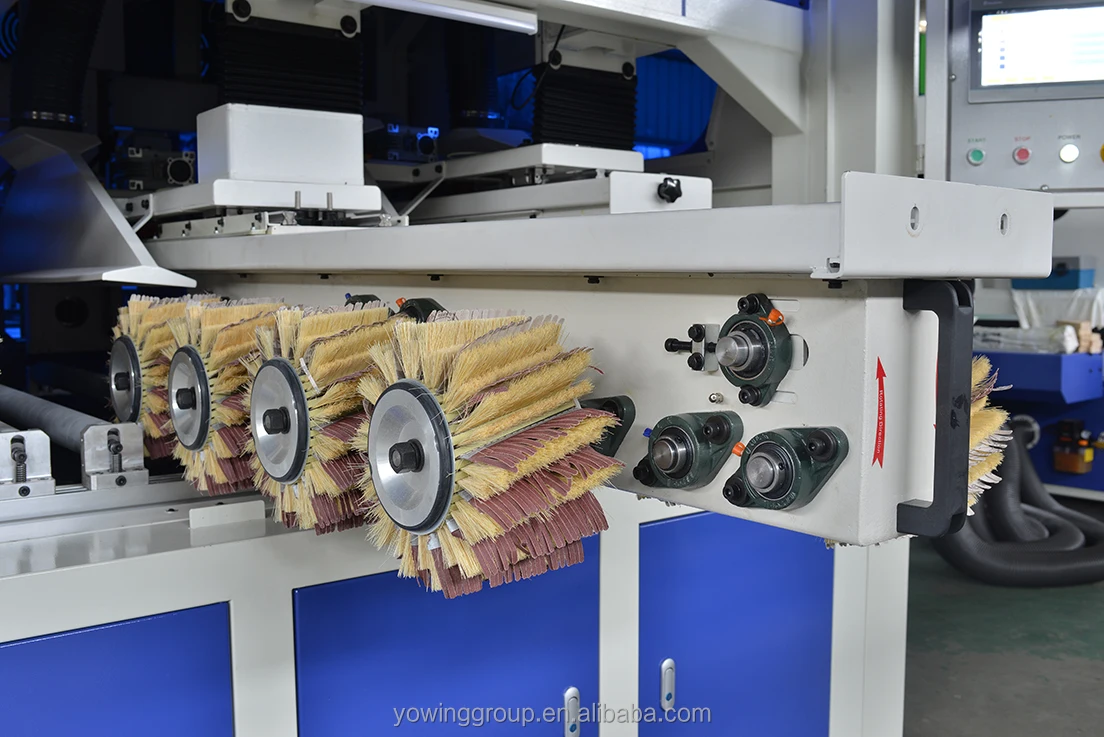

Horizontal sand A sand roller
.It is with 8 pcs sanding rollers and each working in clockwise and anticlockwide, to make sure horizontal grooves sanding quite well, can touch the deepest profiles.
Big sand C roller
It is working in 360 degree and can touch whole surface from the front to the end.It is the most sanding strong sand roller.

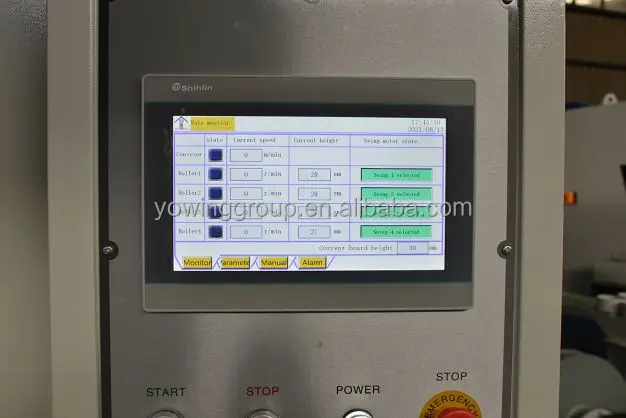

PLC Touch screen fully automatic.
It is operation panel, touch screen.
Easy to operate and easy for maintenance.
You can save all sanding series in and can recall it when needed.

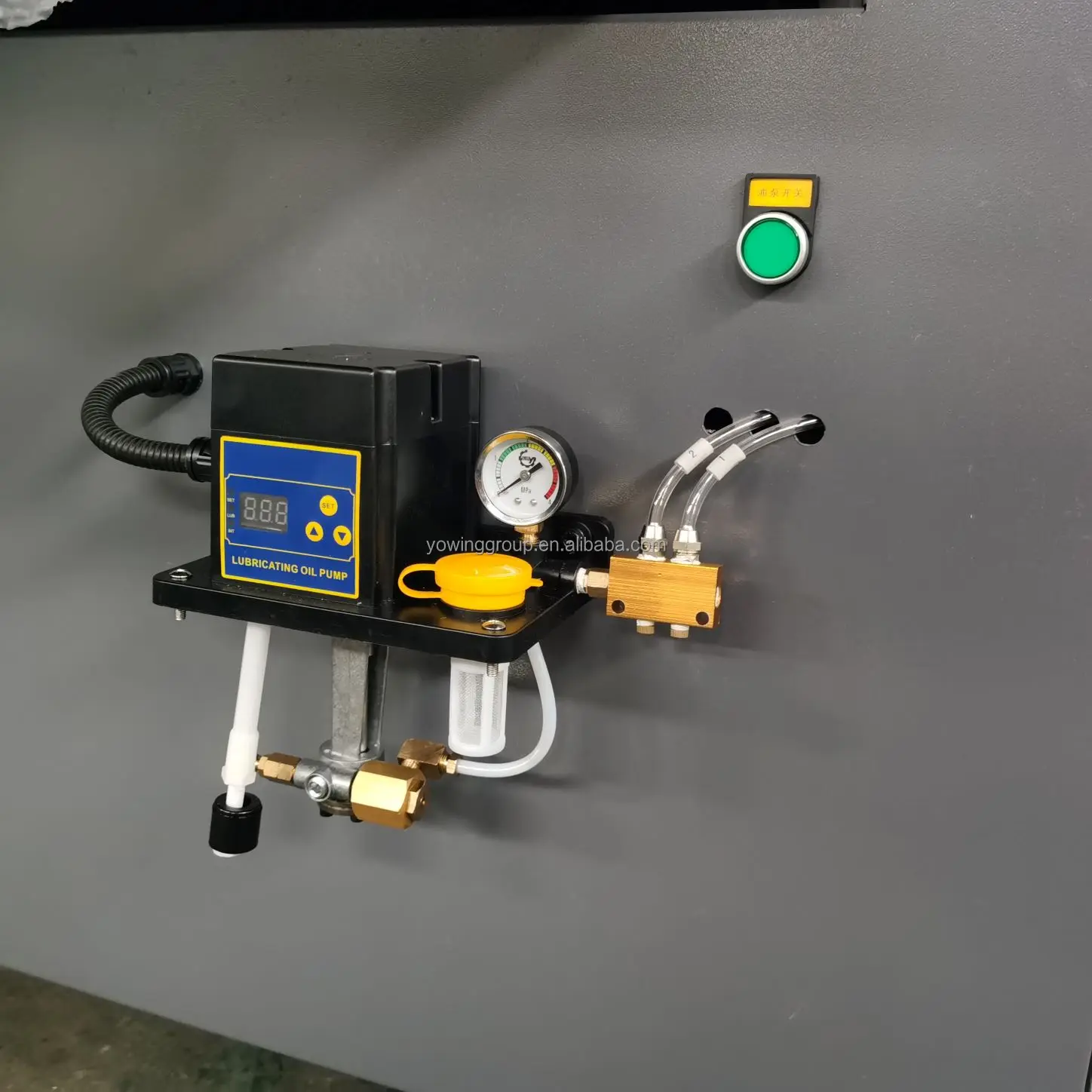

Oil lubrication system
Automaticly lubrication system
Simple and convinient

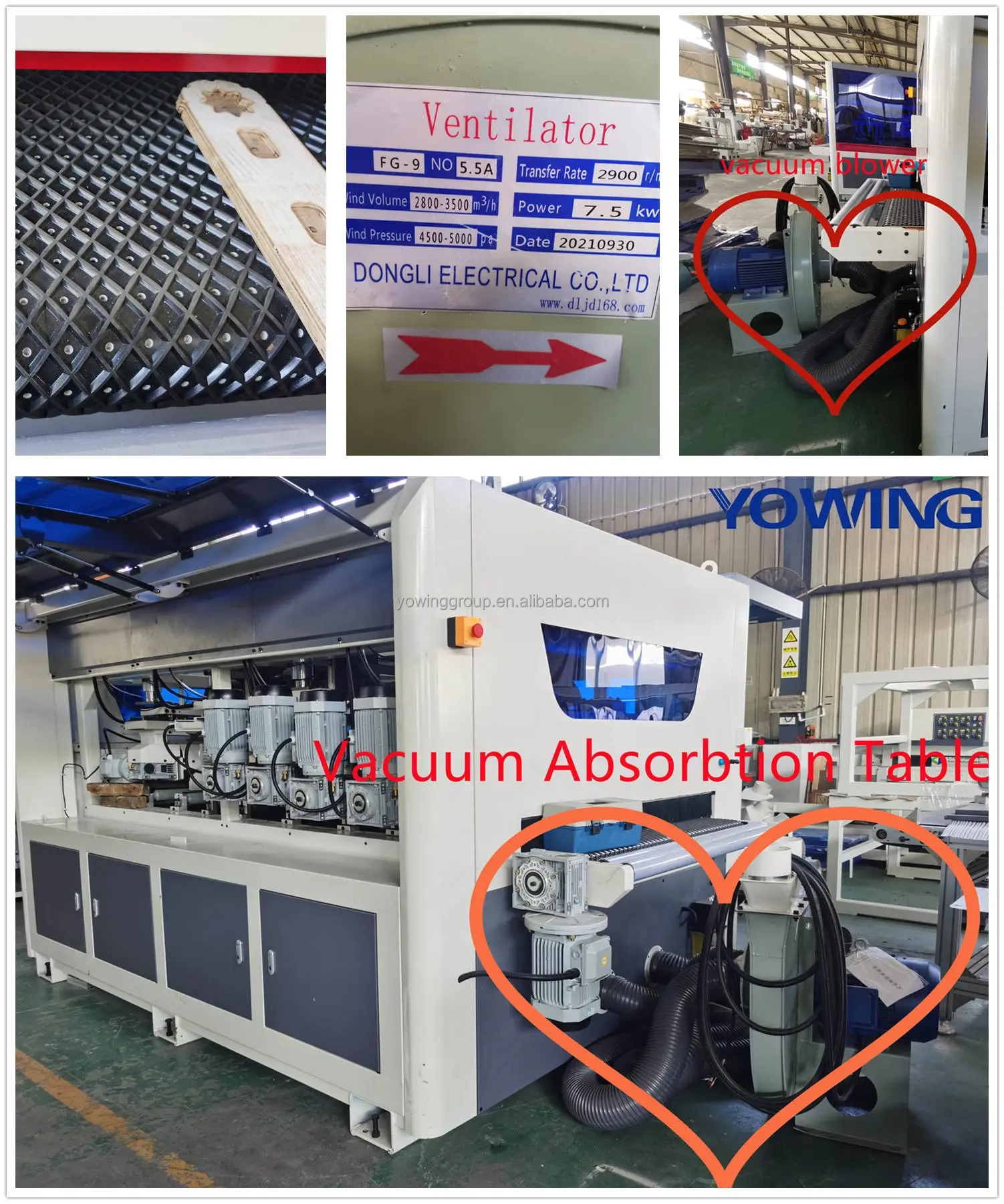

Vacuum table for option
Conveyor belt is with holes and vacuum blower 5.5kw or bigger for option
to ensure small components can pass.

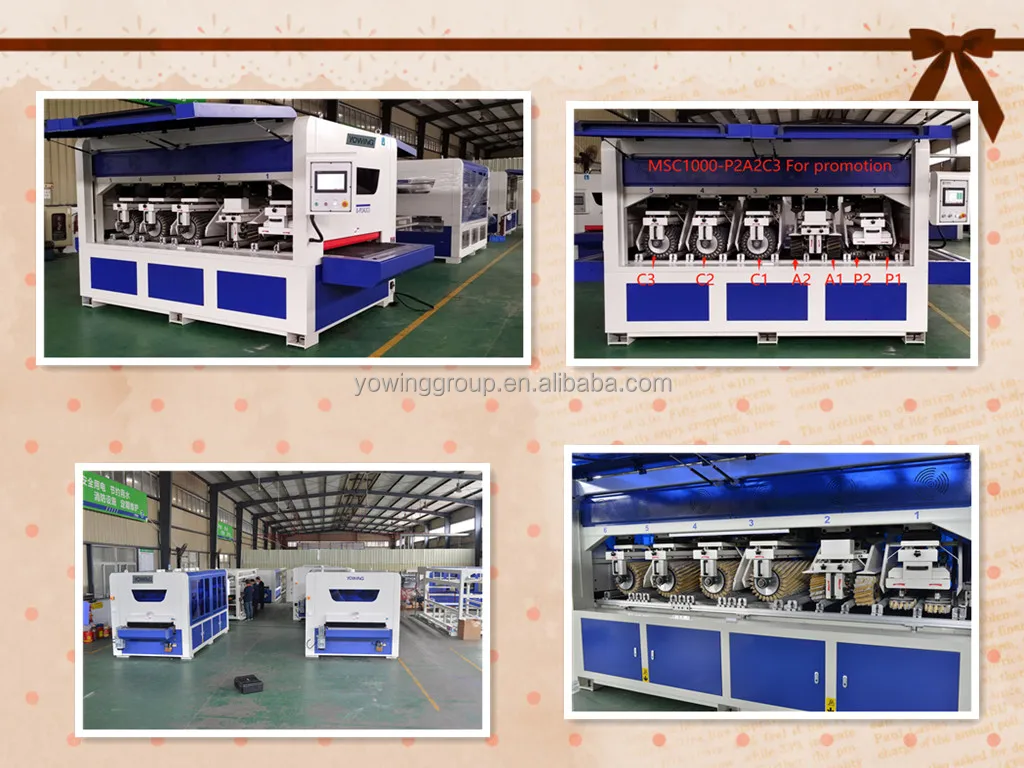

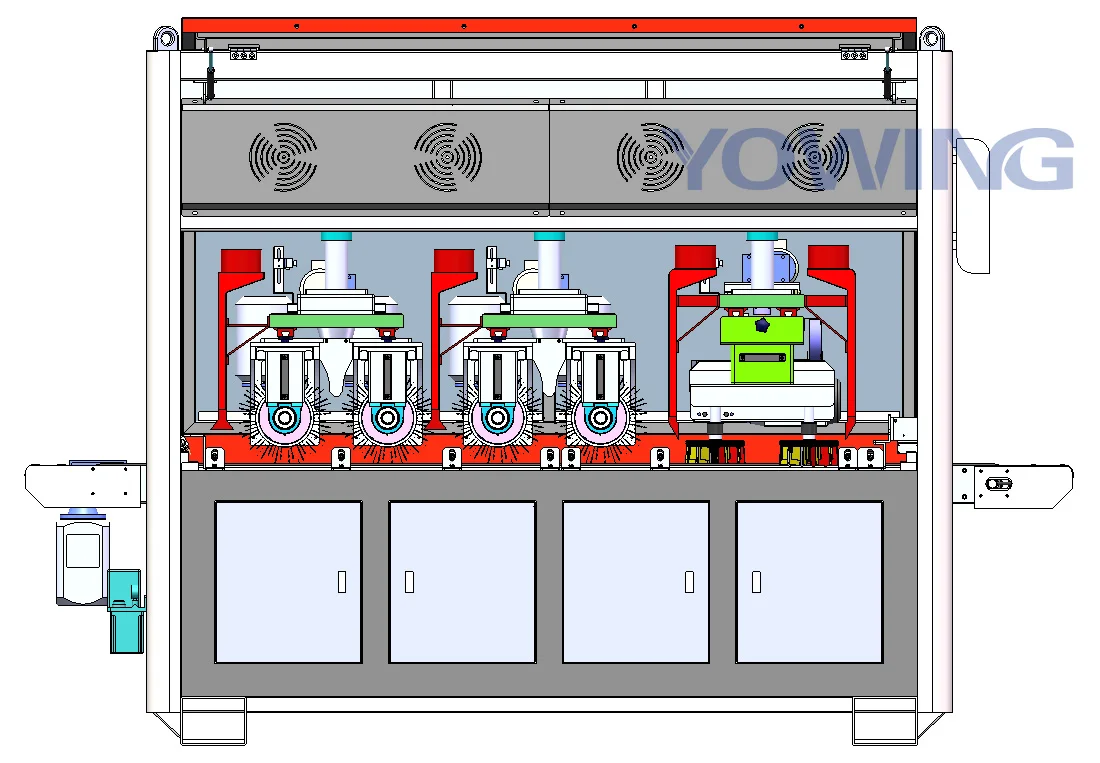

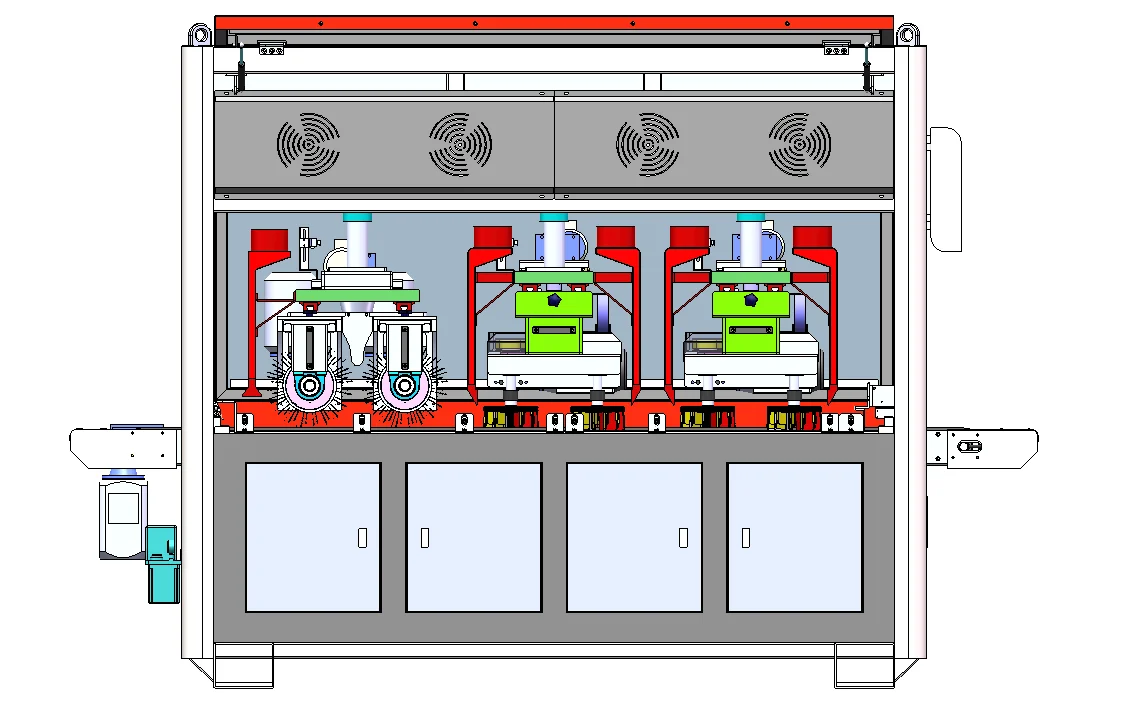

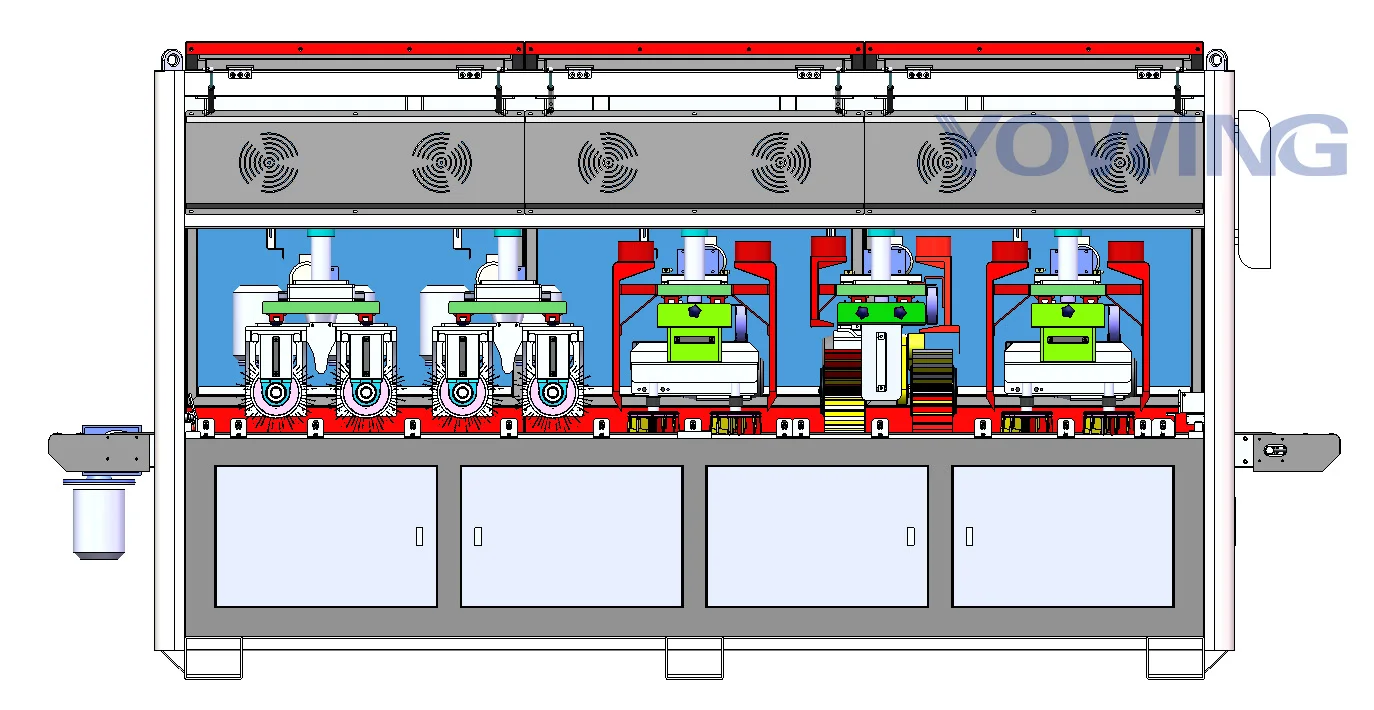

More combination for option
Various Combinations of sand roller and also qty of each rollers.
There are various combinations to choose the sand-rollers. And each sand-roller can be adjust the speed and height independently

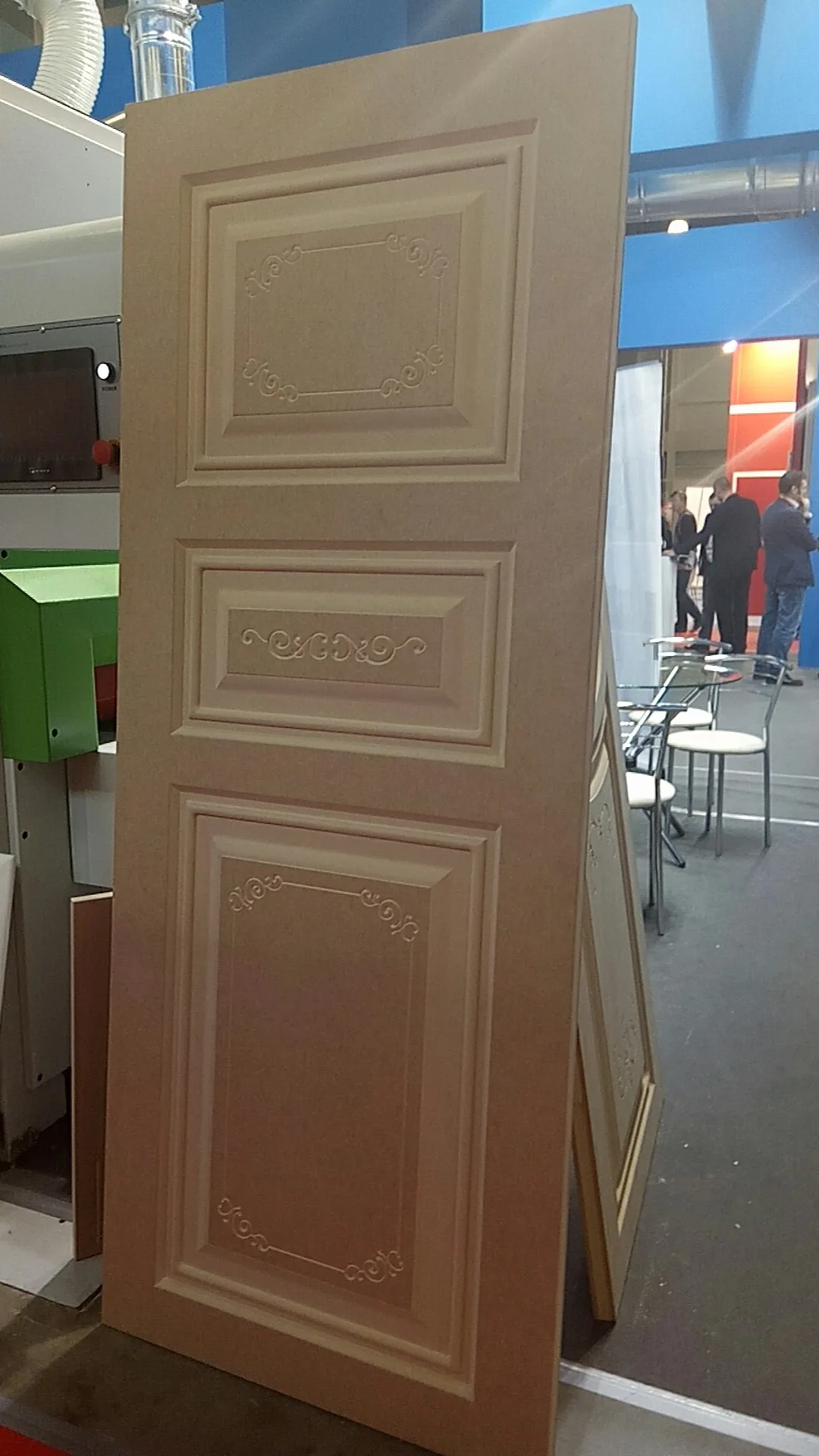

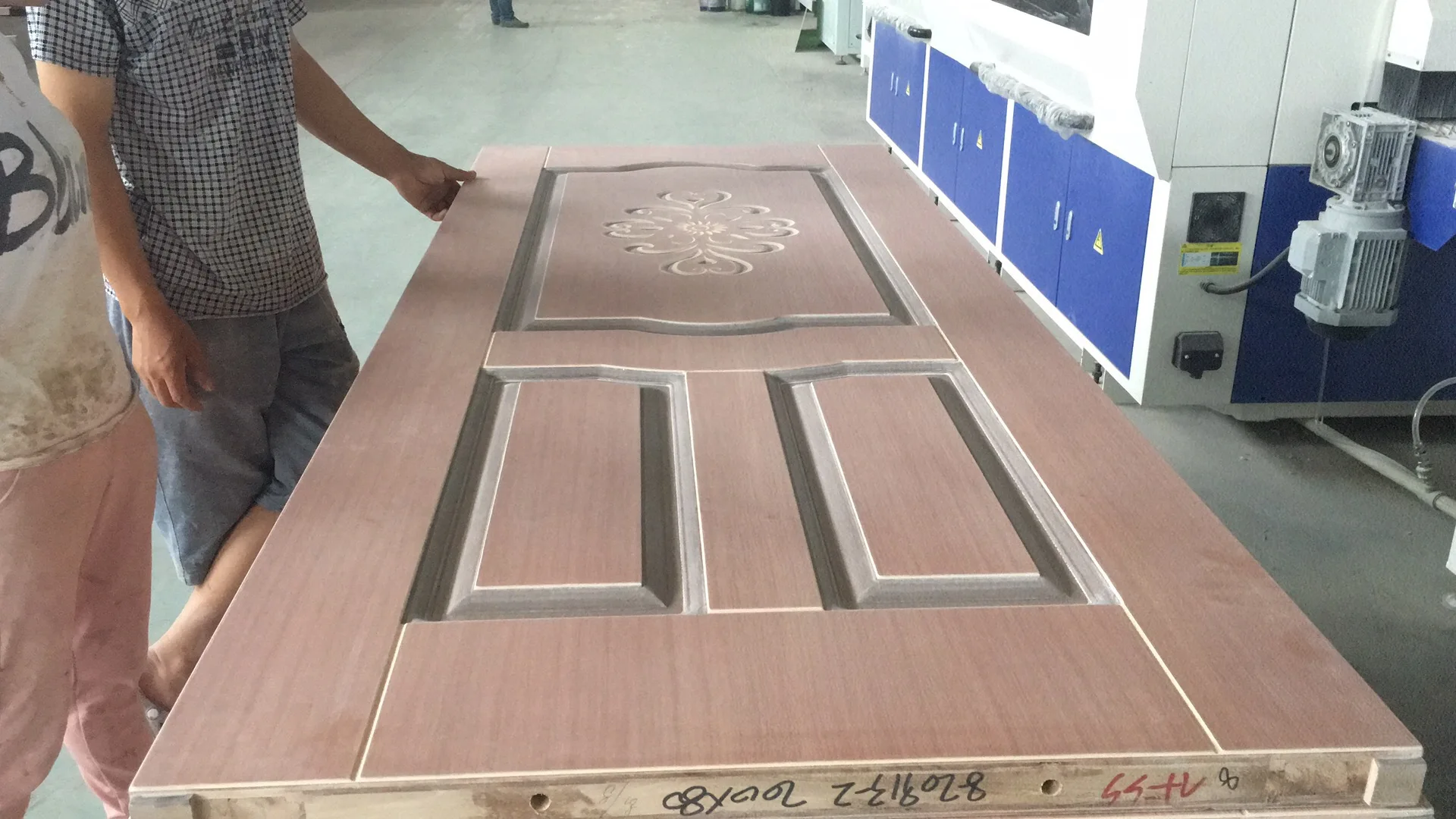

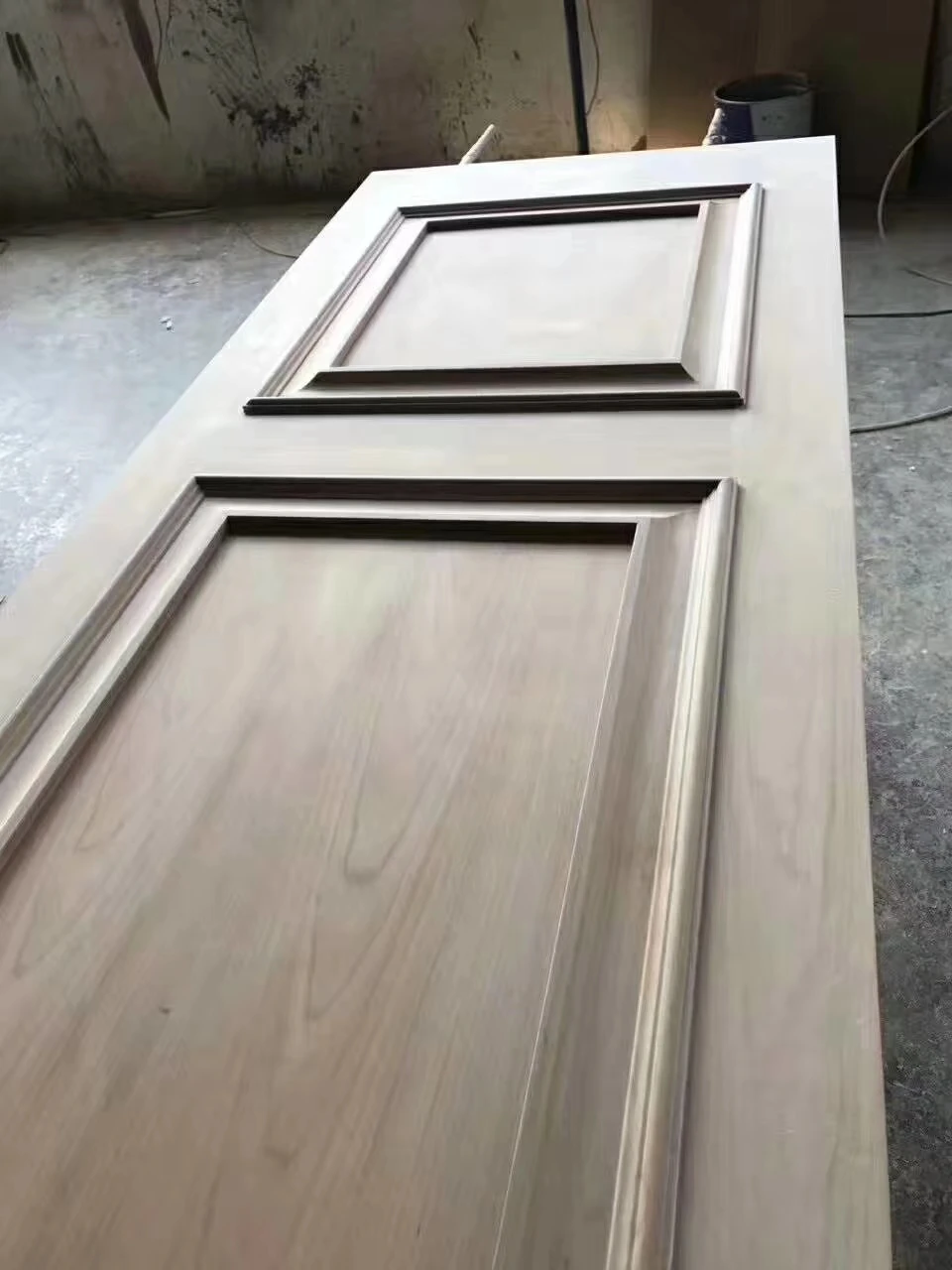

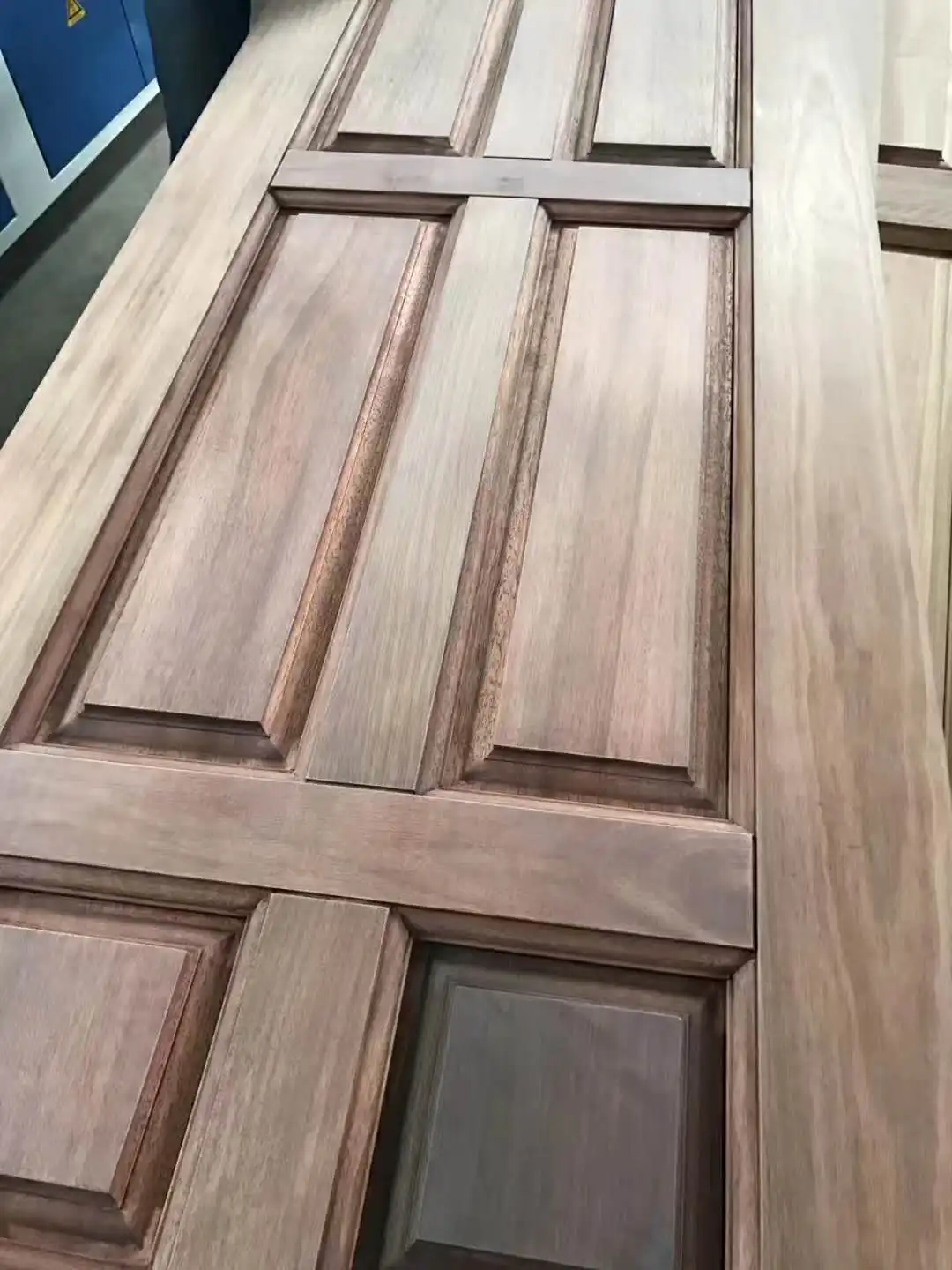

Application of Scope
Related Products
Wide brush sander
MSG1300-P2A2C4.
Quite popular and widely used
Profile linear sander 4-sided sanding machine
Used to sand 3 sides, 4 sides, with profile wheel or spongle wheel for linear wood sanding.
Edge coater MMP-W4C2-T2G4
It combines sanding and base painting for edge processing, At one machine,,get base primer done.
