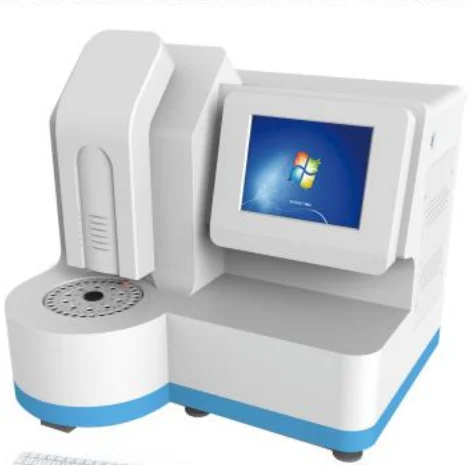

Automatic Blood Rheology Dynamic Analyzer Automatic blood rheology analyzer

Specifications

1.Measurement: Cone plate steady-state measuring

2.Measurement range: 0-50mPa.s

3.Shear rate range: 1-200s-1

4.Test speed:  Whole blood ≥ 30 samples/h,Plasma ≥ 40 samples/h

5.Display: 10.4-inch true color LCD

6.Sample Quantity: 0.5ml

7.Pre-heating time: 15 min

8.Net Weight: 35Kg
9.Length, Width and Height Dimensions: 820 * 820 * 640mm

System Configuration

 1.MEN-C100 viscometer

2.Quality control substance standards

3.ematocrit tube

Optional configuration

1.Fully automatic ESR hematocrit instrument

2.Laser Printer

3.Dual-purpose instrument of thrombosis and platelet adhesion in vitro

Features

1.Advanced cone plate test methods making integration with international standards, and the movement will never wear.

2.With leading pipeline design technology, you can use it without any mechanical problem.

3.With R232/USB interface for data communications, it can work online with ESR hematocrit instrument.

4.With Newtonian and non-Newtonian fluid quality control, quality control data can be edited, and quality control chart can be printed.

5.Taking continuous measurement of 1024 points with shear rate changing from low to high, it can accurately reflect the true dynamic characteristics of hemorheology.

6.The only one using control technology with IPC

7.Automatic (manual) floating landmark, analyzing blood viscosity of different regions

8.It can use Auto calibration function to achieve zero-drift instrumentation.

9.Reading the spell of the corresponding Latin alphabet characters showed by the display

10.Measurement of clinical emergency position

11.Blood abnormality alarm and preventing plug holes function.

12.Blood mixing: layer suction method or the throughput method.

13.With automatic induction of plasma level, it can avoid changing of the original test tube after whole blood centrifugation.

14.Supporting Lis / His system, bar code scanning input.

15.Using vacuum suction for evacuation, automatic cleaning cycle, no waste residue

16.Humanized software operation platform, easy and flexible, automatic parallel operation.

17.Small amount of samples can reduce the patient blood volume.
