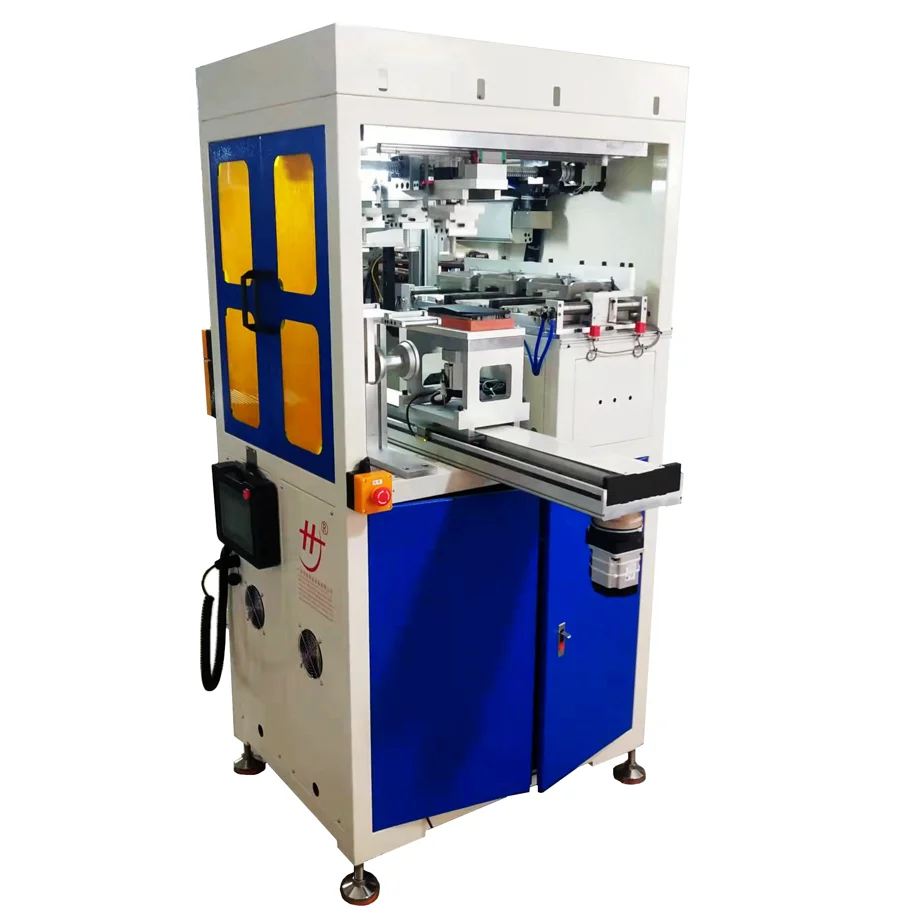

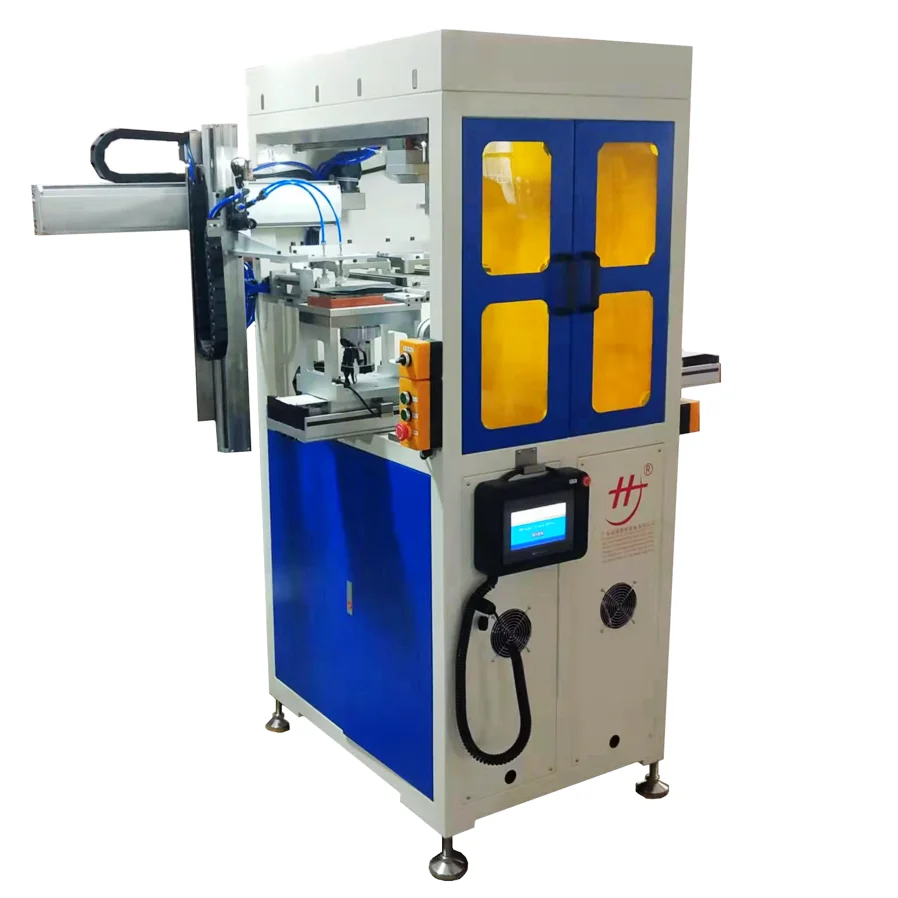

HP 300C high speed 3 colors automatic pad printer 5G router cover pad printing machine

Product Overview

Description

HP-300C 3 color high speed 5G Router Logo

  Automatic Pad Printer

Full automatic 3-Color Tampo Print applied range:

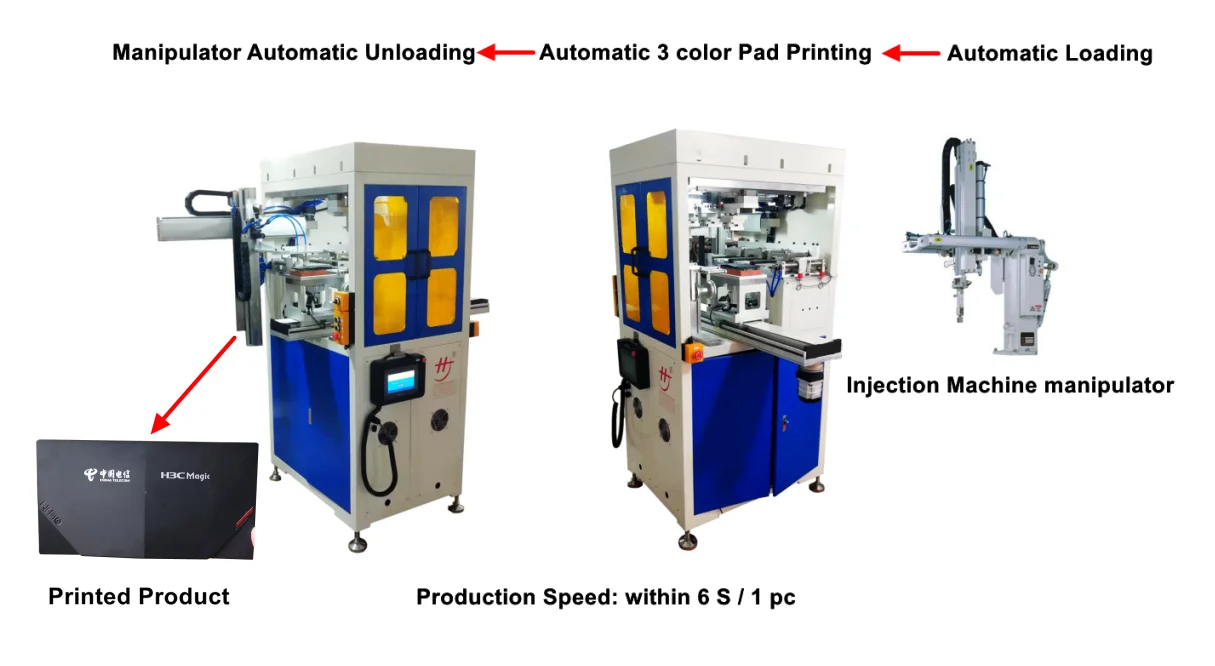

This is a well designed full automatic high speed pad printing machine for plastic case.  It mainly designed for working with injection machines to realize whole product line full automatic running.



New technology application make the original whole production line reduce 80% workers. It also make the new production speed become triple speed as before.





3-Color Tampo Print Instruction:



1. Weinview Touch Screen Control Panel, Language: ENGLISH



2. High precision PLC + servo motor + Linear gear and guide rail controlled shuttle.



3. Servo motor controlled Rotary. Rotary Angle setting is adjustable.



4.  Germany FESTO Independent Up/Down travel cylinders for 6 colors pads;



 5. Multi-fuctions, 1 ,2, 3 colors printing are optional.



6. The pneumatic elements are imported from Germany FESTO, which power is smoother and strong durable;



6 Special shock absorbers ,machine operation is very smooth, scraper speed is adjustable which has superior performance;



7 The body is Alloy Cast Aluminum , then it is light and durable.



8 The operation panel is touch sensitive system, can be use the printing function directly ,which is react quickly and conveniently;

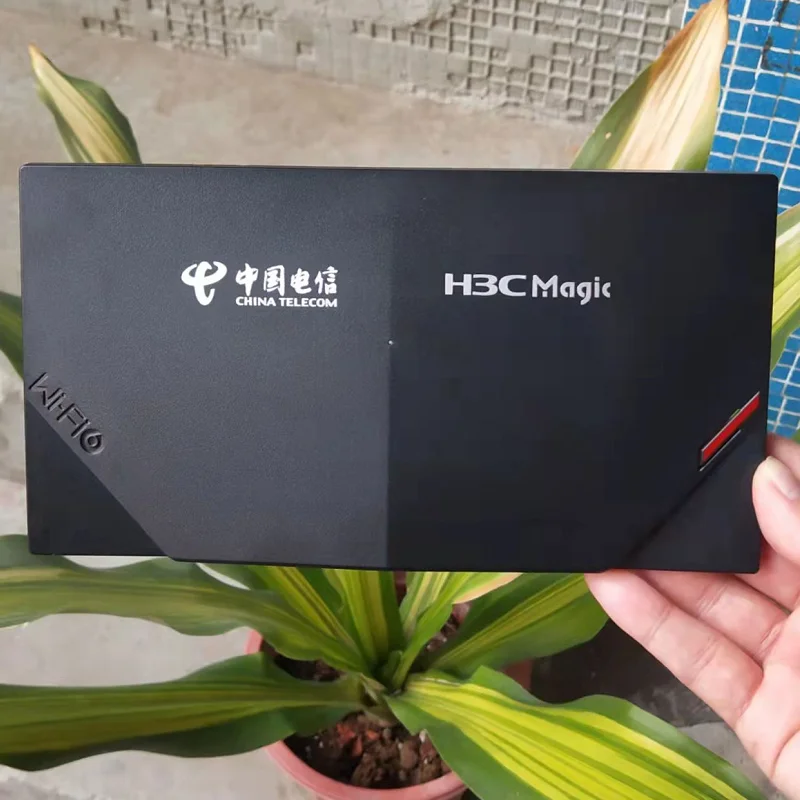

Pad printing sample:





3-Color Tampo Print Advantage:



1 Machine material: Cast Alloy Aluminum which is lighter and more stable.



2 PLC control panel or server motor can design as your requested.



3 printing result accuracy can reach to +-0.02mm.



4 The screw on the machine which hardness is 12.9 grade more durable.



5 Part process by CNC or worker. Then accuracy.



HENGJIN Safety Helmet 6 colors pad printing machine:









Remarks for Six-Color Tampo Print:



Warrantee: 1 year.



Payment: 50% deposit in advance. The balance against the machine is ready.



Training: Manual or CD or you can come to visit our factory for free of charge to training.



Mini order: 1 pieces



Delivery Time: 10 work day when receive your payment.



Business Item: FOB/ CIF/ CFR/ EXW
