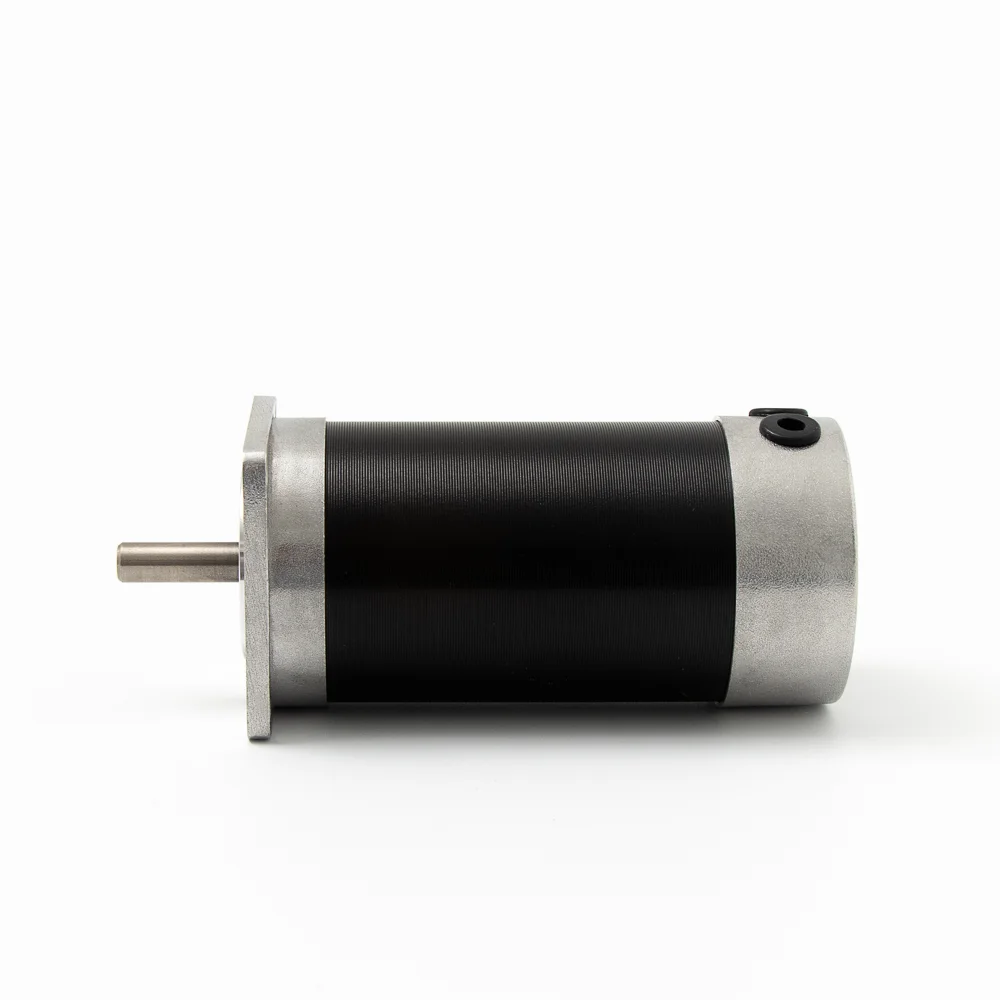

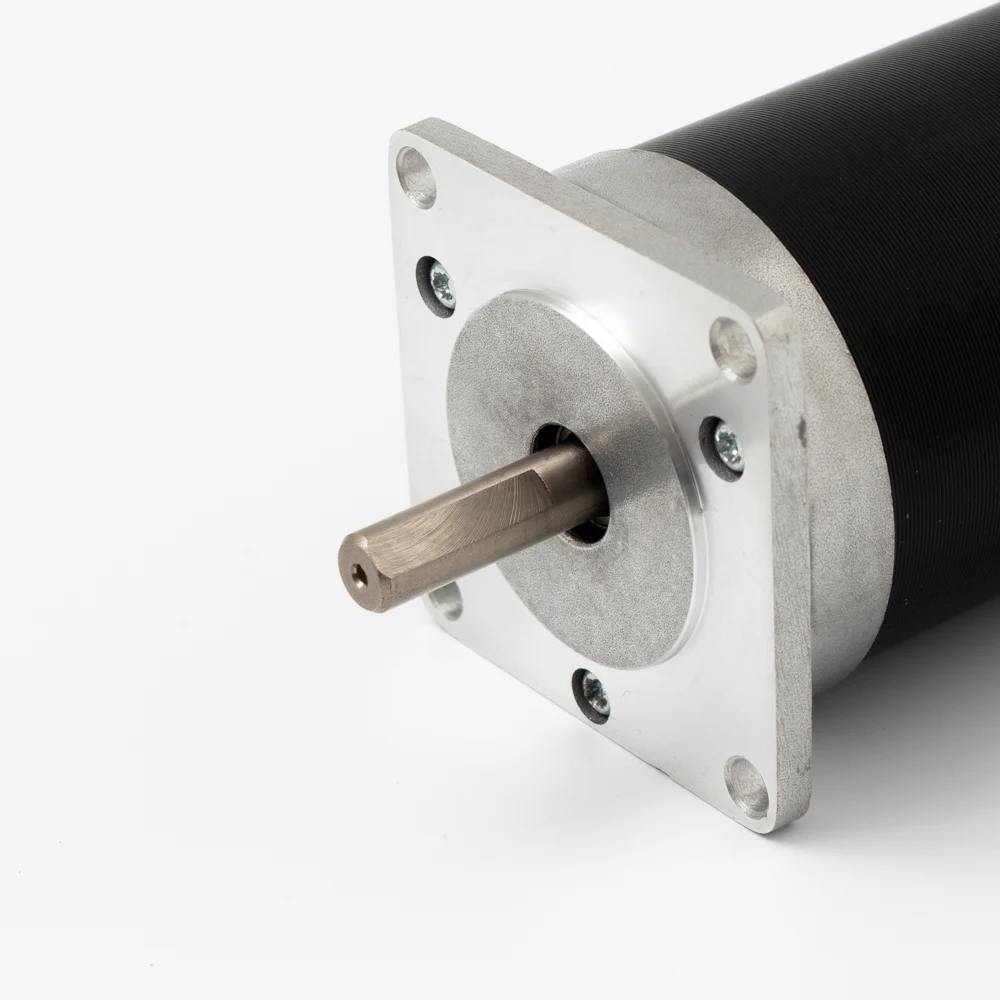

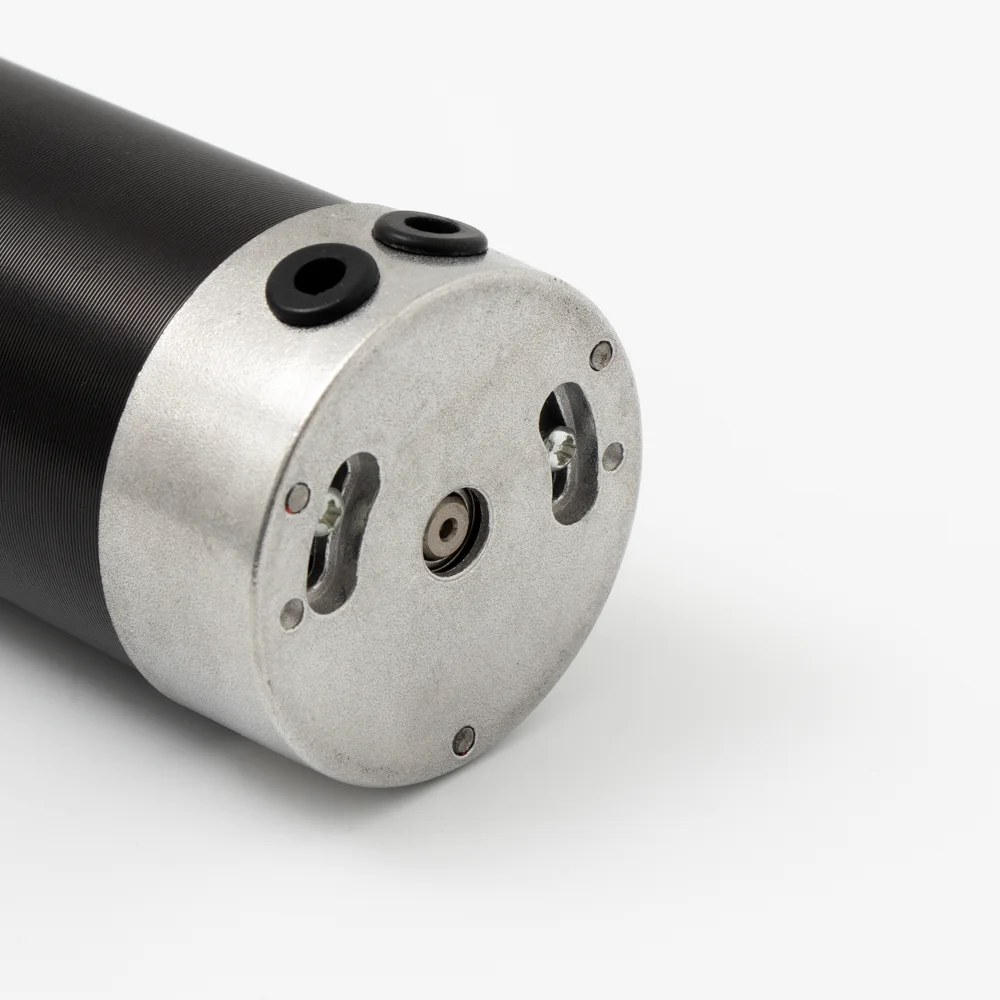

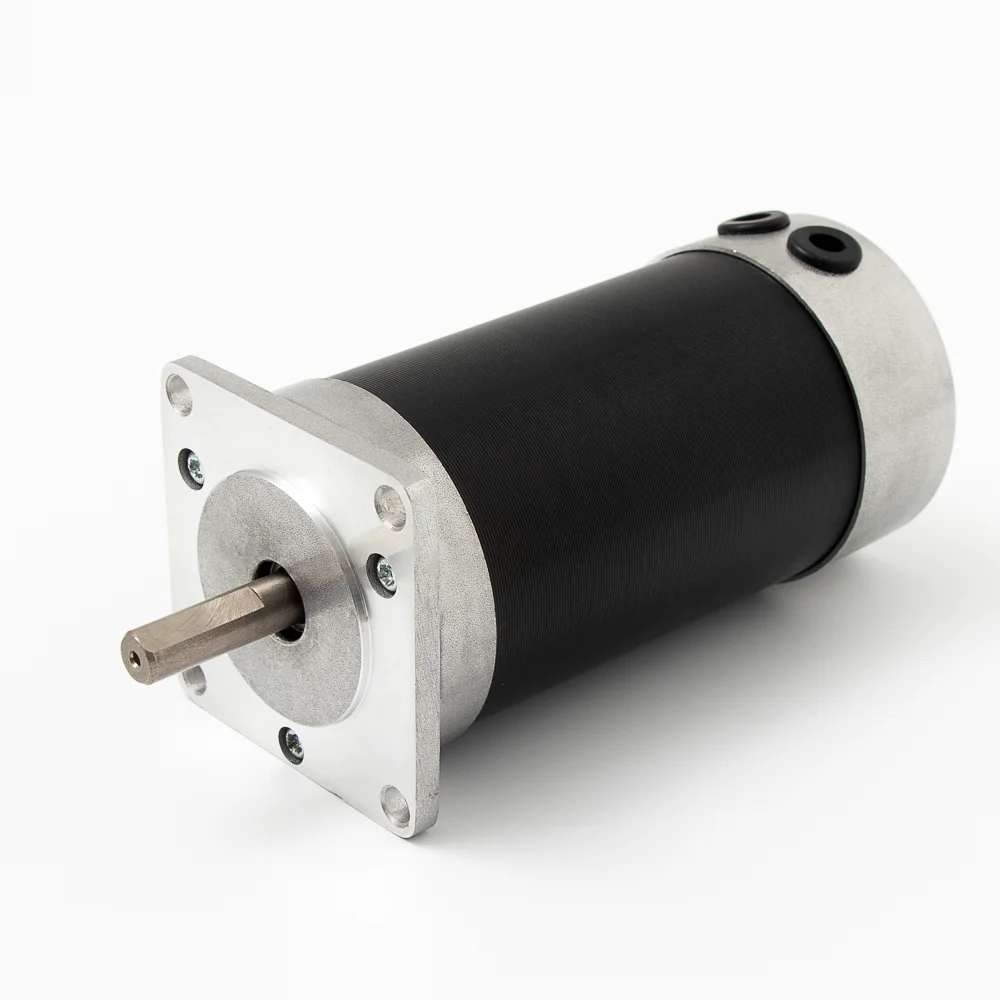

57BL95 12V 24V 3000RPM 6000RPM 105W 110W round dc electric brushless motor 600 watts bldc 12000 rpm motor
- Category: >>>
- Supplier: Changzhou Modar Intelligent Technology Co. Ltd.
Share on (1600413176012):
Product Overview
Description
Product Description
| Model | Voltage | speed | Torque | Current | Power | Peak Torque | Torque constant | V/kRPM | Rotor inertia | Body Length | Mass |
| 57BL45-230 | 24 | 3000 | 0.055 | 1.16 | 17 | 0.165 | 0.052 | 4 | 3.2 | 45 | 0.33 |
| 57BL55-230 | 24 | 3000 | 0.11 | 2.4 | 35 | 0.33 | 0.06 | 4.22 | 7.5 | 55 | 0.44 |
| 57BL75-230 | 24 | 3000 | 0.22 | 4.8 | 70 | 0.66 | 0.06 | 4.27 | 11.9 | 75 | 0.75 |
| 57BL95-230 | 24 | 3000 | 0.33 | 6.6 | 105 | 0.99 | 0.063 | 4.27 | 17.3 | 95 | 1 |
| 57BL115-230 | 24 | 3000 | 0.44 | 8.6 | 140 | 1.32 | 0.063 | 4.29 | 23 | 115 | 1.25 |
