new popular hydraulic lift for car manual lock release from two side launch 2 post lift

Share on (1600413528530):


Price:$629.00 - $679.00

Quantity:


Product Overview

Description
















Best 14 fold profile column hydraulic lift for car














PRODUCT DESCRIPTION.jpg

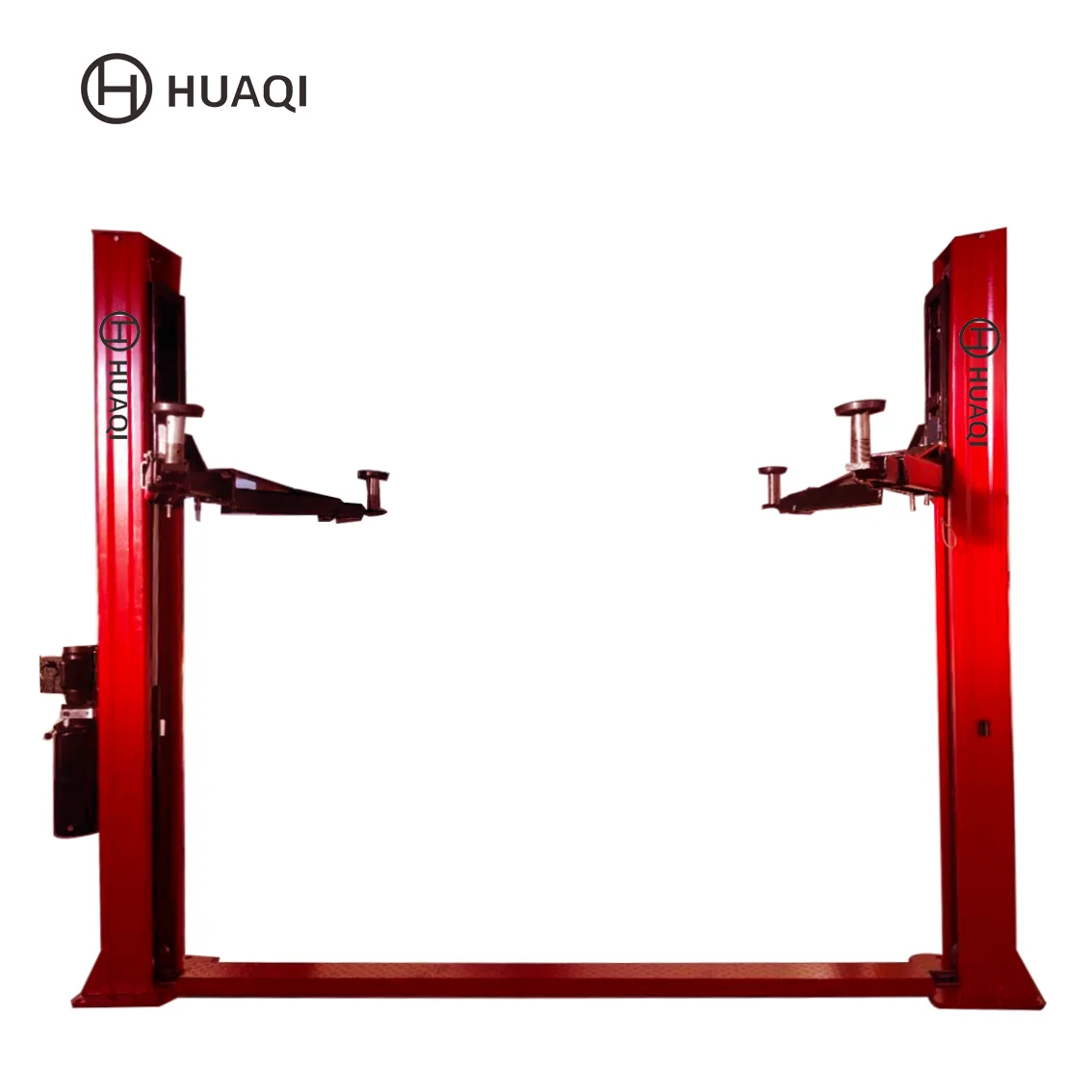

 14 fold huaqi logo.png

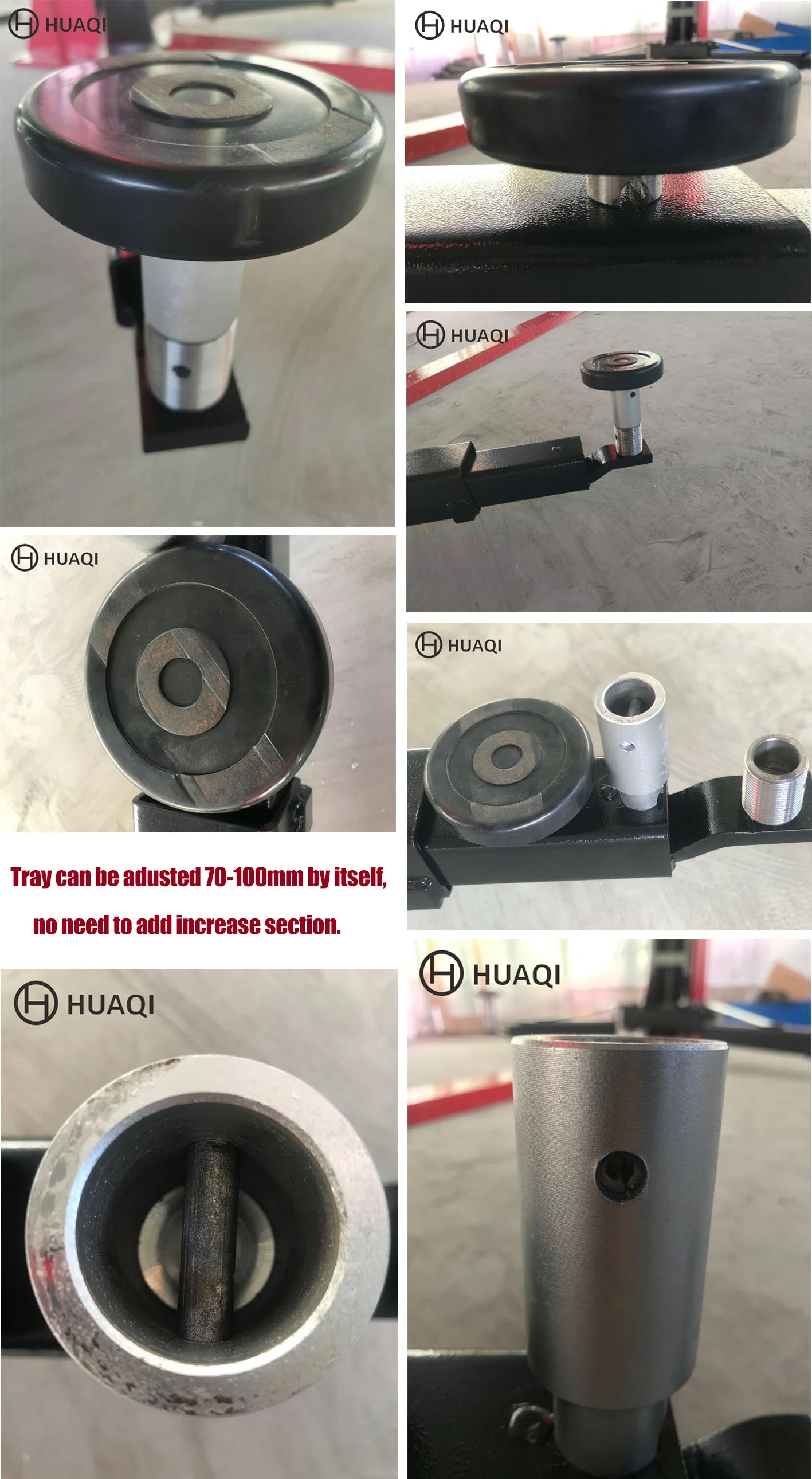

 Tray can be a .png

















PRODUCT FEATURE.jpg

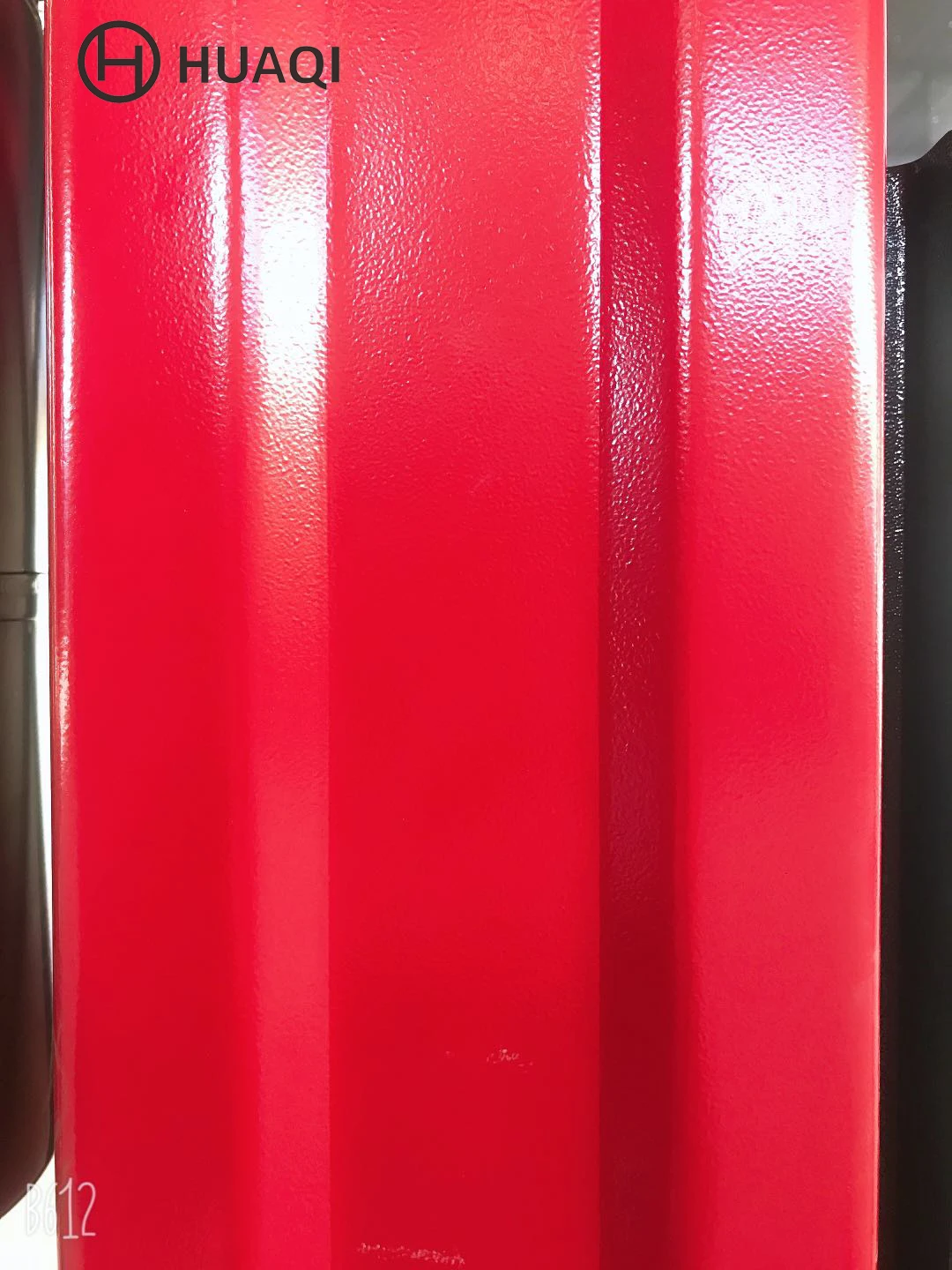

1. 3.5Ton two post car lift with national exclusive 14 fold profile


column in china,It has the advantages of low cost,beautiful appearance design, high safety and good commonality.

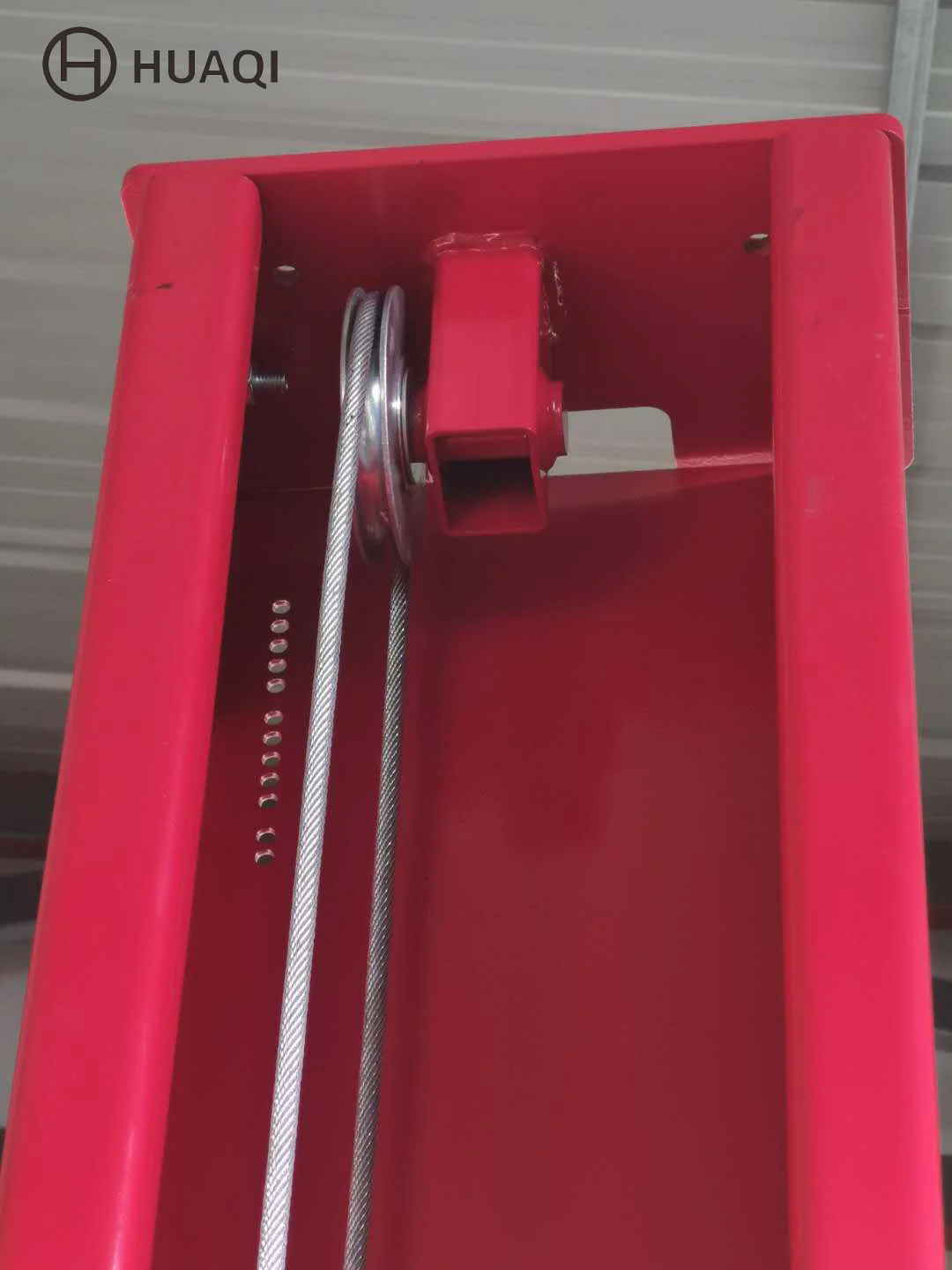

2.You could choose your favorite blendboard pulley or square tube pulley.


3.Tray can be adusted 70-100mm by itself, no need to add incrase section.

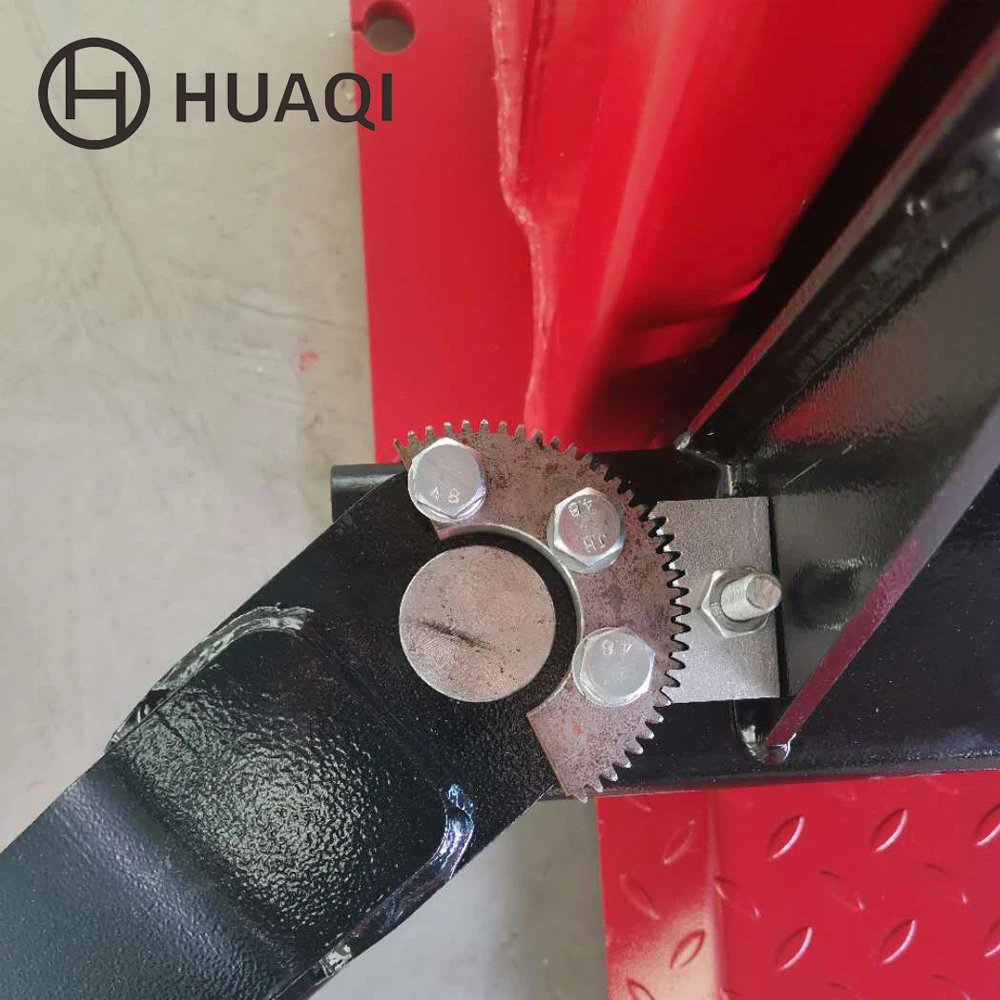

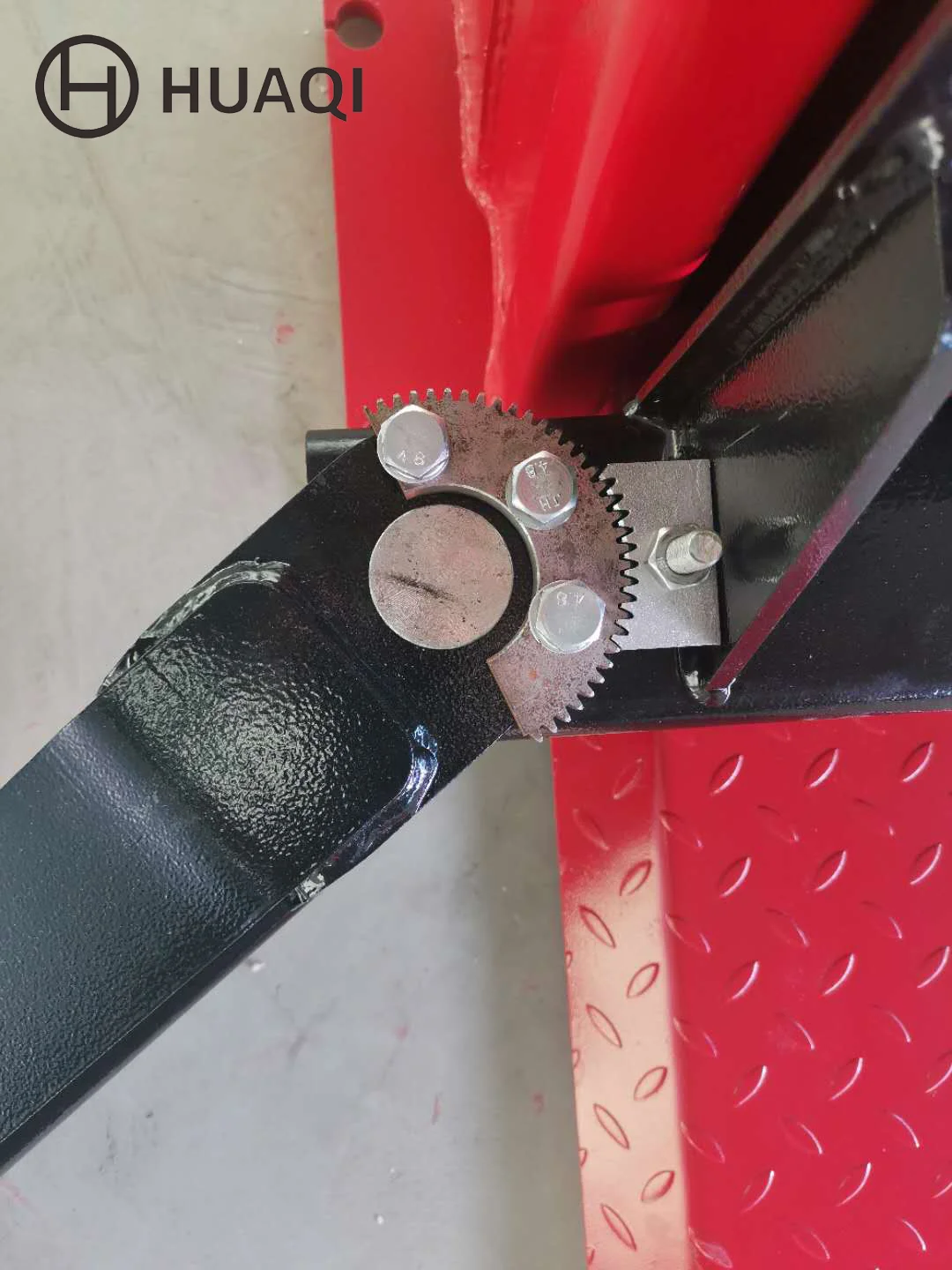

4.Special lock with conical gear for stronger and safer locking.


5.It is Mechanical Dual-point release.


6.You are free to choose the configuration you need, and we will assemble it for you.Customized for you!














TECHNICAL DATA.jpg
































Capacity:..........................................................................................4000kg
Lifting height:..............................................................................1900mm
Lifting time:....................................................................................55s
Overall width:.............................................................................  3300mm
Inside column:............................................................................ 2800mm
Voltage:...............................................................................................380v/220v/110v

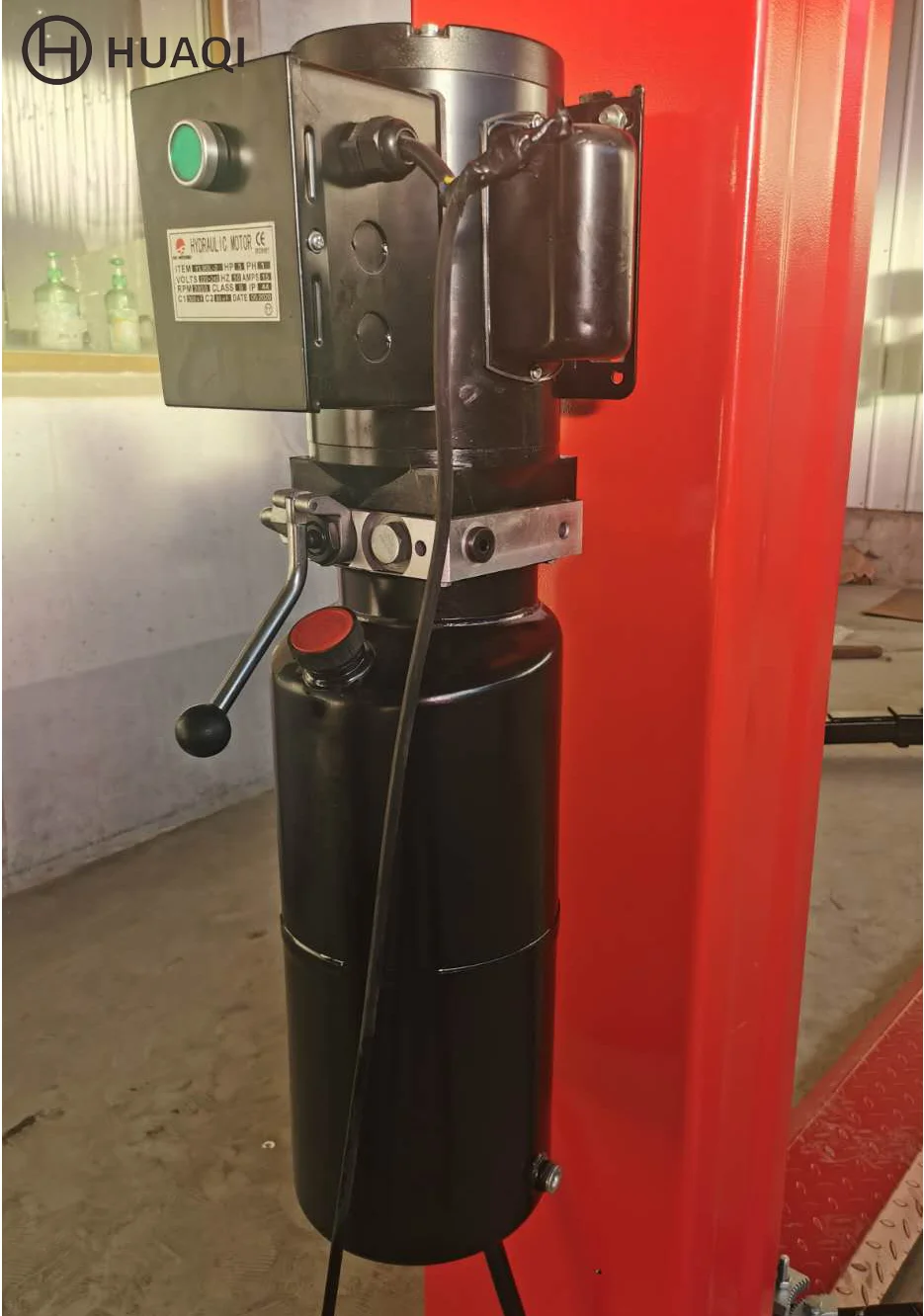

Motor power:..................................................................................2.2kw
Rated oil pressure:...................................................................20Mpa
Noise:.......................................................................................................≤80dB




































  Machine package size   motor unit package size
length........................................2830mmlength..........................................820mm
width..........................................450mmwidth............................................310mm
height.........................................700mmheight...........................................250mm
weight.........................................482kgweight...........................................22kg







      Total   2  packages                                 Total weight :504kg
