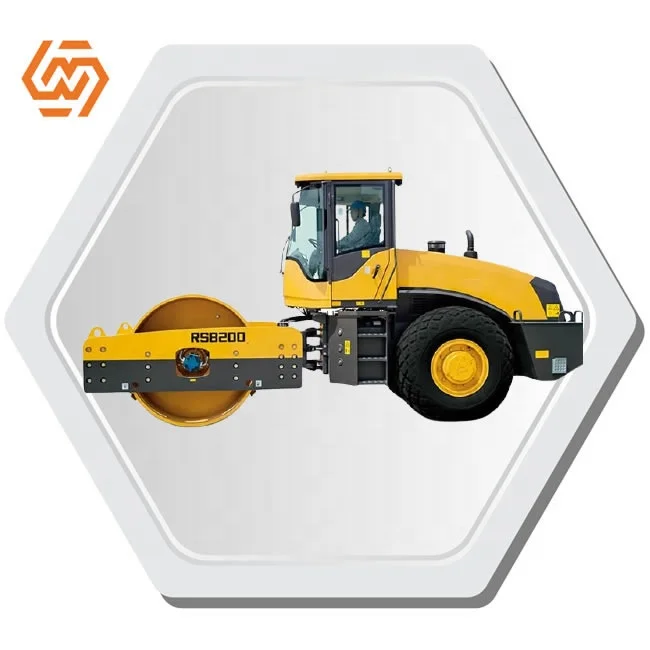

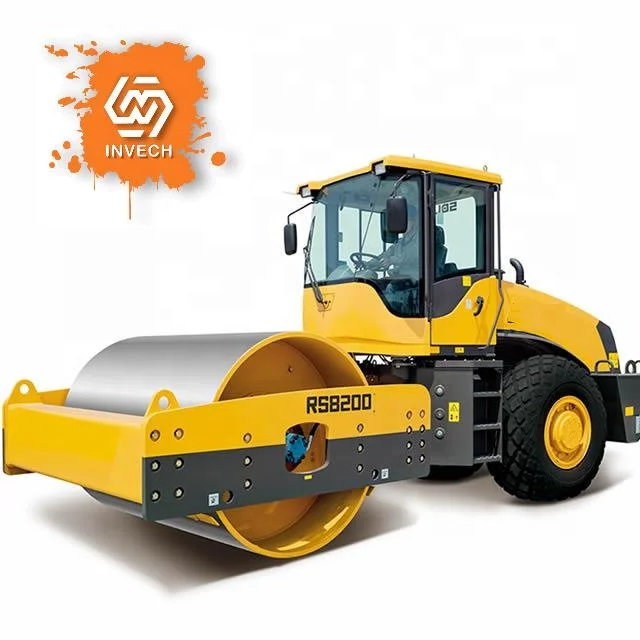

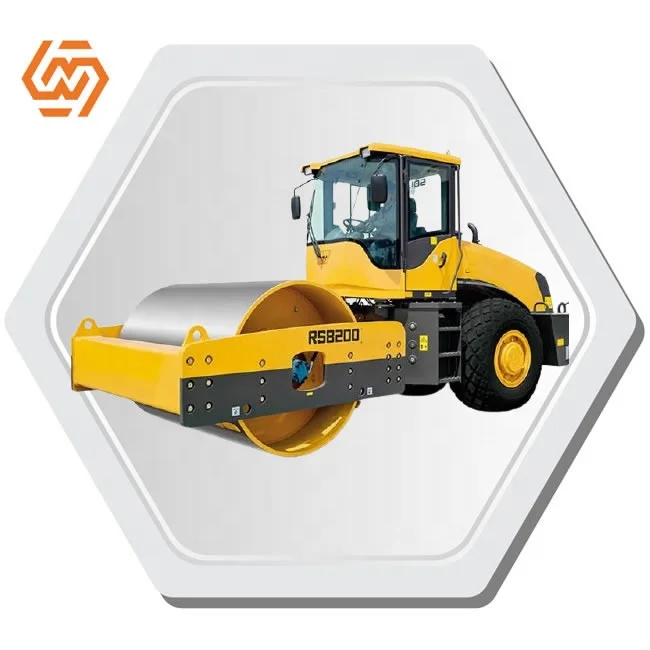

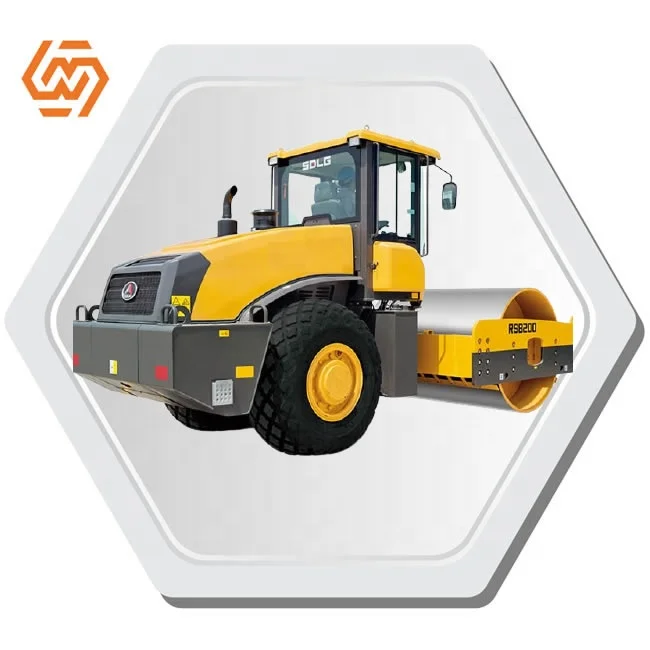

SC Invech Road Roller Compactor Road Machinery with Single Drum
- Category: >>>
- Supplier: Nanyang Invech Machinery And Electric Equipment Co. Ltd.
Share on (1600413530979):
Product Overview
Description
Invech Road Roller Compactor Road Machinery with Single Drum
Road rollers are also called handrail rollers. At present, the types of small road rollers mainly include: walking-behind single-wheel roller, walking-behind two-wheel roller, and seat roller.
Parameters
L*W*H | 6370*2360*3185mm |
Width of vibratory drum | 2150mm |
Diameter of vibratory drum | 1575mm |
Wheelbase | 3441mm |
Min. ground clearance | 407mm |
Min turning radius | 6600mm |
Compaction width | 2150mm |
Theoretical gradeability | 30% |
Swing angle | 12° |
Turning angle | 35° |
Overall parameters | |
Operating weight | 22000kg |
Front wheel distributed weight | 11000kg |
Rear wheel distributed weight | 11000Kg |
Nominal amplitude | 2.0/1.0mm |
Frequency | 28/35Hz |
Excitation force(high/low) | 390/300kN |
Static linear load | 511N/cm |
Engine | |
Model | WP6G190E20 |
Type | Four-stroke, Inline, water-cooled, direct injection |
Rated Power @ Revolution Speed | 140kW |
Displacement | 6750mL |
Cylinder bore × stroke | 105*130mm |
Emission standard | Tier2 |
Rated fuel consumption | 215g/kw.h |
Max. torque | 800N.m |
Transmission system | |
Clutch type | Dry single-plate clutch |
Transmission type | Fixed shaft power shift |
Gears | Forward 3 reverse 3 |
Speed at forward/reverse gear I | 0-2.5km/h |
Speed at forward/reverse gear II | 0-4.9km/h |
Speed at forward gear III | 0-11.7km/h |
Brake system | |
Service brake type | Air over hydraulic disc type |
Parking brake type | Manual drum braking |
Steering system | |
Type | Full hydraulic steering gear |
System pressure | 16Mpa |
Vibratory system | |
Type | closed system |
System pressure | 40Mpa |
Fill capacity | |
Fuel | 270L |
Engine oil | 16L |
Hydraulic oil | 125L |
