Особая теплопроводность, вакуумные аксессуары из керамического волокна
- Category: Other Ceramic Fiber Products >>>
- Supplier: Zibo Double Egret Thermal Insulation Co. Ltd.
Share on (1600413545457):
Product Overview
Description

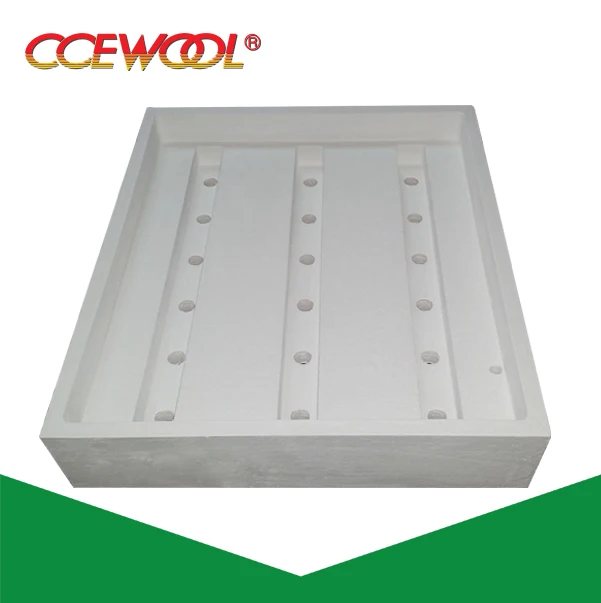

| CCEWOOL ® Unshaped Vacuum Formed Ceramic Fiber is made from high quality ceramic fiber bulk as raw material, through vacuum forming process. This product is developed into unshaped product with both superior high-temperature rigidity and self-supporting strength. We produce this CCEWOOL ® Unshaped Vacuum Formed Ceramic Fiber to fit for the demand for some specific industrial sector production processes, with dedicated molds to deliver each product in various shapes and sizes. Depending on performance requirements of the unshaped products, different binders and additives are used in production process. All unshaped products are subject to relatively low shrinkage in their temperature ranges, and maintain a high thermal insulation, lightweight and shock resistance. The non-burnt material can easily be cut or machined. During use, this product shows excellent resistance to abrasion and stripping, and can not be wetted by most molten metals. | ||||||||||
| Raw Material | 1.The raw material is Ceramic fiber bulk.We have our own base of raw material. We can control the quality of raw material. | |||||||||
| 2. We use the thrown silk ceramic fiber wool to produce ceramic fiber products,so the color is much pure white. | ||||||||||
| Density | 300--450kg/m3 | |||||||||
| Type | 1050 common ceramic fiber unshaped parts | |||||||||
| 1260 standard ceramic fiber unshaped parts | ||||||||||
| 1260 high purity ceramic fiber unshaped parts | ||||||||||
| 1400 zirconium aluminium ceramic fiber unshaped parts | ||||||||||
| 1450 high zirconium ceramic fiber unshaped parts | ||||||||||
| Product Advantage | 1. Our ceramic fiber products are more pure white because of our own raw material. | |||||||||
| 2. The strength power is much stronger. | ||||||||||
| 3. CCEWOOL ceramic wool are all in accordance with European CE standards with MSDS | ||||||||||
| 4.Our Ceramic fiber products got ISO9001 certificate,our quality is according with ISO Quality System seriously. | ||||||||||

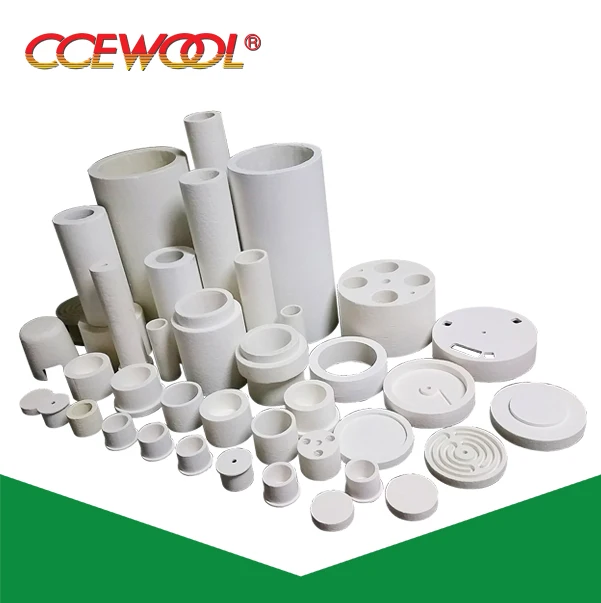

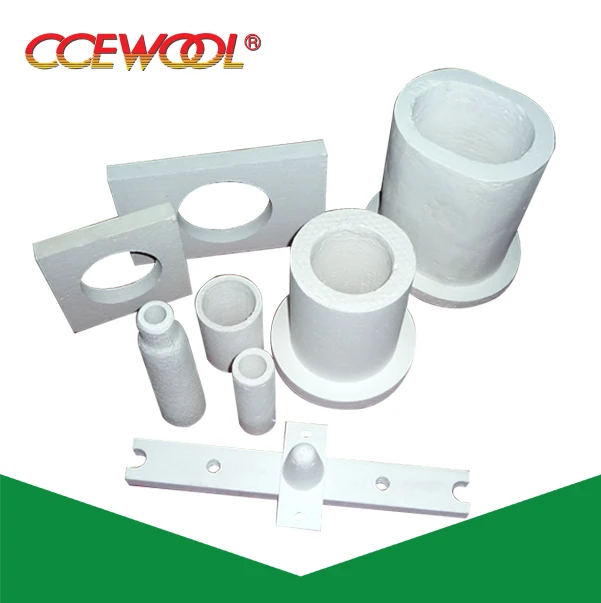

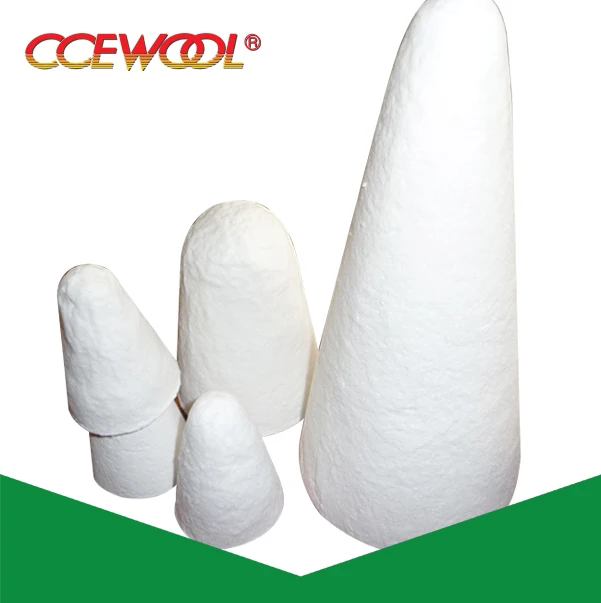

| We can do! | 1. We can do Various of shaped ceramic fiber accessories,such as tube shaped, conical shaped,dome-shaped and box-shaped etc. | |||||||||
| 2. We can do as customers' design. | ||||||||||
| 3. We can do unshaped ceramic fiber accessories as stock for customers,such as casting cap and casing pipe for non-ferrous metal industry, as well as vacuum formed kiln eye for petrochemical industry. | ||||||||||
| 4. We can do vacuum forming hardener or refractory clay coating can be used to shaped products as a protective layer, if necessary. | ||||||||||
| Working temperature | 1260 Standard----1050C (1922F) | |||||||||
| 1260 High purity----1100C (2012F) | ||||||||||
| 1400 zirconium aluminium----1250C (2282F) | ||||||||||
| 1450 High Zirconium----1350C (2462F) | ||||||||||
| Certificate | ISO9001,CE,REACH Standard: SGS,TUV,BV | |||||||||
| Shaped | As customers' design. | |||||||||
| Sample | We can supply sample for confirmed. | |||||||||
| Package | In carton or wood box | |||||||||
| Type | 1050 Common unshaped ceramic fiber parts | 1260 Standard unshaped ceramic fiber parts | 1260 High purity unshaped ceramic fiber parts | 1400 High aluminium unshaped ceramic fiber parts | 1450 High zirconium unshaped ceramic fiber parts | |||||
| Density | 300--450 kg/m3 | |||||||||
| Permanent change on heating | 950°C x 24h ≤-4 | 1000°C x 24h ≤-3 | 1100°C x 24h ≤-3 | 1200°C x 24h ≤-3 | 1350°C x 24h ≤-3 | |||||
| Theoretic heat conductive co-efficient W/(m.k) | 0.13 (600°C) 0.20 (800°C) | 0.13 (800°C) 0.19 (1000°C) | 0.13 (800°C) 0.19 (1000°C) | 0.12 (800°C) 0.20 (1000°C) | 0.16 (800°C) 0.20 (1000°C) | |||||
| Chemical composition | Al2O3 % | 37 | 46 | 47--49 | 52--55 | 39--40 | ||||
| Al2O3+SiO2 % | 96 | 97 | 99 | 99 | 0 | |||||
| ZrO2 % | 0 | 0 | 0 | 0 | 15--17 | |||||
| Al2O3+SiO2+ZrO2 % | 0 | 0 | 0 | 0 | 99 | |||||
| Fe2O3 % | ≤1.0 | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Na2O+K2O % | ≤0.8 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
| Specifications | Manufactured based on drawing provided by customer | |||||||||
| Packing | Carton or in wooden box | |||||||||
More CCEWOOL® ceramic fiber product information, pls check:
//www.ceceramicfiber.com/CCEWOOLCeramicFiber.shtml/?sunny
