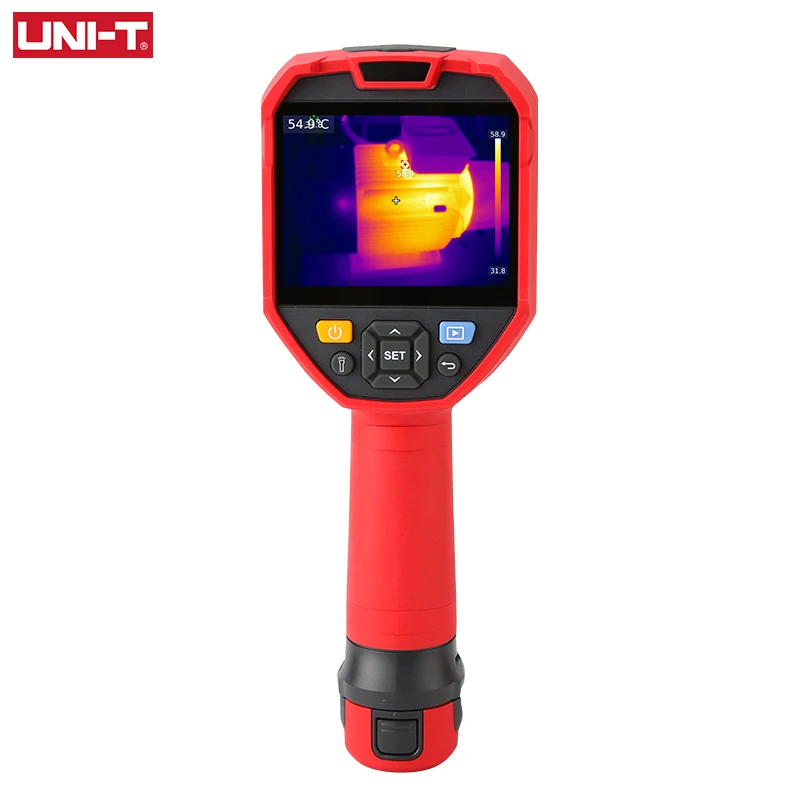

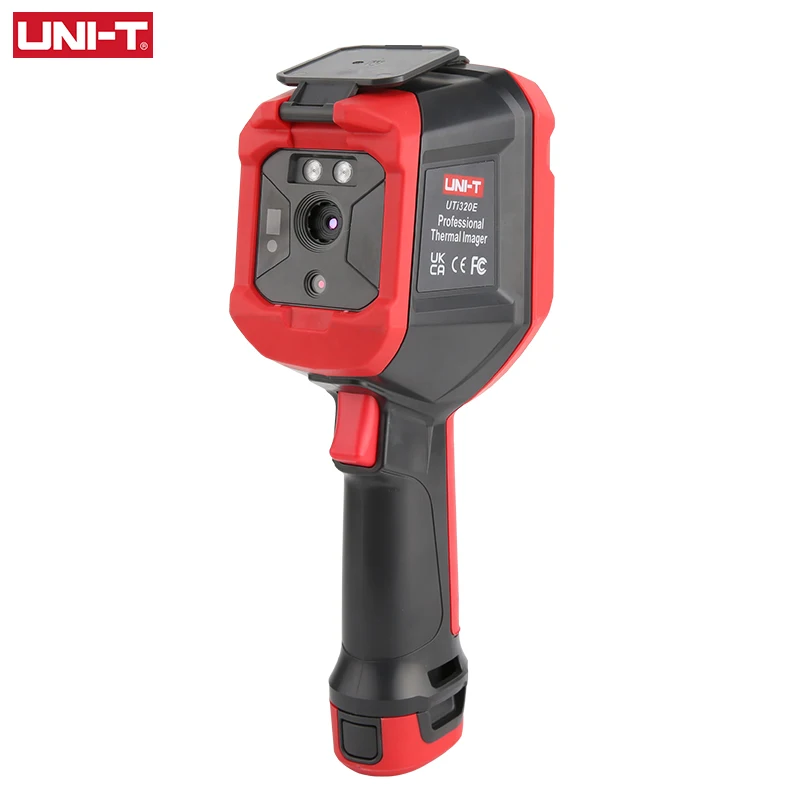

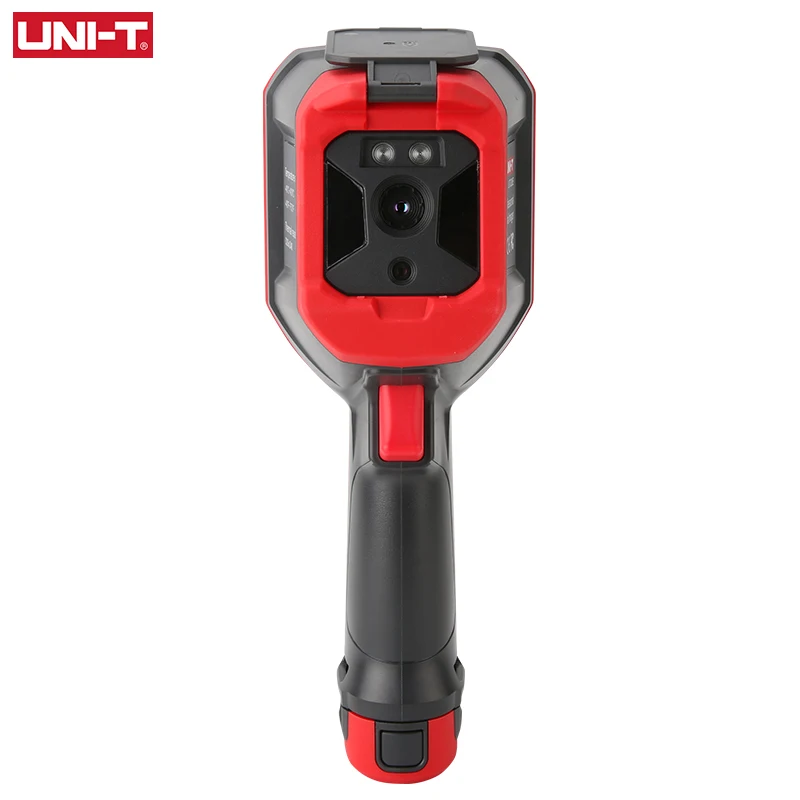

UNI T UTI320E 76800 Pixel Construction Thermal Imager For Repair Infrared Camera Circuit Board Testing PC Software Analysis
- Category: >>>
- Supplier: Uni-Trend Technology (China) Co. Ltd.
Share on (1600413550769):
Product Overview
Description
Product Paramenters

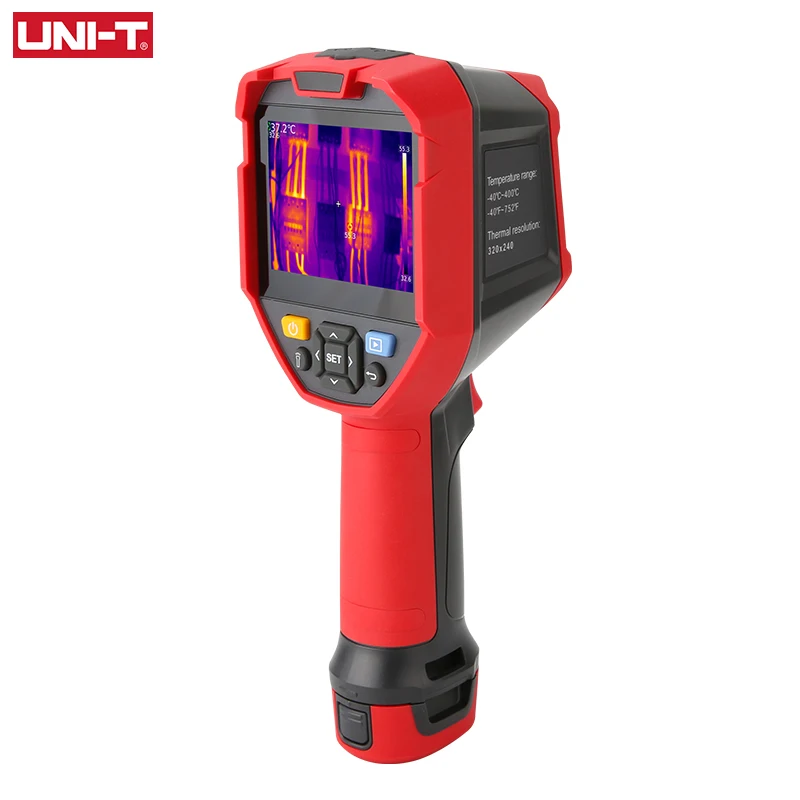

UTi320E Thermal Imager
UNI-T Enhanced Thermal Imagers provide various functions compared with Classic and Echo series, such as flexible measurement presets, high resolution digital camera (2Megapixel), WiFi, Isotherm etc. The imager size is bigger which allows a bigger screen (3.5’’ IPS) for excellent display quality. Its replaceable battery modules allow the imager to have minimal down time, greatly improving productivity.
Features
1. Infrared resolution: 256x192 to 320x240
2. Temperature measurement range: -20℃~550℃ / -40℃~400℃
3. 2 Megapixel digital with 2x, 4x digital zoom

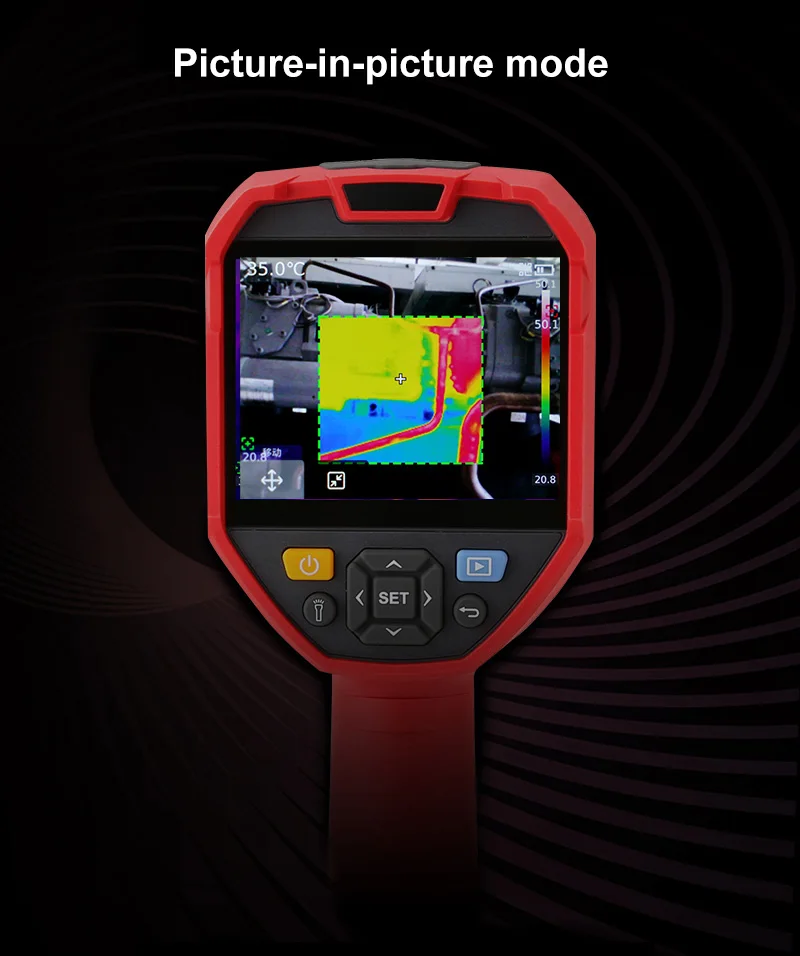

4. Image blending and Picture in Picture
5. WiFi download photos
6. Battery replaceable
2. Temperature measurement range: -20℃~550℃ / -40℃~400℃
3. 2 Megapixel digital with 2x, 4x digital zoom
4. Image blending and Picture in Picture
5. WiFi download photos
6. Battery replaceable

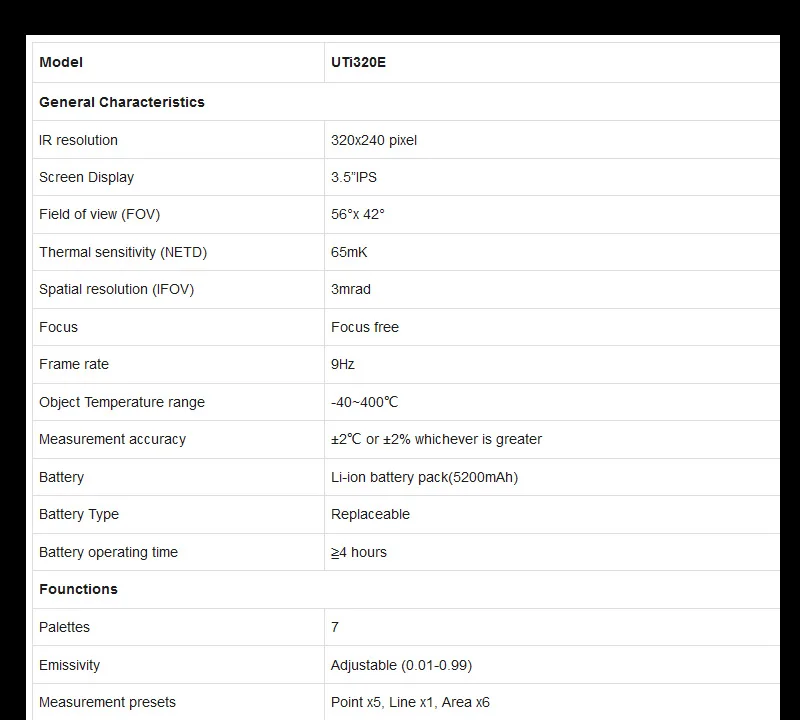

Model | UTi320E | |
General Characteristics | ||
IR resolution | 320x240 pixel | |
Screen Display | 3.5”IPS | |
Field of view (FOV) | 56°x 42° | |
Thermal sensitivity (NETD) | 65mK | |
Spatial resolution (IFOV) | 3mrad | |
Focus | Focus free | |
Frame rate | 9Hz | |
Object Temperature range | -40~400℃ | |
Measurement accuracy | ±2℃ or ±2% whichever is greater | |
Battery | Li-ion battery pack(5200mAh) | |
Battery Type | Replaceable | |
Battery operating time | ≧4 hours | |
Founctions | ||
Palettes | 7 | |
Emissivity | Adjustable (0.01-0.99) | |
Measurement presets | Point x5, Line x1, Area x6 | |

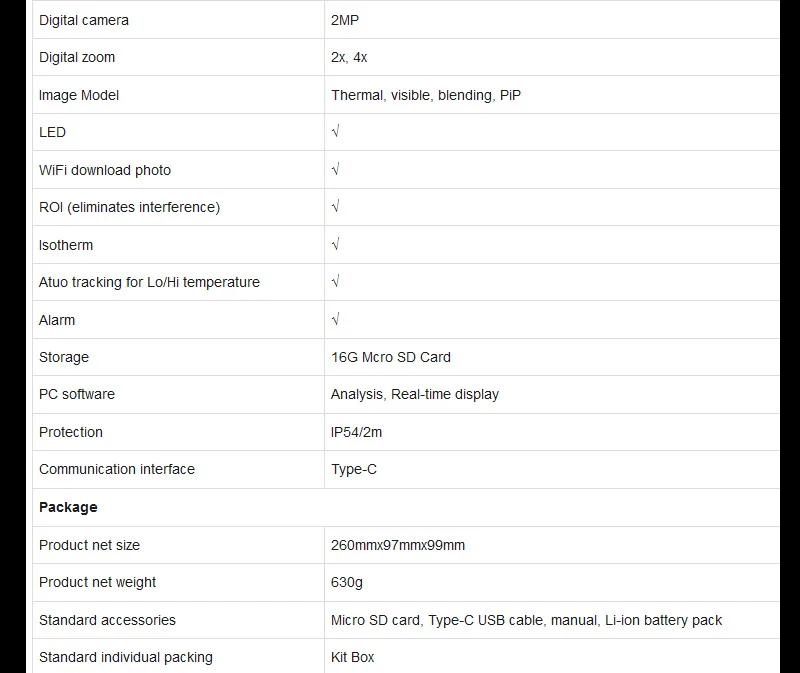

Digital camera | 2MP | |
Digital zoom | 2x, 4x | |
Image Model | Thermal, visible, blending, PiP | |
LED | √ | |
WiFi download photo | √ | |
ROI (eliminates interference) | √ | |
Isotherm | √ | |
Atuo tracking for Lo/Hi temperature | √ | |

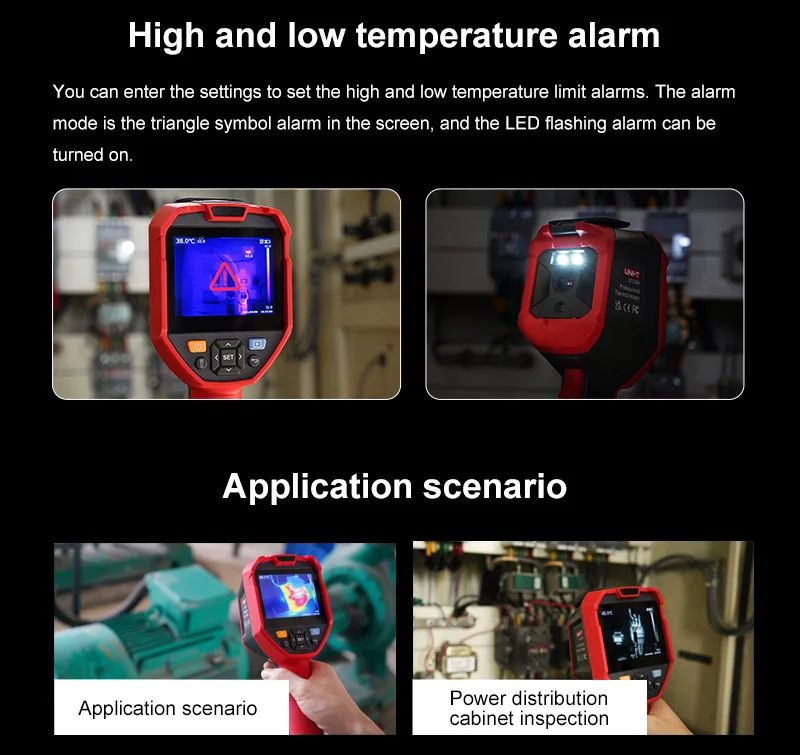

Alarm | √ | |
Storage | 16G Mcro SD Card | |
PC software | Analysis, Real-time display | |
Protection | IP54/2m | |

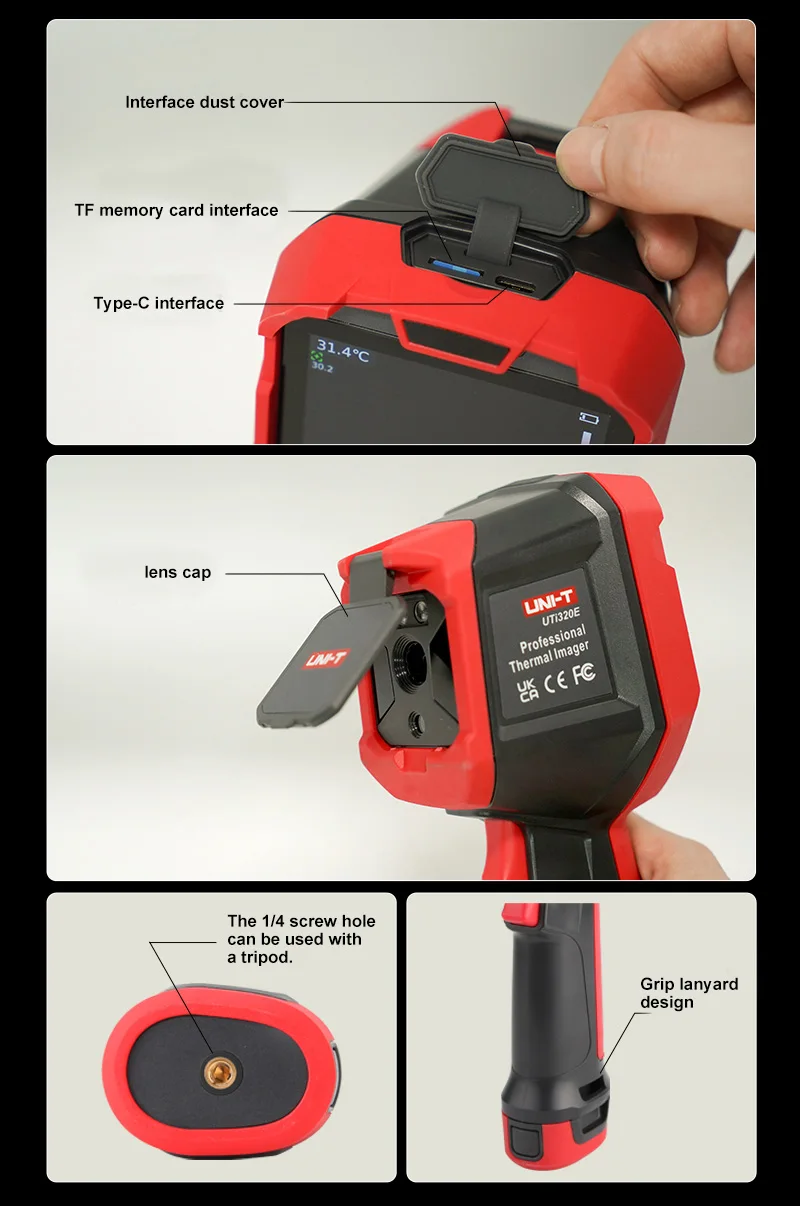

Communication interface | Type-C | |
Package | ||
Product net size | 260mmx97mmx99mm | |
Product net weight | 630g | |

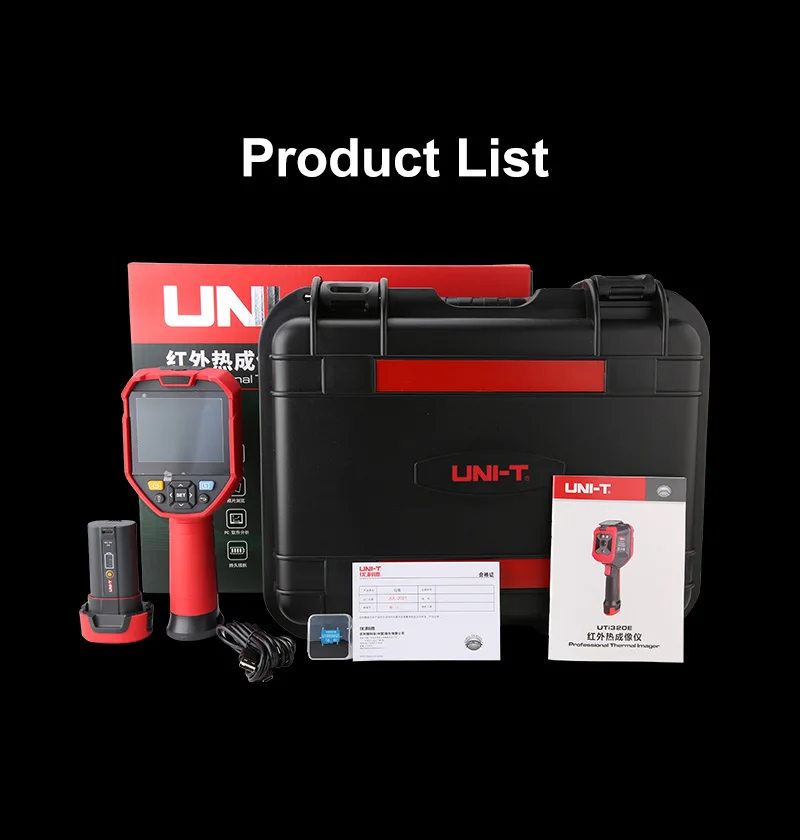

Standard accessories | Micro SD card, Type-C USB cable, manual, Li-ion battery pack | |
Standard individual packing | Kit Box | |
