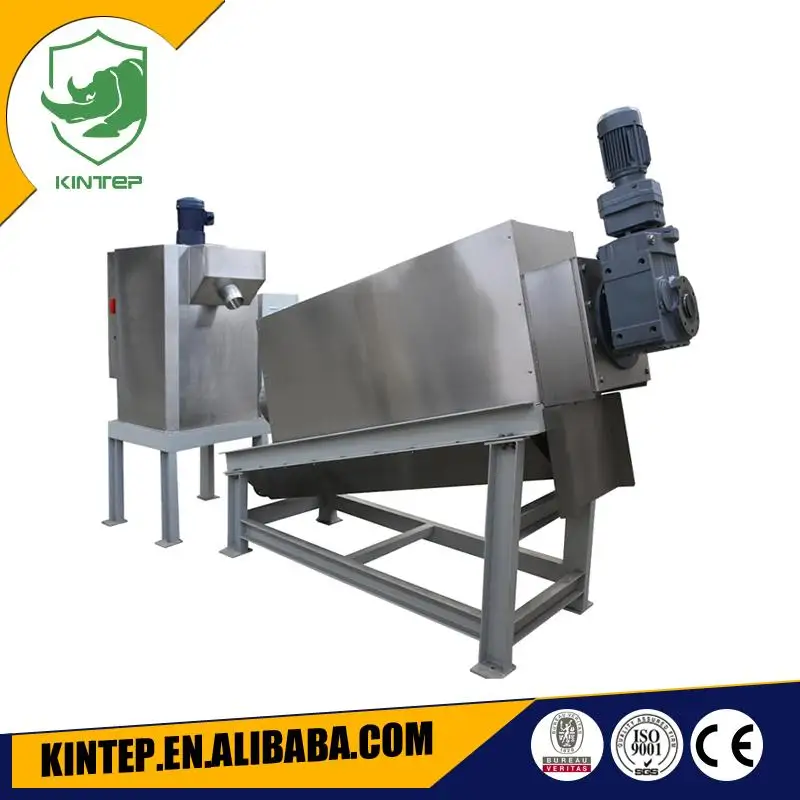

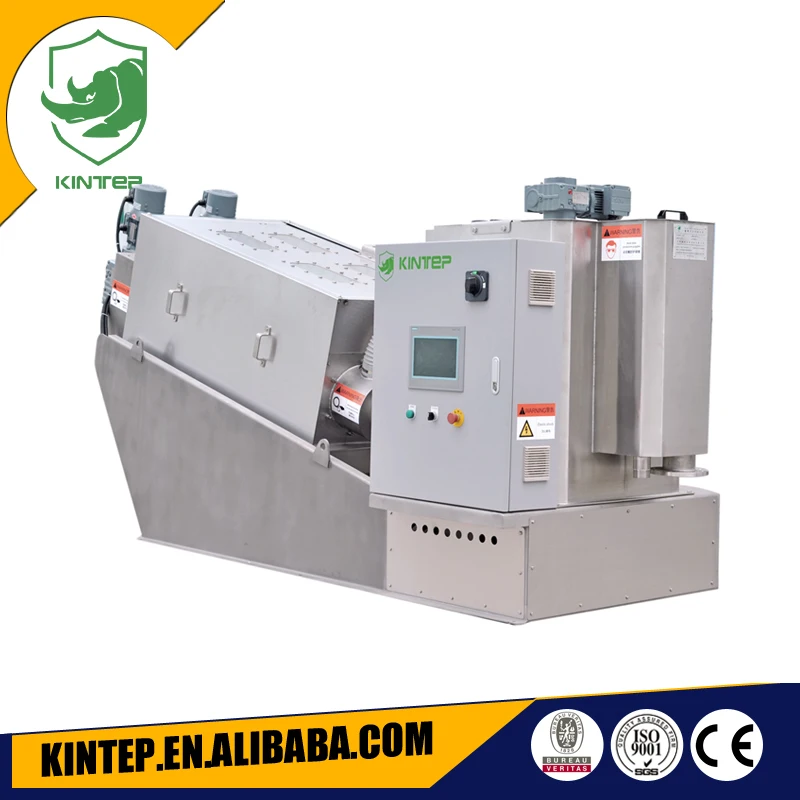

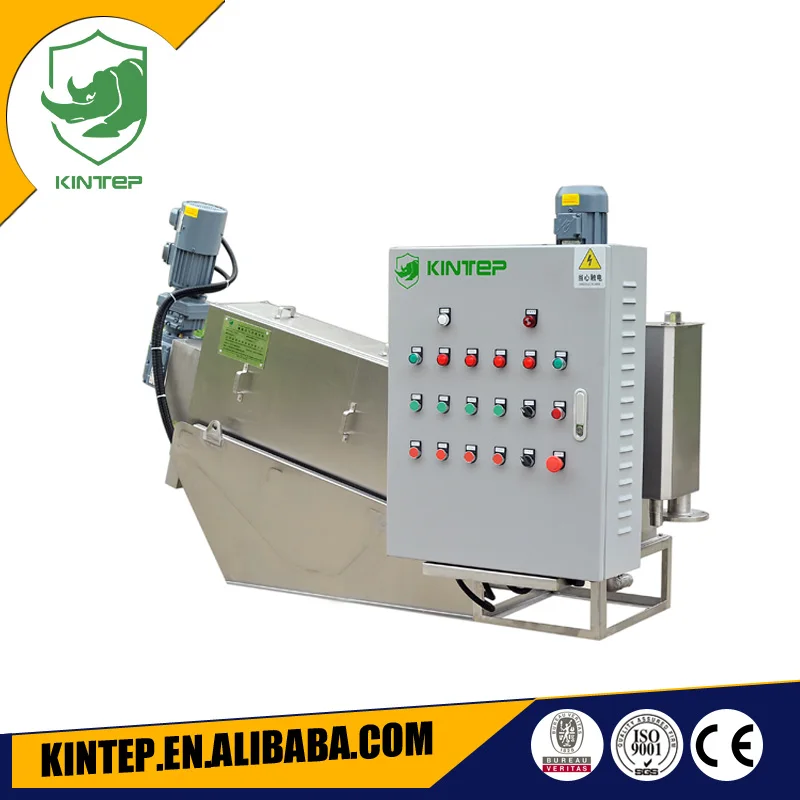

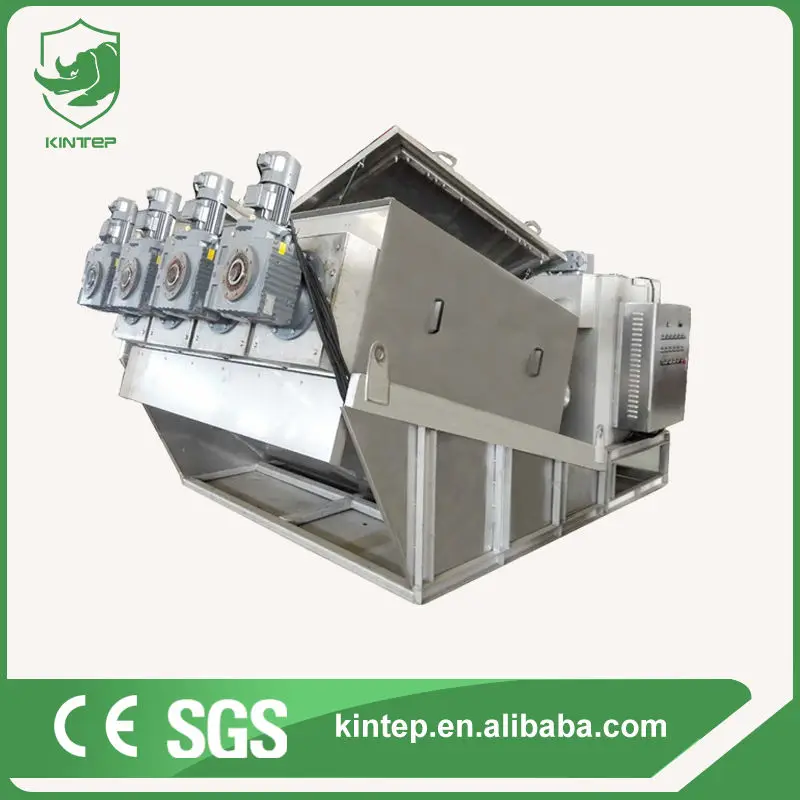

Kintep sludge dewatering machine screw press for palm oil industry

Product Overview

Description

     Screw Press Dewatering machine

Model	DS Standard handling         capacity(kg/h)		Sludge flow(m³/h)				Dimension (mm)			Net weight (kg)	Function  weight (kg)
	High concentr -ation	Low concentr -ation	10000 mg/l	2000 0mg/l	25000 mg/l	50000 mg/l	L	W	H
131	10	5	0.5	0.5	0.4	0.2	1870	730	1170	250	395
132	20	10	1	1	0.8	0.4	2000	960	1230	350	595
133	30	15	1.5	1.5	1.2	0.6	2000	1190	1230	450	795
251	30	15	1.5	1.5	1.2	0.6	2690	880	1600	500	805
252	60	30	3	3	2.4	1.2	2810	1120	1600	800	1320
253	90	45	4.5	4.5	3.6	1.8	2810	1360	1600	1100	1820
301	60	30	3	3	2.4	1.2	3310	1000	1700	750	1275
302	120	60	6	6	4.8	2.4	3500	1300	1700	1340	2225
303	180	90	9	9	7.2	3.6	3700	1650	1700	1750	3030
304	240	120	12	12	9.6	4.8	4000	2050	1750	2150	4150
351	100	50	5	5	4	2	3610	1100	1850	1150	1915
352	200	100	10	10	8	4	3820	1490	1850	1950	3205
353	300	150	15	15	12	6	4120	1770	1850	2800	4830
354	400	200	20	20	16	8	4320	2290	1850	3700	6515
401	160	80	8	8	6.4	3.2	4550	1180	2250	2050	3425
402	320	160	16	16	12.8	6.4	4870	1710	2250	3850	6645
403	480	240	24	24	19.2	9.6	4790	2550	2250	5400	9710
404	640	320	32	32	25.6	12.8	4840	3140	2250	7000	12960
Application	Can be widely used in municipal sewage, food, slaughtering breeding, printing and dyeing, oil chemical industry, paper making, leather, pharmaceutical ,livestock farm(poultry,cow,hog)and other industries of sludge dewatering

Working Principle

When the mahine starts running,the sludge is pushed into the filter cartridge from the feed inlet and then moves  to the sludge cake outlet under the pushing of the helical axis blades.Because the gaps among the helical axis blades will gradually getting narrower,the sludge is undering heavier pressure.Then the water gradually comes out from it as a result of pessure differential and issues from the filtering space between the fixed plates and the moving plates.Relying on the self-cleaning function of the fixed plates and the moving plates,block can be well avoided .At last,the sludge cakes are pushed by helical axis after being fully dewatered and then discharge fro the outlet.



Sludge Dewatering Machine Introduction

The screw sludge dewaterinng machine belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.It concentrates and dehydrats sewage directly in 24 hours continuously anf feeiciently with self -serives operating and greatly reduces the cost of design,construction,operation maintenance and management.

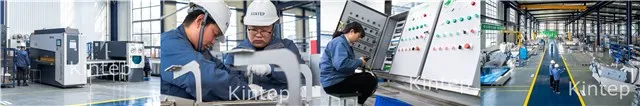

 Jiangsu Kintep Environmental Protection Co., Ltd. was founded in October 2011, three new board officially listed in October 2015 with the stock code: 833948.The company is a R & D, production, sales,after-sales service and completesets of solutions for the integration high-tech enterprises in the national, nowhas more than 90 staffs, 15 specialty R & D project personnel, including 1 doctoral advisor, 1 doctor, 6 senior engineer, 5 mid-level engineers. And maintain relationship of well-known institutions and institutions at home and abroad. We have hundreds cases in China and have been exported to more than 20 countries.
