XXPJ Spray Bonded Polyester Wadding Machine

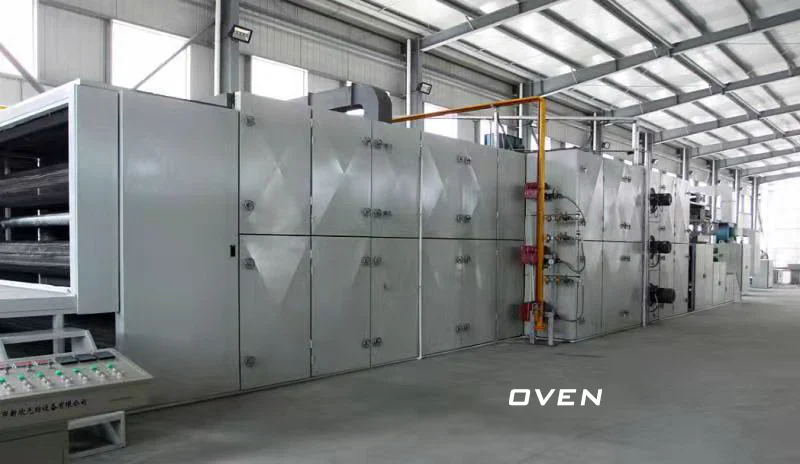

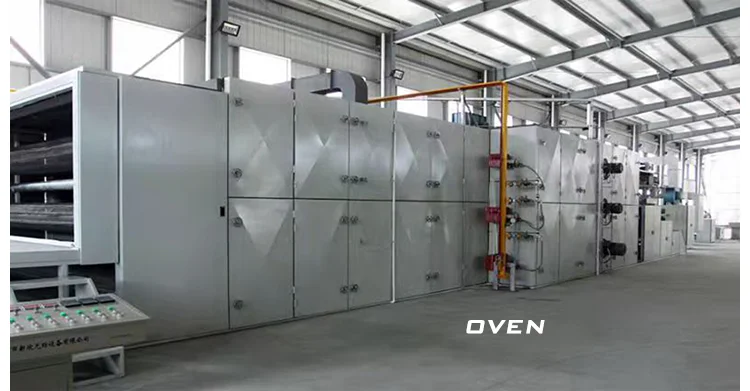

This line is sutable for producing high-elasticity spraying collodion and non-collodion, which are widely used garments, bedding and furnitures. The drying machine for spraying collodion adopts front and back spraying, top-blowing and boto-suction with 6-layer air duct, hot air penetration and convection with high heat efficiency.


Machine Width
3000mm/3200mm/3800mm/4200mm
Product Width
2500mm/2700mm/3200mm/3600mm
Box Length
8000mm/10000mm/12000mm
Product Weight
60~300g/m2
Capacity
100~260kg/h
Heating Method
Vapor, heal-conducting oil, direct ignition
