Product Description


Production discription

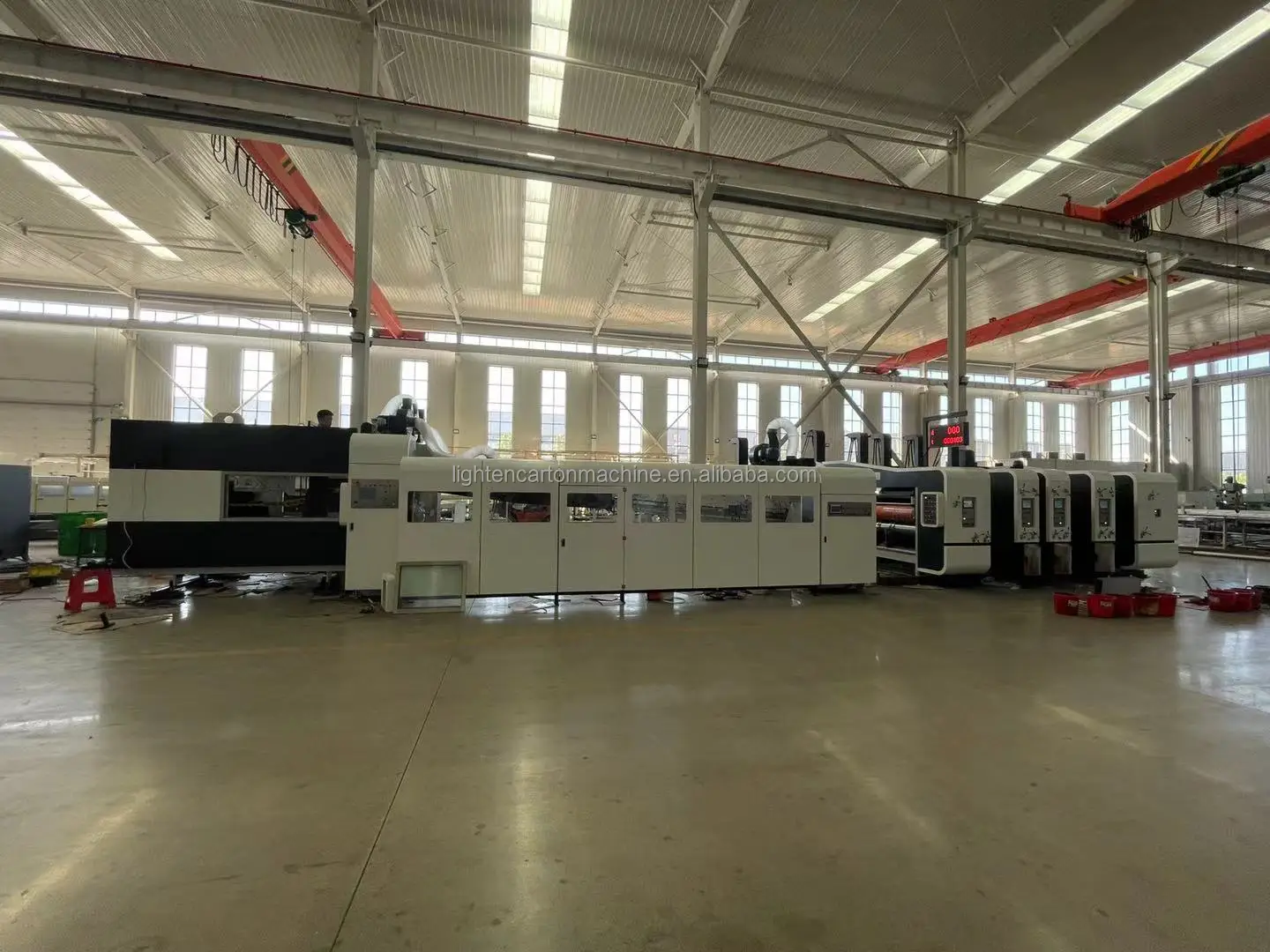

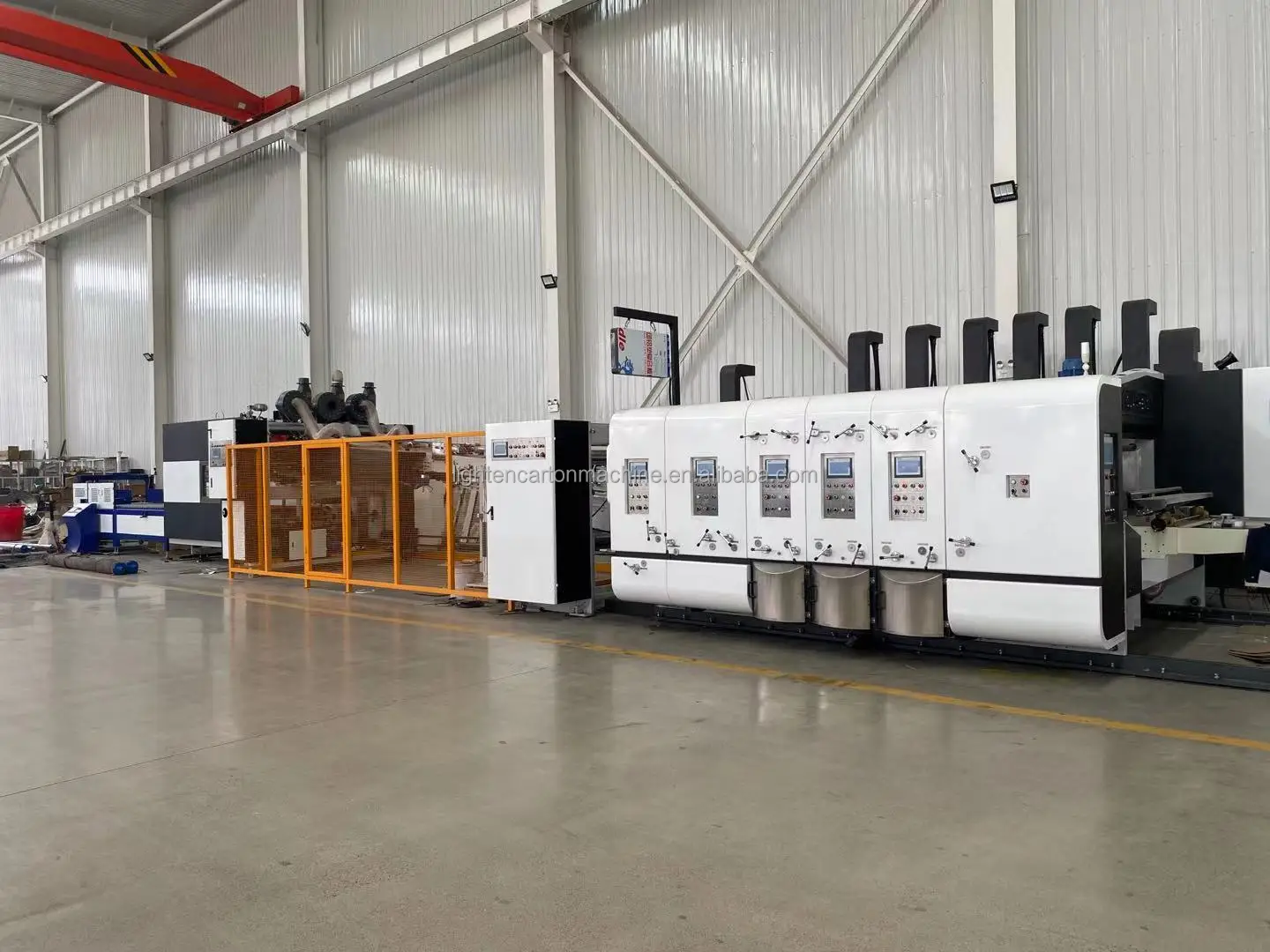

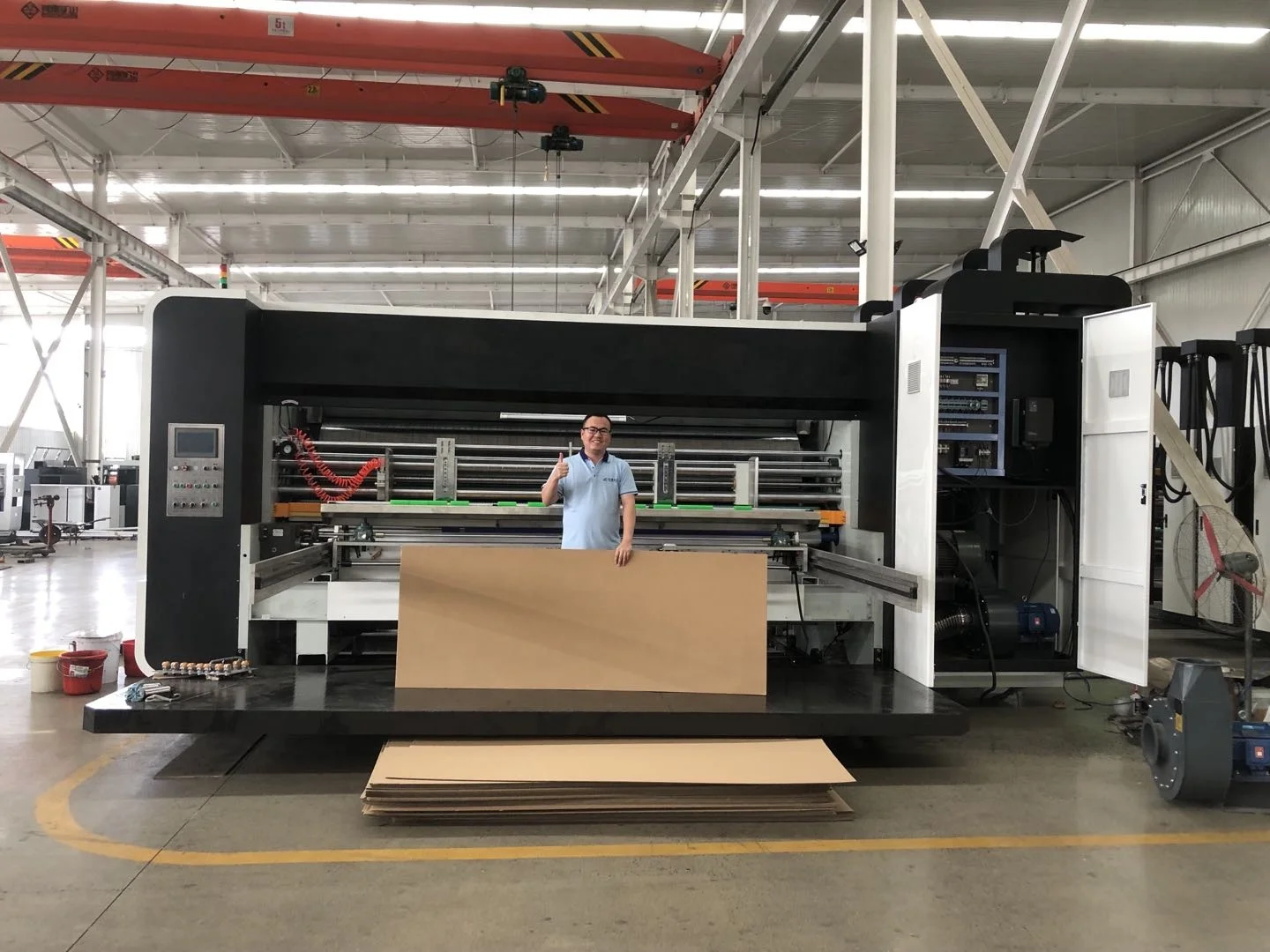

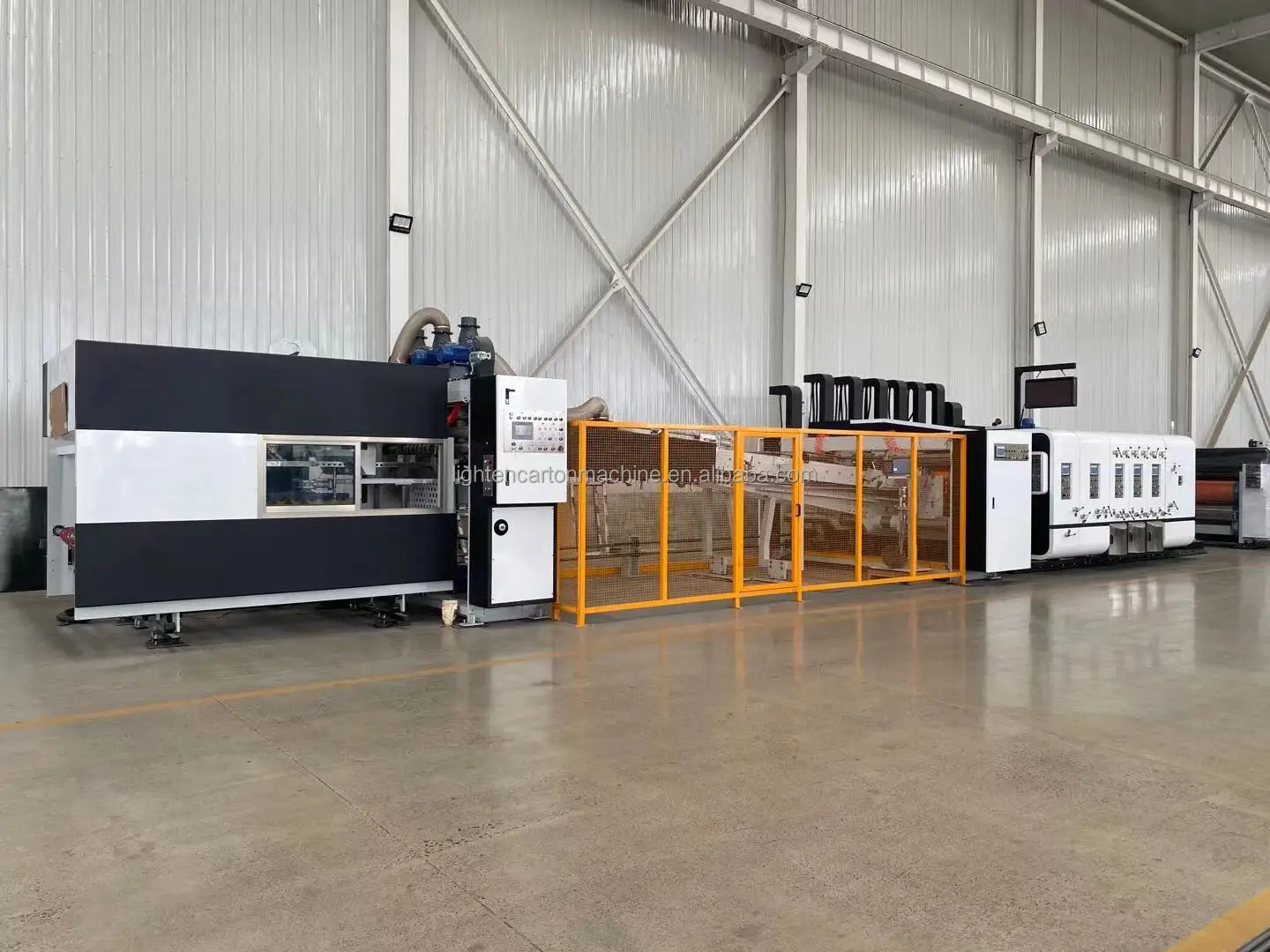

GYKM- High speed flexo printing slotting rotary die cutting with vibrating stacker folder gluer bunding machine
Maximum Paper Feeding size: 920×2200mm 1200×2400mm 1400×2600mm(customized)

Running speed: 100~280 pieces/minutes(customized)

Automatic counting department:(can be choose)
Automatic bunding unit:(can be choose)




Production capacity : 4 million standard beer boxes per month !
Labor requirements: 5-6 including loading and store keeper !

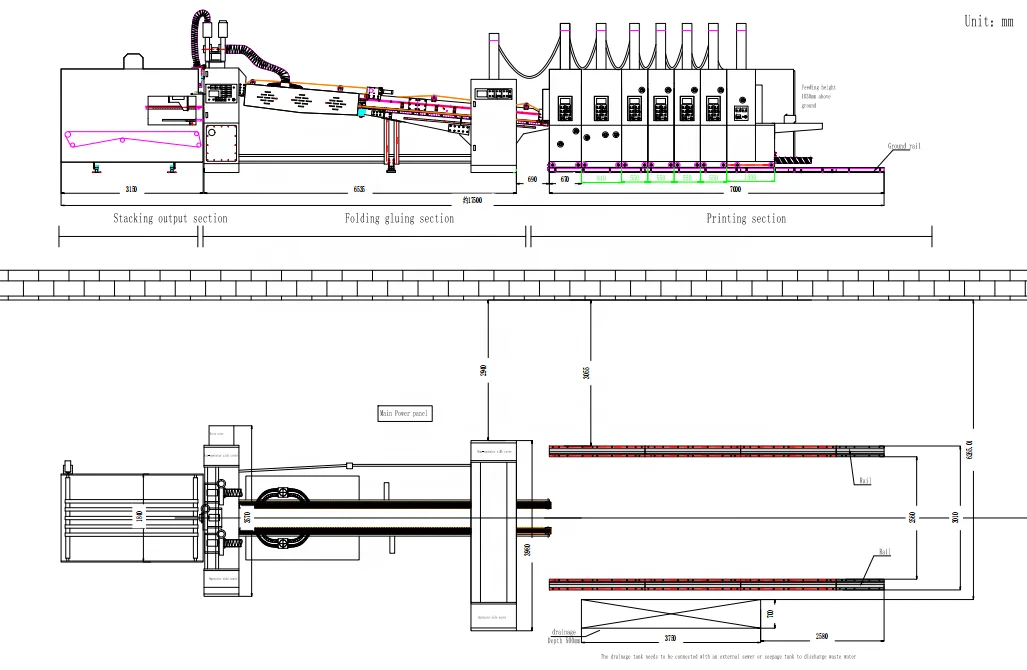

Space requirements : 50 x 30 meters !
Power consumption: 50kw / h
Investment recovery time : Average 6-10 months !






Specification


No.
Parameter
Unit
Model:
GYKM-1224
Model:
GYKM-1428
Model:
GYKM-920
1
Machine size(inner side)
mm
2600
3000
3000
2
Max. Design speed
pieces/min
200
180
250
3
Economical speed
pieces/min
0-180
0-160
0-220
4
Max. Paper Feeding size
mm
1200×2400
1400×2800
920×2400
5
Min. Paper feeding size
mm
320×800
350×800
280×700
6
Max. Printing size
mm
1200×2200
1400×2600
1200×2400
7
Minimum.slotting distance
mm
Negative knife: 300×100×300×100mm
Positive knife:
180 ×180×180×180mm
Negative knife: 280×80×280×80
Positive knife:
160×160×160×160mm
8
Skip paper feeding size
mm
1400×2400
1600×2800
1200×2400
9
Precision of printing
mm
±0.5
±0.5
±0.5
10
Standard print plate thickness
mm
7.2
7.2
7.2
11
Paperboard thickness
mm
2-10
2-10
2-10
12
Max. Die cutting size
mm
1200×2300
1400×2700
920×2300
13
Precision of die cutting
mm
±1
±1
±1
14
Die cutting paperboard thickness
mm
2-10
2-10
2-10
15
Print roller axial direction adjustment
mm
±10
±10
±10


Lead edge feeder
Optional: 1. Zero prussure type.
2. Light prussure type.
3.Normal type.
Printing unit
Optional : 1. Ceramic roller with doctor blade.
2. Ceramic roller with rubber roller.
3. Metal roller with rubber roller.


Slotting unit
Optional: 1. Computer adjustment.
2. Electric adjustment.
Rotary die cutting unit
Optional: 1.Normal style rotary die cutting
2 .Rotary die cutting with slotting knife
3.Die cutting with slotting knife (computer control)


Additional options：
Fully vacuum suction transfer.

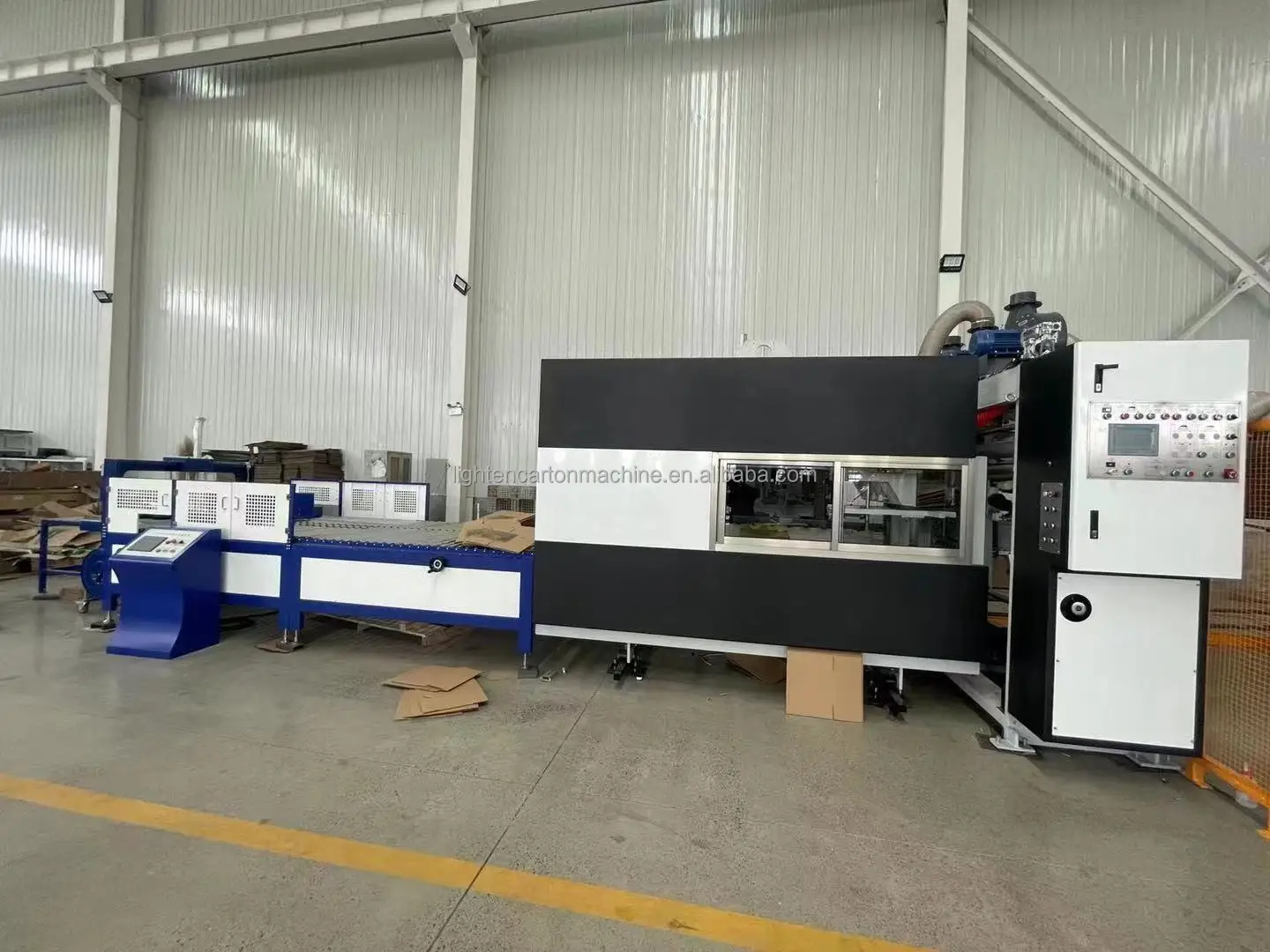

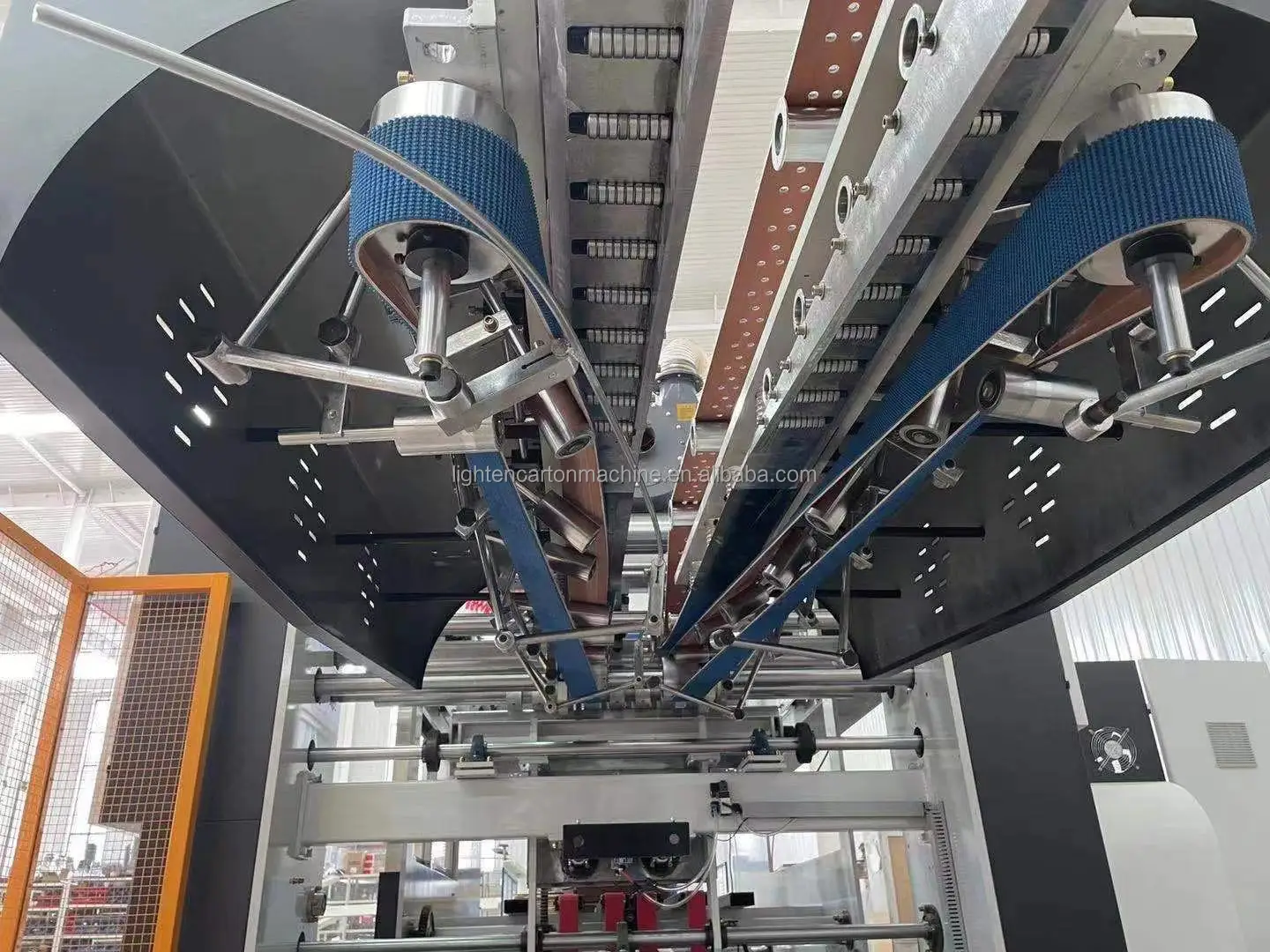

Automatic folder gluer unit
Optional: Normall glue wheel / Italy ERO automatic glue spraying system.


Tidying unit
Optional:
1.Automatic counting function.
2.Automatic bundling function.


Material

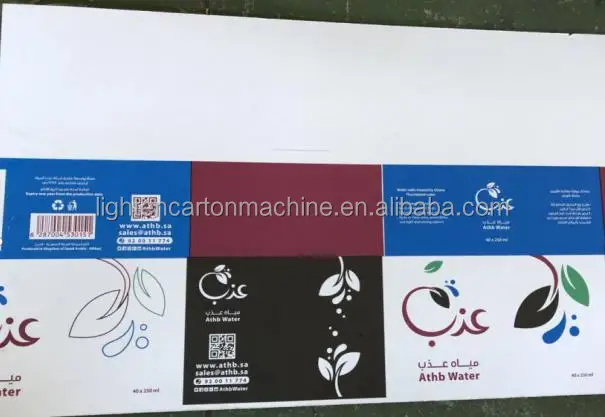

Printing sample

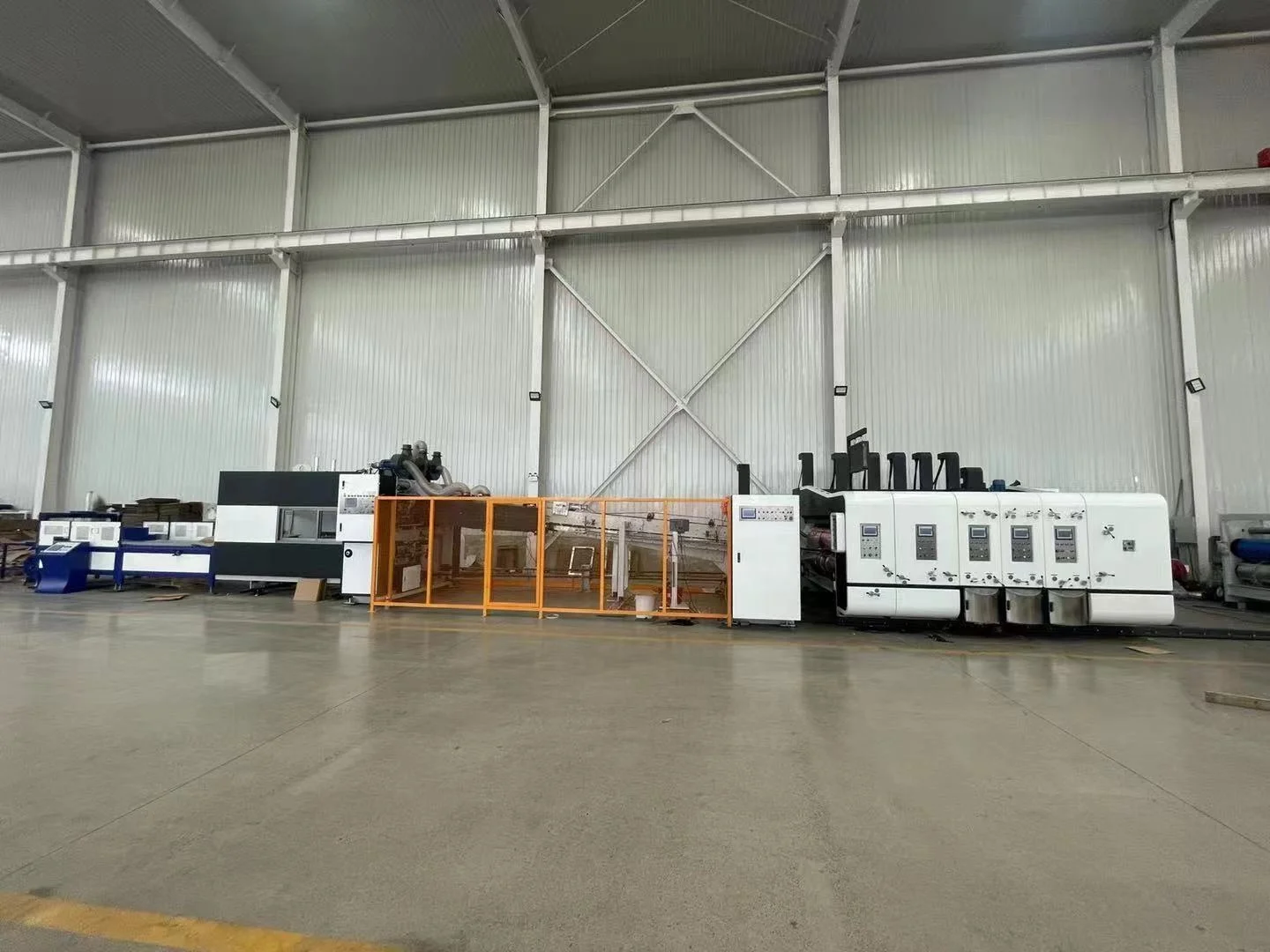

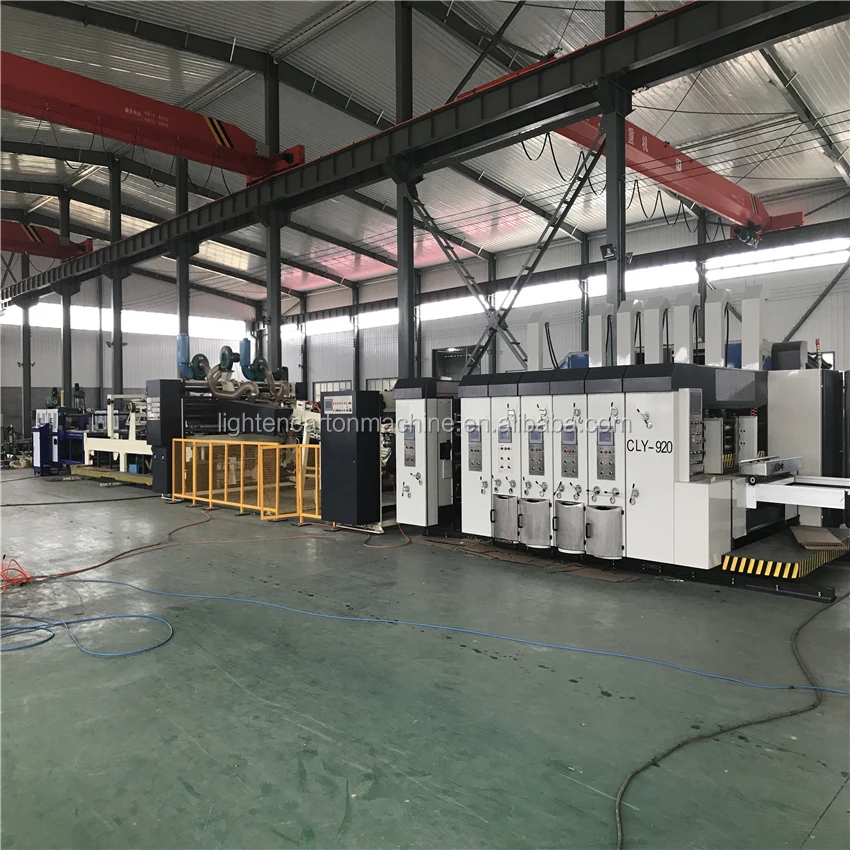

Customer photos




Company Profile

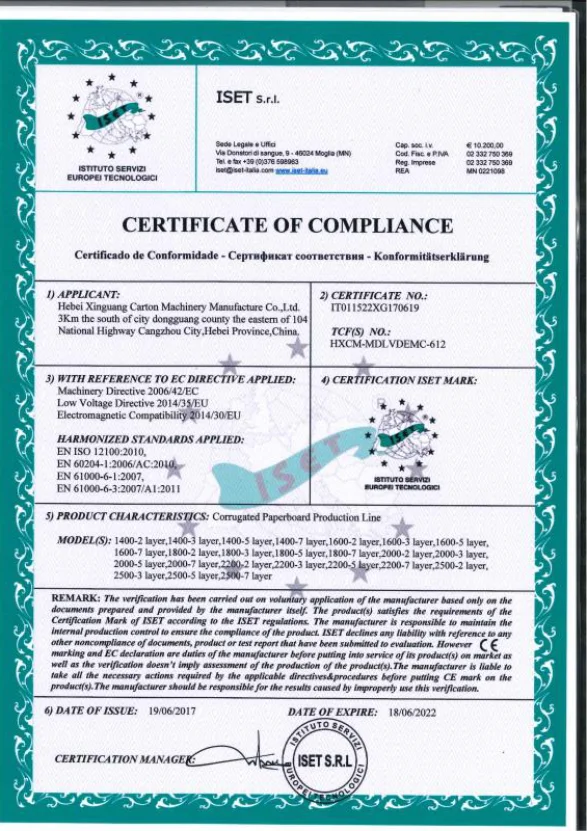

Certificite Display




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Contact information
Colin Zhang (Manager)
Mobile/Whatsapp/Wechat:
0086 18513640900
Email: colin@lightenmachine.com
Facebook: Colin Zhang

Professional carton machine manufacturer&exporter
---30 Year experience --- CE&ISO certificate


After sale service
1. GUARANTEE: WE PROVIDE 5-YEAR GUARANTEE WITH SPARE PARTS IN FREE, AND WE CAN CHANGE THE PARTS DAMAGED BY NORMAL OPERATION IN THIS PERIOD.
2. WE HAVE ENGINEER SERVICE TEAMS IN OVERSEAS COUNTRIES. WE CAN PROVIDE BEST CONVENIENT SERVICE BY 24 HOURS.
3. INSTALLATION: WE WILL DISPATCH 1 TECHNICIAN TO INSTALL MACHINE FOR CUSTOMER. BUT THE EXPENSE INCLUDING AROUND-TICKET, LOCAL
HOTEL, FOOD, LOCAL TRANSPORTATION SHOULD BE BORN BY BUYER, AND THE SALARY FOR EACH TECHNICIAN IS USD100 EVERY DAY AND PAID BY BUYER.
4. 24 HOURS ONLINE SERVICE, PROVIDING FREE QUICK-WEAR PARTS, ENGINEER AVAILABLE TO SERVICE OVERSEAS IF NECESSARY. PRODUCT CERTIFICATED BY CE AND SO ON.
