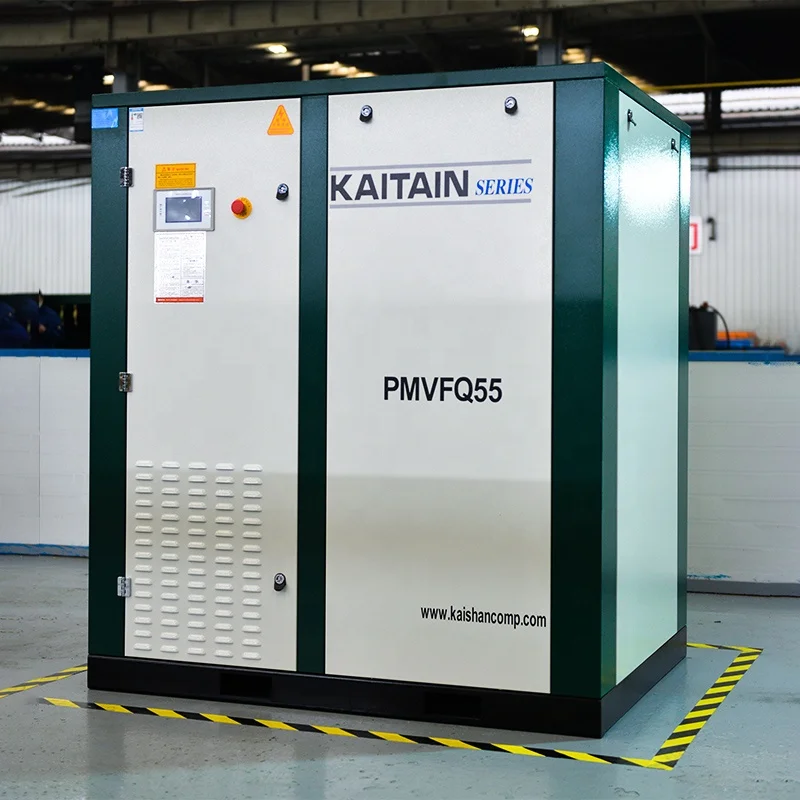

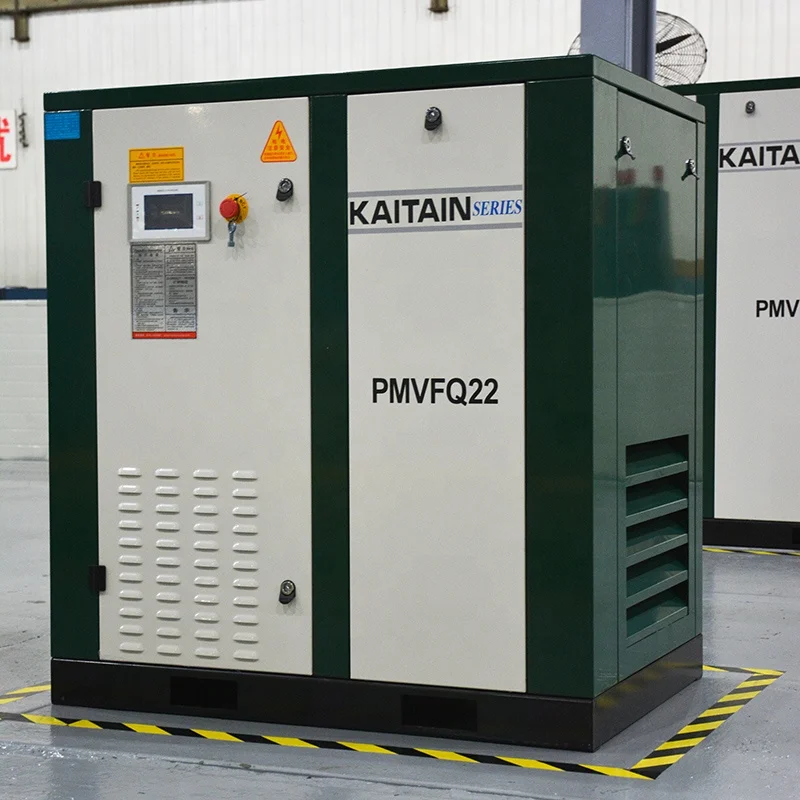

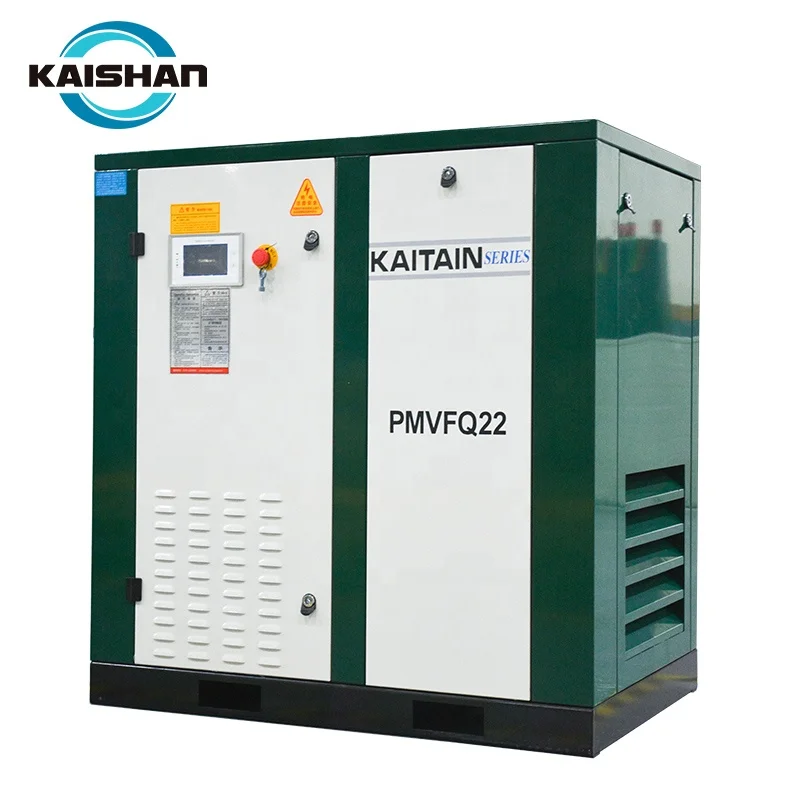

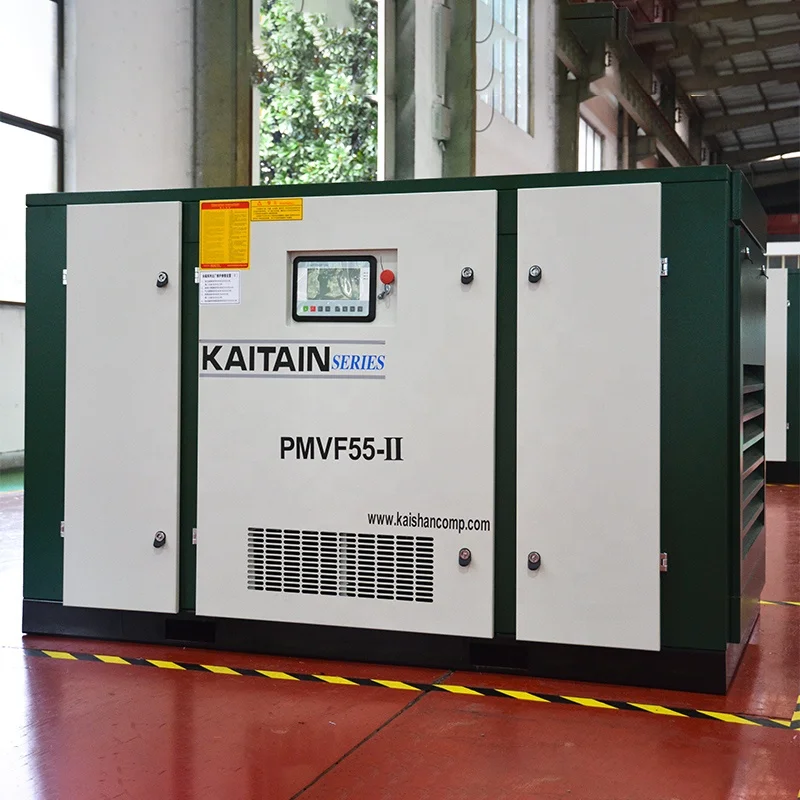

22Kw Energy Saving Low Noise Permanent Magnet Motor pmvf series Screw Air Compressor

Product Overview

Description

factory supply quiet variable frequency screw air compressor

Technical parameters of PMVF screw air compressor

model	Exhaust pressure (bar)	displacement (m3/min)	motor power (kw)	dimension (mm)			weight (kg)
				l	w	h
PMVF11	0.8-10	1.57-1.76	11	1050	830	1240	380
PMVF15	0.8-10	2.25-2.52	15	1050	830	1240	380
PMVF18	0.8-10	2.8-3.15	18	1200	830	1290	480
PMVF22	0.8-10	3.37-3.79	22	1200	830	1290	480
PMVF30	0.8-10	4.58-5.15	30	1300	1000	1540	710
PMVF37	0.8-10	5.95-6.70	37	1300	1000	1540	710
PMVF45	0.8-10	7.31-8.24	45	1500	1160	1700	990
PMVF55	0.8-10	9.43-10.6	55	1500	1160	1700	990
modle	Exhaust pressure (bra)	displacement (m3/min)	motor power (kw)	dimension (mm)			weight (kg)
				l	w	h
PMVF11	0.6-0.9	1.66-1.98	11	1050	830	1240	380
PMVF15	0.6-0.9	2.37-2.88	15	1050	830	1240	380
PMVF18	0.6-0.9	2.99-3.61	18	1200	830	1290	480
PMVF22	0.6-0.9	3.61-4.22	22	1200	830	1290	480
PMVF30	0.6-0.9	4.84-5.77	30	1300	1000	1540	710
PMVF37	0.6-0.9	6.28-7.42	37	1300	1000	1540	710
PMVF45	0.6-0.9	7.73-9.27	45	1500	1160	1700	990
PMVF55	0.6-0.9	9.99-11.95	55	1500	1160	1700	990

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
