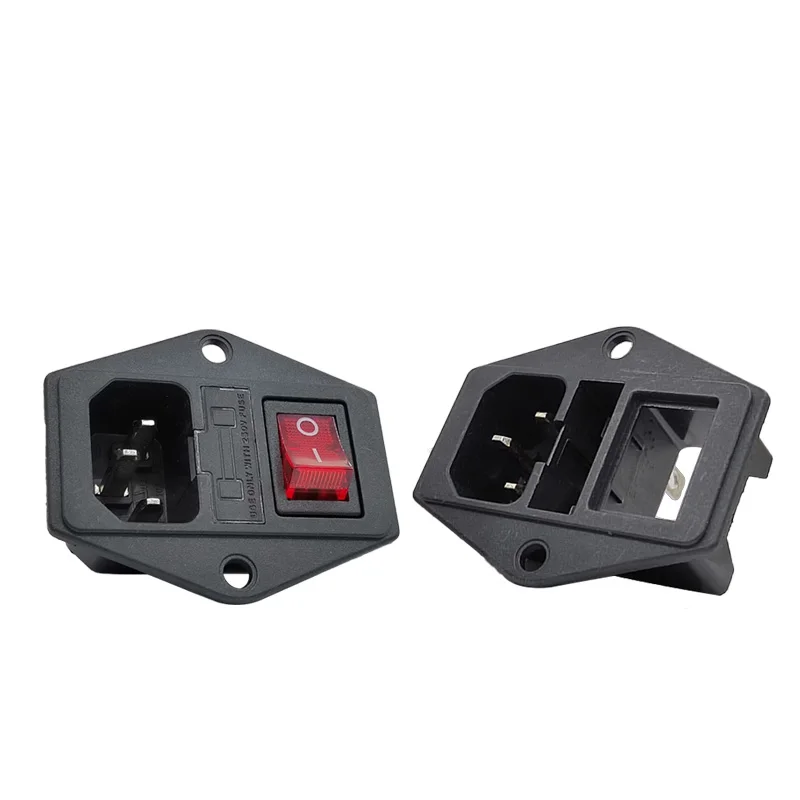

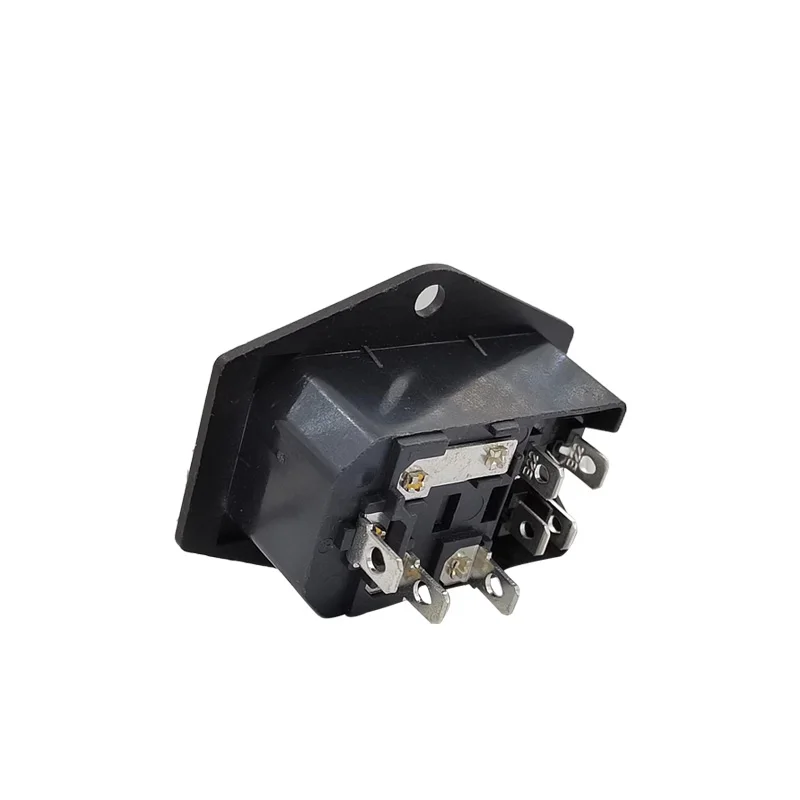

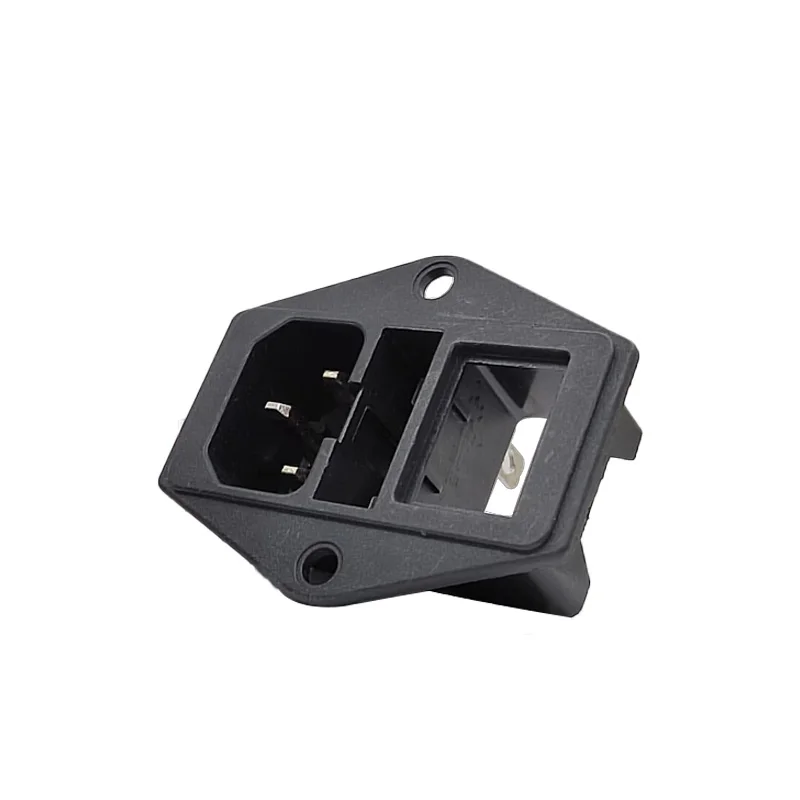

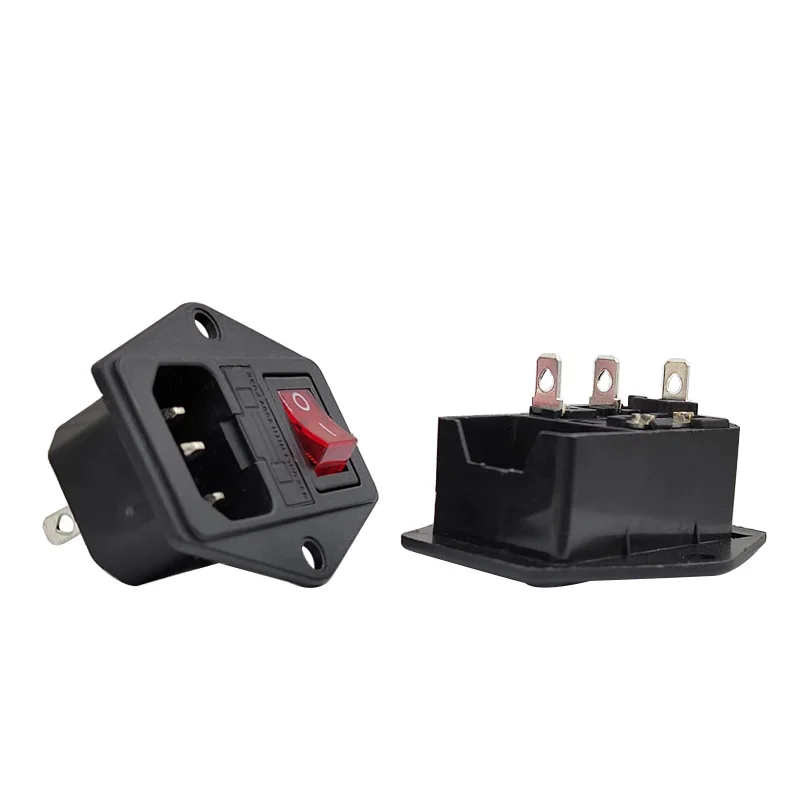

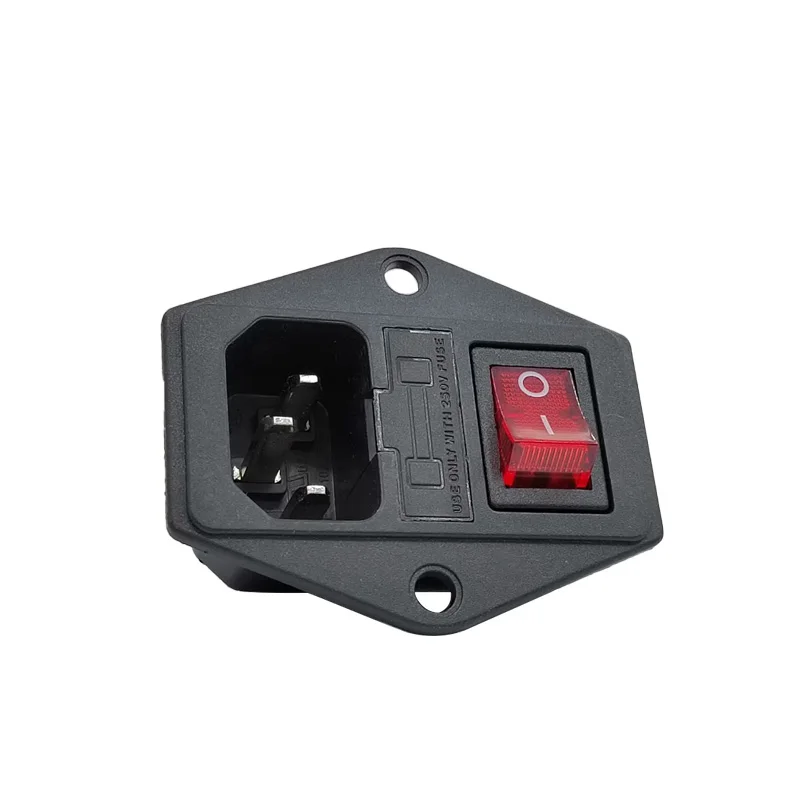

1/2 3 Pin IEC320 C14 Inlet Module Plug 5A Fuse Switch Male Power Socket 10A 250V For Lab Equipment

Product Overview

Description



 Overview



Model Number:  HC-99-F4+switch                                            Certification: UL  CUL  CQC KC ENEC CB ROHS

Grounding:  Self Grounding                                                       Type:  Plug With Socket

Grounding:   Self Grounding                                                      Rated Voltage: 110V-250V

Rated Current:  10A/16A                                                            Application:  Industrial

Supply Ability: 20000 Piece/Pieces per Day                               Packaging Details:  2000pcs/ CTN

Port : Shenzhen/ Ningbo /Shanghai/ HK



Specification for  fused Socket&rocker switch

Rating	16A 250V~& 16A 125V~T105/T120(UL) 10A 250V ~T70(VDE,KC,CCC)
contact resistance	30m Ωmax
Insulation resistance	100M Ω Min.,At 500V DC
Dielectric Withstand Voltage	2000V AC for one minute between terminals
Housing	PC UL94V-0
PIN & TERMINALS	COPPER ALLOY,TIN PLATED
