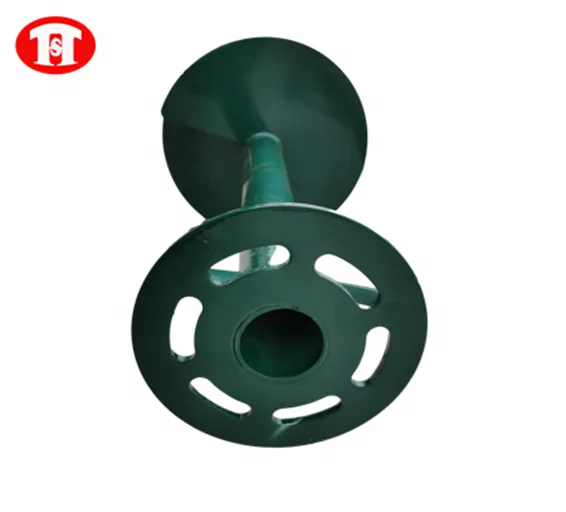

Ground Screw Solar Ground Screw Anchor Piles For Foundation

Share on (1600413970399):


Price:$9.50 - $11.50

Quantity:


Product Overview

Description



Products Description


Dimensions:

>>Pipe: Accept customization
* Outer Diameter: 76/89/102/114 mm
* Wall Thickness: 3-10 mm
* Length: 1000-3500 mm

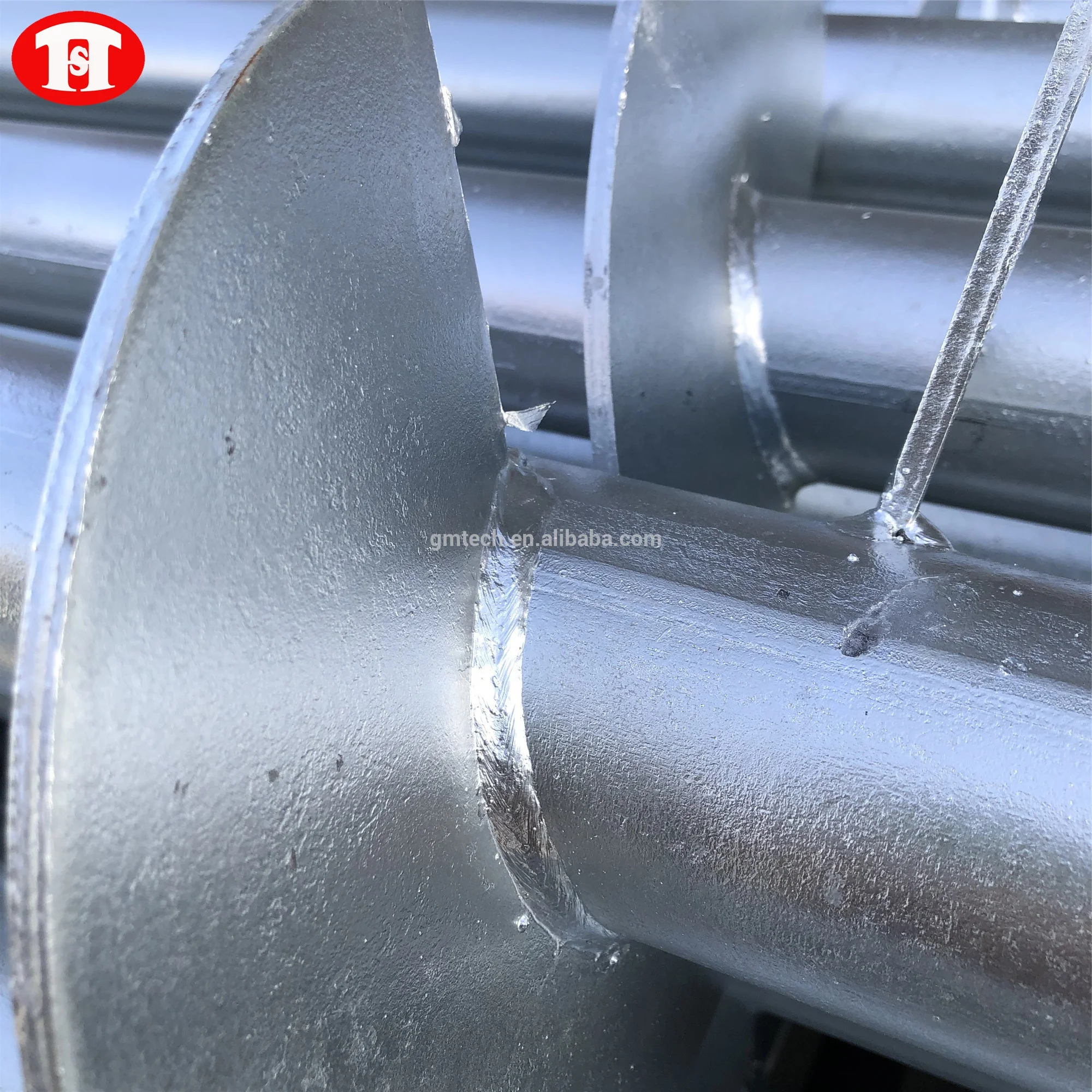

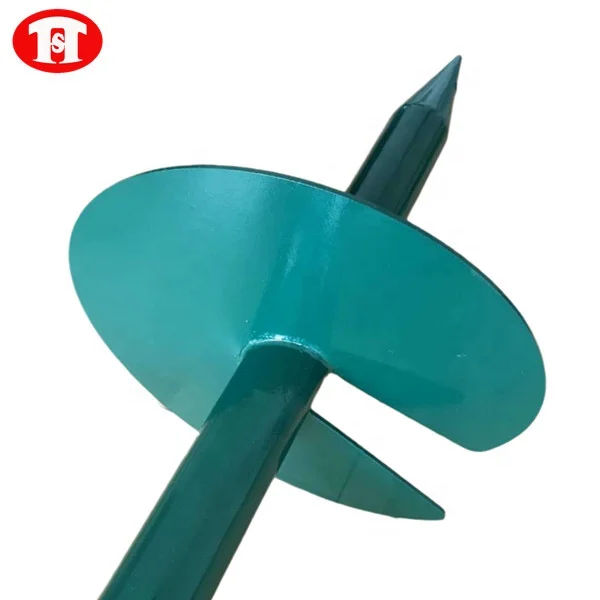

>>Helix: Accept customization

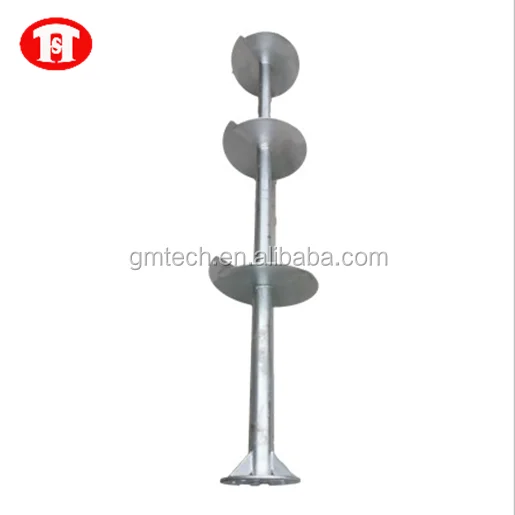

* Type: Single/Twins/Triple Helix

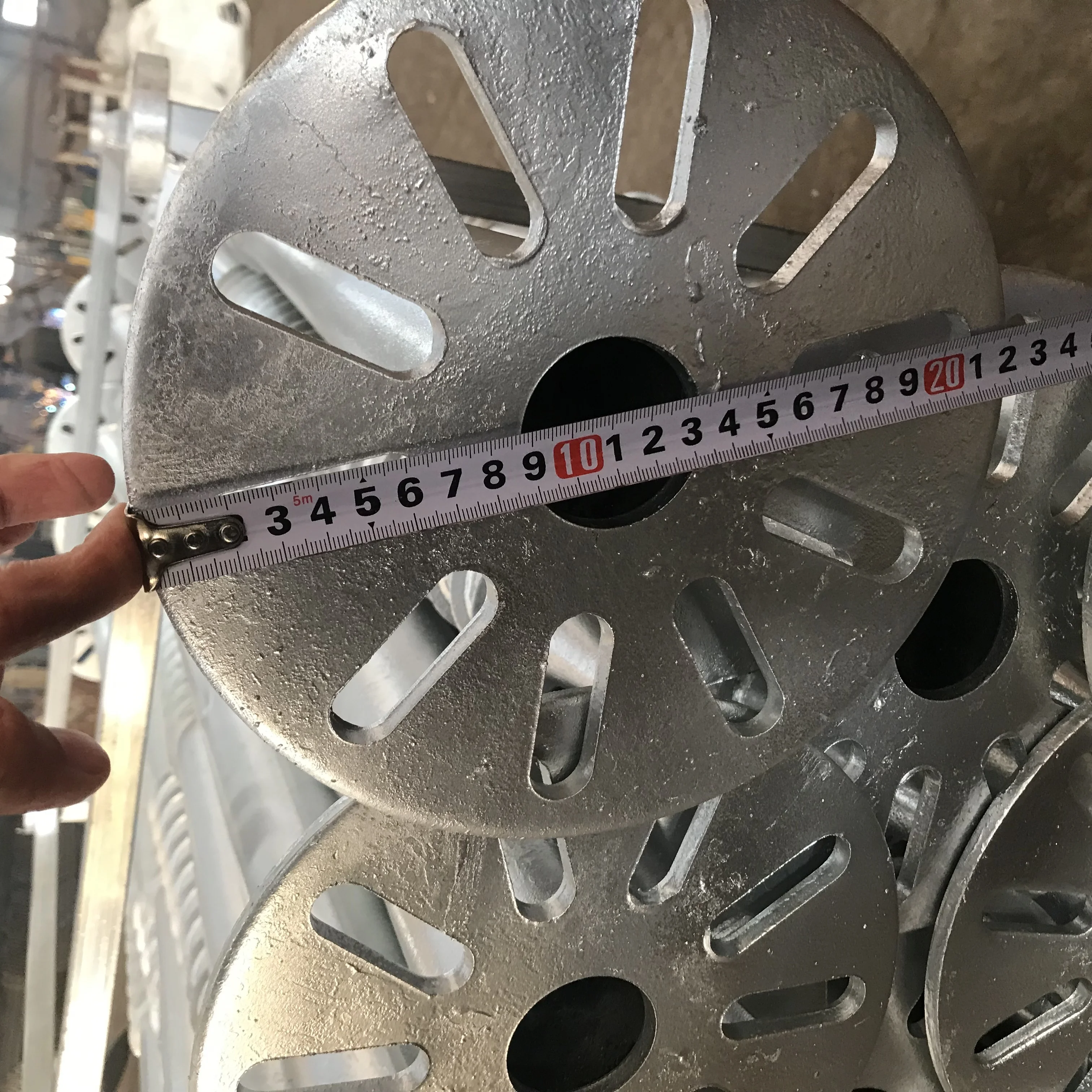

* O.D.: 150-450 mm
* Thickness: 4-12 mm

>>Application: Artificial soil, Clayey soil, Silt, Grit, Coarse sand, Medium sand, Fine sand, Mealy sand

Material: Q 235 Steel
★Surface Finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.





Specification


SPECIFICATION EXAMPLE
Just for your reference, accept customization !


PIPE SIZE
HELIX SIZE
WEIGHT
mm
mm
(kgs/pc)
76x4x2500
4.0x400
27.4
89x4x2000
3.0x305
23.8
89x4x2000
4.0x400
25.6
89x4x2500
4.0x400
29.7
104*4*1600
4.0x400
21.3


Packing & Delivery




1. We usually use steel pallet for packing. Then, arrange the products neatly.
2. Then fix it with a special packing strap to prevent displacement during transportation.
3. After the fixing is completed, wrap layers of plastic film to protect the product from damage.

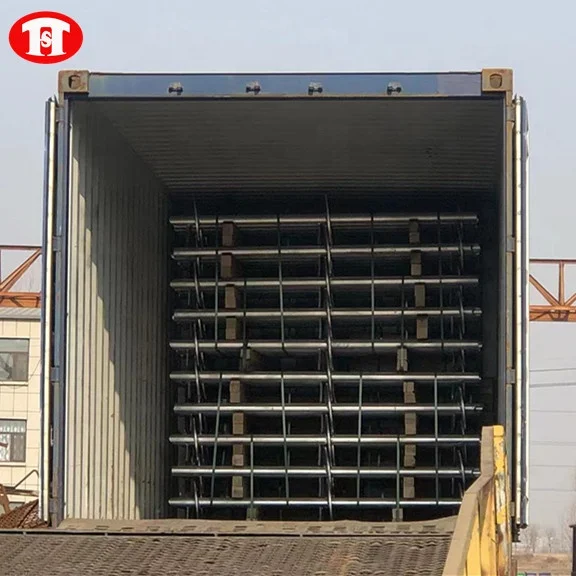

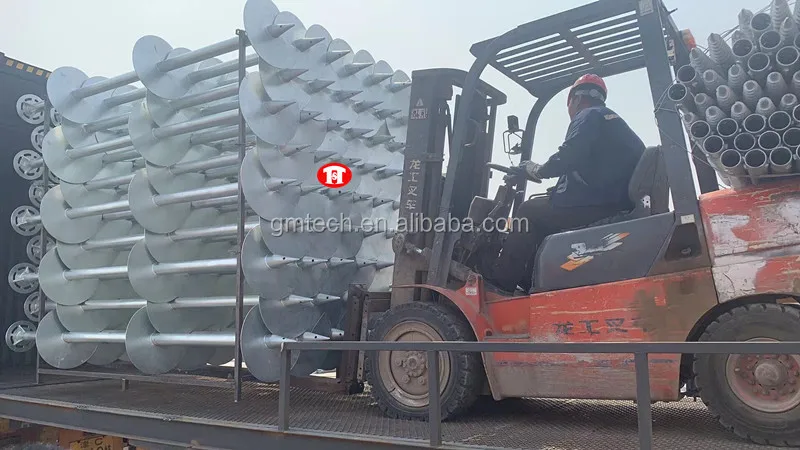

4. Load it into the container by forklift, and fix the container inside again after packing, so as to avoid the internal impact during shipping as much as possible.

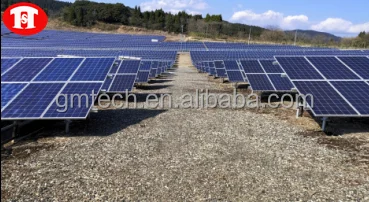

Application

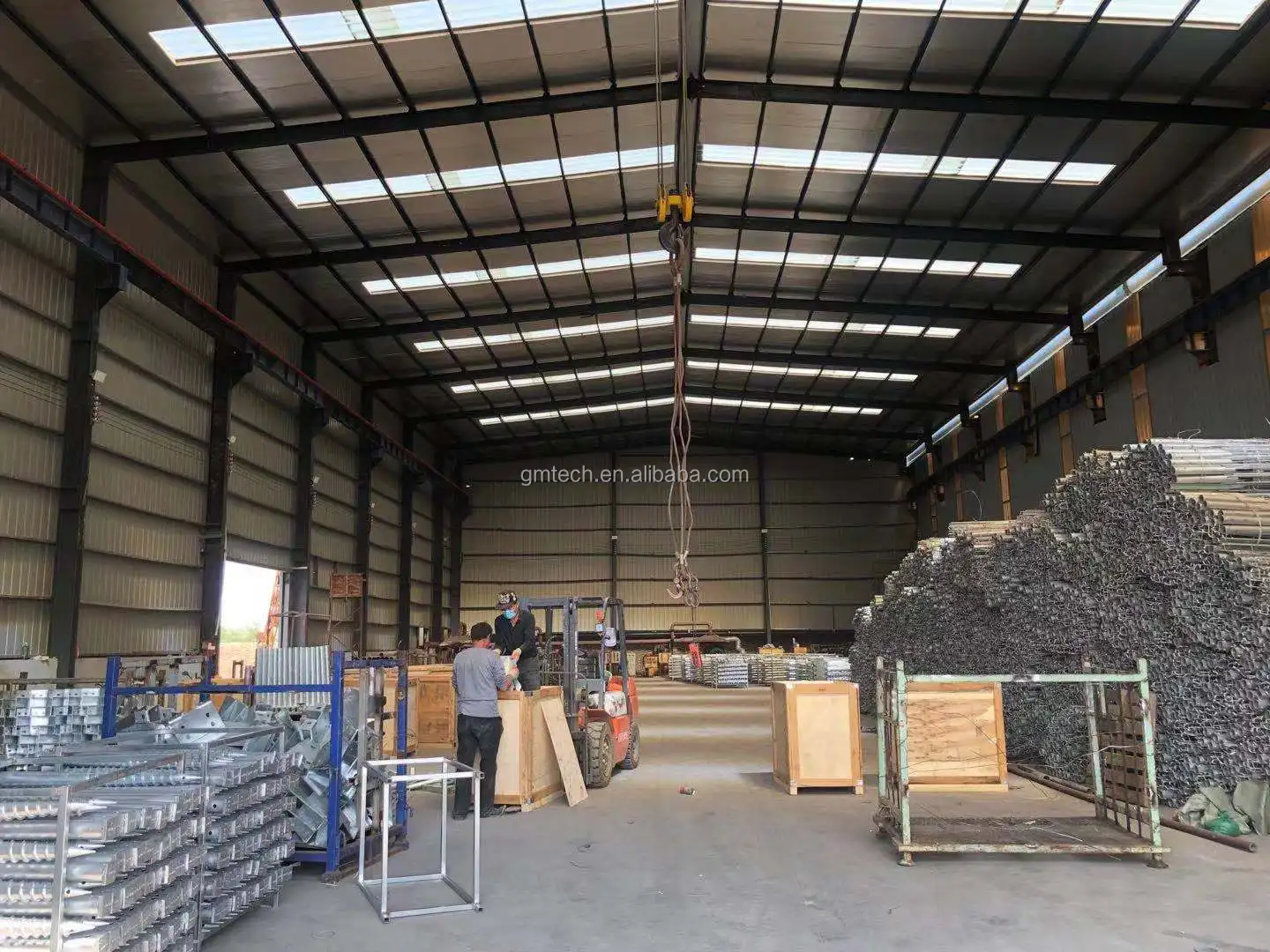

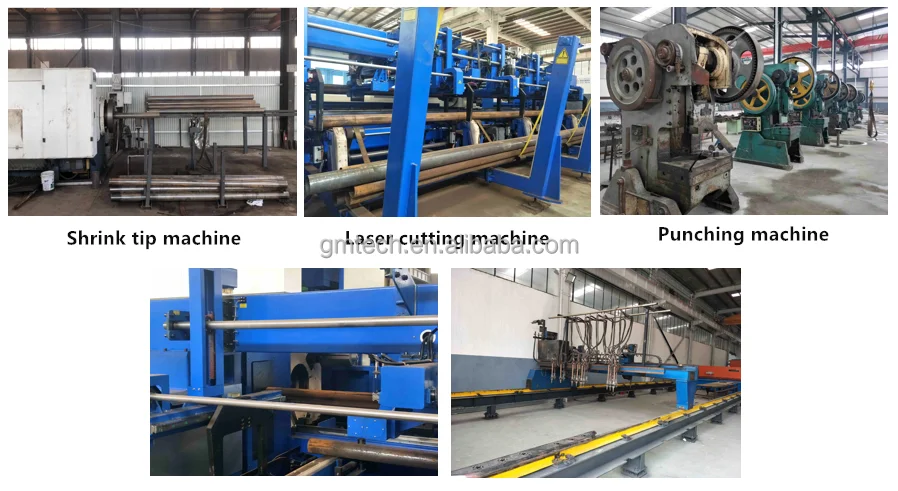

Factory Display






1. Plasma/Laser Processing workshop
2. Welding workshop
3. Non-numerical control workshop

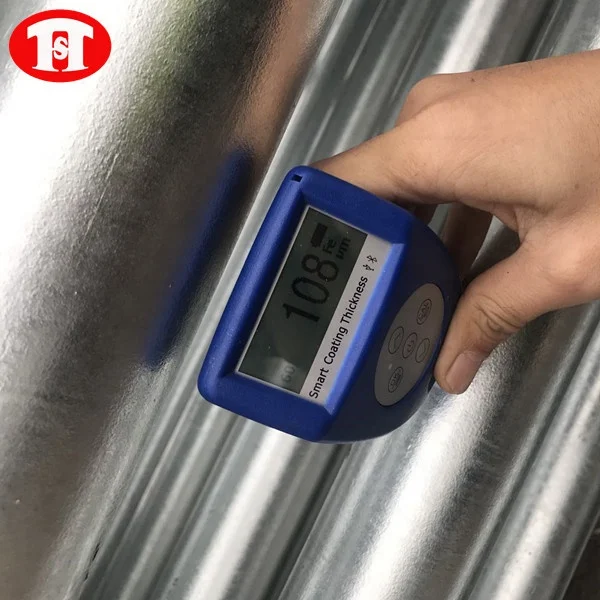

4. Quality Inspection & Packaging workshop


Our Company


Tianjin GrandMetal Tech. Co., Ltd was founded in 2010. Along with the development of over ten years, we have succeeded in owning our own processing factory, the international logistic department and a professional foreign trade team.

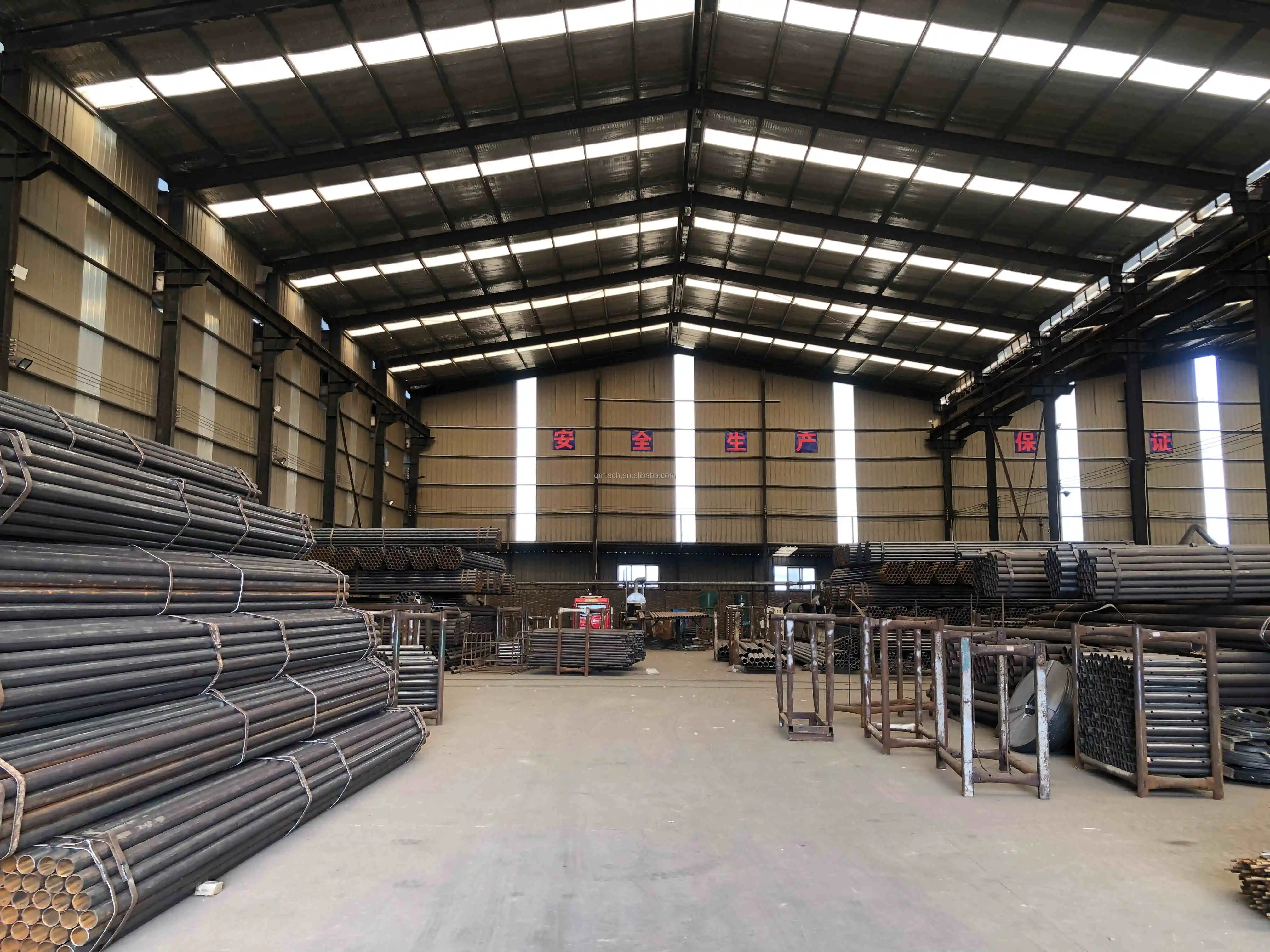

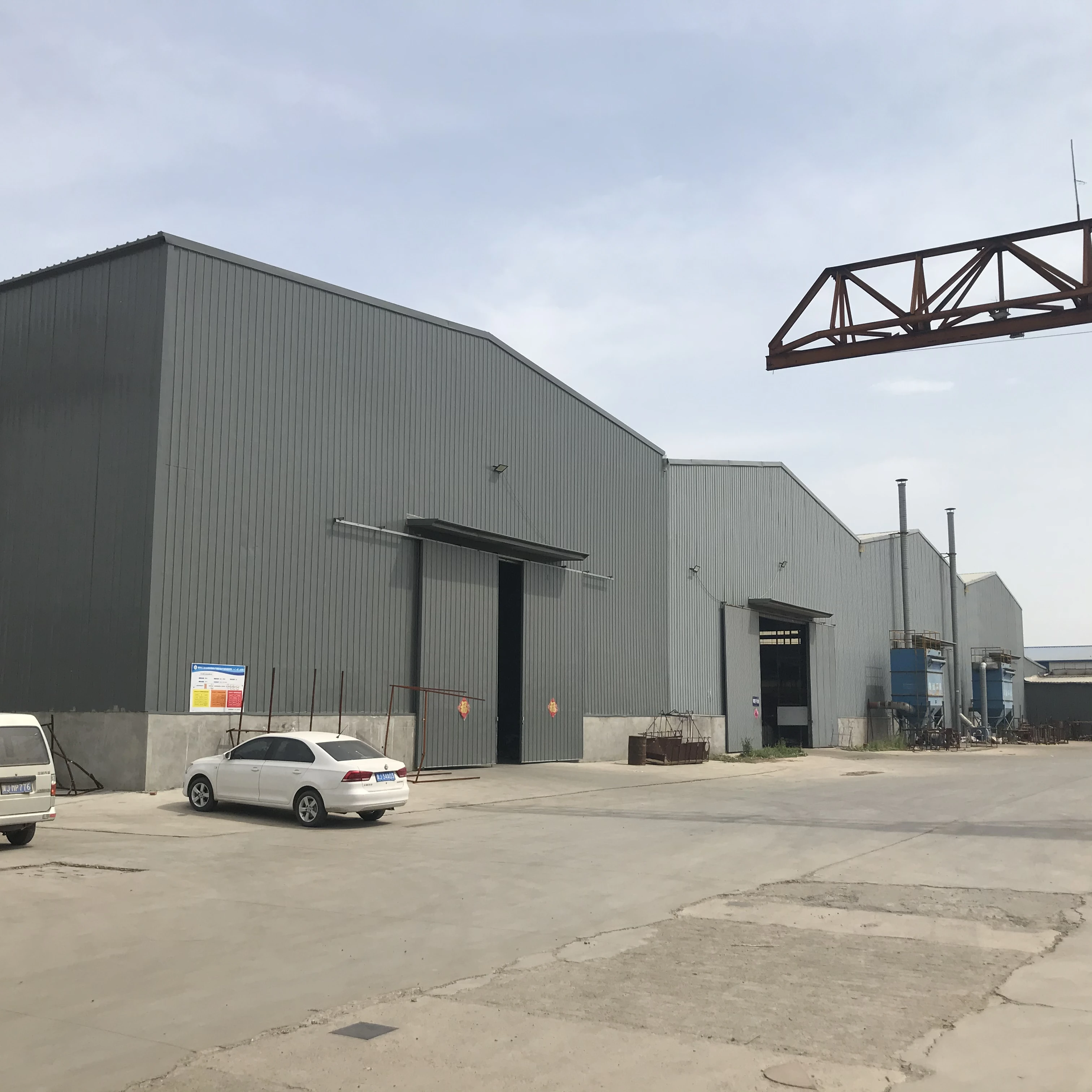

The factory covers an area of 21,298 square meters, consist with five workshops and one office building, equips with laser cut machine/plasma cut machine/punching machine/radial drilling machine and so on total 103 sets of equipment, employing professional welders and so on total 26 workers.

Now we have the capacity of two million pieces per year for ground screw, our products were ever be exported to USA, Canada, Australia, South Korea, Singapore, Italy, France, UK and so on, and are widely used in many types of foundation engineering.

We have been focusing on the production of ground screw/helical pile for many years, and keep aiming to become one of the leading manufacturers specialized in ground screw. To provide our customers with low-price&high-quality products and perfect service has always been our goal.

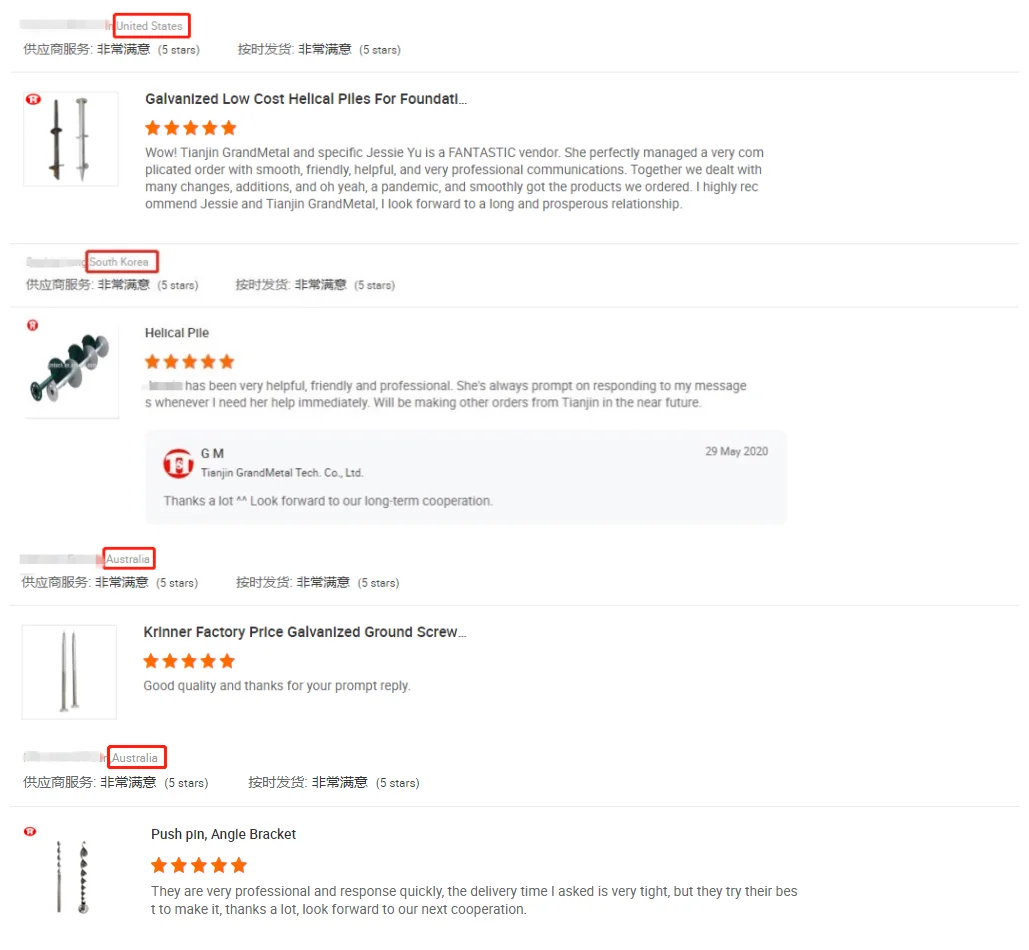

Why Choose Us
