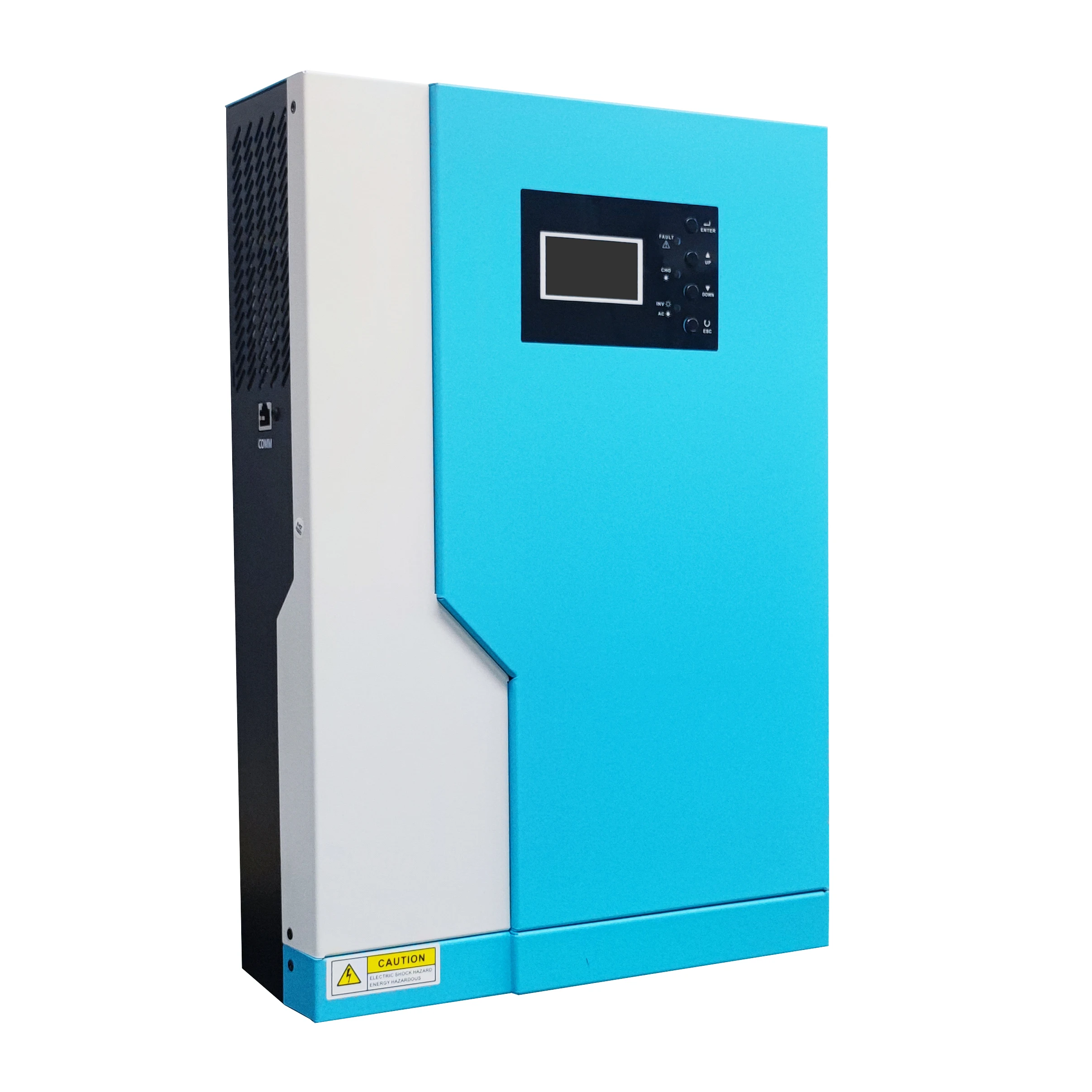

Hot selling hybrid 5.5 kw 48v off grid mppt solar inverter 5kw battery less
- Category: >>>
- Supplier: Foshan Panpower Science&technology Co. Ltd.
Share on (1600414075405):
Product Overview
Description
Main Features:
* 5500W Pure sine wave Output
* Built-in Max 80A AC Charger
* Built-in 100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Inverter can work without battery

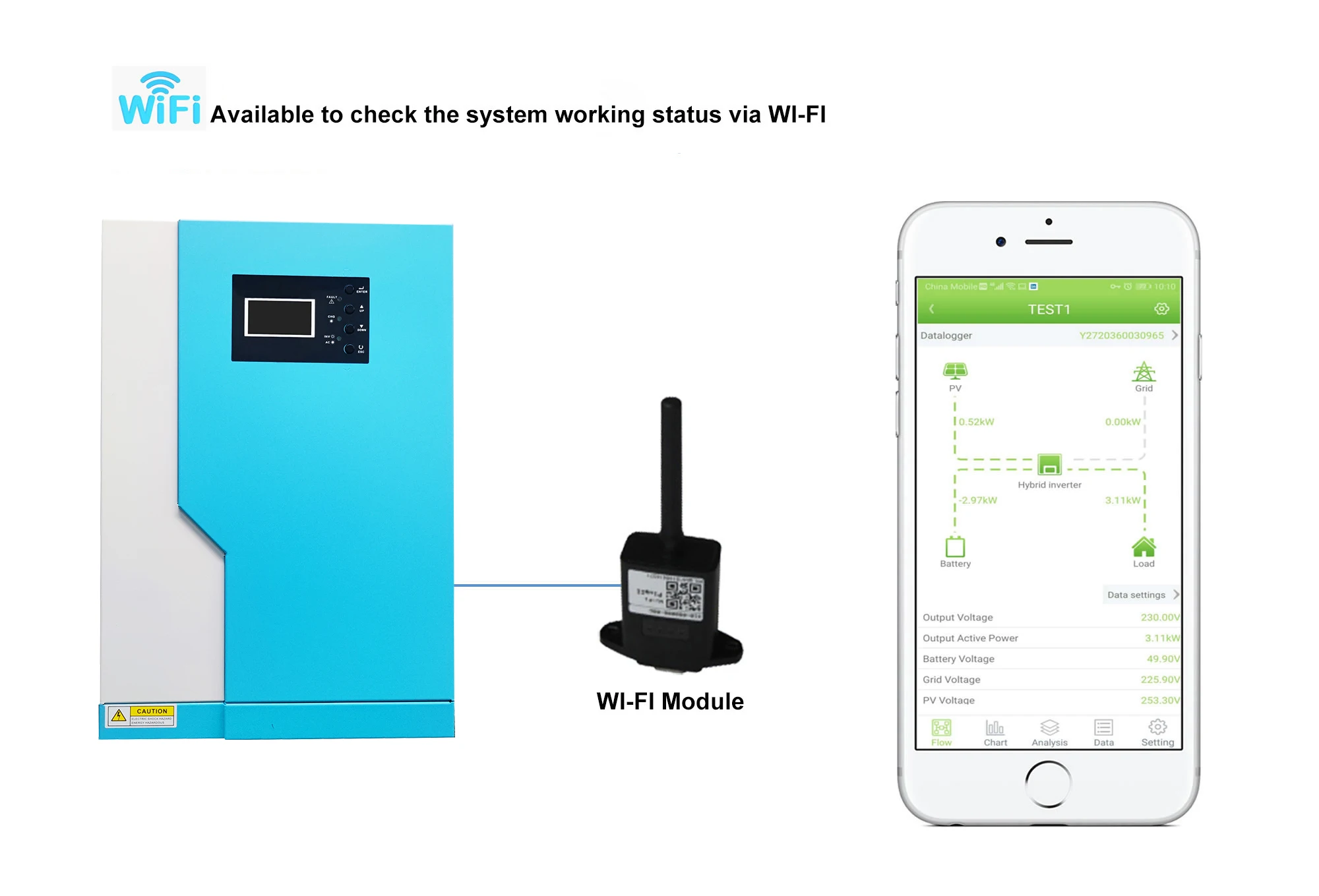

* USB/RS232/WIFI monitor function
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers
* 5500W Pure sine wave Output
* Built-in Max 80A AC Charger
* Built-in 100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Inverter can work without battery
* USB/RS232/WIFI monitor function
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers
Product Paramenters
Model | Victor NM-II 5.5KW-PLUS | |
RATEDPOWER | 5500VA / 5500W | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliance) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
Surge Power | 11000VA | |
Efficiency(Peak) | 90%~93% | |
Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 48 VDC | |
Floating Charge Voltage | 54 VDC | |
Overcharge Protection | 63 VDC | |
SOLAR CHARGER& AC CHARGER | ||
Max. PV Array Open Circuit Voltage | 500VDC | |
Max. PV Array Power | 6000 W | |
MPP Range @operating Voltage | 120~450VDC | |
Max. Solar Charge Current | 100 A | |
Max. AC Charge Current | 80 A | |
Max. Charge Current | 100 A | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 100*300*440 | |
Net Weight(kgs) | 10 | |
Communication Interface | USB/RS232 | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Operating Temperature | -10° C to 50° C | |
Storage Temperature | -15° C to 60° C | |

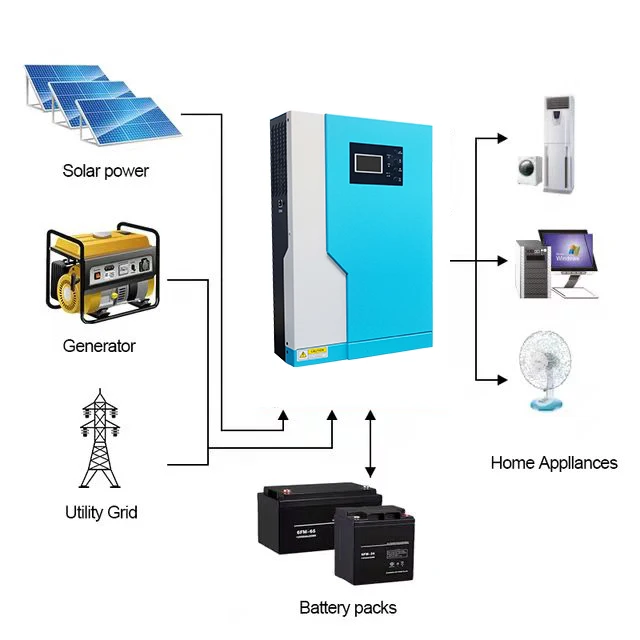

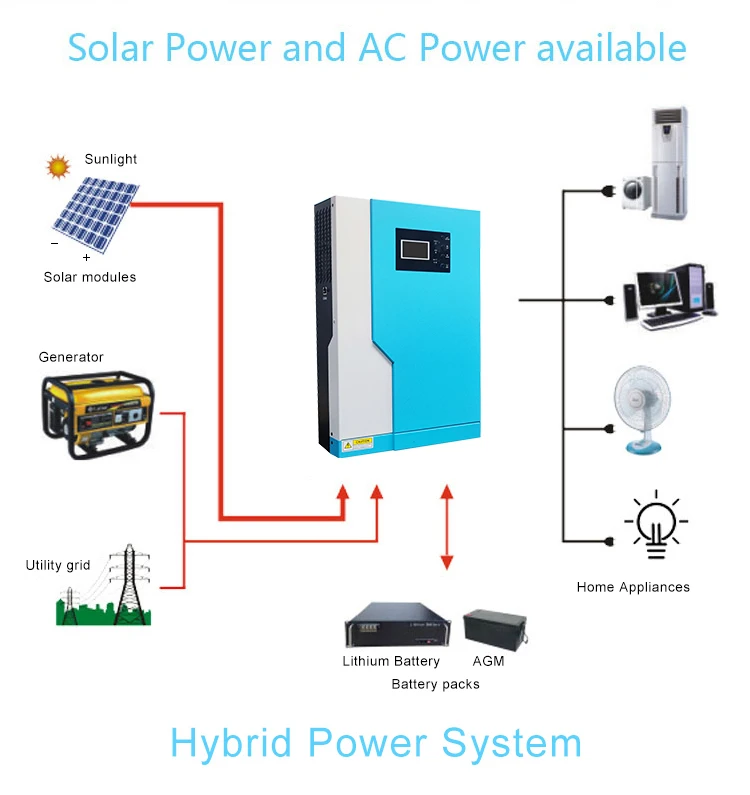

Application scenarios
Diagram

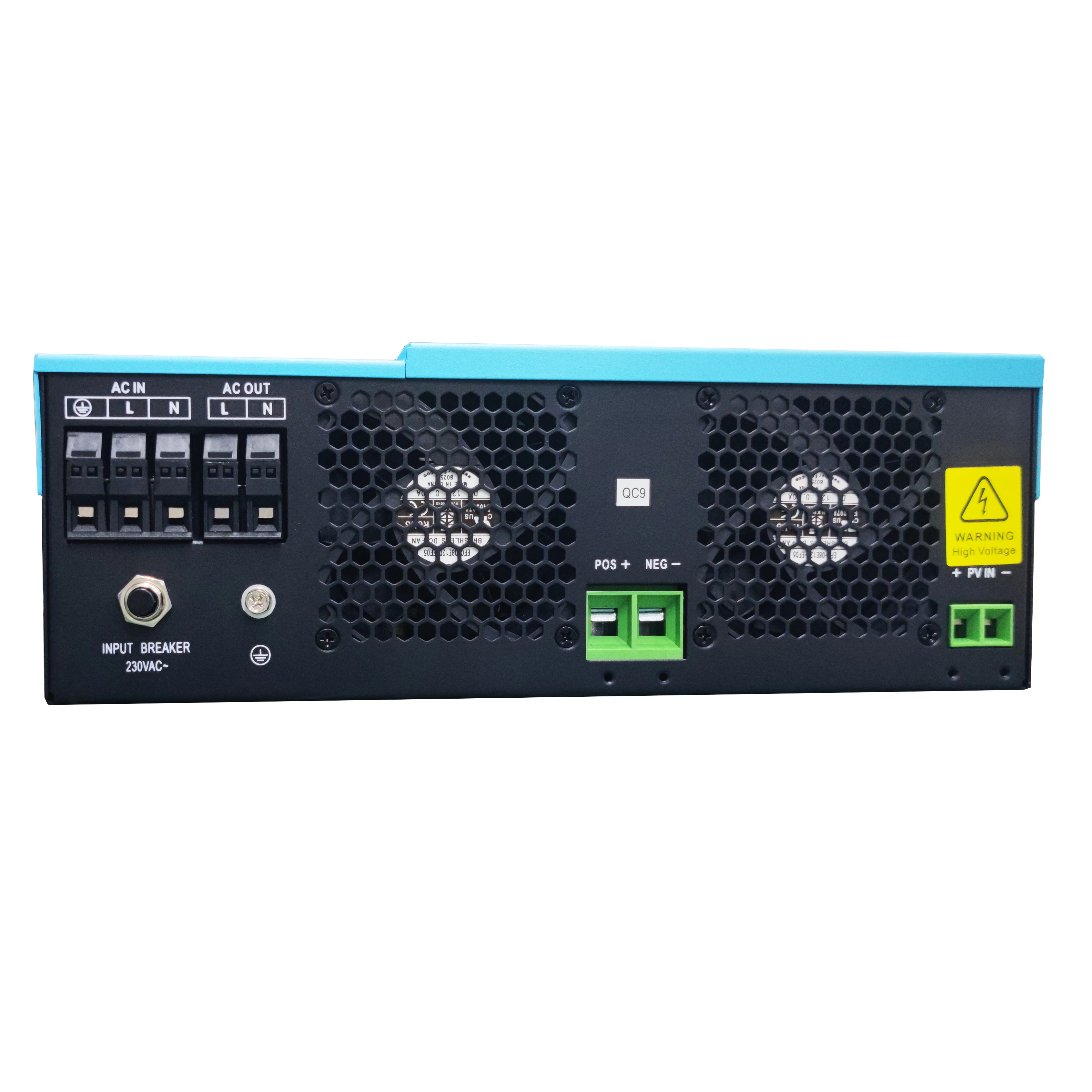

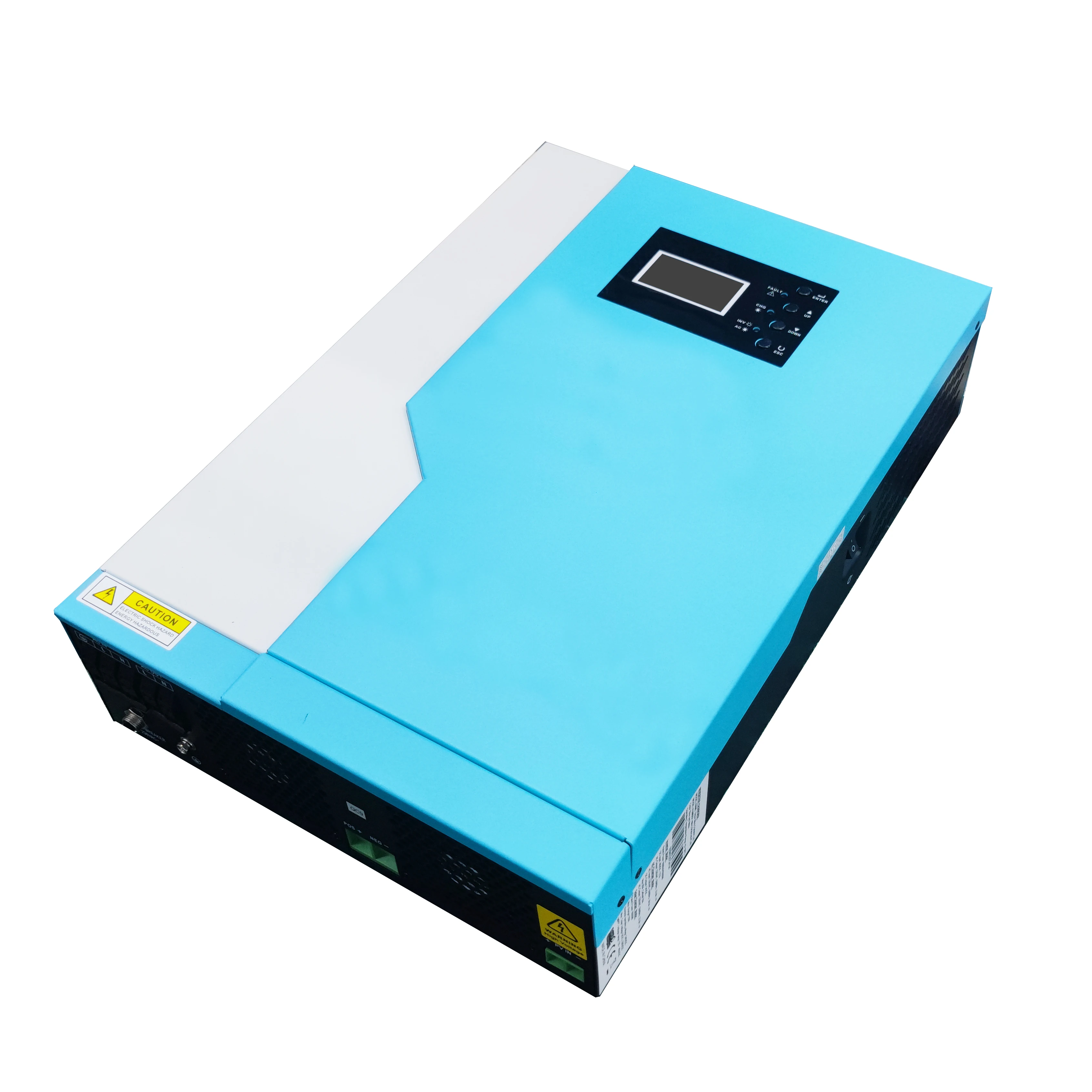

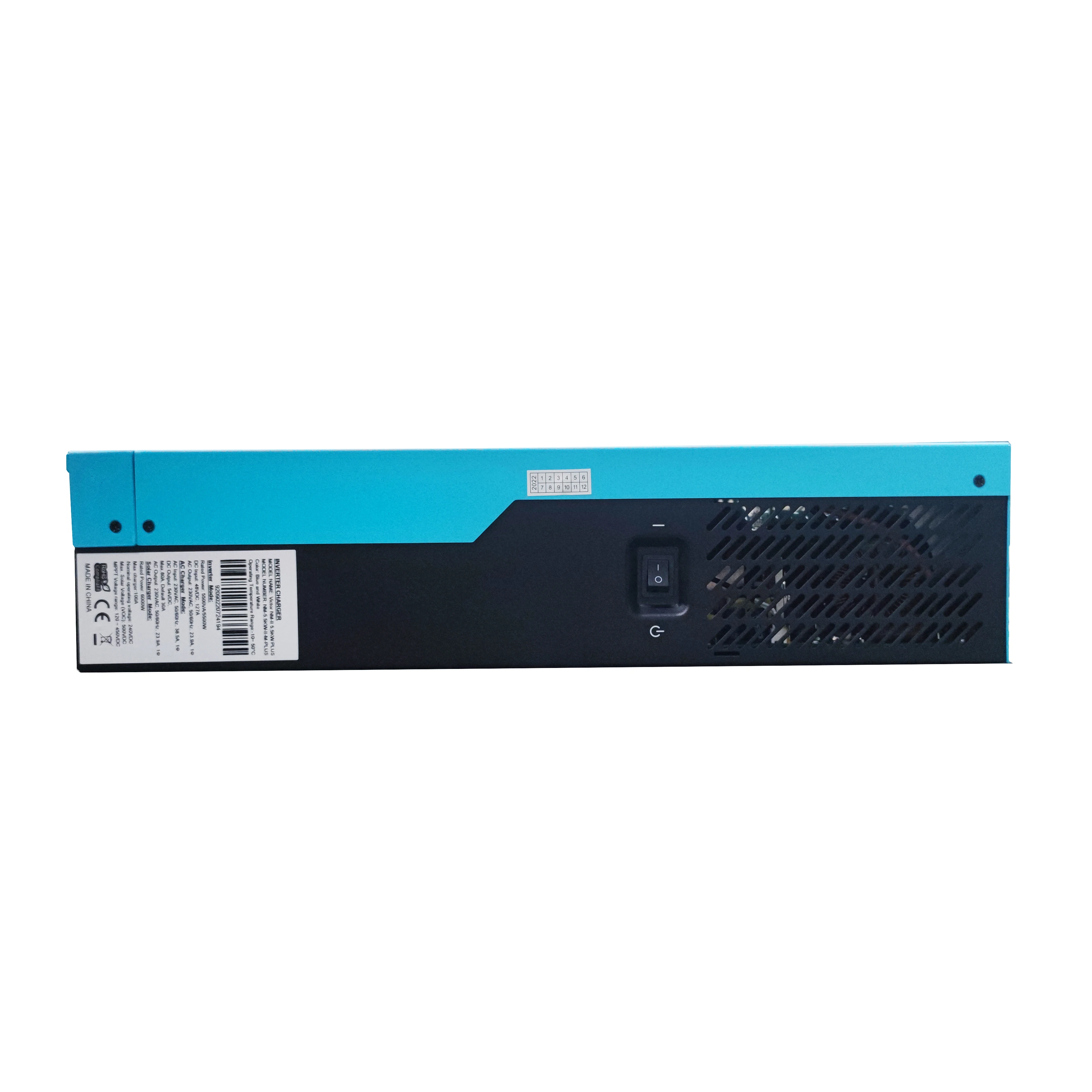

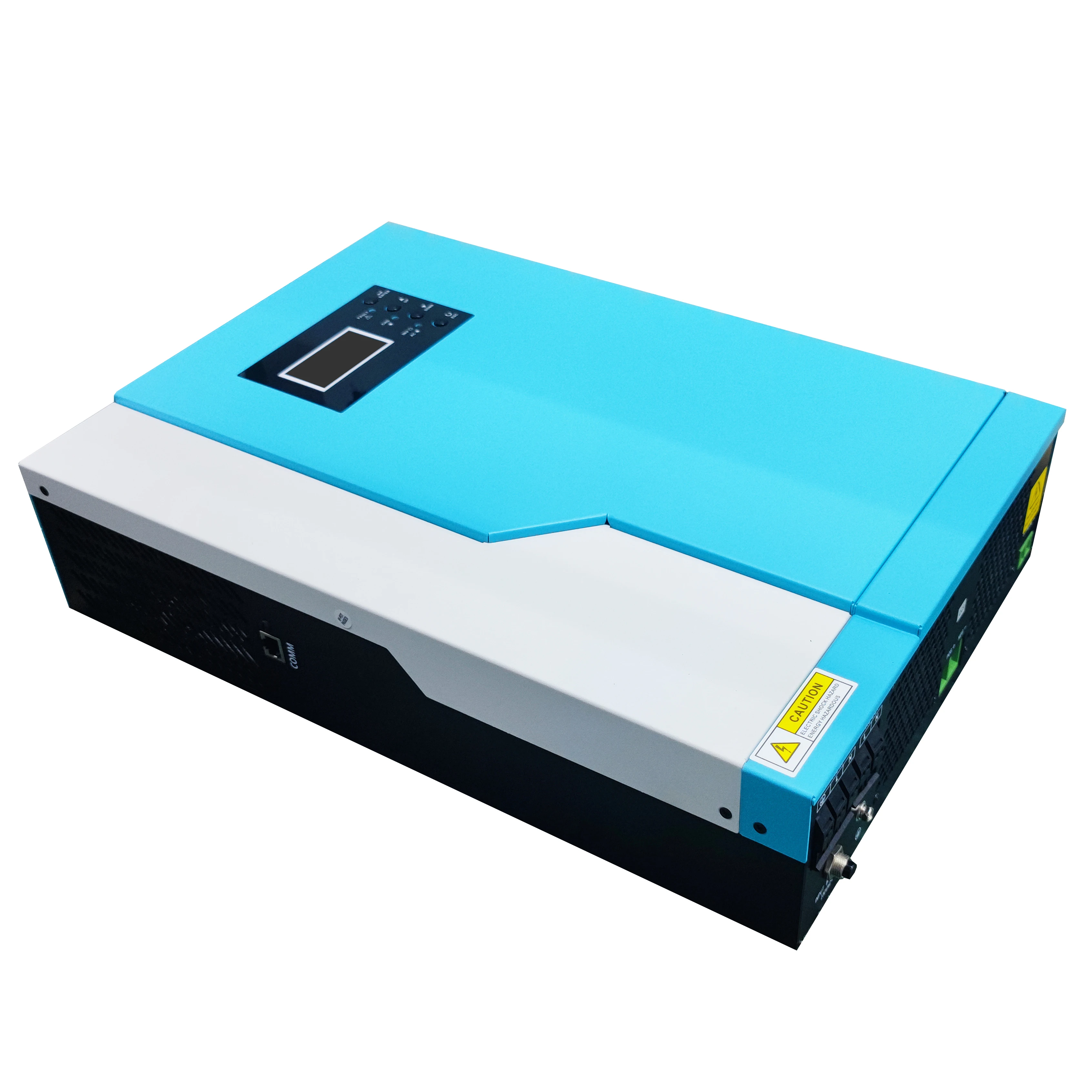

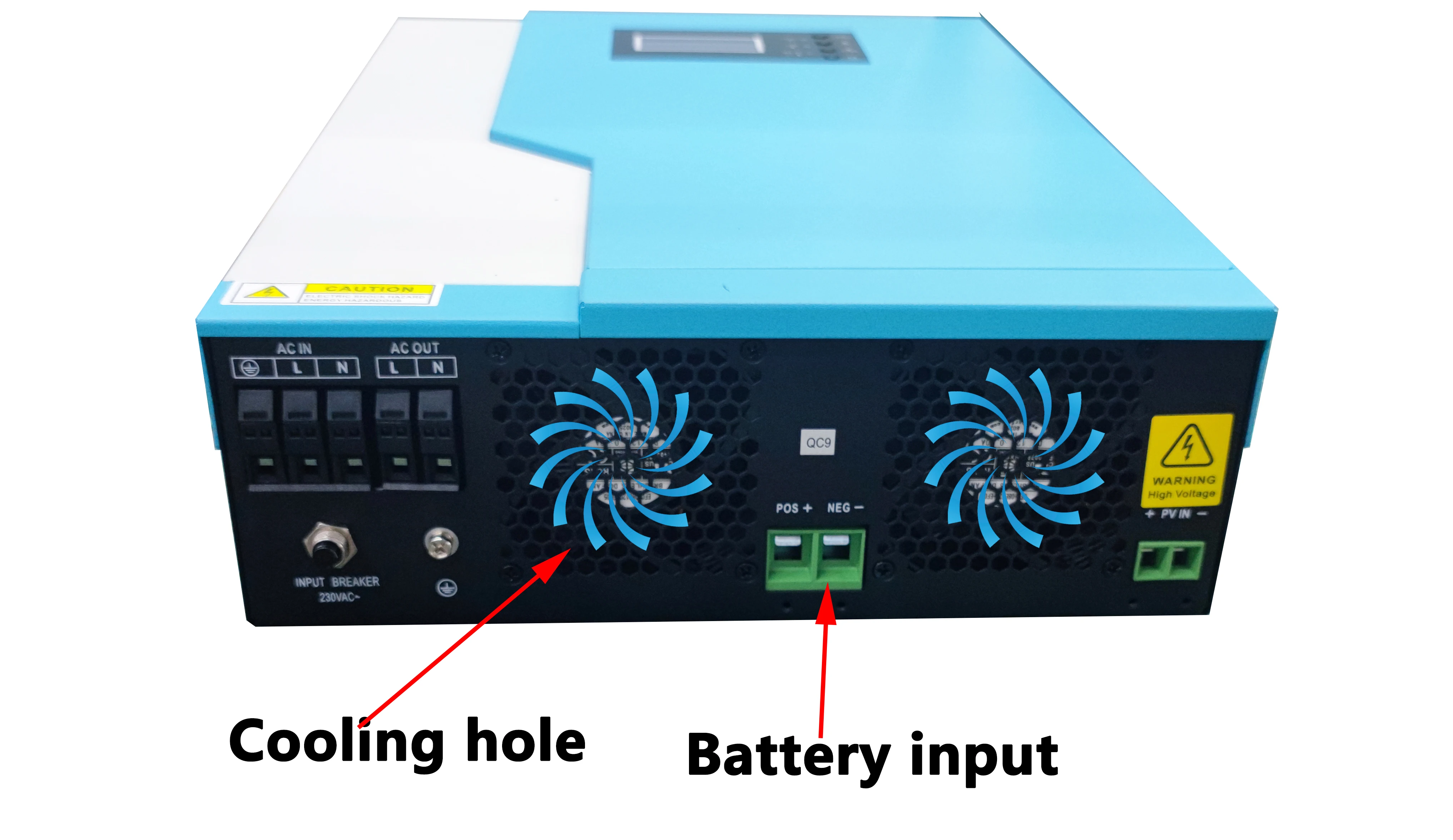

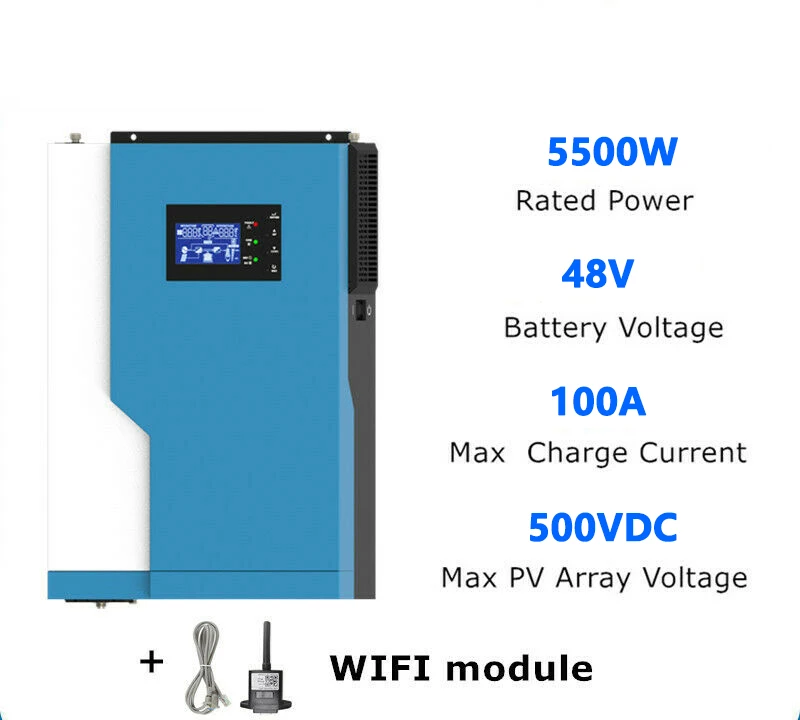

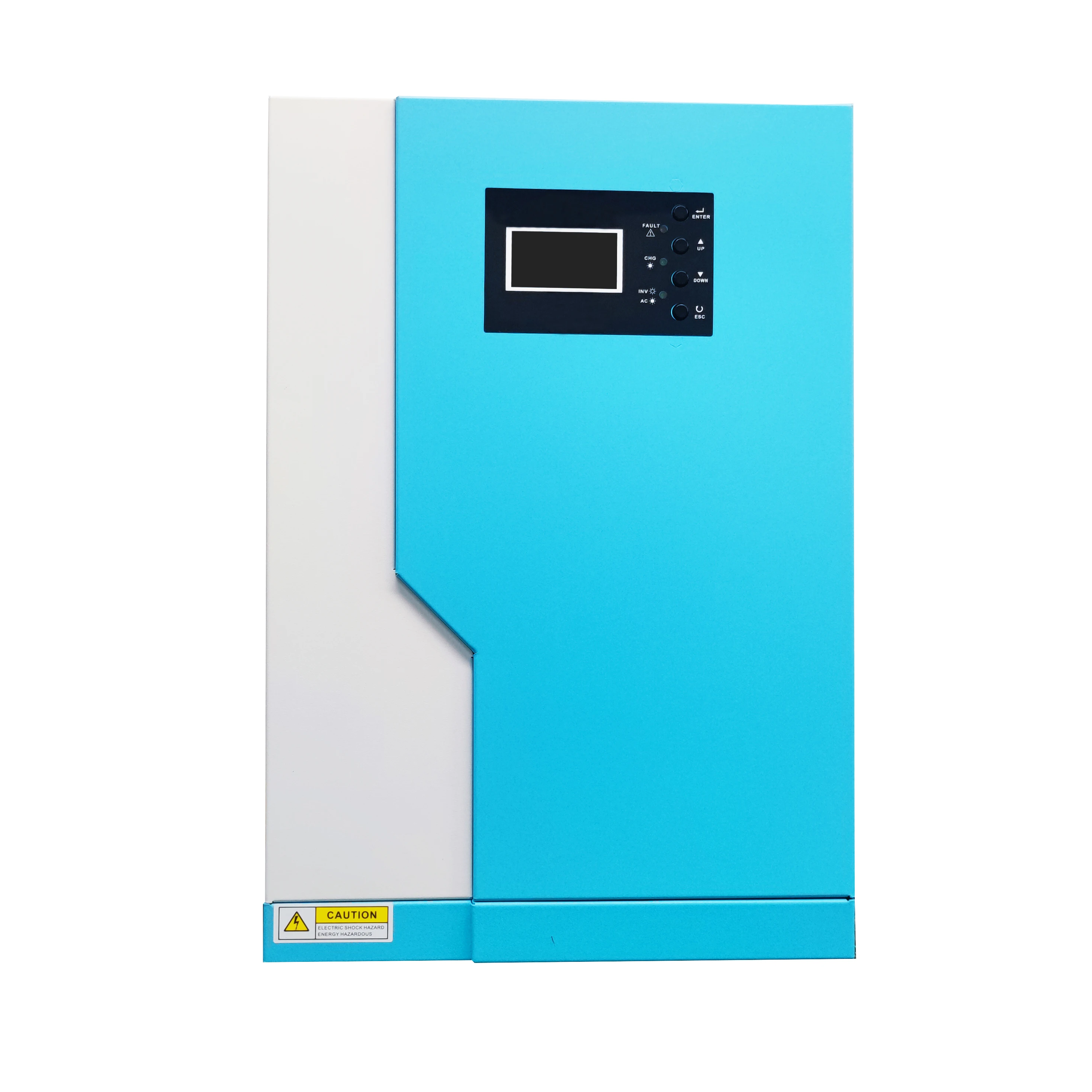

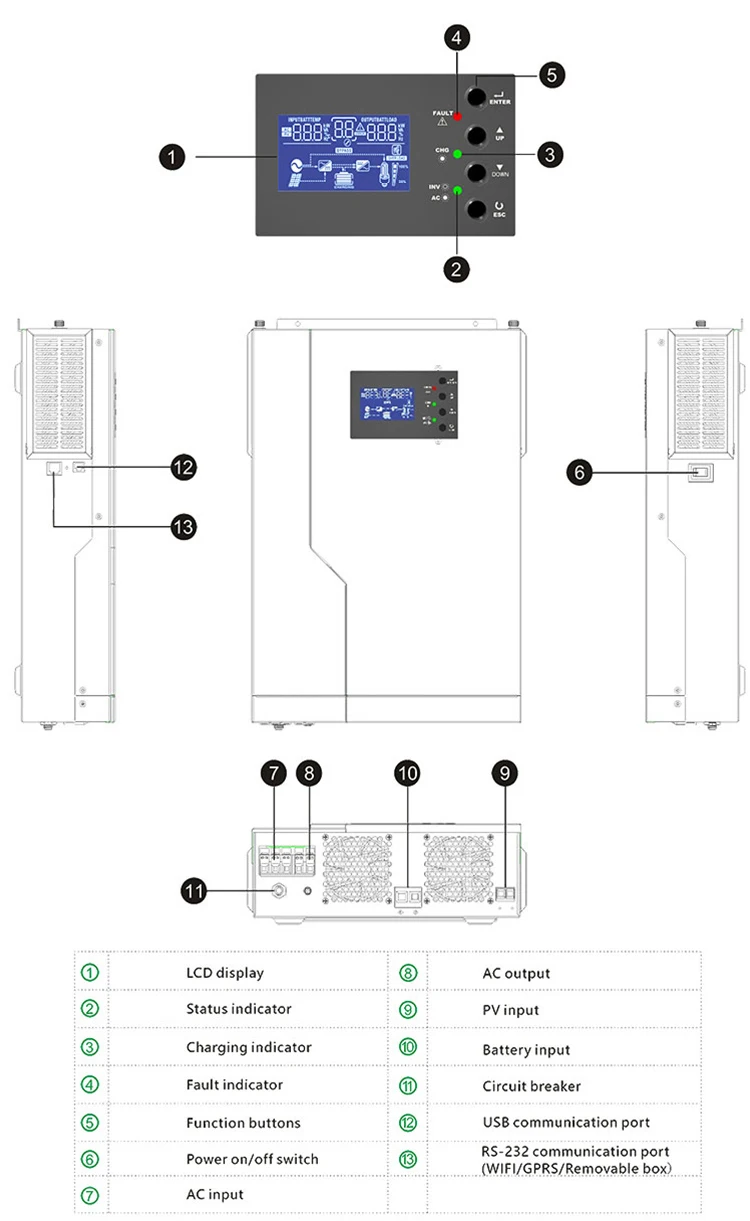

Product Details:
Company Profile
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China,producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS power, kinds of inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation, railway, bank, security, electric power, road, national defense, insurance,electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service.
Why Choose Us
1. 10 years UPS and Power Inverter export experiences
2. 20 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
2. 20 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
