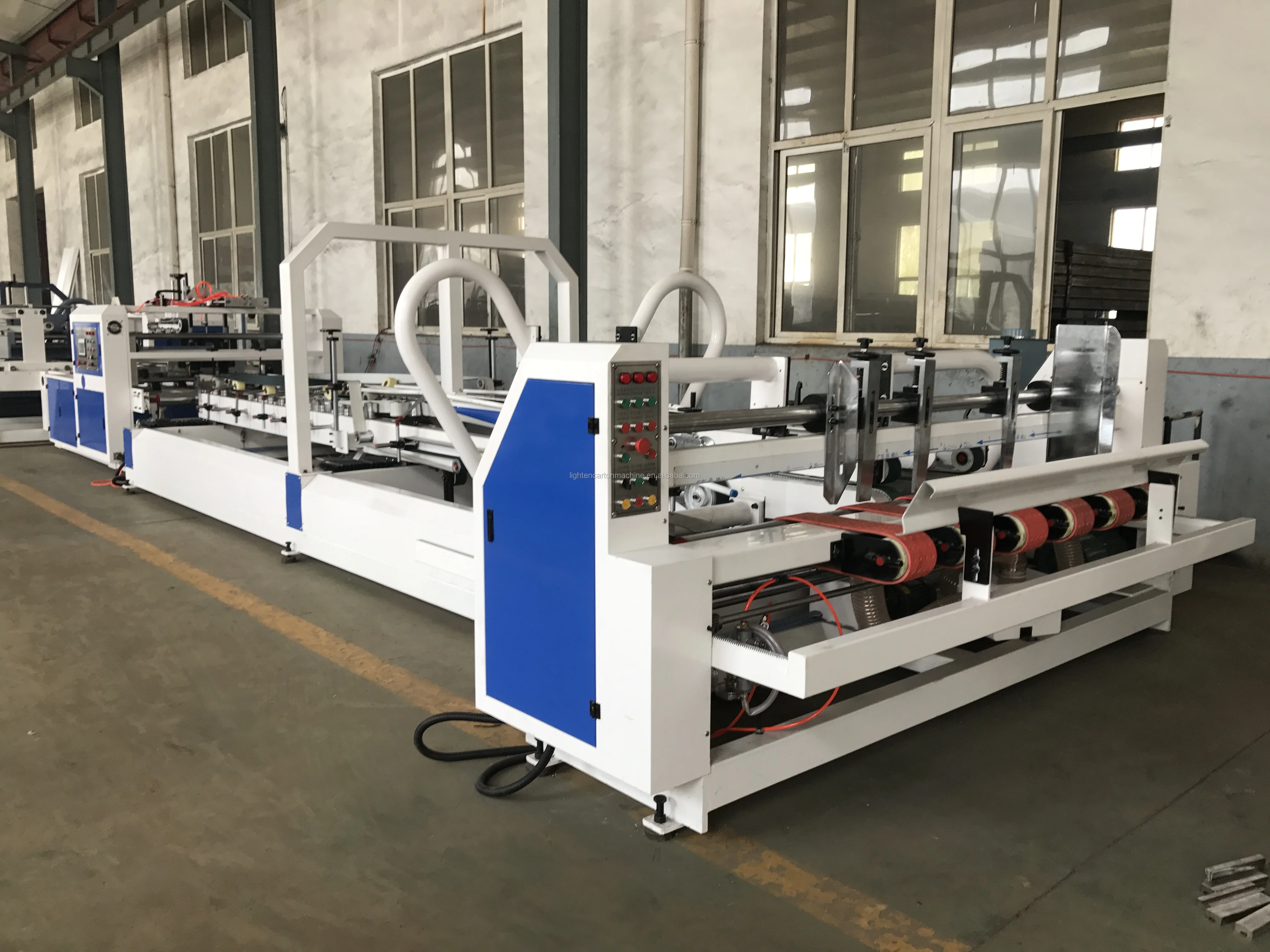

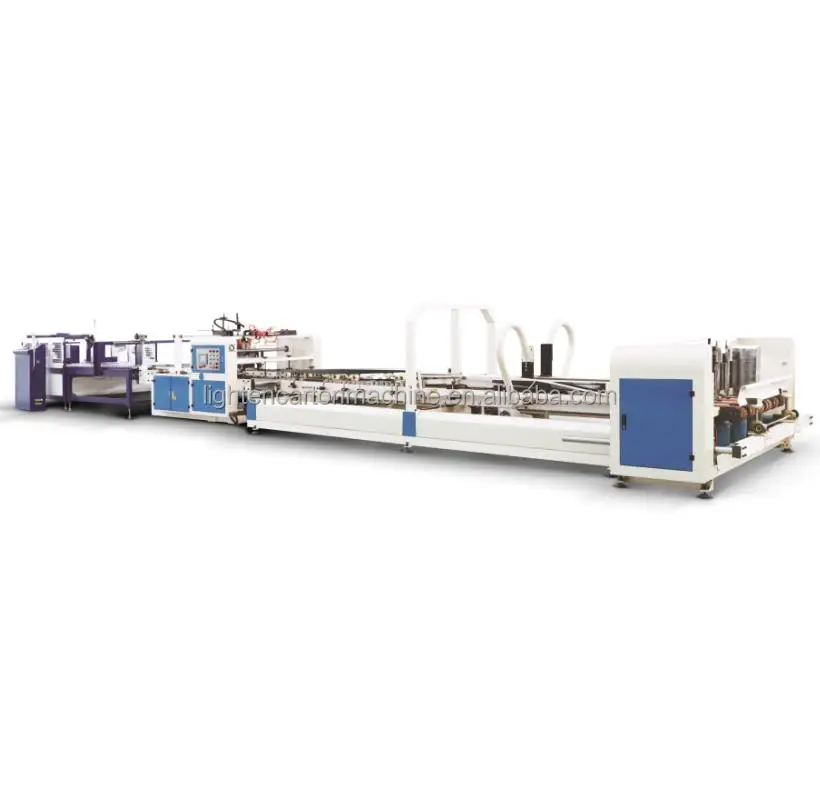

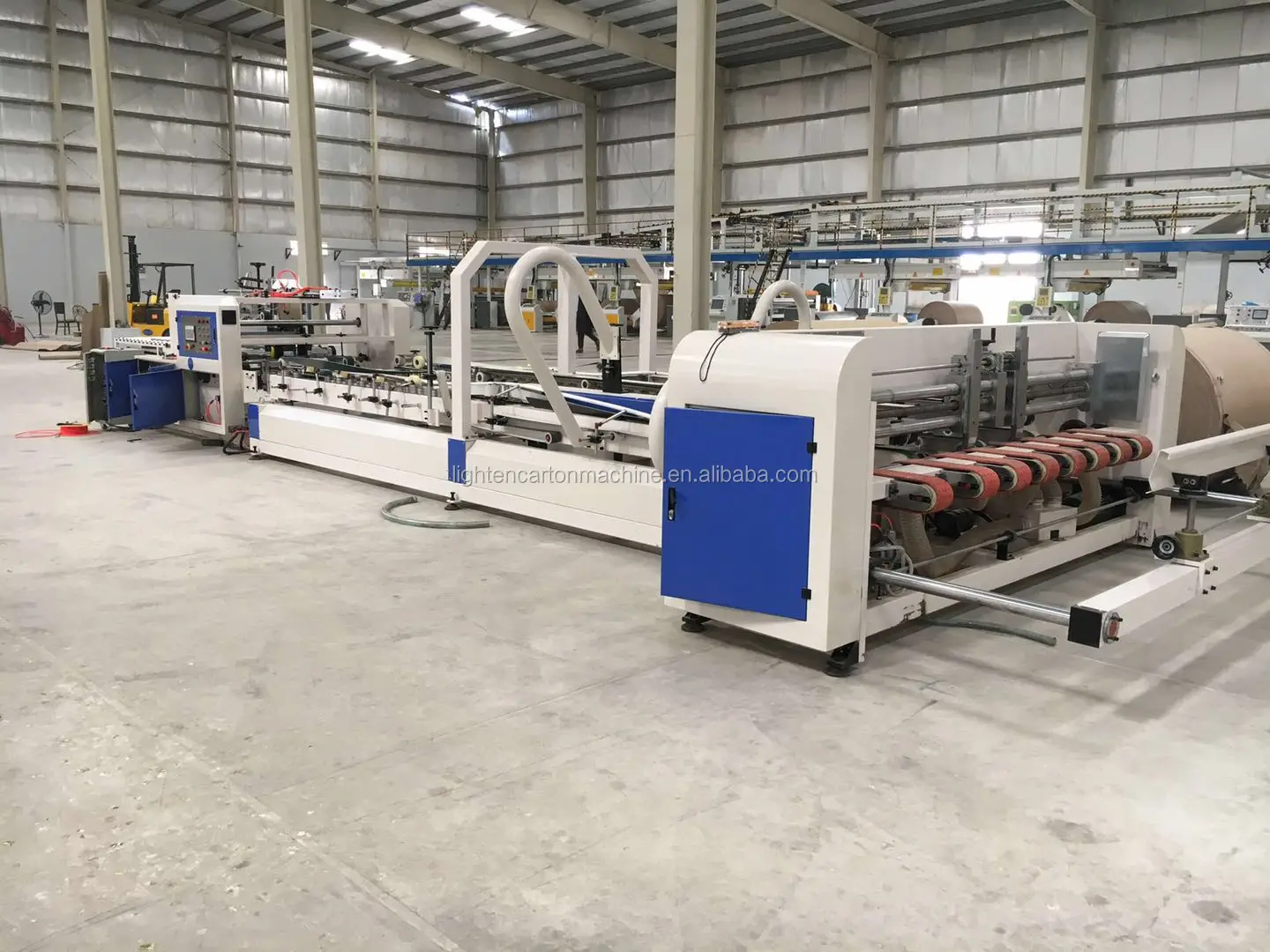

Automatic Corrugated Cardboard Carton Box Folding Gluing Machine For Carton Box Folder Gluer Machine
- Category: >>>
- Supplier: Cangzhou Lighten Import & Export Trading Co. Ltd.
Share on (1600414107516):
Product Overview
Description
Product Description
Automatic corrugated cardboard folding gluing machine
This machine can achieve whole computer adjustment for feeder unit ,gluer unit and folder unit , just enter three data on the Touch Screen( Length, Width, Height size ) , the machine can automatic adjustment to the exact position.
Through PLC programme or adjustment button to setting ,which can meet any different operation habit.
The average speed of gluing box is 8000-10000pcs / hour, speed is very fast , greatly improve production efficiency.
Product Paramenters
Model | QF- 2400 | QF-2600 | QF-2800 |
Max. feeding paperboard size (mm) | 1200*2400 | 1400*2600 | 1400*2800 |
Min. feeding paperboard size (mm) | 300*900 | 300 * 900 | 300 * 900 |
Power required | 12 kw 380V 3phase 50HZ | 12 kw 380V 3phase 50HZ | 12 kw 380V 3phase 50HZ |
Paperboard thickness | 3 or 5 layer cardboard | 3 or 5 layer cardboard | 3 or 5 layer cardboard |
Control way | PLC touch screen | PLC touch screen | PLC touch screen |
Machine weight | 5.5 tons | 6.5 tons | 6.5 tons |
Dimensions | L11000 X W3000 X H1600 | L12500 X W3200 X H1600 | L12500 X W3400 X H1600 |
Max working speed | 180m/min | 180m/min | 180m/min |
Products Description

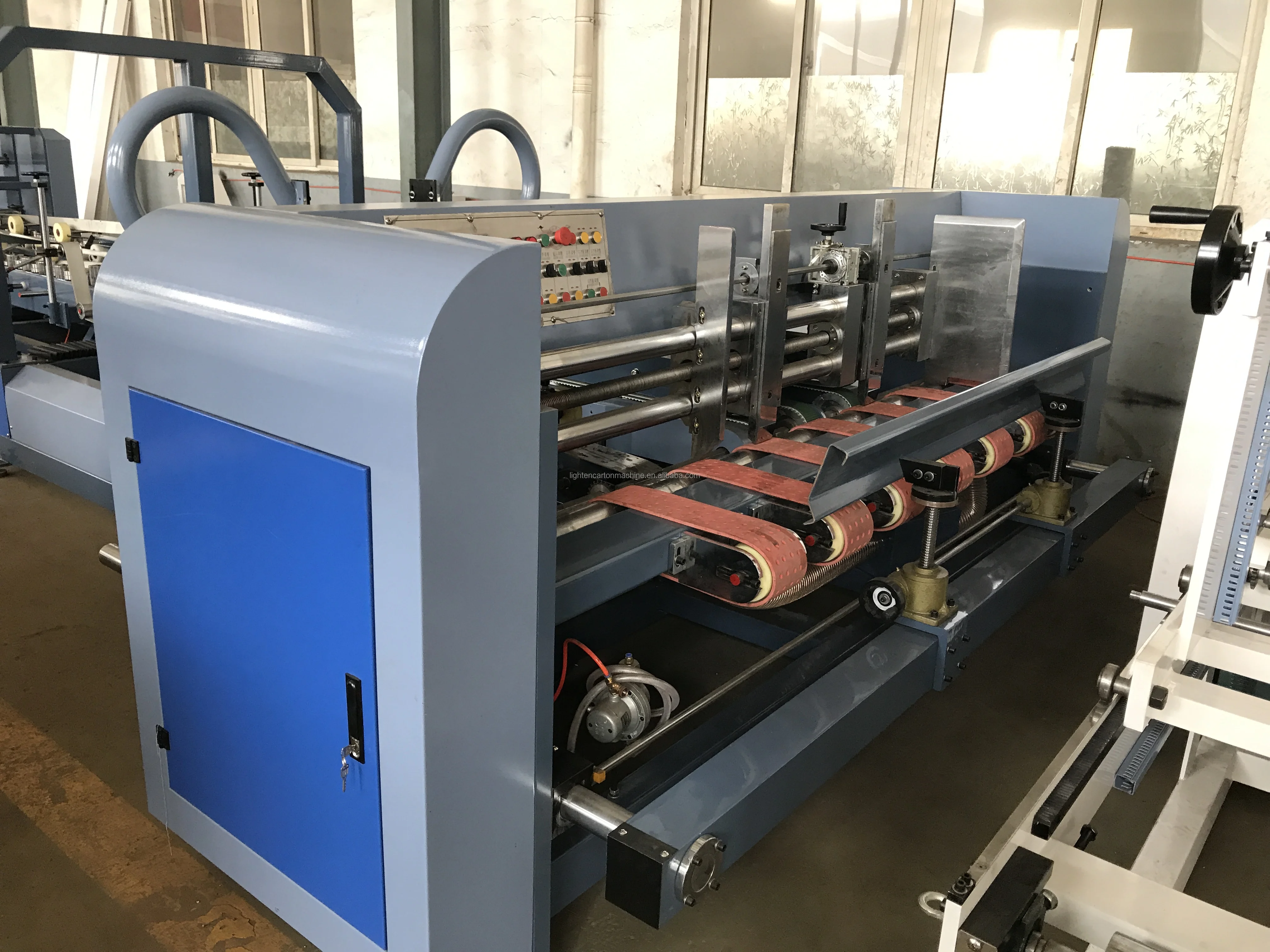

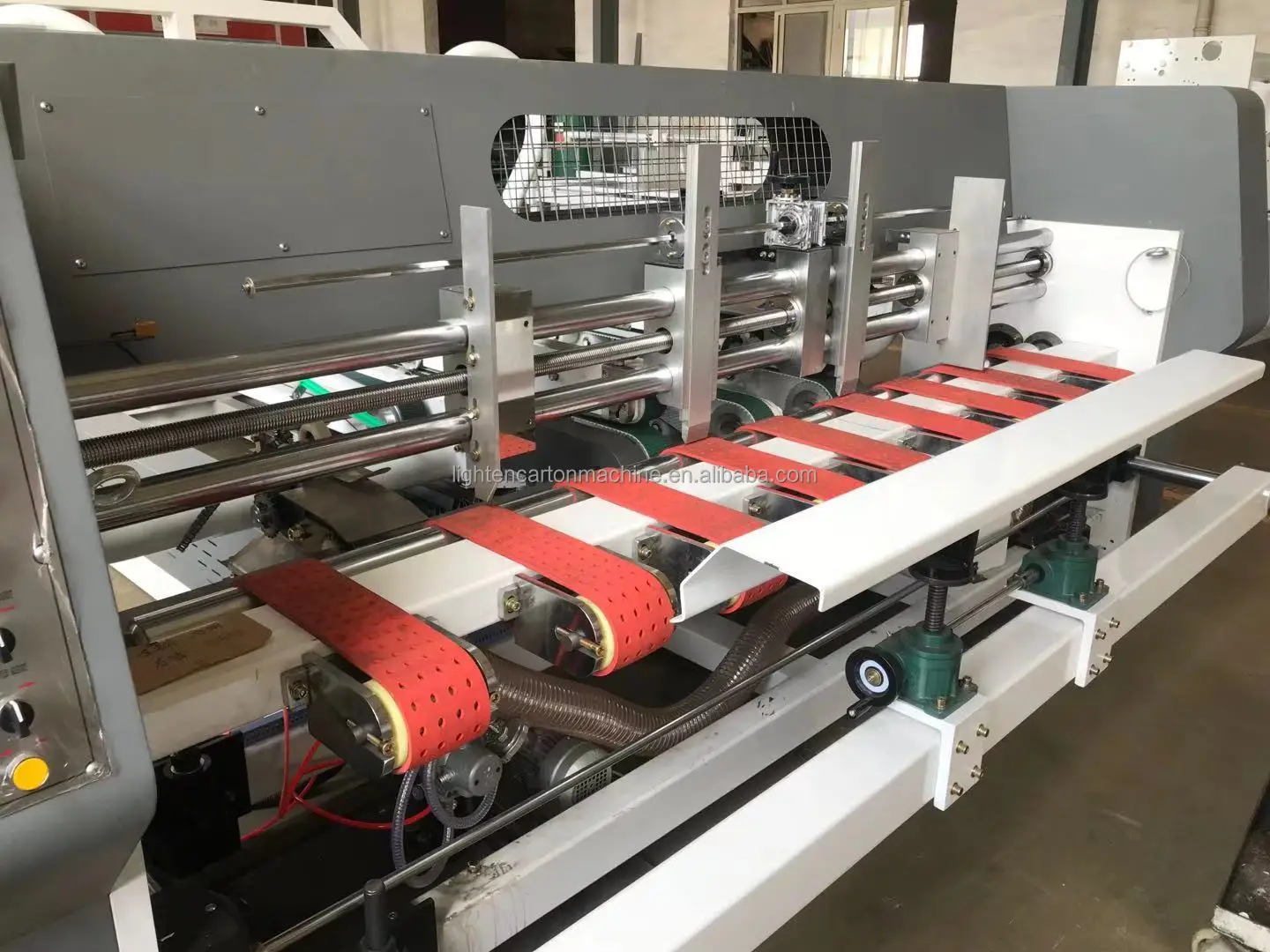

Feeding section
1:High quality and stability 8 feeding belts are made of Taiwan
2:Vacuum suction feeding system is good at adapting the curved paperboard
3: Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.

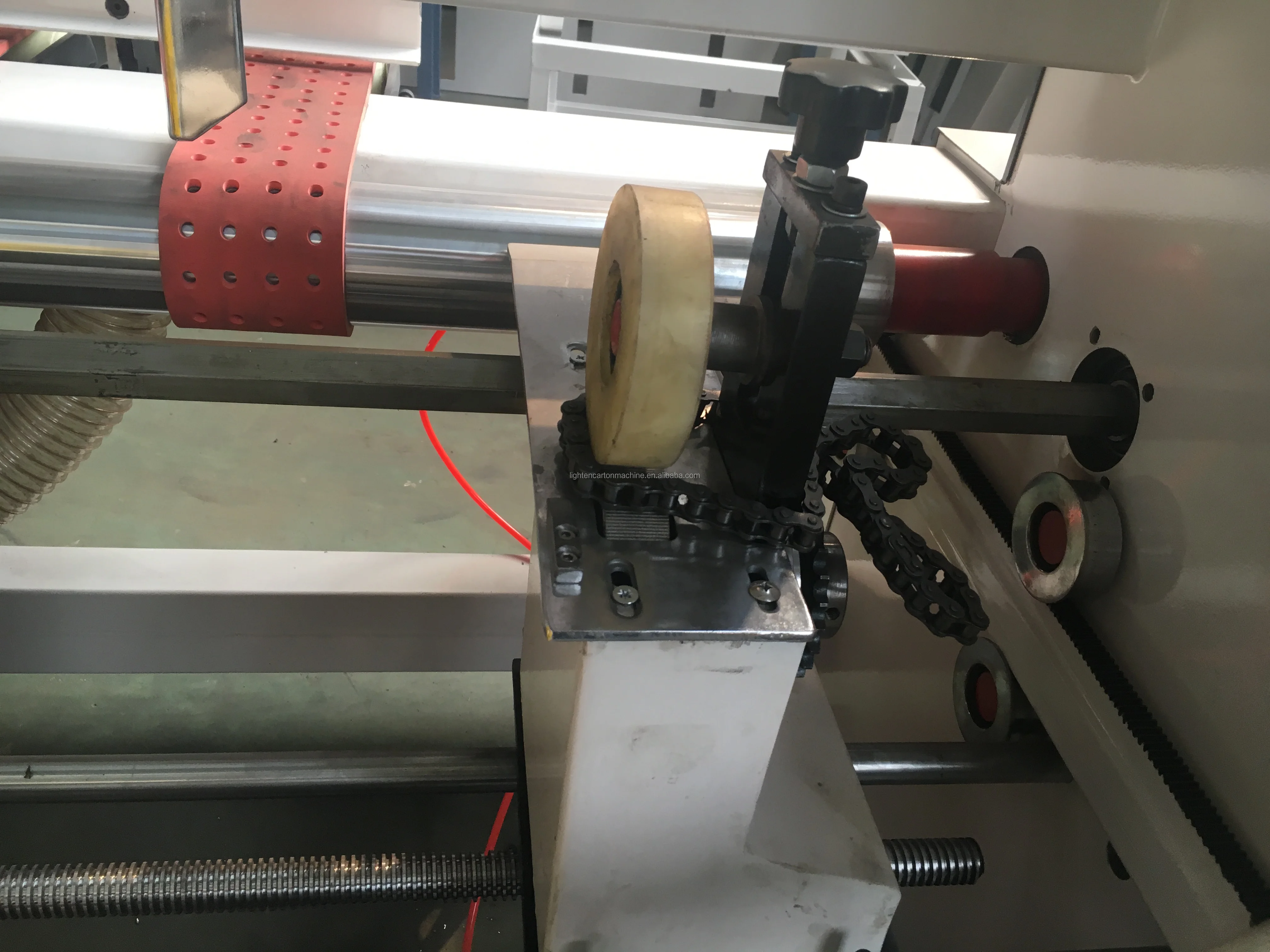

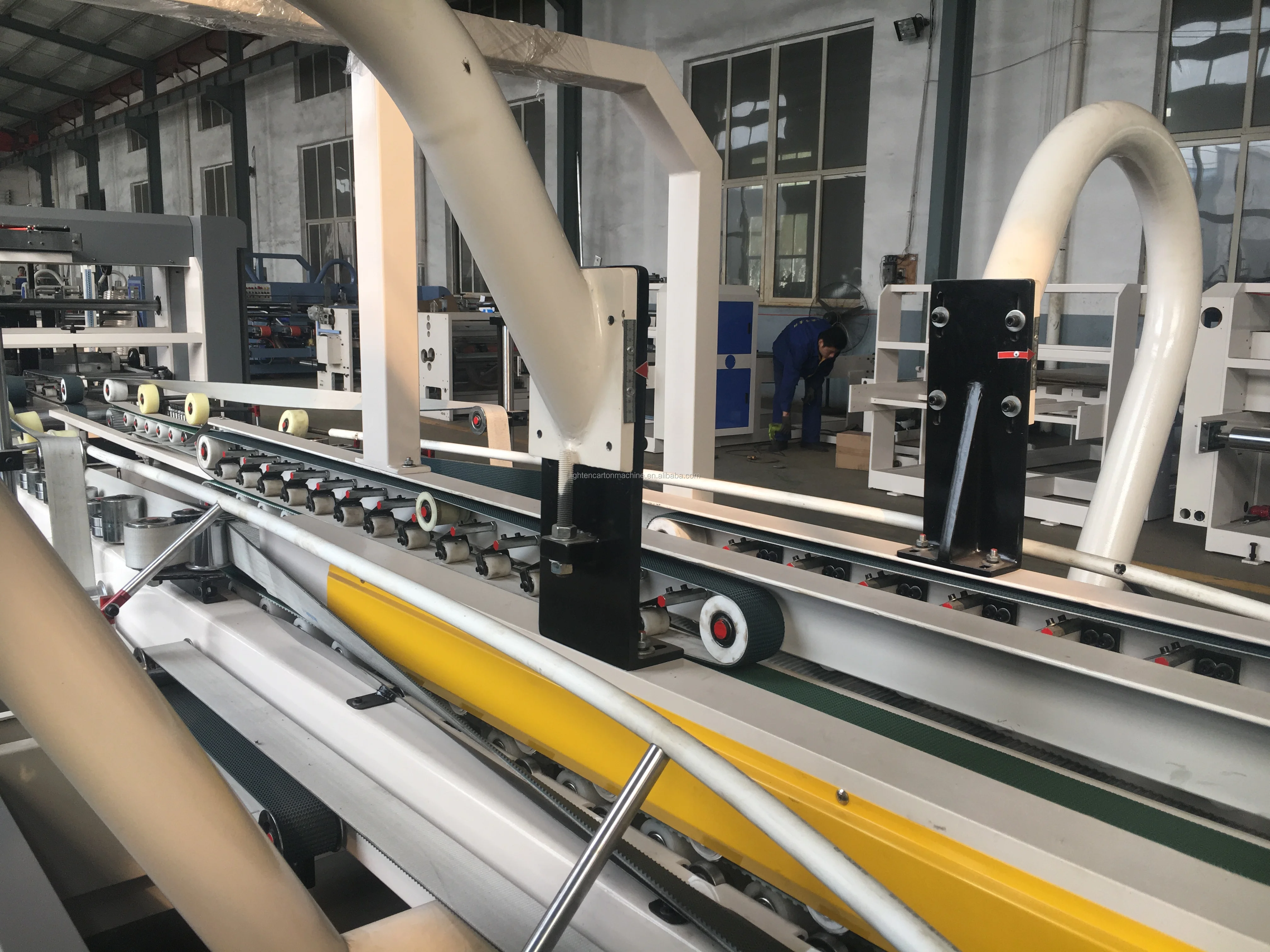

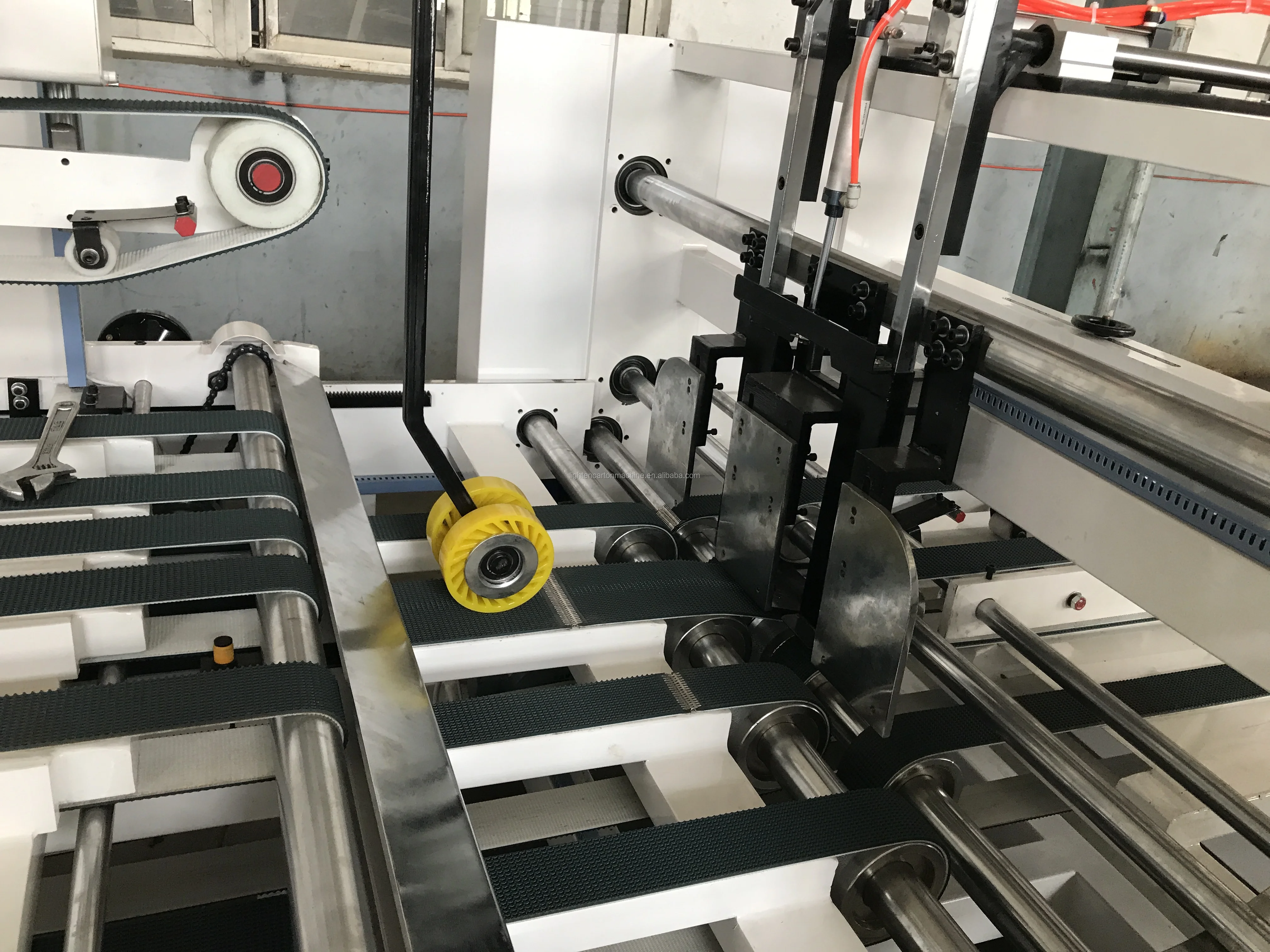

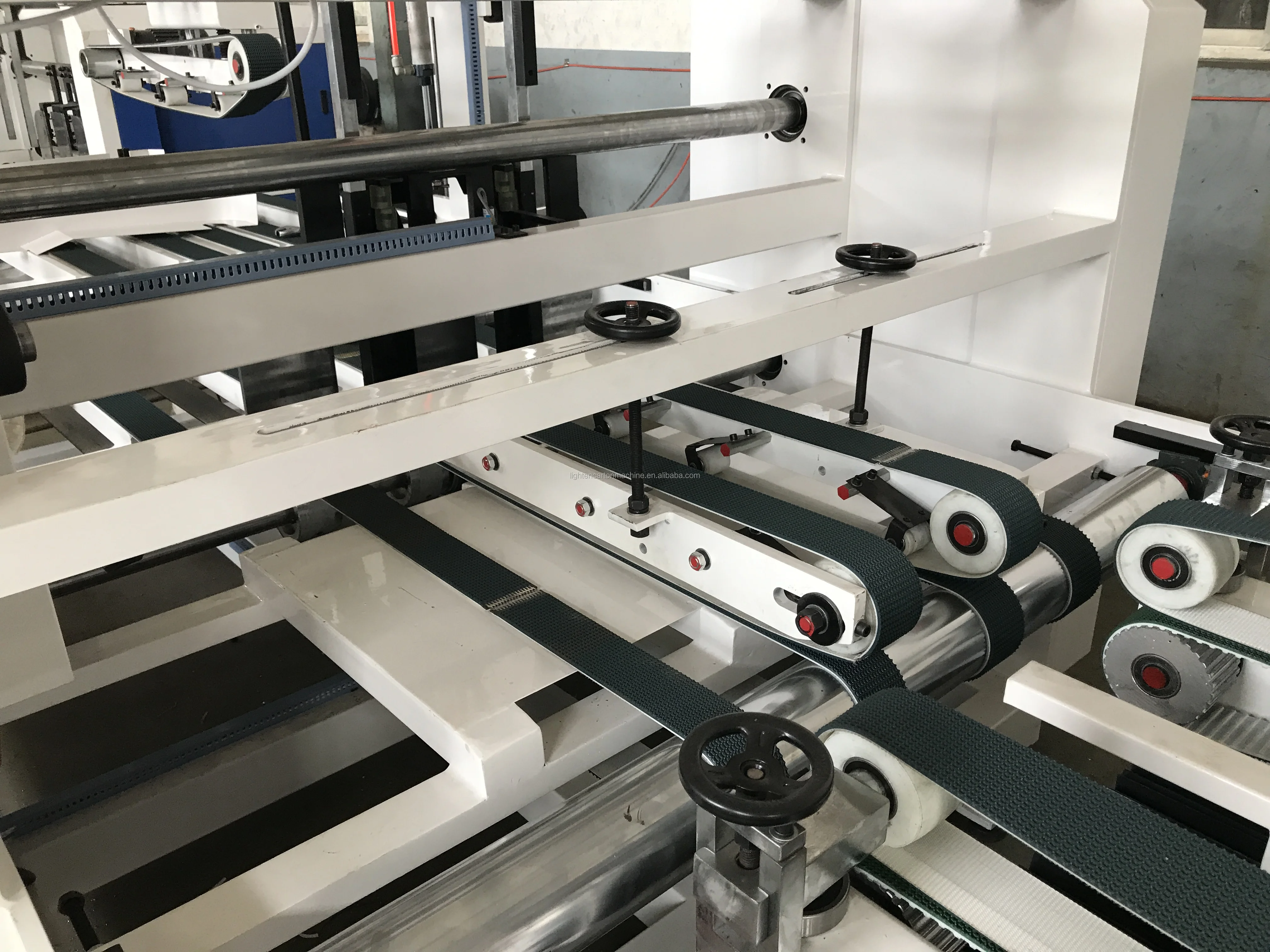

The gluer section
1.Simple structure and high reliability, glue quantity adjustable, cleaning easily.
2. Stainless steel glue wheel adopted, long life and saving glue cost
2. Stainless steel glue wheel adopted, long life and saving glue cost
3.Improved quality rubber belt adopted, automatic folding.
4.with paperboard rectify device and creasing rectify device.
5.The Folder belts adopt Germany's force and Switzerland brand
4.with paperboard rectify device and creasing rectify device.
5.The Folder belts adopt Germany's force and Switzerland brand
Title goes here.

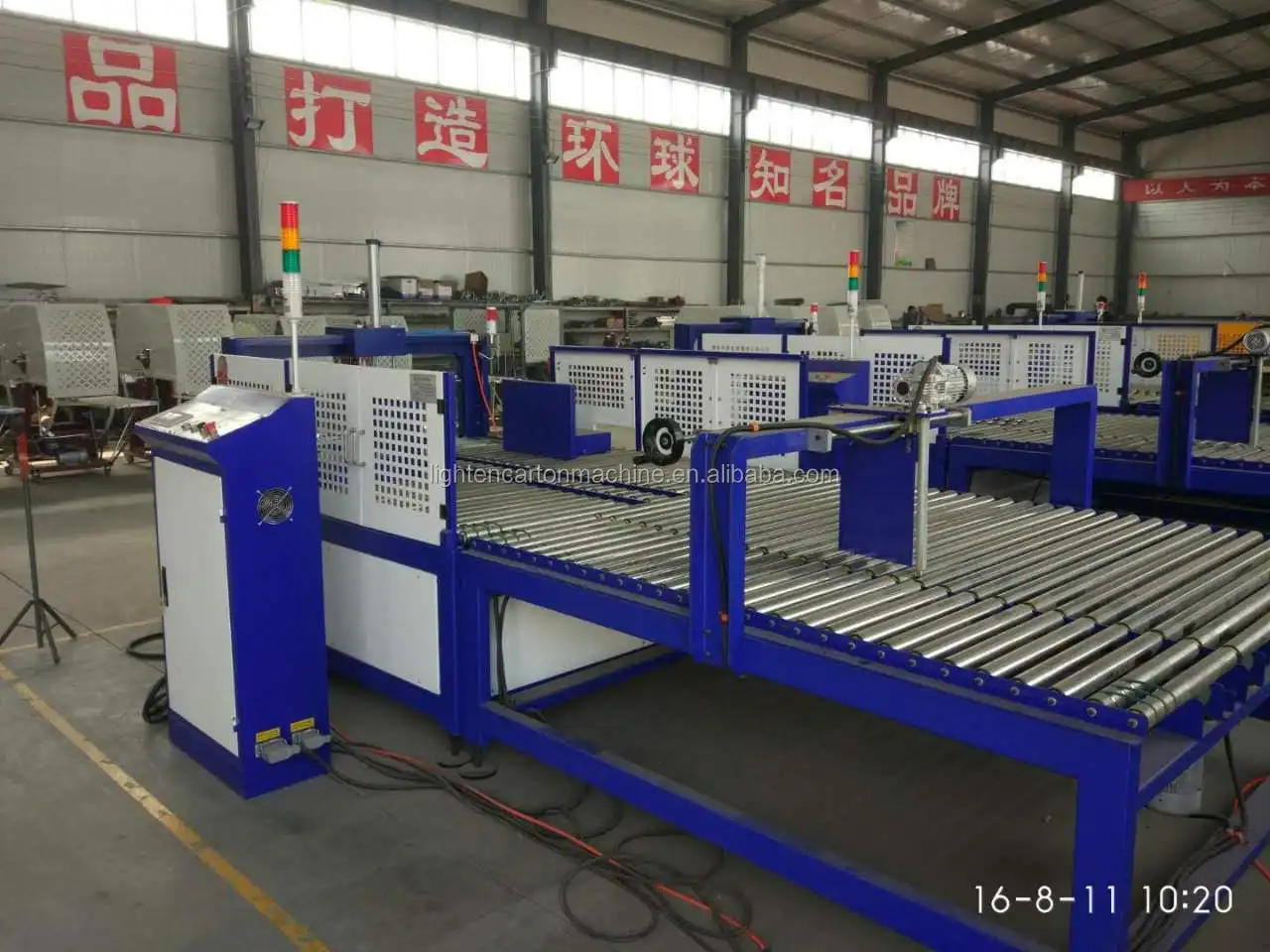

1. Stacking and counting are simple and reliable.
2. Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3. With rectification function.
4. Paperboard counting and put out by pneumatic, stable and quickly.
5. The machine functions by wireless remote control, carton size to adjust the speed quick, convenient.
2. Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3. With rectification function.
4. Paperboard counting and put out by pneumatic, stable and quickly.
5. The machine functions by wireless remote control, carton size to adjust the speed quick, convenient.

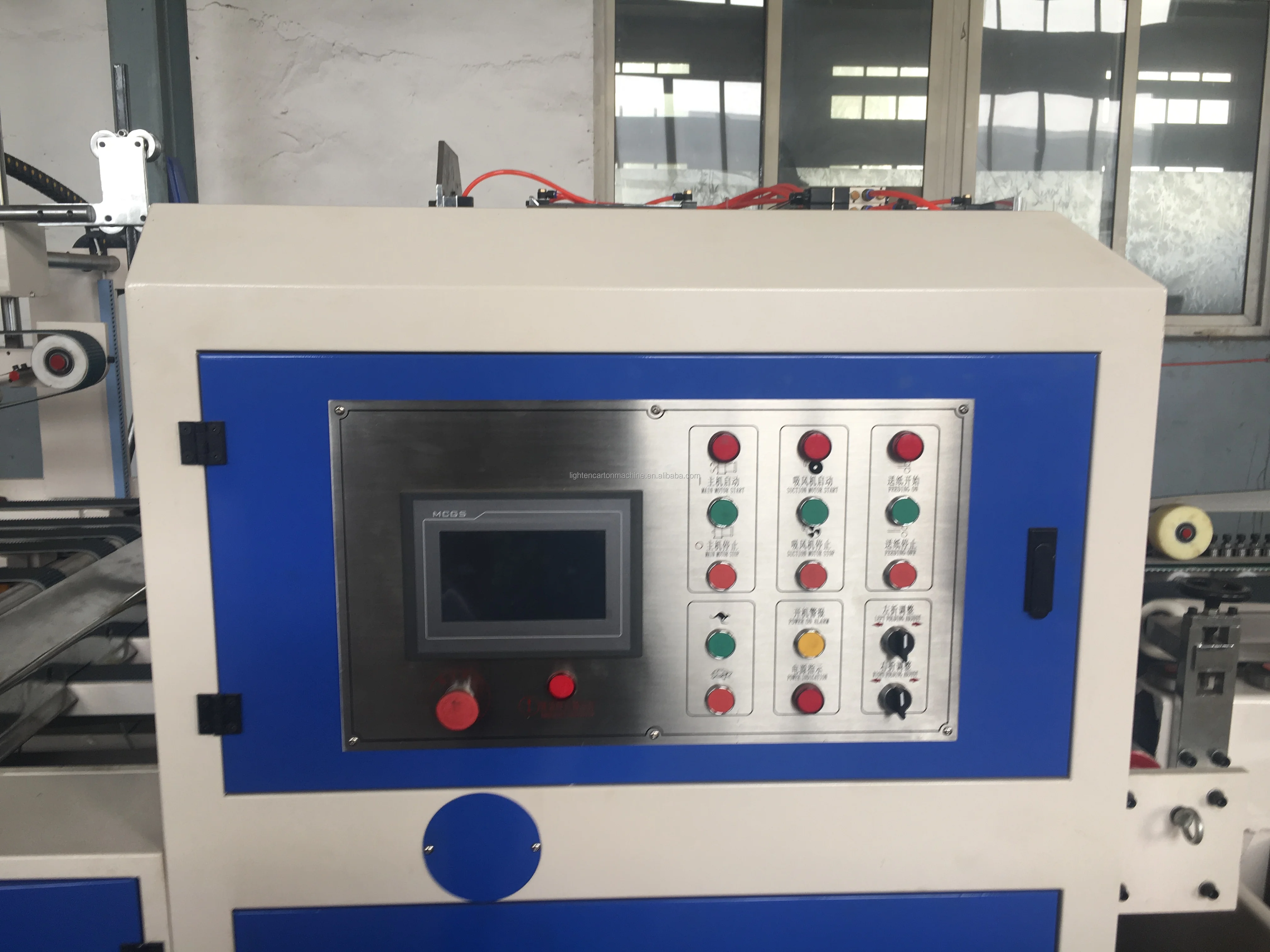

6. Counter ejector section controls by touch screen, able to set up base carton number and push out carton number, working speed, production counting able to setup through touch screen.

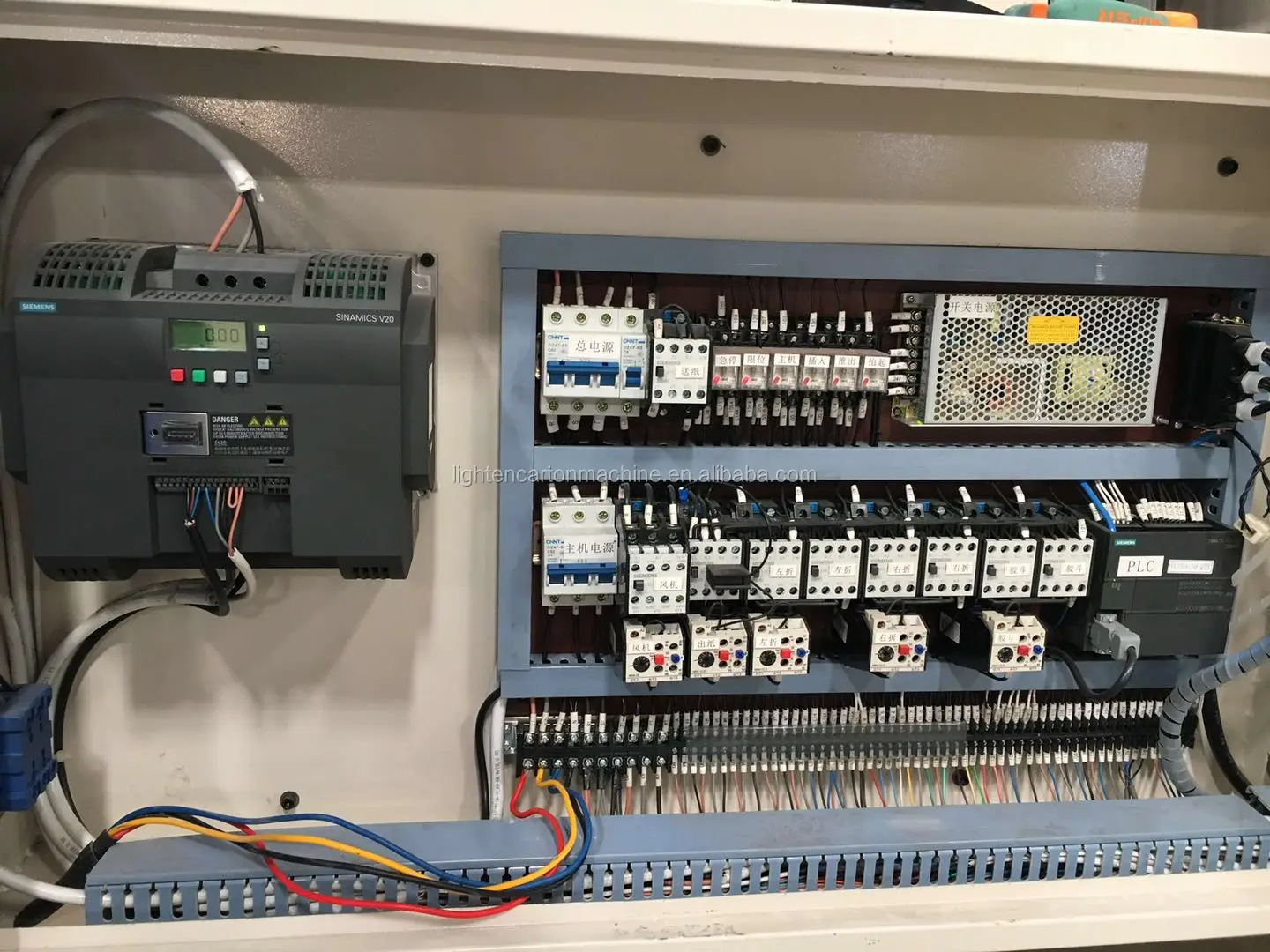

No | Name | Brand |
1 | Touching screen | SEIMENS GERMANY |
2 | PLC | SEIMENS GERMANY |
3 | Inverter | SEIMENS GERMANY |
4 | Relay | SEIMENS GERMANY |
5 | Photo switch | Hugong, China |
6 | Switch power | Meanwell , Taiwan |
7 | Thermal Overload relay | SEIMENS GERMANY |
8 | Breaker | SEIMENS GERMANY |
9 | Travel switch | CHINT, China |
10 | Contactor | SEIMENS GERMANY |
11 | Button | SCHNIDER FRANCE |
Optional

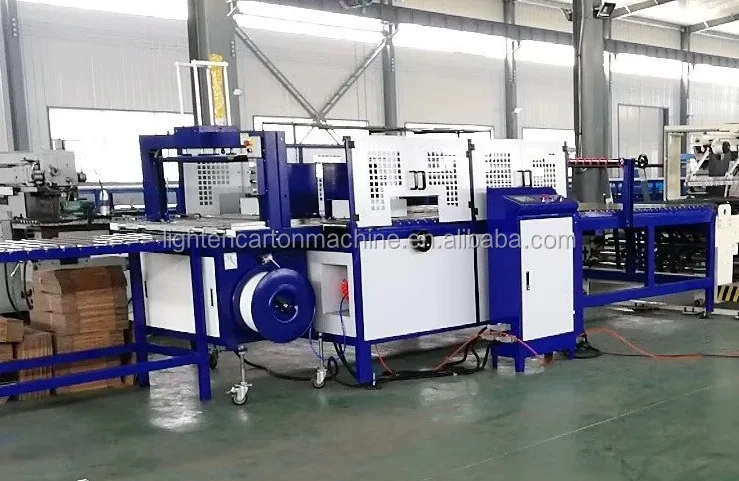

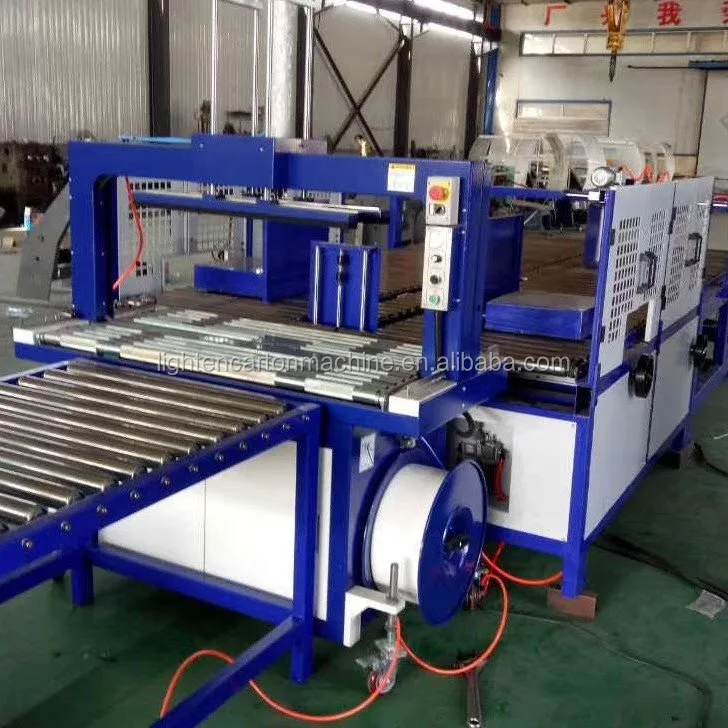

Base on need of customer can otional different kinds of bundling machine together to work.The bundling machine can be divided into PE or PP bundle belt bundling machine.It depends on customers requirement.

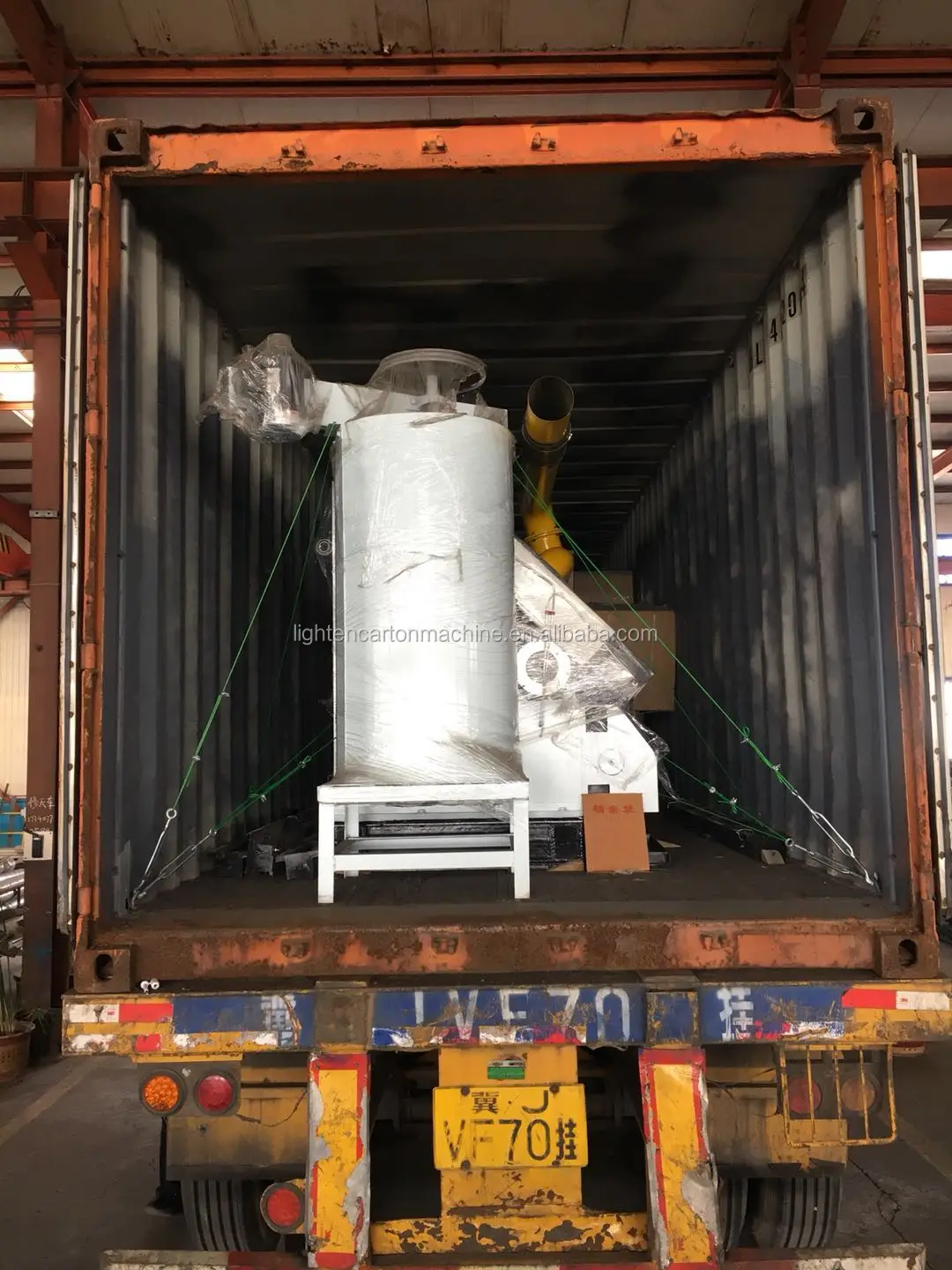

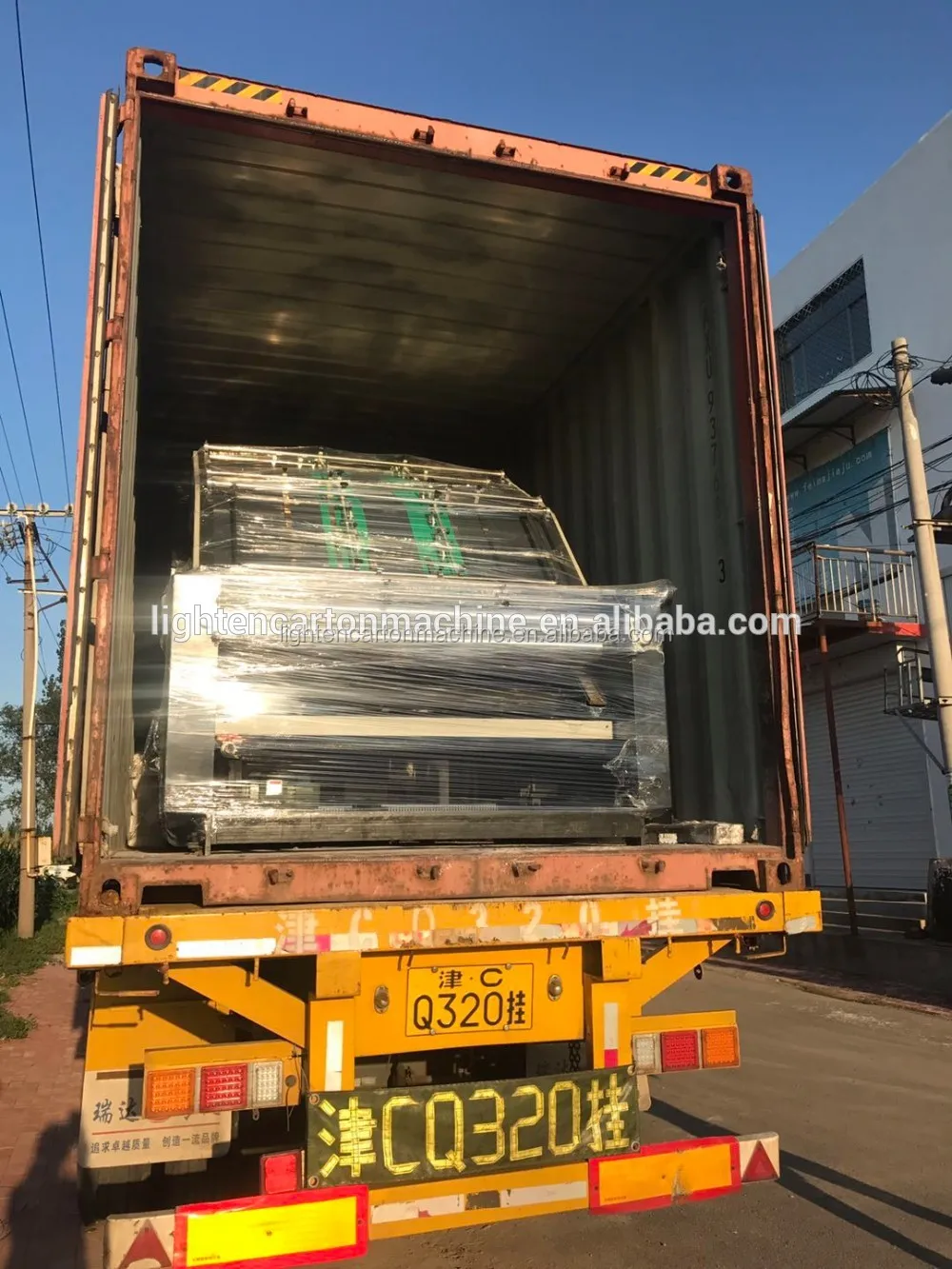

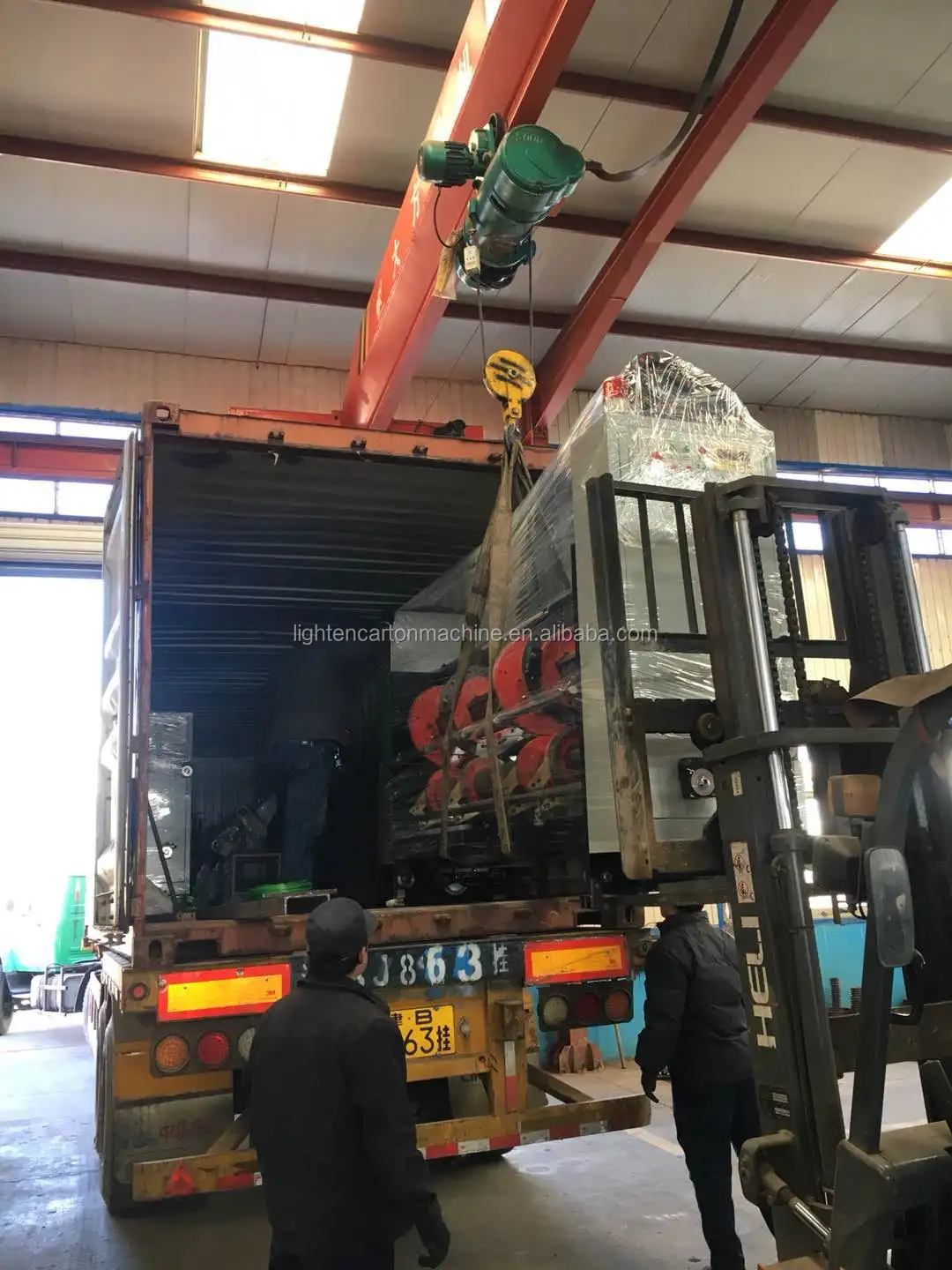

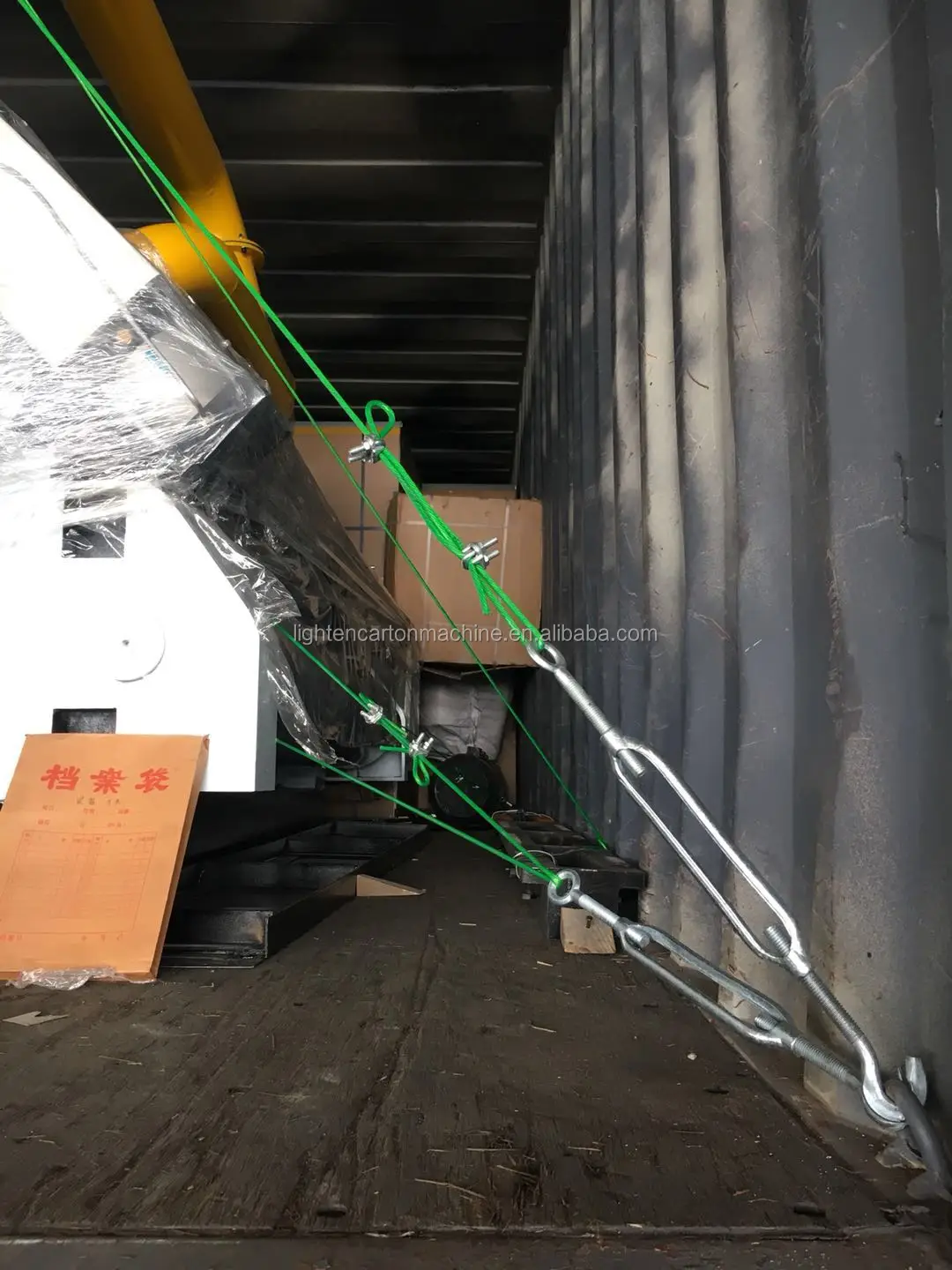

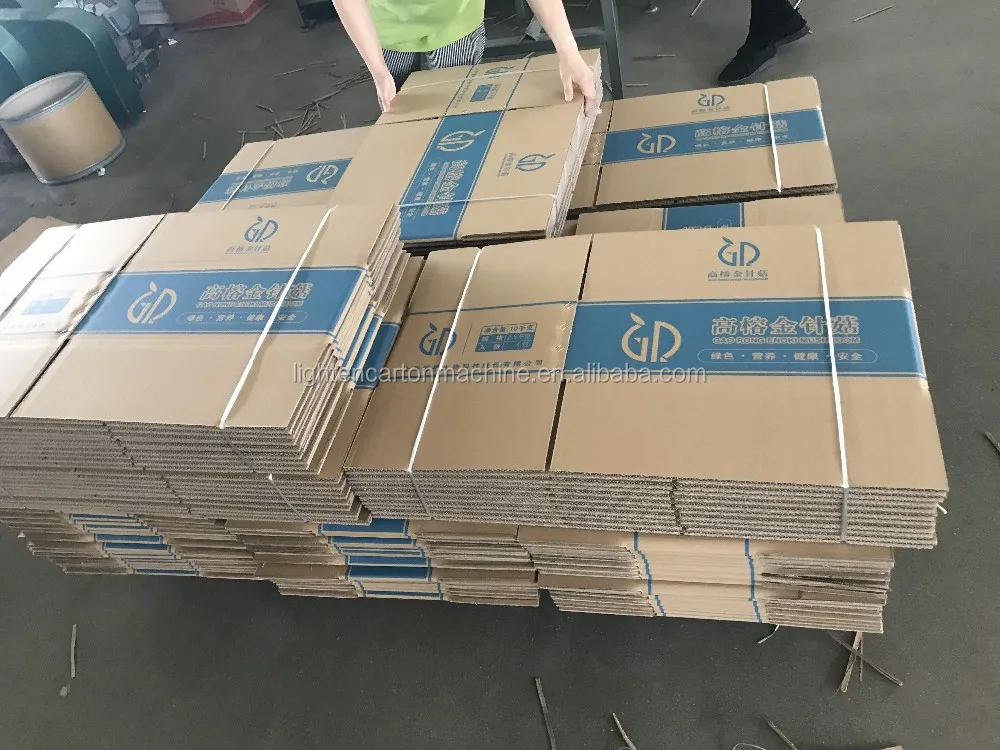

Product packaging
FAQ
1. Q: Are you a factory or trading company?
A: We are a company owned our factory which is specialized in the production of various kind of carton equipment. (With export license)
2. Q: How can I visit your factory?
A: We can pick you up if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, creasing and die cutting
machine,folder gluer,flute laminator,stitching&strapping machine and other corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Always attach great importance to quality controlling from the very beginning to the very end.
a. All raw material we used are environmental-friendly.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid within 3 days after the contract is signed, and the remaining 70% will be paid before shipment.
