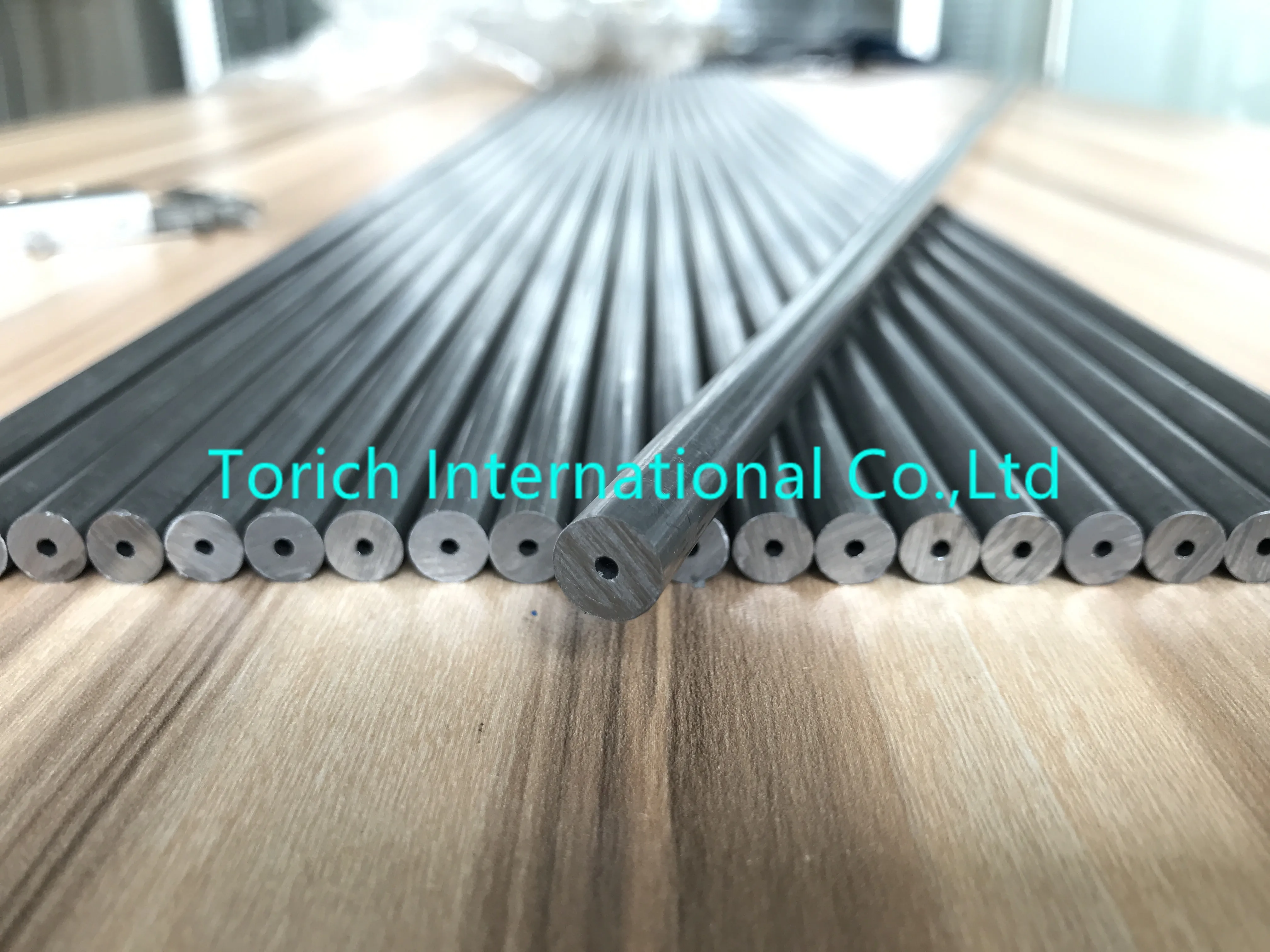

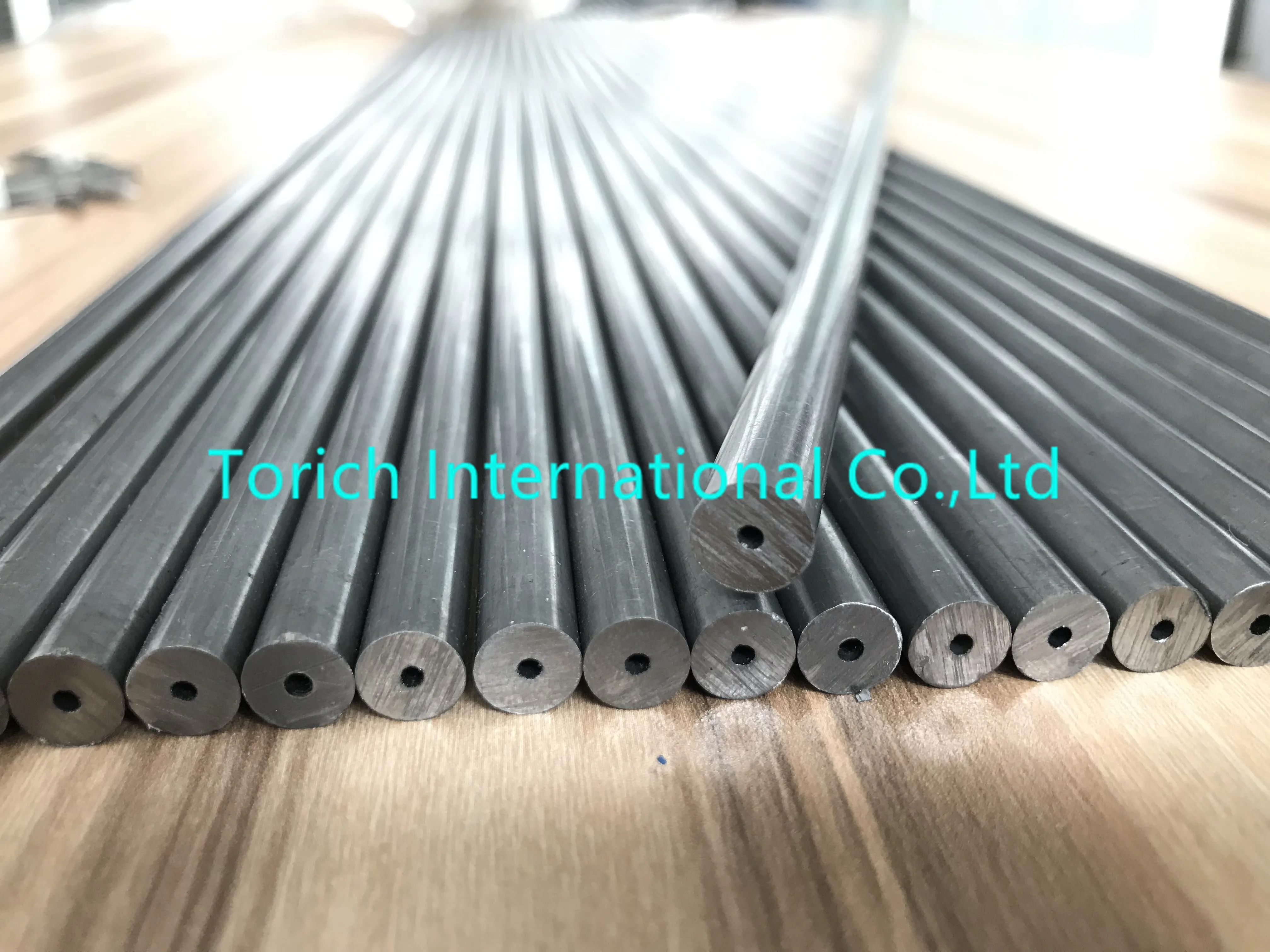

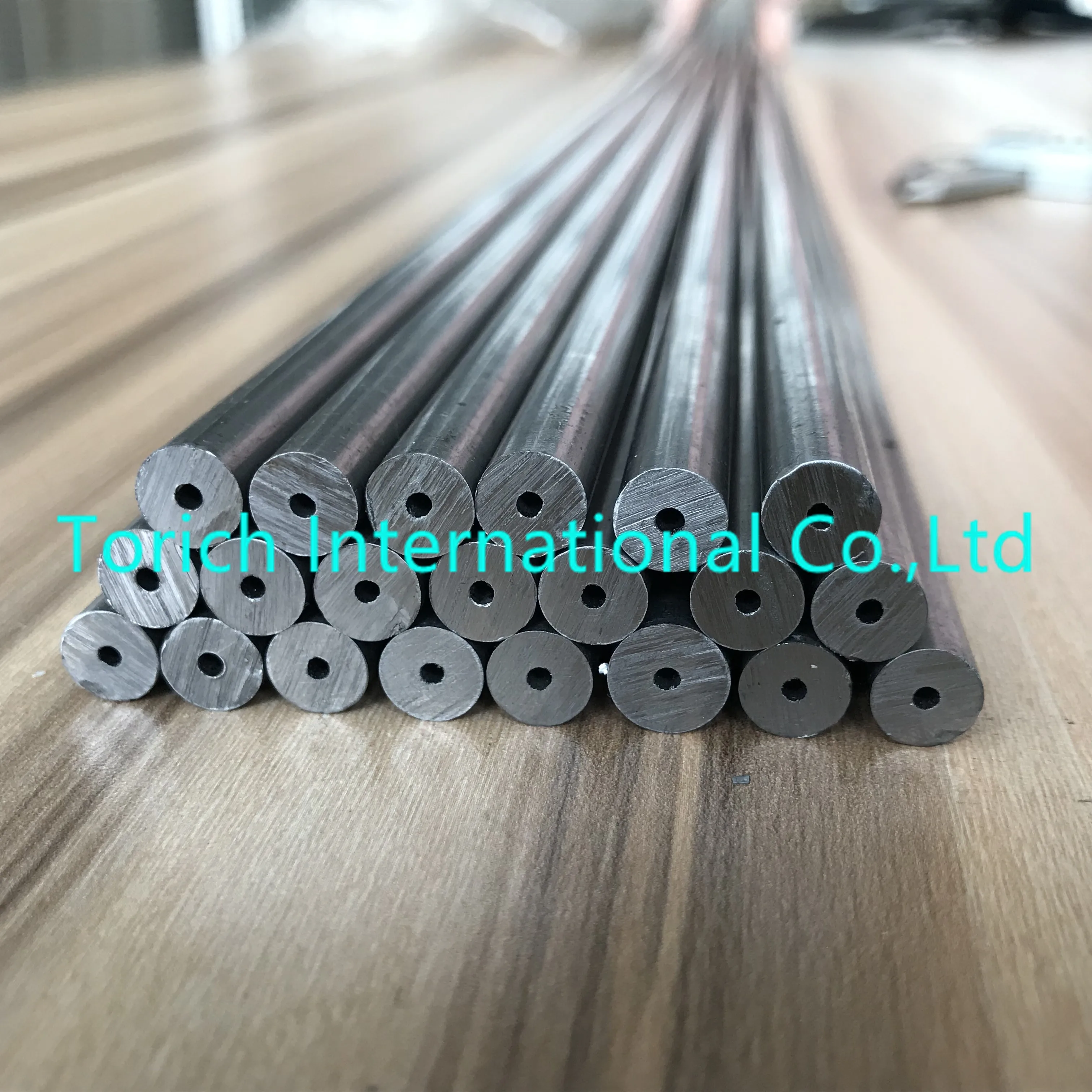

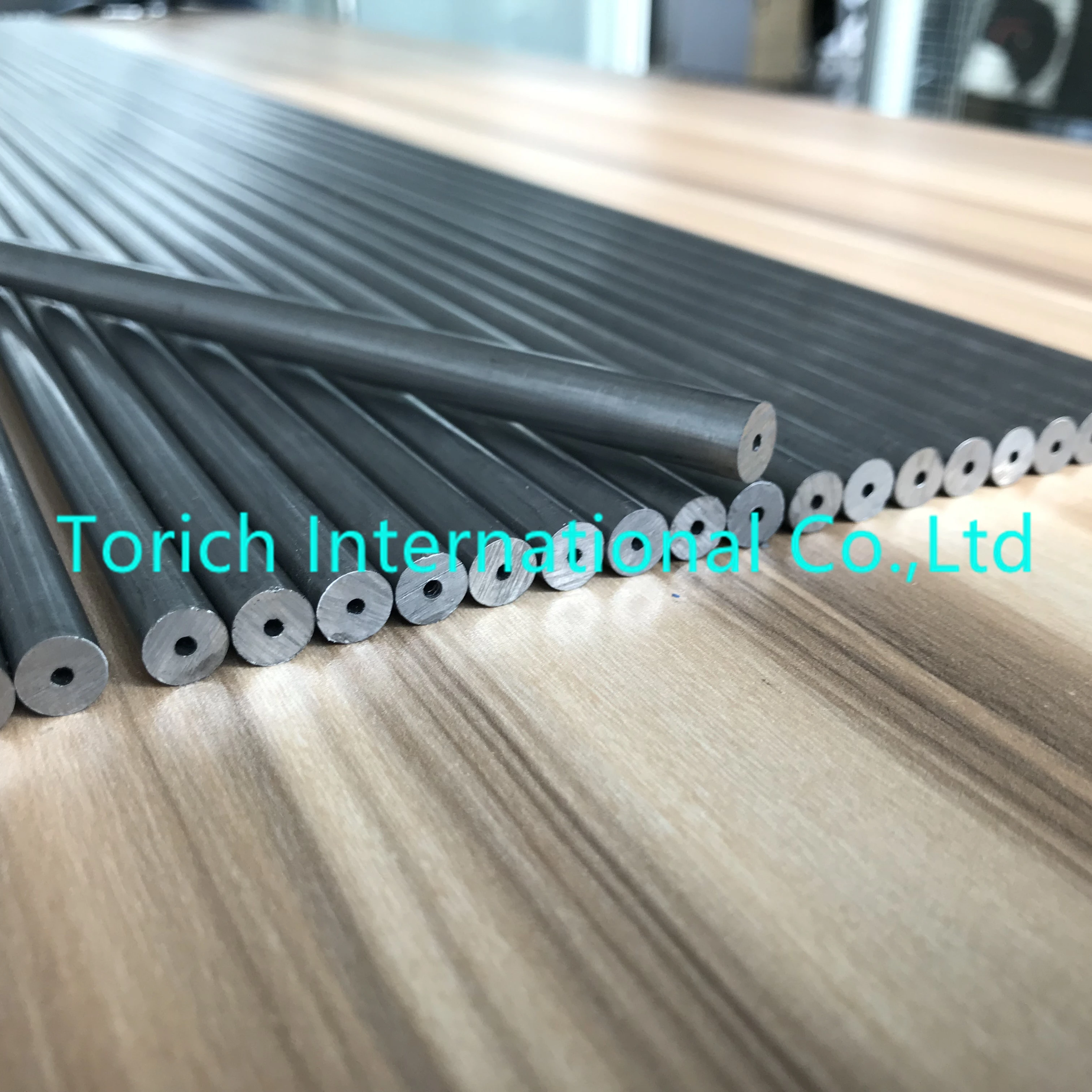

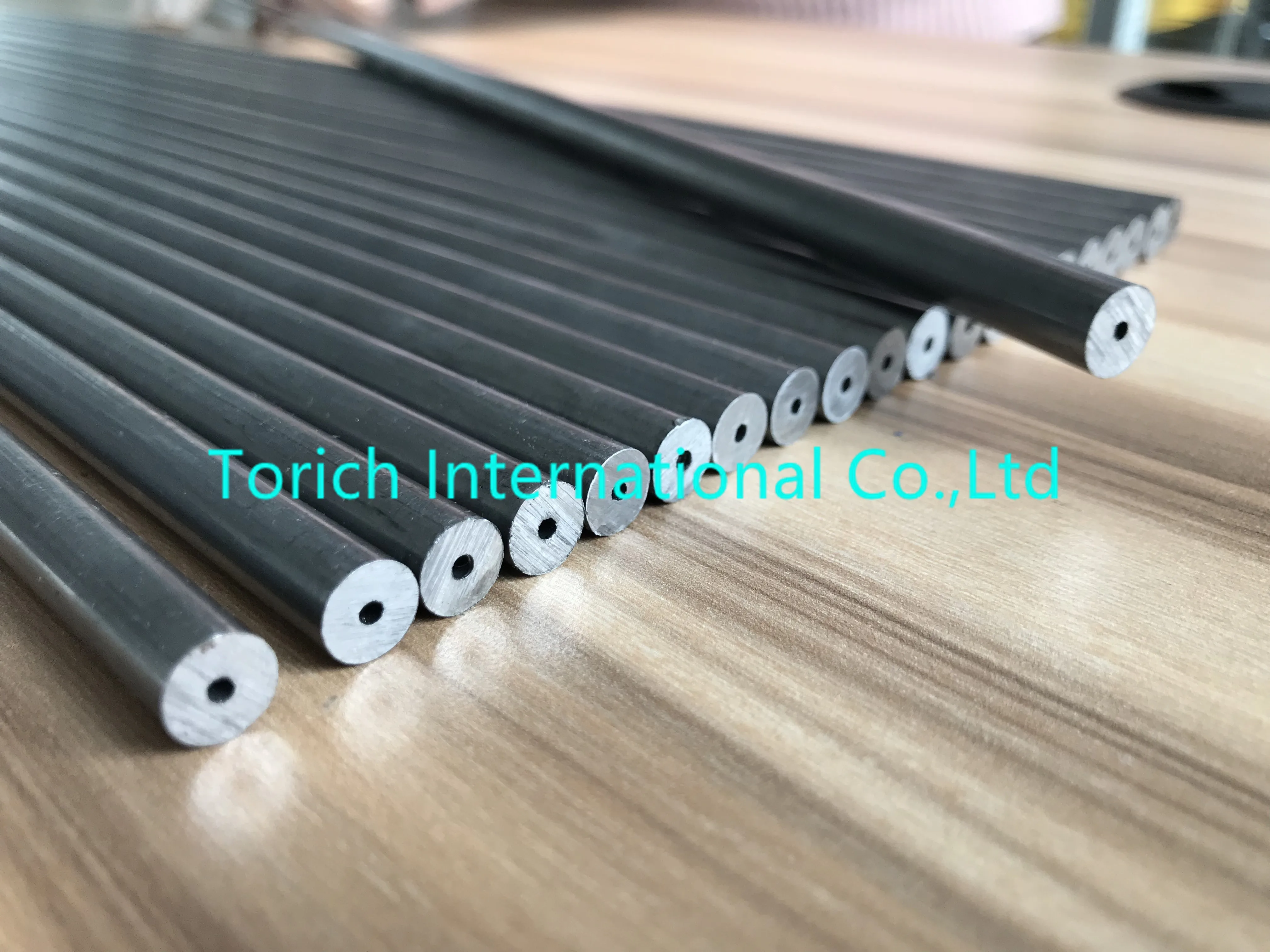

4130 Chromoly Tubing 4130 Steel Tube

Product Overview

Description

4130 Chromoly Tubing 4130 Steel Tube

Specification
1.Outer Diameter:10mm---700mm;2.Wall Thickness:1.0mm--30mm;3.Length:Max 12m
4.We can also produce according to customersrequirement

Material
10#20#45#16Mn A106 Gr A,B,A53 Gr B,ASTM A179,A315B,A335 P11,A335 P22,A335 P5
12CrMo 15CrMo 20CrMo 42CrMo 12Cr1Mov 10CrMo 910A 355P 22 STF A25

Delivery Condition
DesignationSymbolDescription
Cold finished (hard)BK(+C)
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation

Cold finished (Soft)BKW
(+LC)
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)

Cold finished and stress-relievedBKS(+SR)
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

AnnealedGBK(+A)The last Cold forming process is followed by annealing in a controlled atmosphere.
NormalizedNBK(+N)The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.

Chemical composition

Steel grade	C	Mn	p	s	si	Cr	Mo
4130	0.28-0.33	0.4-0.6	0.035	0.035	0.15-0.35	0.8-1.1	0.15-0.25



Mechanical properties

Steel grade	Tensile strength(Mpa)	Yield strength(Mpa)	Elongation
4130	345	483	20
