electric rickshaw tricycle motor 1kw 1.2kw 1.5kw 48V 72V electric e rickshaw ticycle car motor conversion kit
- Category: >>>
- Supplier: Wuxi Shenma Vehicle Parts Co. Ltd.
Share on (1600414162382):
Product Overview
Description
Product Description
Electric rickshaw tricycle for passenger

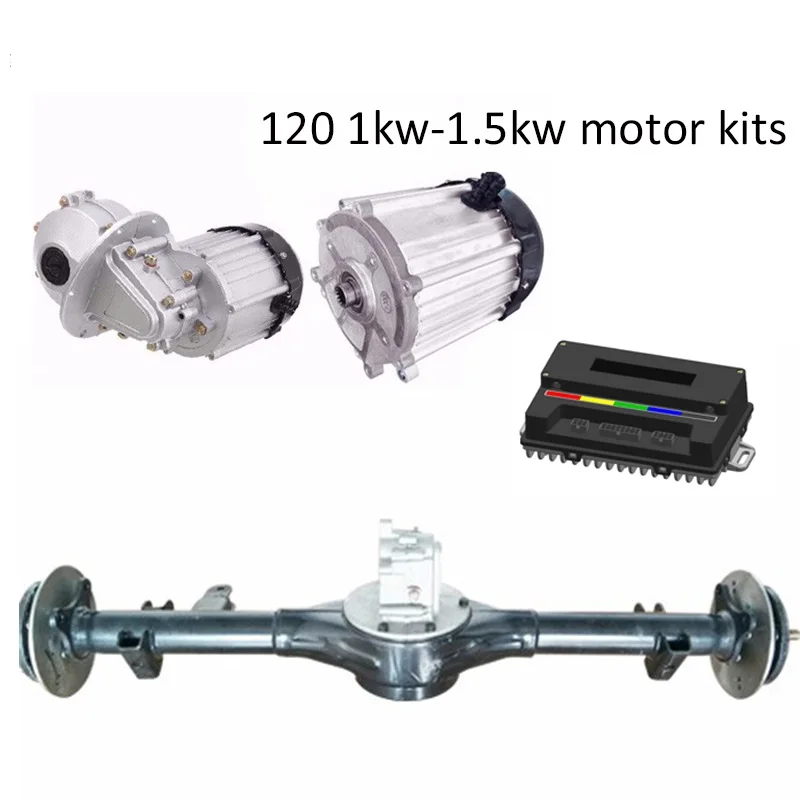

120 1000W PMSM DC Motor Kits
Suit for 600kg electric rickshaw tricycle for passenger, 48V 25km/h, 19% slope.
Motor: 120 1000W PMSM DC mid drive motor
Controller: EM4850SP wave motor controller (CAN-BUS available)
Gearbox: 1:13 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS available)
120 1200W PMSM DC Motor Kits
Suit for 700kg electric rickshaw tricycle for passenger, 48V 26km/h, 25% slope.
Motor: 120 1200W PMSM DC mid drive moto
Controller:EM4850SP 12 mosfet sinusoidal wave motor controller (CAN-BUS available)
Gearbox: 1:13 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS available)
For less than 600kg, we suggest to choose 1:10
For 600-750kg, we suggest to choose 1:13
Electric rickshaw tricycle for cargo
120 1500W PMSM DC Motor Kits
Suit for 1000kg electric rickshaw tricycle for cargo, 48V 25km/h, 25% slope.
Motor: 120 1500W PMSM DC mid drive motor
Controller: SIAECOSYS EM48100P 18 mosfet sinusoidal wave motor controller (CAN-BUS avaiable)
Gearbox: 1:19 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS avaiable)
120 1000W PMSM DC Motor Kits
Suit for 600kg electric rickshaw tricycle for passenger, 48V 25km/h, 19% slope.
Motor: 120 1000W PMSM DC mid drive motor
Controller: EM4850SP wave motor controller (CAN-BUS available)
Gearbox: 1:13 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS available)
120 1200W PMSM DC Motor Kits
Suit for 700kg electric rickshaw tricycle for passenger, 48V 26km/h, 25% slope.
Motor: 120 1200W PMSM DC mid drive moto
Controller:EM4850SP 12 mosfet sinusoidal wave motor controller (CAN-BUS available)
Gearbox: 1:13 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS available)
For less than 600kg, we suggest to choose 1:10
For 600-750kg, we suggest to choose 1:13
Electric rickshaw tricycle for cargo
120 1500W PMSM DC Motor Kits
Suit for 1000kg electric rickshaw tricycle for cargo, 48V 25km/h, 25% slope.
Motor: 120 1500W PMSM DC mid drive motor
Controller: SIAECOSYS EM48100P 18 mosfet sinusoidal wave motor controller (CAN-BUS avaiable)
Gearbox: 1:19 (customizable)
Rear axle: Customizable due to drawing
Speedometer: DKD electric speedometer (CAN-BUS avaiable)
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | SM |
Model Number | DC Motor |
Usage | Car, Electric Bicycle, electric rickshaw tricycle |
Type | GEAR MOTOR |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Totally Enclosed |
Speed(RPM) | 28km/h - 120km/h |
Efficiency | IE 1 |
Product Name | Electric rickshaw tricycle motor |
Motor type | PMSM mid drive motor |
Output Power | 1W-18KW |
Speed | 28km/h - 120km/h |
Rated Voltage | 48V - 144V |
Application | Four-wheel Vehicle;electric rickshaw tricycle; Car |
Application
Applicable models:
1. Electric freight tricycle puller.
2. Electric enclosed tricycle, passenger cars.
3. Electric four-wheeled vehicles, old-fashioned scooters, and micro-cars.
4. Modified cars, heterogeneous cars and other driving equipment.
1. Electric freight tricycle puller.
2. Electric enclosed tricycle, passenger cars.
3. Electric four-wheeled vehicles, old-fashioned scooters, and micro-cars.
4. Modified cars, heterogeneous cars and other driving equipment.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Wuxi Shenma Vehicle Parts Co., Ltd are located in Wuxi city, Jiangsu province, which is the most qualified disk brake and hub motor manufacturer over 20 years in China.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and ect.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and ect.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
FAQ
1. who are we?
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages:
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages:
1, according to the actual situation of electric vehicle or motorcycle customized corresponding safe and cost-effective brake system;
2, brake system accessories complete, non-standard can be customized, fast delivery;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
