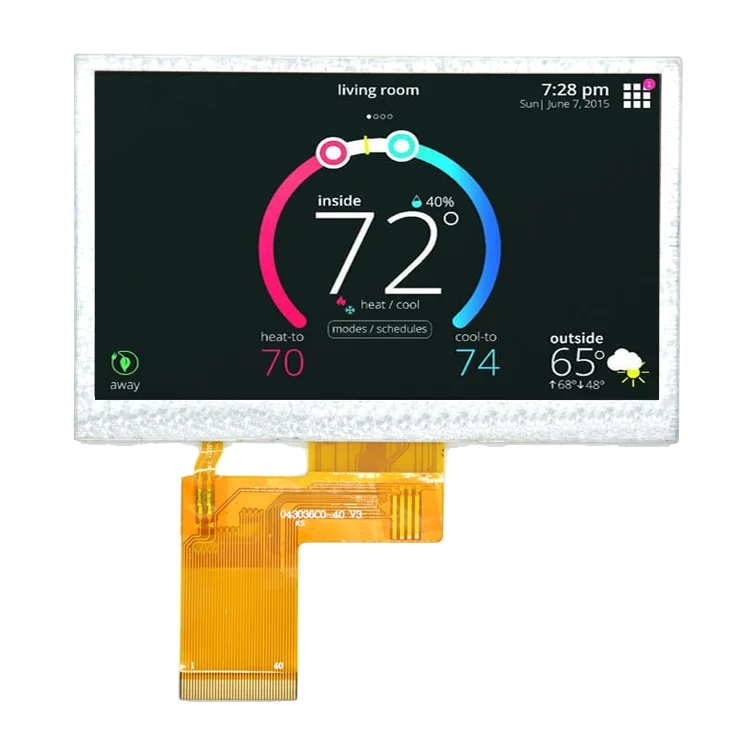

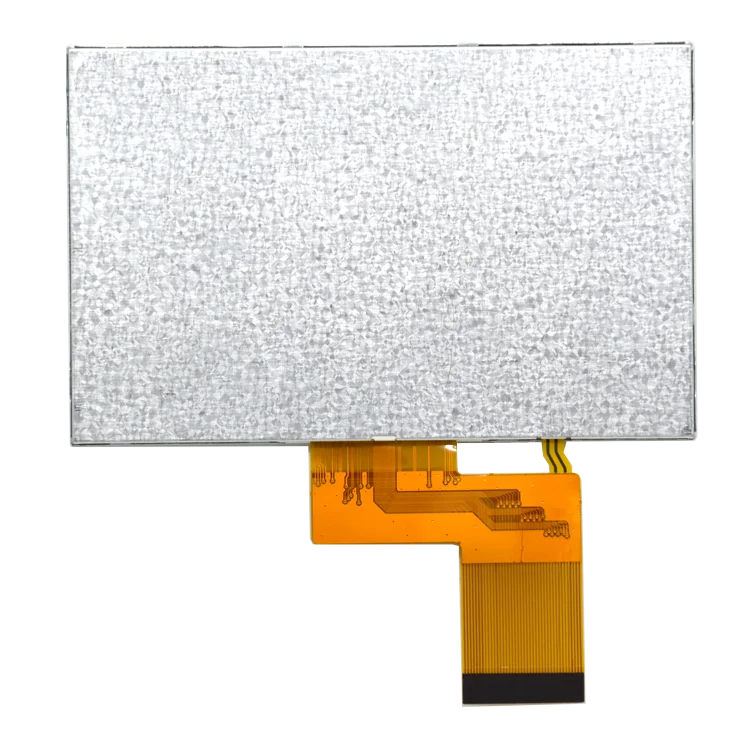

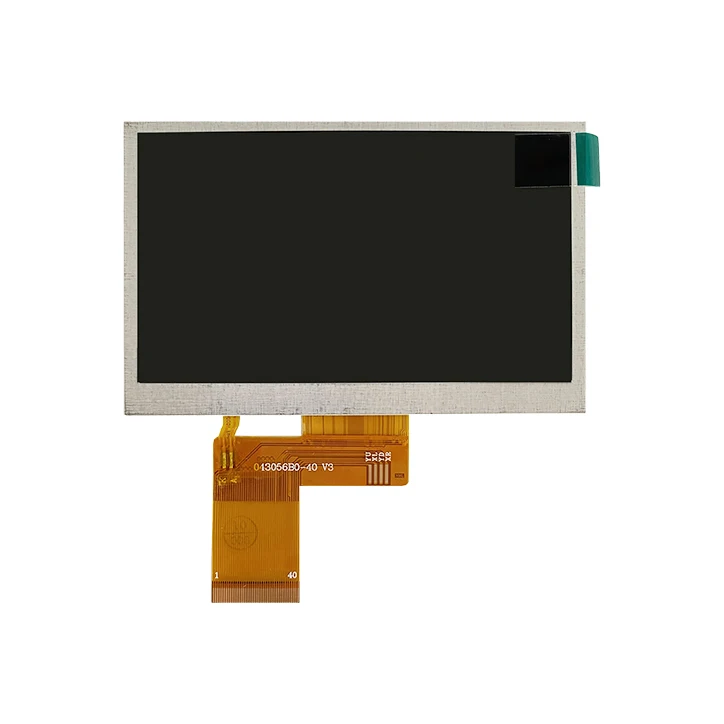

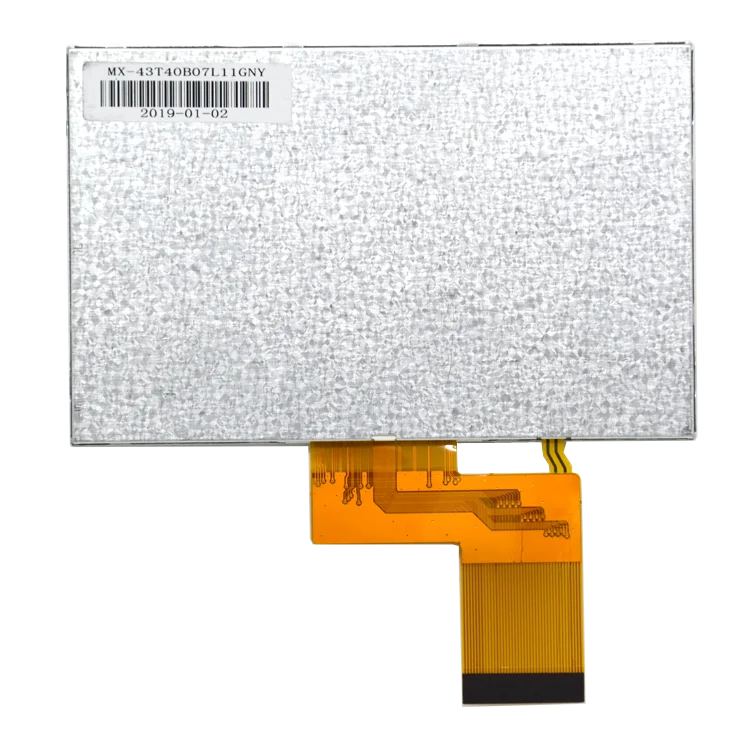

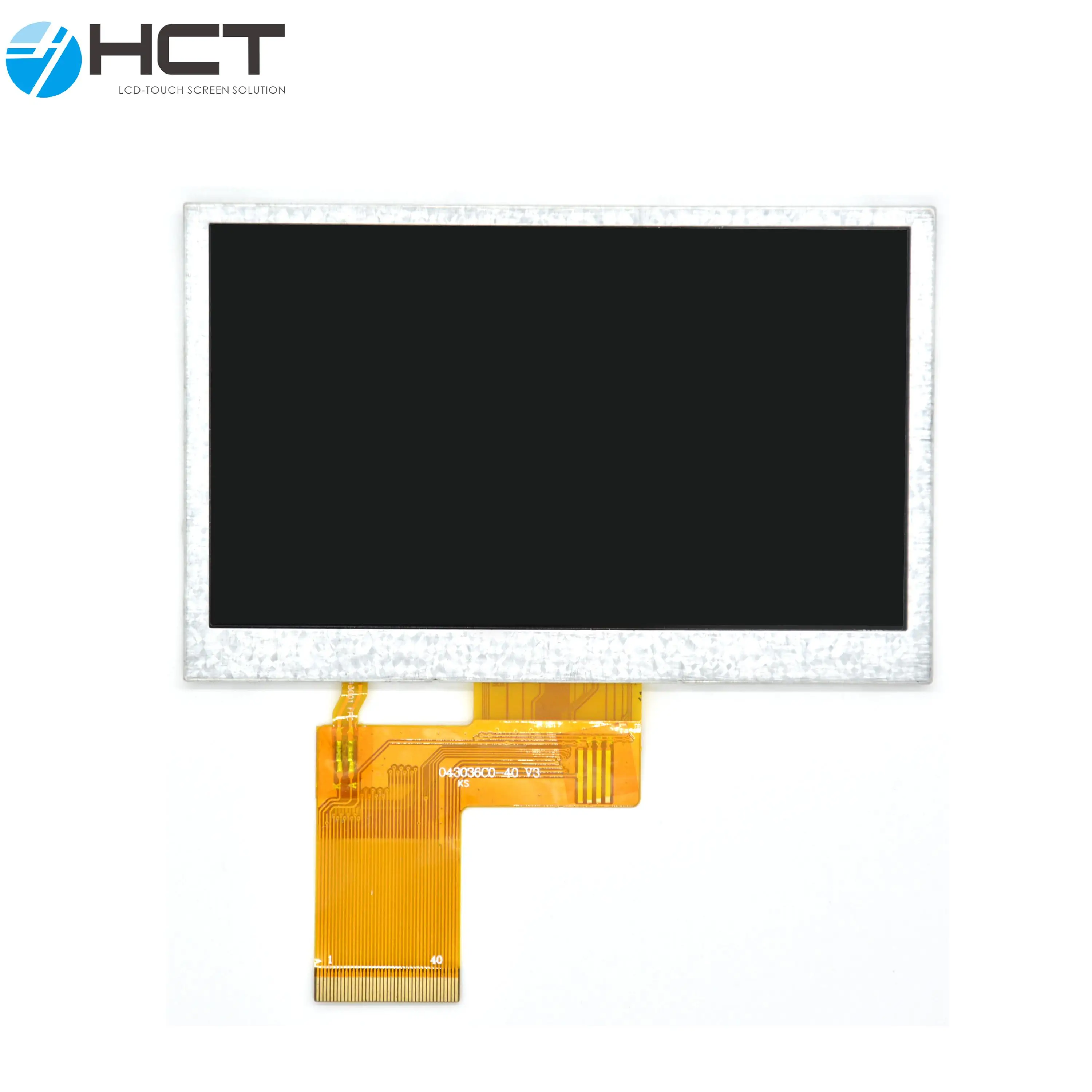

4.3 inch TFT LCD Matrix 480x272 RGB 45 PIN TN LCD Display
- Category: >>>
- Supplier: Shenzhen HCT Electronics Co. Ltd.
Share on (1600414218863):
Product Overview
Description
Product Description
ITEM | STANDARD VALUES |
LCD Name | 4.3 inch TFT LCD Display |
Dot Arrangement | 480x272 |
Color Filter Array | RGB vertical stripe |
Display Mode | TN / Transmission / Normally White |
Gray Scale Inversion Direction | 6 O'clock |
Eyes Viewing Direction | 12 O'clock |

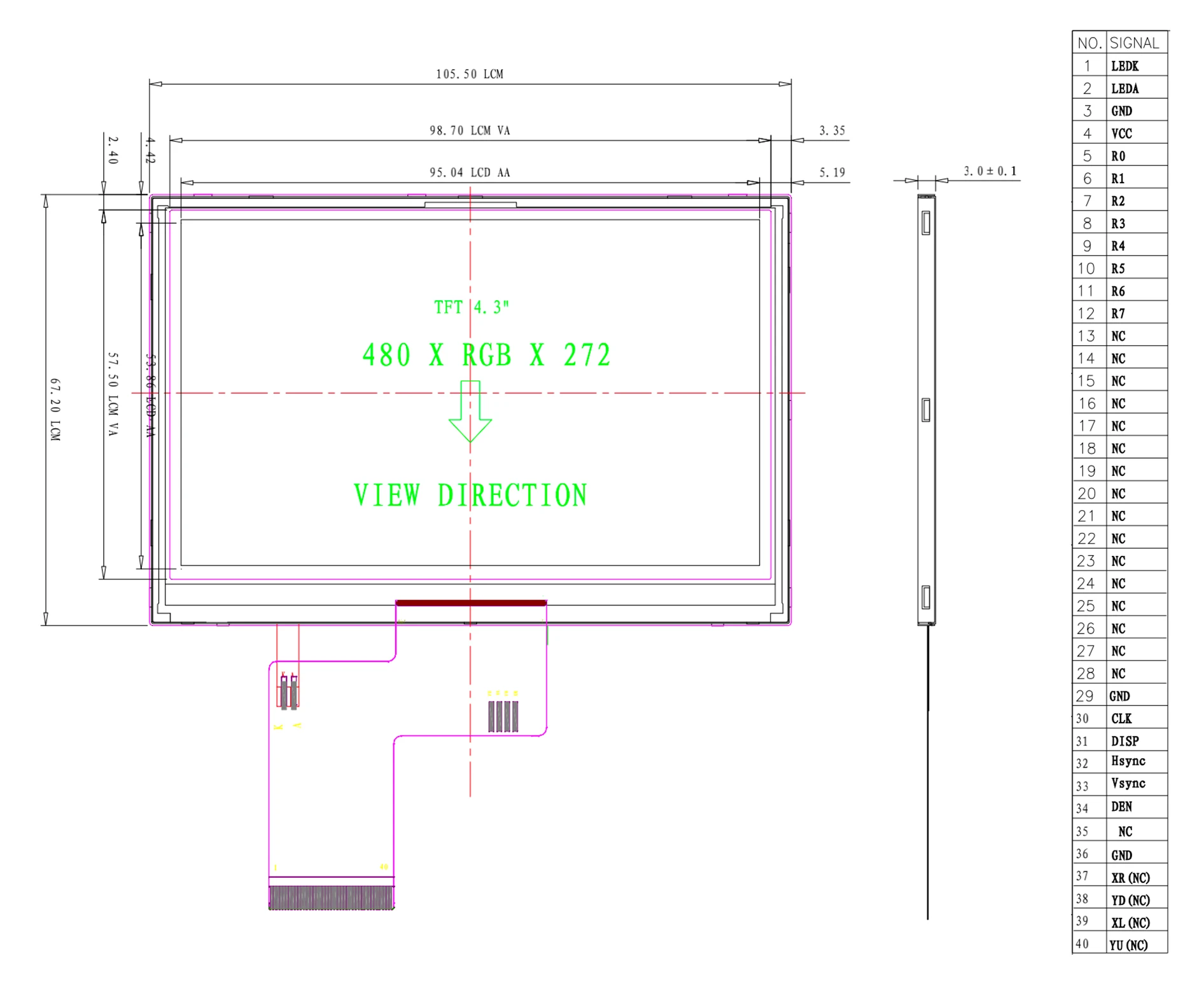

Module Size | 105.5mm(W)*67.2mm(H)*3.0mm(T) |
Active Area | 95.04mm(W)x53.856mm(H) |
Interface | 24-bit RGB interface |
Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -30 ~ +80℃ |
Optional with

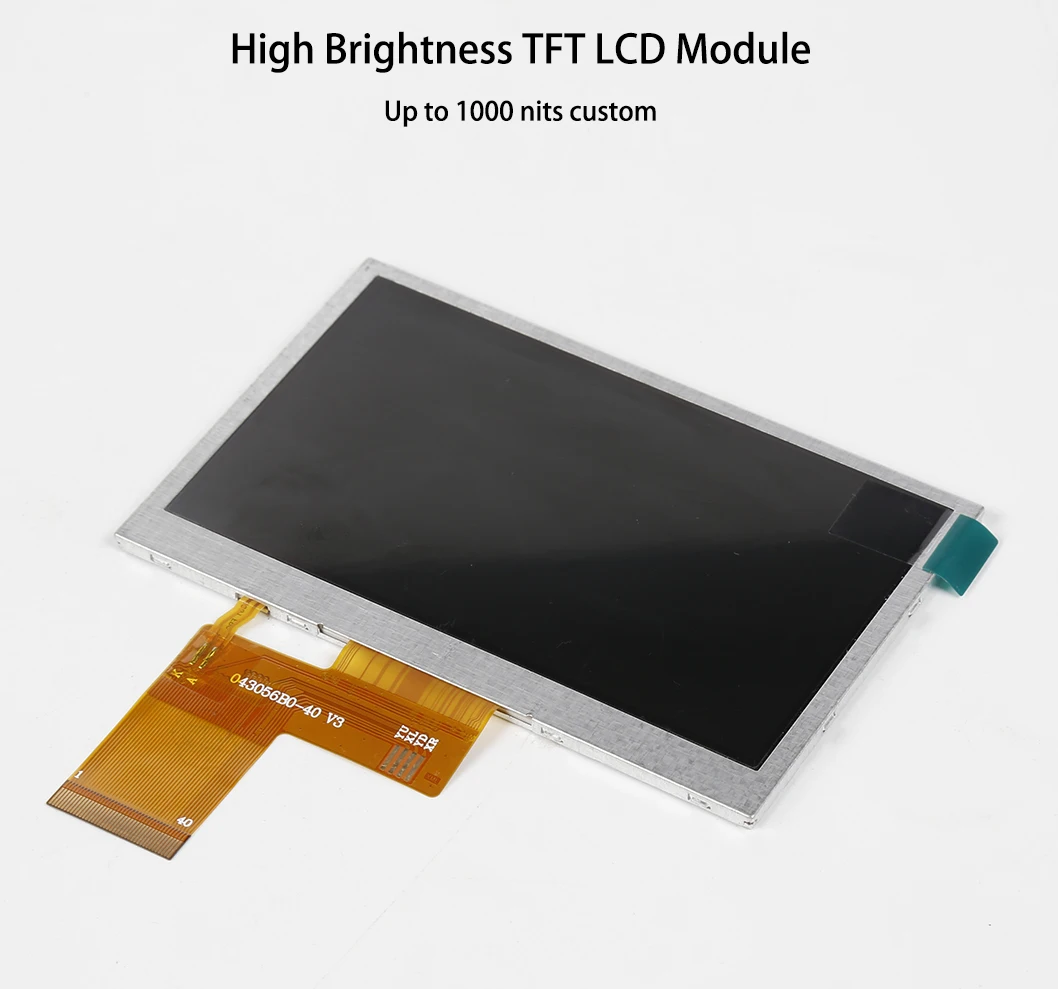

Custom brightness availability | ||
Standard Brightness 350 nits | ||
High Brightness 500 nits | ||
Sunlight Brightness 1000 nits | ||
Related Products
Company Profile
Shenzhen HCT Electronics Co., Ltd is a professional supplier of small and medium size TFT LCD panel and touch screen. Our products are produced in around 7,000 square meters production area, including 5,000 square meters 100 level to 1000 level dust-free workshop. Our Company is an ISO9001 and ISO14001 certified manufacturer and qualified producer of TS16949. Our well trained 2100 employees are having rich experience in producing touch screen and TFT LCD display with 10 years' experience. Through modern management skills, by introducing constant updating newly automated technology and facilities into our production, contributing by our talented and innovative engineering human resources, HCT can meet your diversified needs.

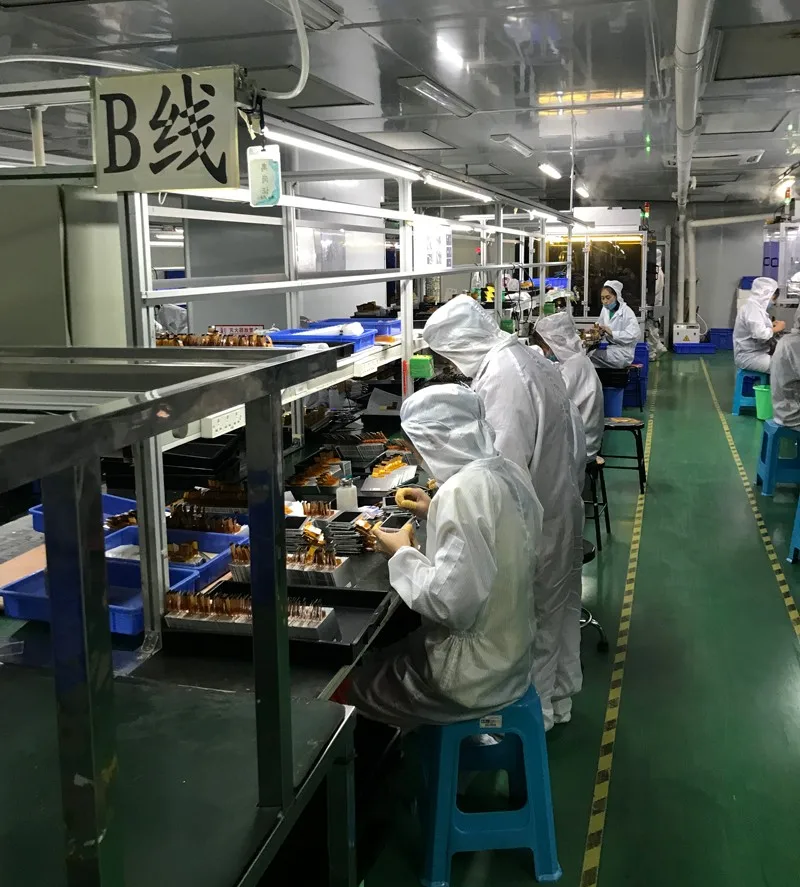

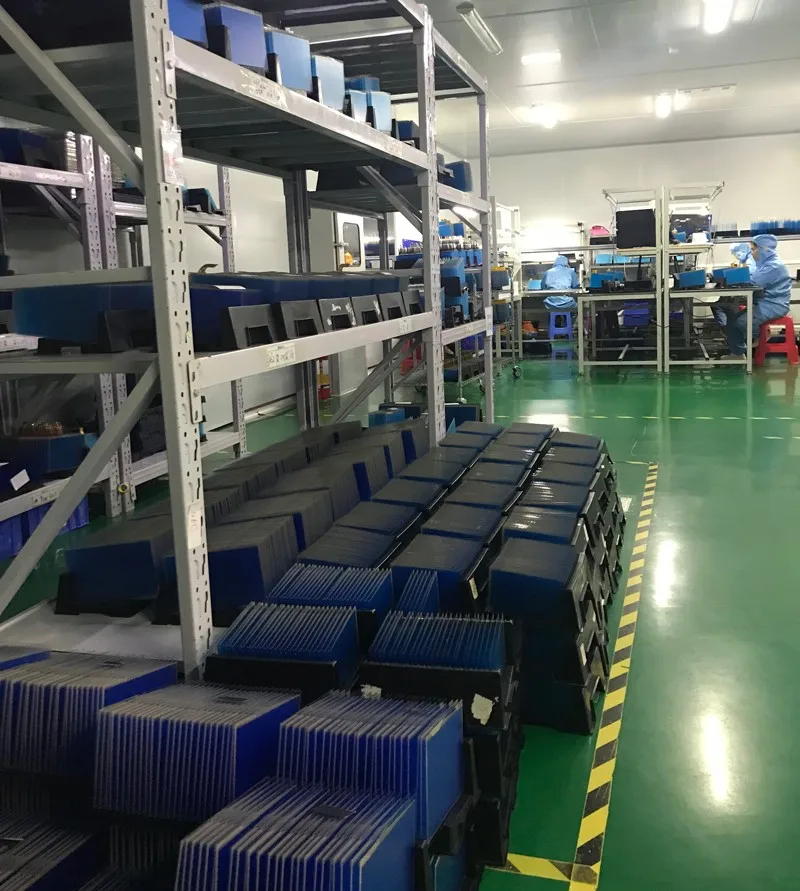

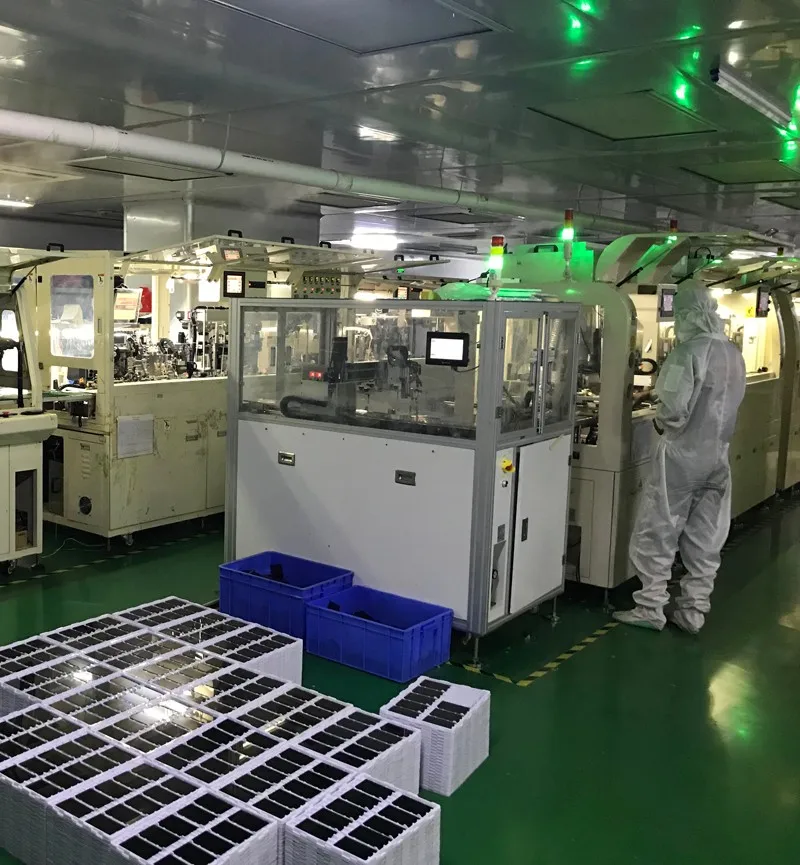

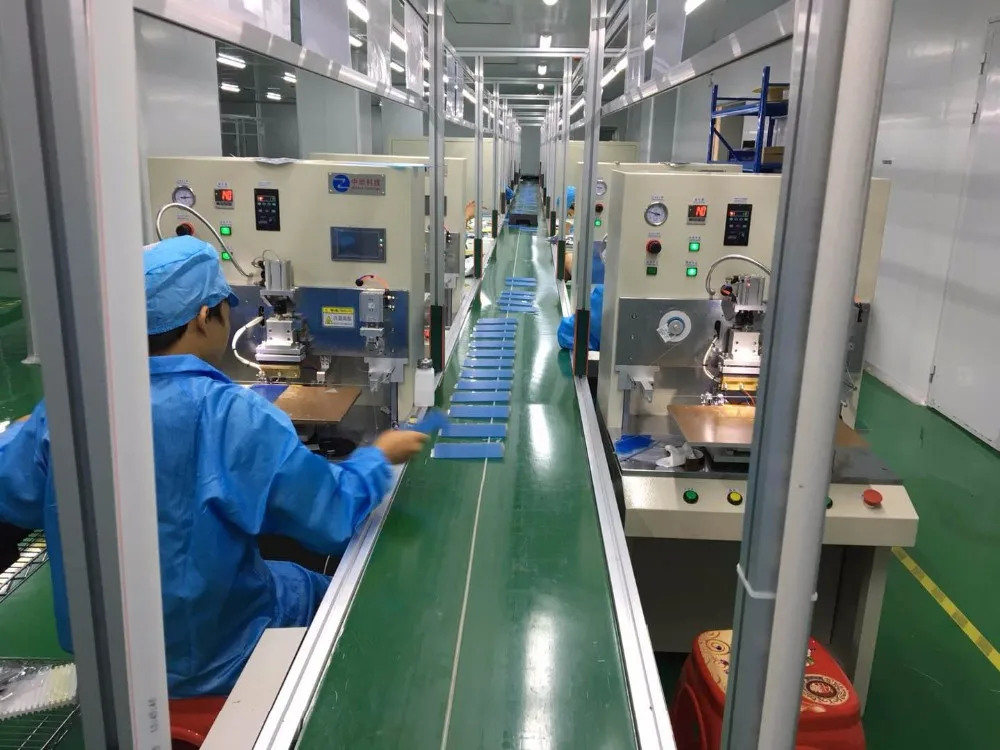

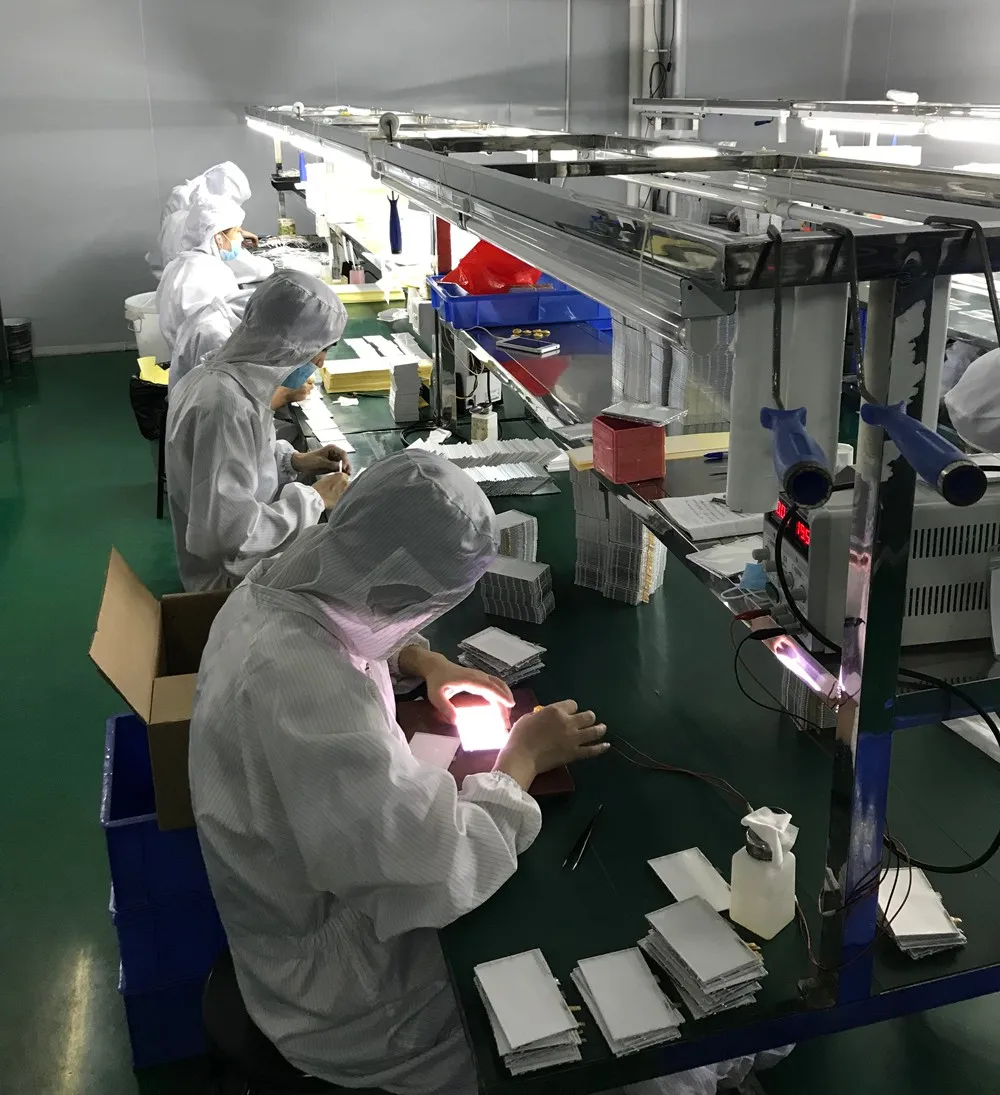

TFT Workshop
TFT PRODUCTION PROCESS
* Mother glass cutting
* Backlight LED strip designing
* Backlight assembling

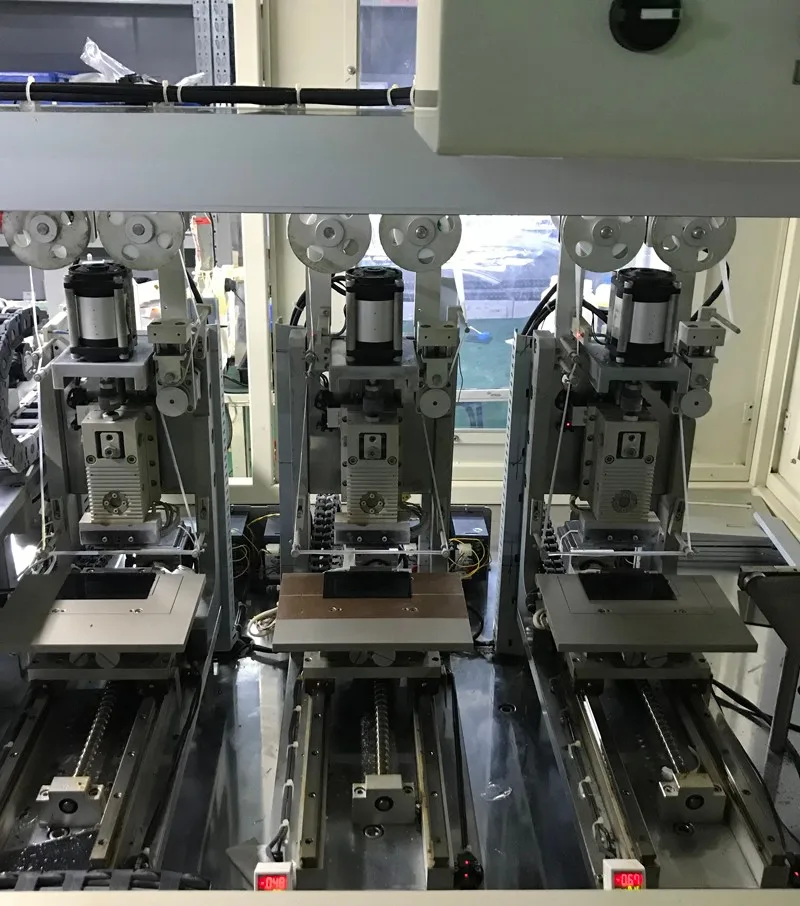

* COG bonding
* FOG bonding

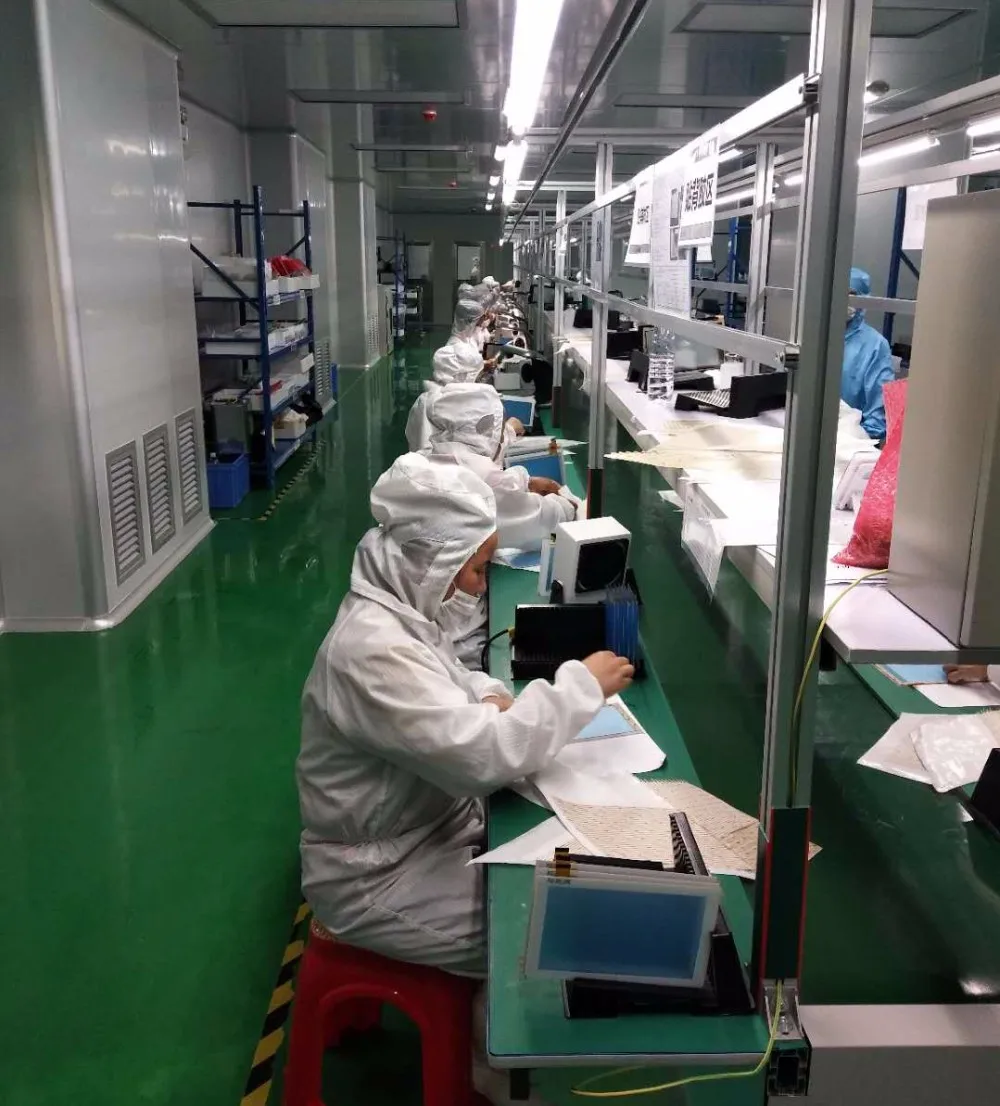

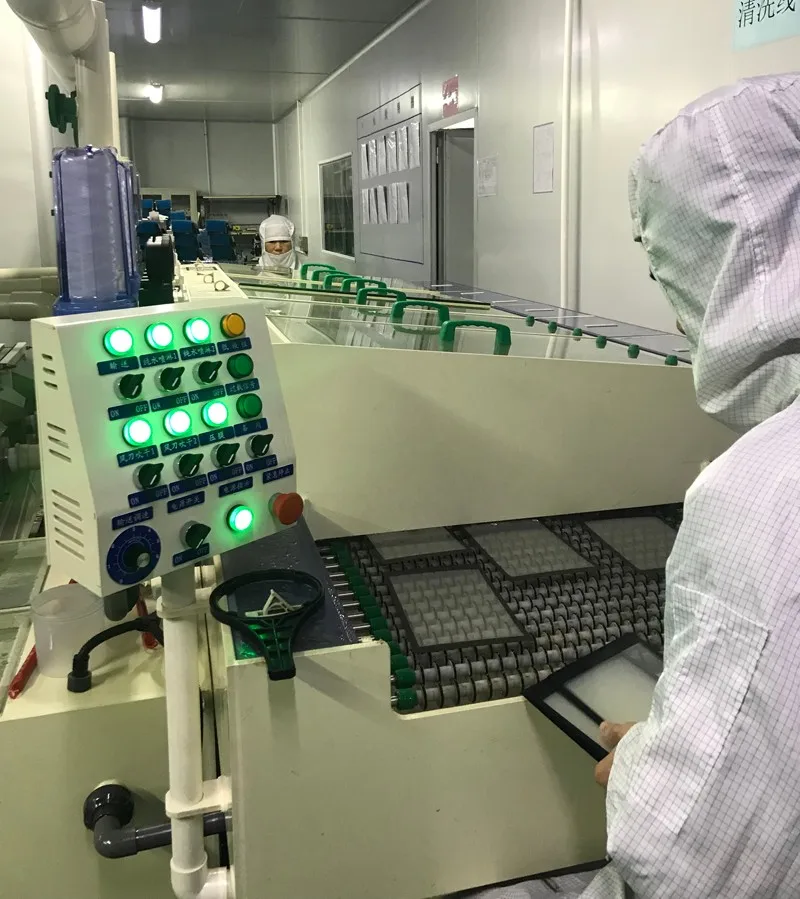

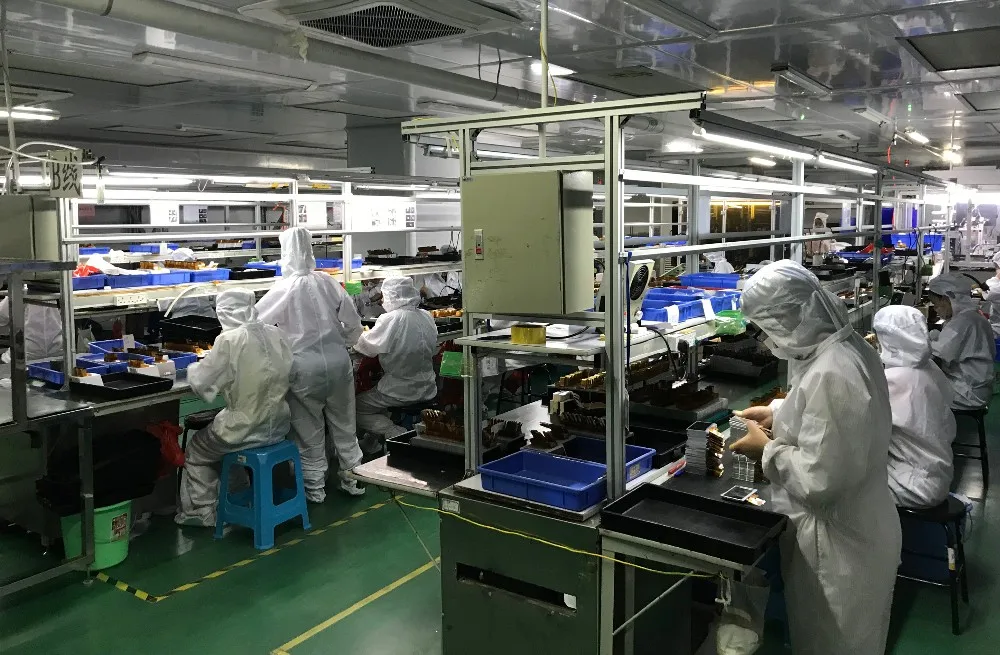

Touchscreen Workshop

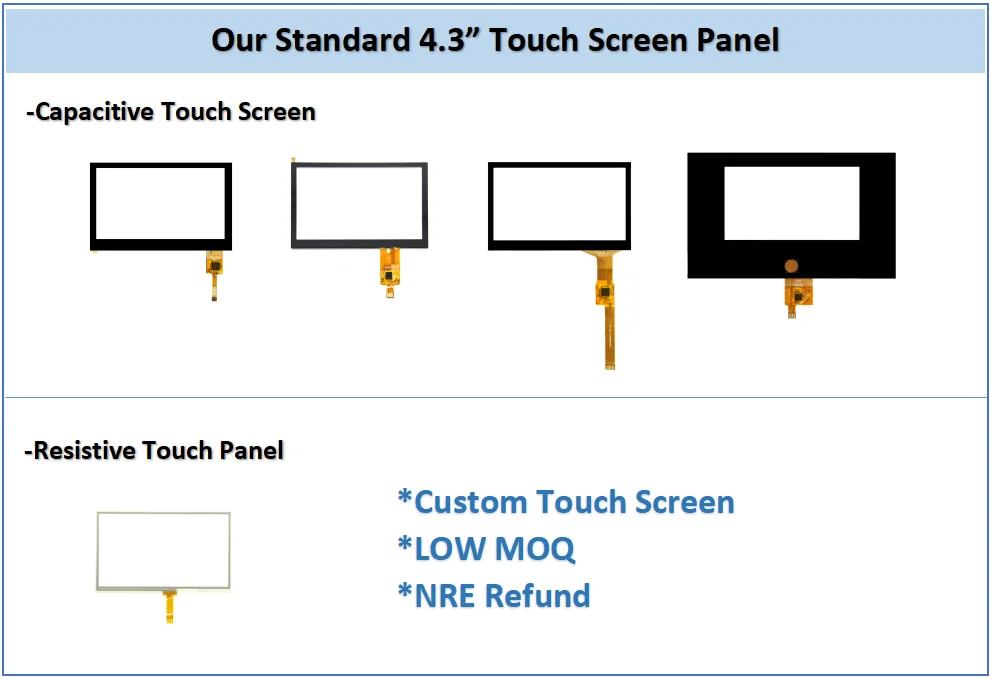

- CAPACITIVE TOUCH SCREEN
- RESISTIVE TOUCH SCREEN
* Mother glass cutting
* FPC designing and bonding
* Touch sensor with touch cover glass bonding

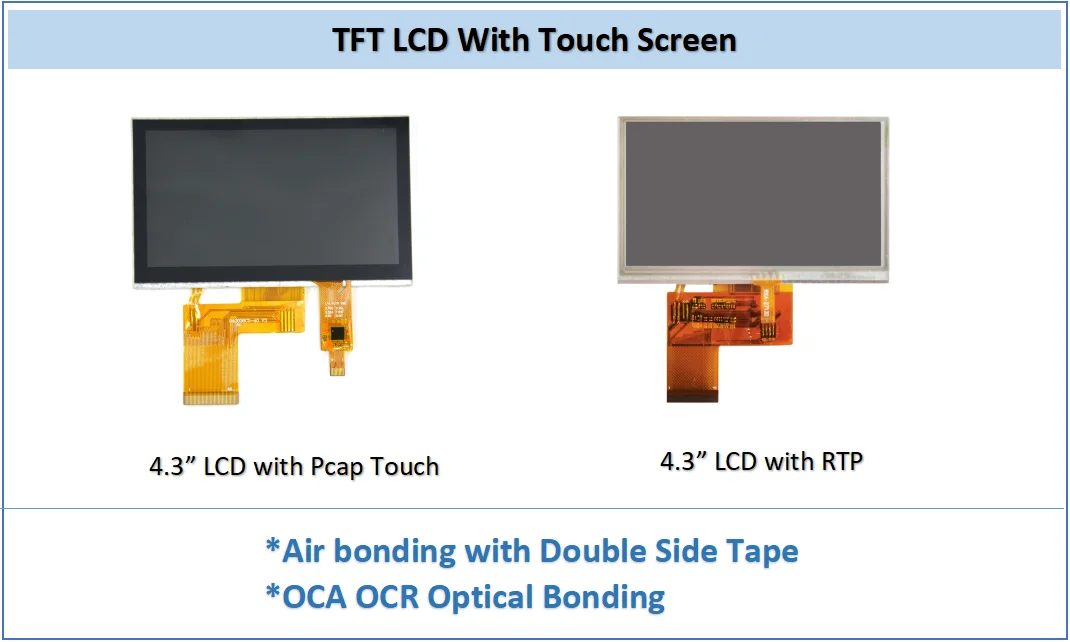

* TFT with touch screen optical bonding or air bonding

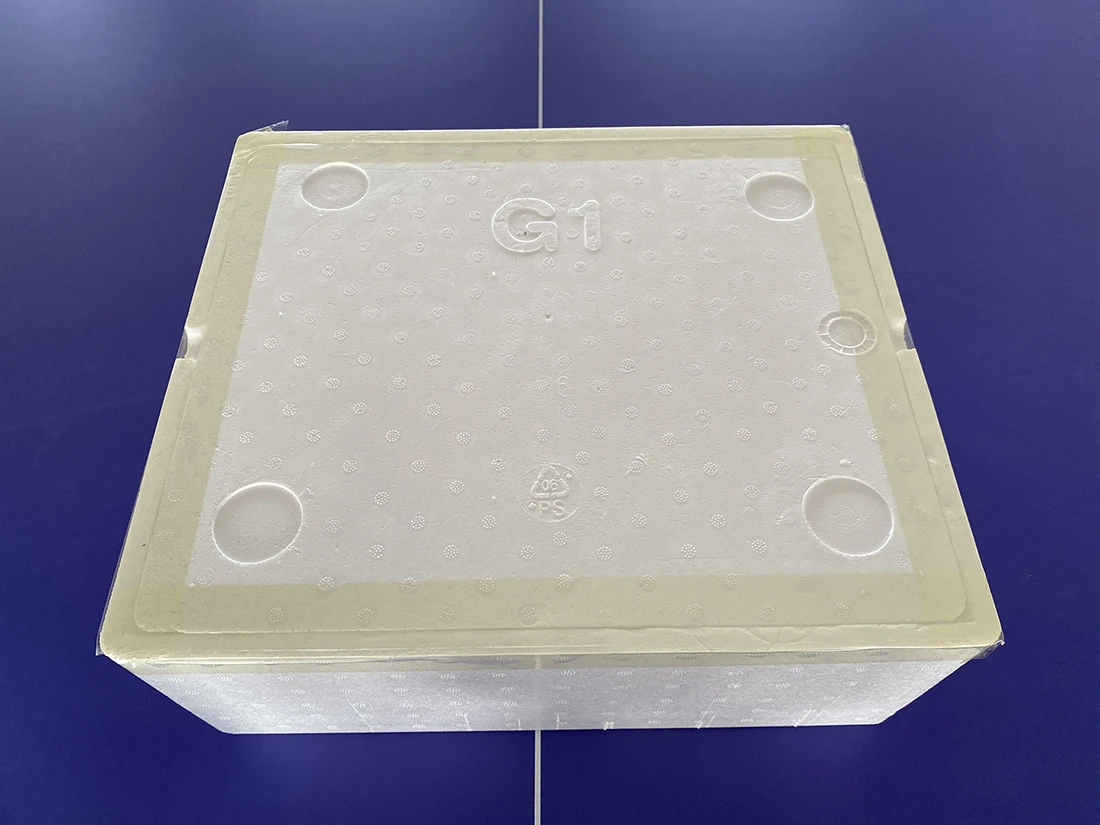

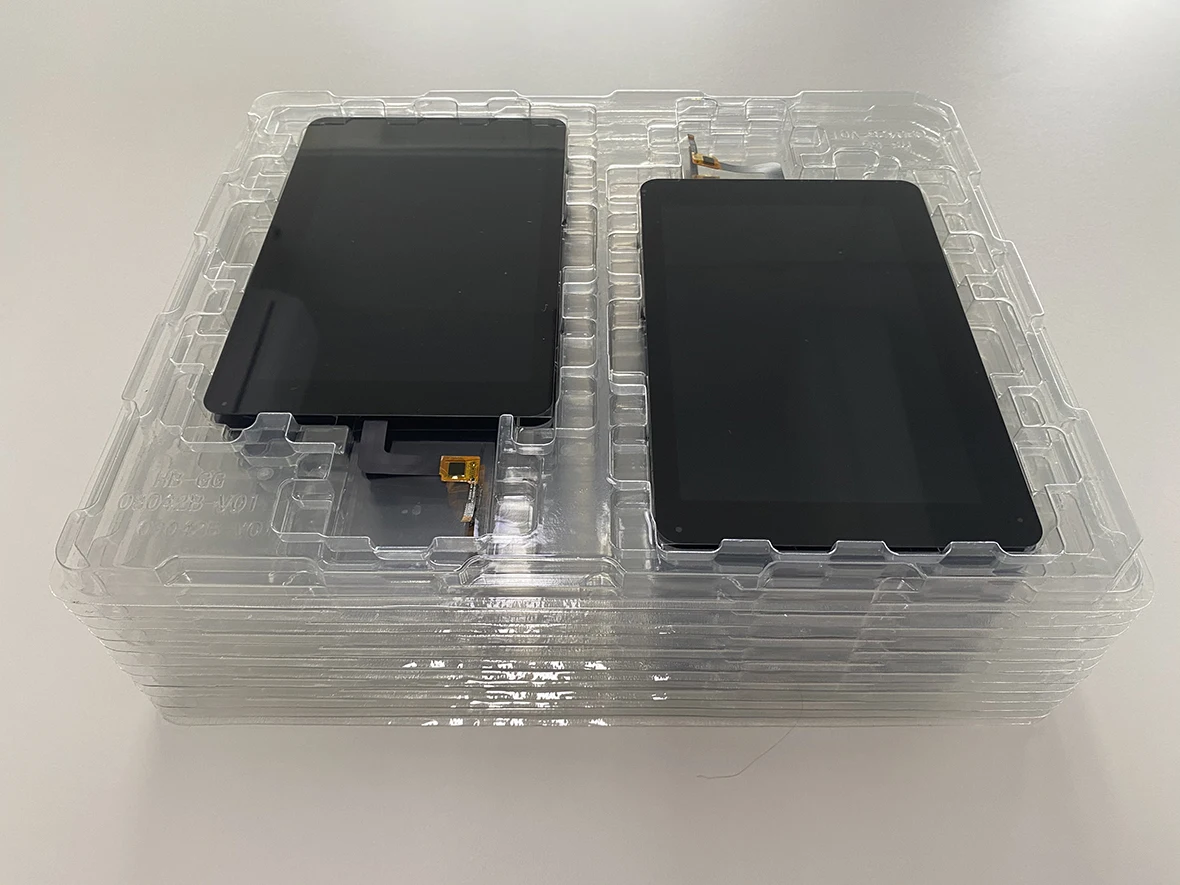

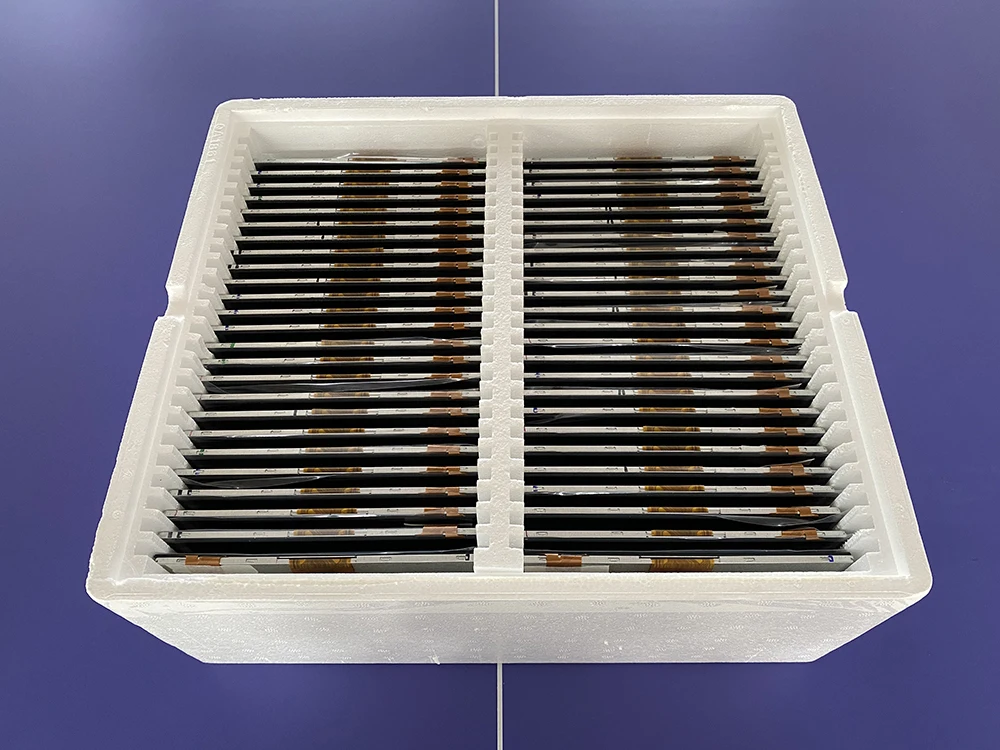

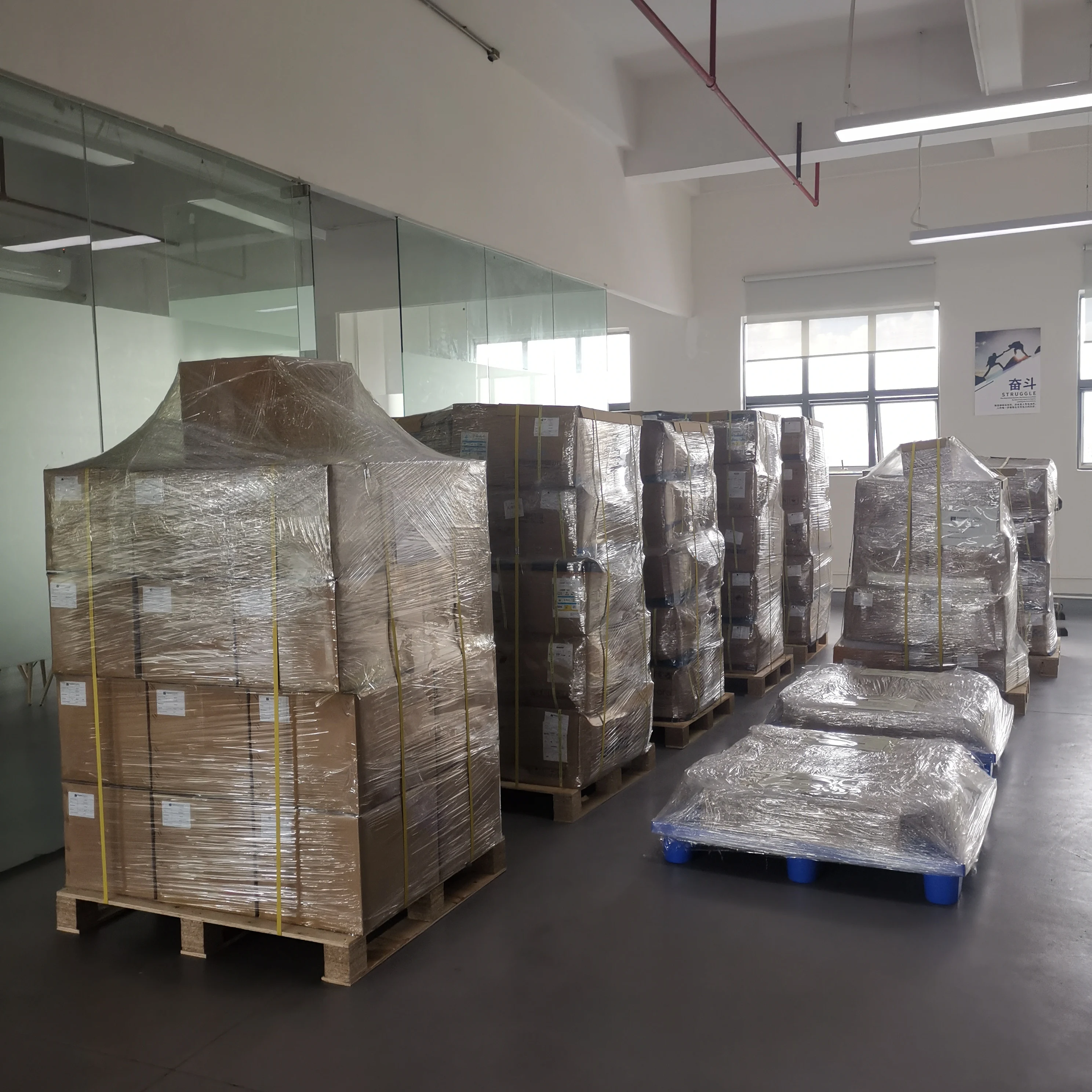

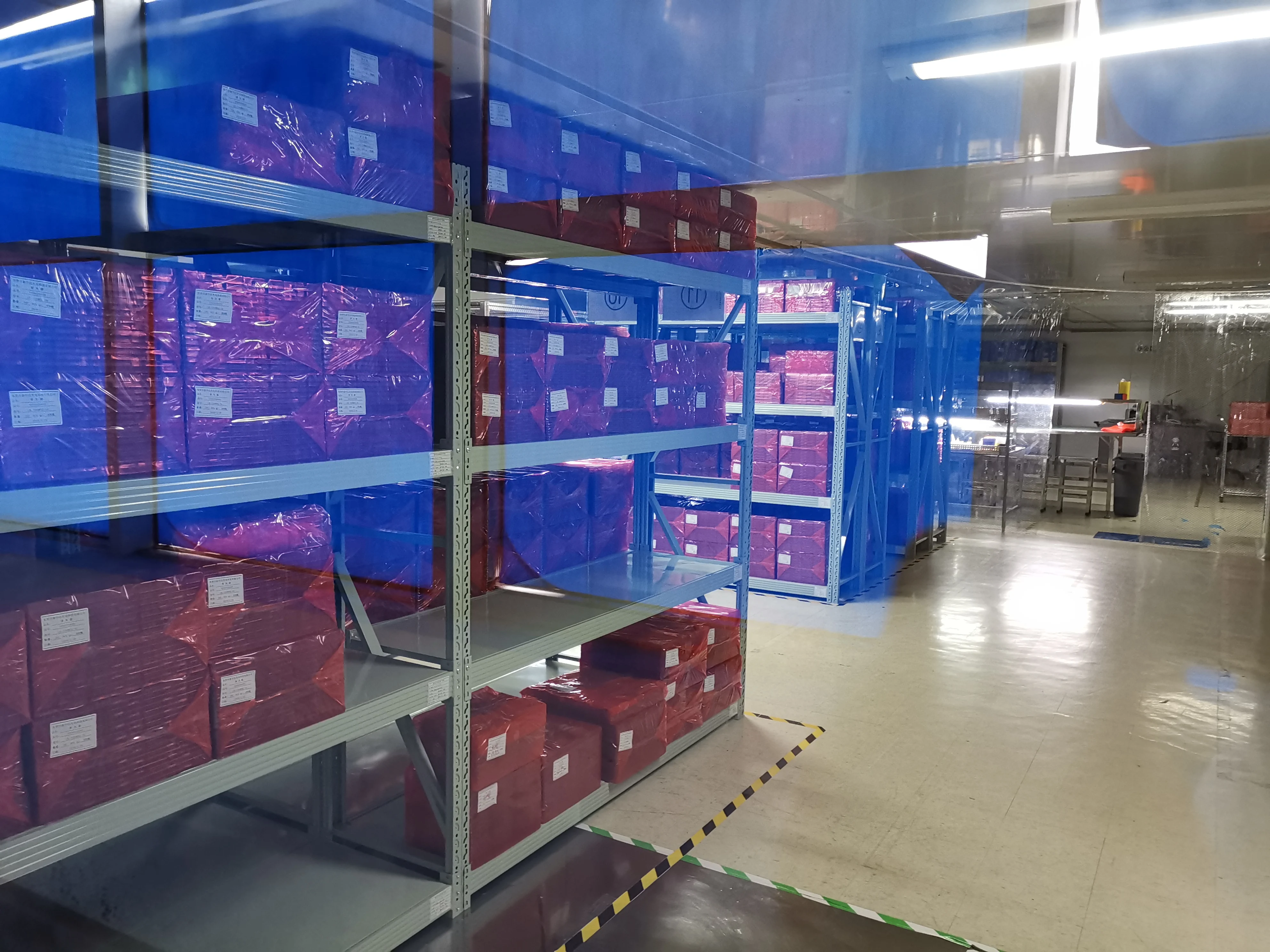

Packing & Delivery
FAQ
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.

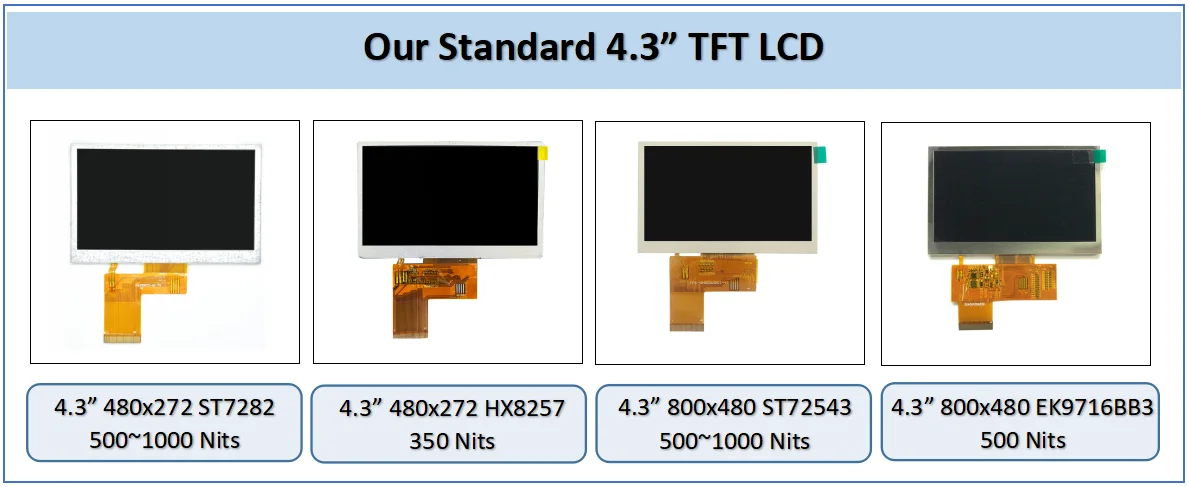

> 2.4" to 15.6" TFT LCD Module;
> Bar type LCD screen up tp 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 32";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the lcd or touch screen for me?
A2: Yes we can provide the custom services.

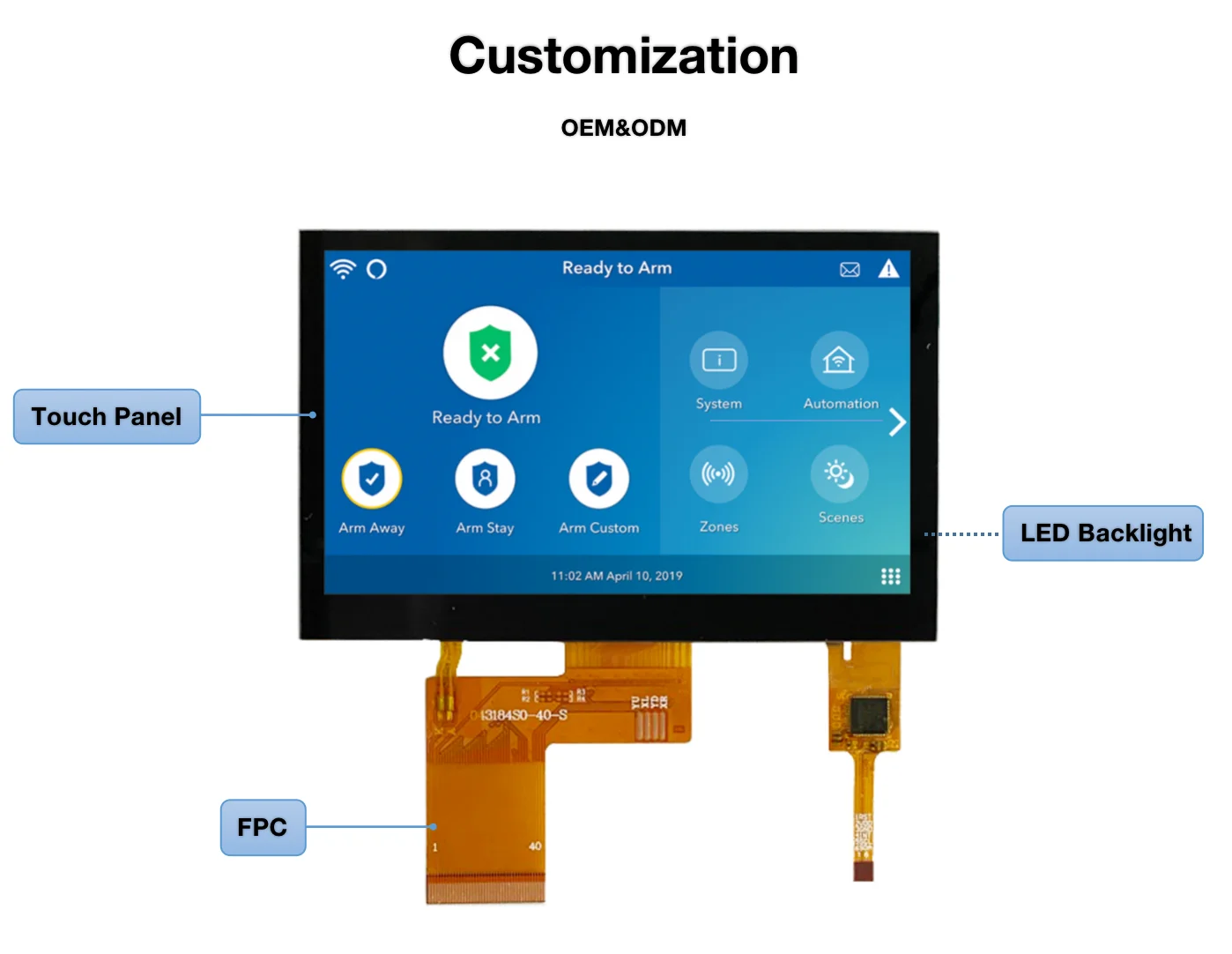

> For the lcd display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after total quantity reaches to 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q3. What's the delivery time?
A3: > For samples order, 2-3weeks;
> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, amount will be return at mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
