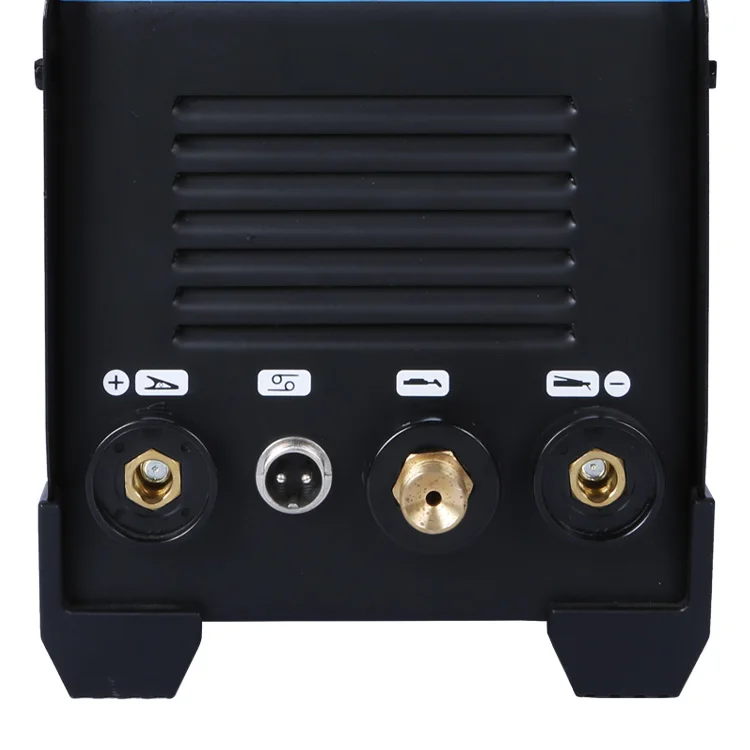

3 in 1 TIG Welder Multi Function 2T 4T TIG MMA Clean Spot welding No Pulse function TIG Welding Machine
- Category: >>>
- Supplier: KINGNOW TECH CO. LTD
Share on (1600414223532):
Product Overview
Description
4 in 1 multi Function 2T 4T TIG MMA Clean Spot welding machine With Pulse function
Functions & Features
1.Inverter IGBT

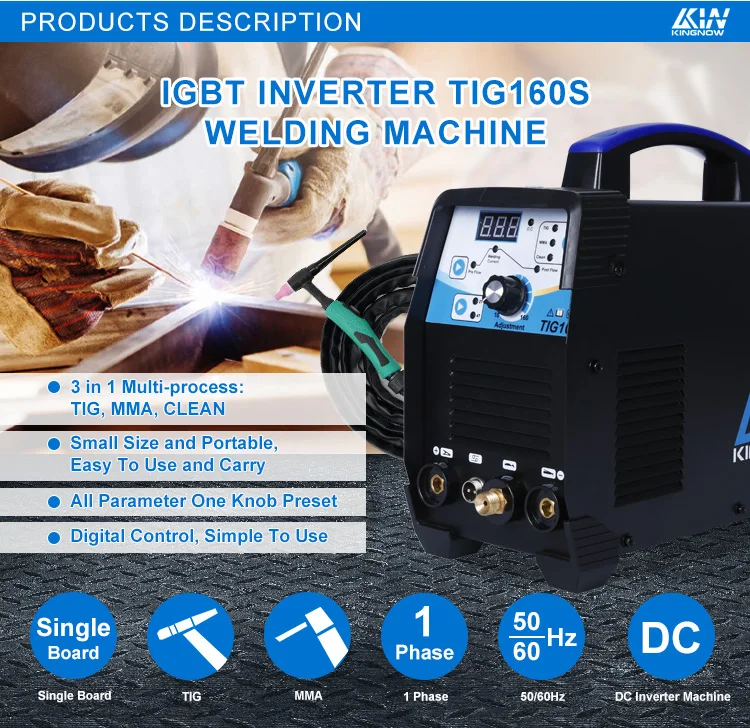

2.Multi-process : TIG, MMA, Clean, Spot, Pulse
3. HF Arc-starting, High Success Rate At Arc Starting, Good For Spot Welding
4.Weld with materials such as steel, stainless steel, titanium, copper, nickel and other alloys
5.Applicable in vessel, bike, decoration, outdoor advertising, etc
Technical Specifications

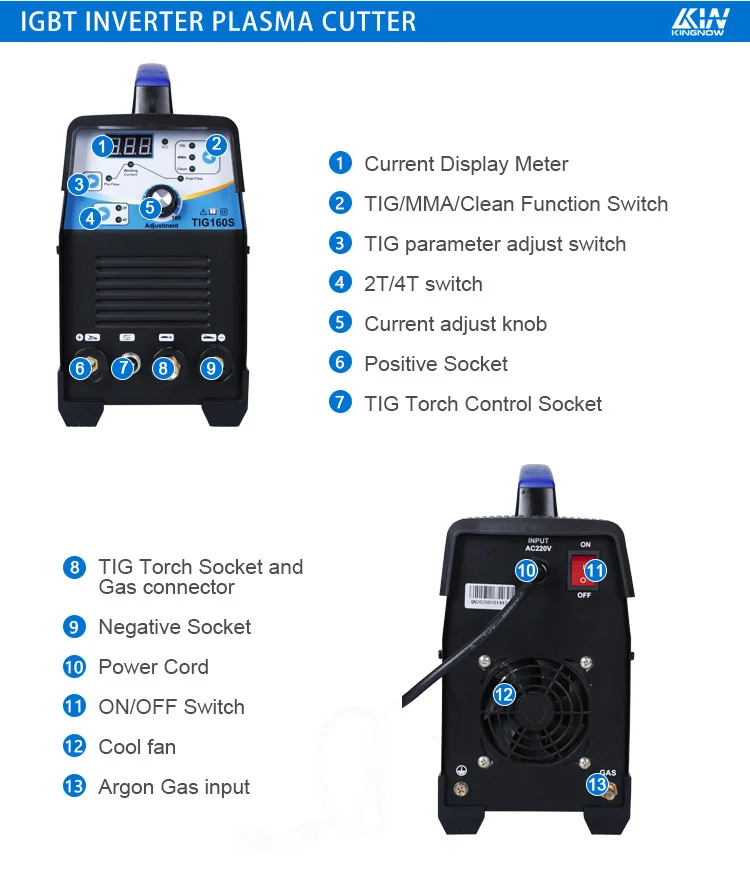

| ITEM | TIG 160S | TIG 180S | TIG 200S |
| Power Voltage (V) | AC220V±15% | AC220V±15% | AC220V±15% |
| Rated Input Capacity (KVA) | 5 | 3.7 | 5.6 |
| Generator Capacity (KVA) | 3.8 | 4.7 | 4.3 |
| Rated Input Current (A) | 21 | 17.0 | 24 |
| TIG Output Current Range (A) | 10-160 | 10-180 | 10-200 |
| MMA Output Current Range (A) | 10-160 | 10-180 | 10-200 |
| Pre/Post-flow time (S) | 0 - 15 | 0 - 15 | 0 - 15 |
| Arc Starting | HF | HF | HF |
| No-load Voltage (V) | 56 | 56 | 56 |
| Duty Cycle (%) | 60 | 60 | 60 |
| Insulation Class | F | F | F |
| Protection Class | IP21 | IP21 | IP21 |
| Machine Weight (Kg) | 5 | 5.2 | 5.5 |
| Packing Weight (Kg) | 8.5 | 8.7 | 9 |

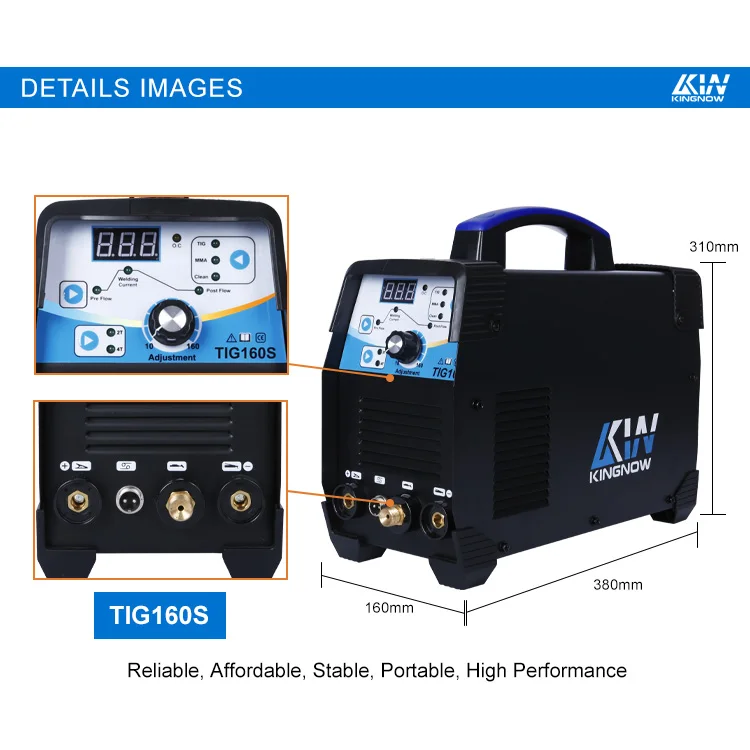

| Machine Dimensions (MM) | 380 x 160 x 310 | 380 x 160 x 310 | 380 x 160 x 310 |
| Packing Size (MM) | 455 x 270 x 350 | 455 x 270 x 350 | 455 x 270 x 350 |
