Dual Connection Method 4 Wire 2 Family AHD 1080P Smart Video Intercom WiFi Touch Screen Indoor Monitors for Two Apartments

1. 7 inch full touch screen monitor , supports 2 do1. 7 inch full touch screen monitor , supports 2 doorbells + 2 cameras , maximum supports 64GB memory card
2. Real-time control by smart phone , unlock , 2 way talk , snapshot , recording
3. supports TUYA Smart APP / Smart Life APP, does not support Alexa / Google Home
4. monitor system supports English / Russian / français / Español / Deutsch / Chinese
5. monitor has 4 shortcut keys: monitoring / talk / unlock / hang up
6. supports 3 level sensitivity motion detection, videos record to memory card
7. motion recording time 10s -300s
8. supports messages push to smart phone (visitor pressing call button ) , triggered motion detection would not push message to phone
9. monitor supports connect electric lock separately, if connecting with 2 doorbells , it supports open 3 locks separately
10. maximum supports 6 monitors connected (1 master monitor + 5 slave monitors)
11. system has 10 ringtones , support custom ringtones (copy ringtones to Ring folder )
12. monitor connect to doorbell by 4 Pin cables , monitor connect to network by WIFI
13. Screen would turn off if do not operate the monitor for 1 minute

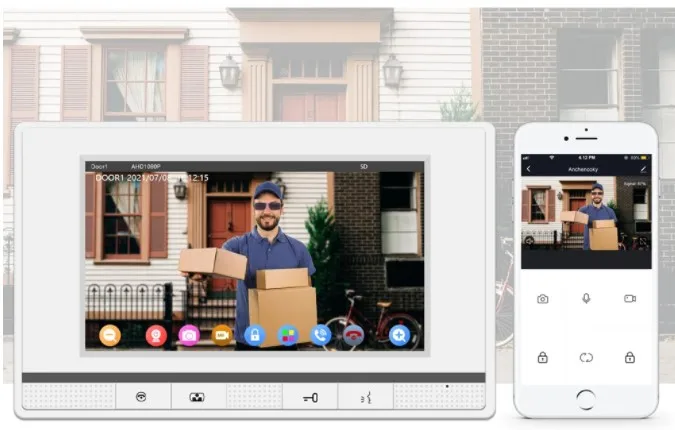

TUYA Smart APP / Smart Life APP Real Time Control

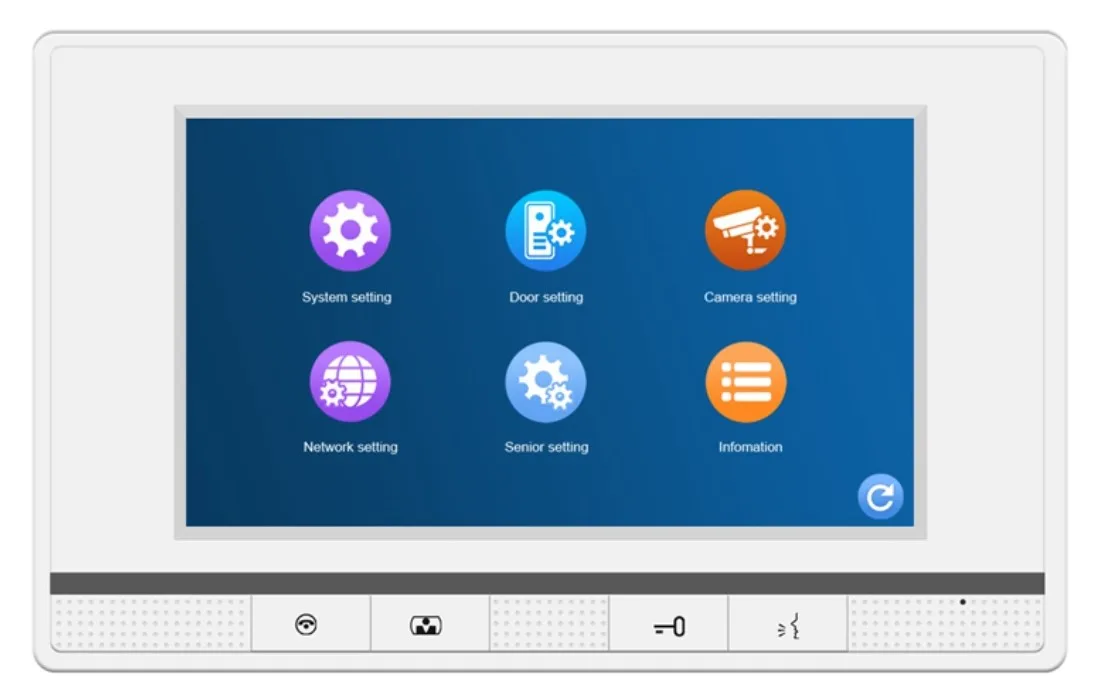

1. Monitor supports volume,brightness,contrast, saturation adjustment
3. Monitor / APP support snapshot / recording / talking / open 3 locks separately
4. Monitor / APP support monitoring 2 doorbells + 2 cameras
5. Monitor supports zoom in / out image

Message Push to Smart Phone when Pressing Call Button

Please note! !
triggered motion detection would not push message ph

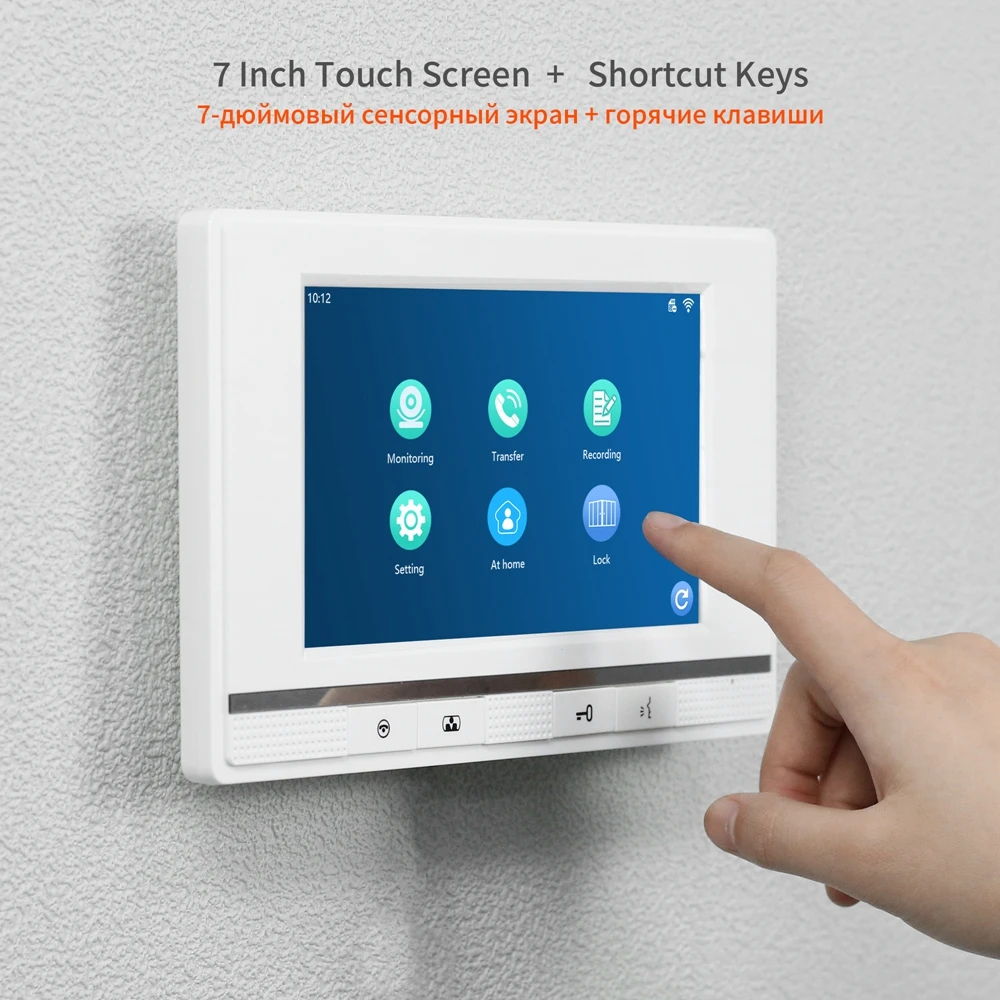

7 inch full touch screen +4 shortcut keys

More Powerful Motion Detection Settings

1. Support 3 leves motion detection sensitivity
2. Support recording time 10s - 300s
3.Support motion display/ ringtone , when triggered motion sensor , monitor would show image ,record videos
4.Monitor Support Call records / Message records / Motion Detection records playback

1 Monitor support 2 doorbells + 2 cameras

This System supports 6 Monitors Connected

monitor 1 is master monitor (Device ID select 1)
other monitors are slave monitor (Device ID select 2-6 )

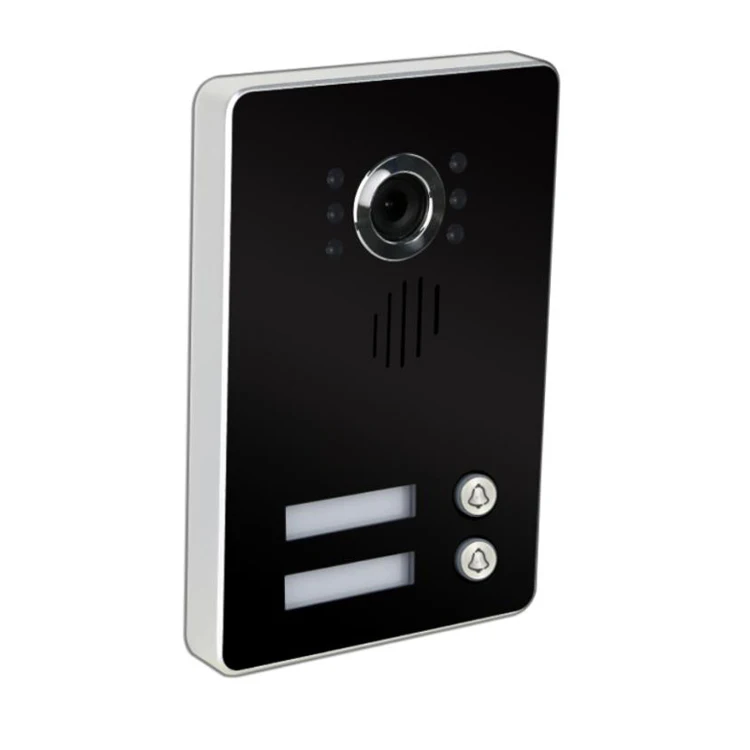

150° wide-angle camera makes your vision wider.

Supports infrared night vision mode
When the doorbell is in a dark environment
It will trigger the infrared night vision function, making you see more clearly in the dark.

Support filling in your house number.

You can fill in your house number under the doorbell so that your friends or courier can contact you more accurately.

IP65 Comprehensive Waterproof rating

Support Infrared Light Complement and Backlight Compensation

Doorbell is made of aluminum alloy, anti-theft and dustproof.
It Also Can Works Well Even In Bad Weather.

Product Parameters

•Product Material: aluminium alloy
•Transmission Mode: digital transmission
•Power Supply: 15-18VDC
•Power Consumption: 100mA, 200mA(maximum)
•Operating Temperature: -20℃~60℃
•Installation Method: wall mounting type

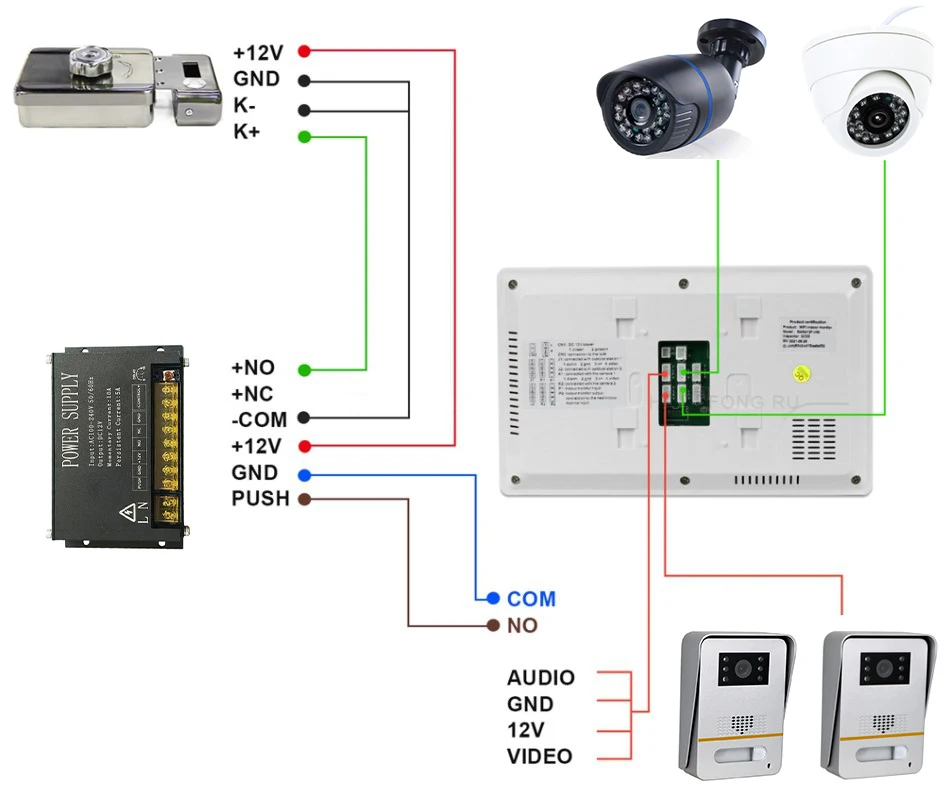

How to connect doorbell / outdoor cameras / electric lock

Attention, please!
This link does not include electronic locks, access control power supply box, cameras and extension cables.
If you need, welcome to contact us.
