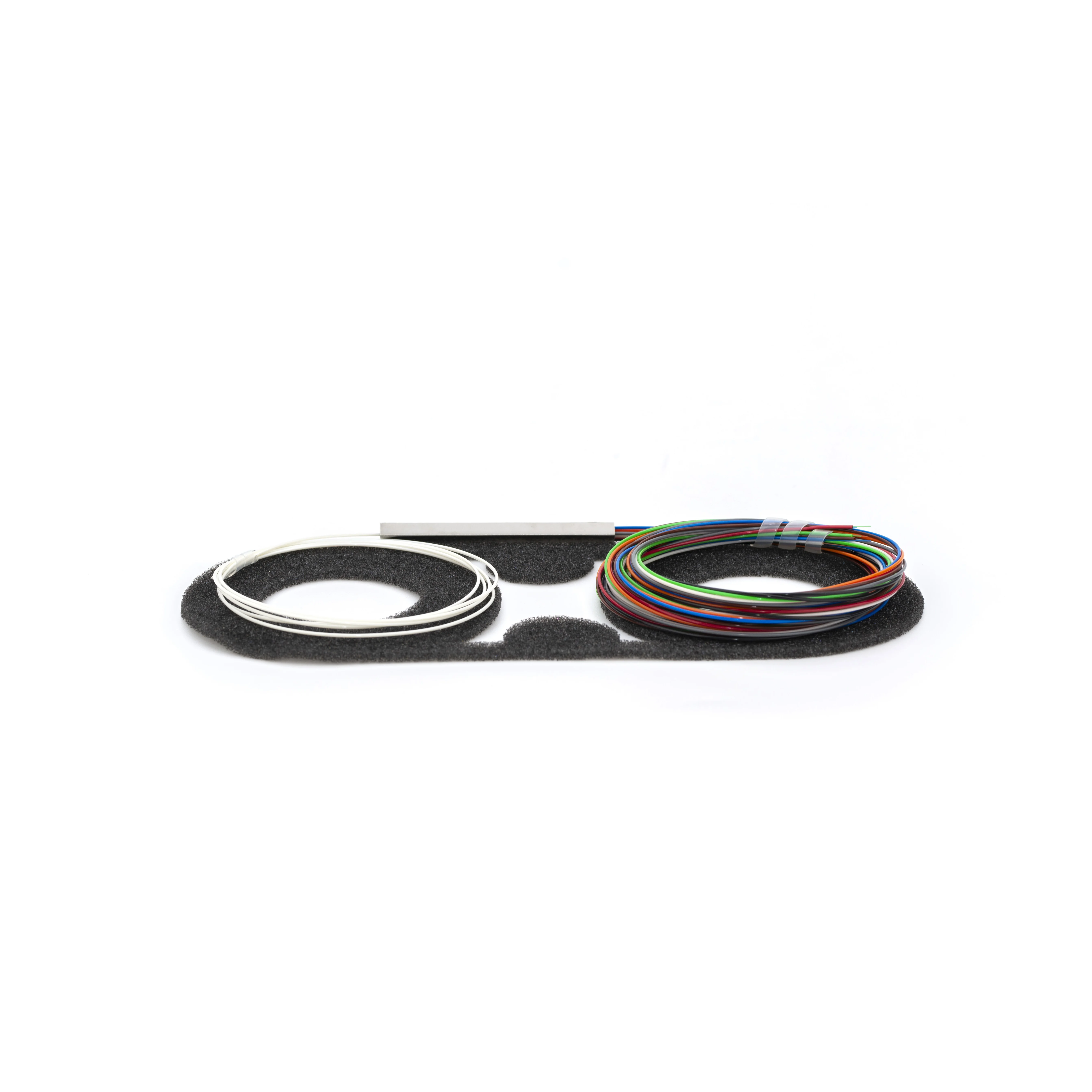

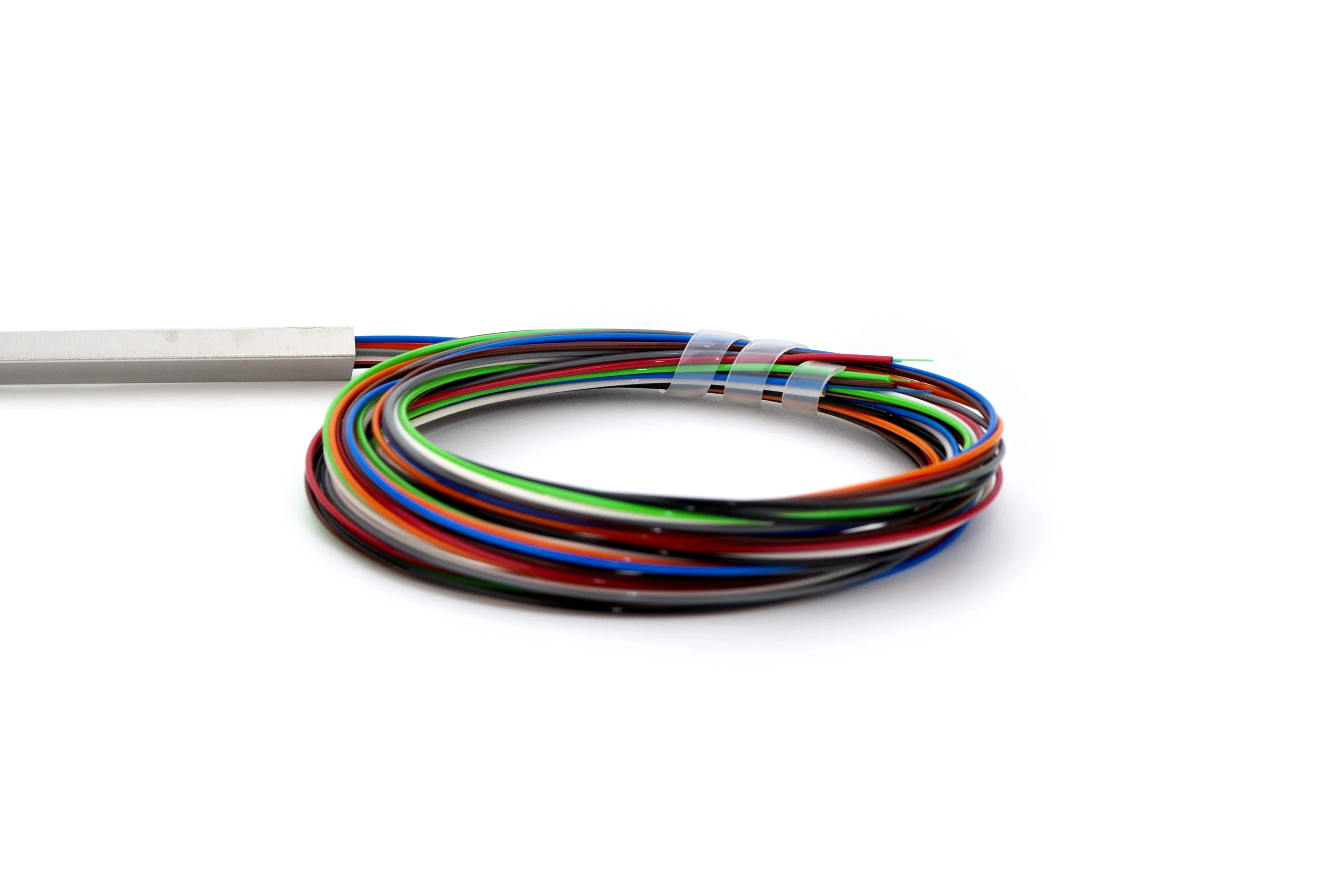

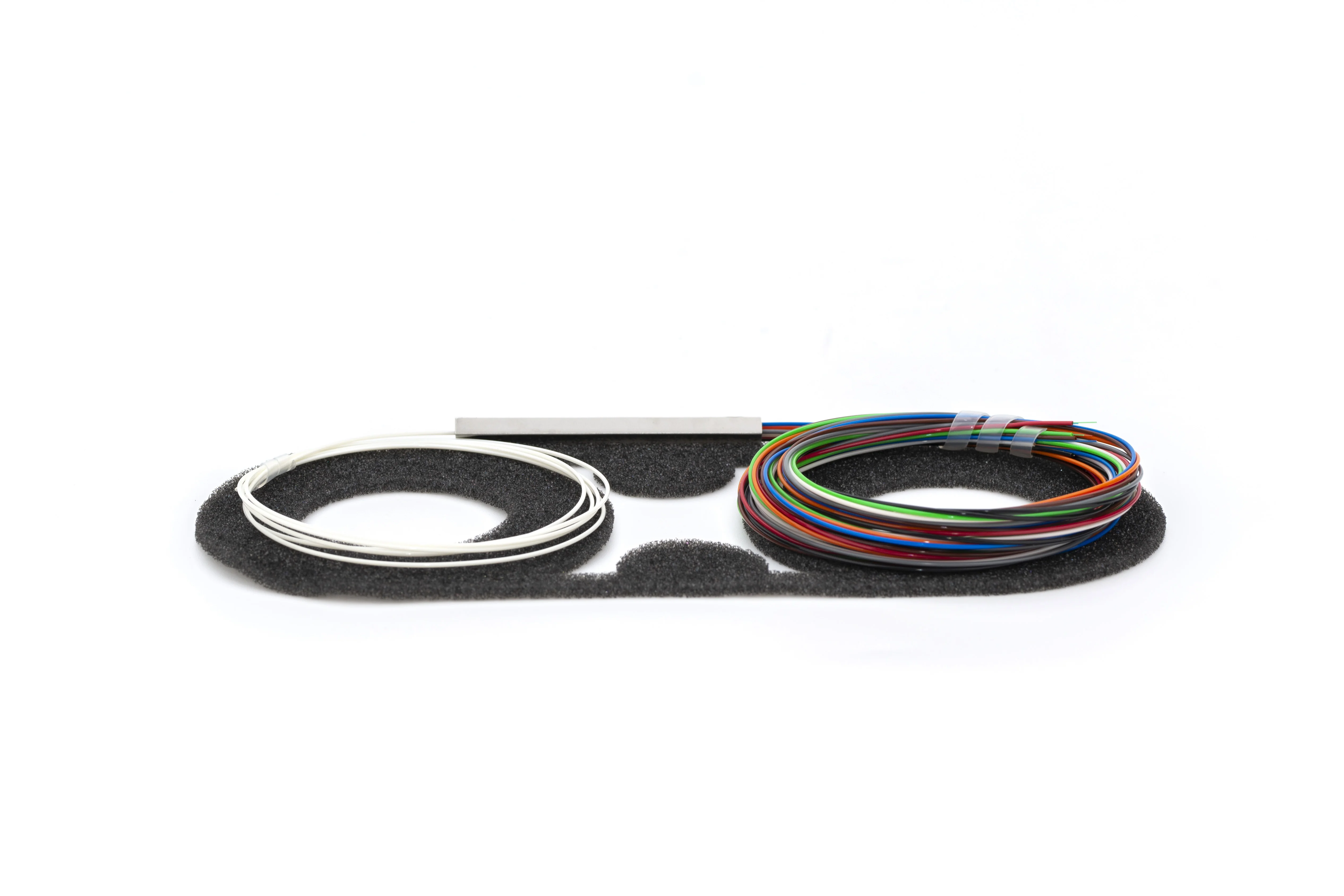

High Quality FTTH 1x2 1x4 1x6 1x8 1x16 1x32 1x64 Steel Tube PLC Splitter
- Category: >>>
- Supplier: Optical Trust (Xuzhou) Electronic Technology Co. Ltd.
Share on (1600414838446):
Product Overview
Description
Application
Planar Lightware circuit(PLC) splitter is a type of optical power management device that is fabiricated using silica optical technology.It features small size ,high reliability,wide operating wavelength range and good channel-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.
Specification
Performance Specification: 1xN PLC Splitter | ||||||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | ||||||
Operating Wavelength(nm) | 1260~1650 | |||||||||||
Fiber Type | G657A1 or Customer Specify | |||||||||||
Insertion Loss(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | ||||||
Loss Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ||||||
PDL(dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.25 | ≤0.3 | ||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Wavelength Dependent Loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ||||||
Fiber Lenght(m) | 1m or Specify | |||||||||||
Temperature Stability(-5℃~70℃)(dB) | ≤0.5 | |||||||||||
Operating Temperature(℃) | -5~70 | |||||||||||
Maximum Power Handing(mW) | 500 | |||||||||||
Performance Specification: 2xN PLC Splitter | ||||||||||||
Type | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | ||||||
Operating Wavelength(nm) | 1260~1650 | |||||||||||
Fiber Type | G657A1 or Customer Specify | |||||||||||
Insertion Loss(P/S Grade) | 3.9/4.2 | 7.3/7.6 | 10.5/11.0 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | ||||||
Loss Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ||||||
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Wavelength Dependent Loss(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||||||
Fiber Lenght(m) | 1m or Specify | |||||||||||
Temperature Stability(-5℃~70℃)(dB) | ≤0.5 | |||||||||||
Operating Temperature(℃) | -5~70 | |||||||||||
Maximum Power Handing(mW) | 500 | |||||||||||
Products Description

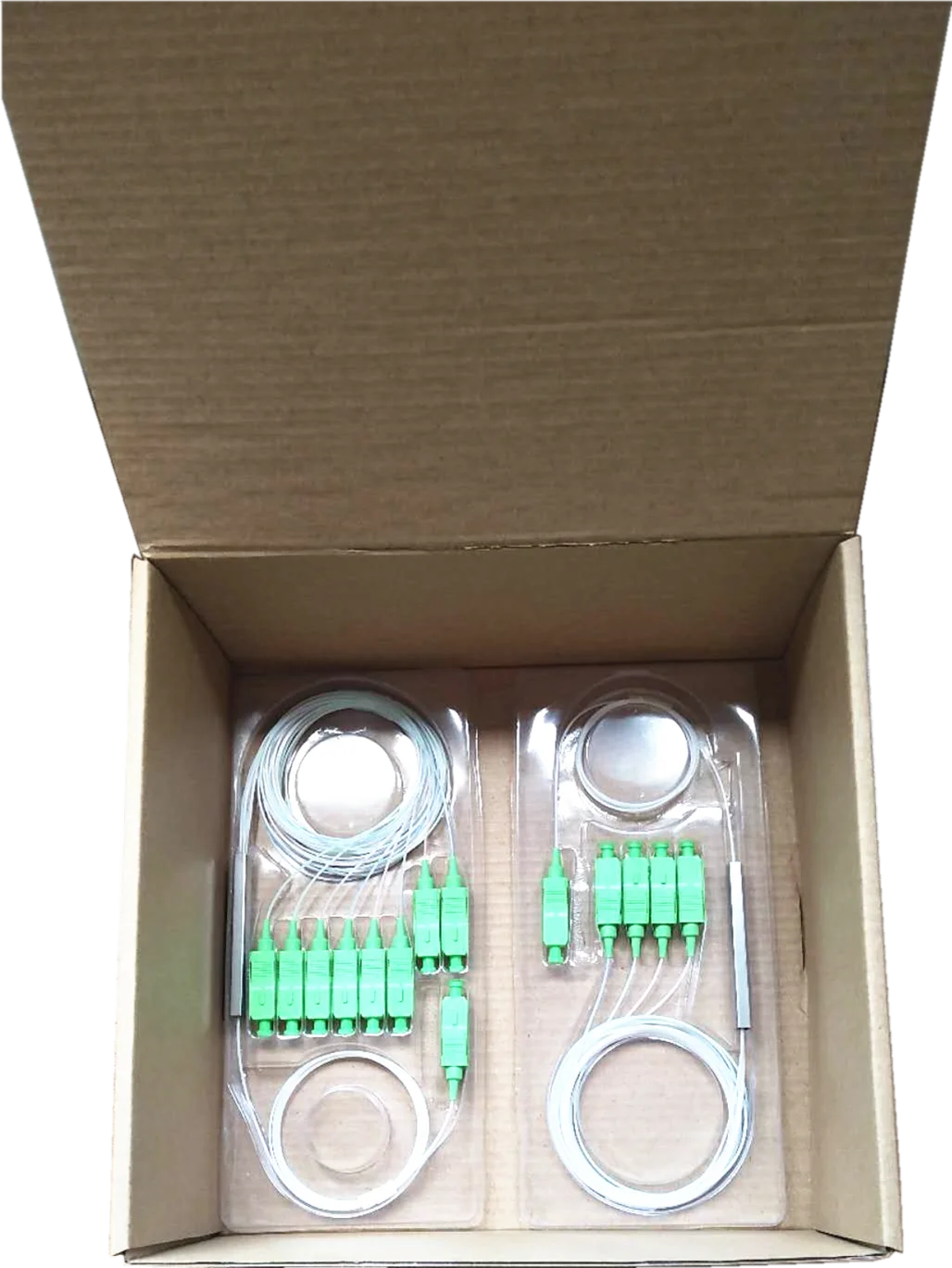

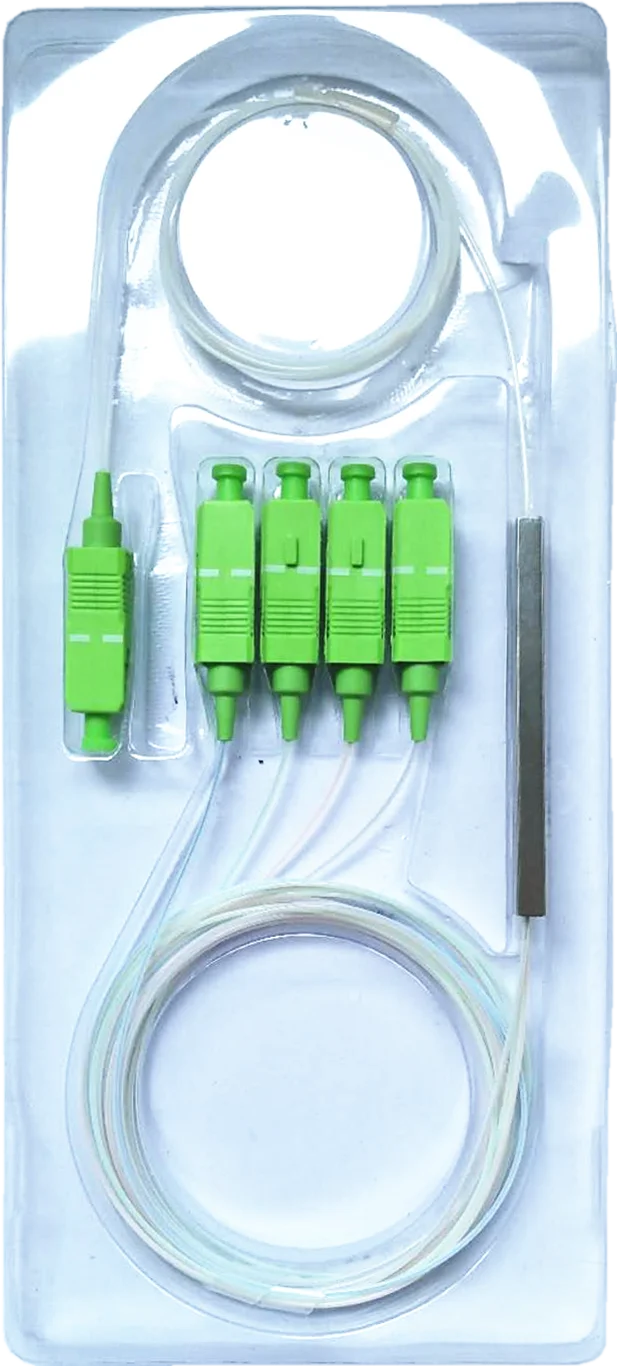

Product packaging
Company Profile
About us
Optical Trust (Xuzhou) Electronic Technology Co., Ltd is located at No.18 and 20,XINWEI semiconductor industrial park, Xuzhou city, Jiangsu province, china. The company is an innovative manufacturer engaging in the telecom optical component. We adopts the latest cutting-edge product line and advanced inspection instruments. The products have been used widely in various application of telecommunication field.
Shipment
FAQ
1. Can you supply sample ?
A: Yes, but the delivery cost will be charged on customer's account.
2. How about your price?
A: We are supplying products with very competitive price based on good performance.
3. Do you offer OEM Service?
A: We accept OEM, ODM. Any customization is acceptable based on customer requirments,include the lenght,materail,Polishing and Logo.
A: Yes, but the delivery cost will be charged on customer's account.
2. How about your price?
A: We are supplying products with very competitive price based on good performance.
3. Do you offer OEM Service?
A: We accept OEM, ODM. Any customization is acceptable based on customer requirments,include the lenght,materail,Polishing and Logo.
