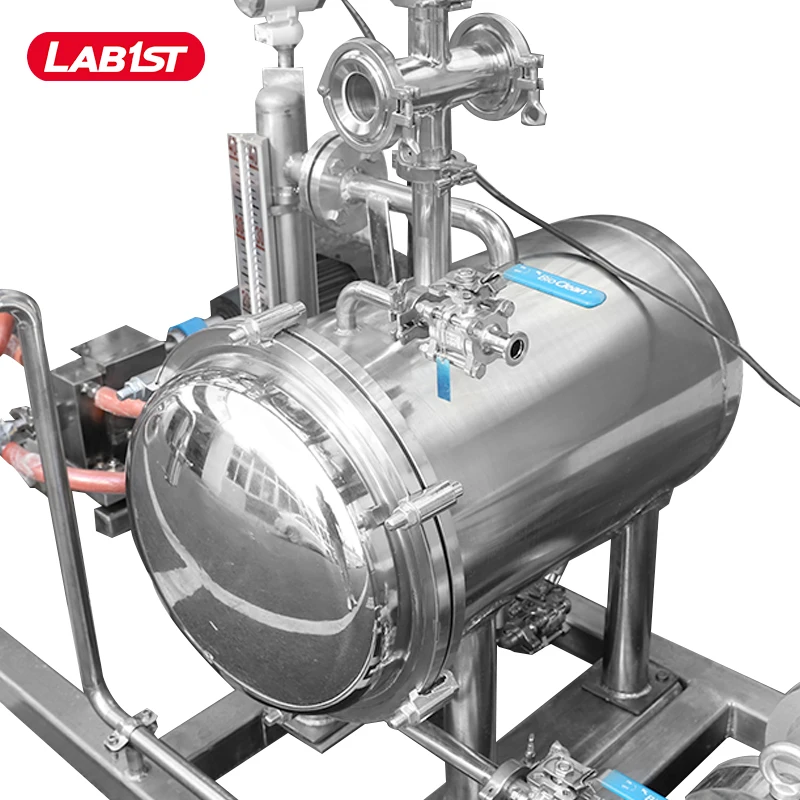

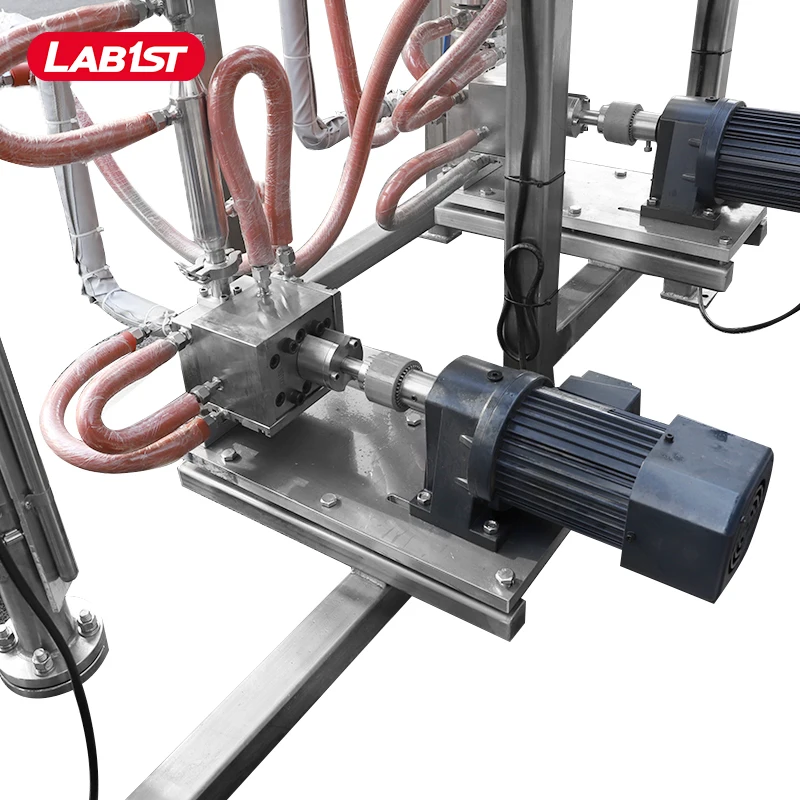

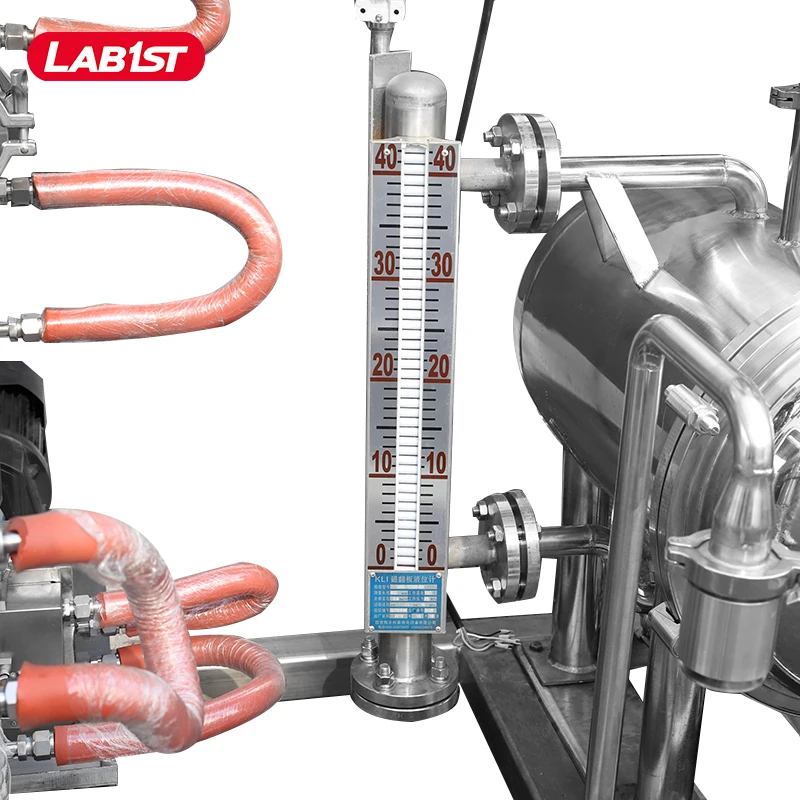

Lab1st vacuum chemical stainless steel evaporation metal thin wiped film evaporator price low operation temperature lab
- Category: >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (1600414877820):
Product Overview
Description
Lab1st vacuum chemical stainless steel metal thin wiped film evaporator price low operation temperature lab

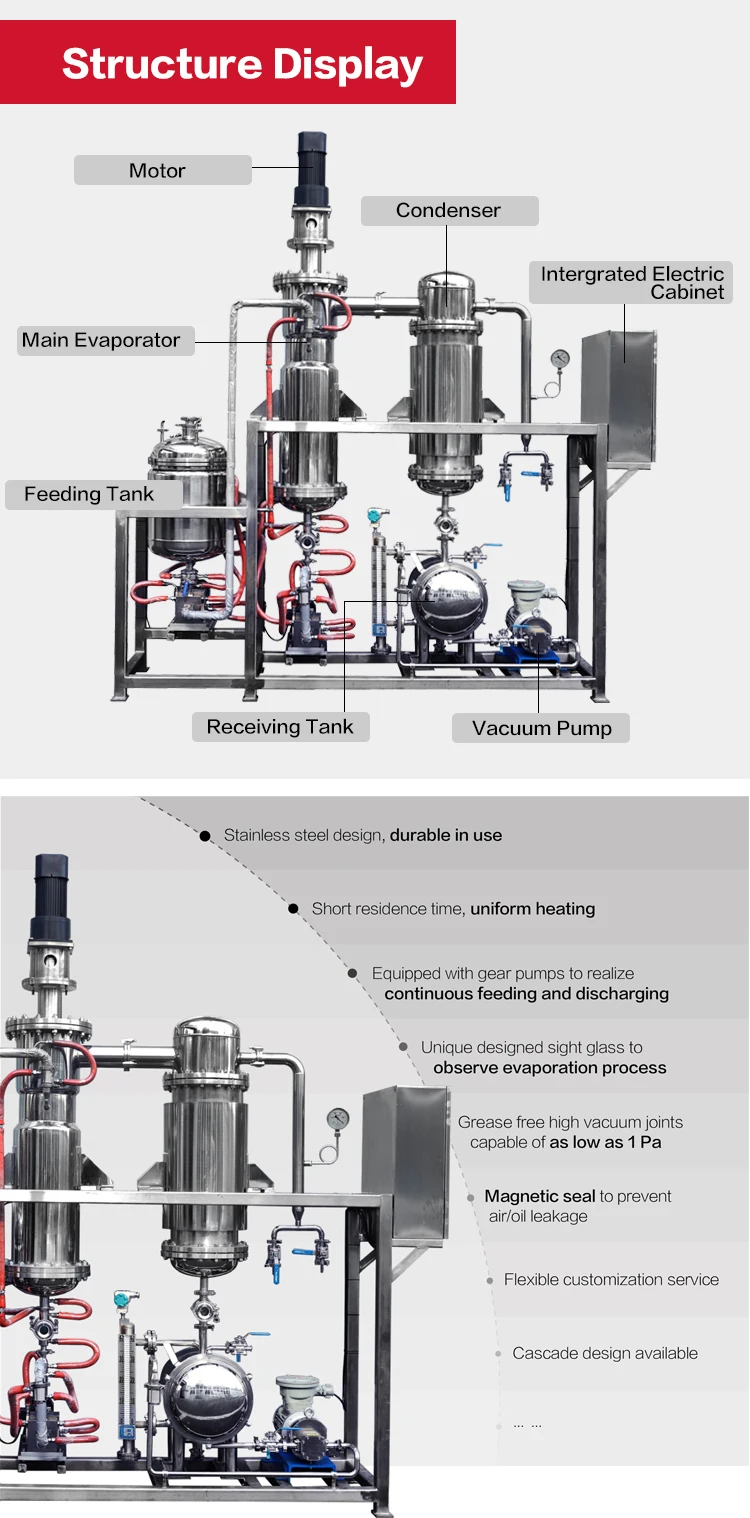

Product Structure
Specification
Model | SWF-01 | SWF-02 | SWF-03 | SWF-05 | |||||
Estimate Throughput of Ethanol Evaporation (L/h) | 5 | 10 | 15 | 25 | |||||
Feeding Vessel | Volume(L) | 15 | 20 | 30 | 50 | ||||
Type | Jacketed, equipped with sight glassand insulation ball valve | ||||||||
Material Inlet | Method | Gear Pump | |||||||
Feed Rate (L/h) | 3～15 | 3~20 | 5～30 | 10～50 | |||||
Power (w) | 200 | 750 | |||||||
Speed Regulation Mode | Electronic Speed Control | Variable Frequency Drive | |||||||
Evaporator | Evaporation Area (㎡/sqft) | 0.1 | 0.2 | 0.3 | 0.5 | ||||
Wiper Style | Scraper | ||||||||
Material | 316L | ||||||||
Vacuum Seal | Magnetic Sealing | ||||||||
Scraper Motor Power (w) | 370 | 370 | 750 | 1500 | |||||
Speed Regulation Mode | Variable Frequency Drive | ||||||||
Condenser | Type | Pipe bundle condenser | |||||||
Heat Exchanging Area (㎡） | 1 | 2 | 2 | 3 | |||||
Heavy Component Receiving Vessel | Type | Glass Flask | Jacketed, equipped with sight glassand insulation ball valve | ||||||
Volume(L) | 10L/5L | 20 | 20 | 50 | |||||
Light Component Receiving Vessel | Type | Glass Flask | Single-layer, equipped with sight glassand insulation ball valve | ||||||
Volume(L) | 10L/5L | 20 | 20 | 30 | |||||
Pipeline for Material | Jacketed Insulation | ||||||||
Support Frame | 304 Stainless Steel | ||||||||
Model | SWF-10 | SWF-20 | SWF-30 | SWF-60 | ||||
Estimate Throughput of Ethanol Evaporation (L/h) | 50 | 100 | 150 | 300 | ||||
Feeding Vessel | Feeding Pump | Gear pump（variable frequency） | ||||||
Power（W） | 750 | 1500 | ||||||
Speed（L/h） | 30~150 | 80~260 | 100~350 | 200~600 | ||||
Preheating | Preheater type | Shell and tube type | ||||||
Heat exchange area（㎡） | 1.5 | 2 | 3 | 3 | ||||
Evaporator | Wiper Style | Scraper/roller type | ||||||
Material | SUS316L | |||||||
Evaporation Area (㎡） | 1 | 2 | 3 | 6 | ||||
Sealing Type | Magnetic Sealing | Machinery Sealing | ||||||
Stirring Power（Kw） | 1.5 | 3 | 4 | 5.5 | ||||
Motor Type | variable frequency | |||||||
Heavy Component Receiving Vessel | Buffer Tank type | Jacketed tank ，equiped with level transmitter | ||||||
Buffer Tank Volume （L） | 50 | 50 | 50 | 100 | ||||
Discharge pump | Gear pump（variable frequency） | |||||||
Power（W） | 750 | 1500 | ||||||
Speed（L/h） | 30~150 | 80~260 | 100~350 | 200~600 | ||||
Light Component Receiving Vessel | Buffer Tank type | Jacketed tank ，equiped with level transmitter | ||||||
Buffer Tank Volume （L） | 50 | 50 | 50 | 100 | ||||
Discharge pump | Gear pump（variable frequency） | |||||||
Power（W） | 750 | 1500 | ||||||
Speed（L/h） | 30~150 | 80~260 | 100~350 | 200~600 | ||||
Weight & Size | Size（mm） | 3600*850*5000 | 3600*850*5500 | 3850*1100*5300 | 4800*1300*7000 | |||
Weight（Kg） | 2400 | 2900 | 3400 | 6000 | ||||

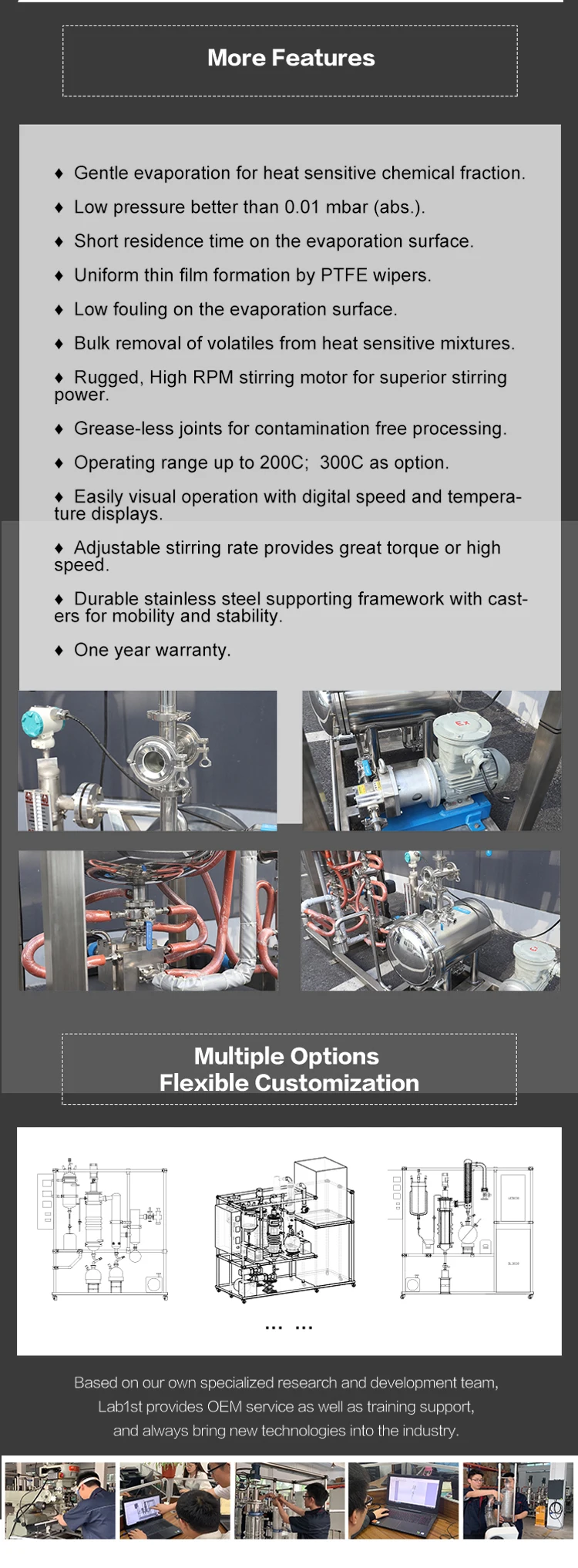

Product Feature
