Product Overview
Description
Product Overview

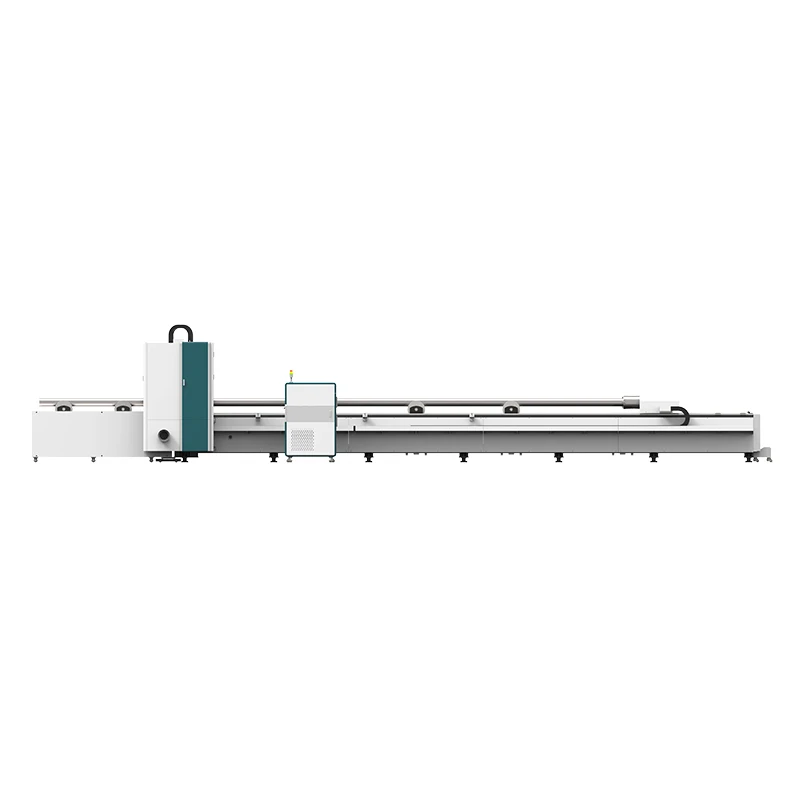

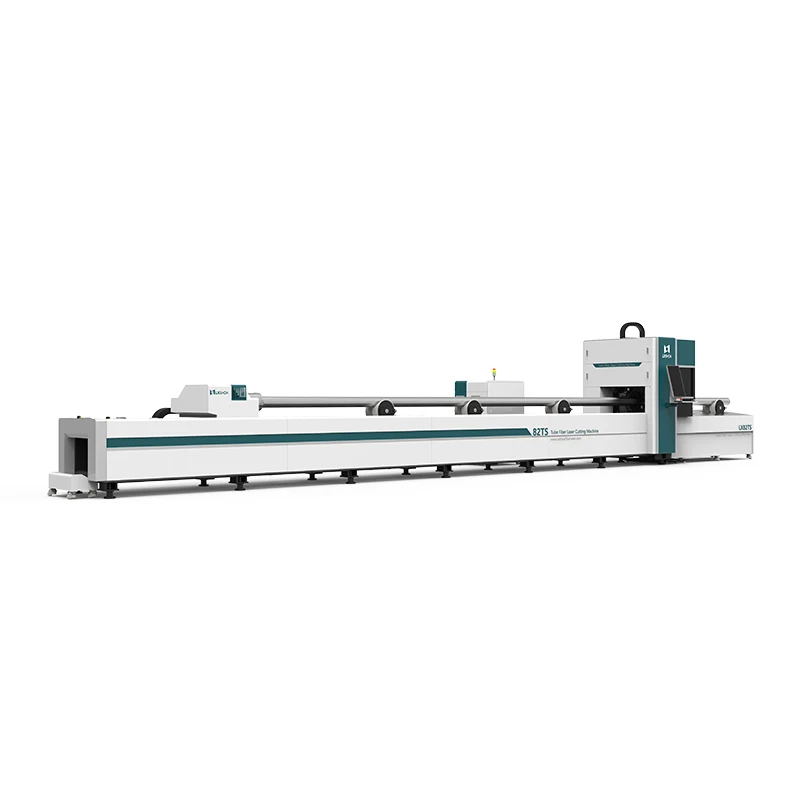

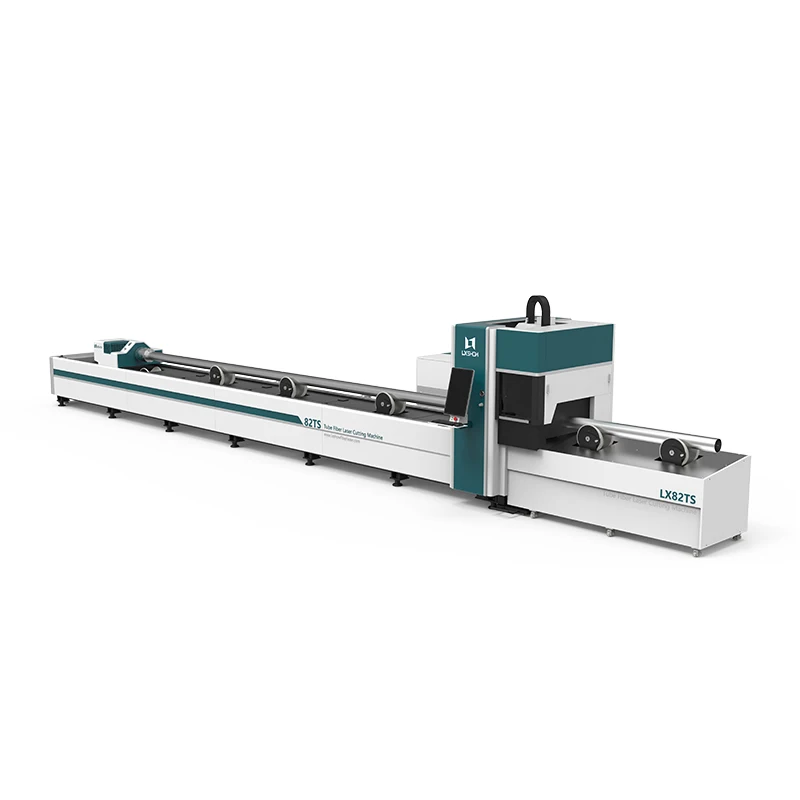

LX82TS 1000-3000W Metal Tube Fiber Laser Cutting Machine
FEATURES AT A GLANCE
Machine Model | LX82TS |
Power of Generator | 1000-3000W |
Dimension | 11340*1560*1615mm (About) |
Clamping Range | Φ20-Φ220mm(320/350mm can be customized) |
Repeated Positioning Accuracy | ±0.02mm |
Specified Voltage And Frequency | 380V 50/60HZ |
PRODUCT CONFIGURATION

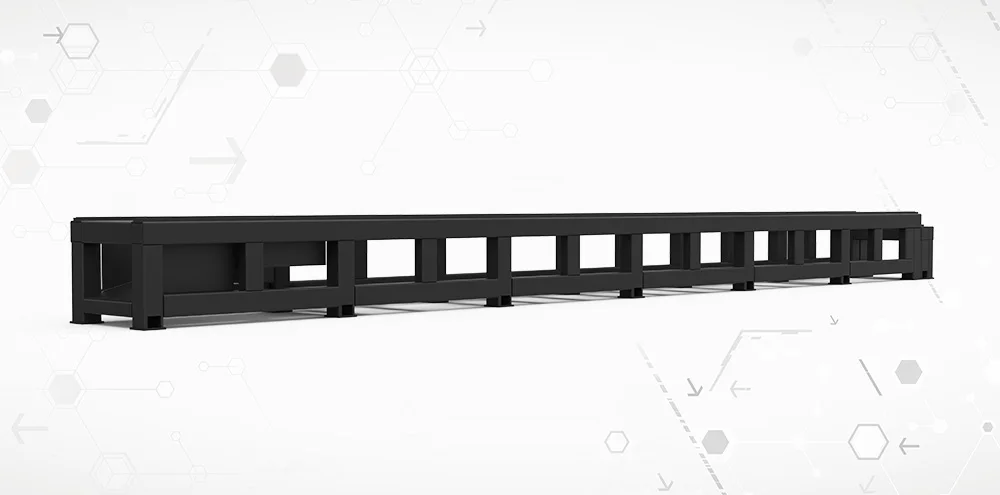

The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

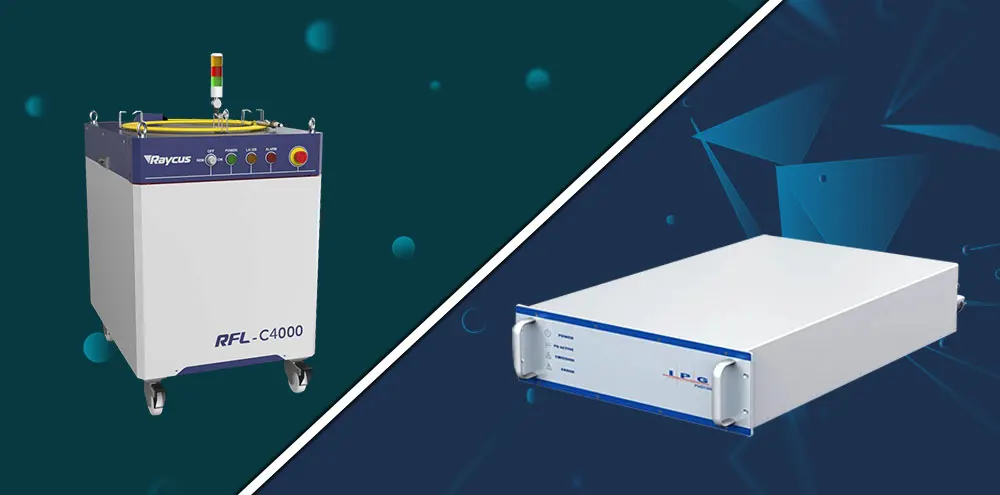

Suitable Power:1000-3000w(4000w optional)
Brand:IPG/Raycus/MAX/JPT/Nlight
Brand:IPG/Raycus/MAX/JPT/Nlight

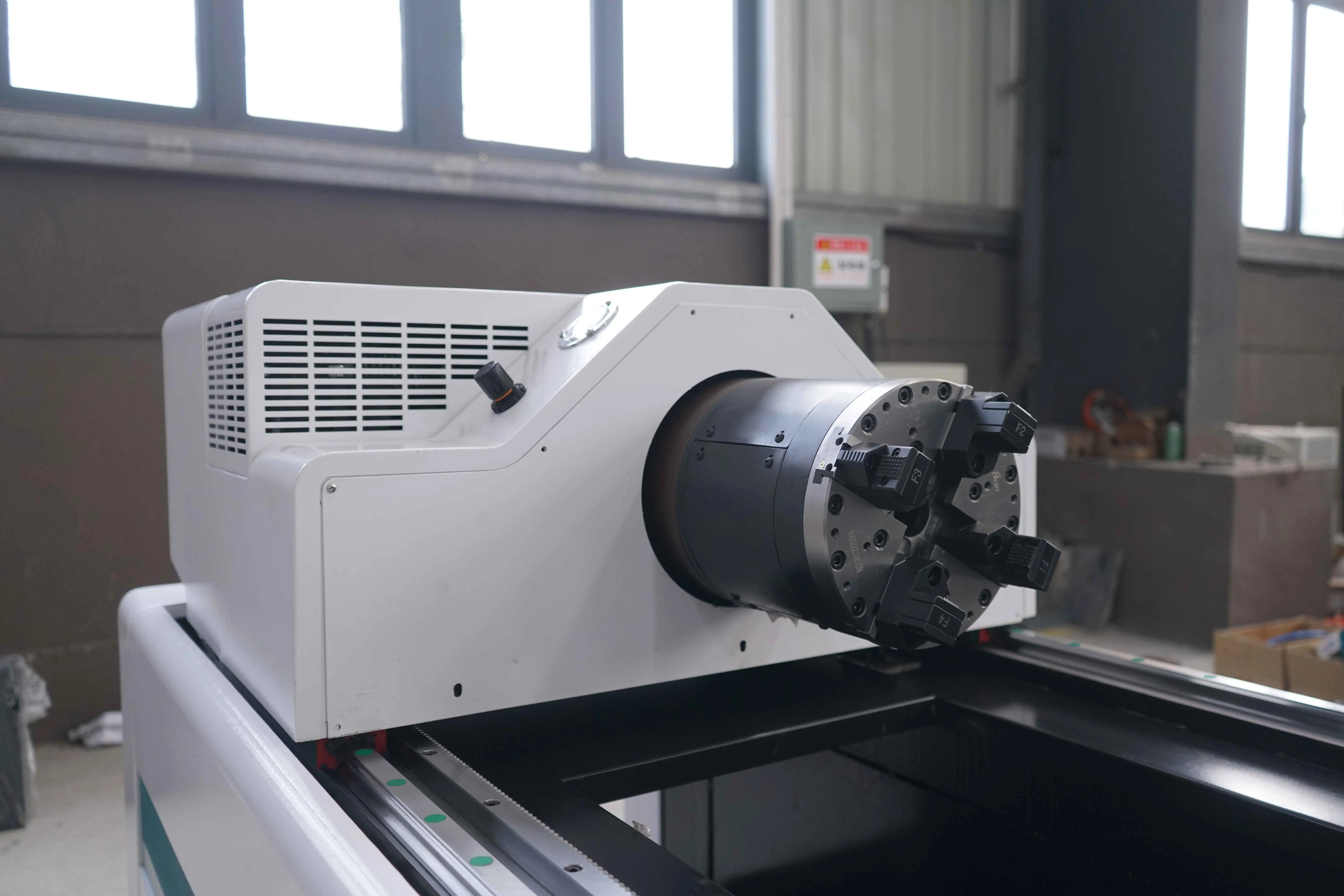

Pneumatic Chuck Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

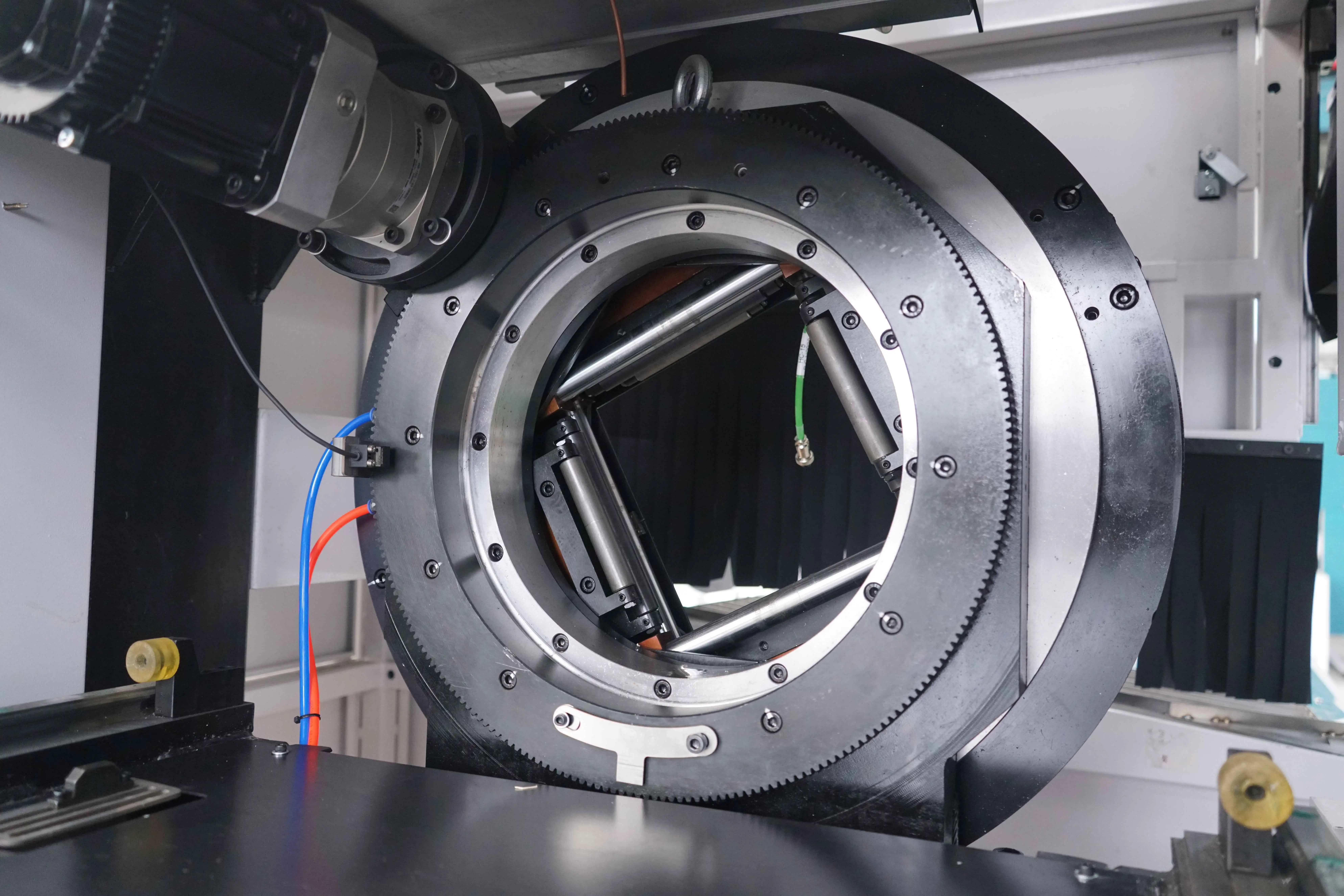

Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Independent Control Cabinet
Dust-proof
* All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
* The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
* All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
* The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

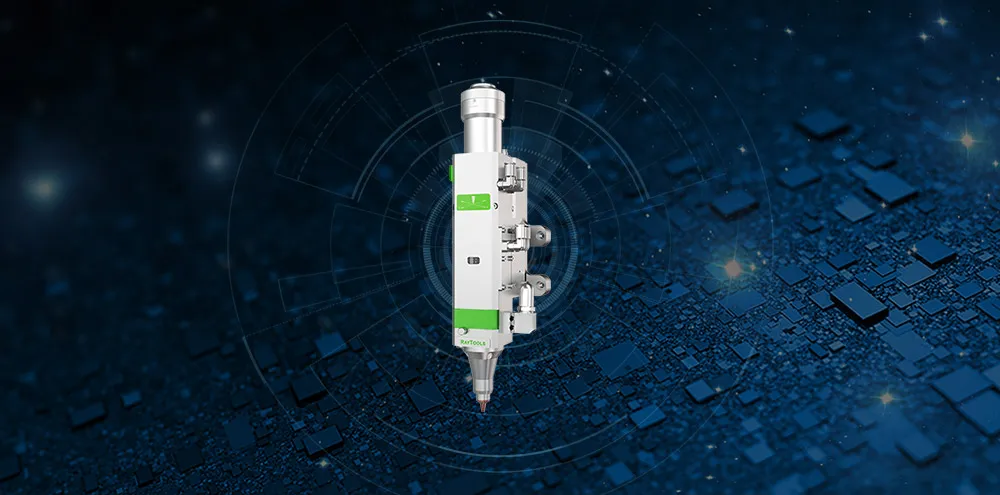

BM109 tube cutting and cutting series is an automatic focusing tube cutting fiber cutting head launched by Swiss RAYTOOLS AG in 2019. The product is equipped with a slender TRA component and a slender nozzle, which can adapt to any complicated pipe cutting product working conditions, and has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within a range of 17mm. The user can set it through the program Fixed and continuous focusing, complete quick perforation and automatic cutting of pipes of different thicknesses and materials; this product is equipped with D28 compound lens group to integrate the beam, and the optimized optical and water-cooled design enables the laser head to work continuously and
stably for a long time.
stably for a long time.
Cost Analysis
Laser Power | Assisted gas consumption | Option 1:Using air compressor Cutting Stainless Steel | Option 2:Using O2 compressor Cutting Stainless Steel | Option 3:Using N2 compressor Cutting Stainless Steel | ||||
1000W | Power Consumption | Laser Power | 4KW | 4KW | 4KW | |||
Water Chiller Group | 2.8KW | 2.8KW | 2.8KW | |||||
Host Machine | 5.4KW | 5.4KW | 5.4KW | |||||
Dust Exhausting Equipment | 0.75KW | 0.75KW | 0.75KW | |||||
Consumable Part | 2 RMB/h | 2 RMB/h | 2 RMB/h | |||||
Gas Consumption | 15×85%=12.75KW | 20L/h(6RMB) | 40L/h(32RMB) | |||||
Total Power | 15.2KW | 15.2KW | 15.2KW | |||||
Average Power Consunption(Take 80% Cutting Effciency) | 15.2×80%=12.16 | 15.2×80%=12.16 | 15.2×80%=12.16 | |||||
All Cost | 12.16+12.75+2=26.91RMB/h | 12.16+6+2=20.16RMB/h | 12.16+32+2=46.16RMB/h | |||||
What materials can be cut?
1.Carbon Steel2.Stainless Steel
3.Aluminum
4.Metals
5.Brass
6.Iron
7.Galvanized
3.Aluminum
4.Metals
5.Brass
6.Iron
7.Galvanized

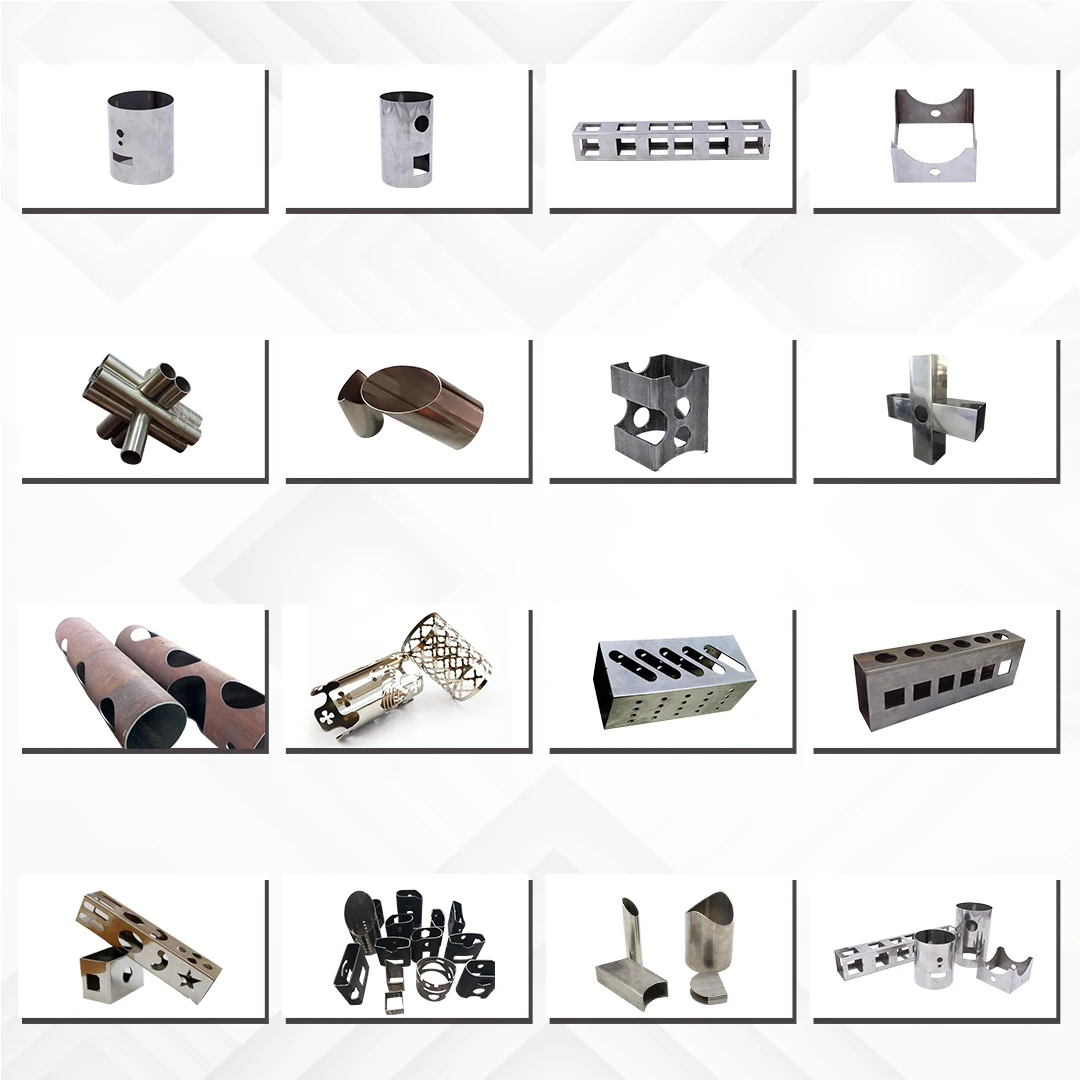

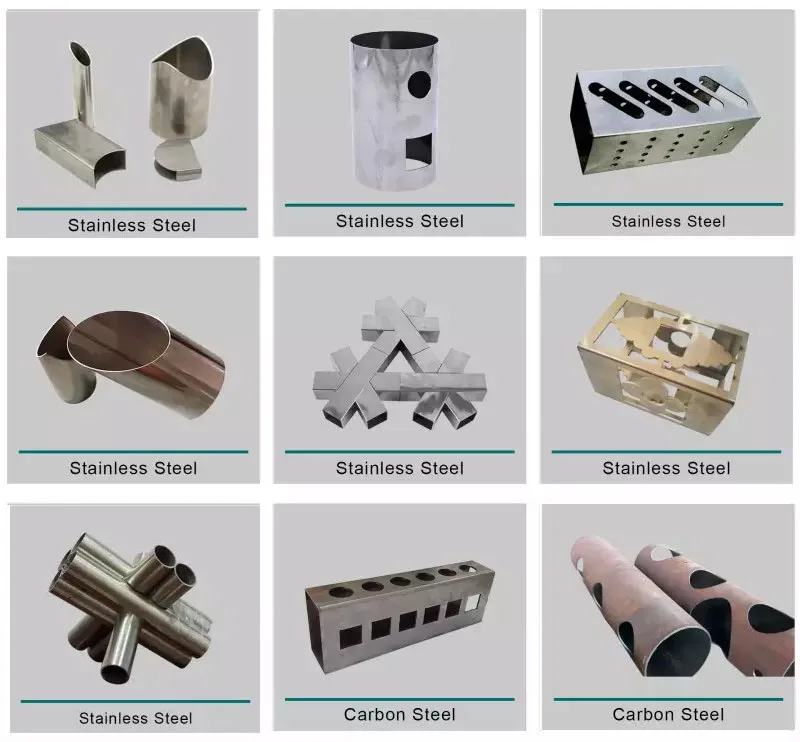

What is the cutting effect？Please refer to the pictures.
FACTORY SCENE
We have our own production factory, which can guarantee to provide you with products at the best price.
Design, Sales, Production, After-sales Service Team
