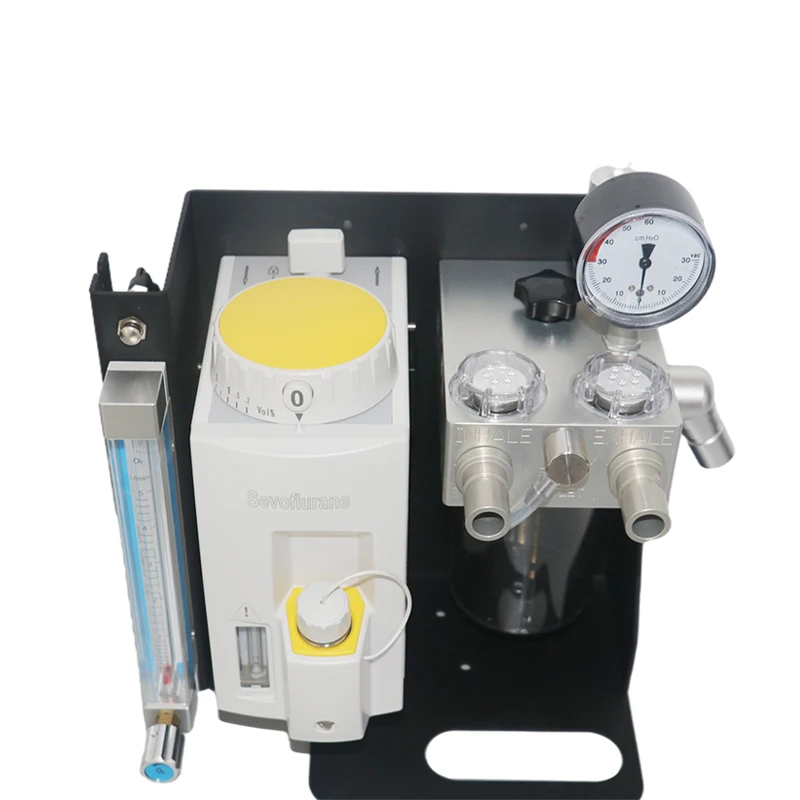

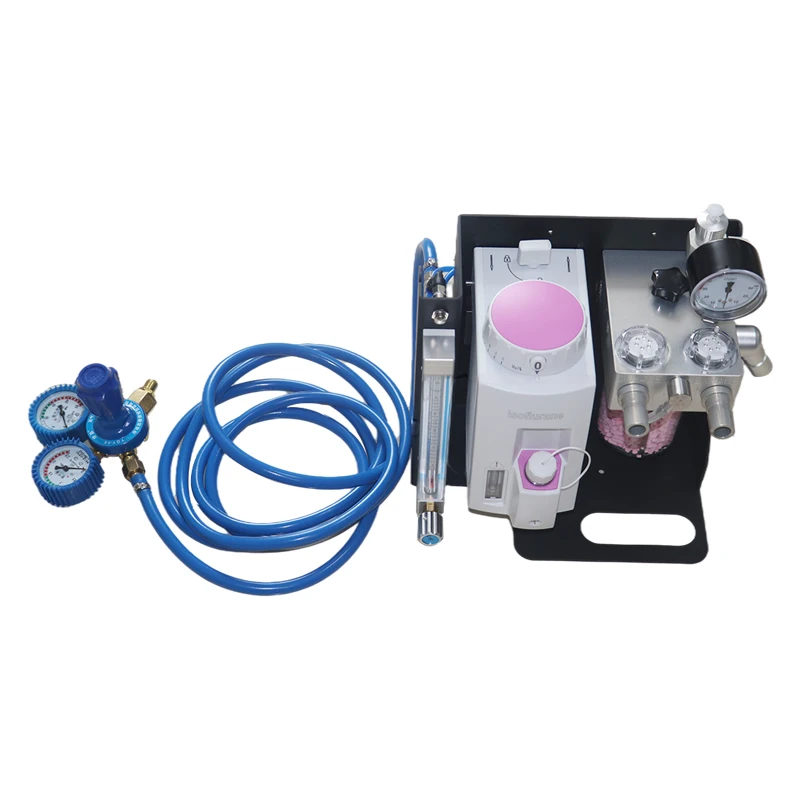

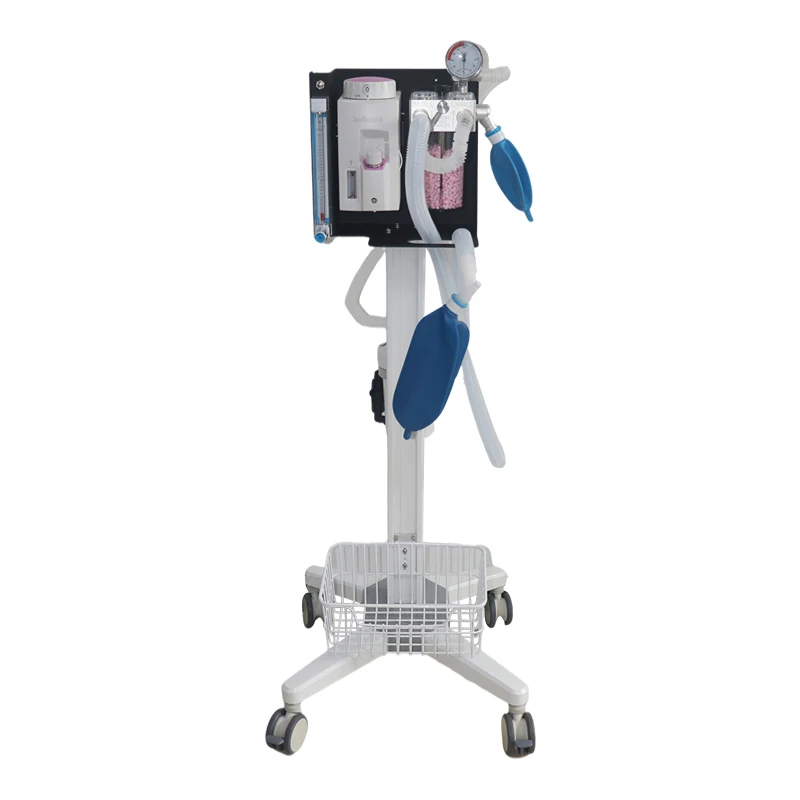

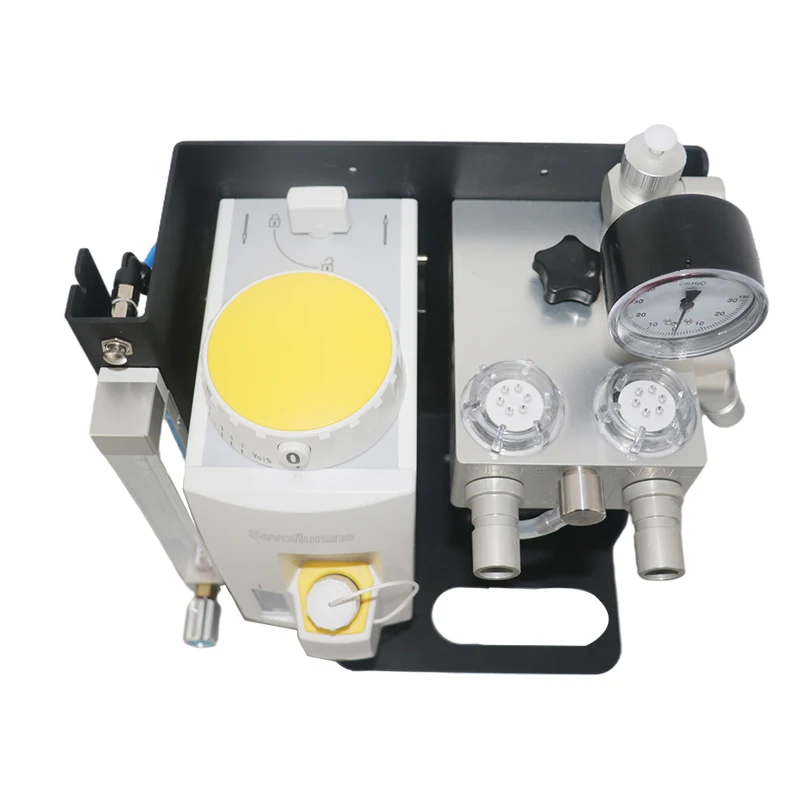

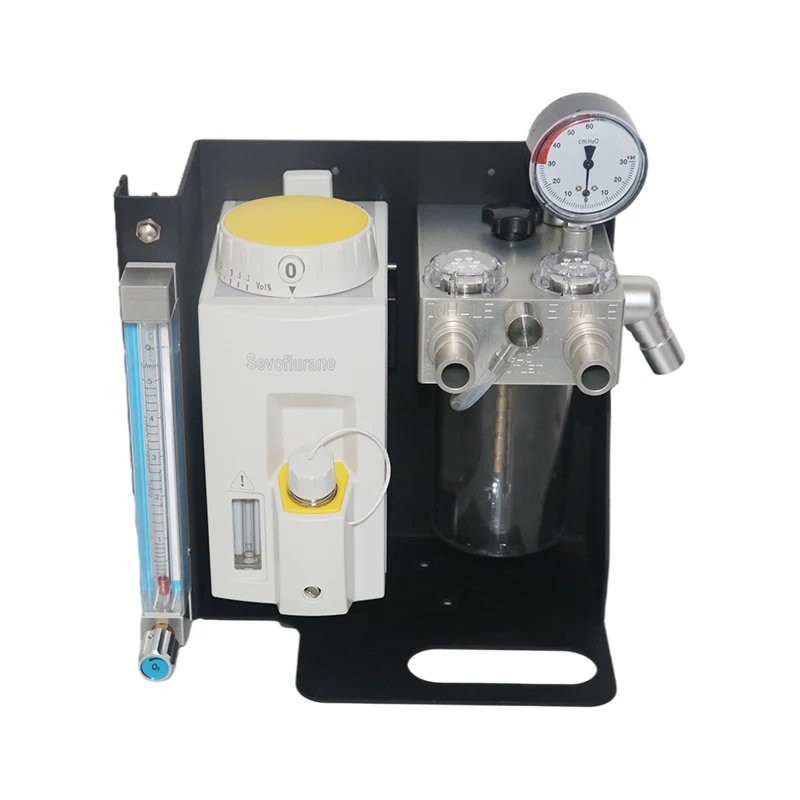

MRI compatible anesthesia Machine for Vet Portable Professional Veterinary Inhalation Anaesthesia Machine

Technical Specification

Application

0.5-100kg animal

Ventilation mode

Closed,half-closed,half-open

Tidal volume

10-2000ml

Oxygen source pressure

0.25~0.65Mpa

Airway pressure scope

030~60CMH2O

Flow Control

0-4L/min

Oxygen Flush

35L/min~75L/min

Pop adjust scope

Directs the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.

Inspiration impedance

no more than 0.6Kpa

Expiration impedance

no more than 0.6Kpa

Absorption tank capacity

700ml

Monitoring

Airway pressure,Gas source pressure monitoring

I:E

As doctor need

BPM

As doctor need

Configuration list

Main unit

1

Include the flowmeter,CO2 absorber,selectatec bar,chassis,oxygen flush

Anesthesia Vaporizer

1

Isoflurane,Halothane,Sevoflurane, Enflurane

With temperature, flow and pressure compensation

Breathing circuit

1

Gas airbag0.5L,1L,3L

3

Reusable Silicon pipeline

1

22×1000

Oxygen hose

1

Y-connector

1

With pressure differential sampling connector

Trolley

Optional

Regulator

Optional

Anesthesia ventilator

Optional

Model:DAV80V or DAV60V

Anesthesia monitor

Optional

Anesthesia monitor

Non-Breathing circuit

Optional

Veterinary Mask

Optional

DAM80

Laryngoscope

Optional

Endotracheal intubation

Optional

Exhaust gas recovery tank

Optional

DE0602
