High quality small plastic crusher (Powerful QL 300A)
- Category: >>>
- Supplier: Hangzhou Hengli Plastic Machinery Co. ltd.
Share on (1600415301522):
Product Overview
Description
Small crusher machine for plastic QL series of powerful crushers is a powerful crusher with multiple applications. Its main function is to crush all kinds of hard and soft plastics, grind block or strip shaped and outlet plastic into granules. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.
It can be installed beside the main machine to crush recycled materials during the operation of the main machine. It can also be used to crush centralized materials collected from a production line.
Product Description
Features of small crusher machine for plastic
1) Strong structure, easy to operate, low electricity consumption & durable
2) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions
3) The blades can be grinded for many times and can be used repeatedly
4) Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable
5) With flat type, claw type and cross type blade and screen with different hole size for chose to suit various demand
6) With double reduce noise layer design to reduce noise output

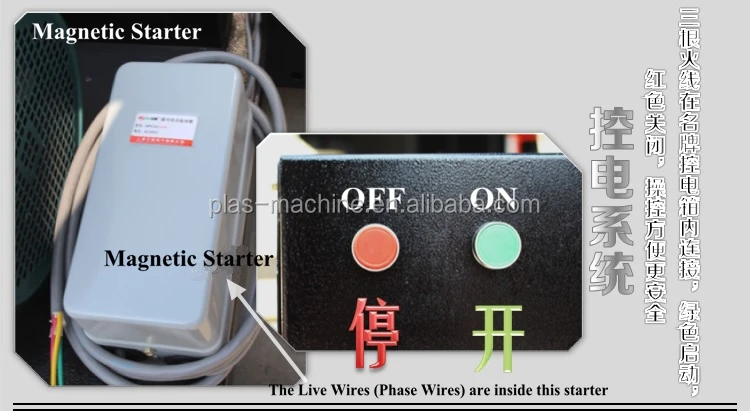

7) Has protection system with the power supply to ensure the equipment safe
8) Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily
9) Necessary for the plastic extrusion machines and other plastic recycling industry

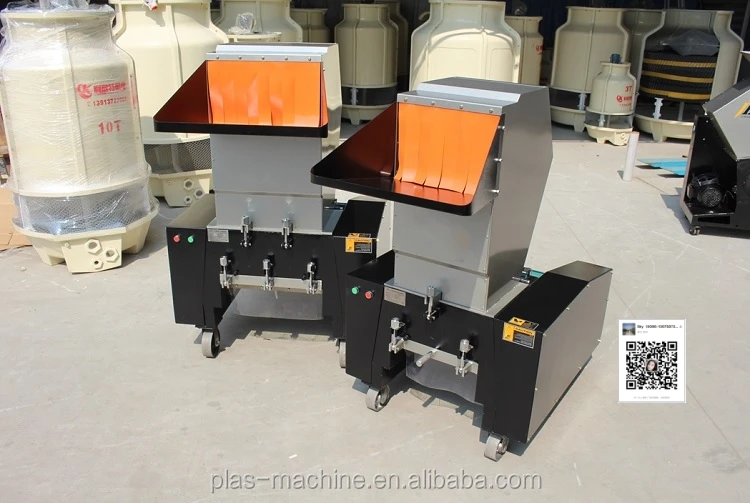

Pictures of plastic crusher

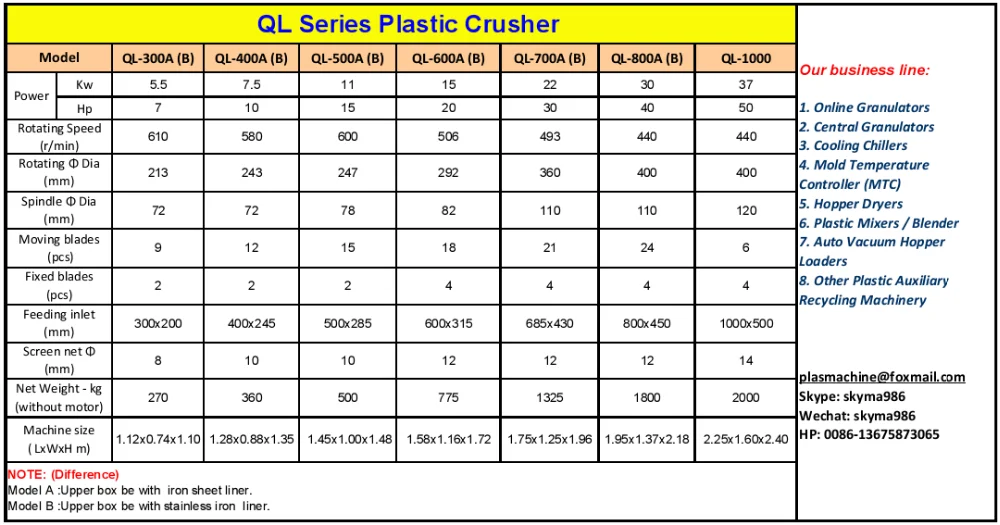

| SPECIFICATION QL series Plastic Granulator | ||||||||
| Model | QL-300 | QL-400 | QL-500 | QL-600 | QL-700 | QL-800 | QL-1000 | |
| Power | Kw | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Hp | 7 | 10 | 15 | 20 | 30 | 40 | 50 | |
| Rotating Speed (r/min) | 610 | 580 | 600 | 506 | 493 | 440 | 440 | |
| Rotating Φ Dia (mm) | 213 | 243 | 247 | 292 | 360 | 400 | 400 | |
| Spindle Φ Dia (mm) | 72 | 72 | 78 | 82 | 110 | 110 | 120 | |
| Moving blades (pcs) | 9 | 12 | 15 | 18 | 21 | 24 | 6 | |
| Fixed blades (pcs) | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |
| Crushing ability (kg/h) | 150-200 | 250-400 | 300-500 | 500-600 | 600-700 | 700-800 | 900-1000 | |
| Feeding inlet (mm) | 300x200 | 400x245 | 500x285 | 600x315 | 685x430 | 800x450 | 1000x500 | |
| Screen net Φ (mm) | 8 | 10 | 10 | 12 | 12 | 12 | 14 | |
| Net Weight - kg | 300 | 430 | 550 | 800 | 1325 | 1800 | 2000 | |
| Machine size ( LxWxH m) | 1.07x0.72x1.08 | 1.29x0.86x1.18 | 1.37x1.00x1.39 | 1.54x1.15x1.66 | 1.75x1.25x1.96 | 1.95x1.37x2.18 | 2.25x1.60x2.40 | |

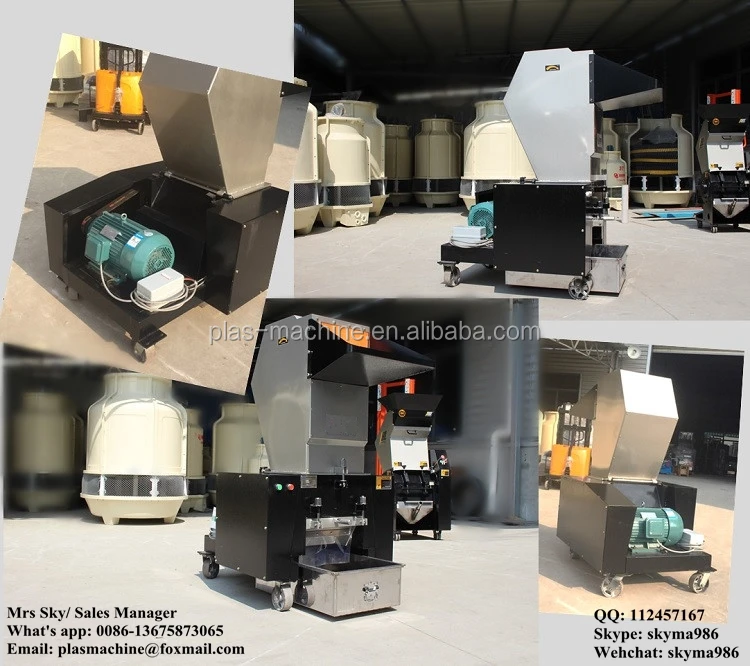

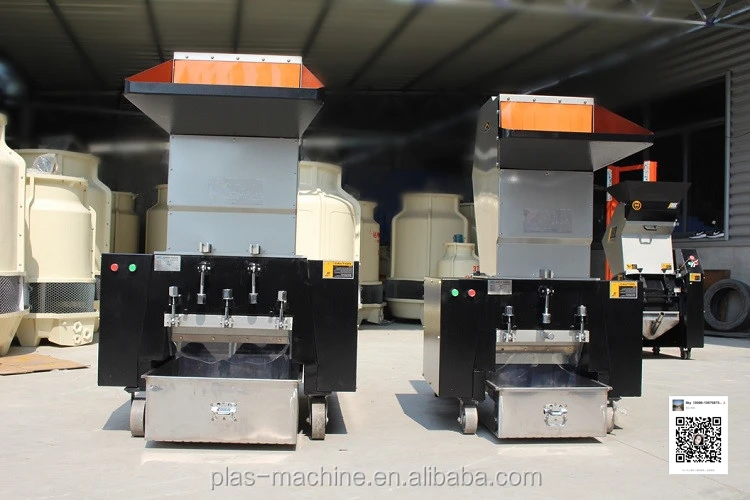

Below is plastic crusher base machine

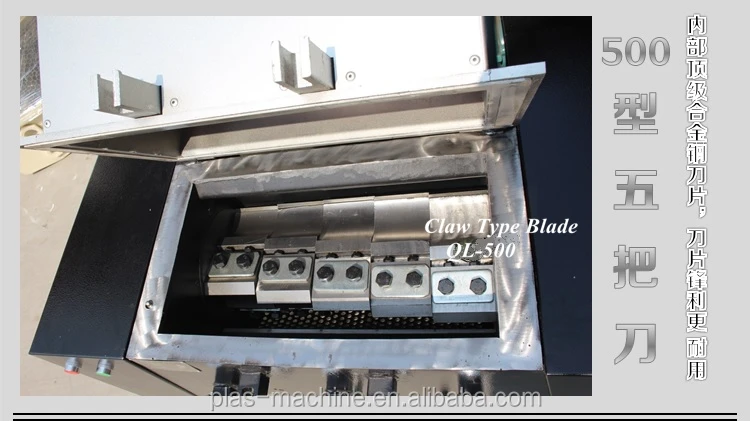

Claw blades type

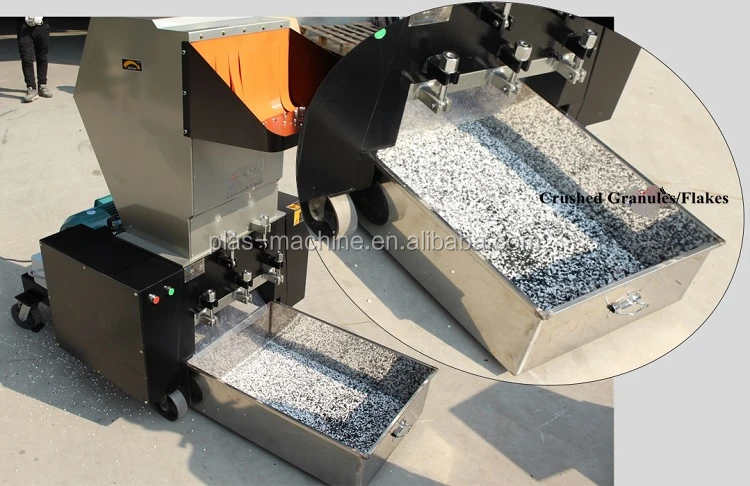

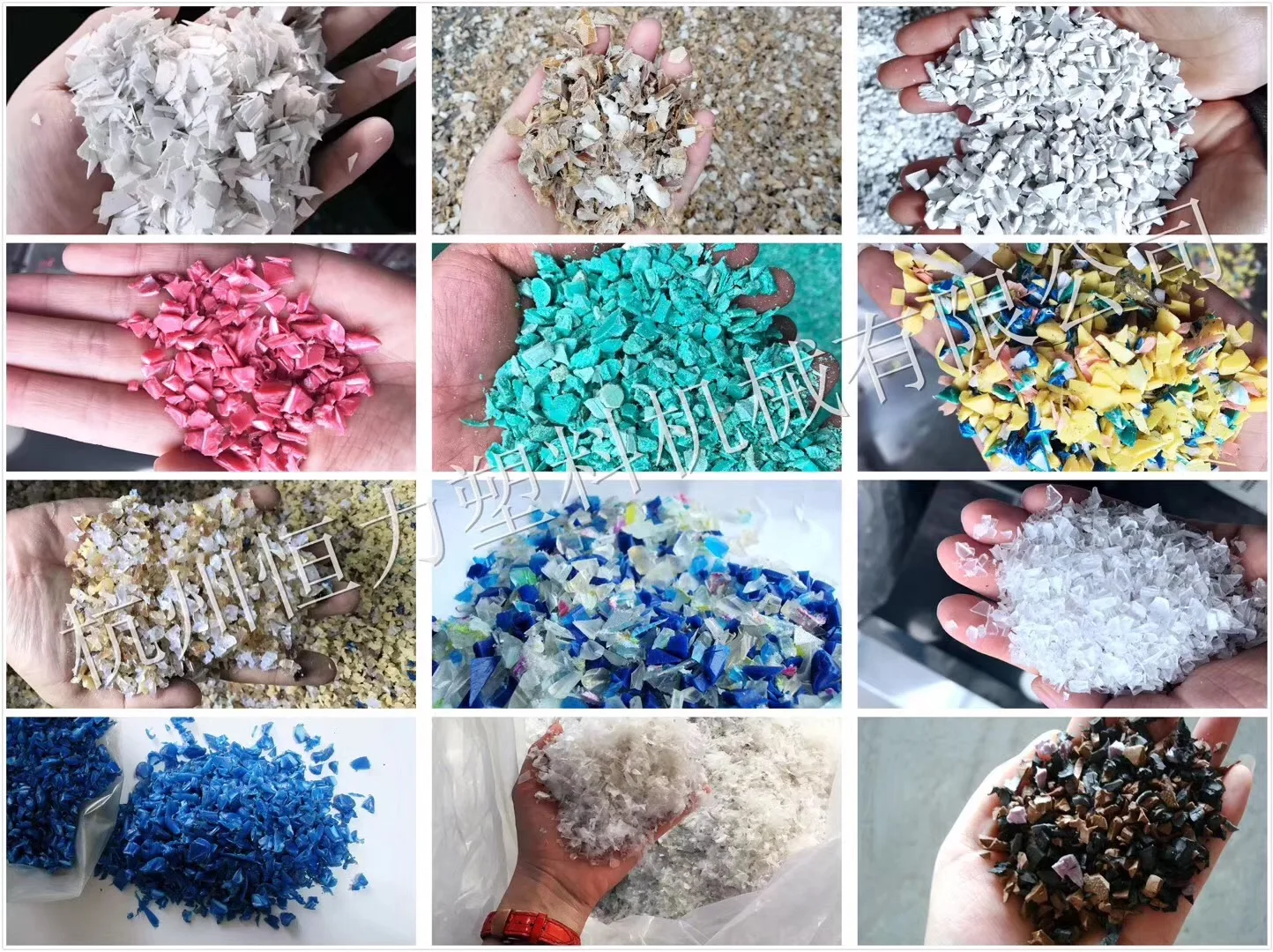

Before and after

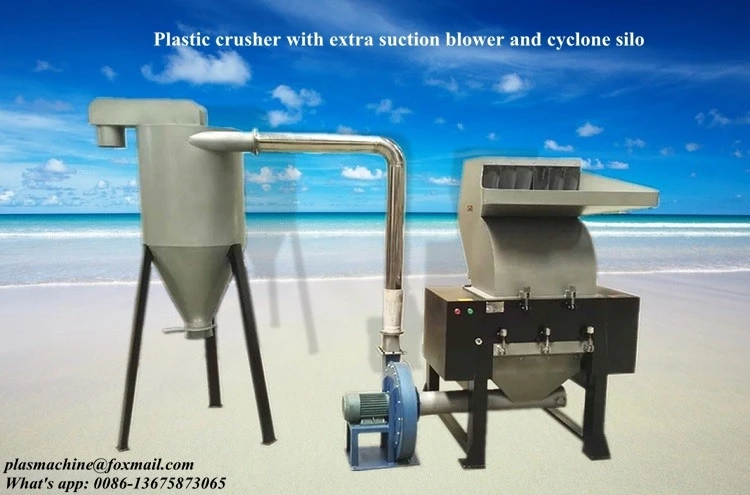

Below is plastic crusher with blower & cyclone silo
Company Information
About us
Hangzhou Hengli Plastic Machinery Co., Ltd. is a professional manufacturer of auxiliary equipment for plastic Injection, Mold and Extrusion machines, and we have been in the plastic machine field for almost three decades, specialized in Plastic granulator, Hopper dryer, Plastic dehumidifier ,Plastic Mixer, Vacuum Autoloader, Plastic granulator,Cooling chillers,Mold Temperature Controller and so on.
Clients' continuous recognition and confidence in our products not only enriched our product range and also accelerated growth of our company. "Contributing to the World through high quality and low cost" it is our goal. This is made possible by more than 25 years of profound experience and plastic field.
