Mini 4g Router Board LTE Portable Wifi Router PCBA with Sim Card Slot 4G 2 LAN Small Module for Iot Dual Camera Monitor
- Category: >>>
- Supplier: Habolink Technology Co. Ltd
Share on (1600415327740):
Product Overview
Description
Products Description
Mini 4g Router PCB Lte Portable Wifi Router Circuit Board with Sim Card Slot 4G Small Module for Iot Camera Monitor
4G Communication Module of AF790DAF790D of dual port 4G module is the same size as single network port module, which is suitable for use scenarios requiring two network interfaces. Besides supporting two network interfaces, it also supports RX and TX serial interfaces of one TTL level interface. Serial interface is convenient for low-speed use scenarios.
Product Characteristics | Descriptions |
Power Supply Voltage | Wide voltage input，DC[4.7V---18V] |
Power Waste | Normal Operation Power <1.5W; Peak Value: 400mA@12V |
Power Interface Form | 1.25mm spacing socket horizontal 4Pin |
Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 TDD LTE: B38/B39/B40/B41 TDSCDMA: B34/B39 WCDMA: B1/B5/B8 |
Rate | LTE-FDD： Max 150Mbps(DL) Max 50Mbps(UL) LTE-TDD： Max 130Mbps(DL) Max 35Mbps(UL) DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL) UMTS： Max 384Kbps(DL) Max 384Kbps(UL) TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL) |
WIFI Standard | 802.11b/g/n |
Network Interface | 2-way，10/100M adaptive，auto MDI/MDIX |
Network Interface Form | 1.25mm wafer socket horizontal 4P |
Wireless Network Antenna | DL MIMO supports Rx-diversity |
WIFI Antenna | 2.4G |
Antenna Interface Form | IPEX Generation 1 |
USIM/SIM | NANO card （minimum card） |
Serial Port Mode | RX,TX of TTL standard |
Serial Communication Mode | TCP or UDP client mode |
Maximum Data Of Serial Port | 1024 Byte |
Working Temperature | -20°C－+70°C |
Working Humidity | 10%－95%RH |
Storage Temperature | -40°C－+85°C |
Size | 51mm*38mm |
Installation Hole Position | 34mm*34mm |

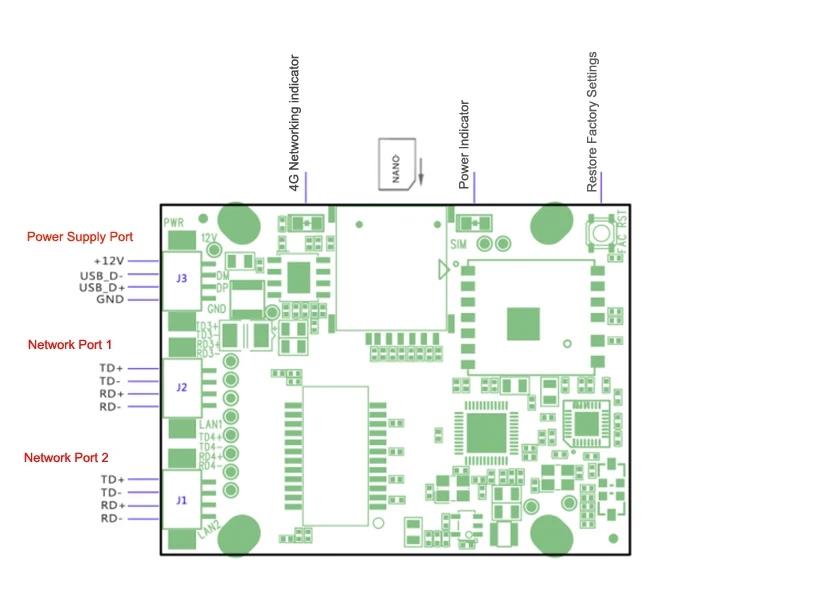

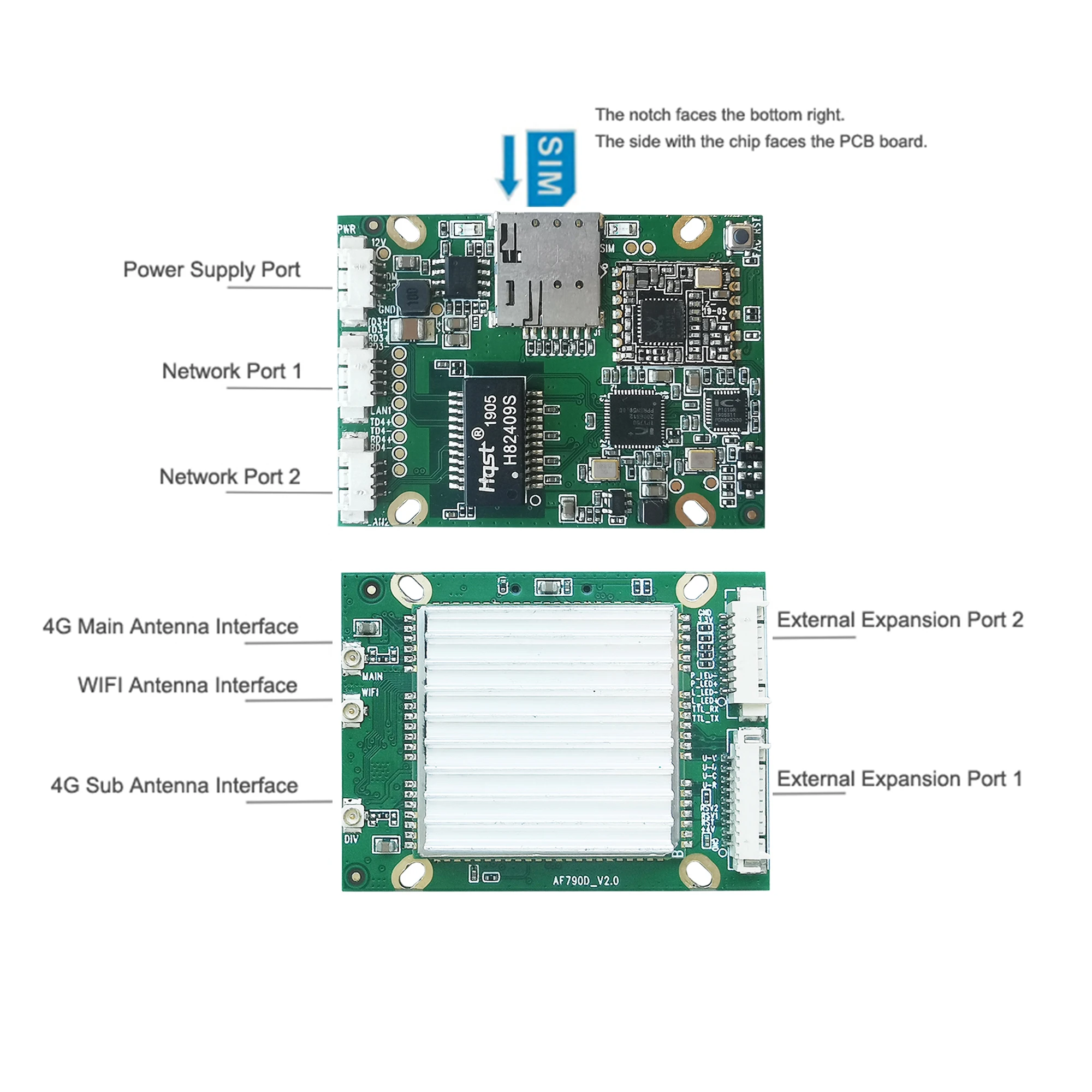

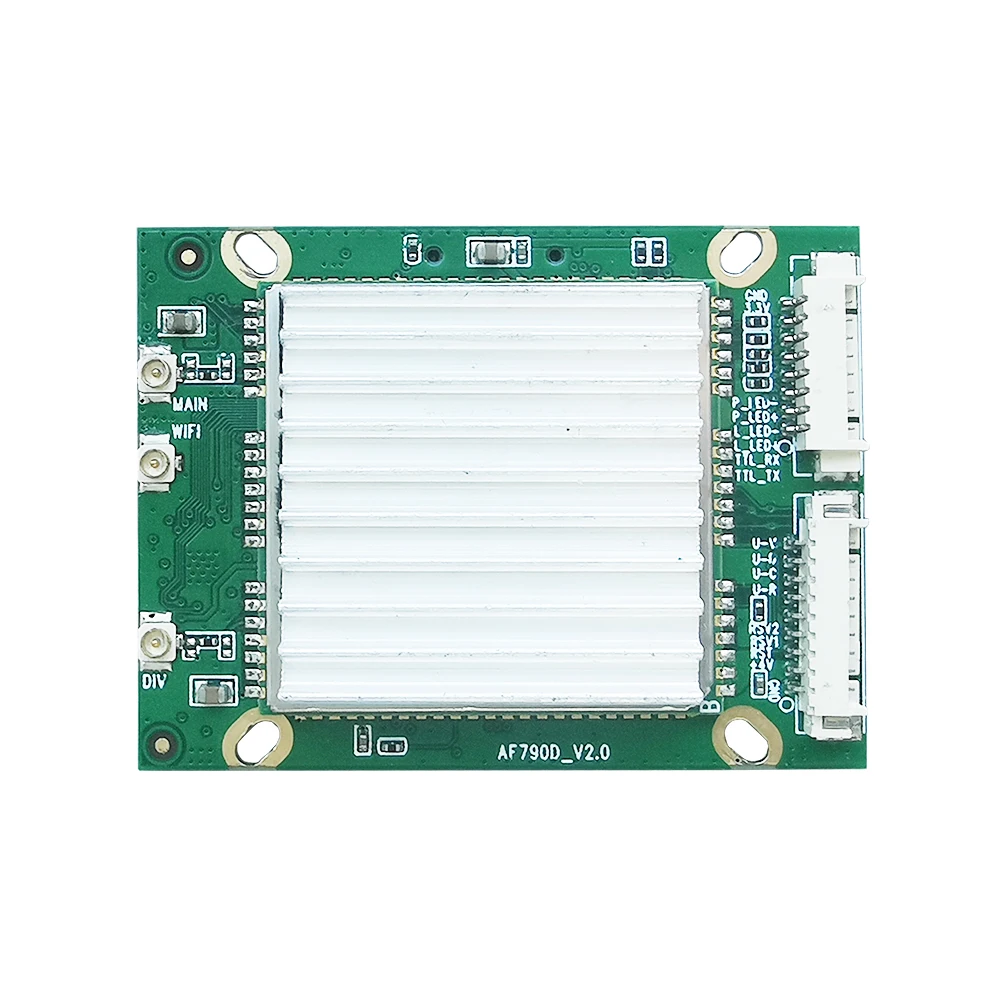

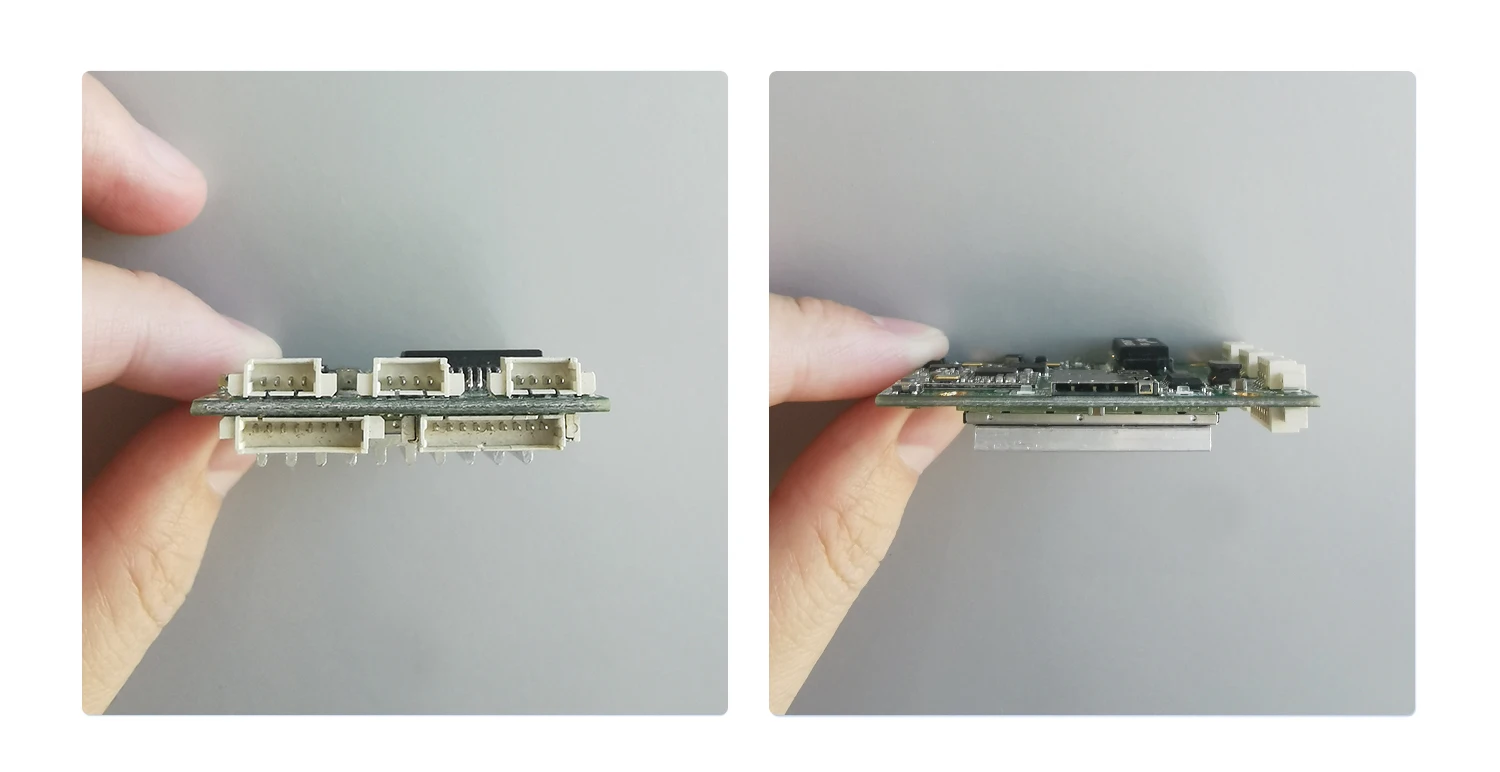

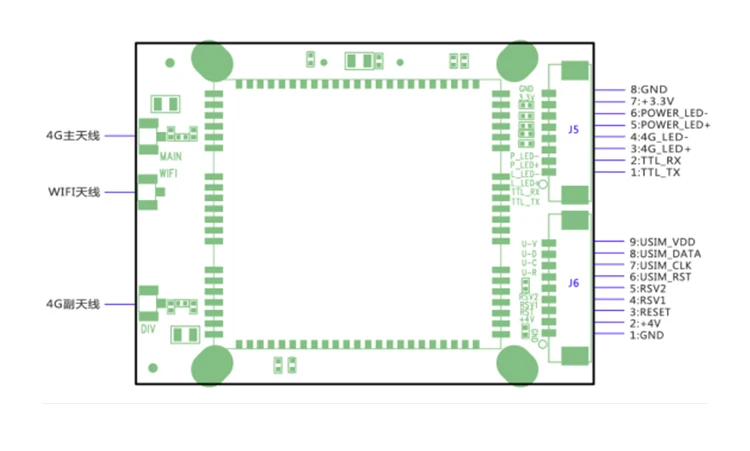

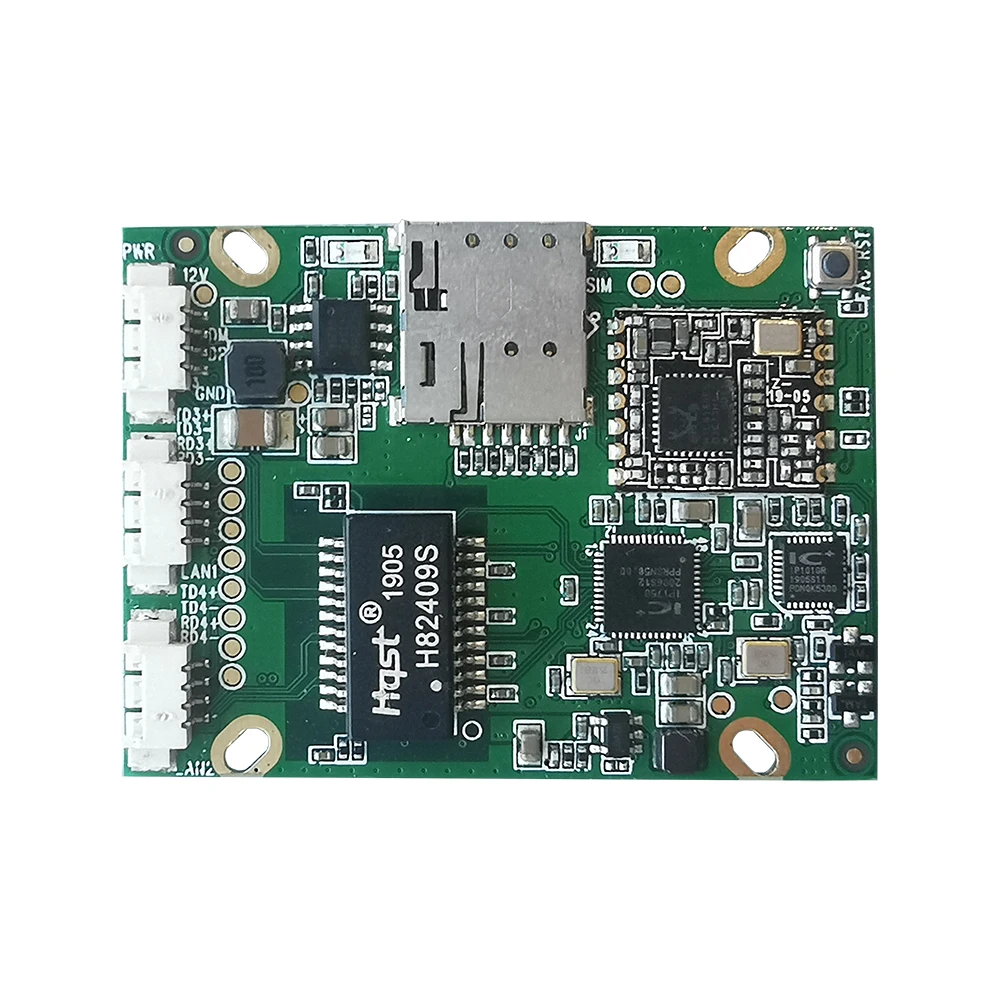

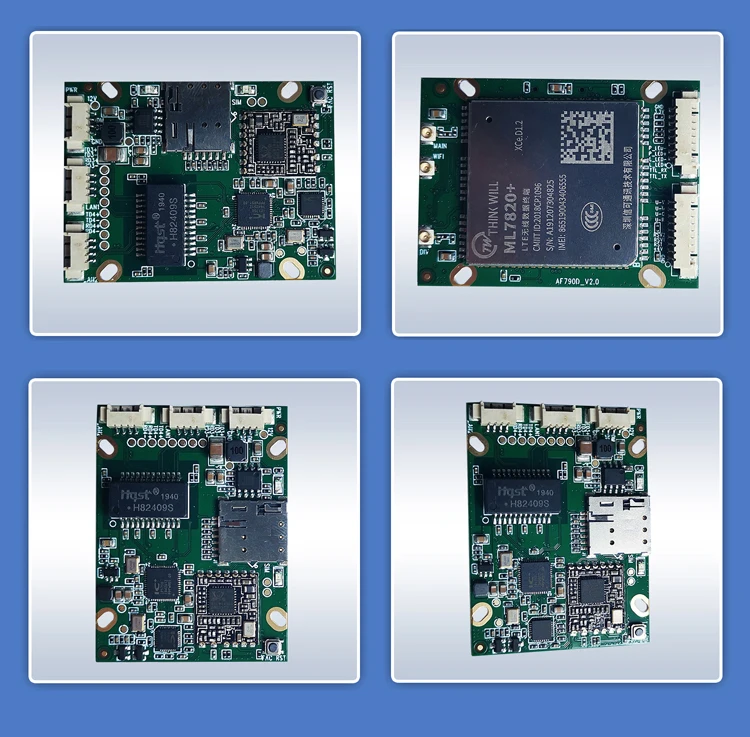

Details Images
Product application
Production Process

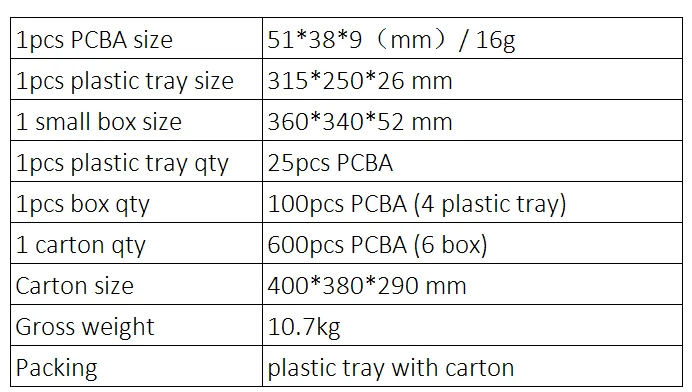

Product packaging
Shipping
Shipping we are so professional !!!!
Ocean Sea Shipment: Loading Container for Bulk Cargo.
Air Shipment: Try Order/ Small Order.
Lead Time:
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Trade Term:
FCA/FOB SHENZHEN /GUANGZHOU
Payment Terms:
30% T/T as deposit should be paid before production ,70% T/T should be paid before delivery after inspection.
Company Profile
Habolink Technology Co.,Ltd. is a wireless communication solution provider, boasting rich experiences in functional wireless IoT modules & solutions, and providing all-around quality assurance in each and every step. Our products have been widely used in IoT/M2M fields including wireless gateways & routers, video surveilance, smart energy, agriculture and environment monitoring etc.
